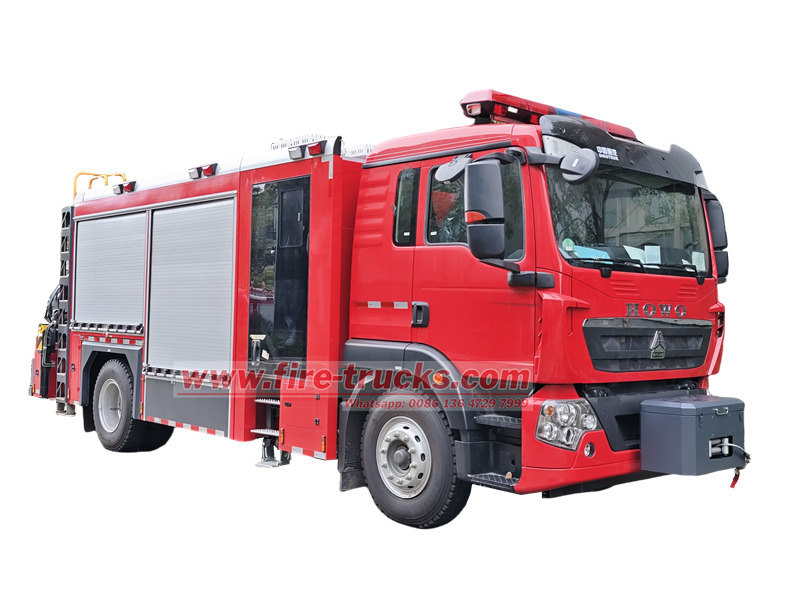

HOWO Heavy Rescue Fire Truck is built on the SINOTRUK ZZ1187K501 chassis and powered by a 350 HP engine, with a maximum speed of 95 km/h. It is equipped with a XCMG 5-ton hydraulic crane, a 12-ton traction winch, a 12 kW generator set, and four lifting lamps providing illumination at a height of up to 13 meters. With a capacity for six crew members, it is suitable for emergency response in road rescues, natural disasters, and building collapses.
Manufacturer Origin:
Powerstar TrucksWork capacity :
5000 kgUpper Body material:
Carbon steelProduction time:
60 daysWheelbase:
4700 mmAxle drive:
8×4Engine Power:
350 HPEngine Model:
MC07H.35Fire Pump:
OptionalFire Monitor:
OptionalRemark:
tanker material PP, 4X4, 6X6 drive, RHD drive is optionalHOWO Heavy-Duty Emergency Rescue Fire Truck is a specialized rescue vehicle built on the SINOTRUK HOWO ZZ1187K501 chassis. It features a 4×2 drive configuration, powered by an MC07H.35 350 HP diesel engine and a 10-speed transmission, achieving a maximum speed of 95 km/h and a gross vehicle weight of 14 tons, combining mobility with strong load-bearing capacity. The cab is designed with a single-row driver’s compartment and an independent crew cabin, accommodating six personnel comfortably and enabling efficient operation for emergency rescue missions in various disaster scenarios.
To meet practical rescue needs, the HOWO rescue fire truck is equipped with extensive professional rescue equipment: a XCMG SQZ105D hydraulic crane at the rear enables lifting of 5 tons and operations at heights exceeding 8 meters; a 12-ton electric winch at the front meets traction and towing requirements. Furthermore, the vehicle comes with a built-in 12-kilowatt generator to power various rescue tools; and a lifting lighting system provides 4 x 1000W of high-intensity illumination at a height of 13 meters, covering a large operating area. These features enable the vehicle to effectively respond to a variety of dangerous situations, including traffic accidents, building collapses, and natural disasters.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
★ Built on SINOTRUK HOWO heavy-duty chassis, with excellent load-bearing capacity
★ Equipped with SINOTRUK engine & gearbox, provide strong power
★ Large storage space and high load capacity
★ Easy operation and easy maintenance
★ Equipped with a variety of rescue equipment, enabling the execution of different rescue missions.
HOWO Emergency Rescue Fire Truck is a specialized firefighting and rescue vehicle designed to respond to various emergencies and disasters. It is equipped with multiple functions, including lifting, self-rescue/towing, obstacle clearance, power generation, and lighting. The vehicle carries a wide range of firefighting and rescue tools and equipment, such as breaking and cutting devices, detection and inspection instruments, leak-plugging tools, and protective device. It is widely used by fire departments and emergency response teams to handle natural disasters, sudden incidents, rescue operations, and other critical scenarios.
» Ⅱ.Product Parameter for HOWO heavy rescue firefighting truck:
HOWO 4×2 Medium Rescue Fire Truck Specifications |
||
Chassis model |
SINOTRUK HOWO |
|
Cab |
HOWO double row cab, with power steering. Electronic flameout, with a/c |
|
Driving Type |
4*2 Left hand driving |
|
Max Speed (km/h) |
95 |
|
Overall dimension(mm) |
9100×2550×3550mm |
|
GVW ( kg) |
14000 |
|
Curb weight ( kg) |
13550 |
|
Wheelbase(mm) |
4700 |
|
Tire |
315/80R22.5 (6+1) |
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
Steering |
Hydraulic steering with power assistance |
|
Front/rear overhang |
1430/2550 mm |
|
Number of leaf springs |
11/9+8 |
|
Gear box |
10-speed |
|
Axles |
Front axle |
5250 kg |
Rear axle |
8750 kg |
|
Engine |
Model |
MC07H.35 |
Fuel Type |
Diesel fuel |
|
Type |
Water-cooled four-stroke, direct injection, turbocharged |
|
Displacement (ml) |
7360 ml |
|
Max output power |
350HP/257kW |
|
Rated speed (rpm) |
2200 rpm |
|
Braking system |
Service Brake |
Compressed air brake |
Park Brake |
Spring energy |
|
Auxiliary brake |
engine exhaust brake |
|
Upper-Body Specifications |
||
Crane |
Brand |
XCMG |
Model |
SQZ105D |
|
Lifting capacity |
5000kg |
|
Max. lifting moment |
10.5 T.M |
|
Max. working radius |
8.3 m |
|
Max. lifting height |
8 m |
|
Rotation angle |
420° |
|
Installation position |
Rear-mounted |
|
Hydraulic system pressure |
28 Mpa |
|
Hydraulic system flow |
25 L/min |
|
Hydraulic oil tank capacity |
75 L |
|
Winch |
Brand |
China famous brand |
Max. traction force |
12 ton |
|
Drive type |
Electric |
|
Steel rope diameter |
10mm |
|
Max. traction length |
35.2 m |
|
Installation position |
Front-mounted |
|
Lighting system |
Type |
Pneumatic lifting type |
Lighting power |
4×1000W (4KW) |
|
Lighting |
Halogen lamp |
|
Height from ground |
13 m |
|
Rotation angle |
Horizontal 360°, pitch angle total 406° |
|
Control method |
Can be controlled manually or remotely, with automatic reset function |
|
Generator |
Rated output power |
12 kW |
Rated frequency |
50 HZ |
|
Rated voltage |
220V/380V |
|
Starting method |
electric start/manual start |
» Ⅲ. Product Structure:

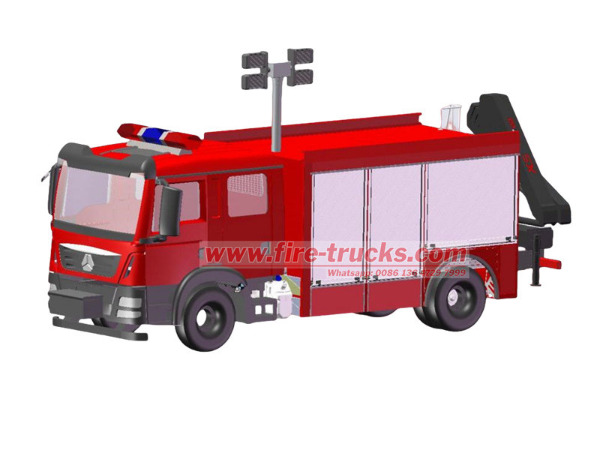

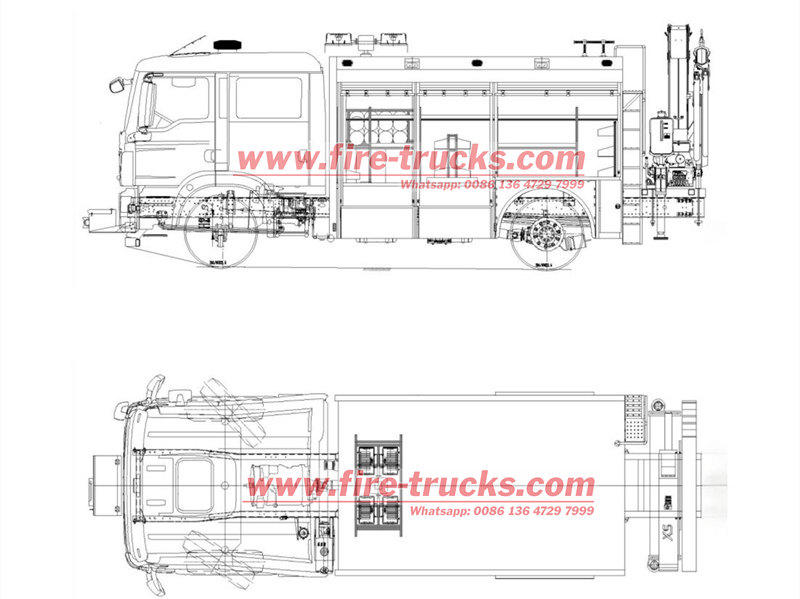

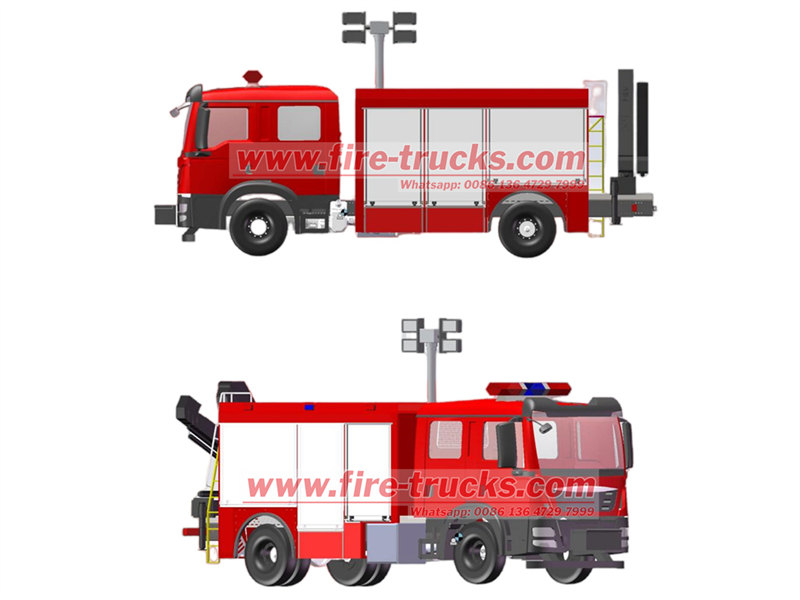

» Ⅳ. Product Drawing:
