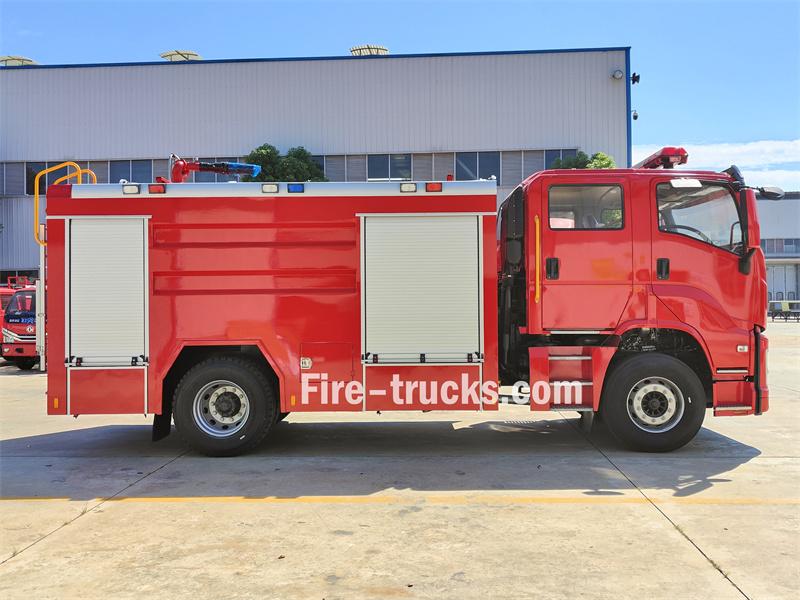

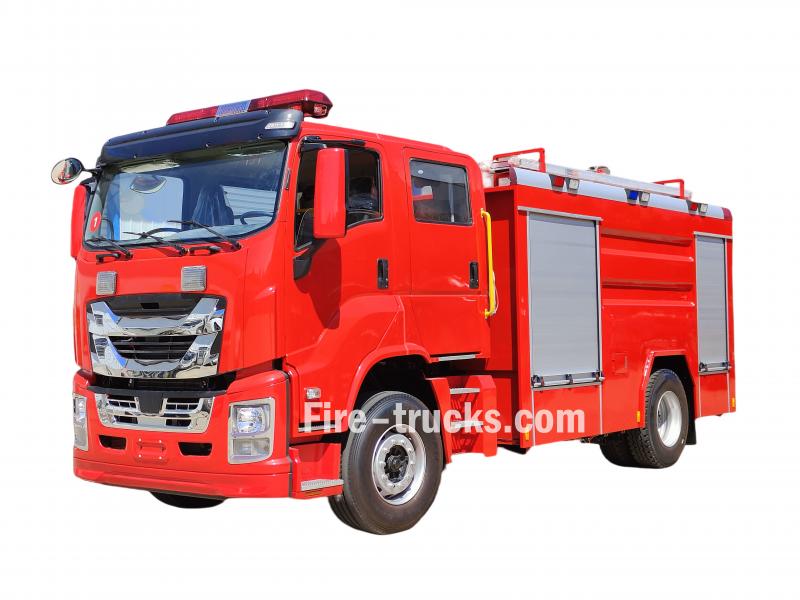

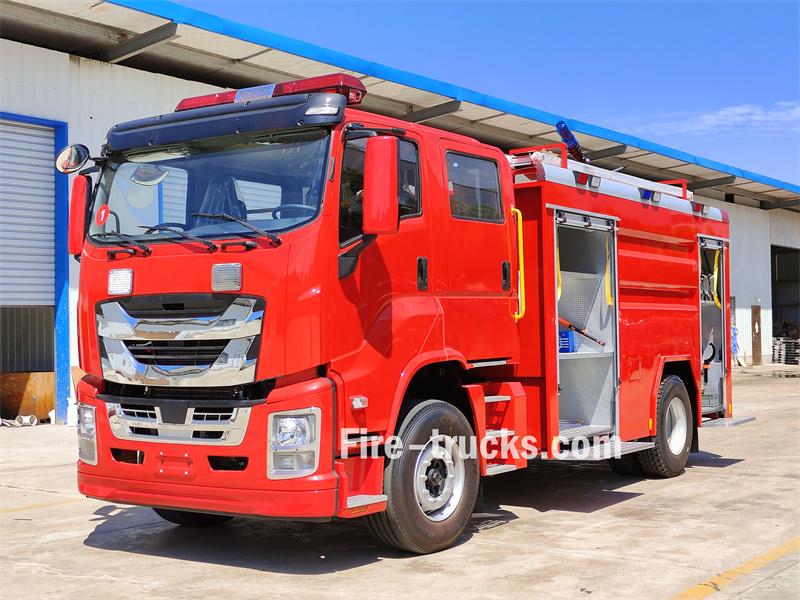

Guatemala 4500L Police fire engine Isuzu

Guatemala 4500L Police fire engine Isuzu

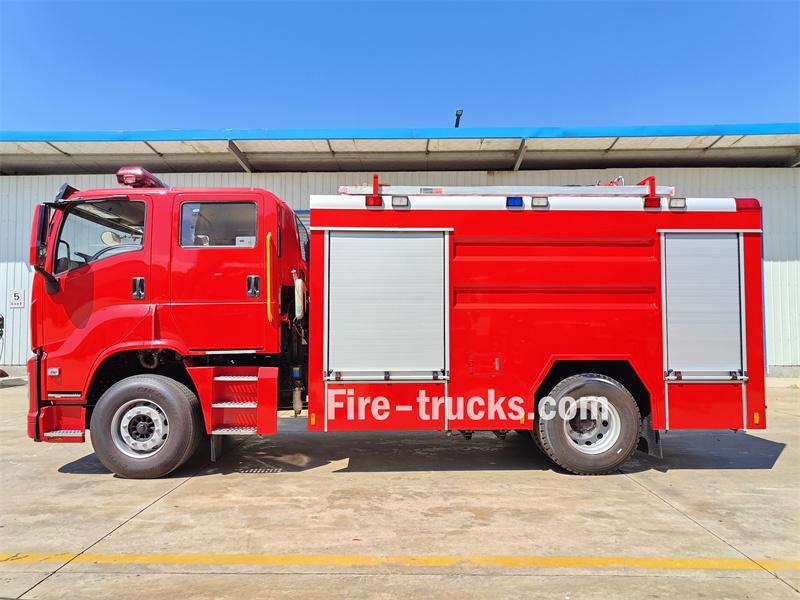

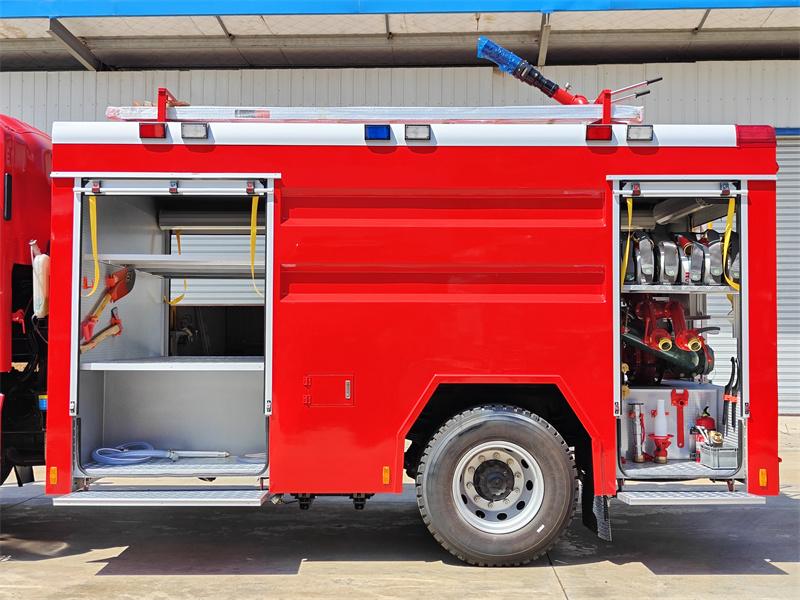

The Isuzu GIGA 4.5 CBM foam fire truck uses the Isuzu GIGA 4x2 Class II fire truck chassis, with a 4600mm wheelbase, an Isuzu 6UZ1-TCG50 engine, and a FAST 12-speed gearbox. The front of the superstructure houses the equipment compartment, with a 4 cubic meter carbon steel water tank and a 500L stainless steel foam tank in the middle. The rear houses the pump room, equipped with a CB10/60-RS fire pump, control panel, fire hoses, and a PL8/48 fire monitor mounted on the roof.

  • Truck Chassis:

    ISUZU FVR , 4x2
  • Tanker Capacity:

    4000L water +500L foam
  • Engine Power:

    380 HP/ 6UZ1-TCG50
  • Fire Pump:

    China CB10/60-RS
  • Pump Flow:

    60L/s
  • Work Pressure:

    1.0 Mpa
  • Fire Monitor:

    China PL8/48
  • Monitor Flow:

    48 L/s
  • Monitor Range:

    Water≥70 m,Foam≥60m
Facebook Linkedin Youtube Twitter Pinterest

The Guatemala isuzu water fire fighting truck is specifically designed for efficient firefighting and emergency response in Guatemala. Its core features include a 4-cubic-meter carbon steel water tank, a 500-liter stainless steel foam tank, and an integrated CB10/60 fire pump and a roof-mounted PL8/48 fire monitor.

Guatemala 4500L Police Fire Engine Isuzu combines water and foam firefighting methods and is particularly effective at extinguishing Class B fires involving oil and chemicals. It is an ideal piece of equipment for handling initial fires in urban areas, factories, and major transportation routes.



   ♦ Guatemala 4500L Police Fire Engine Isuzu ♦

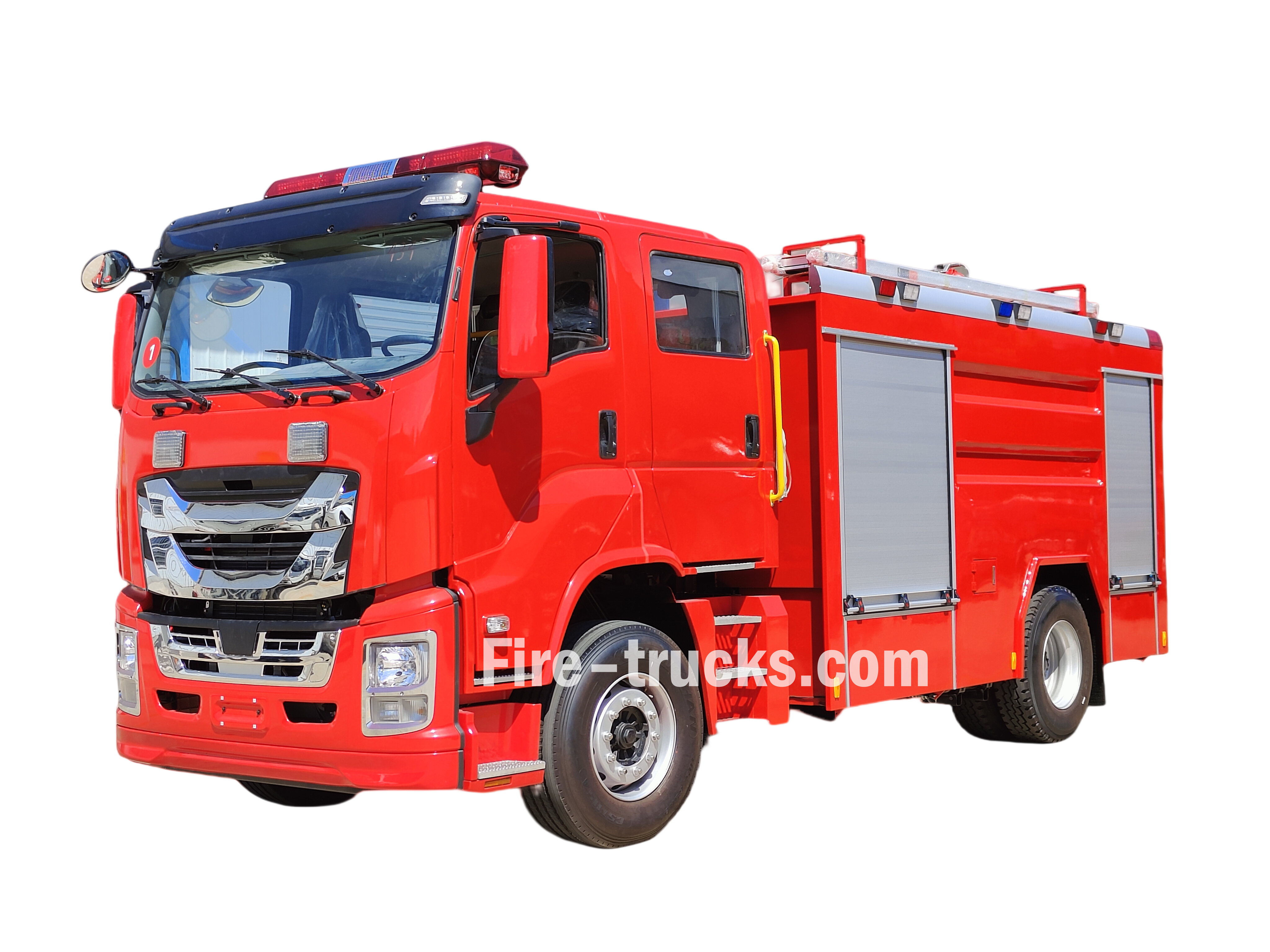

Guatemala 4500L Police fire engine Isuzu



Working Capacity

 Engine Model

 Wheelbase

 Superstructure

4000L water+500L foam

 6UZ1/ 380HP

 4600 mm

★Water tank carbon steel

★Foam tank stainless Steel, SS 304

China famous CB10/60-RS fire pump

 China famous PL8/48 Fire monitor

2025 year brand new



»Ⅰ. Main Features :



★ Isuzu 380 HP powerful engine, 100,000 Km without prblem.

★ Isuzu new model GIGA cabin,  Europen design

★ China famous CB10/60 pump, super reliable

★ Tank capacity can be customized

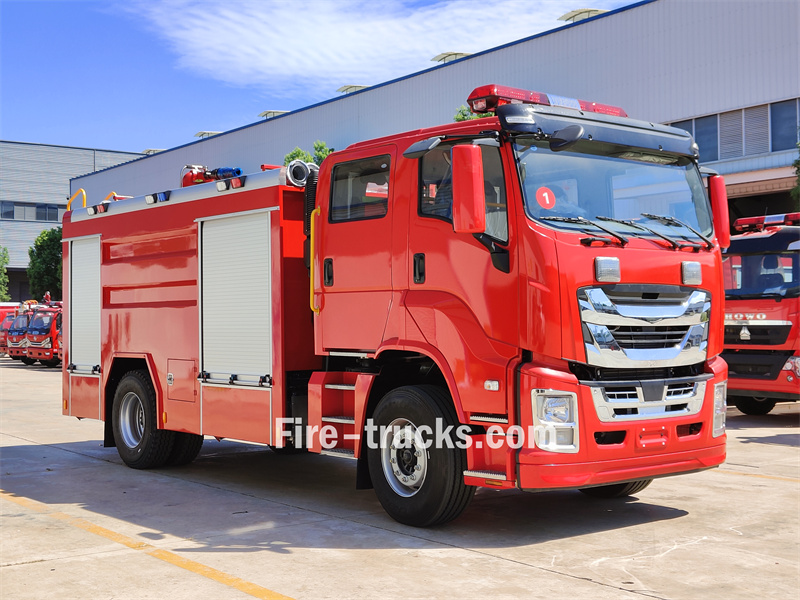

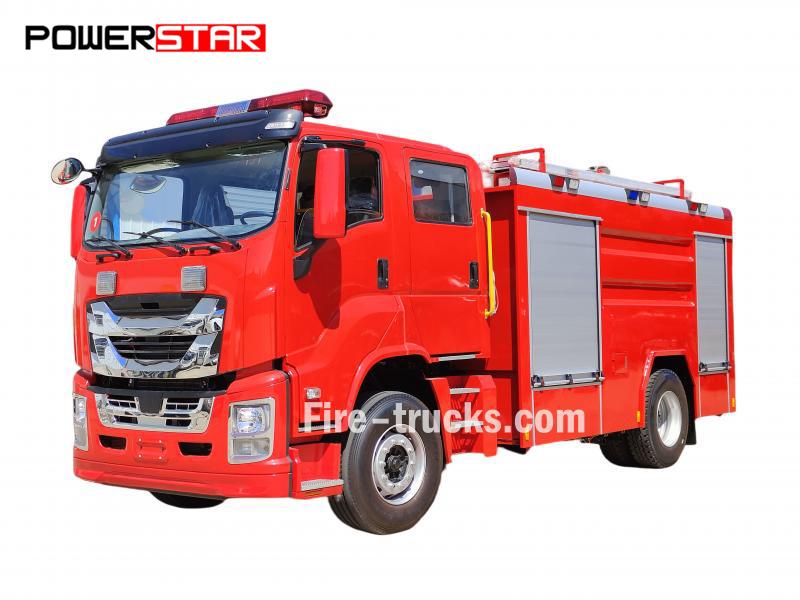

  • ISUZU GIGA 4500L foam water fire truck
  • Isuzu GIGA 4.5cbm foam fire fighting truck
  • 4500L foam water fire rescue truck isuzu

 » Ⅱ.Product Parameter :



ISUZU GIGA 4500L foam water fire truck

General

Work capacity

4000L water tank,500L foam tank

Truck chassis

Isuzu GIGA

Engine Power

380 HP/ Isuzu 6UZ1-TCG50

Fire pump

CB10/60-RS

Chassis

Drive Type

4X2

Transmission

FAST 12-shift, manual

Wheelbase

 4600mm

Tire

295/80R22.5 18PR,6+1wheel





Fire pump

Model

CB10/60-RS

Pressure

1MPa

Max working pressure

1.082MPa

Max allowable inlet pressure

0.4MPa

Flux

60L/s

Max suction height

7m

Rated speed

3200±50r/min

Speed Ratio

1:1.440

Water diversion time

50s

Foam Water Proportioning Mixer

Model

PH64-RS

Mixing ratio

6%

Work pressure range

0.61.4MPa

Flow range

1664L/s

Suitable foaming liquid categories

Category B

Fire monitor

Model

PL8/48

Flow

48L/s

Rated working pressure

0.8MPa

Max working pressure

1.0MPa

Range

Water

70m

Foam

60m

Pitch rotation

- 45+70°

Horizontal rotation

0360°

Electronic alarm

Electronic alarm

LY CJB-100-C24 / 1.2 m long

 Standard  configuration

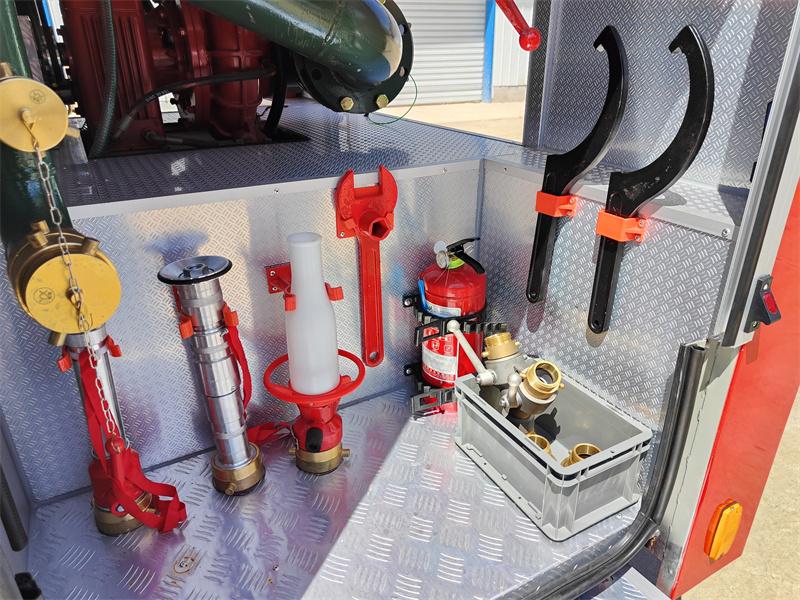

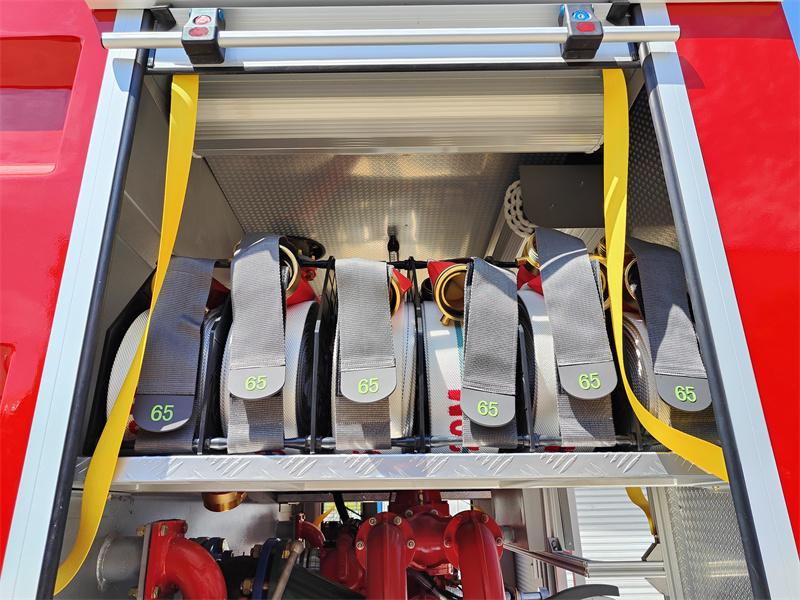

All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual……


-----Tanker materialCarbon steel, stainless steel, aluminum alloy, PP material
-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand
-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)




Chassis:

Type: Isuzu GIGA 4x2 Class II chassis for fire trucks

Wheelbase: 4600mm

Engine: Isuzu 6UZ1-TCG50, 380HP/278Kw, 1800N.m max torque, 9.839L displacement, Euro 5 emission standard

Transmission: Fast 12-speed, 12 forward gears, 2 reverse gears

Tires: 295/80R22.5, 6+1

Cabin: Double row, 2+3 seats, with A/C, USB, power steering



» Ⅲ. Fire Pump system :

CB10/60-RS fire pump

Fire Pump Model

Pressure

 Max Working Pressure

Max Allowable Inlet Pressure

Max vacuum

 Speed Ratio

CB10/60-RS

1.0MPa

1.082MPa

0.4MPa

≥85kPa

1:1.440

Work Conditions

Flow(L/s)

Pressure(MPa)

Pump shaft speed(r/min)

Power(Kw)

Suction depth

1

60

1.0

3200±50r/min

99.71

3

2

42

1.3

3528±50r/min

109.18

3

30

1.0

3326±50r/min



7

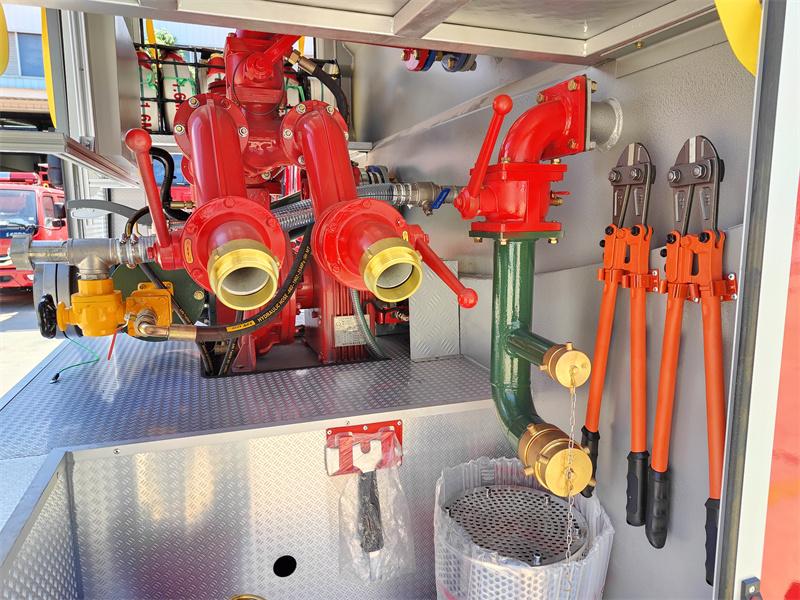

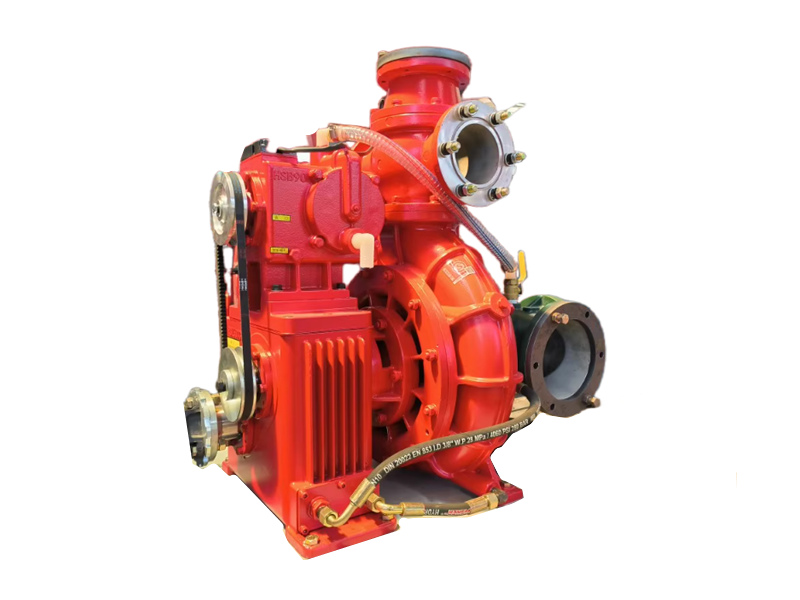

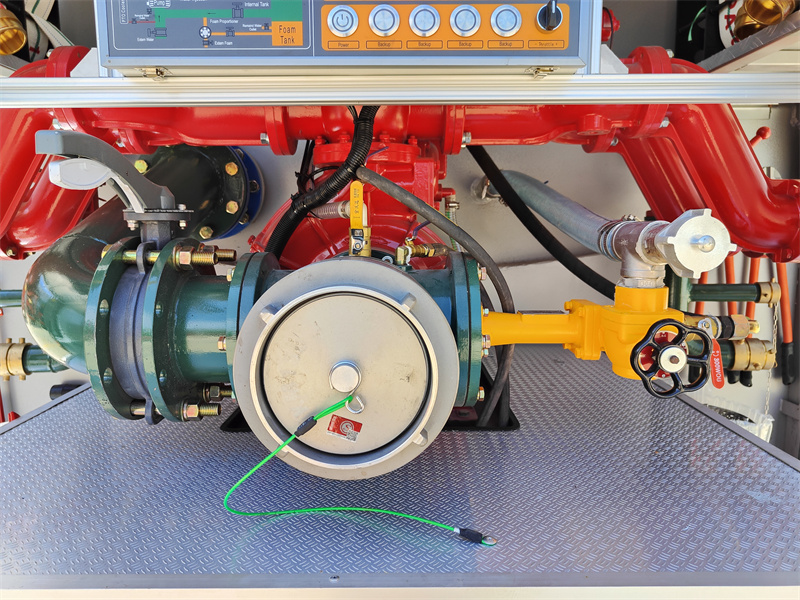

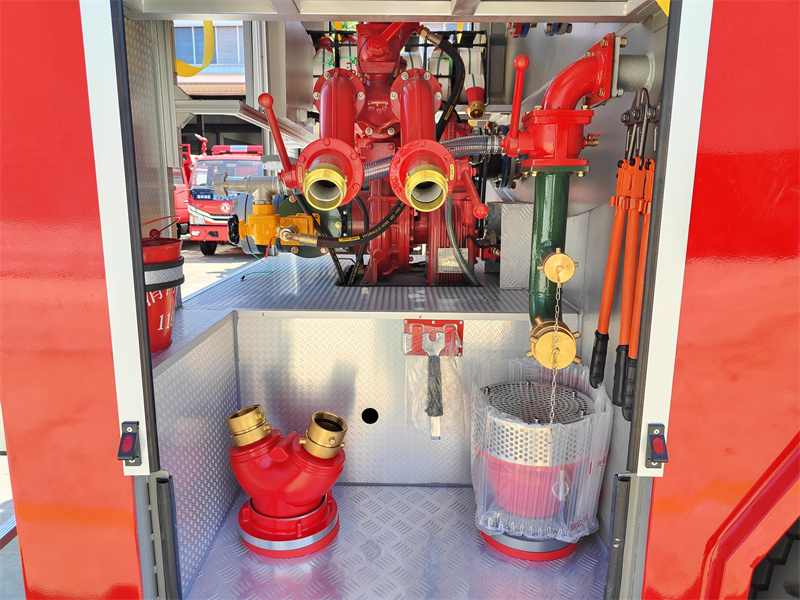

  • CB10/60-RS fire pump
  • CB10/60-RS fire pump
  • CB10/60-RS fire pump

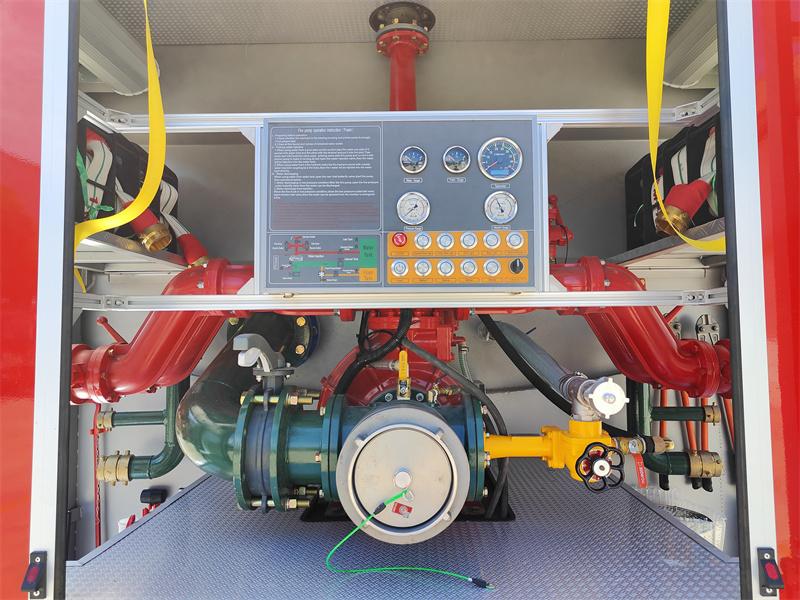

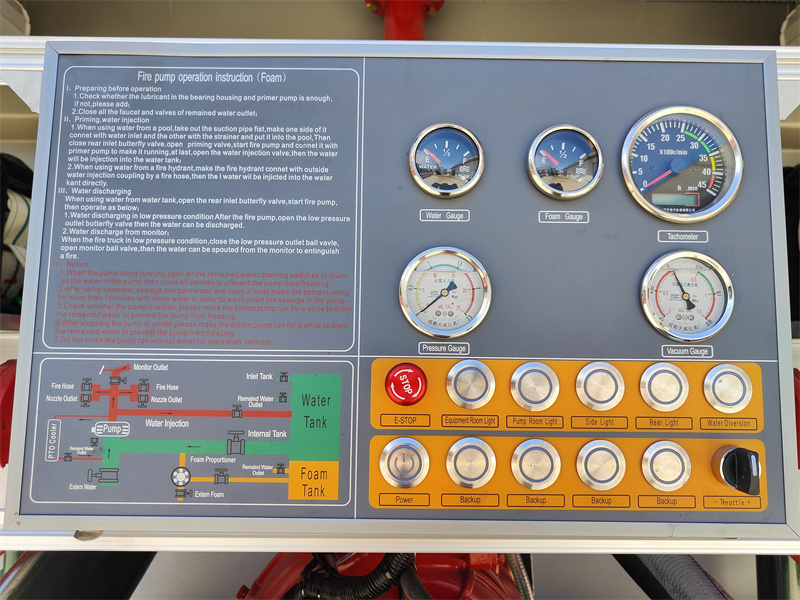

Control panel: Centrally installed pressure gauge, vacuum gauge, tachometer, water level gauge, foam level gauge, control lights, emergency brake light and buttons, operating instructions, tank piping diagram, etc.



Control panel

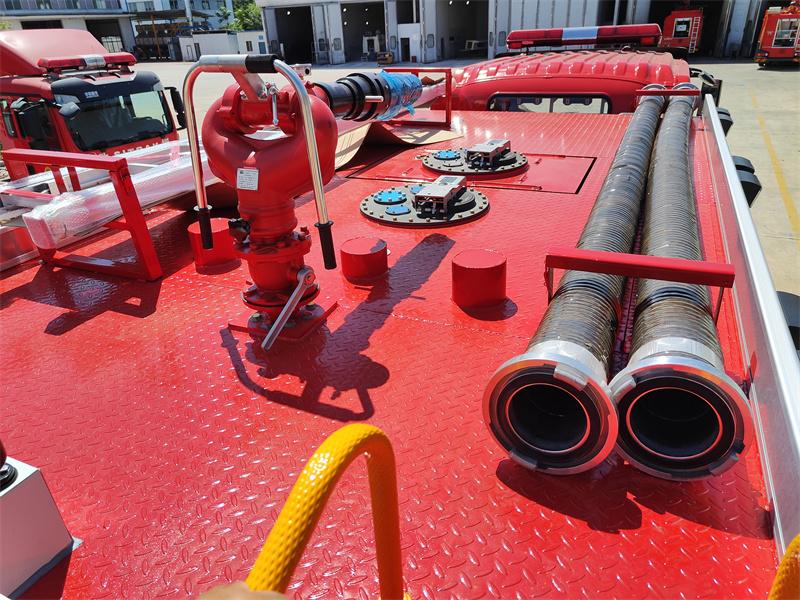

» . Fire Monitor system :

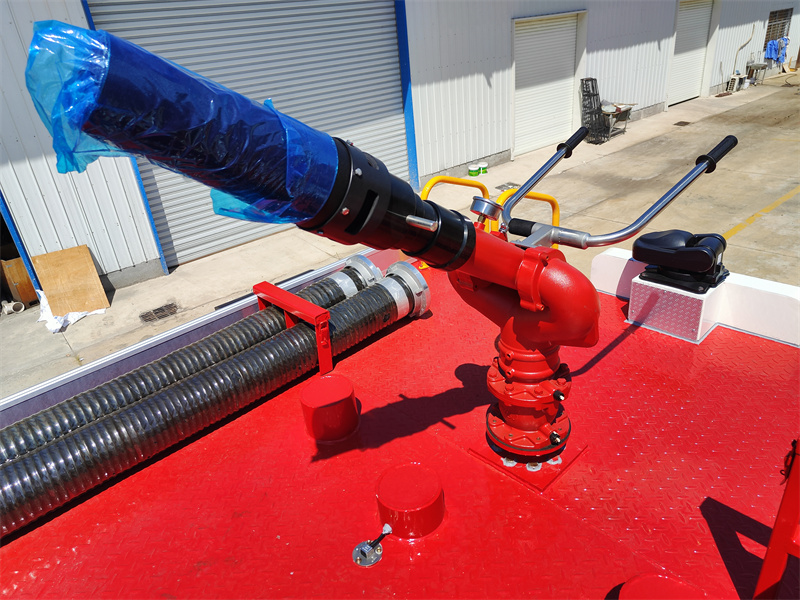

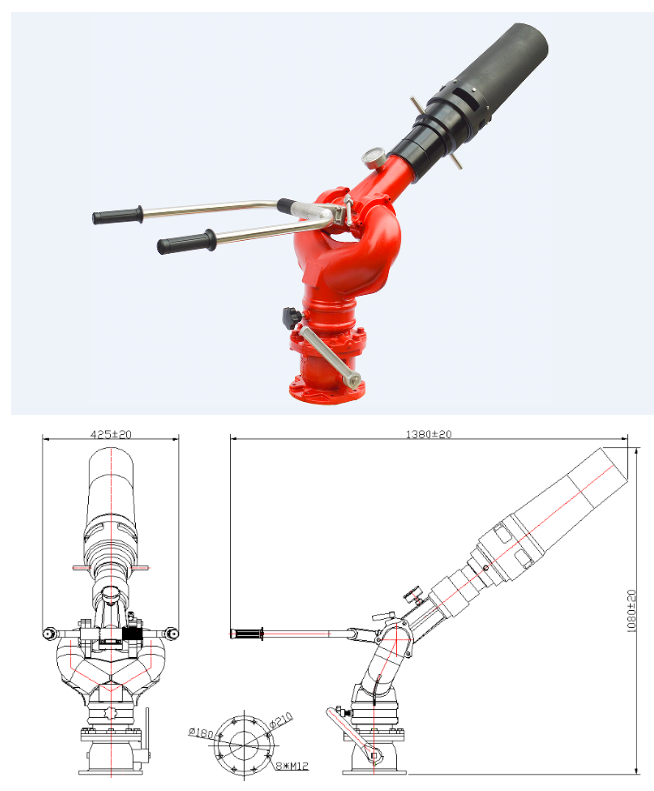

PL8/48 fire monitor



Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation Weight
PL8/48 48L/s

water ≥70m,

foam ≥60m

0.80MPa -45°~+70°
0~360° 27kg

» .Technical Design:



 POWERSTAR R & D Department for design:

100% customized appearance, design the water + foam tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.

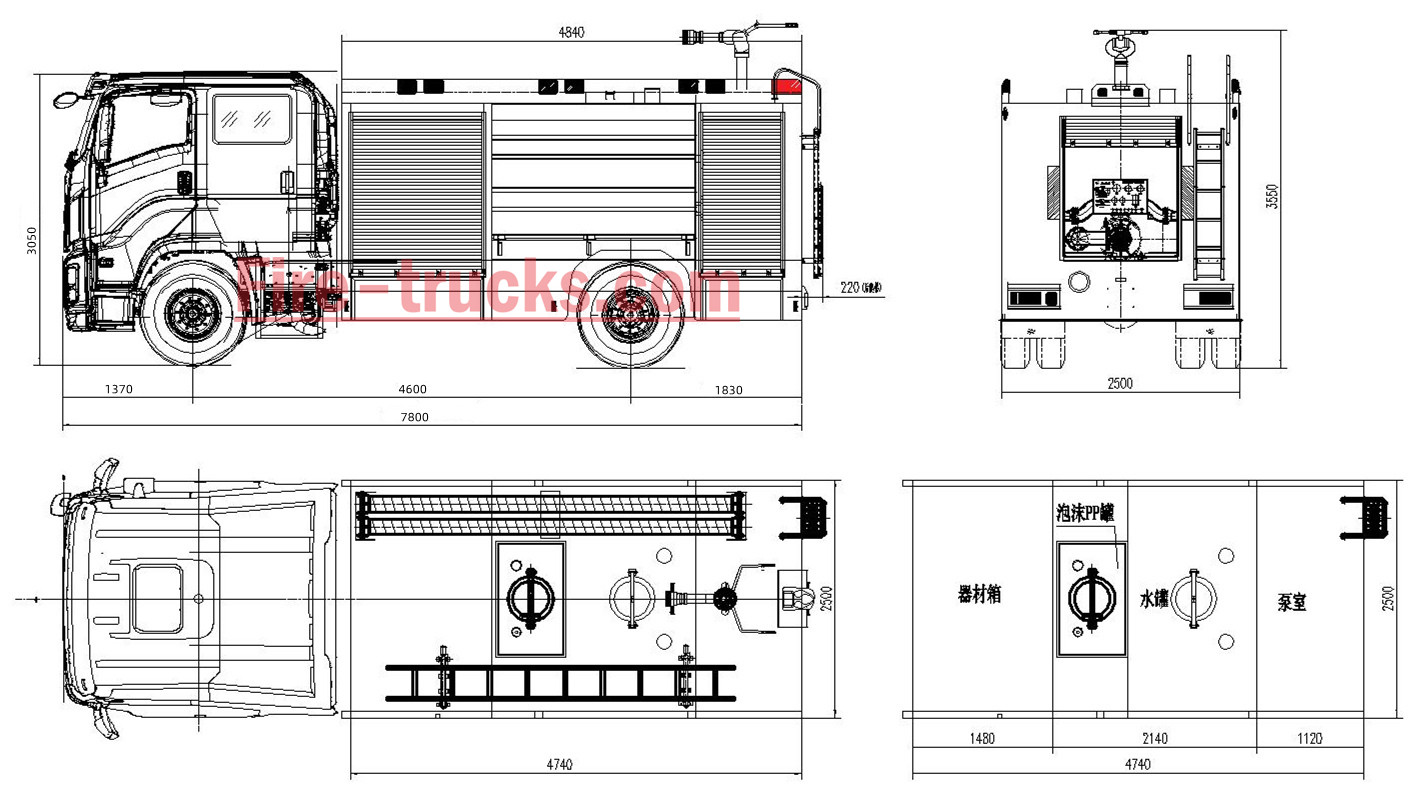

ISUZU GIGA 4x2 4500L foam water fire truck technical drawing

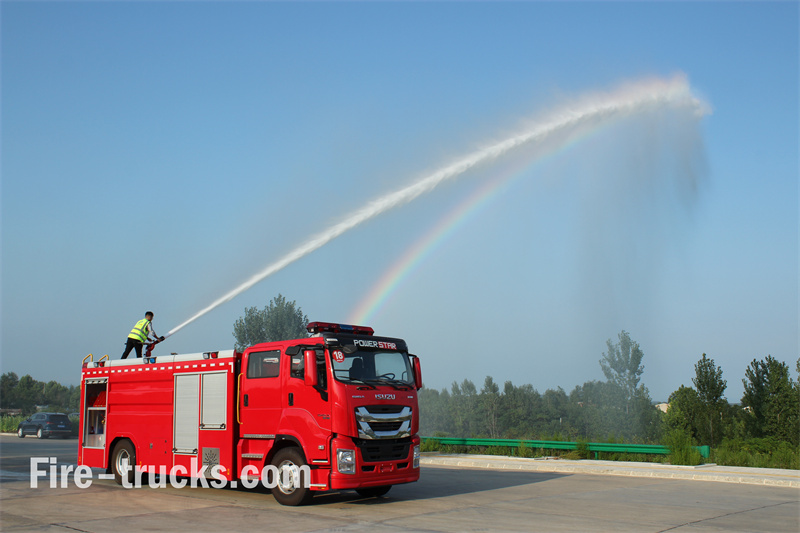

» .Preshippment Test:

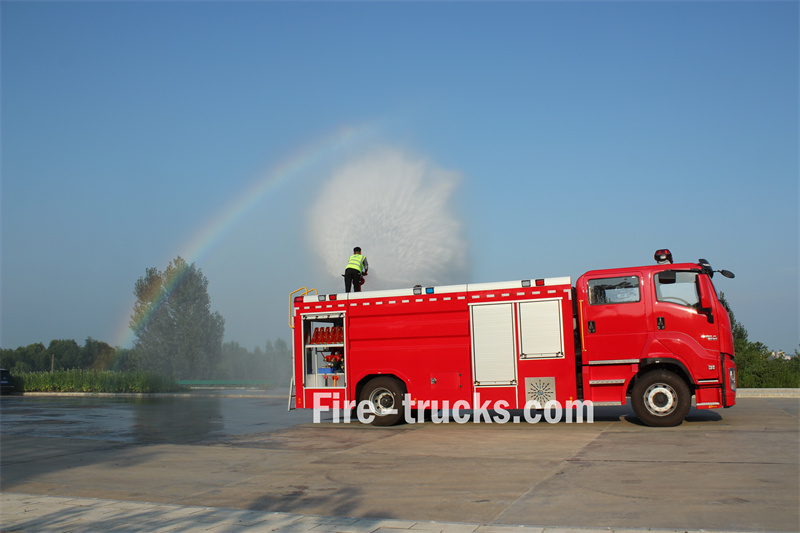

Before delivering the Isuzu GIGA 4X2 4500L foam fire truck from our factory, we conducted a factory inspection of the fire truck, which included rain testing, performance testing of the fire pump and fire monitor, as well as final inspection of welding process, painting and other aspects.

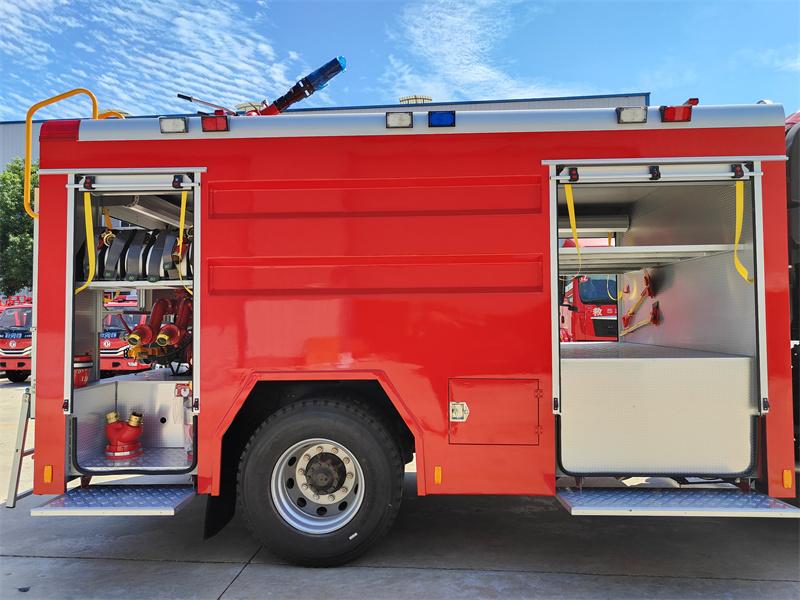

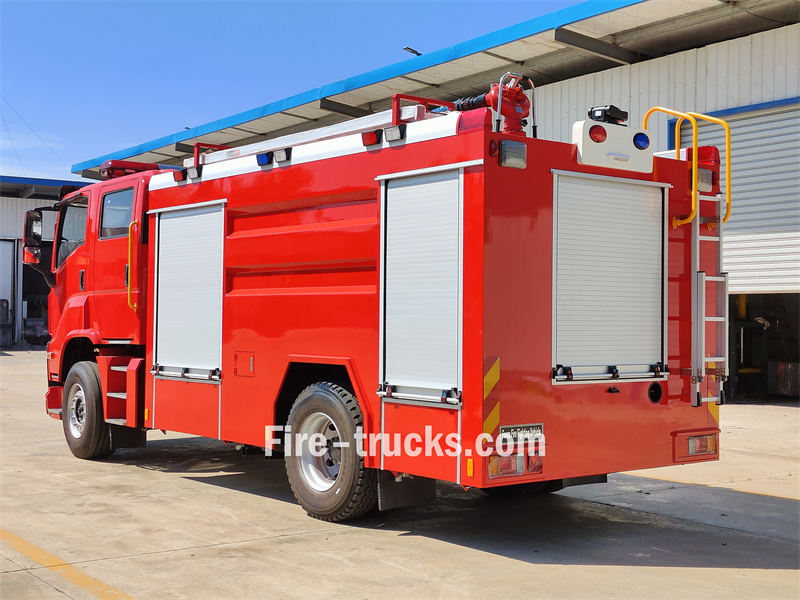

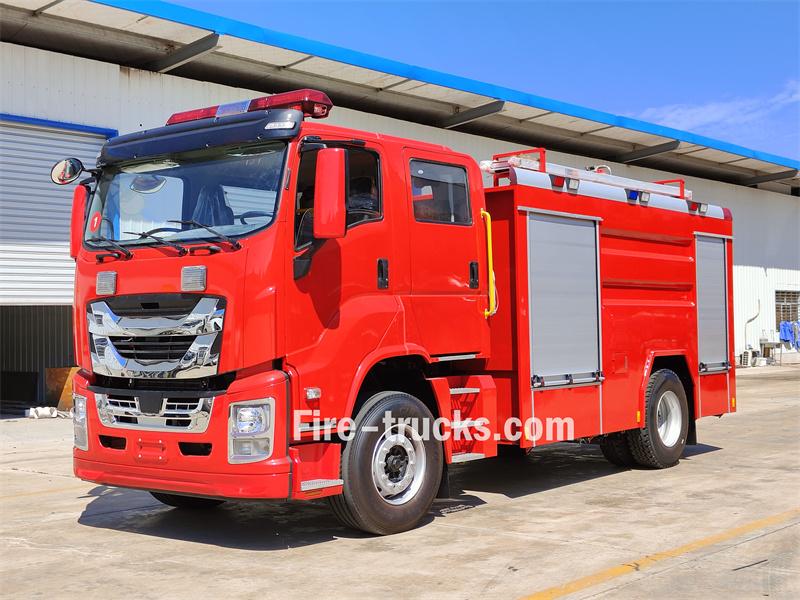

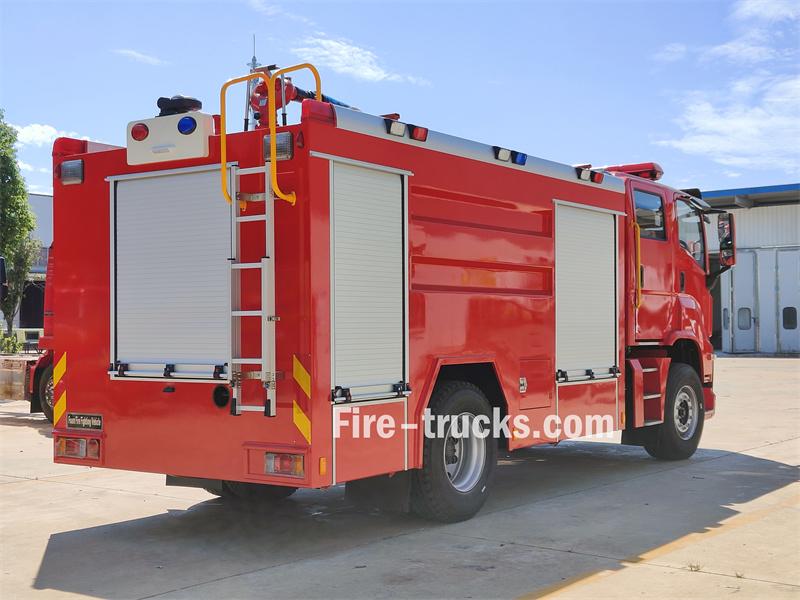

4500L foam water fire rescue truck isuzu



4500L foam water fire rescue truck isuzu

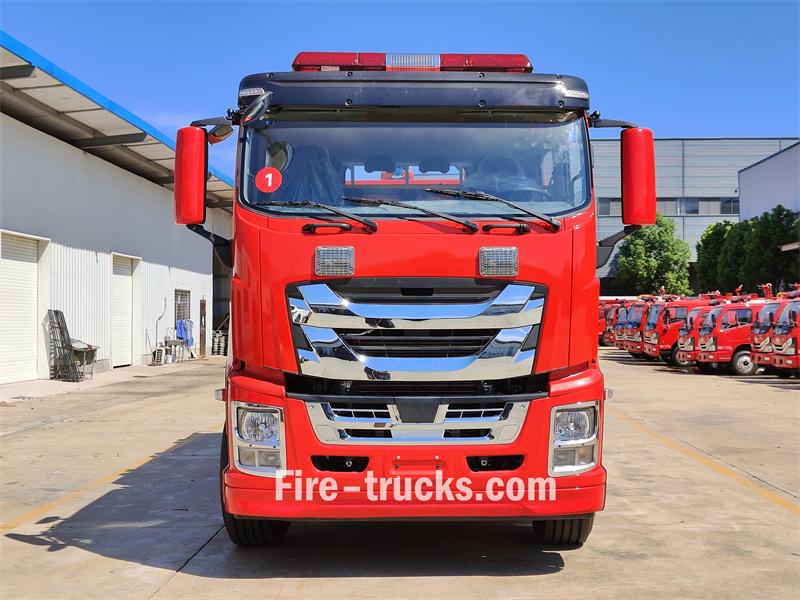

» .Mass production:

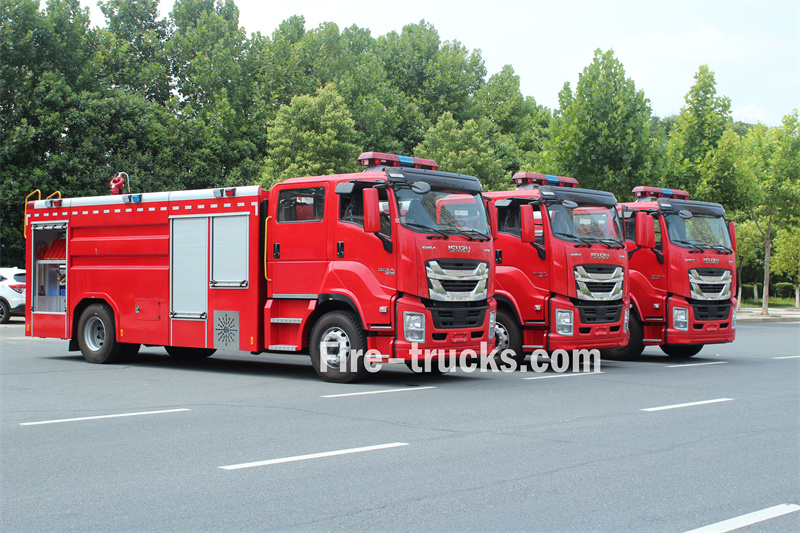

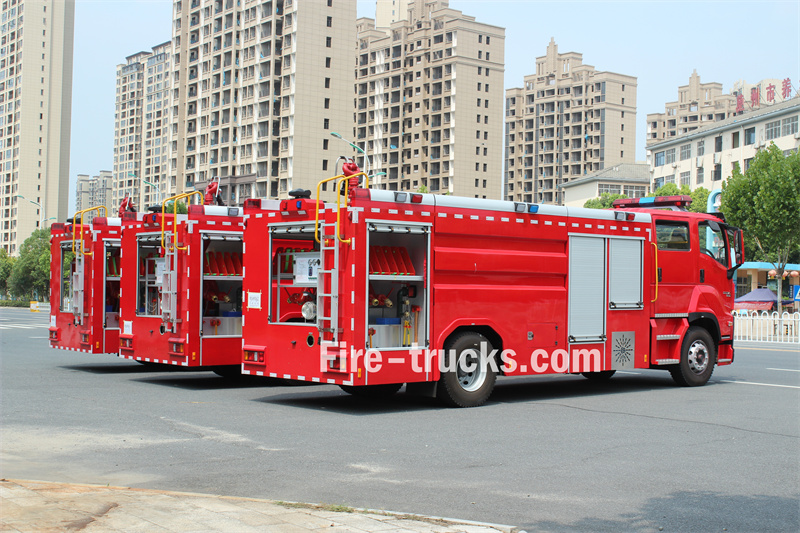

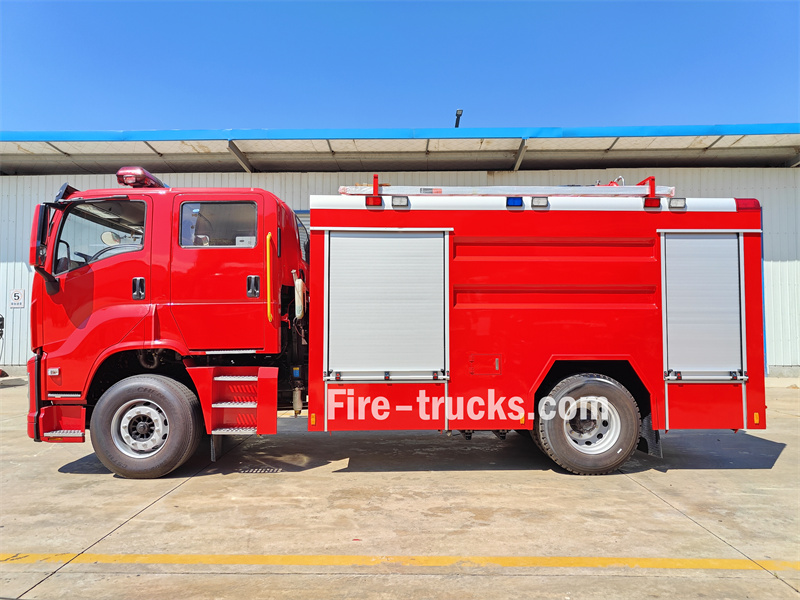

Isuzu GIGA 4.5cbm foam fire fighting truck



Isuzu GIGA 4.5cbm foam fire fighting truck

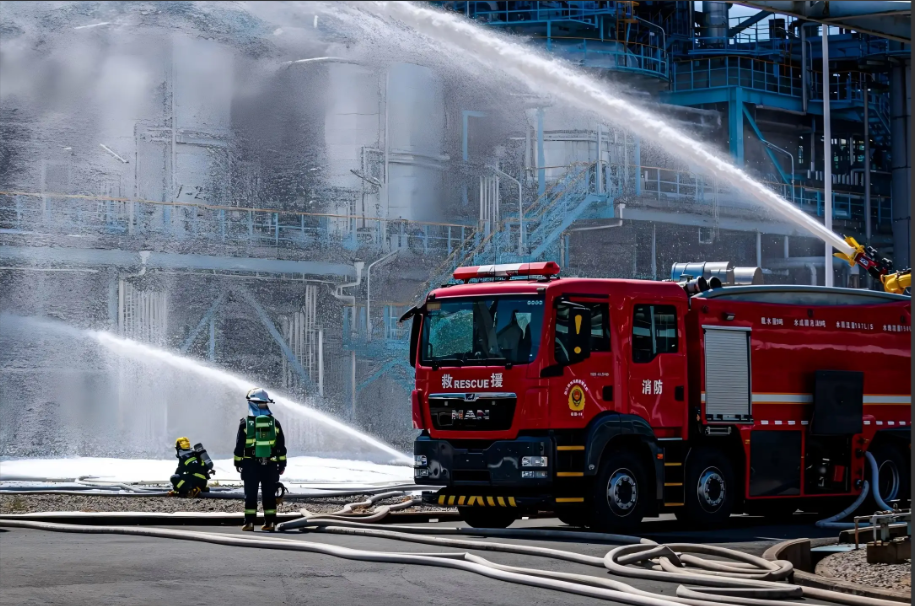

» . Applications in Guatemala:



This medium-sized foam fire truck is ideally suited for fire and rescue missions in Guatemalan cities, industrial areas, and major transportation routes. Its core value lies in its efficient response to oil and chemical (type B) fires.



Including:

Urban fire and rescue

Industrial and chemical fire prevention

Port and logistics hub firefighting

Rescue in old urban areas and densely populated communities

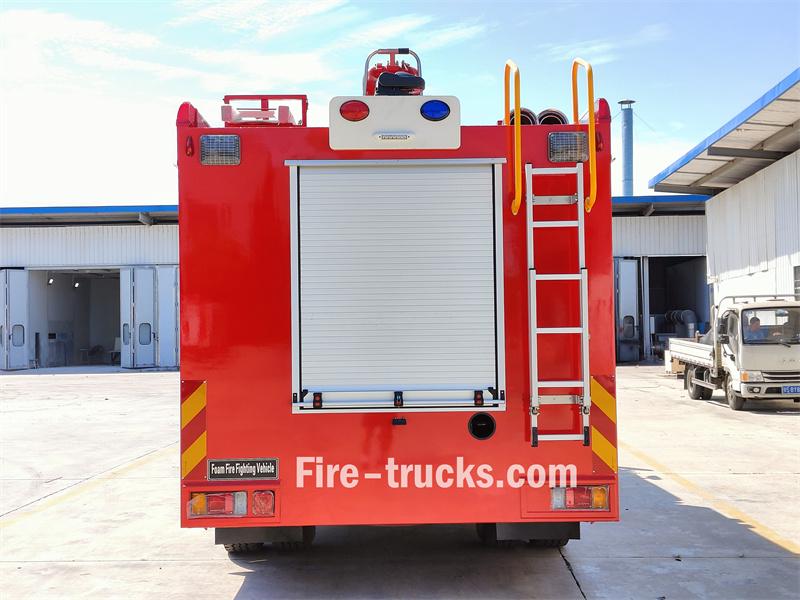

4500L foam water fire rescue truck isuzu

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit

Related Products

Isuzu GIGA VC66 foam tanker firefighting truck
5 CBM Pumper Tanker Fire Truck Isuzu

ISUZU GIGA VC66 heavy duty water foam tanker Fire Engine is a professional pumper firefighting vehicle, equipped with 6UZ1-TCG61 diesel engine with 380HP and 9839cc emission.Matched working with a CB10/60 fire pump and a PL8/48 fire monitor on top, with efficiently working distance for water 65 meters and foam 55m. The POWERSTAR foam pumper fire truck is particularly suited for combating complex fires in petrochemical plants, community, ports, and similar environments

Details
Foton Auman 6x4 12000L Foam Fire Engine Truck Export to Africa
Foton Auman 12000L Fire truck For Oil Field

The Foton Auman 12000L fire truck is powered by a Foton ISGE3-380 engine and built on a 6×4 chassis. The front compartment features aluminum alloy anti-slip treadplate walls for storing fire hoses, suction tubes, and basic tools. The middle section carries a 10,000L carbon steel water tank and a 2,000L foam tank. The rear pump room houses the CB10/80-LC fire pump (140L/s flow, 1MPa pressure), control panel, and accessories including filters, couplings, and foam guns. A PL8/64 fire monitor is mounted on the cab roof, offering 360° rotation and water/foam range up to 75m and 70m respectively.

Details
TOGO HOWO TX 25,000L Heavy Water Fire Trucks
TOGO HOWO TX 25,000L Heavy Water Fire Trucks

The HOWO 8×4 25000L heavy water fire truck is built on a SINOTRUK HOWO 8×4 chassis with a 1950+4600+1400 mm wheelbase. It is powered by an MC11.46-61 engine rated at 460 HP and paired with a manual transmission. The vehicle carries a 25000L water tank. A CB10/100-TB fire pump (100 L/s at 1.0 MPa) and a roof mounted PS8/80W monitor (80 L/s, water range ≥85 m) handle fire suppression. Standard equipment includes fire hoses, suction tubes, couplings, water gun, and basic tool kit.

Details
MAN TGM 4X4 AMT Fire Fighter Online Distributor
MAN TGM 4X4 AMT Fire Fighter Online Distributor

MAN 5,000L 4×4 foam fire truck runs on a 250 HP D0836LFL89 engine with a 4×4 chassis that handles rough terrain with ease. Total capacity is 5,000L—4,500L water and 500L foam. The CINAR 3000 N pump puts out 3,000 L/min at 10 bar, and the CINAR 2400 LPM front monitor delivers a 50m water reach. Comes standard with hoses, suction line, fittings, foam gun, and tool kit. Built for industrial sites, rural roads, and coastal areas where seawater compatibility matters.

Details
MAN TGM 18.290 BB CH Fire Fighter Truck
MAN TGM 18.290 BB CH Fire Fighter Truck

MAN 5,500L 4×4 foam fire truck is powered by a 290 HP D0836 LFL90 engine with a 4×4 chassis that handles rough terrain with confidence. Total capacity is 5,500L—5,000L water and 500L foam. The JOHSTADT TO 3001 pump delivers 3,000 L/min at both 10 bar and 40 bar, while the CINAR 2400 LPM front monitor reaches 65m with water and 55m with foam. Comes standard with hoses, suction line, fittings, foam gun, and tool kit. Built for industrial sites, rural roads, and demanding fireground operations.

Details
Advanced IVECO 4x4 Fire Pump Vehicles
Advanced IVECO 4x4 Fire Pump Vehicles

IVECO 3850L 4×4 foam fire truck is driven by a 240 HP TECTOR F4EE681B engine with a 4×4 chassis that handles rough terrain with confidence. Total capacity is 3,850L—3,500L water and 350L foam. The Godiva P2 2010 pump delivers 2,000 L/min at 10 bar and 250 L/min at 40 bar, while the roof-mounted Szczesniak monitor reaches 60m with water and 55m with foam. Comes standard with hoses, suction line, fittings, foam gun, and tool kit. Built for industrial sites, rural roads, and demanding fireground operations.

Details
MAN Rescue Fire Pumper Truck 4x4
MAN Rescue Fire Pumper Truck 4x4

MAN 4400L 4×4 foam rescue truck is powered by a 290 HP D0836LFL90 engine and a factory-built 4×4 chassis that takes on rough terrain without hesitation. Total fluid capacity is 4,400L—4,000L water and 400L foam. The Godiva P2A 2010 pump puts out 2,400 L/min at 8 bar and 400 L/min at 40 bar, while the roof-mounted DWP16/24 monitor delivers 60m water reach and 55m foam reach. Standard delivery includes hoses, suction line, fittings, foam gun, and tool kit. A 9,979kg electric winch, 5.4m LED mast, and 6-person crew cab make it a complete package for industrial, rural, and off-road firefighting.

Details

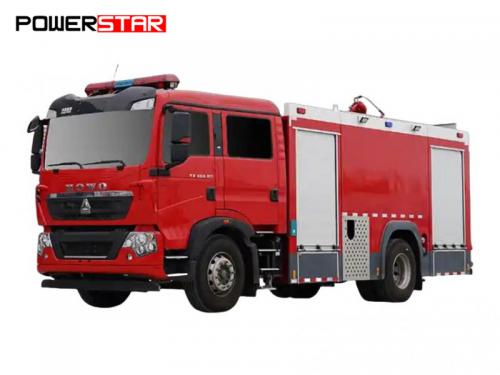

Sinotruk 6 cbm CAFS fire rescue truck
