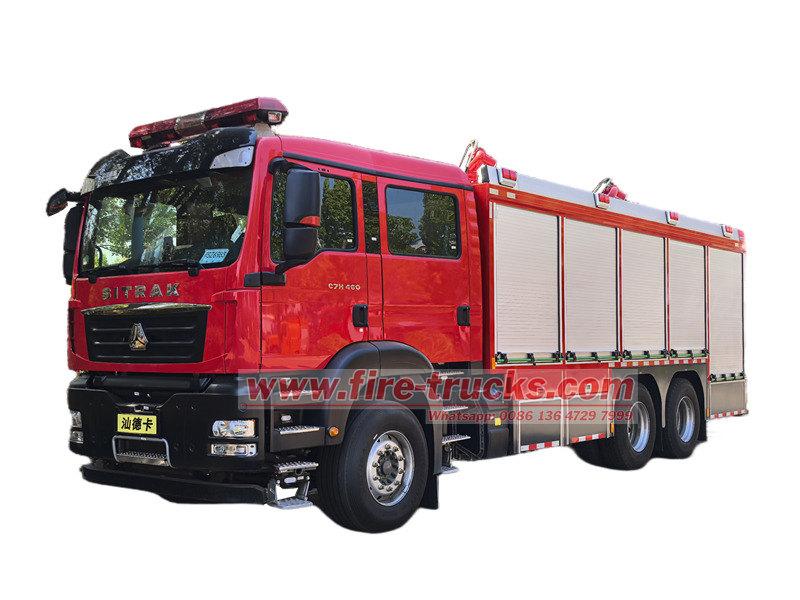

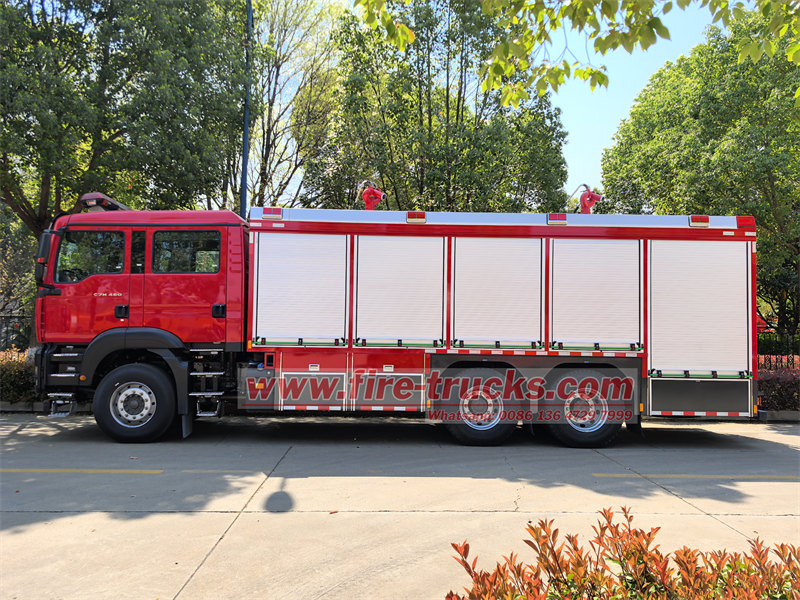

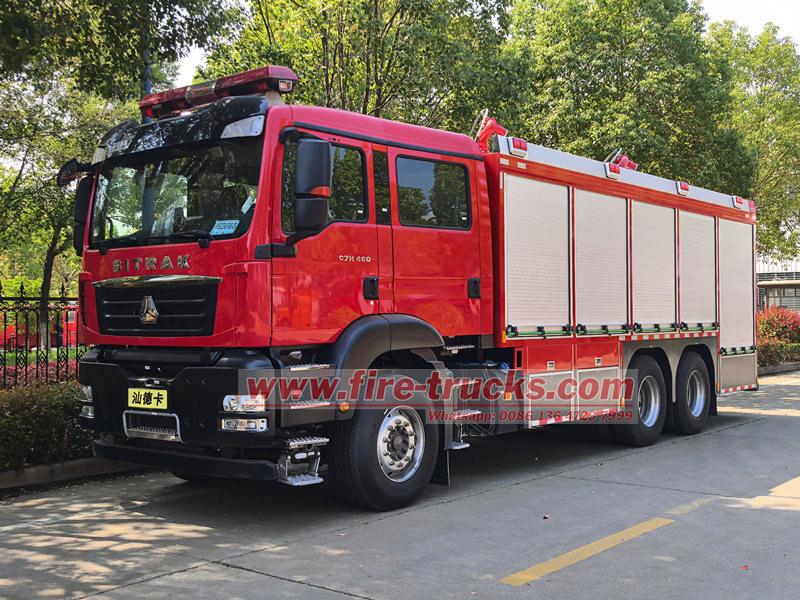

The HOWO Dry Powder Fire Truck is a specialized firefighting apparatus designed for combating fires in chemical plants, power facilities, and other high-risk environments. Built on the Sinotruk SITRAK ZZ5356 heavy-duty chassis, it is powered by a 460-horsepower engine and equipped with dual 3-cubic-meter dry powder tanks and 12 nitrogen-driven cylinders. Its core feature, the PF5-14/40 dry powder cannon, delivers an impressive discharge rate of 40 kg/s with a range exceeding 40 meters, making it highly effective against flammable liquids, gases, and live electrical fires.
Truck Model:
PT5240GXFGFTanker Structure:
2 powder tanksWork capacity :
6CBMWheelbase:
4300+1400 mmAxle drive:
6×4Engine Power:
460 HPEngine Model:
MC11.46Fire Pump:
CB10/60Fire Monitor:
PF5-14/40Remark:
Water tank and foam tank is optionalThe HOWO Dry Powder Fire Truck is a professional firefighting vehicle specifically engineered to tackle special-class fires. It integrates a dry powder suppression system, high-pressure water pump, and nitrogen propulsion system, making it ideal for industrial settings such as chemical plants, power stations, and oil depots. Based on the Sinotruk SITRAK ZZ5356 heavy-duty chassis, the vehicle measures 10.01 meters in length with a 6×4 drivetrain configuration. Powered by a robust 460 HP MC11.46 engine and boasting a gross weight of 23,800 kg, it stands as a formidable force in industrial firefighting.

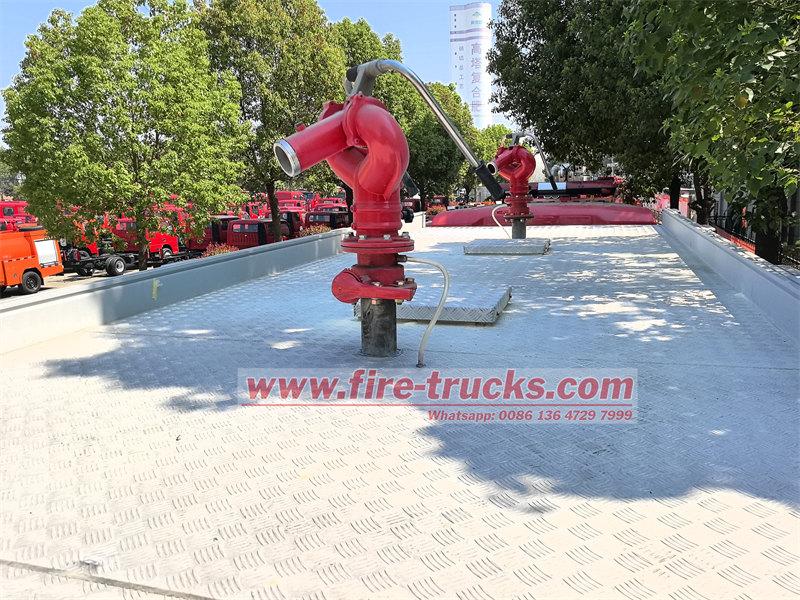

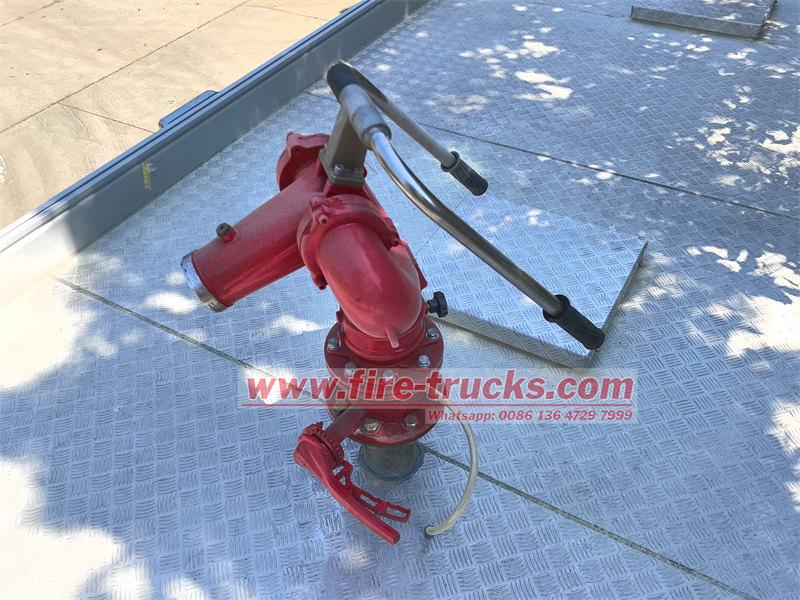

The superstructure of this HOWO Powder Fire Truck is its defining feature. The dual-tank design is a standout innovation—two 3-cubic-meter dry powder tanks can hold a total of 6 tons of extinguishing agent, pressurized by 12 nitrogen cylinders. The PF5-14/40 dry powder cannon serves as the primary firefighting tool, delivering a high-capacity discharge of 40 kg/s within an operational pressure range of 0.5–1.4 MPa. With 360° horizontal rotation and a vertical adjustment range of -45° to 70°, it ensures full fireground coverage. A 30-meter hose reel with a dry powder gun provides flexible close-range firefighting capabilities.
This HOWO heavy-duty fire truck is primarily suited for extinguishing fires in high-risk environments such as petrochemical plants, lithium battery warehouses, and airports. Its dry powder extinguishing agent, being non-conductive and non-corrosive, is particularly effective against electrical fires and chemical blazes. Compared to conventional fire trucks, its advantages include superior extinguishing efficiency, lower reignition risk, and minimal secondary damage.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu road sweeper truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
Product Specifications
Vehicle description |
||
Overall dimension |
10010×2510×3840 mm |
|
GVW |
23800kg |
|
Curb weight |
17350kg |
|
Rated payload |
25000 kg |
|
Chassis brand |
SINOTRUK SITRAK |
|
Traction type |
6*4 left hand drive |
|
Approach/Departure angle |
19/11° |
|
Front/rear overhang |
1492/2418 mm |
|
Chassis description |
||
Chassis model |
ZZ5356 |
|
Cab |
Double row cabin, 2+4 seats, with A/C |
|
Wheelbase |
4300+1400 mm |
|
Tire specification |
315/80R22.5 18PR |
|
Tire quantity |
10+1 |
|
Engine |
Engine model |
MC11.46 |
Displacement/output |
10518 ml |
|
Output |
341 kw |
|
Horse power |
460 hp |
|
Max. torqued |
2200 N.m |
|
Rated speed |
1900 rpm |
|
Gear box |
Model |
HW19710 |
Number of gears |
10 forward gears& 2 reverse |
|
Brake system |
Type |
Drum |
Service brake |
Dual-circuit compressed air brake |
|
Park brake |
Power spring brake acting on rear wheel |
|
Auxiliary brake |
WEVB |
|
Axle load |
Front |
6280kg |
Rear |
8760kg/8760kg |
|
Fuel tanker |
Type |
Steel fuel tanker |
Capacity |
400 L |
|
Superstructure description |
||
Powder tank |
Number of tank |
2 |
Tank capacity |
3CBM×2 |
|
Fire pump |
Model |
CB10/60, normal pressure pump |
Flow |
60L/s |
|
Pressure |
1.0Mpa |
|
Suction depth |
7m |
|
Powder monitor |
Model |
PF5-14/40 |
Number of monitors |
2 |
|
Max. working pressure |
1.4 Mpa |
|
Working pressure range |
0.5~1.4 Mpa |
|
Jetting flow |
40 kg/s |
|
Rotation angle |
Horizontal: 360° |
|
Hose reel |
30 meters, DN25, with powder gun |
|
Number of nitrogen cylinders |
12 |
Product Drawing
Product Features
Powerful Performance
Equipped with a high-efficiency engine, it delivers robust power to handle various emergencies with ease.
Professional Design
Engineered in compliance with firefighting standards, its optimized structure ensures efficient and safe rescue operations.
Durable & Reliable
Constructed with wear-resistant materials for long-lasting performance, reducing long-term operational costs. Primarily used for extinguishing fires in power plants, chemical facilities, and oil fields.
