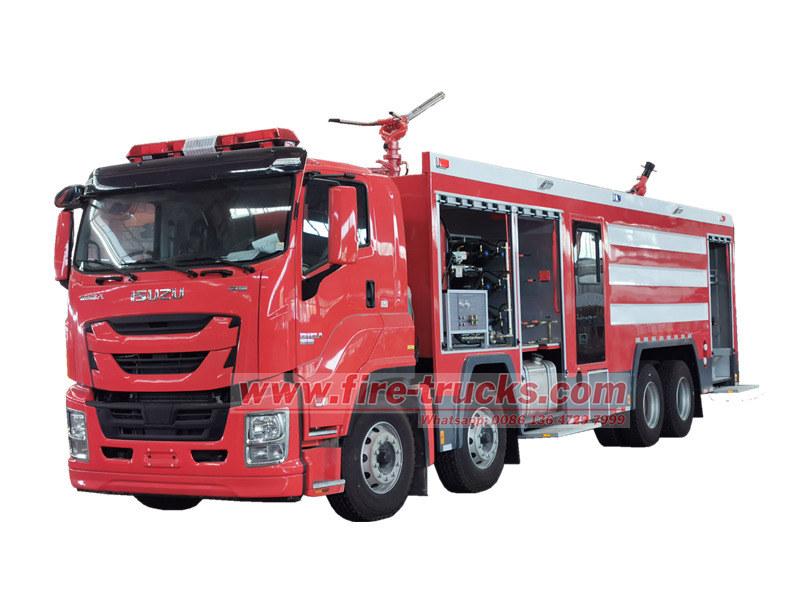

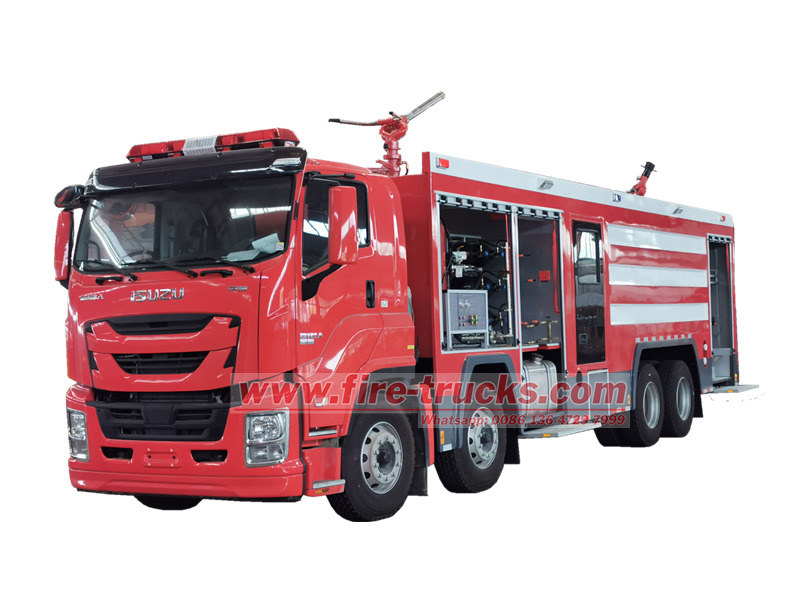

ISUZU GIGA 8x4 multipurpose fire truck

ISUZU GIGA 8x4 multipurpose fire truck

The ISUZU GIGA 8×4 Dry Powder-Water-Foam Combined Fire Truck is a professional-grade, multi-functional firefighting vehicle built on the ISUZU GIGA heavy-duty chassis. Equipped with a 420HP engine, it achieves a top speed of 98 km/h. The vehicle features a 12,000L water tank, a 2,000L foam tank, and a 2,000L dry powder tank, integrated with a CB10/100 fire pump (100L/s flow rate), a PL80W dual-purpose fire monitor (range ≥75m for water/≥70m for foam), and a PF30 dry powder cannon (30kg/s discharge rate). With an 8×4 drive configuration and a total weight of 31 tons, it includes a professional equipment storage system and an independent crew compartment, making it particularly suitable for firefighting in special environments such as petrochemical plants and port terminals. It serves as a comprehensive firefighting solution for complex fire scenarios.

  • Manufacturer Origin:

    PT5310GXFGL
  • Work capacity :

    16000 liters
  • Upper Body material:

    Carbon steel water tank and stainless steel foam tank
  • Wheelbase:

    1850+4575+1370 mm
  • Axle drive:

    8×4
  • Engine Power:

    420 HP
  • Engine Model:

    6WG1-TCG60
  • Fire Pump:

    CB10/100
  • Fire Monitor:

    PL80W
  • Remark:

    Tanker capacity is optional
Facebook Linkedin Youtube Twitter Pinterest

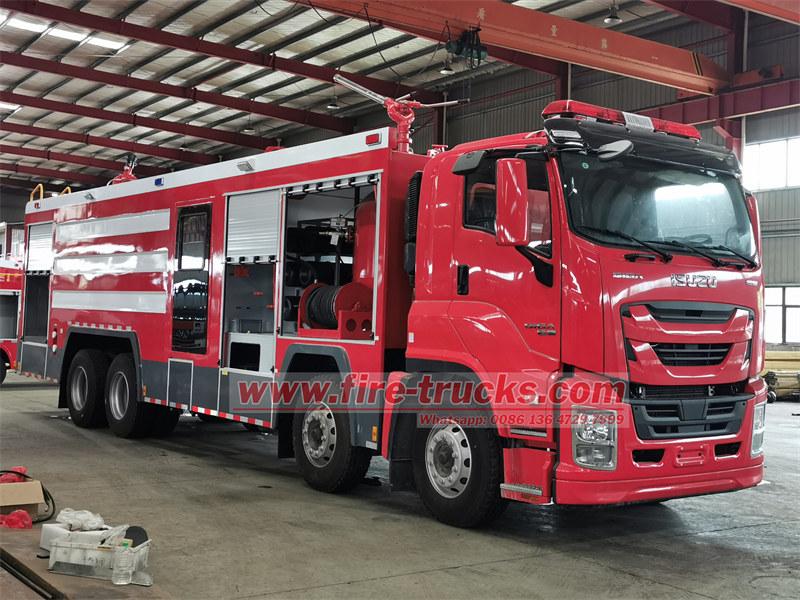

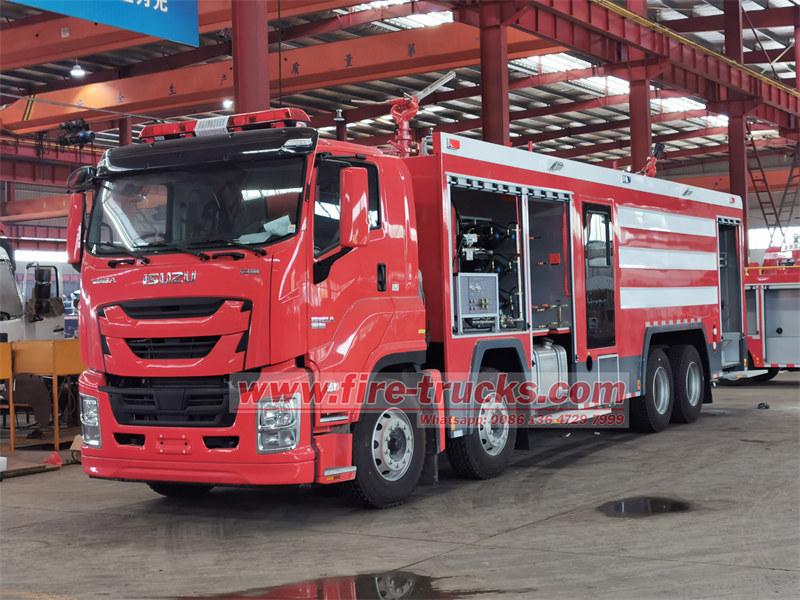

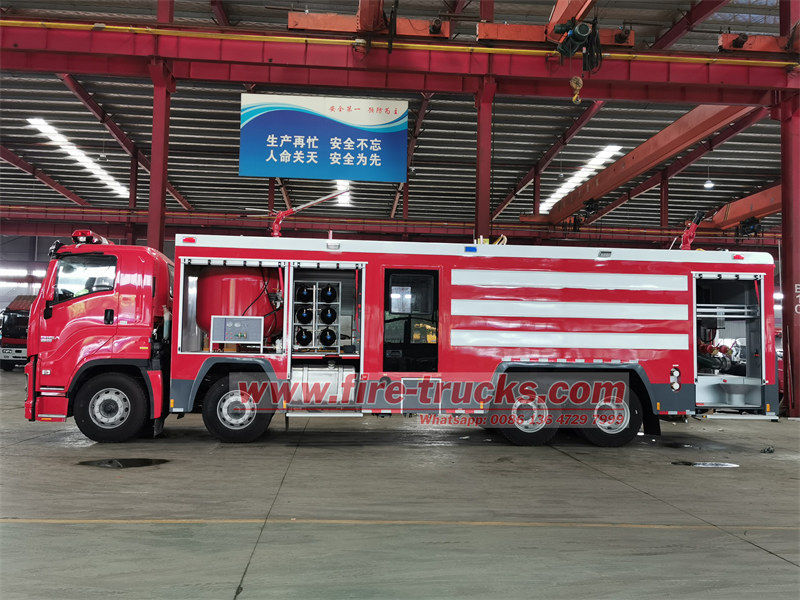

The ISUZU GIGA 8×4 Powder-Water-Foam Combined Fire Truck is a heavy-duty, multi-functional firefighting vehicle designed specifically for combating fires in high-risk areas such as petrochemical facilities and port terminals. Built on the original ISUZU GIGA 8×4 chassis, it measures 11,995 × 2,550 × 3,800 mm with a gross weight of 31,000 kg, demonstrating exceptional operational capability. Powered by a 6WG1-TCG60 diesel engine delivering 420 horsepower and paired with a 12-speed transmission, it reaches a top speed of 98 km/h, ensuring rapid deployment to fire scenes. The front axle supports 8 tons, while the rear axle handles 26 tons, combined with a 17° approach angle and a 13° departure angle, providing excellent terrain adaptability. The cab features a double-door, double-row design, accommodating six firefighters, and a flip-up structure for easy engine maintenance.



ISUZU GIGA 16000L tanker fire truck

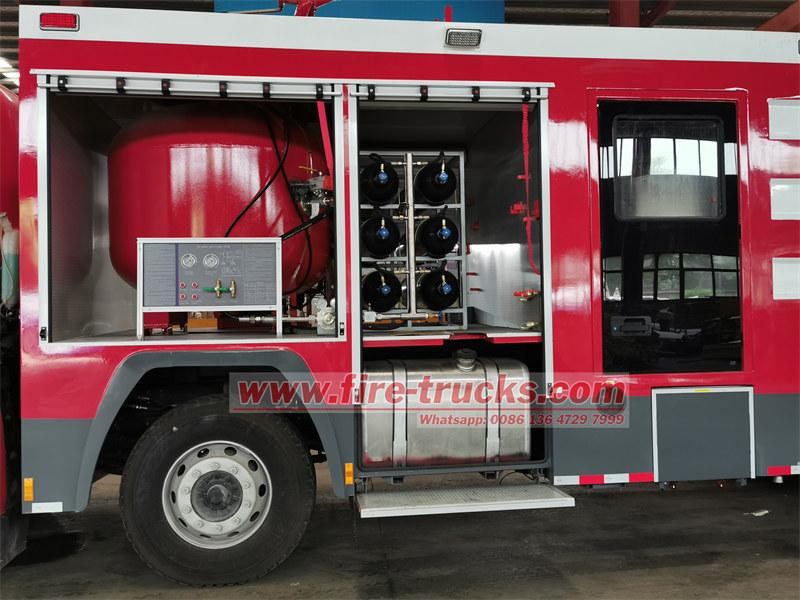

The superstructure system is the core advantage of the ISUZU GIGA Dry Powder Fire Truck, adopting a modular functional zoning design:

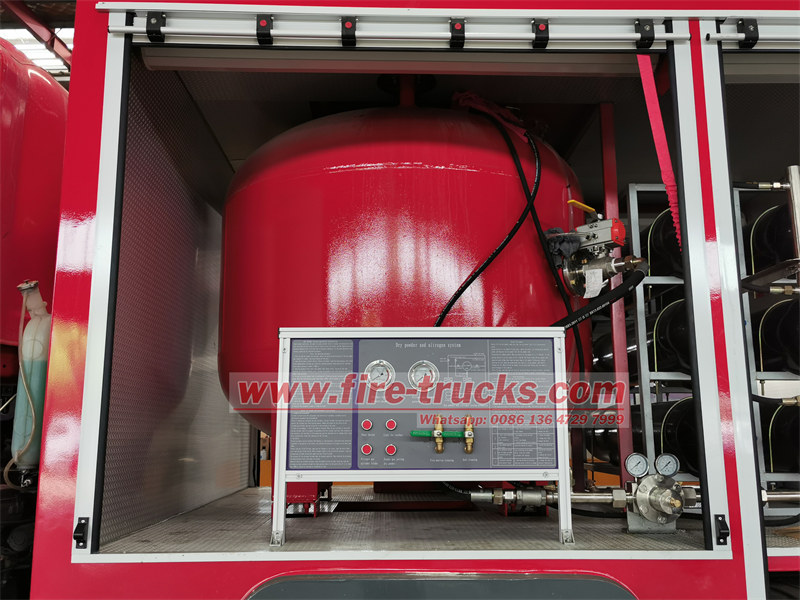

The fire extinguishing agent storage system consists of three major components: a 12,000-liter water tank made of 4mm thick Q235 carbon steel, reinforced to 5mm at the bottom; a 2,000-liter foam tank constructed from welded 304 stainless steel for superior corrosion resistance; and a 2,000-liter dry powder tank using Q345R special steel, with a design pressure of 1.6MPa and working pressure of 1.4MPa. The three extinguishing agents can be used independently or in combination, creating a multi-dimensional firefighting effect. All tanks are equipped with 500mm diameter quick-opening inspection ports for easy routine maintenance.

The ISUZU GIGA multipurpose fire truck's fire extinguishing system configuration is a professional benchmark:

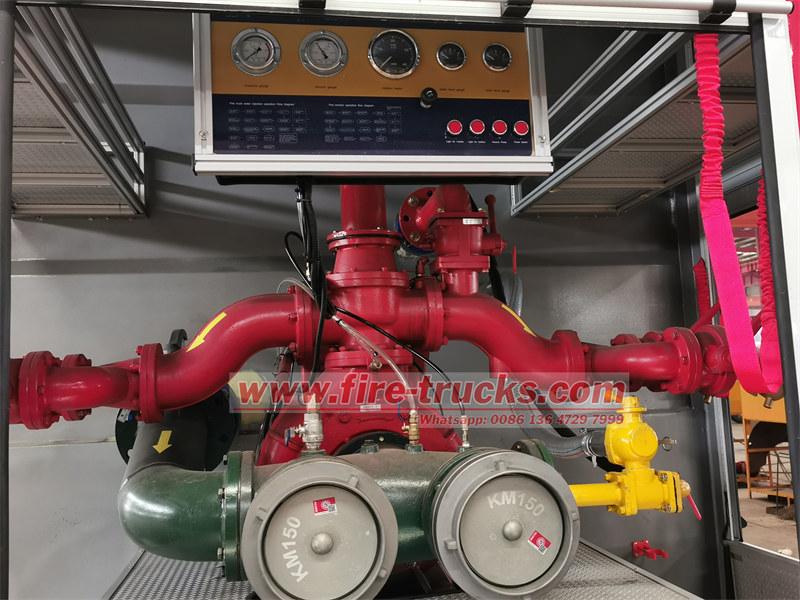

• The CB10/100 fire pump delivers a water flow rate of 100L/s, with a priming time not exceeding 80 seconds under a 7-meter suction depth.
• The PL80W dual-purpose fire monitor achieves a range of ≥75 meters for water and ≥70 meters for foam, with 360° horizontal rotation and -30° to +70° elevation angles for full coverage.
• The PF30 dry powder cannon has a discharge rate of >30kg/s and an effective range exceeding 30 meters, particularly suitable for oil fires.

The three systems can operate independently or collaboratively, forming a "water cooling, foam covering, dry powder suppression" composite firefighting tactic.

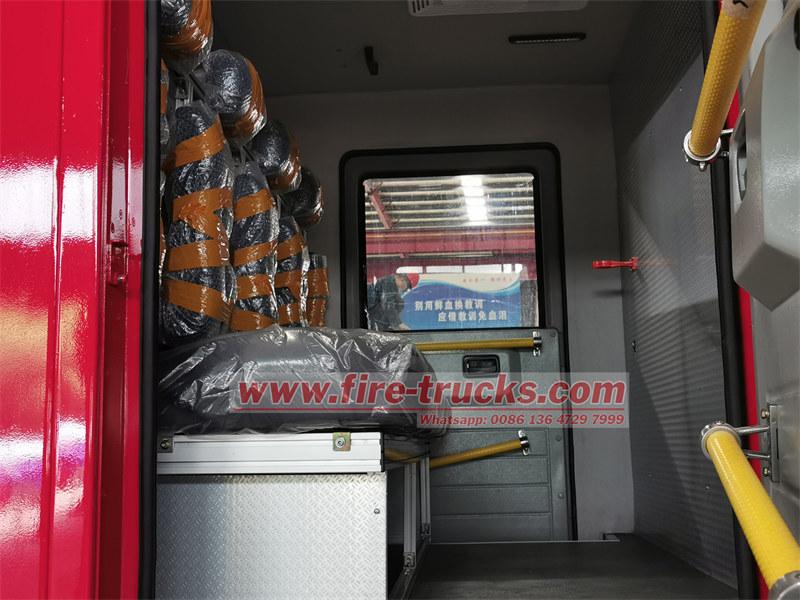

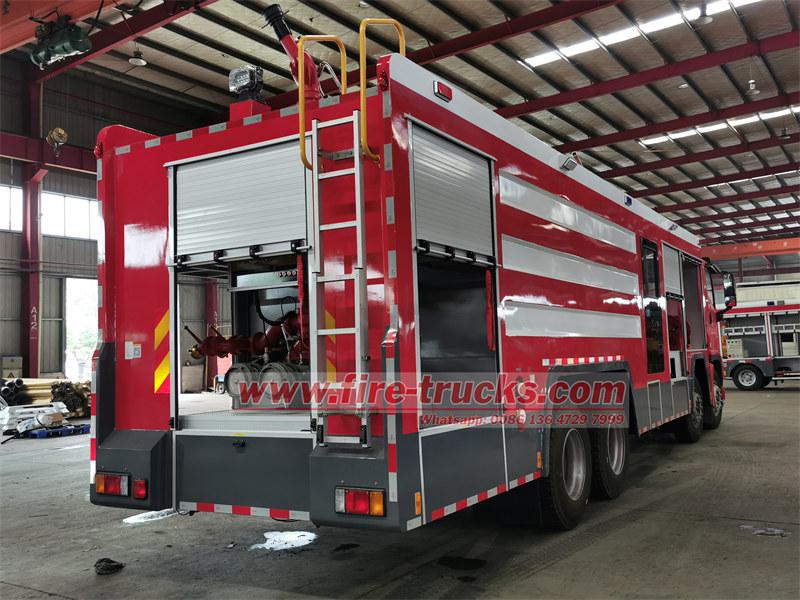

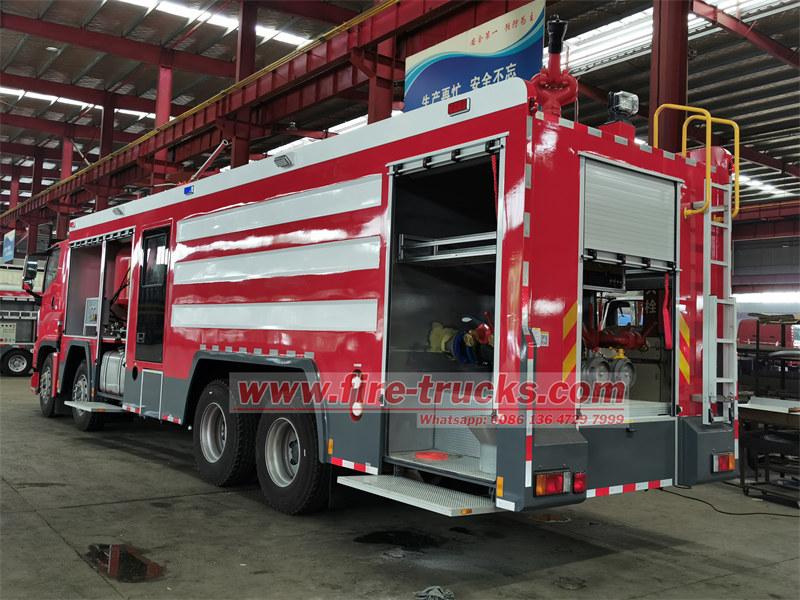

The equipment room of this ISUZU GIGA tanker fire truck embodies a user-friendly design philosophy. The aluminum alloy equipment compartments feature anti-corrosion treatment with adjustable tool racks inside. Each roller shutter door is fitted with flip-down steps, and a rear boarding ladder facilitates quick access to gear. An independent crew compartment located in the middle of the vehicle provides a safe preparation space for firefighters. The control panel integrates critical function indicators such as alarms and auxiliary power, with essential switches within easy reach.



● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
● Build strict QC team to guarantee the quality



ISUZU GIGA foam powder fire truck



Product Specifications



Vehicle basic specifications

Overall Dimension

11995x2550x3800mm

Tank Capacity

Water 12000L, foam 2000L, dry powder 2000L

Engine Output

420Hp

Max Speed

98km/h

Front / Rear Axle Load

8T / 26T

Approach / Departure Angle

17/ 13°

Allowable Cab Passengers

2+4

Chassis Specification

Model

ISUZU GIGA

Manufacture

lSUZU

Engine Model

6WG1-TCG60

Engine Output

420Hp

Displacement

15681ml

Emission

Euro 6

Wheel base

1850+4575+1370mm

GVW

31000kg

Transmission

FAST12 forward and 2 reverse

Driving Cab

Form

2 door crew cab

Passenger

2

Steering Wheel

Left Hand Drive

Equipment

Control box for alarm and alarm lamp

PTO switch and indicator

Additional power source and air course indicator

Jacklight and strong flashing light indicator

Body

Equipment Room

Body is made by high quality steel with phosphate treatment. The inner plate and floor is made by anodized aluminum plate.

Crew room

Crew person room is in the middle of truck

Equipment room

Aluminum alloy structure

Pedal

Every shutter door has an overturn pedal.
Fender can be overturned to be used as pedal.

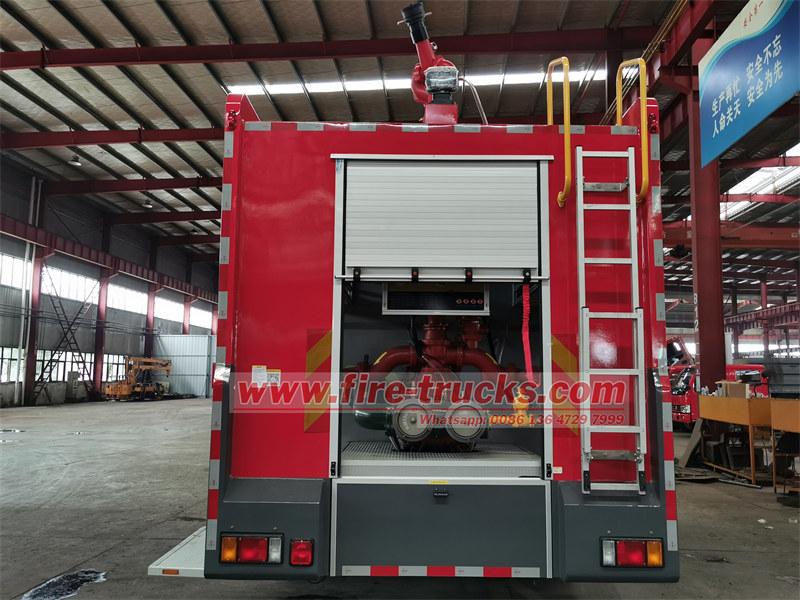

Ladder

on the backside body

Water and foam Tank

Tank capacity

Water: 12000L, foam: 2000L

Material

Water tank: Carbon steel with 4mm thickness, bottom is 5mm. Foam tank: Stainless steel 304 material.

Tank fixing

Fixed on chassis frame

Manhole

One manhole with diameter of 500 mm, with quick locking/opening device

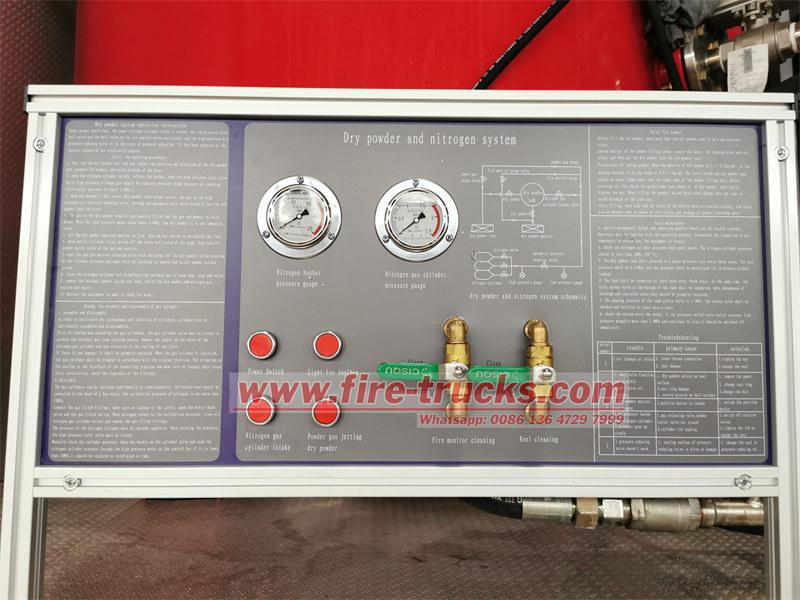

Dry Powder tank

Tank capacity

2000L

Material

Q345R

Designed pressure

1.6MPa

Working pressure

1.4MPa

Blasting pressure of safety valve

1.5MPa

Fire Pump

Fire pump model

CB10/100

Water flow rate

100L/S, 1.0MPa

Maximum suction depth

7m

Diversion device

Self-contained slide pump

Diversion time

Maximum depth of suction < 80s

Fire Monitor (water & foam)

Fire monitor model

PL80W

Flow rate

80L/s, 1MPa

Covering range

water≥75m, foam≥70m

Rotating Angle

360°Horizontal Rotation

Max. Pitch / dip angle

pitch angle≤-30° dip angle≥+70°

Fire monitor (dry powder)

Fire monitor model

PF30

Opening pressure

1-1.4MPa

Jetting rate

>30kg/s

Covering range

>30m



ISUZU GIGA dry powder firefighting truck



Product Applications



The ISUZU GIGA Dry Powder Fire Truck is primarily suitable for extinguishing the following four types of fires:

1. Liquid Fires: Such as petroleum, diesel, gasoline, and other oil fires. Dry powder can rapidly interrupt the combustion chain reaction, while foam forms a covering layer to prevent reignition.

2. Gas Fires: For fires caused by leaks of liquefied gas, natural gas, and other flammable gases, dry powder can effectively suppress gaseous combustion.

3. Electrical Equipment Fires: The non-conductive properties of dry powder make it particularly suitable for fires involving live electrical equipment such as transformers and distribution cabinets (ensure voltage ≤1000V).

4. Chemical Material Fires: For polar solvent fires involving alcohols, esters, and similar substances, the combined use of foam and dry powder creates a dual extinguishing effect.
