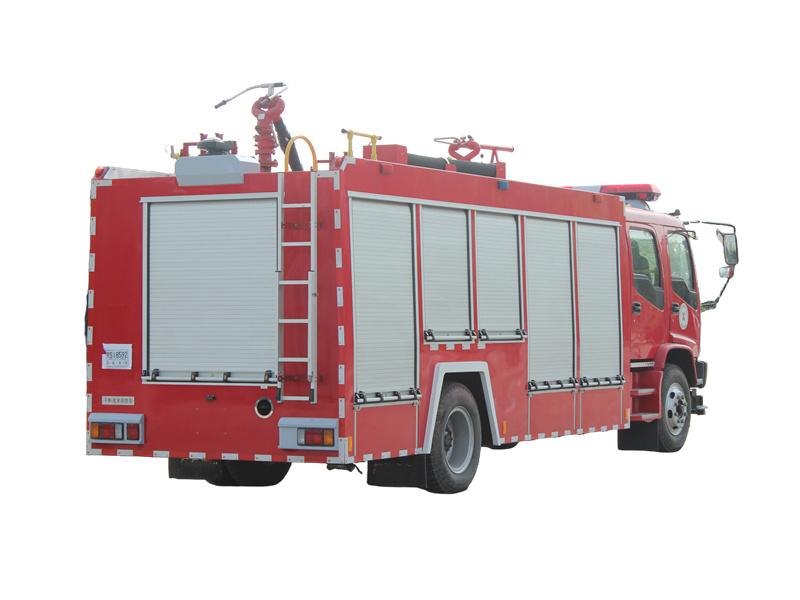

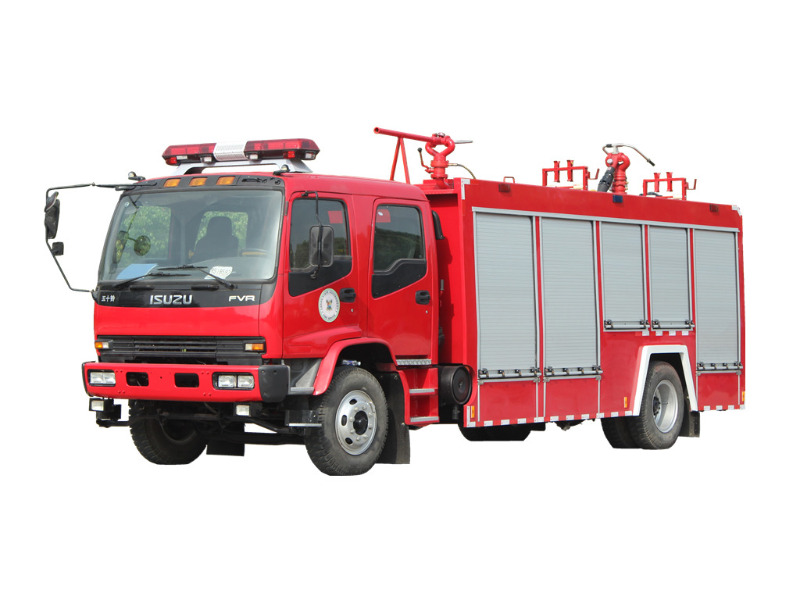

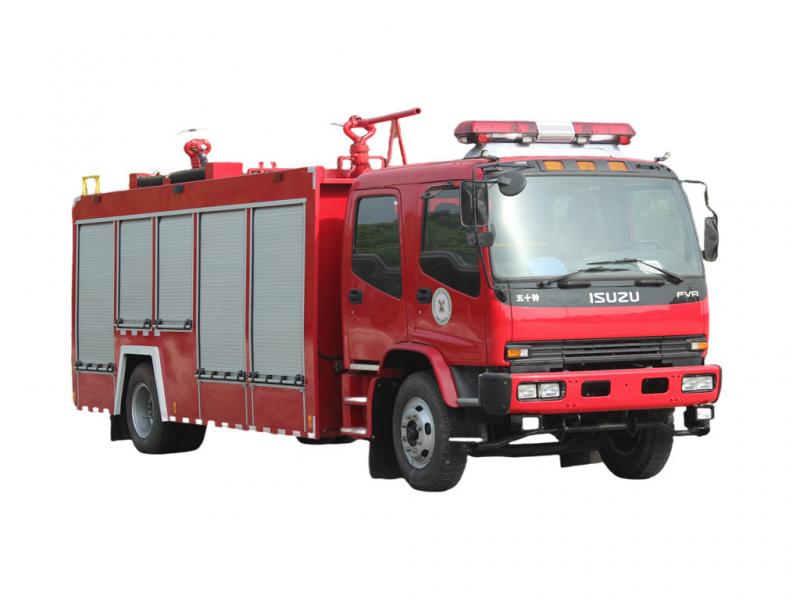

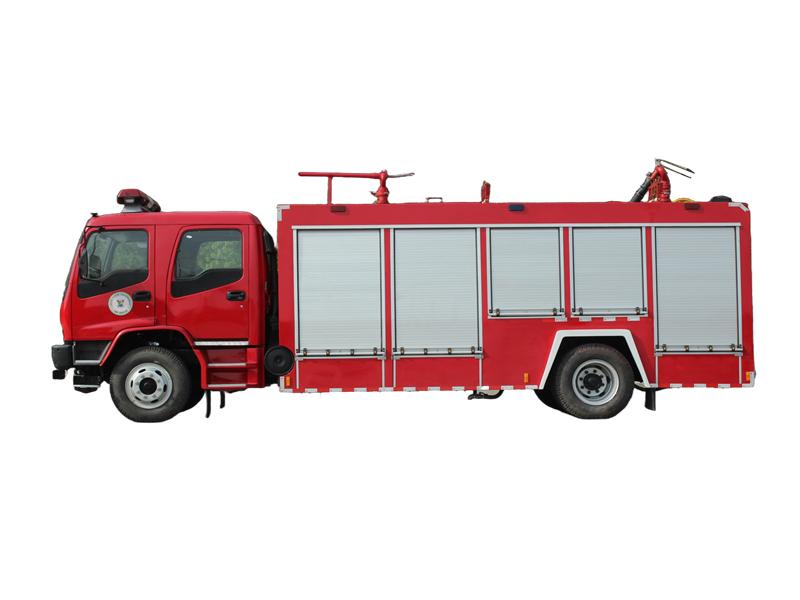

ISUZU FVR dry powder pumper fire truck

ISUZU FVR dry powder pumper fire truck

The ISUZU FVR Dry Powder Fire Truck is a multifunctional firefighting vehicle built on the ISUZU FVR chassis, specifically designed to tackle urban fires, industrial fires, and special fire scenarios. Its chassis offers stable and reliable performance, while the upper body integrates water, foam, and dry powder extinguishing agents, providing efficient firefighting capabilities and flexible operation. It is an ideal choice for fire departments dealing with complex fire scenarios.

  • Manufacturer Origin:

    PT5180GXFGL
  • Work capacity :

    4000L water+2000L foam +1000L dry powder
  • Upper Body material:

    Carbon steel and stainless steel
  • Wheelbase:

    4500 mm
  • Axle drive:

    4×2, left hand drive
  • Engine Power:

    240HP
  • Engine Model:

    6HK1-TCL
  • Fire Pump:

    CB10/40
  • Fire Monitor:

    PL32
  • Remark:

    30m hose reel, DN25, with dry powder gun
Facebook Linkedin Youtube Twitter Pinterest

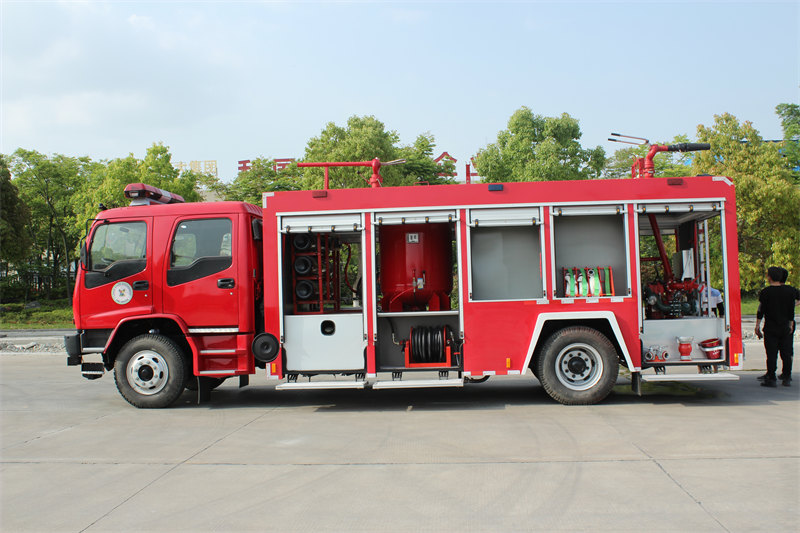

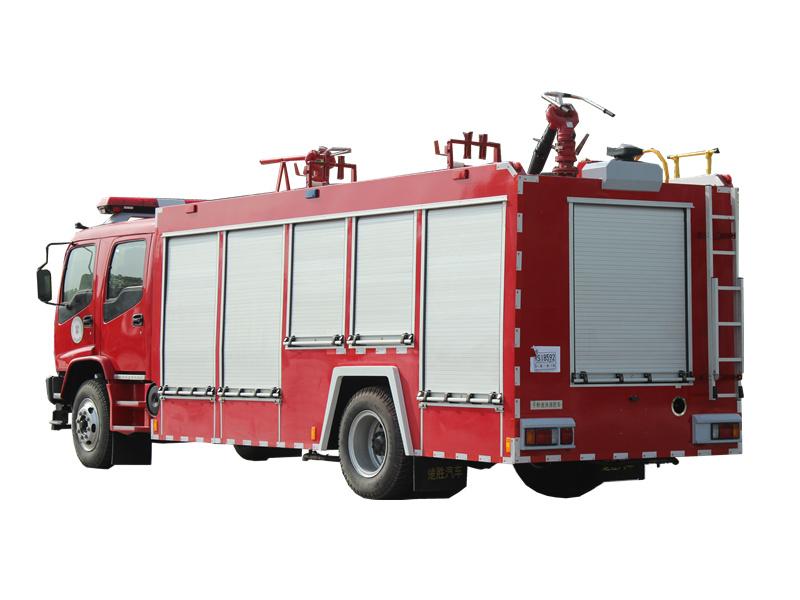

The ISUZU FVR Dry Powder Fire Truck is a professional firefighting vehicle designed to handle various fire scenarios. With overall dimensions of 8800×2550×3580 mm, it features a spacious body and moderate height, ensuring ample loading capacity while maintaining maneuverability on narrow streets. The vehicle's gross vehicle weight (GVW) is 18,000 kg, with a curb weight of 10,200 kg and a rated load capacity of 7,800 kg. This configuration allows the vehicle to carry sufficient water, foam, and dry powder extinguishing agents, meeting the demands of prolonged and high-intensity firefighting operations.



ISUZU dry powder fire truck

The upper body of the ISUZU FVR Dry Powder Firefighting Truck is its core feature. The vehicle is equipped with a 4,000-liter water tank made of carbon steel, offering high corrosion resistance and strength for long-term storage of firefighting water. Additionally, the vehicle includes a 2,000-liter foam tank and a 1,000-liter dry powder tank, constructed from stainless steel and specialized materials, respectively, ensuring the purity and efficiency of the extinguishing agents.

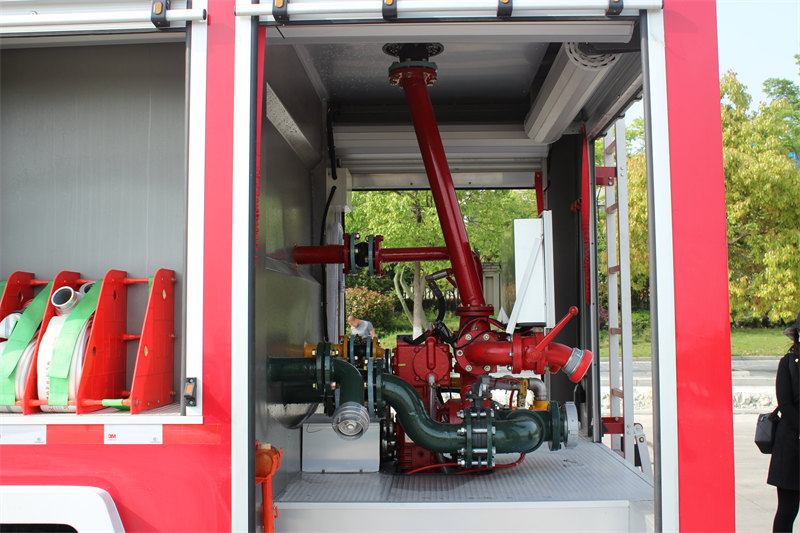

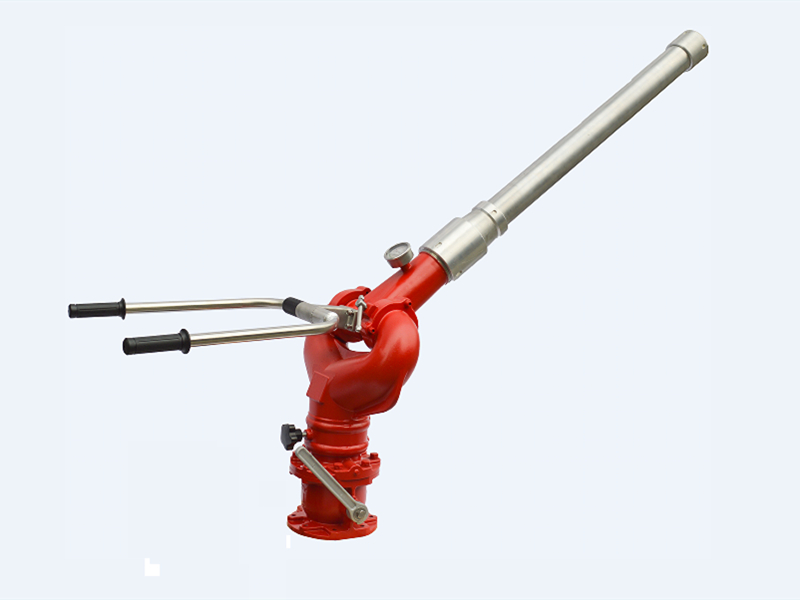

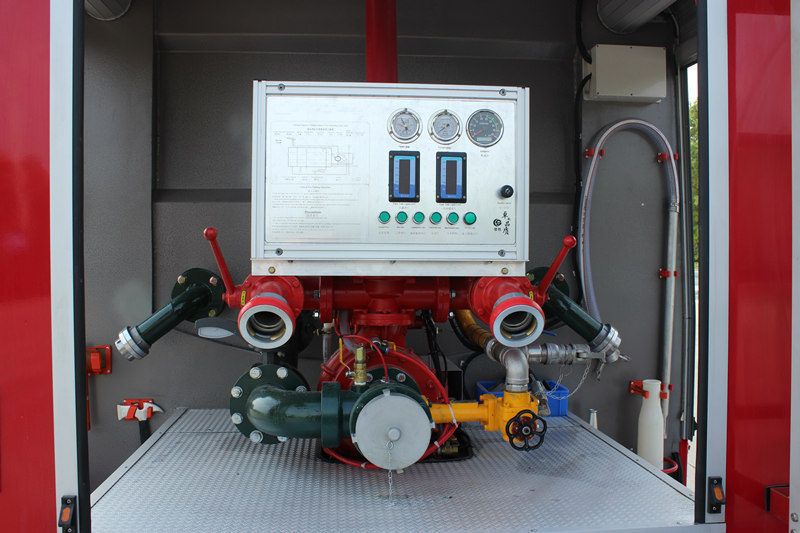

The ISUZU FVR tanker fire truck is equipped with a CB10/40 fire pump, delivering a flow rate of 40 L/s, a rated speed of 3,135 rpm, and a maximum suction depth of 7 meters. This configuration enables the fire pump to quickly deliver large volumes of water or foam to the fire scene, rapidly controlling the fire. Furthermore, the vehicle is fitted with a PL32 dual-purpose water and foam monitor, with a range of ≥60 meters for water and ≥48 meters for foam, a rated working pressure of 0.8 MPa, a pitch angle of -45° to +70°, and a horizontal rotation angle of 0° to 360°, meeting the firefighting needs of various complex fire scenarios.

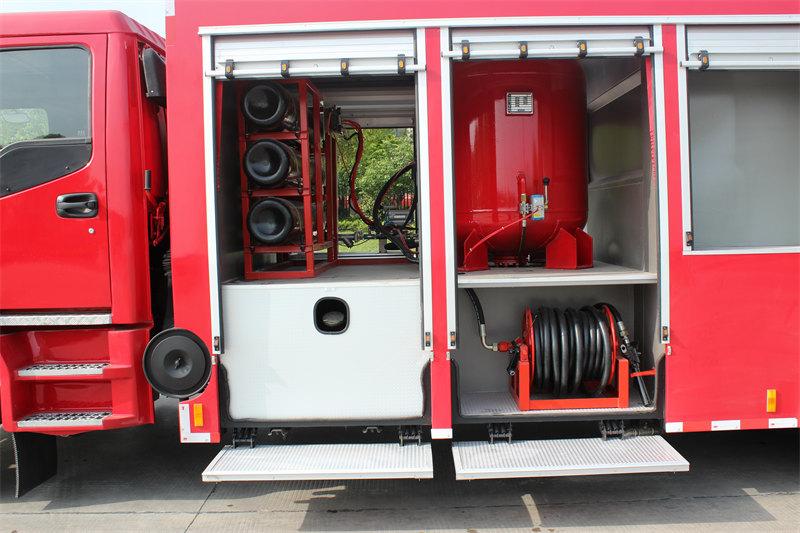

The dry powder firefighting system of the ISUZU FVR Dry Powder Fire Engine also excels. The vehicle is equipped with a PF5-15/30 dry powder monitor, offering an effective injection rate of 30 kg/s and a range of ≥35 meters. Additionally, it includes a 30-meter-long dry powder hose reel with a DN25 diameter and a dry powder gun, enabling firefighters to quickly extinguish fires at close range.



● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Prompt delivery, any order is welcome.
● 24 month quality guarantee term
● Build strict QC team to guarantee the quality



ISUZU FVR dry powder fire engine



Product Specifications



ISUZU FVR dry powder fire engine specifications

Overall dimension (L x W x H)

8800×2550×3580 mm

GVW(Kg)

18000 (Kg)

Curb weight

10200 (Kg)

Rated load weight

7800 (Kg)

Chassis Specifications

Cabin

Crew cab, 2+4 seats, air conditioner

Drive type

4x2

Wheelbase

4500 mm

Engine

Brand

ISUZU

Model

6HK1-TCL

Maximum power

240 hp (177kW)

Rated speed

2400 rpm

Max. torque

760 N.m

Displacement

7780 cc

Type

Diesel, 6 cylinders in-line, turbocharged inter-cooled

Gear box

MLD, Manual, 6 forwards and 1 reverse

Tyres

295/80R22.5, 6+1 pieces

Upper body specifications

Tank

Water Tank Capacity

4000 liters (carbon steel)

Foam Tank Capacity

2000 liters (stainless steel)

Dry Powder Tank Capacity

1000 liters

Fire pump

Model

CB10/40

Flow

40 L/s

Rated speed

3135 rpm

Max. suction depth

7

Fire monitor

Model

PL32

Flow

32 L/s

Range

Water range: ≥60m, foam range: ≥48m

Rated working pressure

0.8 Mpa

Pitch rotation

-45+70°

Horizontal rotation

0360°

Dry powder monitor and hose reel

Monitor model

PF5-15/30

Effective injection rate

30 kg/s

Range

≥35 m

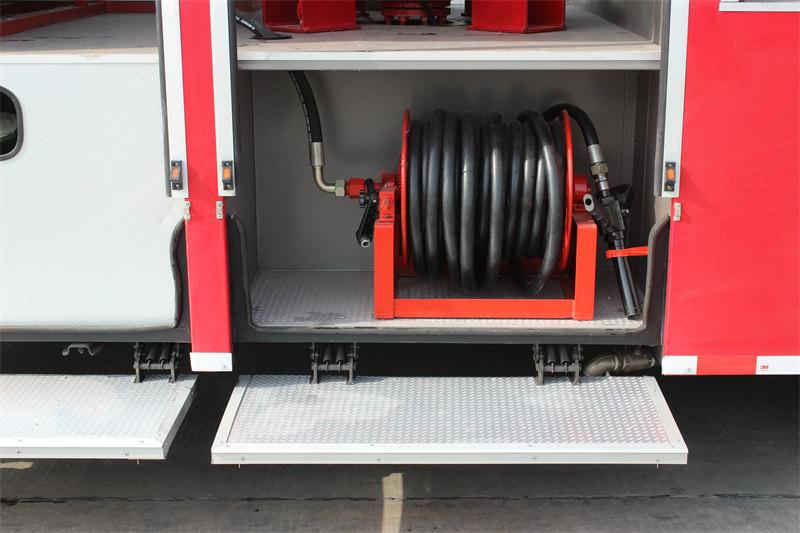

Hose reel

30m, DN25, with dry powder gun

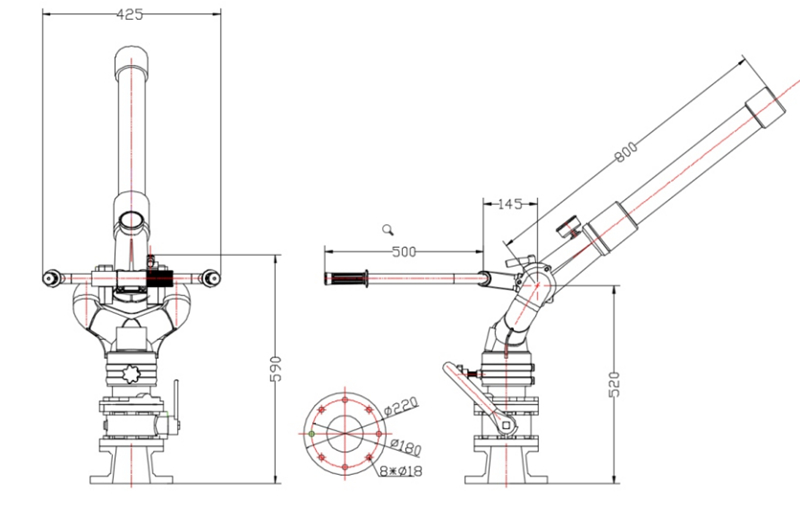

Features of the ISUZU FVR Fire Truck's Dry Powder Monitor



• Comprehensive functionality
• Simple and innovative structure
• Stable performance and easy maintenance
• Low inlet pressure
• Lightweight
• Equipped with an automatic drain valve and horizontal/pitch locking functions
• Material: Precision-cast aluminum alloy
• Monitor head: Aluminum alloy material





Product Details
