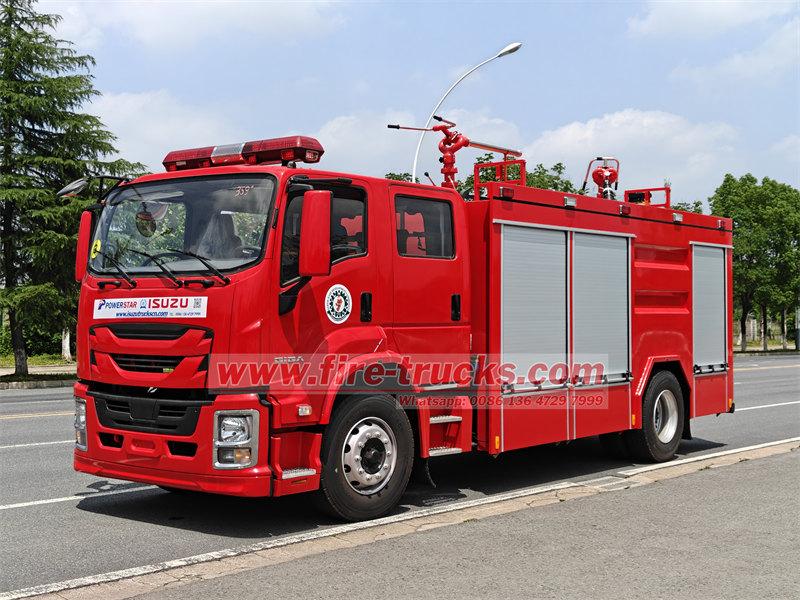

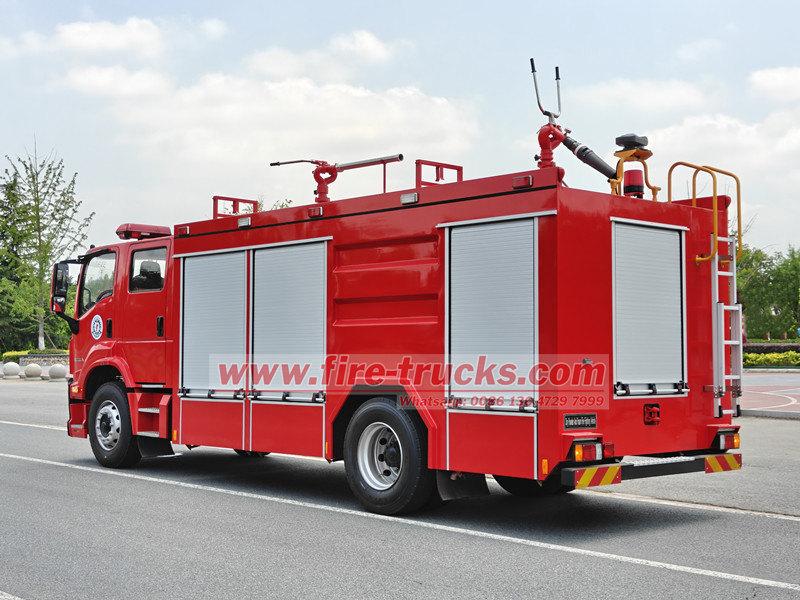

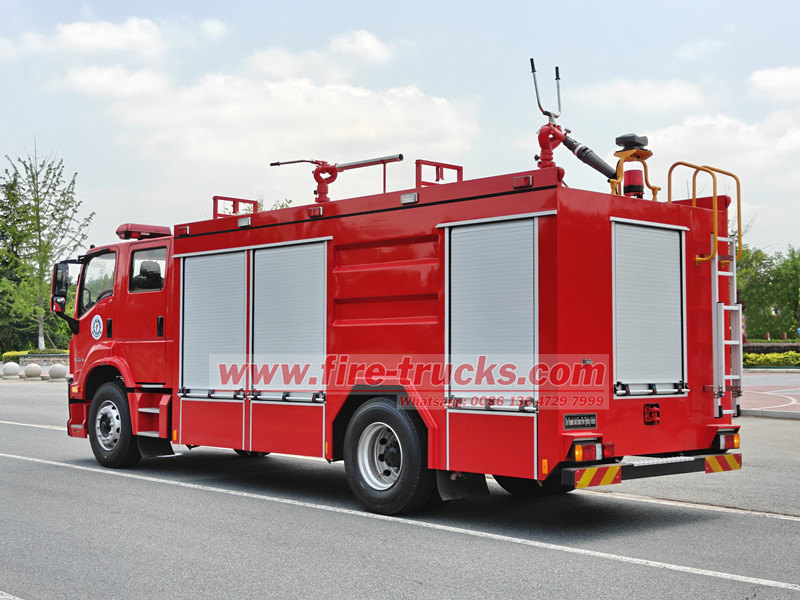

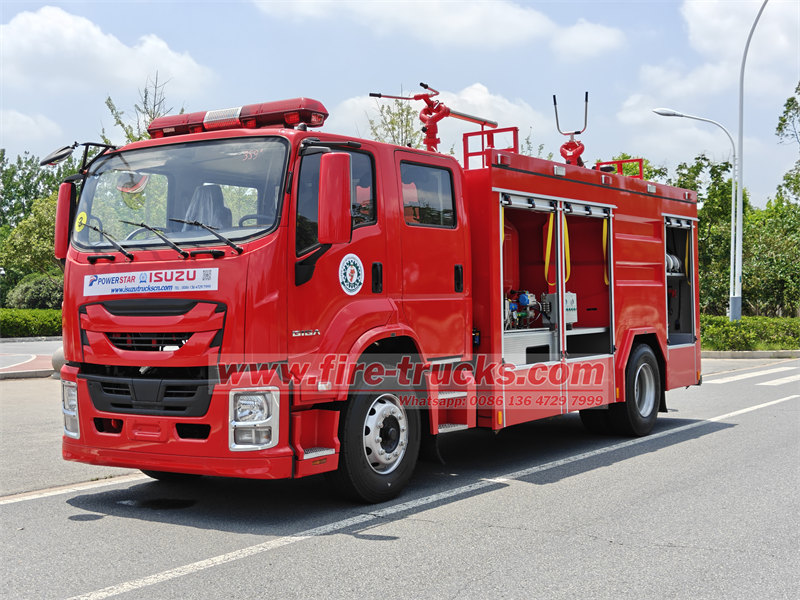

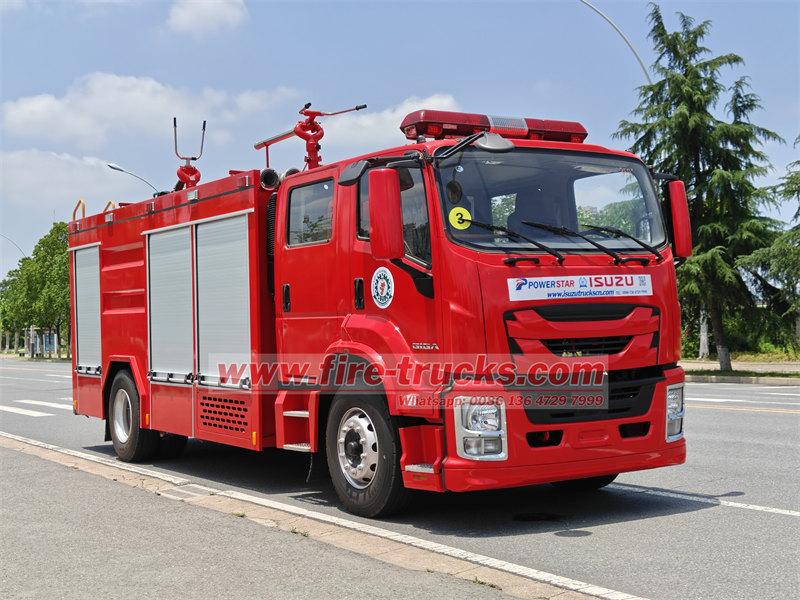

The ISUZU FTR Powder Fire Engine is a professional industrial firefighting vehicle built on the ISUZU FTR chassis, integrating a 3,000L water tank, 1,000L foam tank, and 1,000L dry powder tank. It enables independent or combined use of water, foam, and dry powder as fire-extinguishing agents. Powered by a 205HP engine with a top speed of 98 km/h, it features a CB10/40 fire pump and a PL8/32W and PF5~15/40 dual fire monitor system, delivering a water jet range of 65 meters and a dry powder discharge rate of 40 kg/s. This vehicle is particularly suited for combating complex fires in petrochemical plants, ports, and similar environments, offering both high mobility and sustained operational capability.
Manufacturer Origin:
PT5180GXFGLWork capacity :
3000L water tank+1000L foam tank+1000L powder tankUpper Body material:
Carbon steel water tank+stainless steel foam tank+dry powder tankWheelbase:
5550 mmAxle drive:
4×2, left hand driveEngine Power:
205 HPEngine Model:
4HK1-TCG60Fire Pump:
CB10/40Fire Monitor:
PL8/32Remark:
PP tank is optionalThe ISUZU FTR Powder-Foam Fire Truck is a professional industrial firefighting vehicle built on the ISUZU FTR chassis, integrating water, foam, and dry powder tanks for coordinated fire suppression. Equipped with a 3,000L carbon steel water tank, a 1,000L stainless steel foam tank, and a 1,000L dry powder tank, it employs nitrogen propulsion technology to enable simultaneous discharge of dry powder and foam, effectively tackling complex fires such as oil, gas, and electrical fires commonly encountered in petrochemical plants and ports.
With dimensions of 8,200 × 2,550 × 3,370 mm and a 5,550 mm wheelbase, the vehicle ensures stability while maintaining excellent maneuverability. Its 20° approach angle and 13° departure angle allow it to navigate diverse industrial terrains.
The ISUZU FTR Multipurpose Fire Tender’s core strength lies in its innovative triple-agent fire suppression system. The CB10/40 fire pump delivers a water flow rate of 40 L/s at 1.0 MPa working pressure, with a 7-meter suction depth and self-priming capability, enabling maximum-depth water intake in just 50 seconds. The PL8/32W fire monitor supports dual-mode water/foam discharge, featuring 360° horizontal rotation and -30° to +70° elevation adjustment, achieving a water jet range exceeding 65 meters and a foam jet range of over 50 meters—allowing firefighters to operate safely from a distance.
The dry powder system utilizes a PF5~15/40 dry powder cannon with an adjustable working pressure of 0.5–1.5 MPa, a discharge rate of 40 kg/s, and an effective range surpassing 30 meters. The Q345R steel dry powder tank has a design pressure of 1.6 MPa, an operating pressure of 1.4 MPa, and a safety valve burst pressure of 1.5 MPa, ensuring reliable and secure dry powder delivery. The three fire-extinguishing agents can be used independently or in combination via the nitrogen system, with the coordinated discharge of dry powder and foam proving especially effective against petroleum and electrical fires, significantly enhancing firefighting efficiency.
As a medium-sized multirole fire truck, the ISUZU FTR Pumper Fire Truck occupies a unique position in industrial firefighting. It is particularly well-suited for specialized environments such as petrochemical parks, large industrial plants, and ports. Compared to traditional water/foam fire trucks, its added dry powder capability expands its versatility in handling diverse industrial fires. Meanwhile, its large-capacity water and foam tanks provide greater flexibility than dedicated dry powder fire trucks.
● 30 years experience on fire truck designing
● Fast delivery time, quick 20 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● Be designed according to your requirements
Product Specifications
Vehicle basic specifications |
|
Overall Dimension |
8200x2550x3370mm |
Tank Capacity |
Water 3000L, foam 1000L, dry powder 1000L |
Engine Output |
205Hp |
Max Speed |
98km/h |
Front / Rear Axle Load |
6500 /11500 kg |
Approach / Departure Angle |
20/ 13° |
Allowable Passengers |
2+4 |
Chassis Specification |
|
Model |
ISUZU FTR |
Manufacture |
lSUZU |
Engine Model |
4HK1-TCG60 |
Engine Output |
205Hp |
Displacement |
5193ml |
Emission |
Euro 6 |
Wheel base |
5550mm |
GVW |
18000kg |
Transmission |
MLD, 6 forward and 1 reverse |
Driving Cab |
|
Form |
2 door crew cab |
Passenger |
2 |
Steering Wheel |
Left Hand Drive |
Equipment |
Control box for alarm and alarm lamp PTO switch and indicator Additional power source and air course indicator Jacklight and strong flashing light indicator |
Body |
|

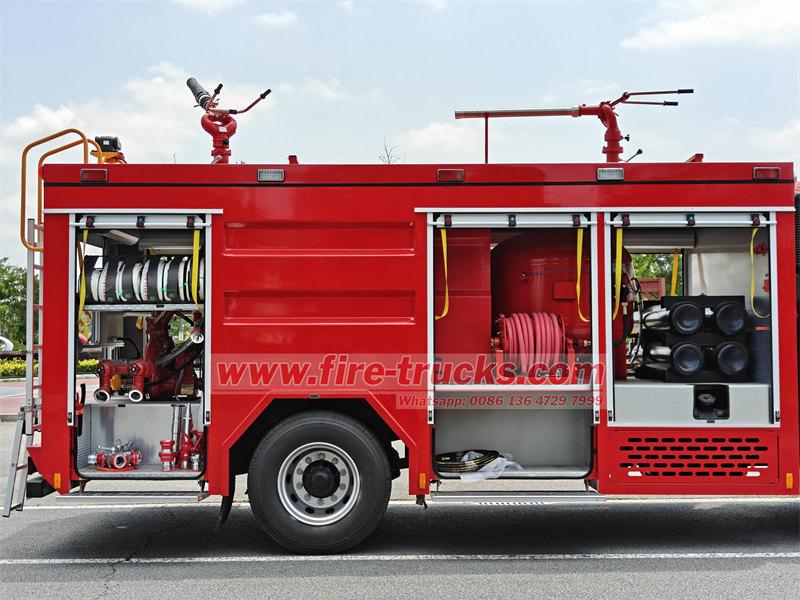

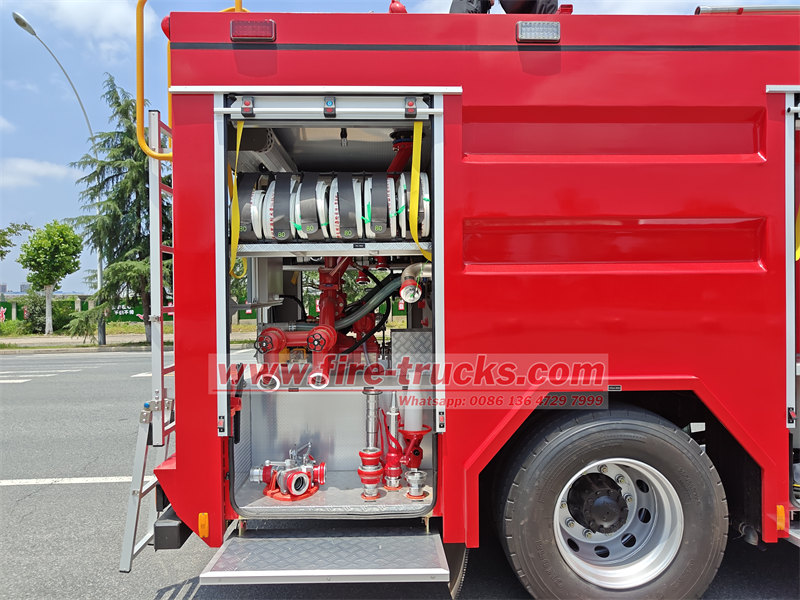

Equipment Room |
Body is made of high-quality steel with phosphate treatment. The inner plate and floor are made of anodized aluminum plate. |
Crew room |
The crew room is in the middle of truck |
Equipment room |
Aluminum alloy structure |
Pedal |
Every shutter door has an overturn pedal. |

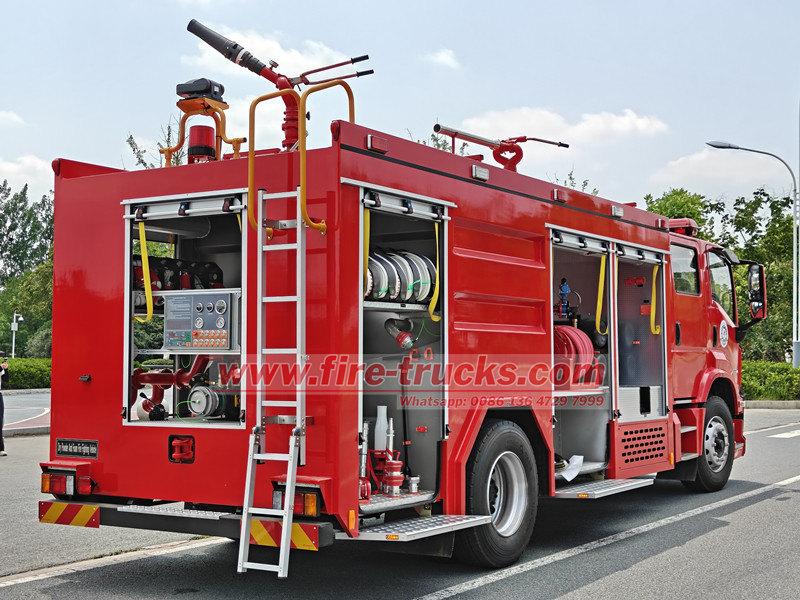

Ladder |
on the backside body |
Water and foam Tank |
|
Tank capacity |
Water: 3000L, foam: 1000L |
Material |
Water tank: Carbon steel with 4mm thickness, bottom is 5mm. Foam tank: Stainless steel 304 material. |
Tank fixing |
Fixed on chassis frame |
Manhole |
One manhole with diameter of 500 mm on each tank, with quick locking/opening device |

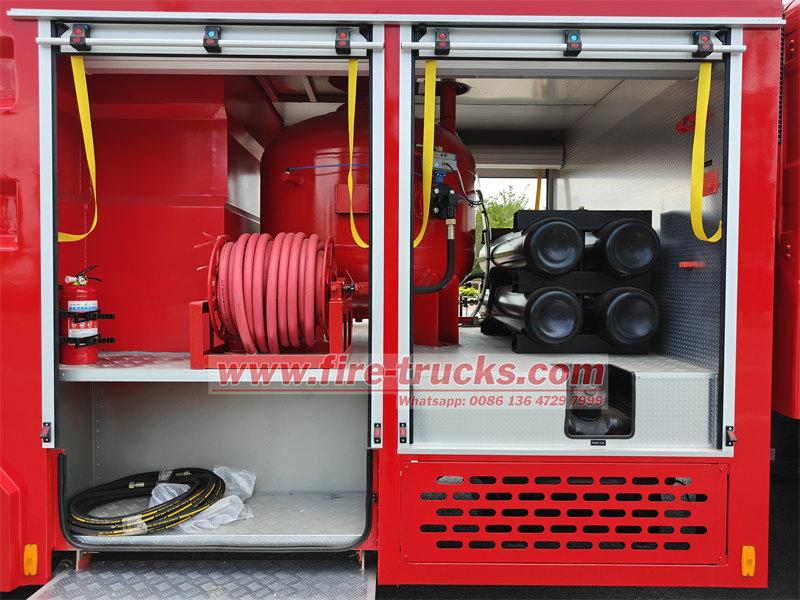

Dry Powder tank |
|
Tank capacity |
1000L |
Material |
Q345R |
Designed pressure |
1.6MPa |
Working pressure |
1.4MPa |
Blasting pressure of safety valve |
1.5MPa |

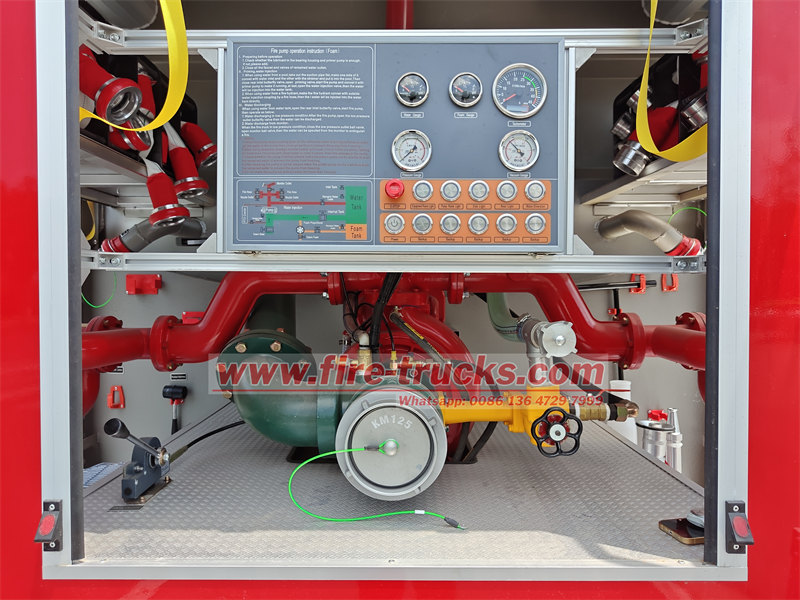

Fire Pump |
|
Fire pump model |
CB10/40 |
Water flow rate |
40L/S, 1.0MPa |
Maximum suction depth |
7m |
Diversion device |
Self-contained slide pump |
Diversion time |
Maximum depth of suction < 50s |

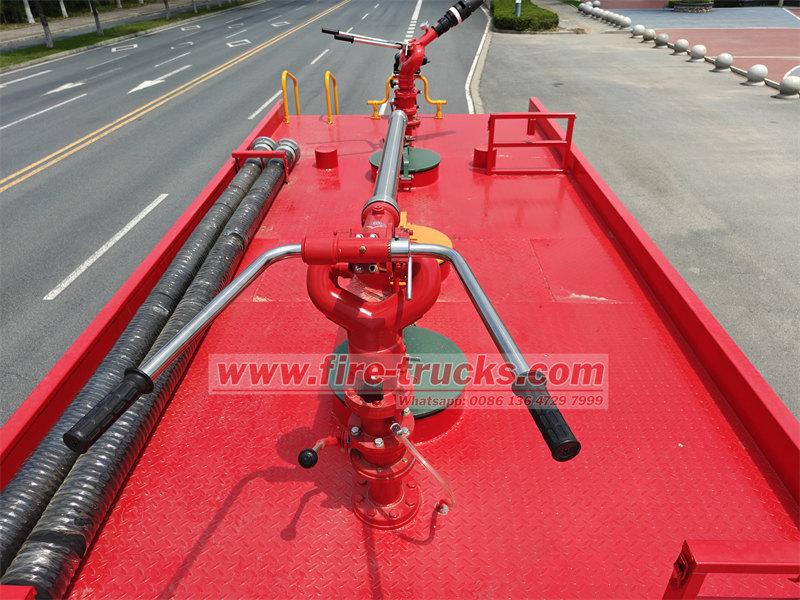

Fire Monitor (water & foam) |
|
Fire monitor model |
PL8/32W |
Flow rate |
32L/s, 1MPa |
Covering range |
water≥65m, foam≥50m |
Rotating Angle |
360°Horizontal Rotation |
Max. depression / elevation angle |
Depression angle≤-30°; Elevation angle≥+70° |
Fire monitor (dry powder) |
|
Fire monitor model |
PF5~15/40 |
Working pressure |
0.5-1.5MPa |
Powder jetting rate |
40kg/s |
Covering range |
>30m |

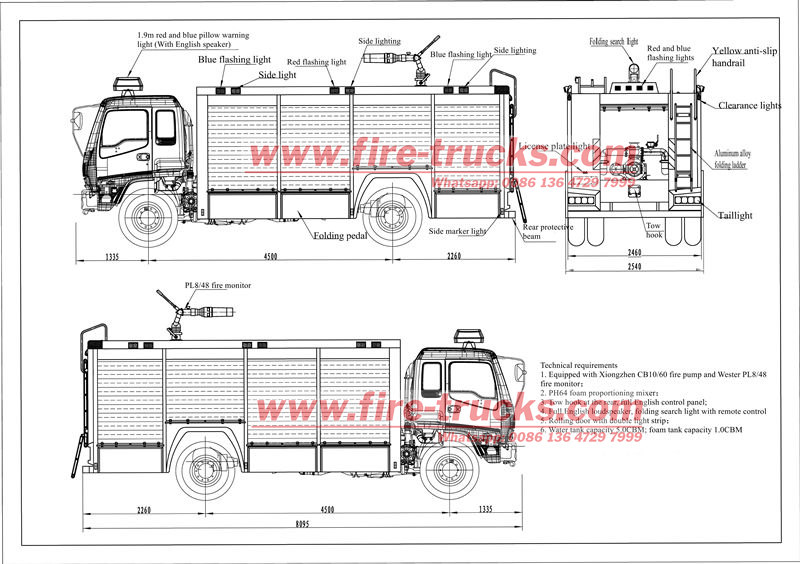

Product Drawing
Product Advantages
Advantages of the ISUZU FTR Powder Firefighting Truck:
1. Multi-Agent Combined Fire Suppression System
Integrates water, foam, and dry powder into a single system, enabling rapid switching and coordinated deployment via an intelligent control system. The PL8/32W fire monitor (65-meter water/foam range) and PF5~15/40 dry powder cannon (40 kg/s discharge rate) can operate independently or jointly, effectively combating both conventional and specialized fires (e.g., oil, electrical), making the ISUZU FTR Fire Tender ideal for complex scenarios like petrochemical plants and ports.
2. High-Capacity Sustained Operation
Features a 3,000L carbon steel water tank, 1,000L stainless steel foam tank, and 1,000L high-pressure dry powder tank, ensuring extended firefighting operations. The Q345R dry powder tank (1.6 MPa design pressure) and self-priming fire pump (50-second rapid water intake) provide a stable supply of extinguishing agents, significantly enhancing on-scene endurance.
3. Superior Mobility
Built on ISUZU FTR’s proven commercial chassis, it is powered by a 205 HP Euro 6 engine paired with a 6-speed transmission, reaching a top speed of 98 km/h. The optimized 5,550 mm wheelbase and 20° approach angle balance urban maneuverability with highway stability, making it suitable for both confined industrial roads and long-distance emergency response.
4. Intelligent Safety Control System
Integrates advanced features such as PTO auto start/stop, nitrogen pressure monitoring, and multi-agent switching indicators. The control panel provides real-time system status updates for enhanced operational safety.
