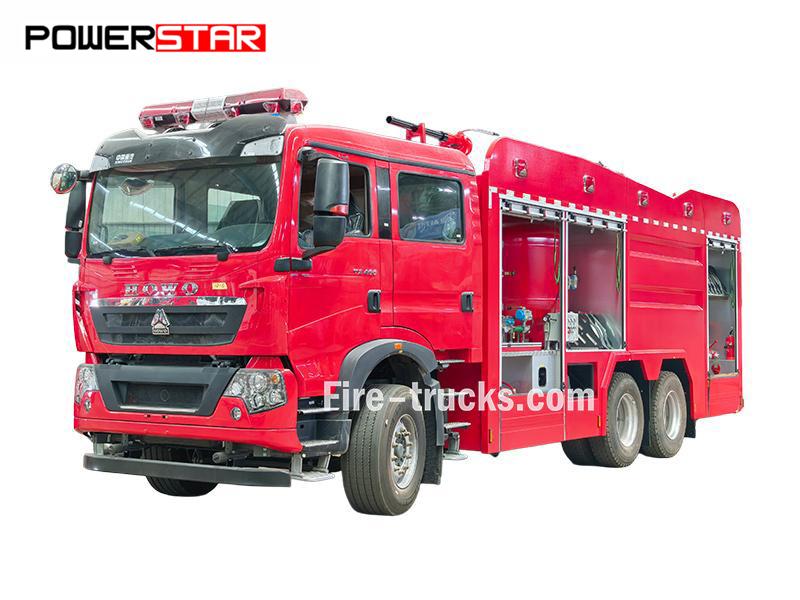

HOWO TX Multiple Powder Pumper Fire Engine

HOWO TX Multiple Powder Pumper Fire Engine

The HOWO TX multiple powder pumper fire engine is built on a SINOTRUK HOWO 6×4 chassis with a 4350+1350 mm wheelbase. It is powered by a Weichai WP10.340E32 engine rated at 340 HP and paired with an HW 10 speed transmission. The vehicle carries a 3000L water tank and a 3000L dry powder tank. A CB10/80 fire pump (80 L/s at 1.0 MPa) and a roof mounted cannon (45 L/s, 65 m range) handle fire suppression. Nine 80L nitrogen bottles at 15 MPa drive the dry powder system.

  • Truck Chassis:

    SINOTRUK HOWO 6x4
  • Tanker Capacity:

    3000L water tank+3000L dry powder tank
  • Engine Power:

    340 HP/ WP10.340E32
  • Fire Pump:

    China CB10/80
  • Pump Flow:

    80L/s
  • Work Pressure:

    1.0 Mpa
Facebook Linkedin Youtube Twitter Pinterest

The HOWO TX dry powder water fire truck is built for firefighting and emergency response in industrial and municipal settings. Its main components are a 3000 liter carbon steel water tank, a 3000 liter dry powder tank, a CB10/80 fire pump (80 L/s at 1.0 MPa), and a roof mounted fire cannon with 65 meter range.

Nine 80 liter nitrogen bottles at 15 MPa drive the dry powder system. This truck works well for Class B fires involving oil, gas, and chemicals. It suits firefighting tasks at chemical plants, oil depots, warehouses, and airports.



   ♦ HOWO TX Multiple Powder Pumper Fire Engine ♦

Guatemala 3000L water dry powder combined fire truck howo

Working Capacity

 Engine Model

 Wheelbase

 Superstructure

3000L water+3000L dry powder

 340 HP/ WP10.340E32

4350+1350 mm

★ Water tank carbon steel, 3000L capacity

★ Dry powder tank carbon steel, 3000L capacity

★ CB10/80 fire pump, 80 L/s flow at 1.0 MPa

★ 2026 year brand new





»Ⅰ. Main Features :

★ Weichai WP10.340E32 engine rated at 340 HP for fire suppression and emergency response

★ HOWO 6×4 chassis with 3000L water tank, 3000L dry powder tank, and CB10/80 fire pump (80 L/s at 1.0 MPa)

★ Roof mounted fire cannon with 45 L/s flow and 65 meter range for long distance fire attack

★ Nine 80L nitrogen bottles at 15 MPa to power the dry powder system for Class B fires

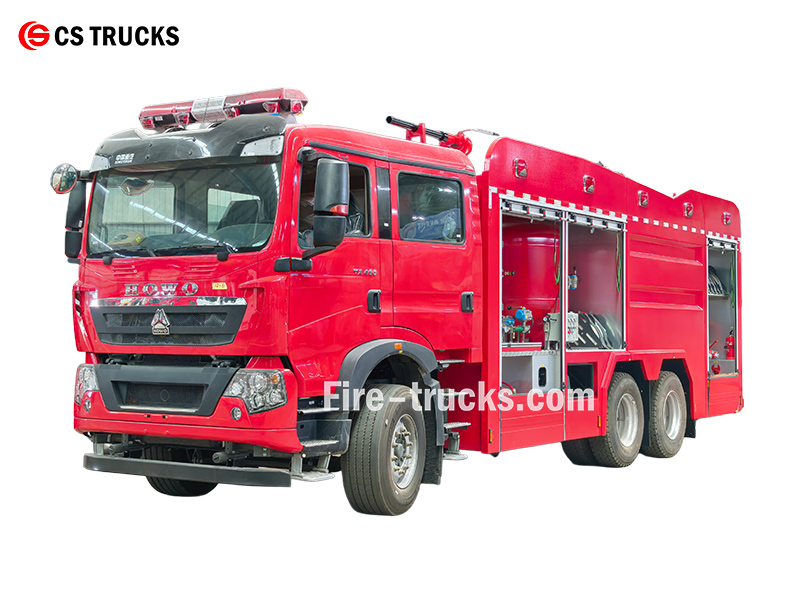

  • howo 3000L water and dry powder fire truck

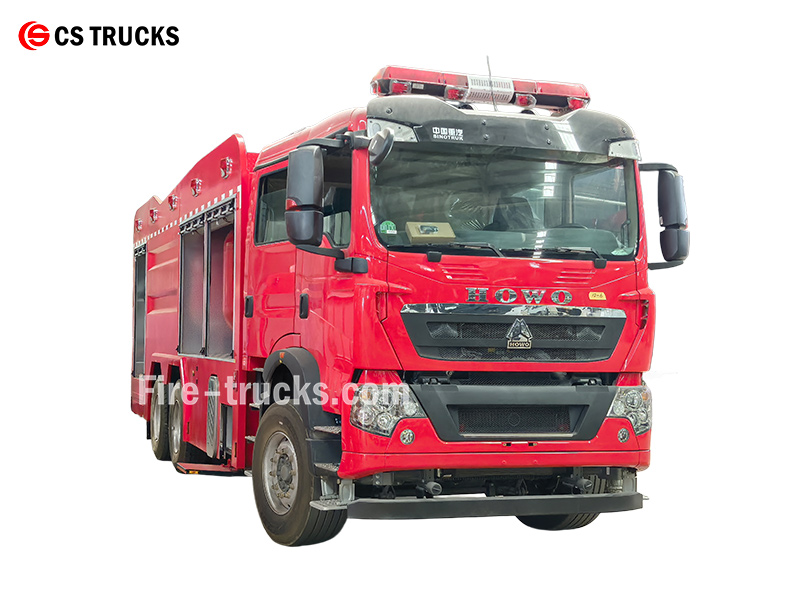

  • howo 6x4 water dry powder dual fire truck

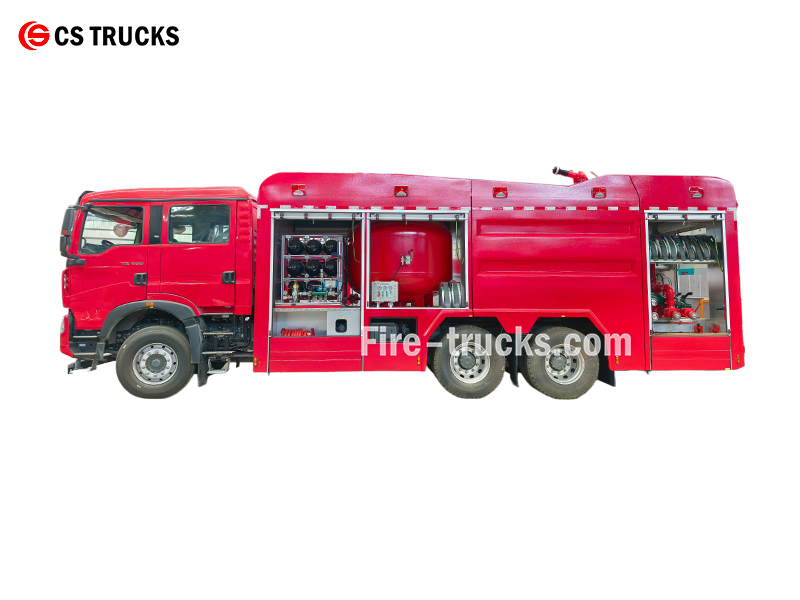

  • howo water dry powder combined fire fighting truck

» Ⅱ.Product Parameter :

HOWO TX Multiple Powder Pumper Fire Engine
General Work capacity 3000L water tank+3000L dry powder tank
Truck chassis SINOTRUK HOWO
Engine Power 340 HP/ WP10.340E32
Fire pump CB10/80
Overall Dimensions L*W*H 10300×2670×3550 mm
Gross Vehicle Weight 25000 kg
Curb Weight 11820 kg
Engine Fuel Type Diesel
Engine Brand Weichai engine ,WP10.340E32
Power 340HP (257kw)
Displacement 9.839L
Emission Standard Euro 3
Chassis Drive Type 6X4,left hand drive
Wheelbase 4350+1350 mm
Transmission HW 10 speed forward, 2 reverse
Tire 12.00R22.5, 10 tires and 1 spare tire
Max Speed 95km/h
Paint Metallic paint
Cabin Cab Capacity 2+4 persons allowed
Air Conditioner Air conditioner
Nitrogen Gas Bottle Material 37Mn
Capacity 80 Litres
Quantity 9
Design Pressure 15MPa
Nitrogen Gas Bottle Material 37Mn
Capacity 80 Litres
Quantity 9
Design Pressure 15MPa
Tank Tank Capacity 3000L water tank+3000L dry powder tank
Tank Material Carbon steel
Fire pump Model CB10/80
Flow 80L/s
Drive Mode PTO
Pressure 1.0Mpa
Fire Cannon Flow Speed 45L /s
Range 65 m
Superstructure Electric Appliance Warning Light and Siren Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.
Strobe Light Mounted on the both sides of the compartment
External Lighting LED lights are mounted on the both sides of the compartment
Roof Lighting LED lights are mounted on the inside of the roof
Side Indicator Light Inline yellow warning light is mounted on the side of the compartment and pedals
Optional ** Back alarm and Camera can be equipped
** Standard carbon steel, stainless steel optional
** USA or Germany fire pump can be optional
All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars...

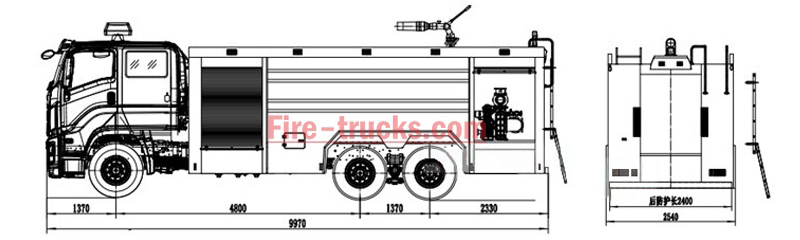

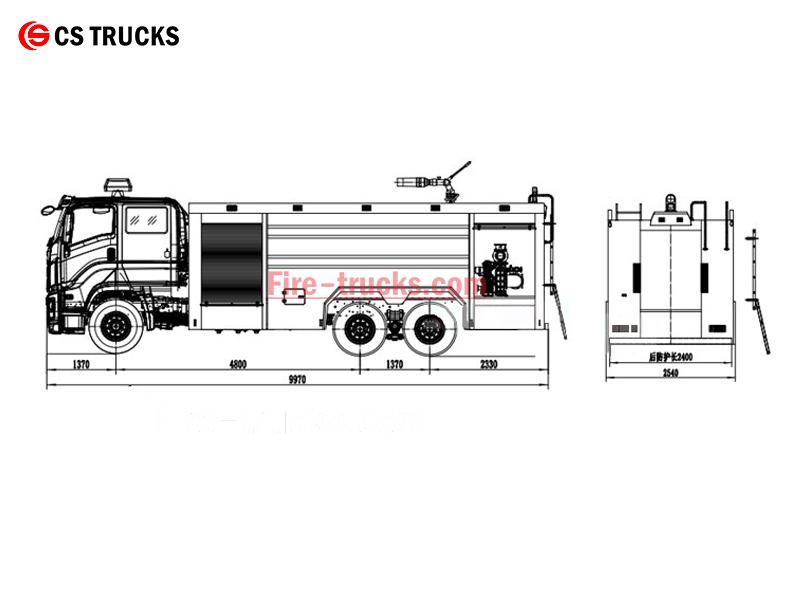

Dry Powder Fire Truck Structure Diagram» Ⅲ.Products Description :

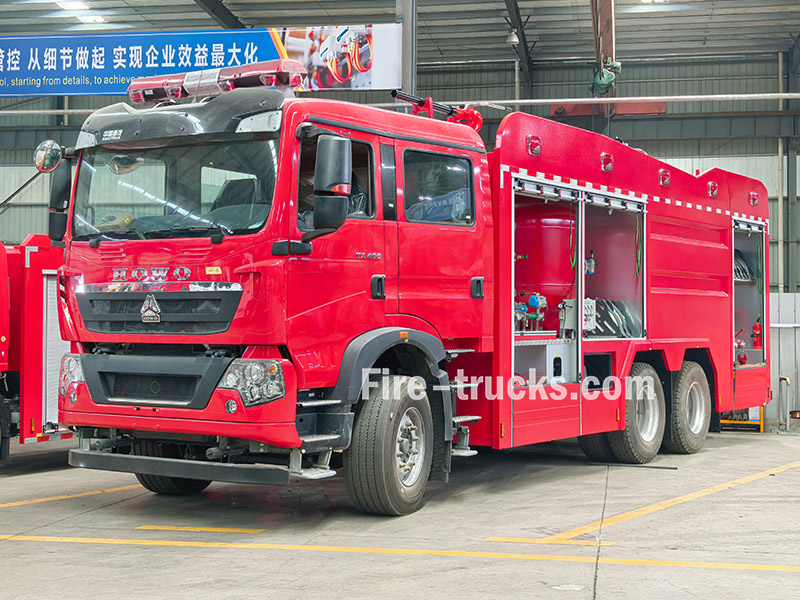

HOWO TX water dry powder fire truck

1.Chassis & Powertrain

♦ 6×4 reinforced chassis with 4350+1350 mm wheelbase, built for heavy loads and stable handling on rough and slippery roads.



♦ Weichai WP10.340E32 diesel engine, 340 hp output with high torque at low rpm, reliable for frequent starts, acceleration, and continuous pump operation.



♦ HW 10 speed gearbox with closely spaced ratios, driver can pick the right gear for any road or load condition, ensuring smooth and efficient power delivery.

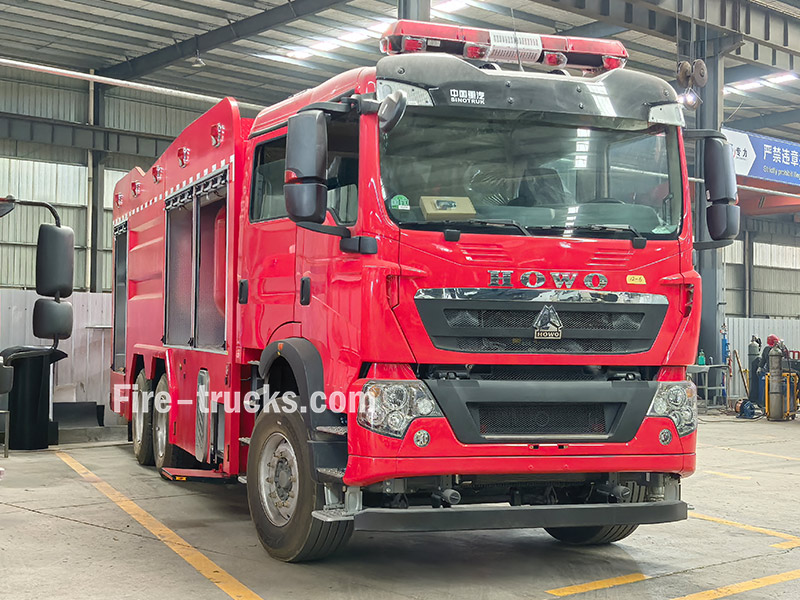

3000L water 3000L powder fire truck howo

2.Fire Suppression System

♦ 3000L carbon steel dry powder tank with nine 80L nitrogen cylinders (15 MPa design pressure) for continuous powder discharge.



♦ 3000L carbon steel water tank with CB10/80 fire pump, 80 L/s flow at 1.0 MPa, PTO driven, 9m suction height, ≤10s priming time.



♦ Roof mounted fire cannon delivers 45 L/s flow with 65 m range, allowing safe distance fire attack for Class A, B, and C fires.



♦ Long row warning light and siren on cab roof, strobe lights and LED lights on compartment sides, yellow warning lights on pedals for night safety.

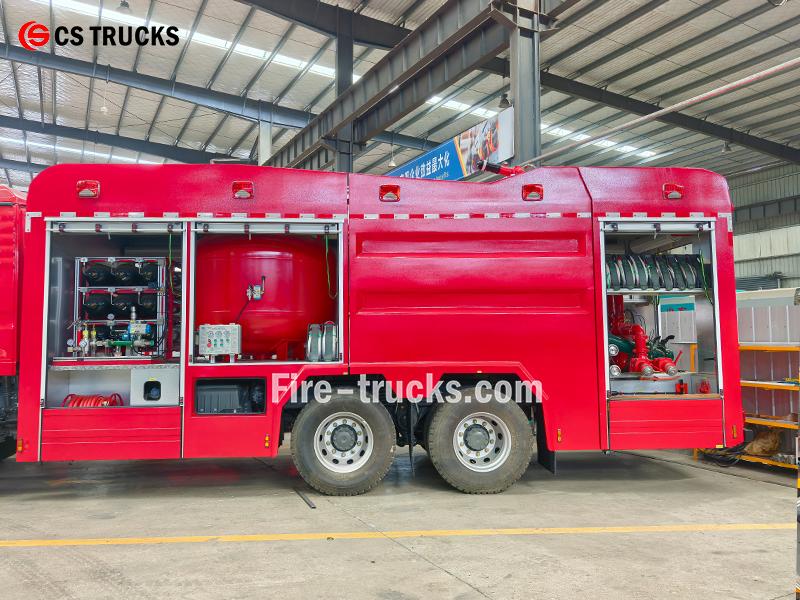

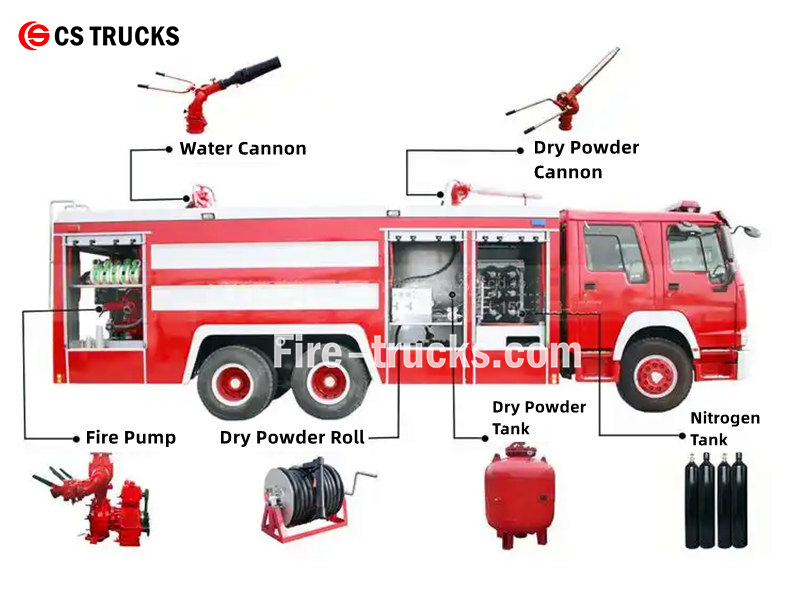

» Ⅳ.Functional Structure for HOWO Dry Powder Fire Truck :

howo heavy duty water dry powder fire truck

» Ⅴ.Dry Powder System for HOWO Multi Powder Fire Truck :

★ Equipped with a 3000L carbon steel dry powder storage tank, providing ample reserves for sustained, long-term spraying.

★ Combined with nine 80L 37Mn nitrogen cylinders, designed to withstand pressures up to 15MPa.

★ High-pressure nitrogen atomizes the dry powder at a rate of 60-100kg/s, providing wide coverage.

★ It can rapidly smother and chemically suppress fires, suitable for Class A (solid), Class B (liquid, gas), and Class C (electrical) fires.



Dry Powder System

Model

R25-303

Pressure Vessel

Ⅱ

Design Pressure

1.76MPa

Pressure Test Pressure

2.2MPa

Design Temperature

50°

Net Weight of Vessel

1345 kg

Capacity

3.0 CBM

Nitrogen Cylinder Group

NO of Nitrogen Cylinder

9

Capacity

80L

Working Pressure

≤15Mpa

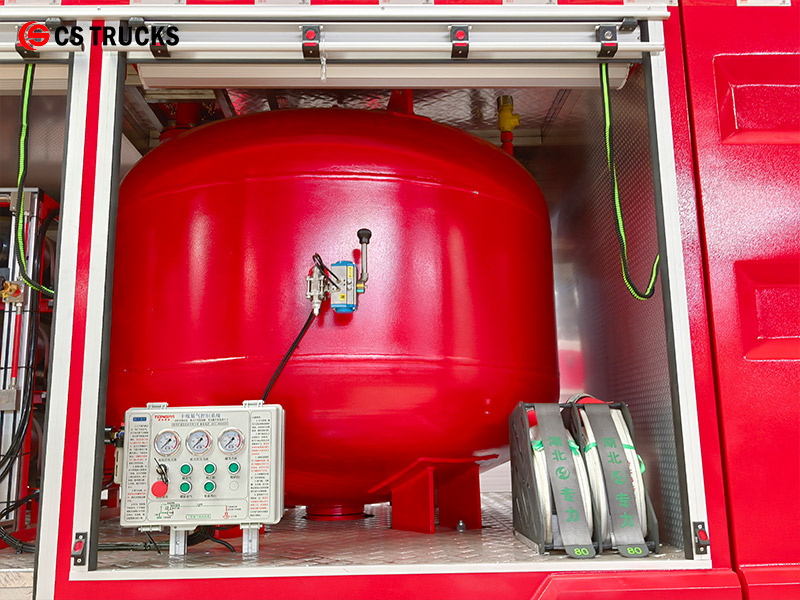

  • 3000L dry powder tank

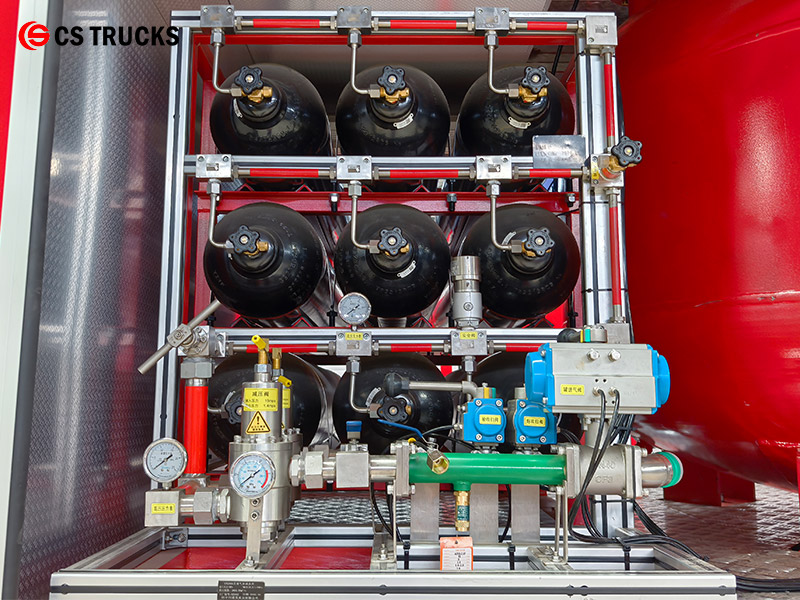

  • howo dry powder fire truck nitrogen tank

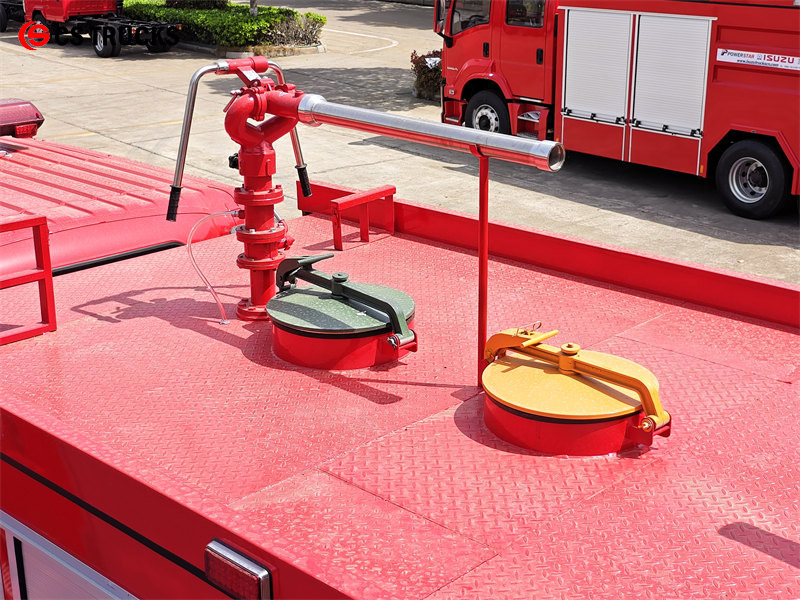

  • howo dry powder fire truck powder manhole


» Ⅵ.Water & Foam System for Industrial Dry Powder Fire Truck :

★ Equipped with a 3000L carbon steel water tank and a top-tier domestic brand fire pump.

★ Utilizes PTO drive mode, automatic priming, pressure range 1.6-2.5MPa.

★ Flow rate up to 45L/s, suction height 9m, priming time ≤10s.

★ Long-range fire monitor with a range of up to 65 meters, allowing firefighters to operate at a safe distance and avoid direct contact with the fire source.

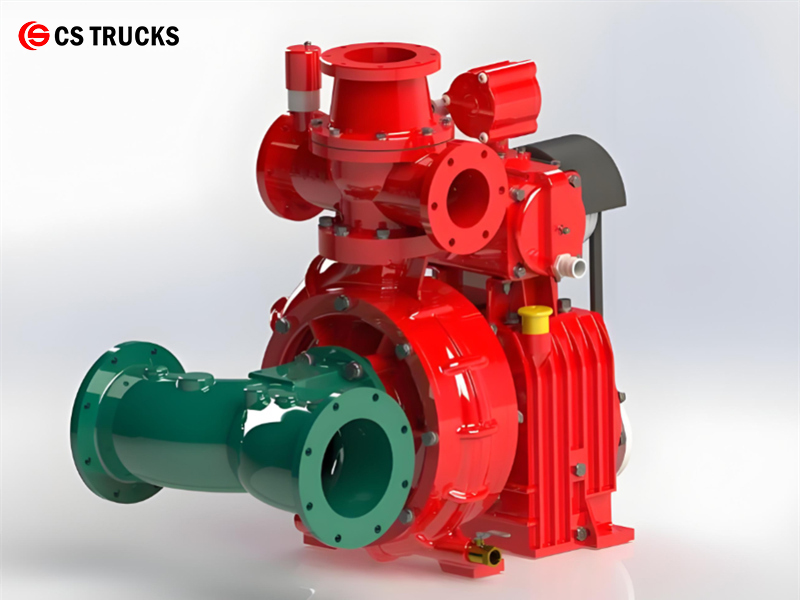

Fire pump Model

Pressure

 Max working pressure

 Flux

Rated speed

 Speed Ratio

 Max pressure

Priming Time

Head

CB10/80-XZ

1.0MPa

1.380MPa

80L/s

 3300±3435r/min

  1:1.54

  ≥0.40MPa

≤10s

40m

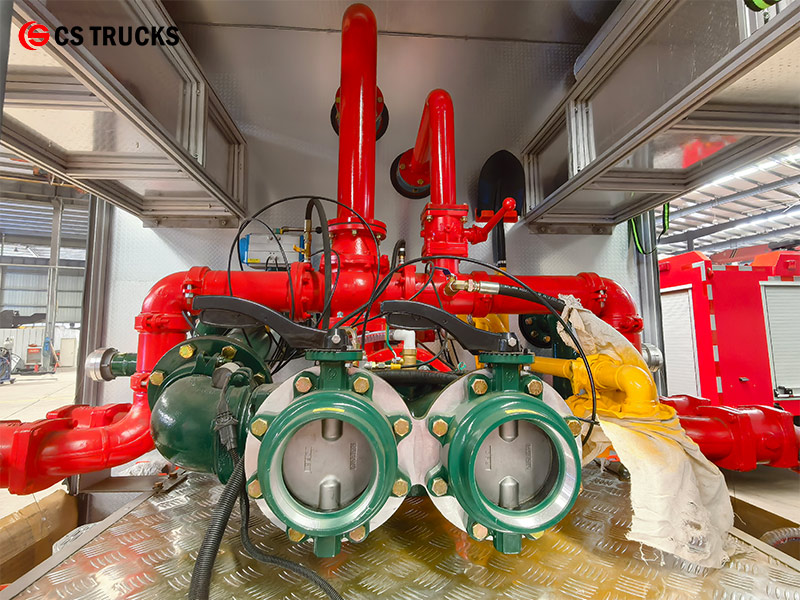

  • CB10/60-RS fire pump

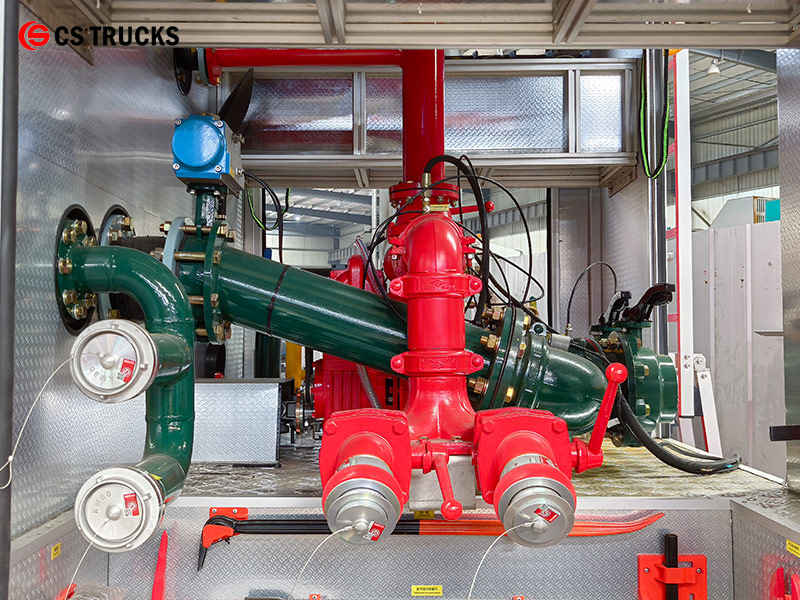

  • CB10/60-RS fire pump

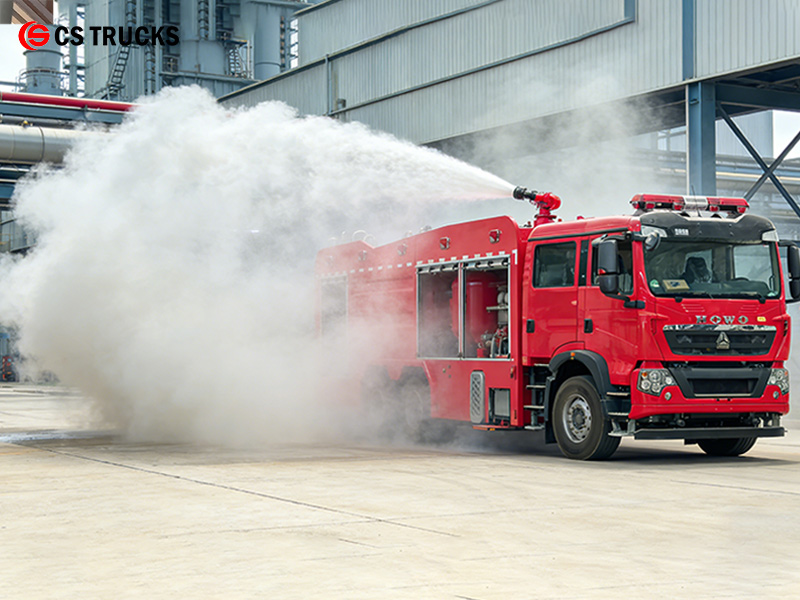

» Ⅶ.Application scenarios :







Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit

Related Products

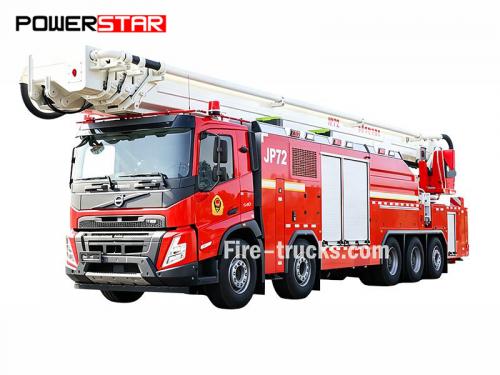

72 Meter Aerial Ladder Fire Fighting Foam Fire Truck
72 Meter Aerial Ladder Fire Fighting Foam Fire Truck

This aerial platform fire truck runs on a D13K540E engine (406 kW) with a 10×4 chassis. It features a 7-section boom system reaching 72m high and 33m out. The truck carries 6,500L of water and 2,000L of foam. Fire Pump ZSP2650 delivers 10,200 L/min, and the roof monitor has an 86m water range. The 300 kg work platform includes auto-leveling. Safety features include overload cutoff, tilt protection, and full LED lighting for night operations.

Details
MAN TGS 33.400 BB CH Fire Fighting Vehicle
MAN TGS 33.400 BB CH Fire Fighting Vehicle

MAN 6×6 15,000L water fire truck is driven by a 400 HP D2066 LF06 engine with a 6×6 chassis built for off-road mobility and rough terrain. Water capacity is 15,000L. The CINAR 3000 N pump delivers 3,000 L/min at 10 bar and 250 L/min at 40 bar, while the rear-mounted CINAR monitor reaches 50m with water. Comes standard with hoses, suction line, fittings, and tool kit. Built for large-scale water supply, rural firefighting, and demanding operations where standard fire trucks cannot reach.

Details
ISUZU 4x2 Compact Urban Rapid Intervention Fire Truck
ISUZU 4x2 Compact Urban Rapid Intervention Fire Truck

The ISUZU 4×2 compact urban fire truck is driven by a 189 HP 4HK1-TCG61 diesel engine, with a nimble 4×2 chassis designed for city streets and narrow alleys. It holds 5,000L total—4,000L water and 1,000L foam. A CB10/40-XZ pump moves 40 L/s at 1.0 MPa, while the PL8/32 roof monitor reaches 60m with water and 48m with foam, ideal for fast response in built-up areas. Standard equipment includes hoses, suction line, couplings, foam gun, and basic tool kit.

Details
HOWO heavy 4x2 CAFS fire fighting truck
HOWO TX 4x2 CAFS fire fighting truck

Built on the premium HOWO C5H chassis, the 4x2 CAFS heavy fire truck delivers robust power alongside eco-friendly emission performance, ensuring reliable operation across diverse harsh and complex terrains.Equipped with an integrated water pump, foam proportioning system and air compression system, this vehicle adopts compressed air foam spraying technology for efficient and rapid fire suppression. It also comes with a standalone power generation system and full-range emergency lighting system, offering multi-angle omnidirectional illumination to clear up rescue passages swiftly in fire scenarios.

Details

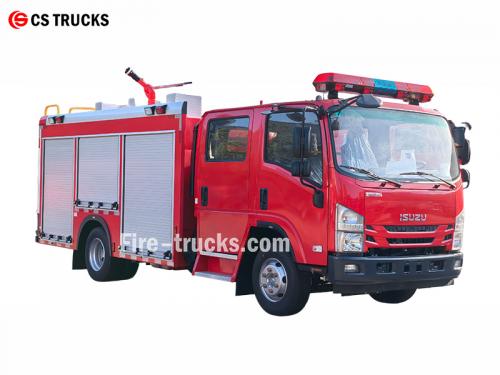

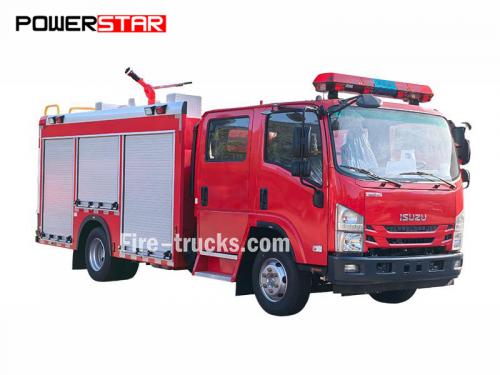

ISUZU NPR 190HP Water Pumper Fire Rescue Truck
ISUZU NPR 190HP Water Pumper Fire Rescue Truck

SUZU NPR 190HP water pumper rescue truck is built around a 4×2 ISUZU chassis and powered by a 4HK1-TCG61 diesel engine making 190 HP. Behind the cab sits a 4,000 liter water tank. The rear pump room contains a CB10/40 fire pump rated at 40 L/s at 1.0 MPa. On the roof, a PS8/40 monitor shoots water up to 60 meters, turns a full 360°, and tilts from -35° up to 70°. Side compartments hold fire hoses, suction lines, couplings, wrenches, a foam gun, and a basic tool kit—everything needed for initial attack.

Details

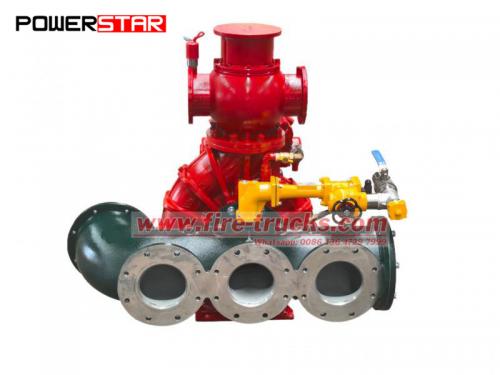

fire truck centrifugal pumps CB10 140
Rescue Fire Truck Fire pump CB10 140

Fire rescue truck fire pump CB10 140 As core equipment in firefighting systems, fire truck centrifugal pumps are widely used for their efficient water delivery and diverse firefighting needs. With their high flow rates and high lift, centrifugal pumps are widely used in conventional firefighting scenarios, such as urban firefighting and building fires.

Details

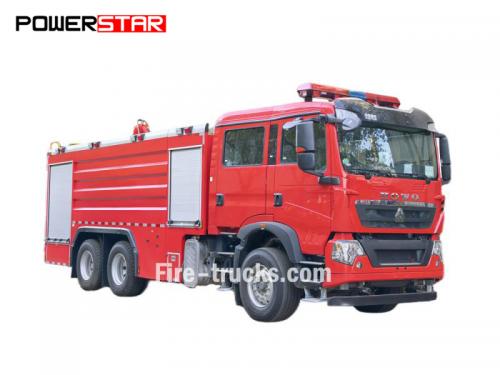

HOWO TX 460HP Fire protection trucks
HOWO 460 HP engine fire rescue truck

The Howo TX460 6x4 12 cbm foam fire truck adopts a Sinotruk TX 6x4 cab, with a 4600+1400mm wheelbase, and is equipped with a SINOTRUK MC11.46-61 engine and an HW19710 gearbox. The front of the superstructure houses an equipment compartment for storing various firefighting equipment, while the middle section contains a 9 cubic meter carbon steel water tank and a 3 cubic meter foam tank. The rear section houses the pump room, equipped with a CB10/60-RS fire pump, a control panel, and some auxiliary firefighting equipment. The water and foam tanks on the roof are equipped with manholes, and a PL8/48 fire monitor is also included.

Details

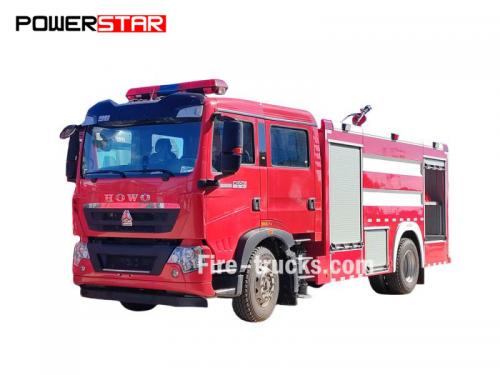

HOWO TX 4x2 foam water fire truck
