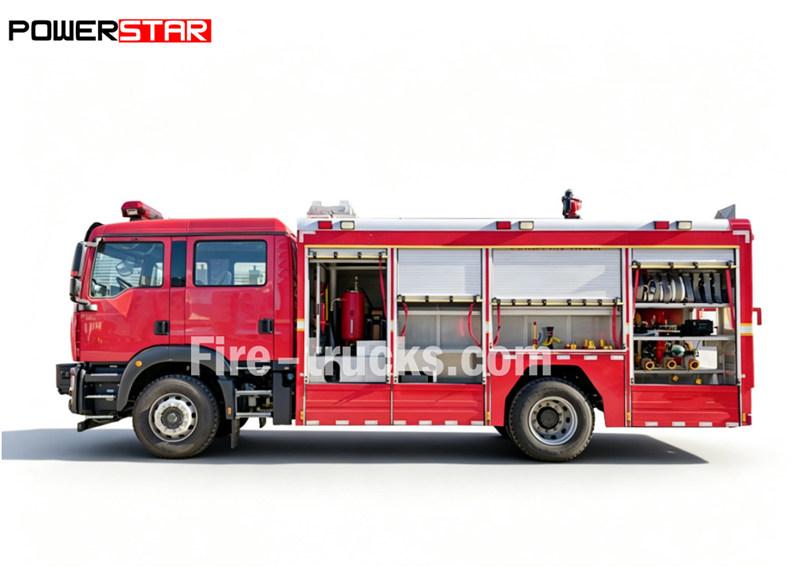

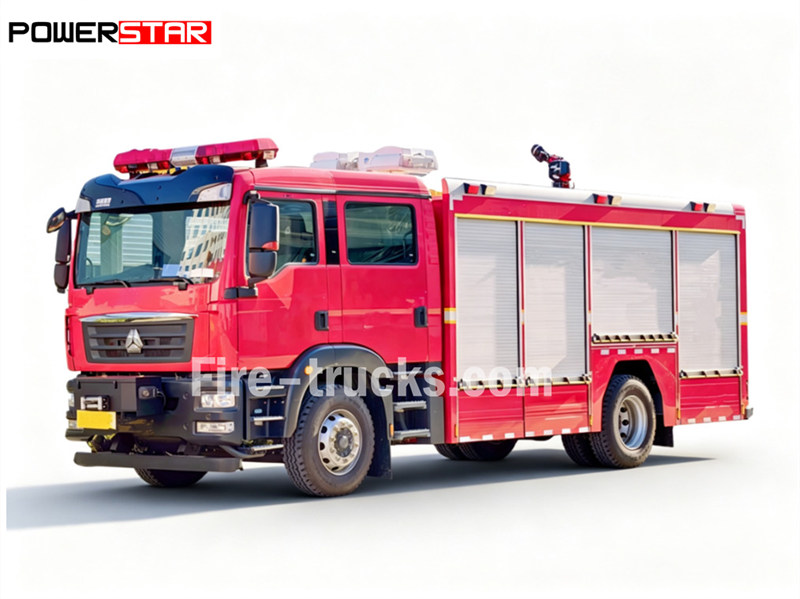

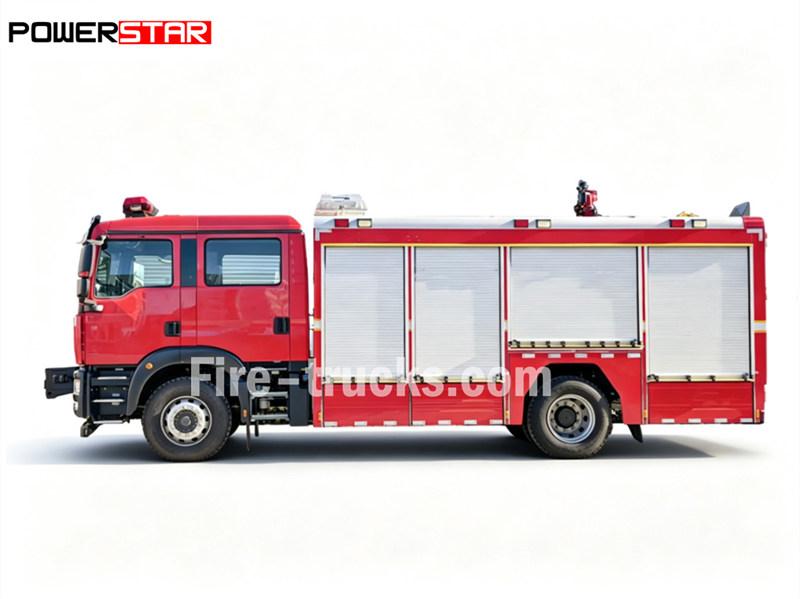

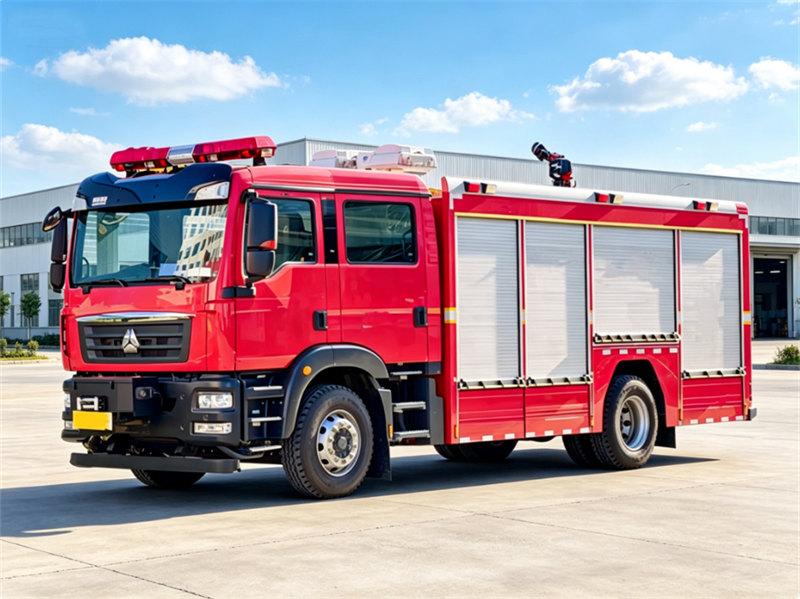

Built on the premium HOWO C5H chassis, the 4x2 CAFS heavy fire truck delivers robust power alongside eco-friendly emission performance, ensuring reliable operation across diverse harsh and complex terrains.Equipped with an integrated water pump, foam proportioning system and air compression system, this vehicle adopts compressed air foam spraying technology for efficient and rapid fire suppression. It also comes with a standalone power generation system and full-range emergency lighting system, offering multi-angle omnidirectional illumination to clear up rescue passages swiftly in fire scenarios.
Truck Chassis:
HOWO TX 4×2Tanker Capacity:
4000L water + 2000L foam (6000L total)Engine Power:
350 HP (257 kW) / MC07H.35-60Fire Pump:
CB10/60-RSPump Flow:
60 L/sWork Pressure:
1.0 MPaFire Monitor:
PS60Monitor Flow:
60 L/sMonitor Range:
Water ≥70 m , Foam ≥65 mFoam Proportioner:
PH64, 3%-6% mixing ratio, 64 L/s max flowBuilt on the premium HOWO C5H chassis, the 4x2 CAFS heavy fire truck delivers robust power alongside eco-friendly emission performance, ensuring reliable operation across diverse harsh and complex terrains.Equipped with an integrated water pump, foam proportioning system and air compression system, this vehicle adopts compressed air foam spraying technology for efficient and rapid fire suppression. It also comes with a standalone power generation system and full-range emergency lighting system, offering multi-angle omnidirectional illumination to clear up rescue passages swiftly in fire scenarios.
Featuring a multi language customizable control panel and flexible optional configurations, the truck can be fully tailored to meet diverse operational and application requirements.

|
Working Capacity |
Engine Model |
Wheelbase |
Superstructure |
|
4000L water + 2000L foam |
350 HP / MC07H.35-60 |
4700 mm |
★ Tank carbon steel, 6000L capacity ★ CB10/60-RS fire pump, 60 L/s flow at 1.0 MPa ★ PS60 roof monitor, 60 L/s flow with water ≥70 m, foam ≥65 m ★ PH64 foam proportioner, 3%-6% mixing ratio, 64 L/s max flow |
» Ⅰ.Main Features :
1. Truck Chassis: Sinotruk HOWO truck chassis, 4X2,4x4 model
MC model with 350HP and Euro 2,3
2. Tank material: 4-6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy or PP material can be choose
3. Tanker body: Customized for Water + Foam + Dry Powder fire agent
4. Fire Pump: CB10/40 centrifugal fire pump, flow rate 40L/s, working distance over 55m
Optional CB10/40, CB10/60 also available Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue
» Ⅱ.Product Parameter :

|
HOWO 4x2 heavy fire foam truck |
|||
|
General |
Vehicle Brand |
CS Trucks Group |
|
|
Chassis Brand |
HOWO |
||
|
Overall Dimension |
8300*2570*3350mm |
||
|
GWW/ Kerb Weight |
22,000kg/11,820kg |
||
|
Cab |
Cab Capacity |
2+4 persons allowed |
|
|
Air Conditioner |
air conditioner |
||
|
Engine |
Fuel Type |
Diesel |
|
|
Engine Brand |
MC07H.35-60 |
||
|
Power |
350HP |
||
|
Displacement |
7.36L |
||
|
Emission Standard |
Euro 5 |
||
|
Chassis |
DriveType |
4X2,left hand drive |
|
|
Transmission |
HW 10 speed forward, 2 reverse |
||
|
Wheelbase/No.of axle |
4600 mm |
||
|
Tyre Specification |
295/80R22.5 |
||
|
Tyre Number |
6 tyres and 1 spare tyre |
||
|
Max Speed |
95km/h |
||
|
Paint |
Metallic paint |
||
|
Water Tank Capacity |
4,000 Liters |
||
|
Tank Material |
carbon steel |
||
|
Foam Tank Capacity |
2,000 Liters |
||
|
Fire Pump |
Brand |
China TOP brand |
|
|
Drive mode |
PTO |
||
|
Priming Manner |
Automatic |
||
|
Pressure range |
1.6-2.5 MPa |
||
|
Flow rate |
45L / s |
||
|
Suction Height |
9m |
||
|
Fire Cannon |
Flow speed |
45L /s |
|
|
Range |
65 m |
||
|
Superstructure Electric Appliance |
Warning Light and Siren |
Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
|
|
Strobe Light |
Mounted on the both sides of the compartment |
||
|
External Lighting |
LED lights are mounted on the both sides of the compartment |
||
|
Roof Lighting |
LED lights are mounted on the inside of the roof |
||
|
Side Indicator Light |
Inline yellow warning light is mounted on the side of the compartment and pedals |
||
|
All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars... |
|||
|
Optional |
** Back alarm and Camera can be equipped ** Standard carbon steel, stainless steel optional ** USA or Germany fire pump can be optional |
||

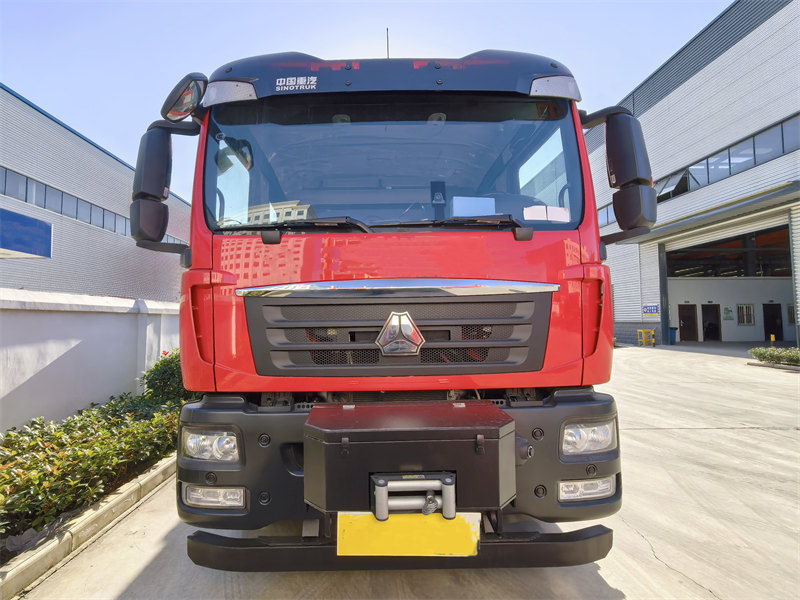

1. Chassis & Powertrain
♦ Engine and Powertrain The Howo C5H is equipped with an MC07H.35-60 diesel engine, delivering a maximum power of 350 HP and a torque of 1230 N·m.
♦ Equipped with heavy-duty 295/80R22.5 tires, it offers a minimum turning radius of ≤12 meters and a wading depth of ≥800 mm, making it suitable for complex terrain and adverse weather conditions.

2. Structural Design

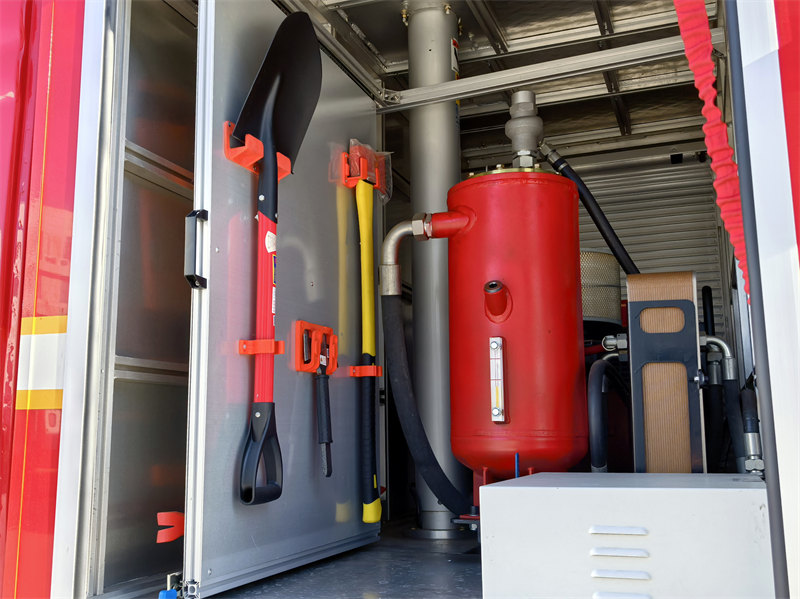

♦ The chassis adopts a high-strength carbon steel frame, anti-twisting box structure, and the external rolling door design facilitates quick access to rescue tools.
♦ The interior is equipped with adjustable aluminum alloy storage racks and rotating trailers to optimize space utilization.
» Ⅳ.CAFS Foam System :

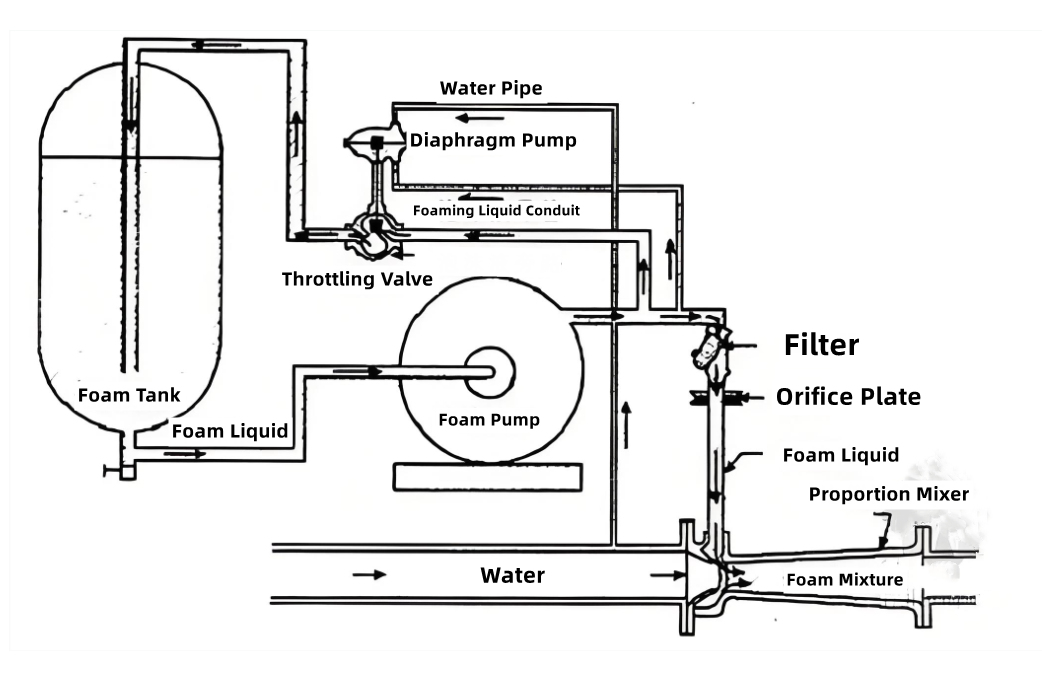

The CAFS (Combined Firefighting System) firefighting process can be summarized in three key steps, corresponding to its 3 core systems:
✦Proportional Mixing:
The vehicle's water tank provides water.
The vehicle's foam tank provides foam concentrate.
A precise electronic or mechanical proportioner precisely mixes the water and foam concentrate at a preset ratio (typically 0.1% to 6%) to form a "foam solution."

✦Air Injection:

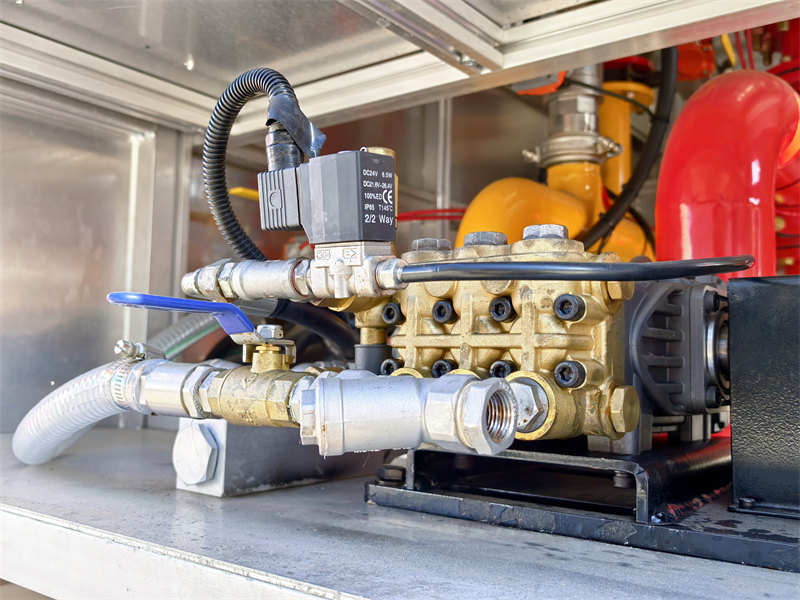

The vehicle's air compressor starts working, generating high-pressure air.
The high-pressure air is injected into the pipeline containing the freshly mixed "foam solution."
✦Fogging and Spraying:
The water, foam concentrate, and compressed air undergo turbulence and mixing in the pipeline, ultimately reacting fully in the foam generator (such as a water gun) at the end of the fire hose, producing extremely fine and uniform compressed air foam.
Firefighters spray this high-quality foam onto the fire scene using water guns.

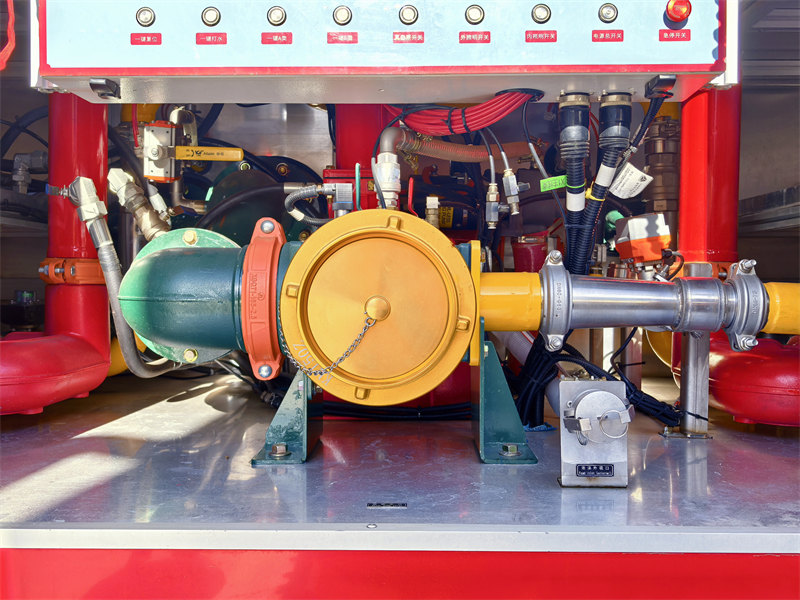

» Ⅴ.Fire Pump System :
Fire Pump:

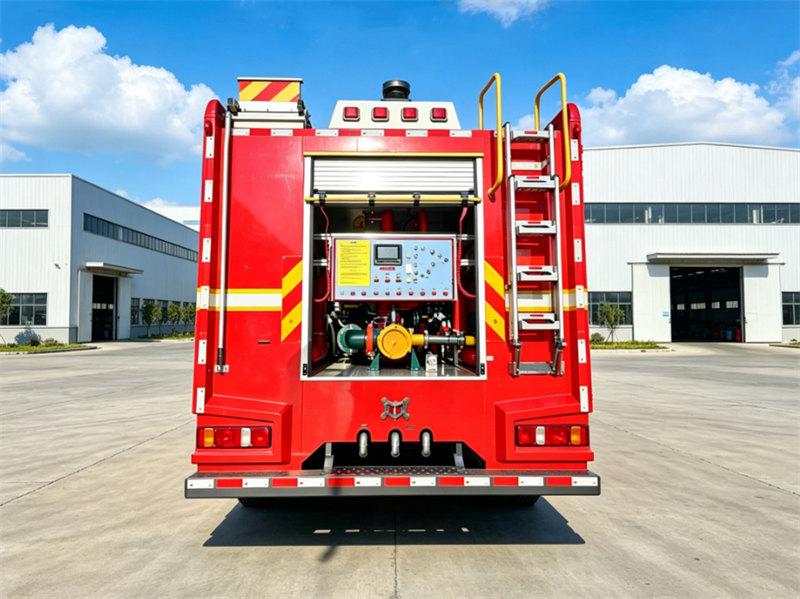

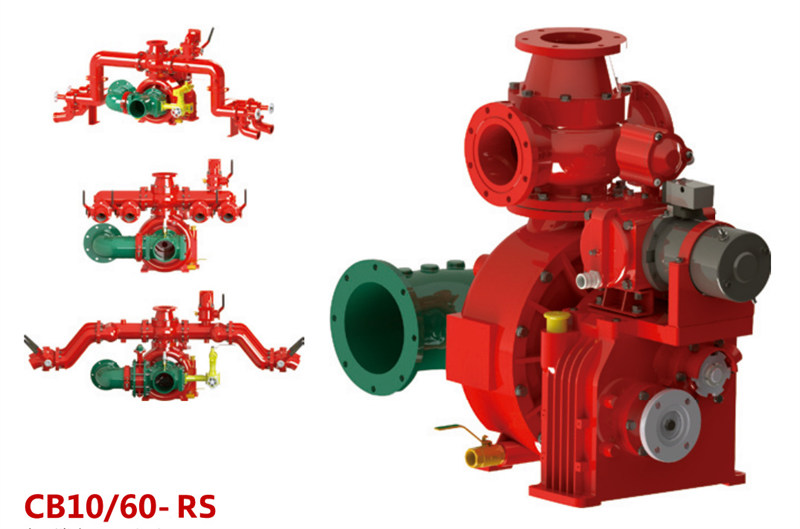

A CB10/60-RS fire pump with a rated flow of 60 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses and monitors can deliver water or foam effectively over long distances for fire suppression.

|
Fire Pump Model |
Flow |
Pressure |
Max Working Pressure |
Max Allowable Inlet Pressure |
|
CB10/60 |
60 L/s |
1.0MPa |
1.251 MPa |
0.4MPa |
» Ⅵ.Fire Monitor System :
The PS60 fire monitor is mounted on the cab roof. It delivers a flow rate of 60 L/s with a water range of ≥70 m and a foam range of ≥65 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.

| Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
| PS60 | 60L/s | Water≥70m Foam ≥65 m | 0.8MPa | -35°~+70° |
0~360° |
» Ⅶ.Rescue Equipment :

|

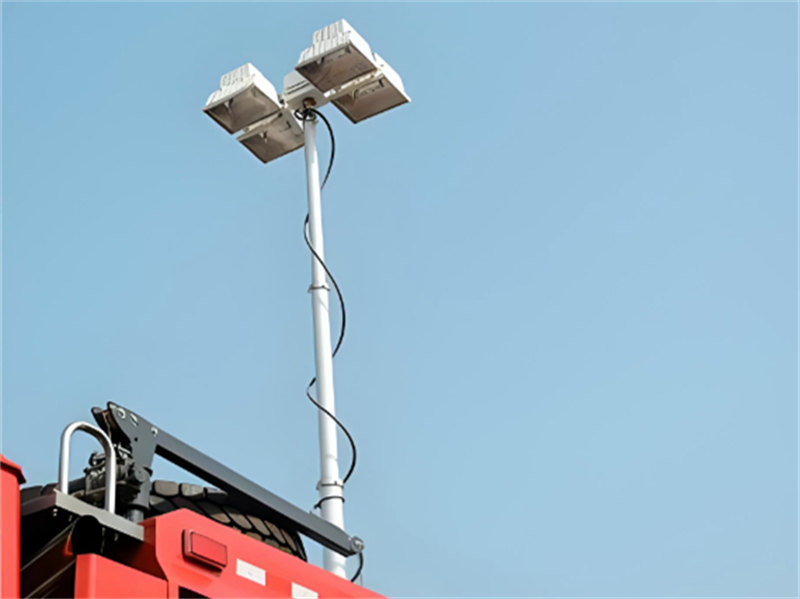

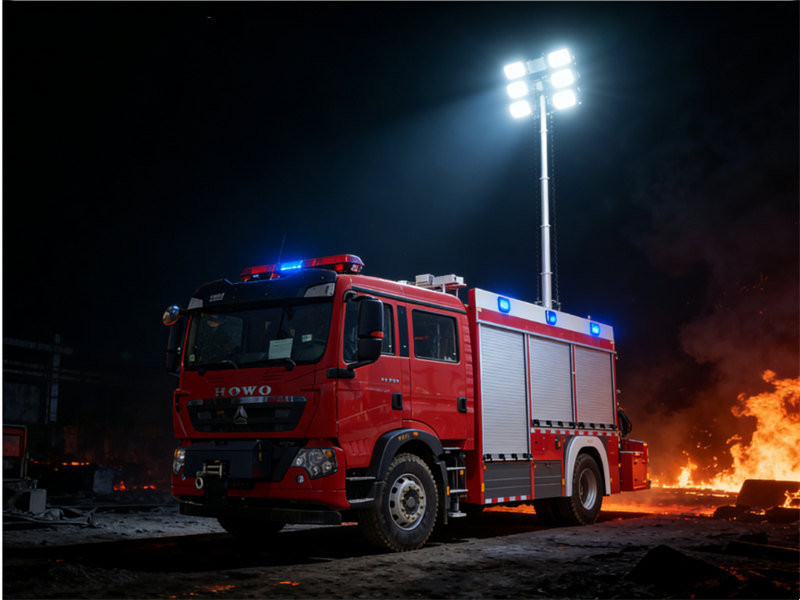

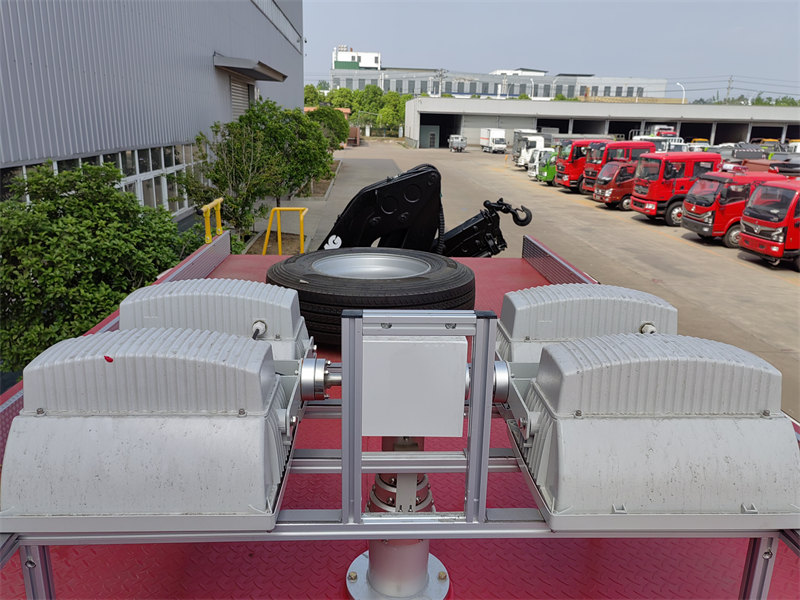

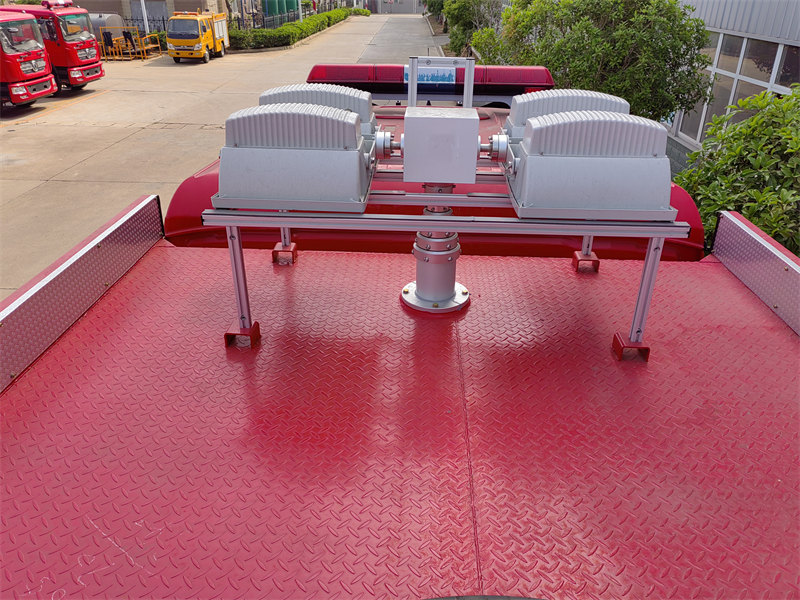

Lighting Mast |
Height : 5 m |
|
telescope operated pneumatic |
|
|
integrated gasoline engine electrical generator |
