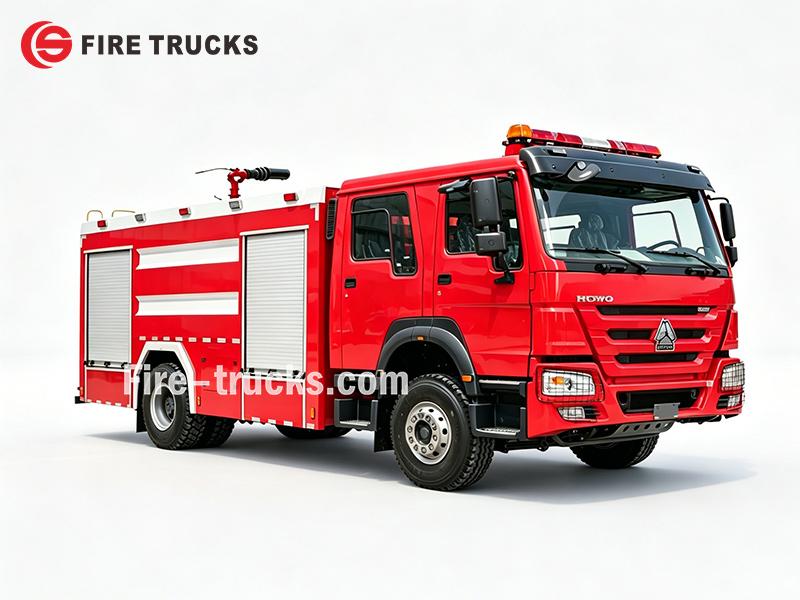

High Pressure Foam Fire Truck HOWO

High Pressure Foam Fire Truck HOWO

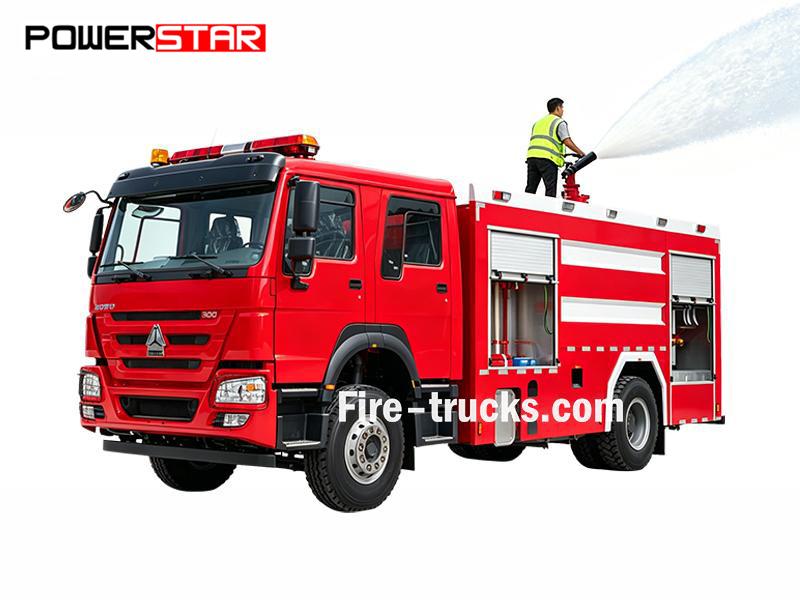

The HOWO high pressure foam fire truck is powered by a 300 HP WD615.92 engine on a 4×2 chassis. It features a 6000L water tank and a 2000L foam tank, a CB10/60 fire pump (60 L/s), and a PL8/48 monitor (48 L/s, water ≥65m, foam ≥60m). Standard gear includes fire hoses, suction tubes, couplings, foam gun, and basic tool kit.

  • Truck Chassis:

    SINOTRUK HOWO 4x2
  • Tanker Capacity:

    6000L water + 2000L foam (8000L total)
  • Engine Power:

    300 HP (220 kW) / WD615.92
  • Fire Pump:

    CB10/60
  • Pump Flow:

    60 L/s
  • Work Pressure:

    1.0 MPa
  • Fire Monitor:

    PL8/48
  • Monitor Flow:

    48 L/s
  • Monitor Range:

    Water ≥65 m , Foam ≥60 m
Facebook Linkedin Youtube Twitter Pinterest

This HOWO high pressure foam fire truck is built for firefighting and emergency response. This HOWO 300HP 4x2 foam fire truck features a 6000L water tank, a 2000L foam tank, a CB10/60 fire pump (60 L/s at 1.0 MPa), and a roof mounted PL8/48 fire monitor with 65m water range and 60m foam range.

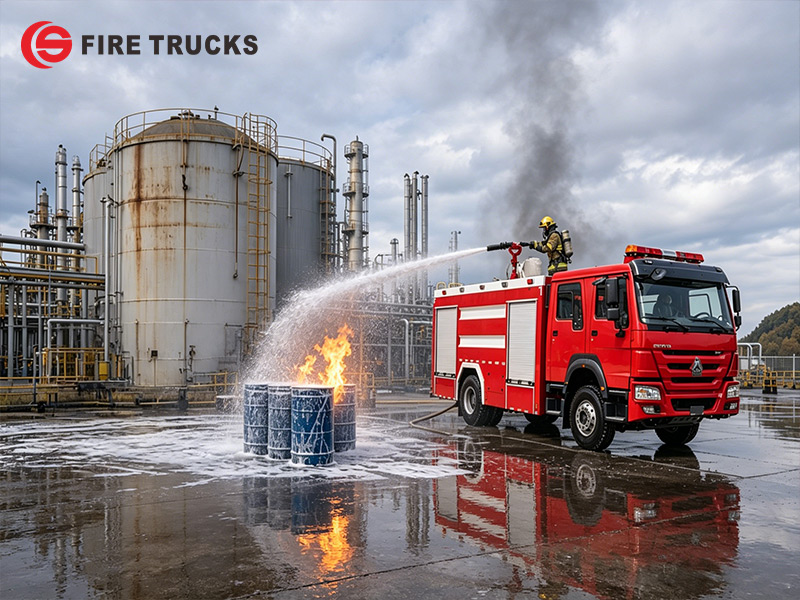

This fire truck carries a full set of standard firefighting equipment including hoses, suction tubes, couplings, and a foam gun. It works well for Class B fires involving oil, gasoline, and chemicals. It suits firefighting tasks at oil depots, chemical plants, airports, and industrial facilities.

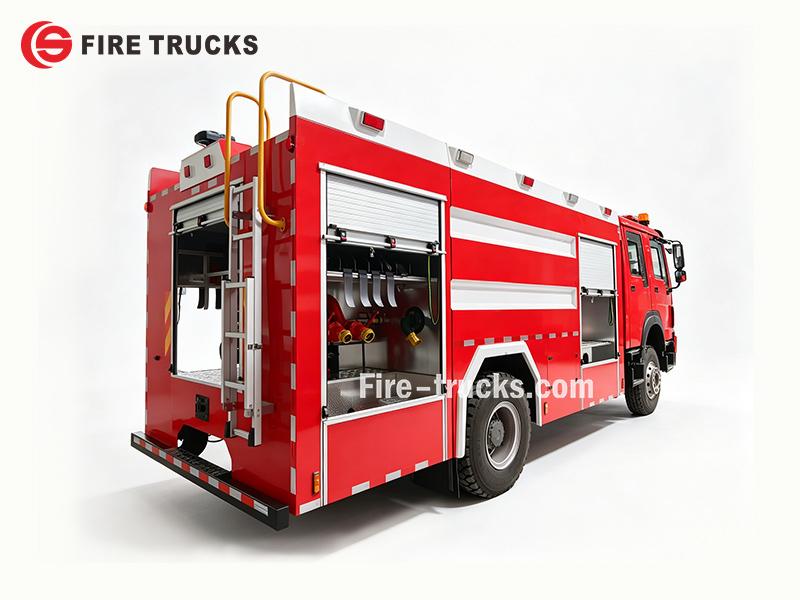

 ♦ HOWO 4X2 8CBM Foam Fire Fighting vehicle ♦



SITRAK HOWO 6000L Water Tank 2000L Foam Tank Wildland Fire Truck Albania



Working Capacity

 Engine Model

 Wheelbase

 Superstructure

6000L water + 2000L foam

300 HP / WD615.92

3815 mm

★ Tank carbon steel, 8000L capacity

★ CB10/60 fire pump, 60 L/s flow at 1.0 MPa

★ PL8/48 roof monitor, 48 L/s flow with water ≥65 m, foam ≥60 m

★ 2026 year brand new



» Ⅰ.Main Features :

★ WD615.92 engine rated at 300 HP for high pressure foam fire suppression and emergency response

★ HOWO 4×2 chassis with 6000L water tank, 2000L foam tank, and CB10/60 fire pump (60 L/s at 1.0 MPa)

★ Roof mounted PL8/48 monitor with 48 L/s flow, water range ≥65 m, and foam range ≥60 m for long distance fire attack

★ 315/80R22.5 tires and 3815 mm wheelbase for stable handling on various road conditions

★ Full firefighting equipment including hoses, nozzles, foam gun, and basic tool kit for Class B fire fighting

  • SITRAK HOWO 4X2 foam fire rescue emergency lighting rescue fire truck Albania
  • HOWO SITRAK 4x2 foam water fire truck with night lighting Philippines
  • SITRAK HOWO Dubai 350HP foam water rescue fire truck for night operation

» Ⅱ.Product Parameter :

High Pressure Foam Fire Truck HOWO
General Work capacity 6000L water+2000L foam
Truck chassis SINOTRUK HOWO 4x2
Engine power 300 HP/ WD615.92
Fire pump CB10/60
Fire monitor PL8/48
Maximum speed 95 km/h
Overall dimensions L*W*H 8400*2500*3425 mm
Gross vehicle weight 9900 kg
Curb weight 5850 kg
Engine Engine model WD615.92
Fuel type Diesel
Power 300 HP(220KW)
Emission standard  Euro 6
Displacement 9726 ml
Engine type 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
Chassis Drive type 4x2
Wheelbase 3815 mm
Tire 315/80R22.5
Tire No. 6 tires and 1 spare tire
Fire Pump Model CB10/60
Flux 60L/s
Pressure  1MPa
Max working pressure 1.251MPa
Max allowable inlet pressure 0.4MPa
Max suction height 3m
Rated speed 3916±50r/min
Speed ratio 1:1.4
Water diversion time ≤50s
Fire Monitor Model  PL8/48
Flow 48L/s
Rated working pressure 1MPa
Max working pressure 1.2MPa
Range Water ≥65m
Foam ≥60m
Pitch rotation - 35~+70°
Horizontal rotation 0~360°
Standard  Configuration All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual……

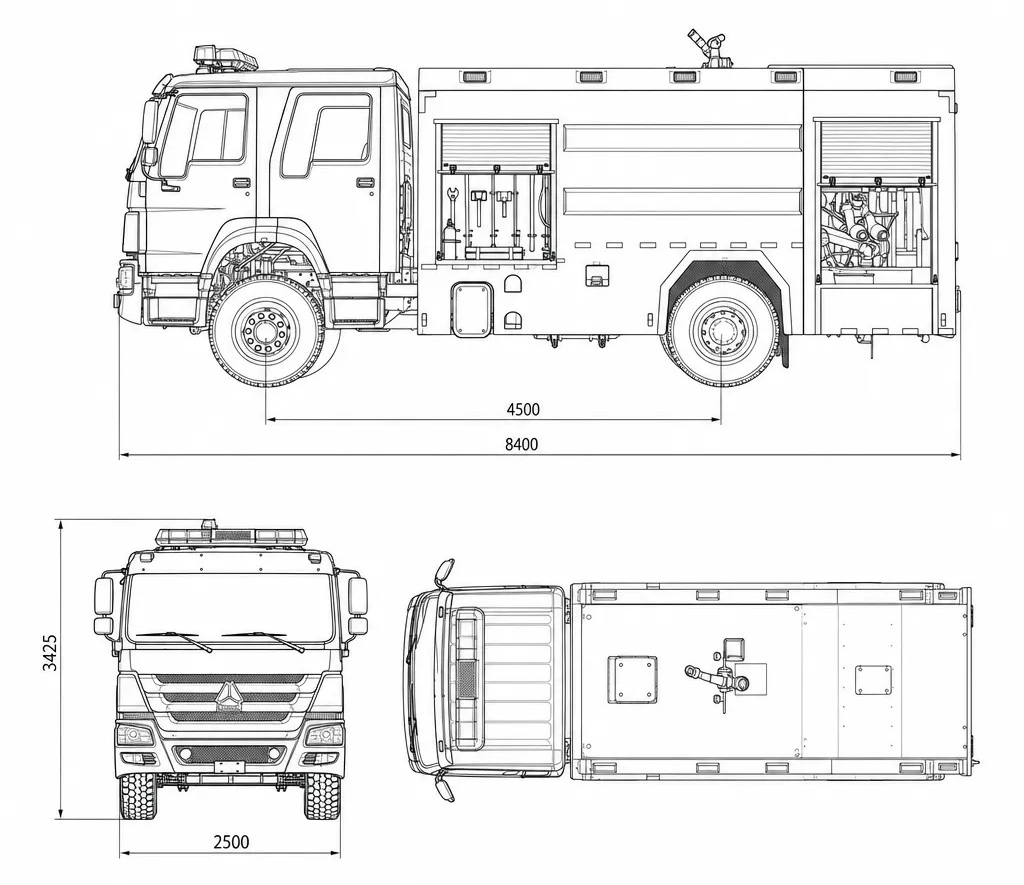

SITRAK HOWO 350 HP Wildland Foam Fire Engine for Mongolian Grassland Structure Drawing Cambodia
» Ⅲ.Products Description :

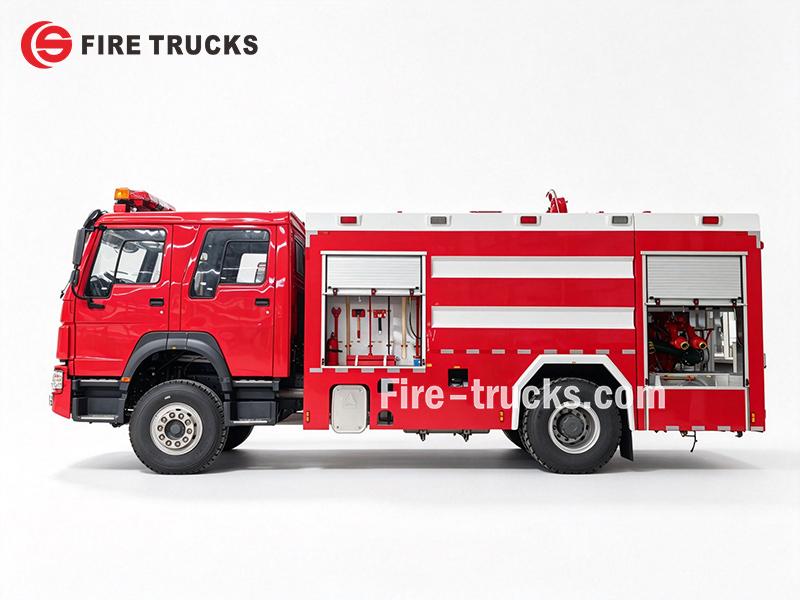

SITRAK HOWO 4x2 Wildland Foam Fire Truck for Steppe Fire Protection Dubai

1. Chassis & Powertrain



 SINOTRUK HOWO 4×2 chassis with 3815 mm wheelbase, designed for stable operation on urban roads and industrial sites.



 WD615.92 diesel engine, rated at 300 HP, delivering reliable torque for quick response, continuous pump operation, and long-duration foam fire suppression.



Manual transmission for straightforward operation and easy maintenance.

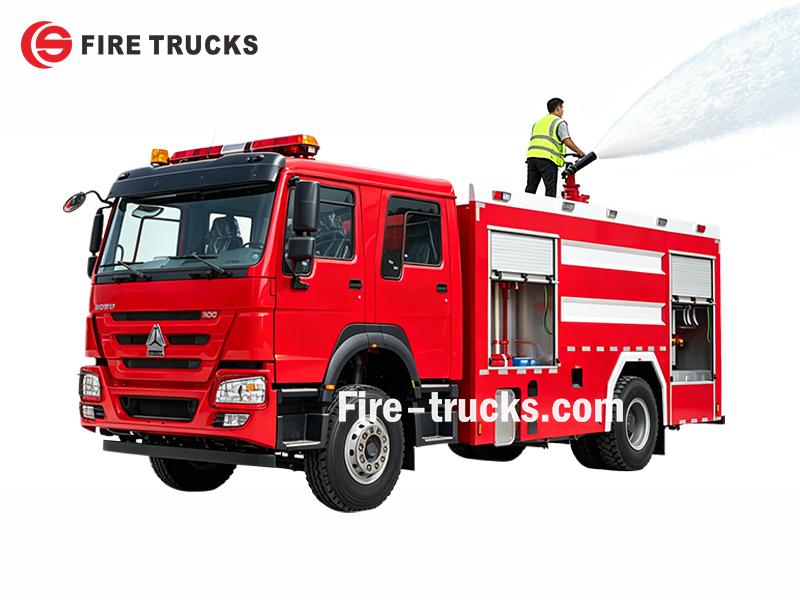

SITRAK HOWO 6000L Water Tank Wildland Water Tender Price Philippines

2. Fire Suppression & Lighting System



 6000L water tank and 2000L foam tank, carbon steel construction with internal baffles to reduce liquid surge.



 CB10/60 fire pump, 60 L/s flow at 1.0 MPa, PTO driven, 3m suction height, ≤50s priming time.



 PL8/48 roof monitor, 48 L/s flow, water range ≥65 m, foam range ≥60 m, horizontal 360° rotation, pitch -35° to +70°.

» .Product Details :





» Ⅴ.Fire Pump System

Fire Pump:

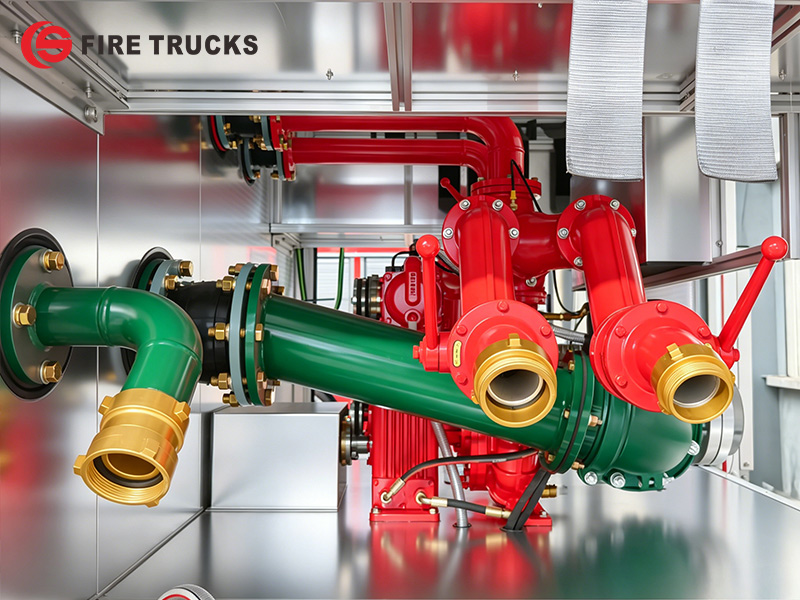

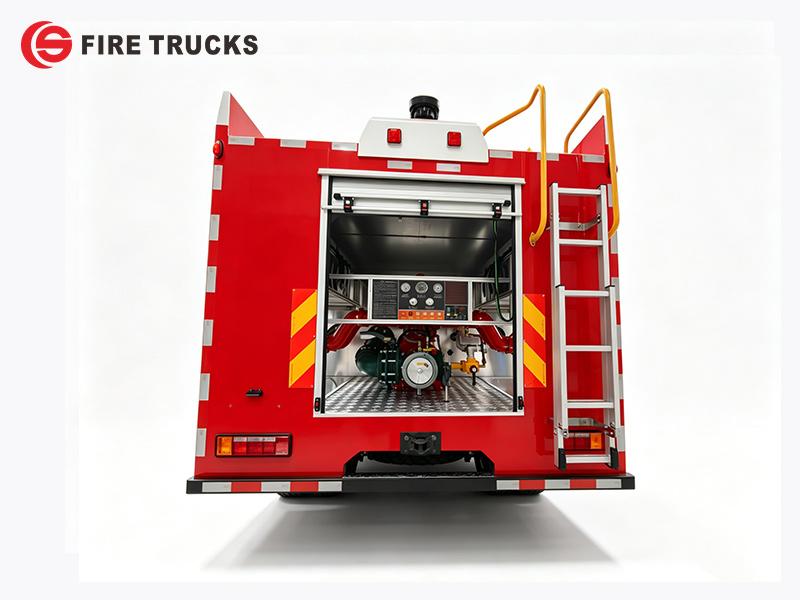

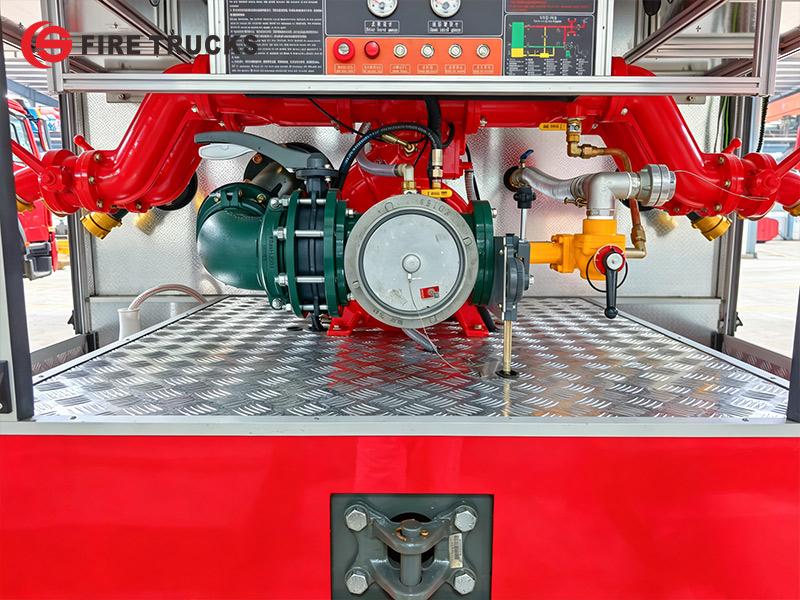

A CB10/60 fire pump with a rated flow of 60 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses and monitors can deliver water or foam effectively over long distances for fire suppression.

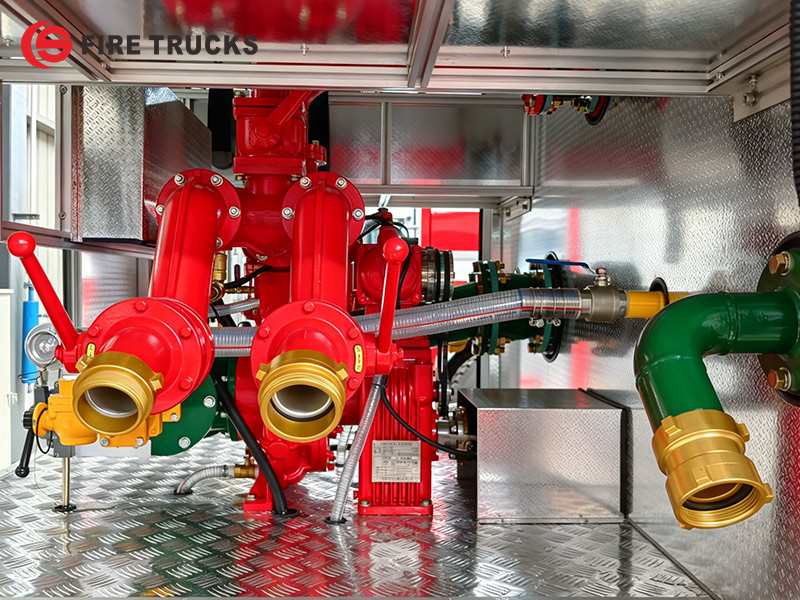

CB10/60-XZ fire pump

Fire Pump Model

Flow

Pressure

 Max Working Pressure

Max Allowable Inlet Pressure

CB10/60

60L/s

1.0MPa

1.251 MPa

0.4MPa

  • CB10/60-XZ fire pump
  • CB10/60-XZ fire pump
  • CB10/60-XZ fire pump

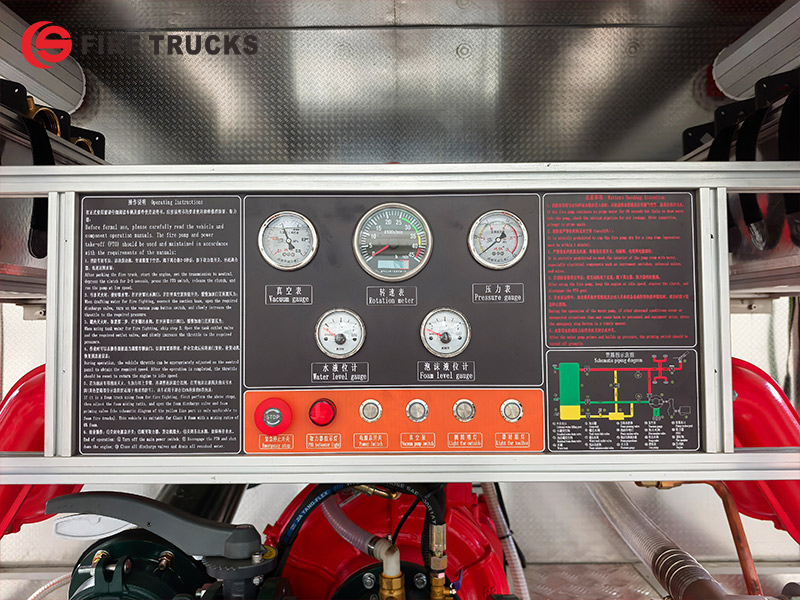

Control panel:

Includes operating instructions, tank piping diagram, pressure gauge, water level gauge, foam level gauge, emergency stop, PTO control, main power switch, pump controls, ladder controls, and compartment lighting. All controls are clearly marked for straightforward operation.

foam fire truck control panel



» .Fire Monitor System :

The PL8/48 fire monitor is mounted on the cab roof. It delivers a flow rate of 48 L/s with a water range of ≥65 m and a foam range of ≥60 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.



PLDK8/48 fire monitor



Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation
PL8/48 48L/s Water≥65m Foam ≥60 m 1.0MPa -35°~+70°
0~360°



» .Firefighting Equipment :

 Equipment Room

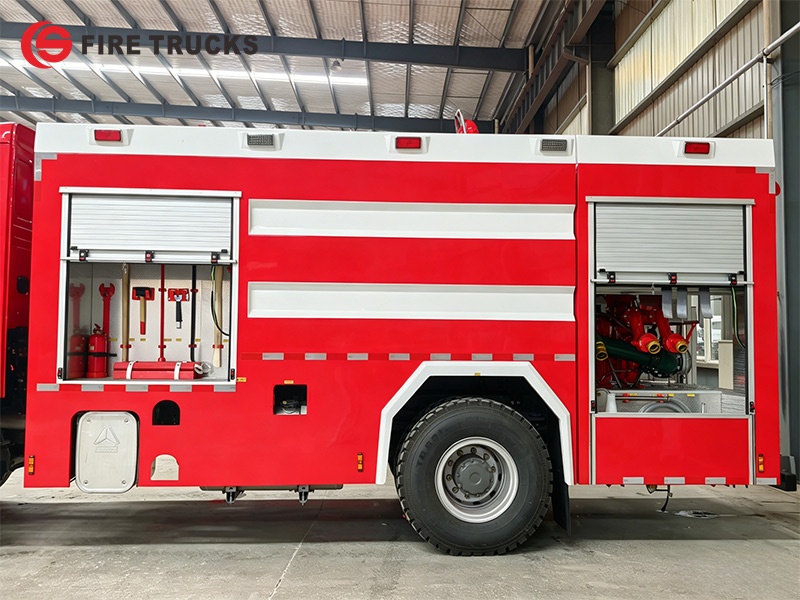

Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.

foam fire tender equipment Room

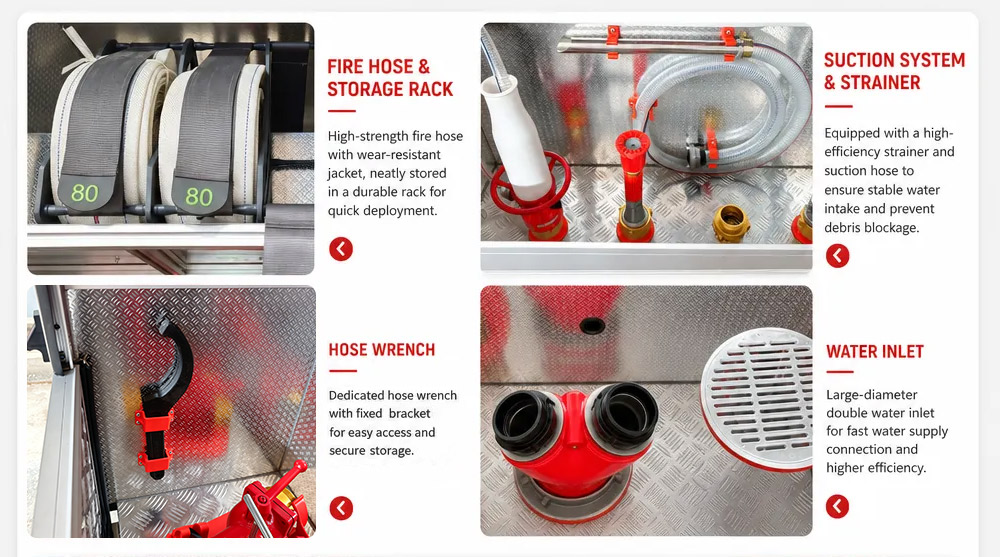

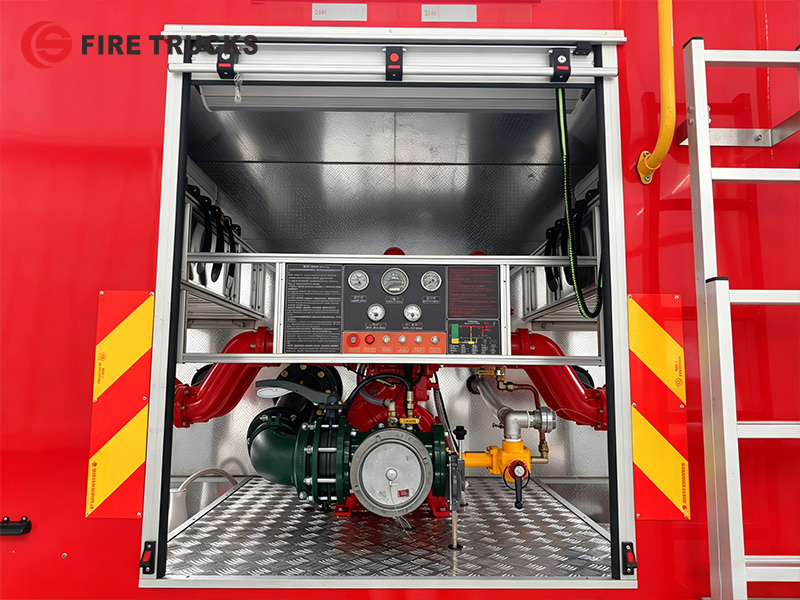

 Pump Room: Equipped with fire hoses, water collectors, filters, fire nozzles, foam guns, suction hose wrenches, reducers, etc.



Foam fire fighting vehicle firefighting equipment



The HOWO high pressure foam fire truck comes with a rear-mounted CB10/60 fire pump and a cab roof mounted PL8/48 monitor. The water tank holds 6,000 liters, and the foam tank holds 2,000 liters, sitting on a sturdy HOWO 4×2 chassis powered by a 300 HP WD615.92 engine. Standard gear includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit. Full specifications are listed below:

fire rescue equipment

fire rescue equipment



» .Application Scenarios :
