Howo Model 6 wheeler Fire protection Vehicle

Howo Model 6 wheeler Fire protection Vehicle

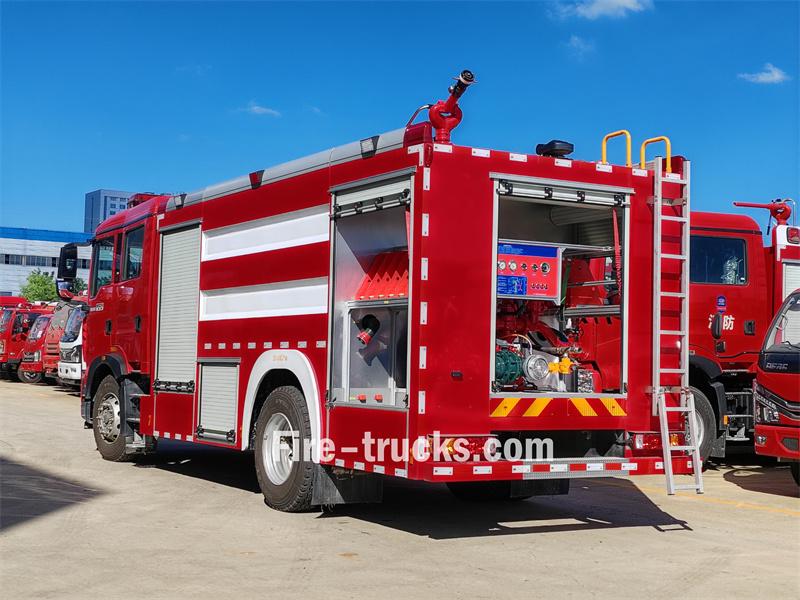

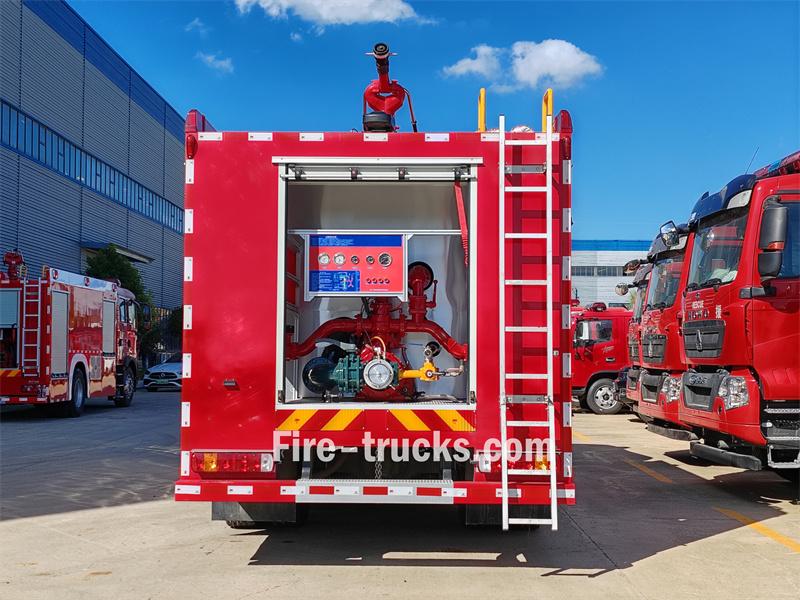

The Howo TX 4x2 7.5 cubic meter foam fire truck uses the Howo TX chassis with a 4700mm wheelbase. It is equipped with a Weichai WP4.6NQ240E62 engine and a Sinotruk HW95508STCL gearbox. The front of the superstructure is an equipment box for storing auxiliary firefighting equipment. The middle section contains a 5.5 cubic meter carbon steel water tank and a 2 cubic meter stainless steel foam tank. The rear pump room is equipped with a CB10/40-LC(BS) fire pump, control panel, firefighting equipment, PL8/32 fire monitor on the tank top, and two European standard manholes.

  • Truck Chassis:

    HOWO TX, 4x2
  • Tanker Capacity:

    5500L water +2000L foam
  • Engine Power:

    240 HP/ WP4.6NQ240E62
  • Fire Pump:

    China CB10/40-LC(BS)
  • Pump Flow:

    40L/s
  • Work Pressure:

    1.0 Mpa
  • Fire Monitor:

    China PL8/32
  • Monitor Flow:

    32 L/s
  • Monitor Range:

    Water≥60 m,Foam≥48m
Facebook Linkedin Youtube Twitter Pinterest

The Howo Model 6 wheeler Fire protection Vehicle is a fully functional medium-sized main battle fire truck, integrating strong mobility, ample extinguishing agent reserves, and diverse combat capabilities. In terms of power, it features a Weichai engine paired with a Sinotruk transmission, providing strong power and efficient transmission.

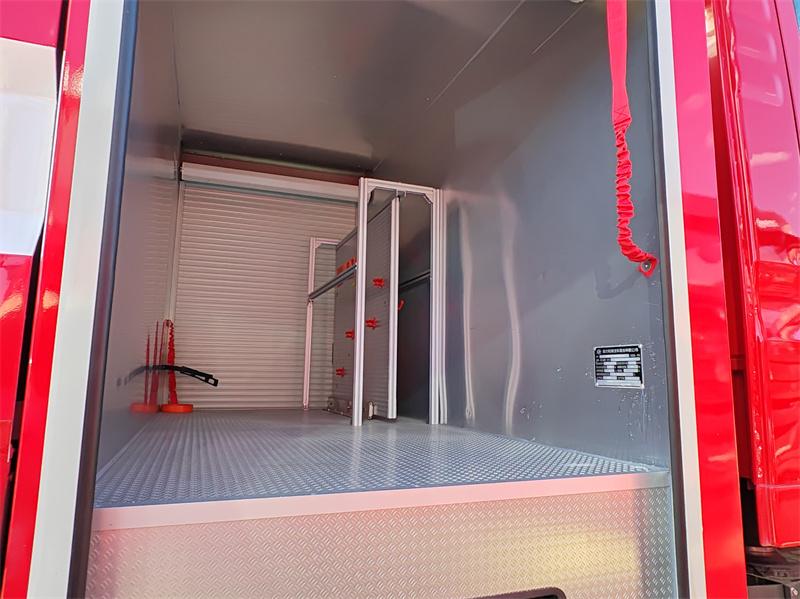

The superstructure is scientifically laid out, with a front equipment box for orderly storage of various firefighting equipment; the central water tank and foam tank have storage capacities suitable for different fire situations; and the rear pump room is fully equipped with core equipment for easy operation. The fire monitor on the tank top enables remote and precise fire suppression, effectively responding to various Class A and Class B fires.



   ♦ HOWO TX 240HP Model fire protection truck ♦

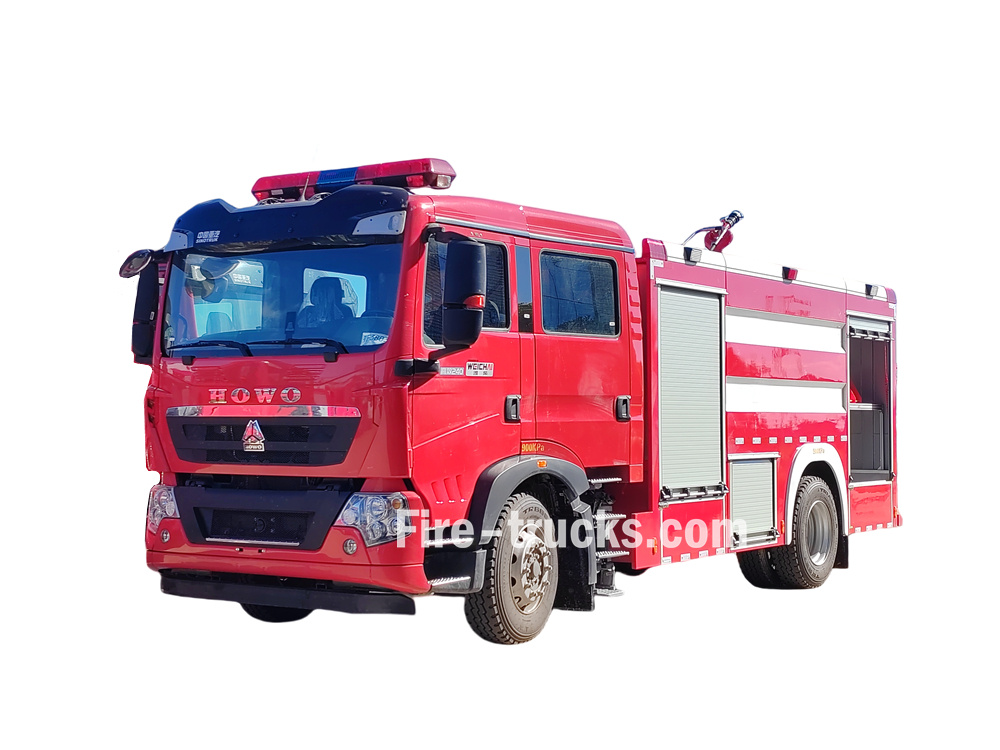

Howo Model 6 wheeler Fire protection Vehicle

»Ⅰ. Main Features :



★ 240 Hp powerful engine, 100,000 Km without prblem.

★ HOWO new model TX cabin,  Europen design

★ Man technology axle, extremely suitable for AFRICA.

 ★ China famous CB10/40 pump, super reliable

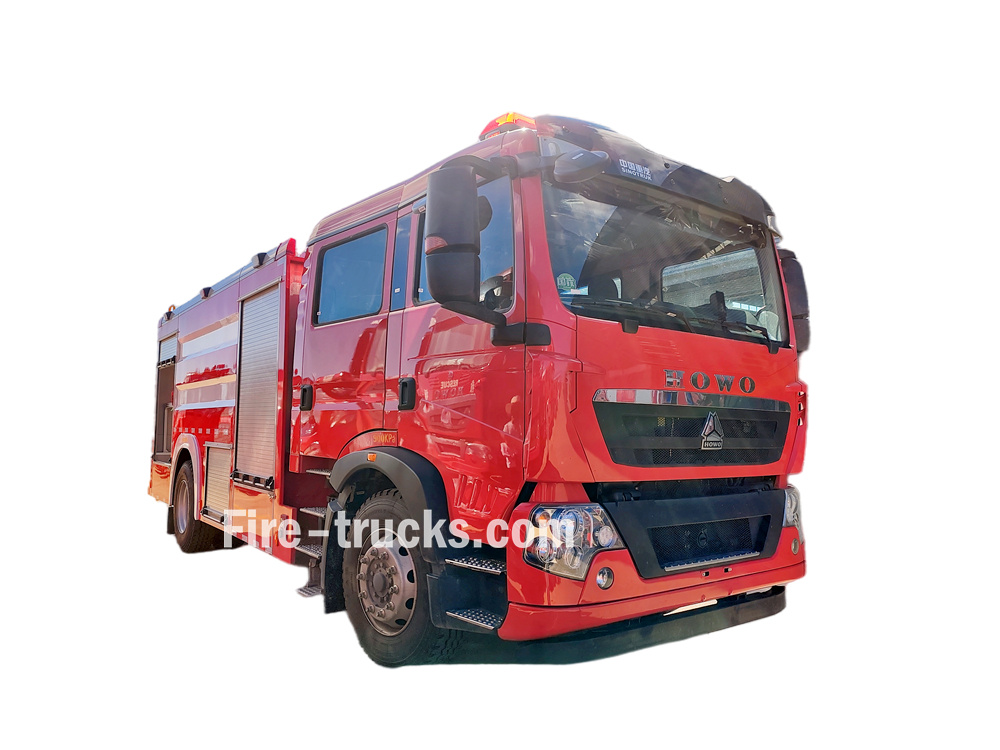

  • HOWO TX 4x2 foam water fire truck

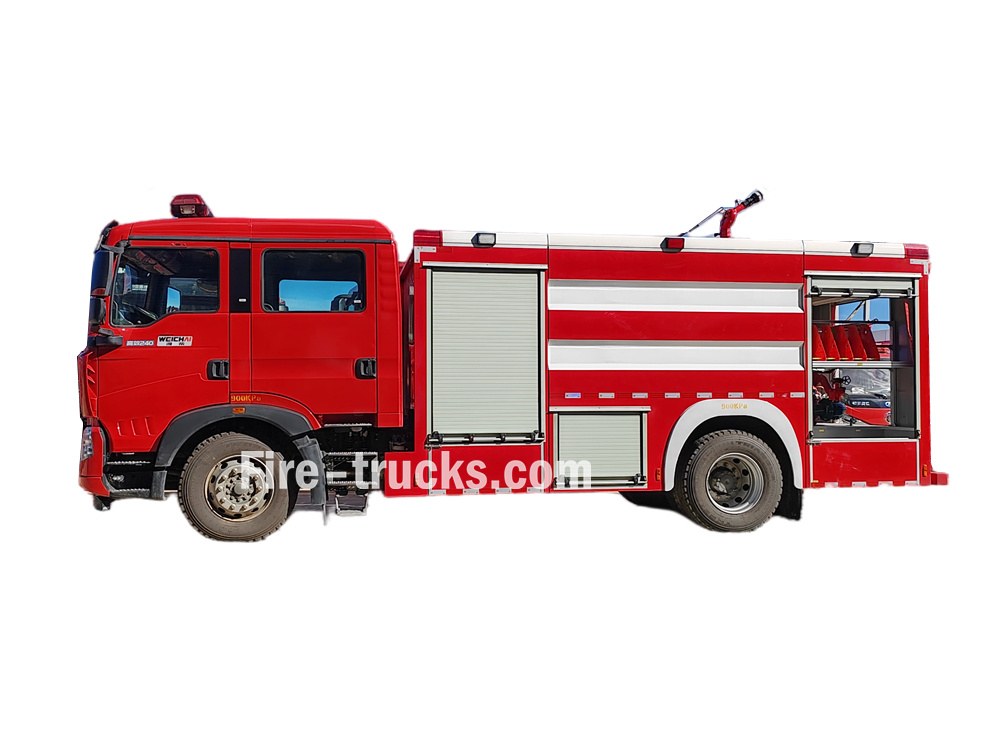

  • HOWO 240HP engine 7500L foam fire rescue truck

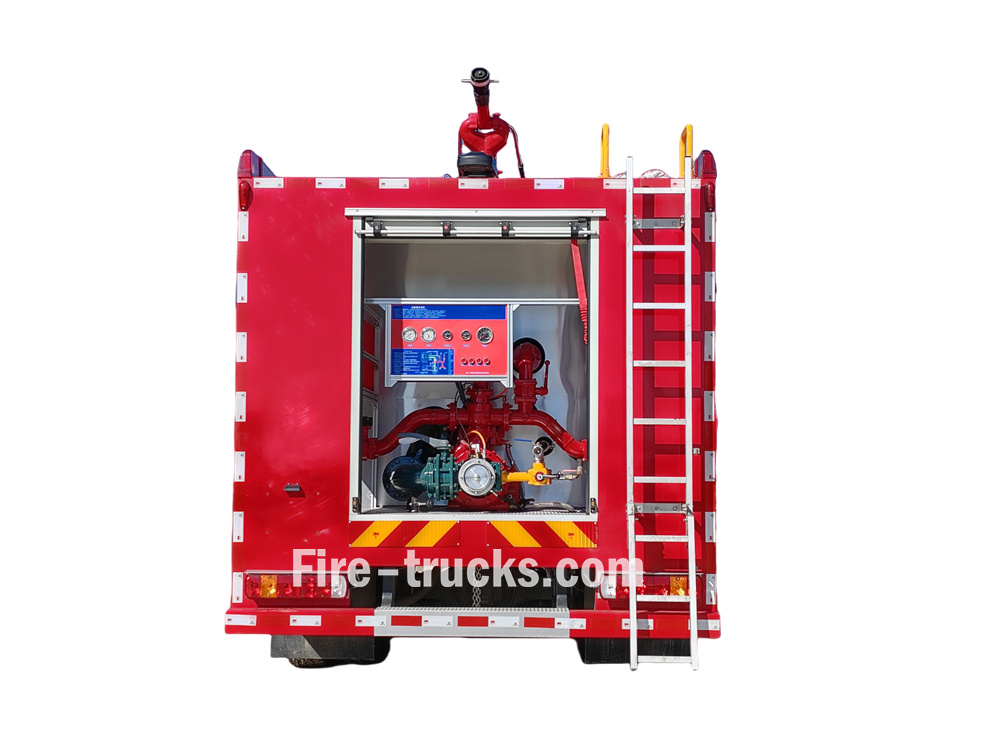

  • HOWO 4X2 7.5CBM foam fire fighting truck

 » Ⅱ.Product Parameter :

HOWO TX 4x2 foam water fire truck

General

Work capacity

5500L water tank,2000L foam tank

Truck chassis

HOWO TX240

Engine Power

240 HP/ WP4.6NQ240E62

Fire pump

CB10/40-LC(BS)

Chassis

Drive Type

4X2

Transmission

SINOTRUK HW95508STCL 8-speed , manual

Wheelbase

 4700mm

Tire

295/80R22.5 18PR,6+1wheel





Fire pump

Model

CB10/40-LC(BS)

Pressure

1MPa

Max working pressure

1.380MPa

Max allowable inlet pressure

0.4MPa

Flux

40L/s

Max suction height

7m

Rated speed

3300r/min

Speed Ratio

1:1.542

Foam Water Proportioning Mixer

Model

PH64-RS

Mixing ratio

6%

Work pressure range

0.61.4MPa

Flow range

1664L/s

Suitable foaming liquid categories

Category B

Fire monitor

Model

PL8/32

Flow

32L/s

Rated working pressure

0.8MPa

Range

Water

60m

Foam

48m

Pitch rotation

- 45+70°

Horizontal rotation

0360°

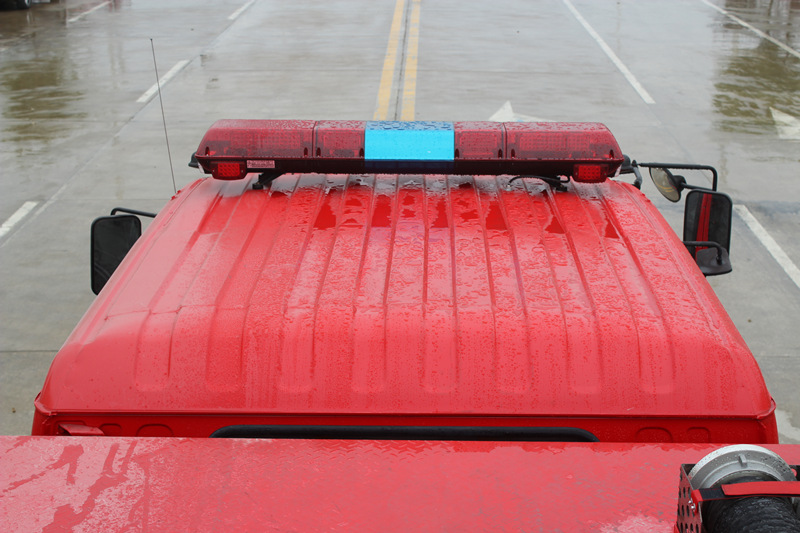

Electronic alarm

Electronic alarm

LY CJB-100-C24 / 1.2 m long

 Standard  configuration

All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual……

-----Tanker materialCarbon steel, stainless steel, aluminum alloy, PP material
-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand
-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)

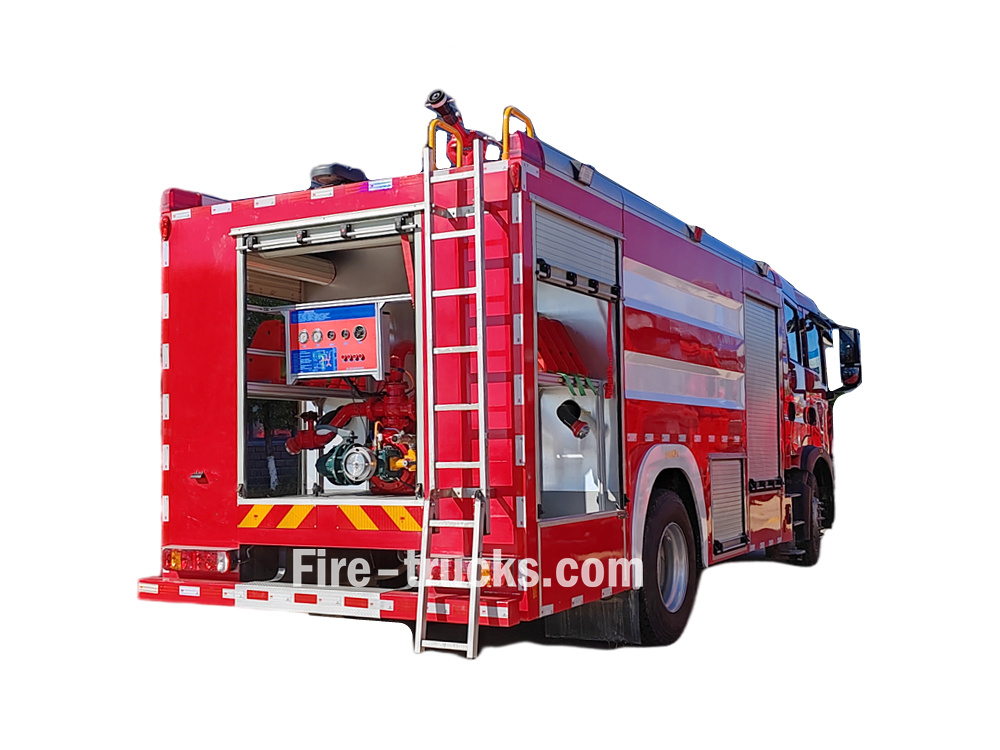

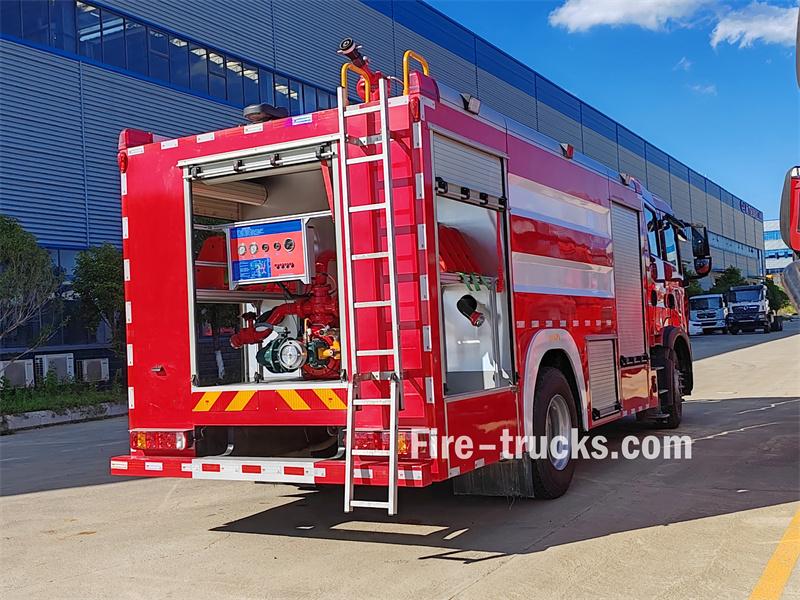

Sinotruk HOWO 4x2 Water Foam Fire Fighting Truck



 Central Liquid Tank System:

* Water Tank: 5.5 cubic meters in volume, made of carbon steel with internal anti-corrosion treatment, used to hold firefighting water.



* Foam Tank: 2 cubic meters in volume, made of more corrosion-resistant stainless steel, used to hold foam extinguishing agent.



* Total Liquid Capacity: 7.5 cubic meters total (water and foam solution), capable of independent or combined foam firefighting operations.



» Ⅲ. Fire Pump system :

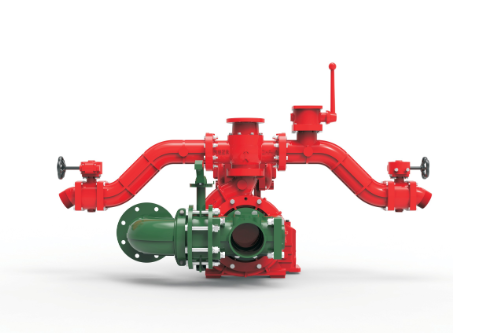

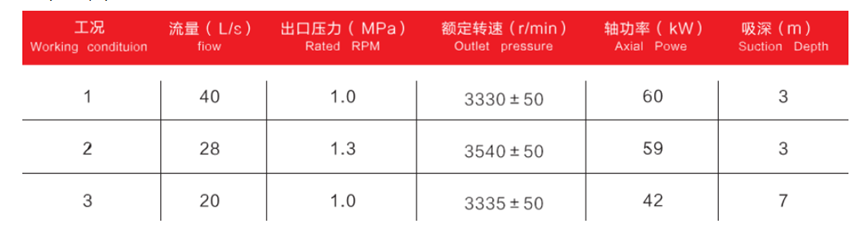

CB10/40-LC(BS) fire pump



Fire pump Model

Pressure

 Max working pressure

 Flux

 Speed Ratio

CB10/40-LC(BS)

1.0MPa

1.380MPa

40L/s

  1:1.542

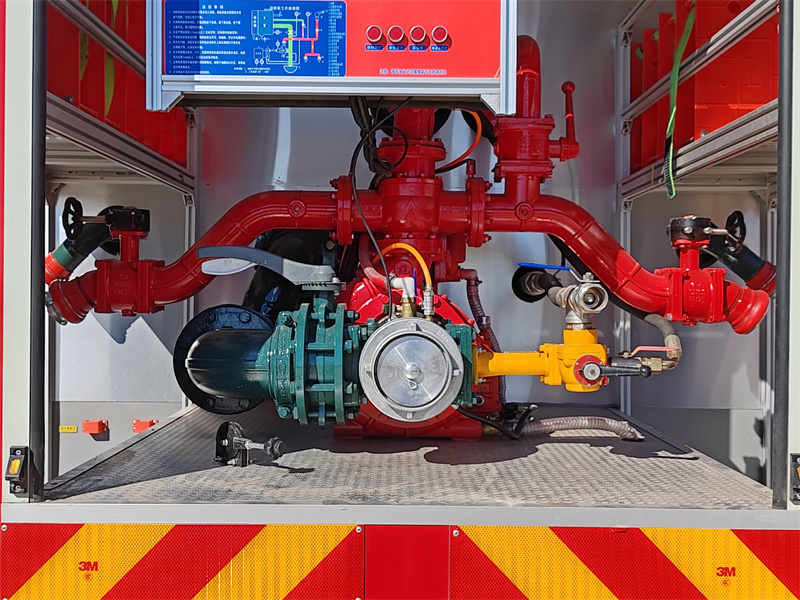

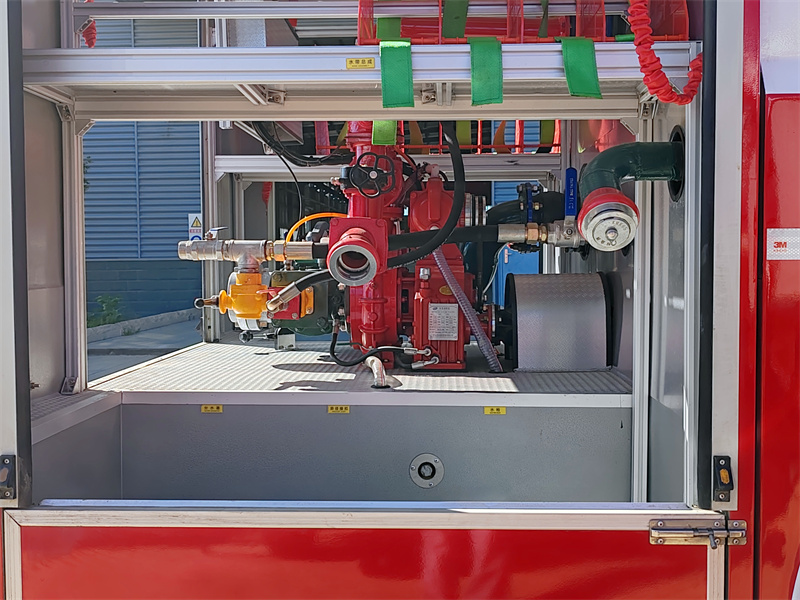

  • CB10/40-LC(BS) fire pump
  • CB10/40-LC(BS) fire pump

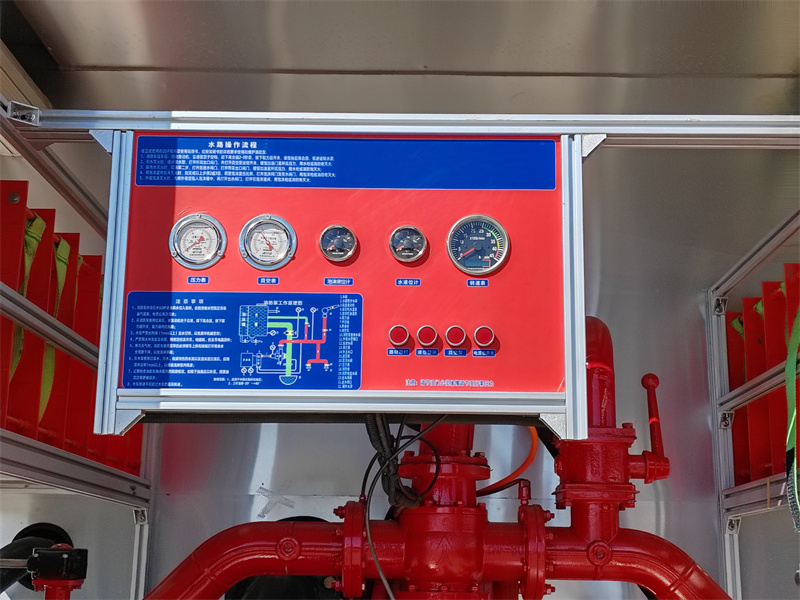

  • control panel



Integrated Control Panel: The panel design is intuitive and integrates:

• Illustrated Guide: Clearly indicates the water circuit operation procedures, precautions, and fire pump operating principle diagram.



• Monitoring Instruments: Includes pressure gauges, vacuum gauges, foam level gauges, water level gauges, tachometers, etc., displaying the system's operating status in real time.



• Operation Buttons: Centrally located control switches for the main power switch, vacuum pump, level display, equipment box lighting, etc.



» Ⅲ. Fire Monitor system :

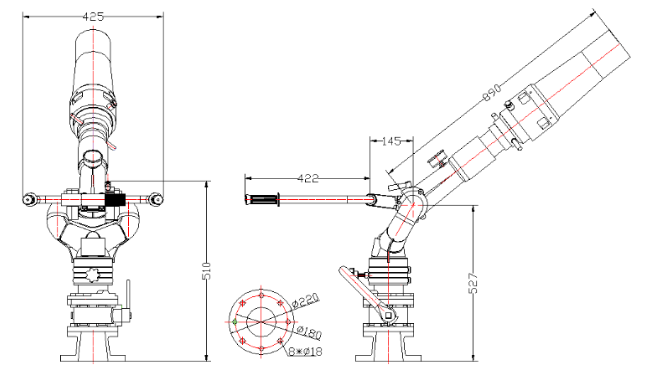

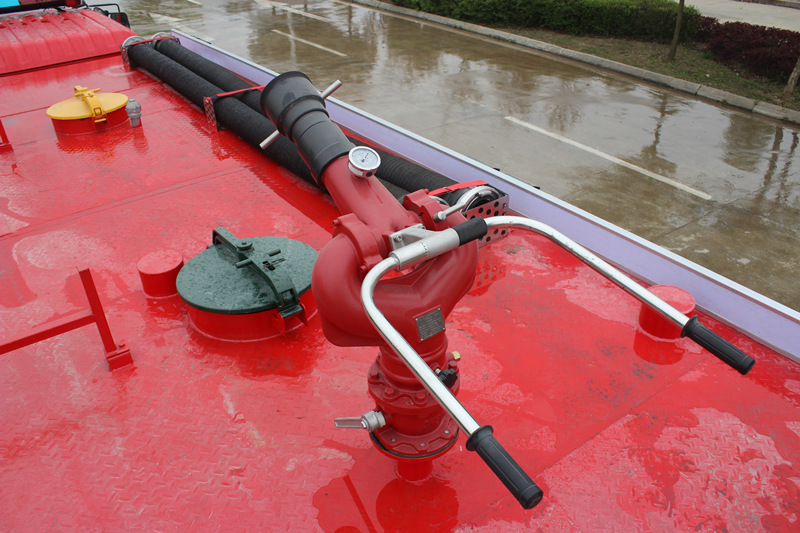

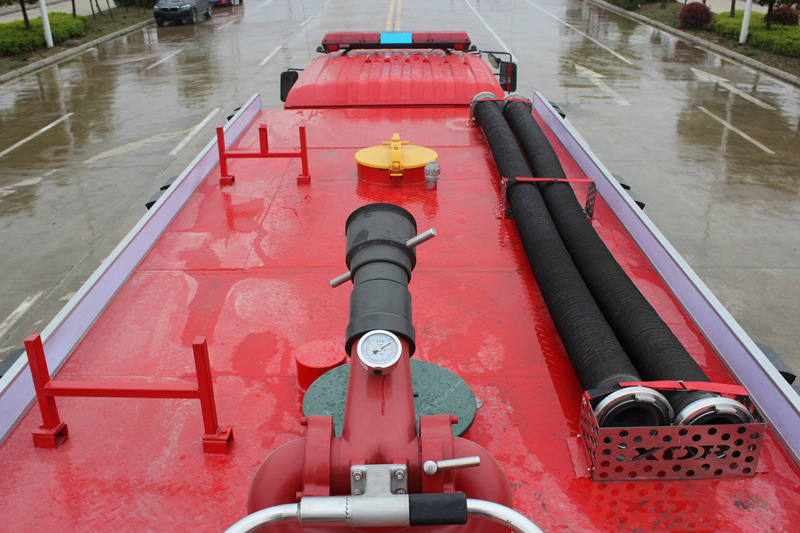

PL8/32 fire monitor

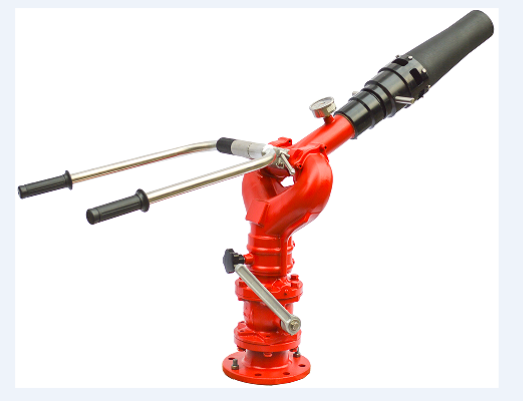

PL8/32 fire monitor

Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation Weight
PL8/32 32L/s

water ≥60m,

foam ≥48m

0.80MPa -45°~+70°
0~360° 23kg

» .Technical Design:



 POWERSTAR R & D Department for design:

100% customized appearance, design the water + foam tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.

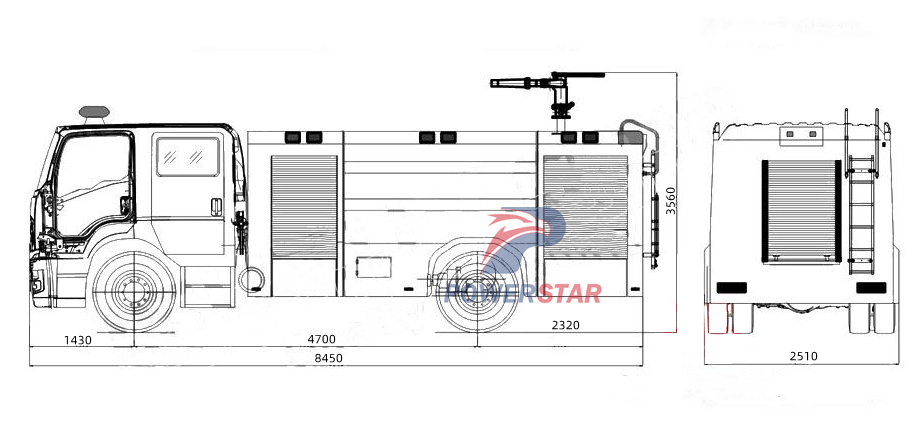

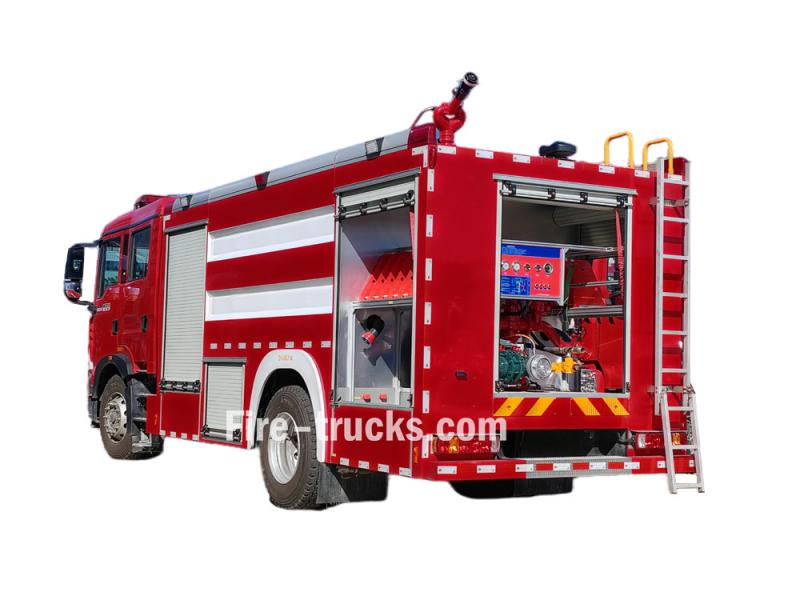

HOWO 4X2 7.5CBM foam fire fighting truck



» .Preshippment Test:

Before delivering the HOWO 4X2 7500L foam fire truck from our factory, we conducted a factory inspection of the fire truck, which included rain testing, performance testing of the fire pump and fire monitor, as well as final inspection of welding process, painting and other aspects.

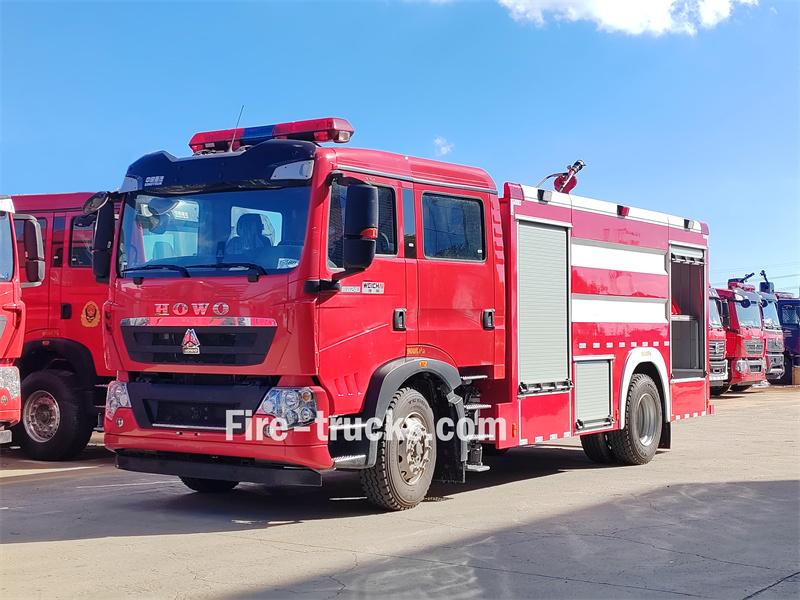

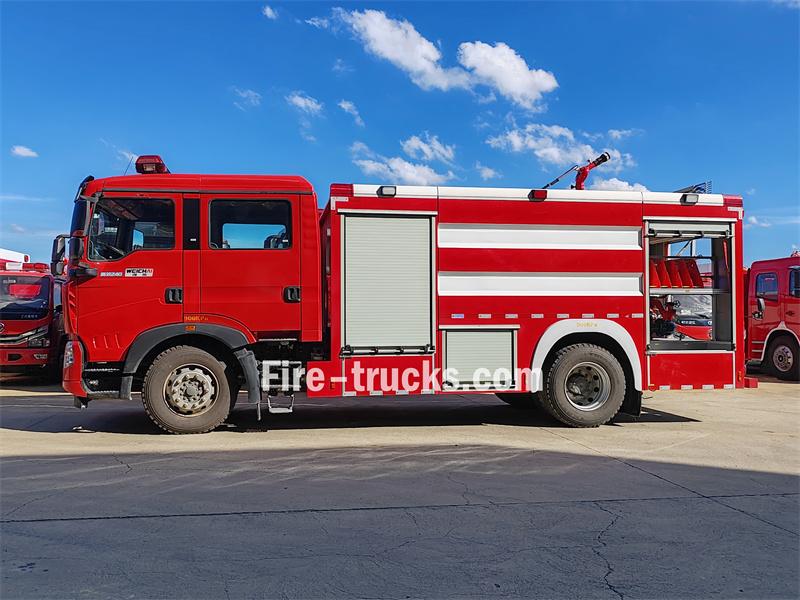

    HOWO 4X2 7.5CBM foam water fire fighting truck



    » VII. Applications:



    HOWO 240HP engine 7500L foam fire rescue truck

    Leave A Message
    If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
    Submit

    Related Products

    HOWO TX 460HP Fire protection trucks
    HOWO 460 HP engine fire rescue truck

    The Howo TX460 6x4 12 cbm foam fire truck adopts a Sinotruk TX 6x4 cab, with a 4600+1400mm wheelbase, and is equipped with a SINOTRUK MC11.46-61 engine and an HW19710 gearbox. The front of the superstructure houses an equipment compartment for storing various firefighting equipment, while the middle section contains a 9 cubic meter carbon steel water tank and a 3 cubic meter foam tank. The rear section houses the pump room, equipped with a CB10/60-RS fire pump, a control panel, and some auxiliary firefighting equipment. The water and foam tanks on the roof are equipped with manholes, and a PL8/48 fire monitor is also included.

    Details
    HOWO armored crowd control riot truck
    HOWO anti riot water cannon vehicle

    HOWO 6x4 explosion-proof water cannon truck is modified on the basis of HOWO HW76 cabin truck chassis. The vehicle is equipped with an explosion-proof box, a main gun on the top and a front water auxiliary gun on the head, which can achieve all-round, large-flow and long-distance riot control; double-row cab, 6 passengers; equipped with CB10/60 fire pump, the front of the vehicle is equipped with riot-proof steel plate and strong hydraulic obstacle clearing steel shovel; lamps and window glass are protected by stainless steel mesh.

    Details

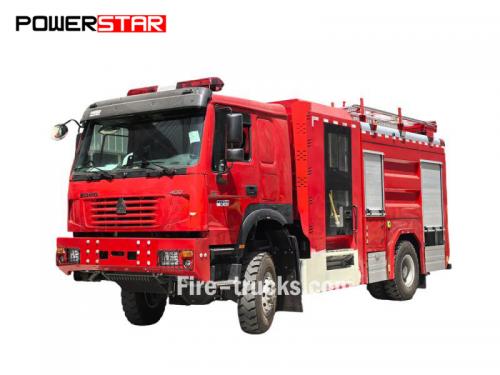

    Howo 4x4 drive water tank fire engine
