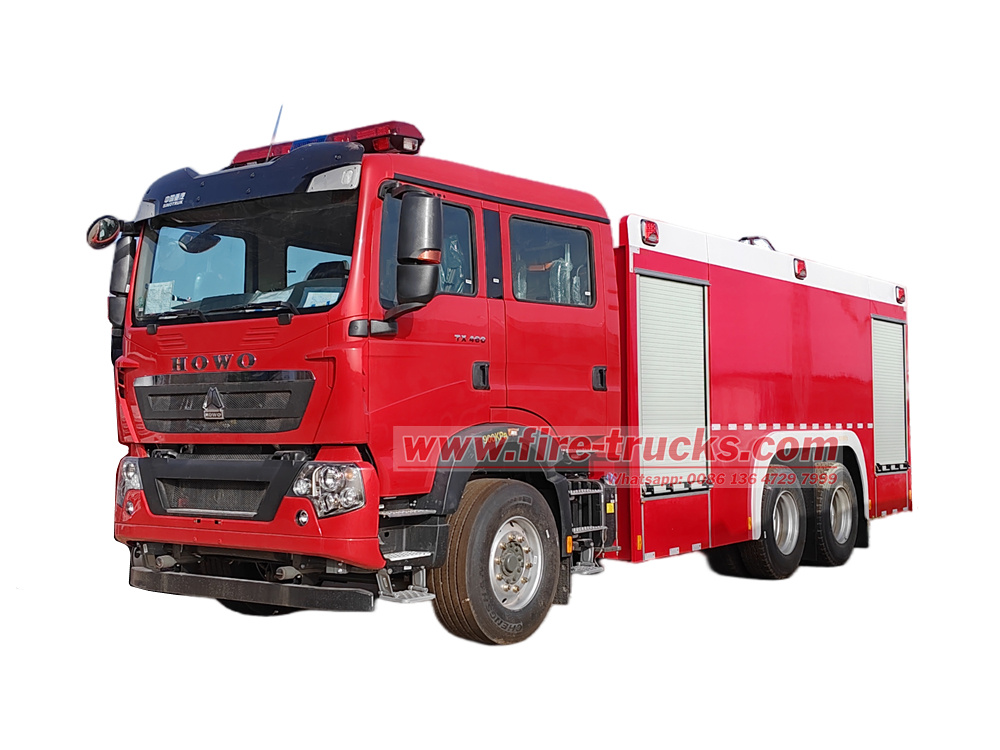

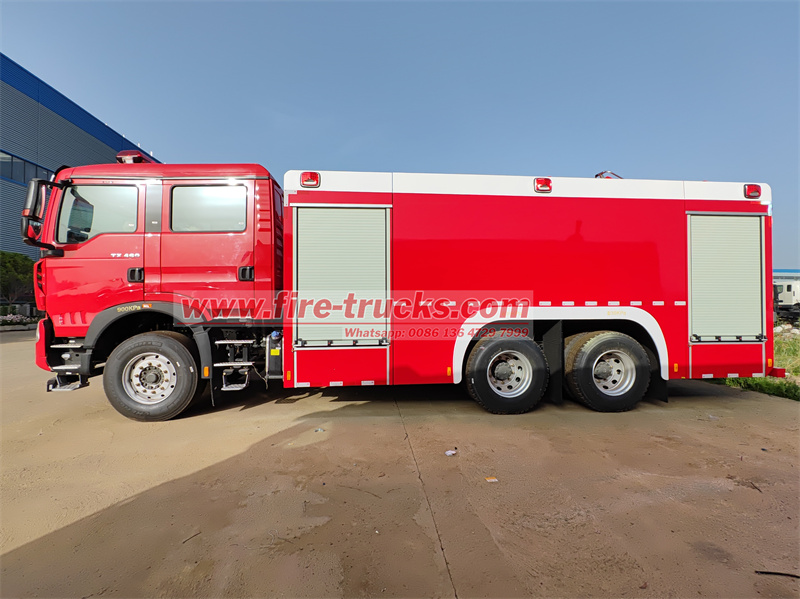

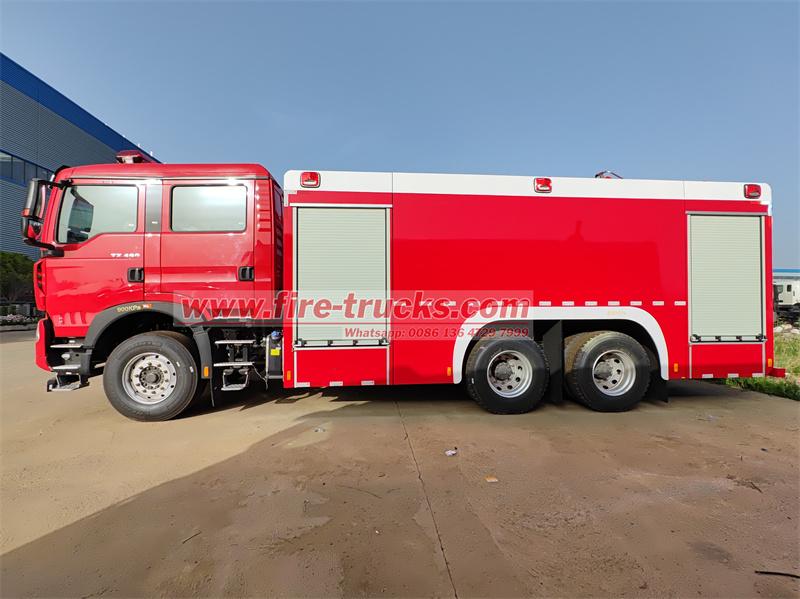

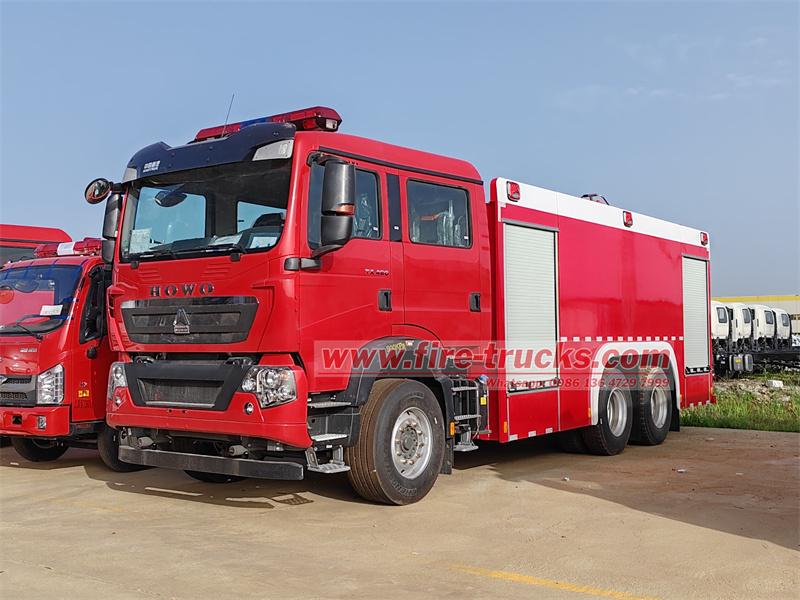

The HOWO 6×4 emergency fire truck is modified based on the HOWO TX400 chassis, equipped with a 400-horsepower Euro VI emission WP10H400E62 engine and a HW19712CL gearbox, with strong power. The vehicle adopts a 4325+1350mm wheelbase and a 2+4 seat layout, equipped with a 10-cubic-meter carbon steel water tank and a 2-cubic-meter stainless steel foam tank to meet the needs of large-volume firefighting. The front of the upper body is equipped with a multi-functional equipment room, the middle is a water/foam tank system, the rear pump room is equipped with a CB10/60 fire pump and a full set of firefighting tools, and the top is equipped with a PL8/48 remote-controlled fire monitor, which supports water/foam dual-mode spraying.
Truck Model:
PT5250GXFTanker Structure:
Water tank carbon steel,foam tank stainless steelWork capacity :
Water 10000L,Foam 2000LWheelbase:
4325+1350mmAxle drive:
6x4,LHDEngine Power:
400HP/294kWEngine Model:
WP10H400E62Fire Pump:
CB10/60, 60L/s@1.0MPaFire Monitor:
PL8/48, 48L/S@0.8MPaRemark:

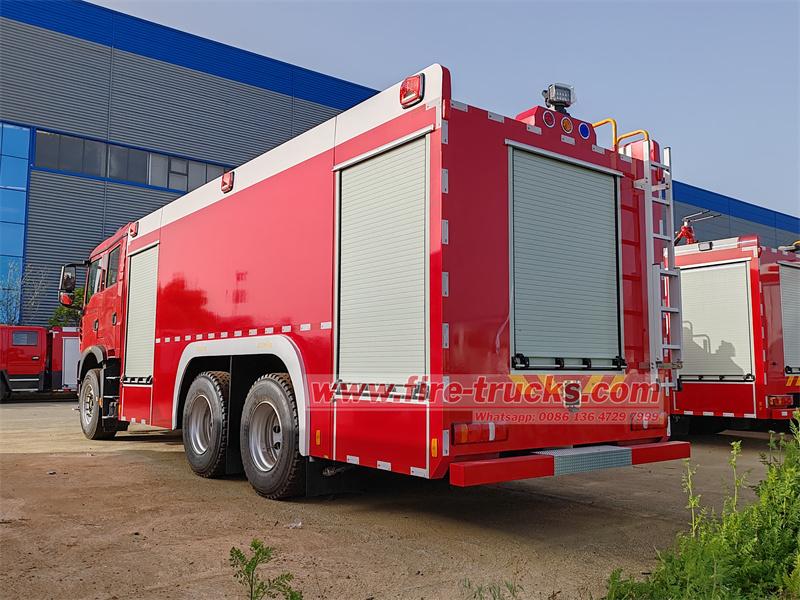

HOWO TX400 Euro 6 chassisHOWO TX400 emergency fire department apparatus is equipped with a 400HP Euro 6 engine and a 12-speed intelligent gearbox, which has both strong power and low fuel consumption. The upper body adopts a "equipment-water tank-pump room" trinity layout: the front equipment room is equipped with more than 20 types of equipment such as demolition and protection; the middle is equipped with a 10m³ carbon steel water tank and a 2m³ stainless steel foam tank, which supports water-foam coordinated fire extinguishing; the rear pump room integrates a CB10/60 fire pump and an intelligent control panel, which can switch the fire extinguishing mode with one button, and is equipped with a PL8/48 fire cannon to achieve 70-meter long-range precision strike. The vehicle has all-terrain passability, high-efficiency fire extinguishing performance and modular expansion capabilities. It is suitable for rescue in multiple scenarios such as urban high-rise buildings, chemical parks, and forest fires. It is a medium-sized firefighting weapon that takes into account both reliability and intelligence.
● China best Isuzu fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
★ Chassis and body structure

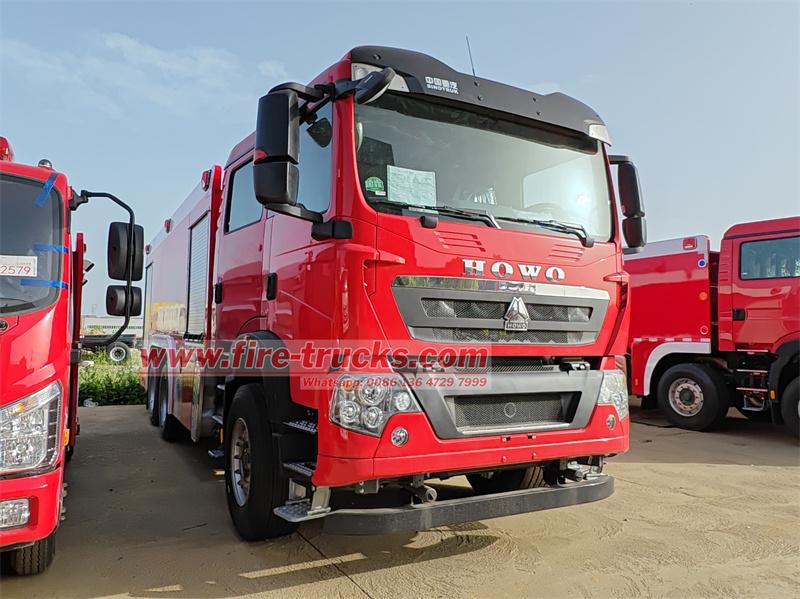

The HOWO TX400 emergency fire truck is modified based on the Sinotruk HOWO TX400 6×4 chassis. It adopts a 4325+1350mm double-stage wheelbase design, taking into account vehicle stability and passability. The cab has a 2+4 seat layout (driver + co-pilot + 4 firefighters), with spacious space, suitable for rapid deployment and long-distance rescue missions.
WP10H400E62 engine
Power performance: 400 horsepower (294kW), meeting Euro VI emission standards, with both high power and low pollution characteristics.
Torque output: Maximum torque reaches 1900N·m (1200-1300rpm), adapting to complex road conditions and heavy load requirements.
Technical highlights: Adopting high-pressure common rail fuel system and intelligent electronically controlled EGR technology to optimize combustion efficiency and reduce fuel consumption and noise.
Sinotruk HW19712CL gearbox
12-speed manual transmission: with overdrive design, wide speed ratio range, suitable for frequent start-stop and high-speed rescue needs of fire trucks.
Reliability: lightweight design of aluminum alloy shell, smooth synchronizer shifting, strong durability.
★ Detailed explanation of upper functional modules

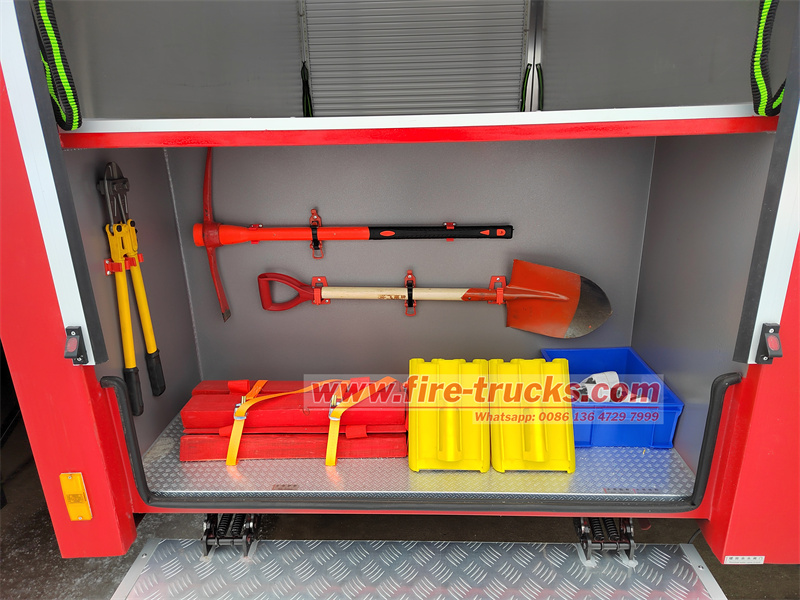

Front equipment room
Layout: modular storage space, built-in fire emergency tools, including shovels, pickaxes, hose wraps, bridge guards, etc., classified and fixed, easy to use.
Use: suitable for initial rescue tasks such as demolition, plugging, and road cleaning.
Middle tank system
10 cubic carbon steel water tank: volume 10,000L, made of anti-corrosion carbon steel, internal wave plate design to ensure water stability during driving.
2 cubic stainless steel foam tank: volume 2,000L, 304 stainless steel material, corrosion-resistant, can store A/B type foam liquid, support foam fire extinguishing system.

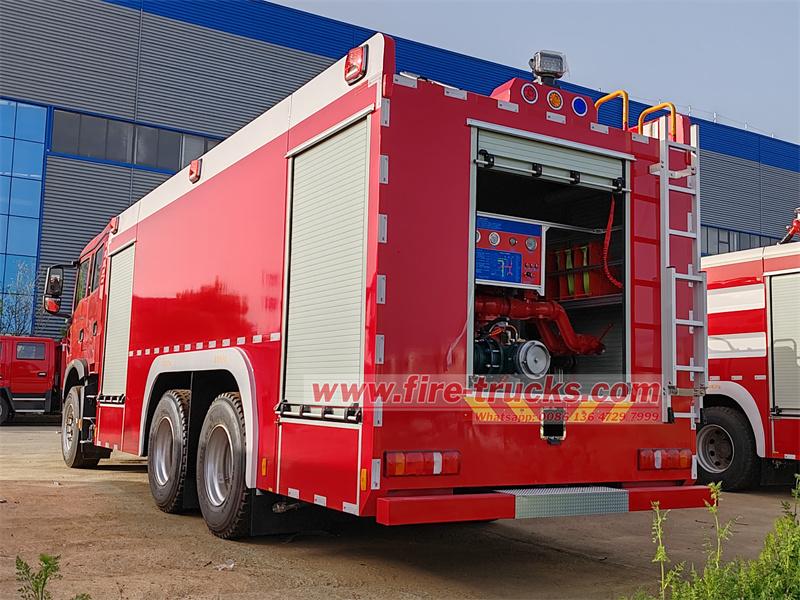

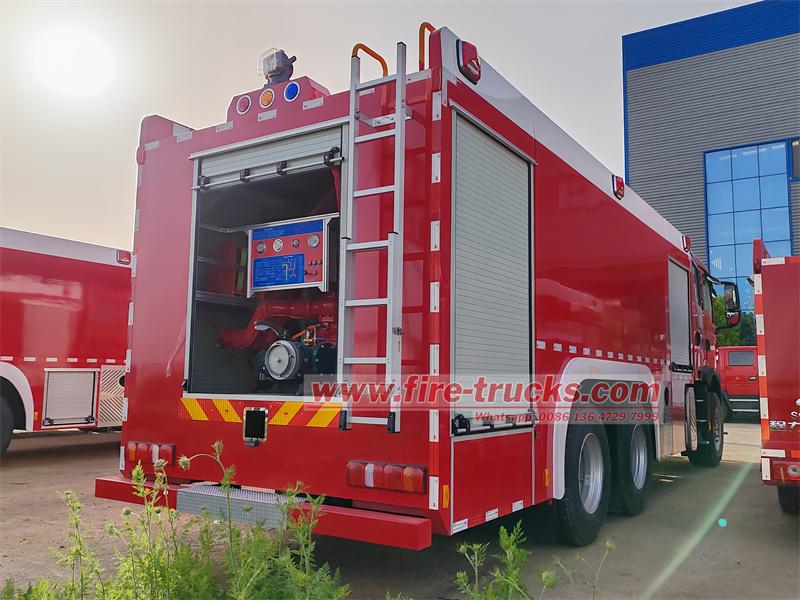

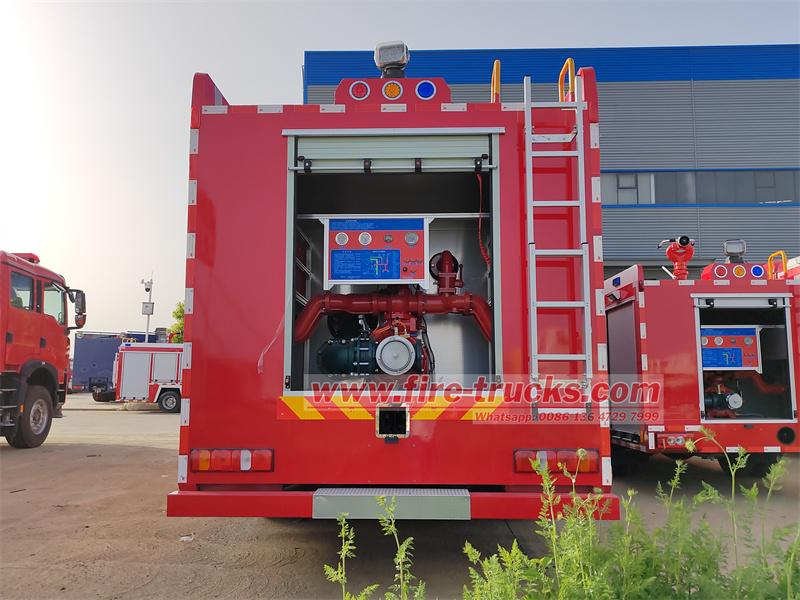

Rear pump room

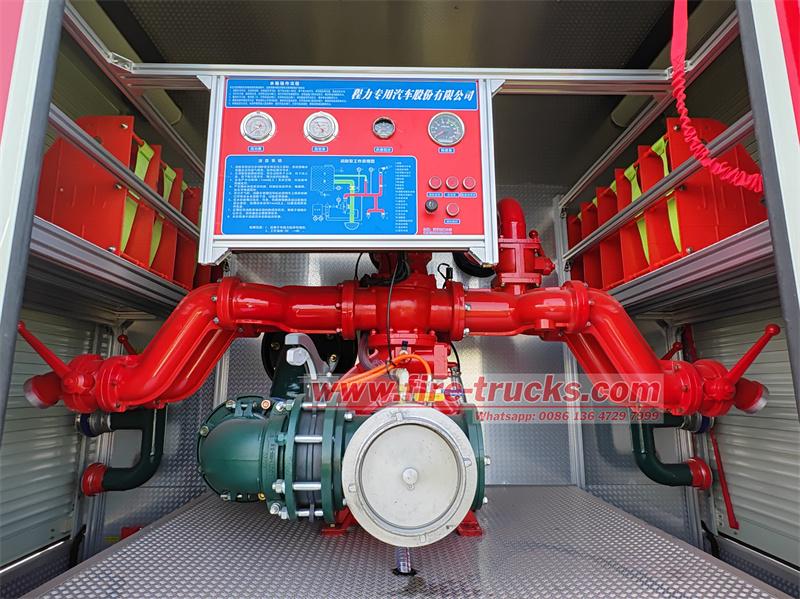

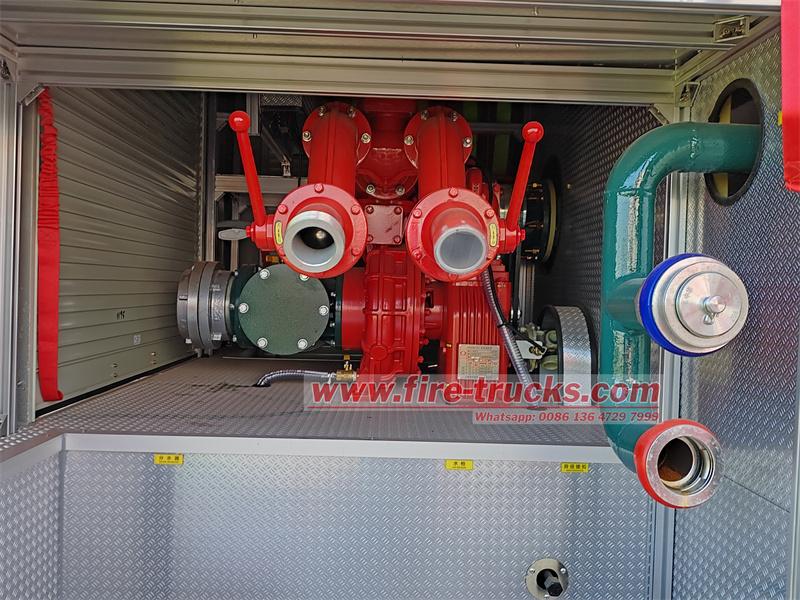

Fire pump: equipped with CB10/60 fire pump, flow rate 60L/s, pressure 1.0MPa, supports fast water/foam mixed injection.

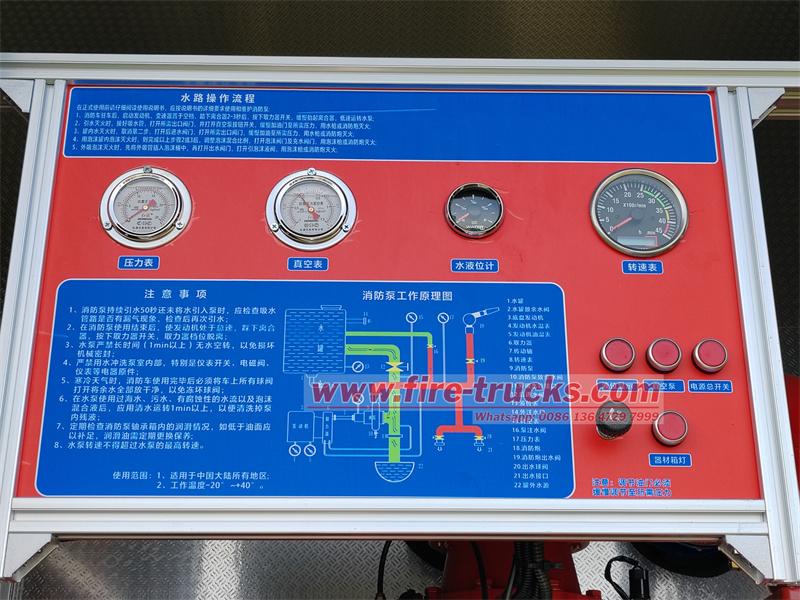

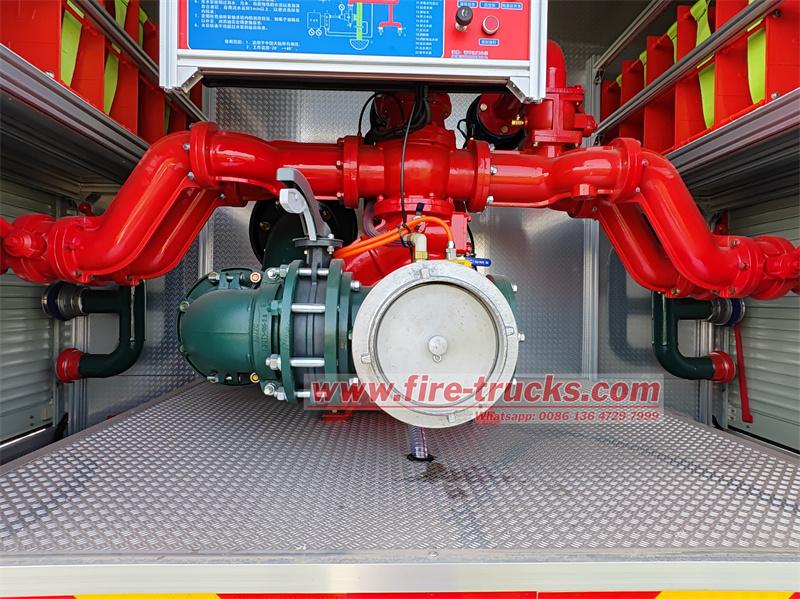

Control panel: integrated pressure gauge, vacuum gauge, tachometer, water level gauge, foam level gauge, real-time monitoring of the pump group operation status. Liquid level display, main power switch, vacuum pump, equipment box light and other buttons control specific operations

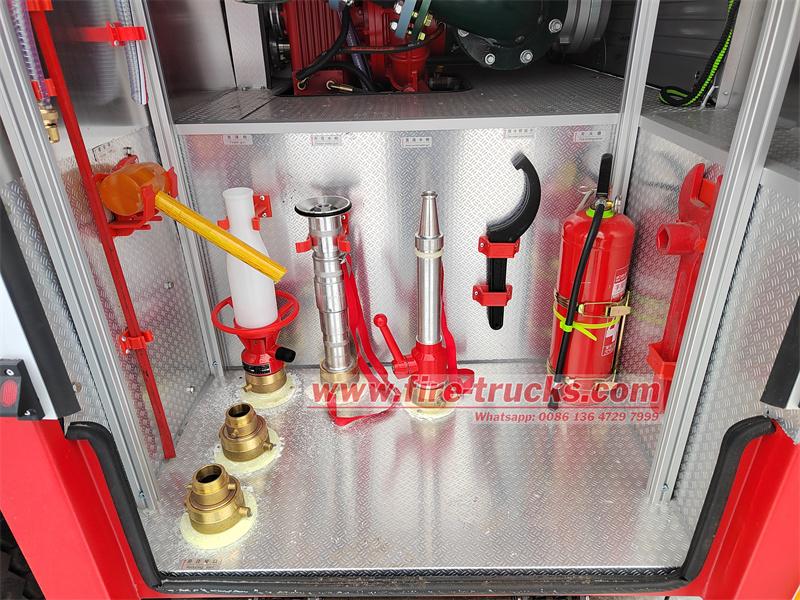

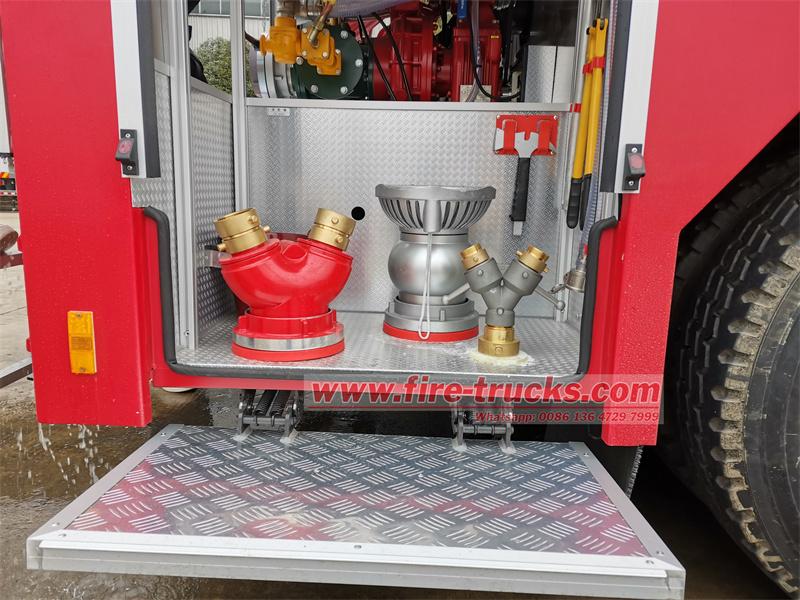

Auxiliary tools: built-in fire hose, water collector, water distributor, water filter, reducer, etc., suitable for a variety of rescue scenarios; fire shears, wrenches, fire extinguishers and other emergency equipment are also equipped.

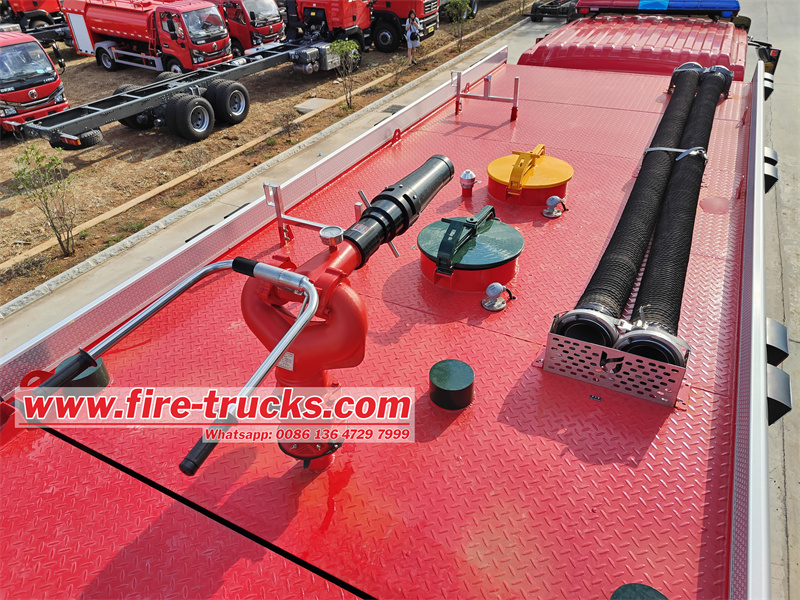

Top fire monitor
PL8/48 fire monitor: flow rate 48L/s, range water ≥70m, foam ≥60m, support water/foam dual mode switching, remote control operation, covering a large area of fire.
HOWO TX400 6cbm foam water fire truck |
||
General Specifications |
||
Vehicle model |
PT5250GXF |
|
Overall size |
9350x2540x3460mm |
|
GVW |
25000kg |
|
Curb weight |
12500kg |
|
Max. driving speed |
95km/h |
|
Truck Chassis Specifications |
||
Chassis brand |
HOWO |
|
Cab |
HOWO TX400 6x4 double row,left hand drive,with A/C,USB,direction assistance |
|
Wheelbase |
4325+1350mm |
|
Axle loading |
7000/18000kg |
|
Engine |
Type |
In-line, direct injection, water-cooled, four-stroke, supercharged and intercooled, electronically controlled high-pressure common rail, Hi+SCR |
Model |
WP10H400E62 |
|
Horsepower |
400HP/294kW |
|
Displacement |
9.5L |
|
Max torque |
1900N·m |
|
Max torque speed |
1200-1300rpm |
|
Emission standard |
Euro 6 |
|
Gearbox |
Sinotruk HW19712CL, 12 forward gears, 2 reverse gears manual |
|
Tire |
12.00R20 16PR,10+1 tires |
|
Upper |
||
Water tank |
||
Structure |
Exposed tank,all metal welding structure, overall corrosion resistance, have shock absorption measures |
|
Material |
Water tank adopt high quality carbon steel Q235A |
|
Capacity |
Water 10000L |
|
Main devices
|
2 pcs DN 500mm inlet hole / 1 suction hole at the rear of pump room |
|
1 overflow valve device / 2 drain outlet with ball valve |
||
2 DN65 water inlet holes at both sides,structure: ball valve with inside bend upturning pipeline |
||
Foam tank |
||
Structure |
Exposed tank,all metal welding structure,overall corrosion resistance, have shock absorption measures |
|
Material |
Foam tank adopt high quality #304 Stainless Steel |
|
Capacity |
Foam 2000L |
|
Main devices |
2 pcs DN 500mm inlet hole / 1 suction hole at the rear of pump room |
|
1 overflow valve device / 2 drain outlet with ball valve |
||
2 DN65 water inlet holes at both sides,structure: ball valve with inside bend upturning pipeline |
||
Fire Pump |
||
Model |
CB10/60 normal pressure fire pump |
|
Type |
Ordinary pressure centrifugal pumps |
|
Flow Capacity |
60L/s@1.0MPa |
|
Outlet Pressure |
≤1.3 MPa |
|
Max working pressure |
1.082MPa |
|
Suction Depth |
7m |
|
Priming device |
vacuum pump |
|
Priming time |
≤35s |
|
Fire Monitor |
||
Model |
PL8/48 High-quality fire monitor |
|
Capacity |
48L/S@0.8MPa |
|
Rotation angle |
360° |
|
Angle |
-45°- +70° |
|
Shooting Reach |
Water≥70m;Foam≥60m |
|
Other Attachments |
Double row cab with 4 doors; |
★ Application scenarios and advantages
Applicable scenarios
Urban fire fighting: large-capacity water tanks and foam systems are suitable for Class A/B fires.
Traffic accident rescue: The equipment room tools can quickly handle the dangerous situations derived from traffic accidents.
Industrial zone emergency: High-pressure fire cannons can deal with high-risk scenarios such as chemical fires.
Core advantages
Efficient power: 400 horsepower engine + 12-speed gearbox to ensure rapid response under complex road conditions.
Multi-functional integration: Water tank, foam tank, equipment room, pump room four-in-one to meet comprehensive rescue needs.
Intelligent control: Pump room control panel and remote control fire cannon improve combat efficiency.
