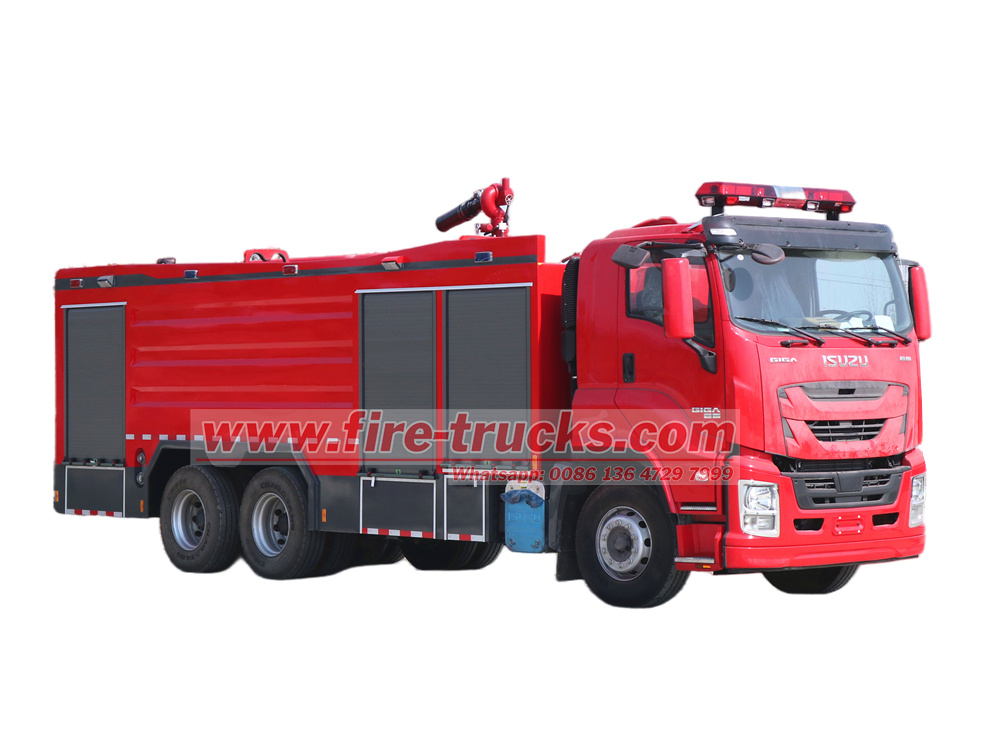

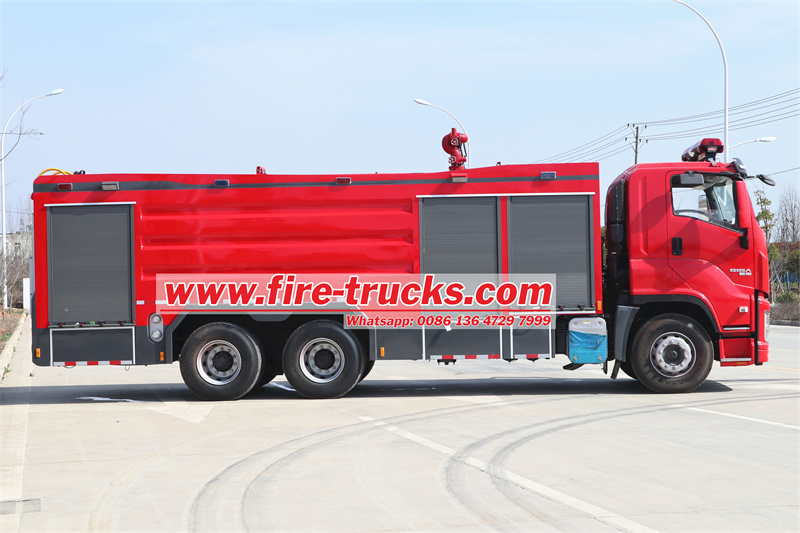

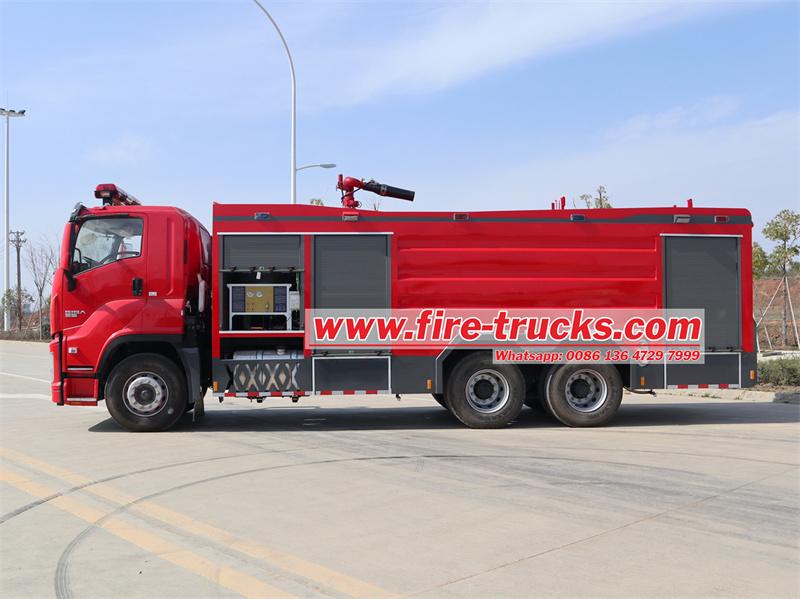

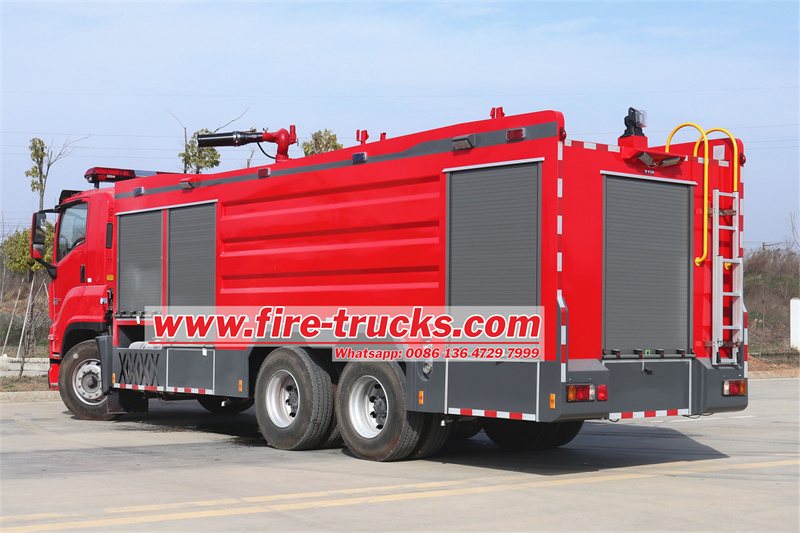

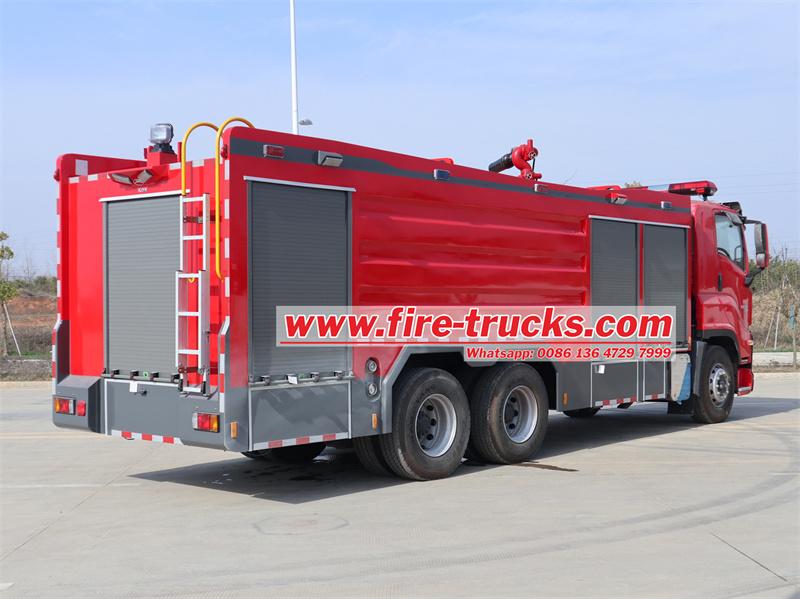

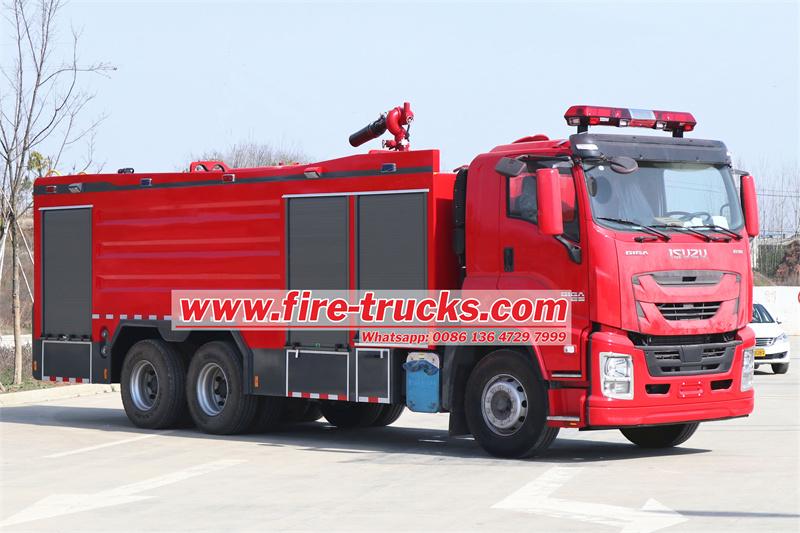

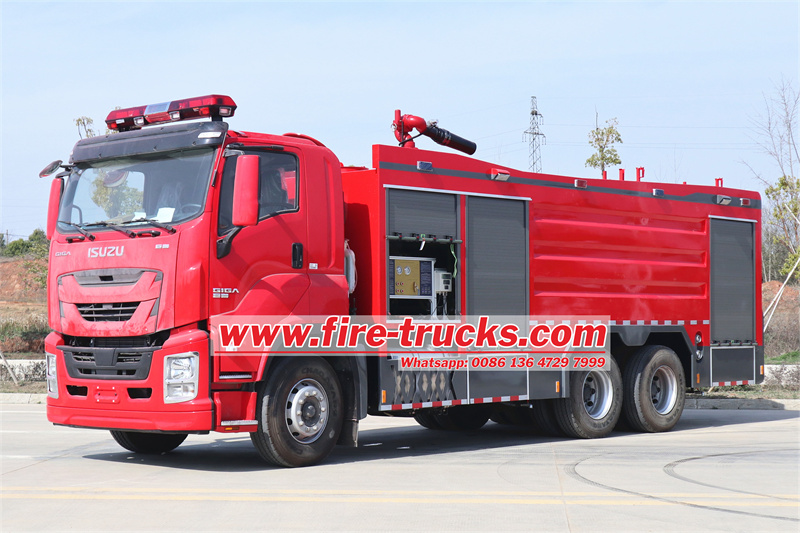

Isuzu GIGA 4000 gallons fire tanker truck

This Isuzu GIGA 4000 gallons fire tanker truck is a high-performance firefighting vehicle designed to cope with various complex fire scenes. It is equipped with a 380HP 6UZ1-TCG61 engine and a Fast 12-speed gearbox. It has strong power and can adapt to complex road conditions. The vehicle is equipped with an 8,000-liter water tank, a 4,000-liter foam tank and a 3,000-liter dry powder tank, which integrates three fire extinguishing agents: water, foam and dry powder, and is suitable for a variety of fire scenes. The CB10/100 fire pump provides a large flow of 100L/s, the PLKD80 fire cannon has a range of 80 meters and supports remote control operation, and the QGH-5 dry powder gun is light and flexible, suitable for firefighting in small spaces. The dry powder system quickly extinguishes liquid, gas and electrical fires through chemical suppression and physical coverage. These equipment together constitute the vehicle's powerful firefighting capability, enabling it to respond quickly and efficiently extinguish various complex fires.

● 30 years experience on Isuzu dry powder fire truck designing

● Be designed according to your requirements

● Build strict QC team to guarantee the quality

● Promptly delivery. any order is welcome.

● 24 month quality guarantee term

Isuzu 15 cubic meter dry powder foam fire truck, as a professional rescue weapon for various fire challenges, is designed to integrate the excellent manufacturing technology of the Isuzu brand with cutting-edge firefighting technology, especially in the chassis, power system, and firefighting equipment, showing a high degree of professionalism and practicality.

Chassis and power system

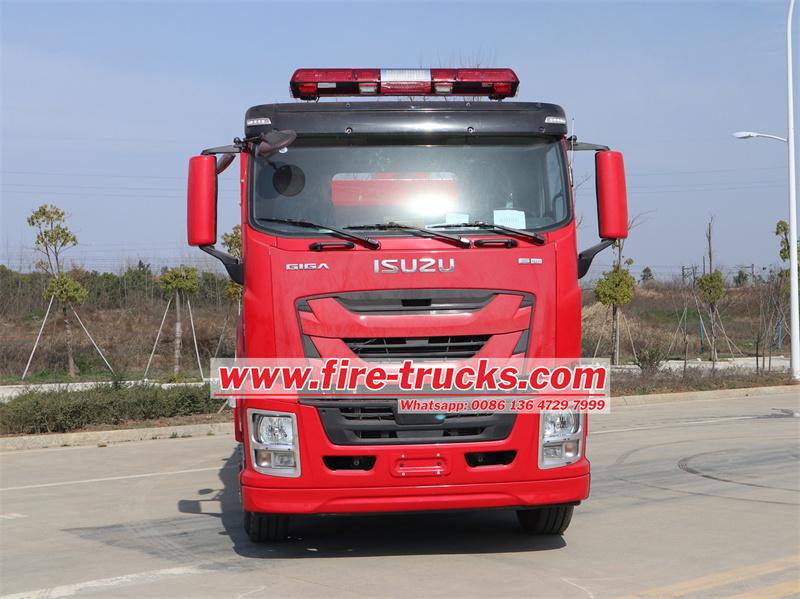

• Chassis platform: Built on the Isuzu GIGA series 6x4 heavy-duty drive chassis, the chassis is famous for its durability, high passability and excellent load-bearing capacity. It is designed for harsh operating environments to ensure that the fire truck can drive stably under various complex road conditions and quickly reach the fire scene.

• Engine configuration: Equipped with a 380-horsepower 6UZ1-TCG61 diesel engine, this engine uses advanced turbocharging and common rail direct injection technology, which not only provides strong power output, but also achieves low fuel consumption and low emissions, meets modern environmental protection standards, and ensures economy and environmental protection during long-term operation.

• Transmission system: Equipped with Fast 12-speed manual transmission, it has a wide speed ratio range and fine gear division, allowing the driver to flexibly adjust the vehicle speed and torque according to the actual road conditions and fire-fighting needs. Whether it is urban streets or suburban roads, it can easily cope with it and improve the efficiency of fire-fighting.

Large-capacity tank system

• 8,000-liter water tanker: As the basic fire-fighting medium of fire trucks, the capacity of the water tank directly determines the duration and coverage of fire-fighting in a single dispatch. The ultra-large capacity of 8,000 liters ensures that the fire truck can continuously supply sufficient water when facing large-scale fires, supporting long-term and high-intensity fire-fighting operations. At the same time, the interior of the water tank uses anti-corrosion materials to ensure clean water quality and extend service life.

• 4,000-liter foam tanker: Foam fire extinguishing agent plays an irreplaceable role in specific scenarios such as oil fires and chemical fires with its advantages of wide coverage, high fire-fighting efficiency and low environmental impact. The 4,000-liter foam tank capacity, combined with an efficient foam proportioning system, can quickly generate a large amount of foam, cover the fire source, isolate oxygen, and effectively extinguish the fire.

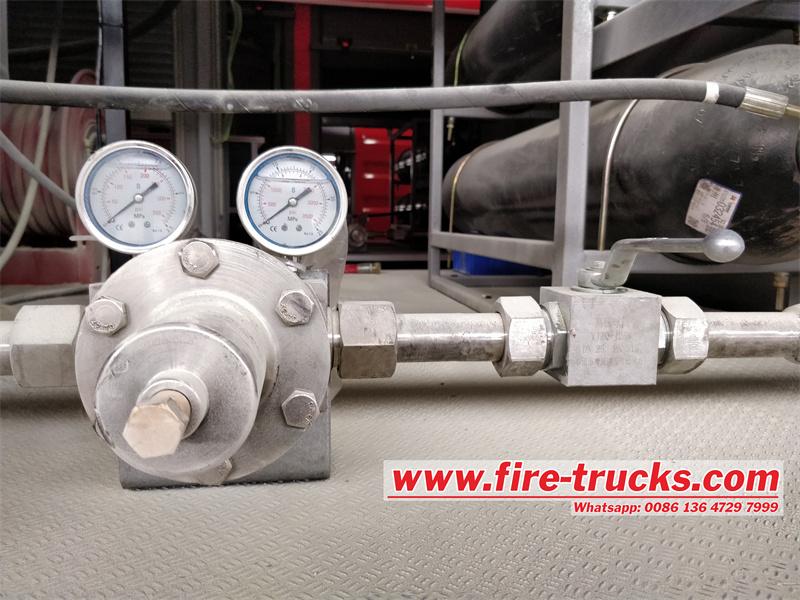

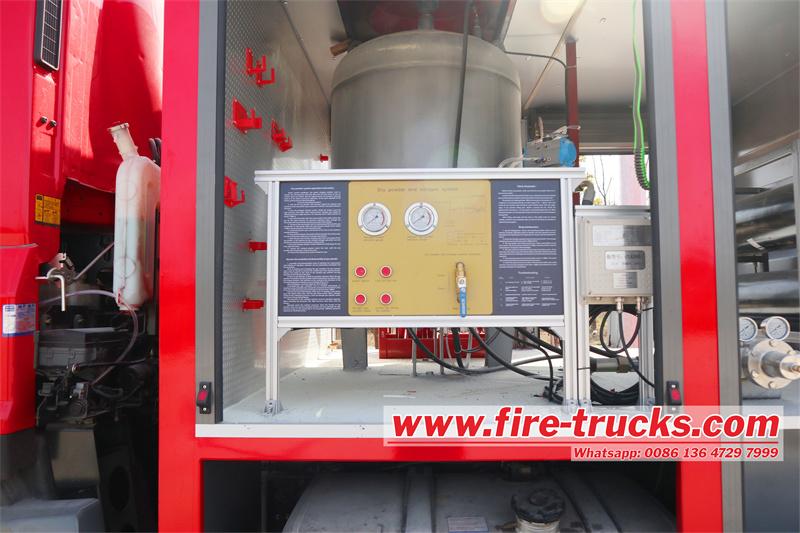

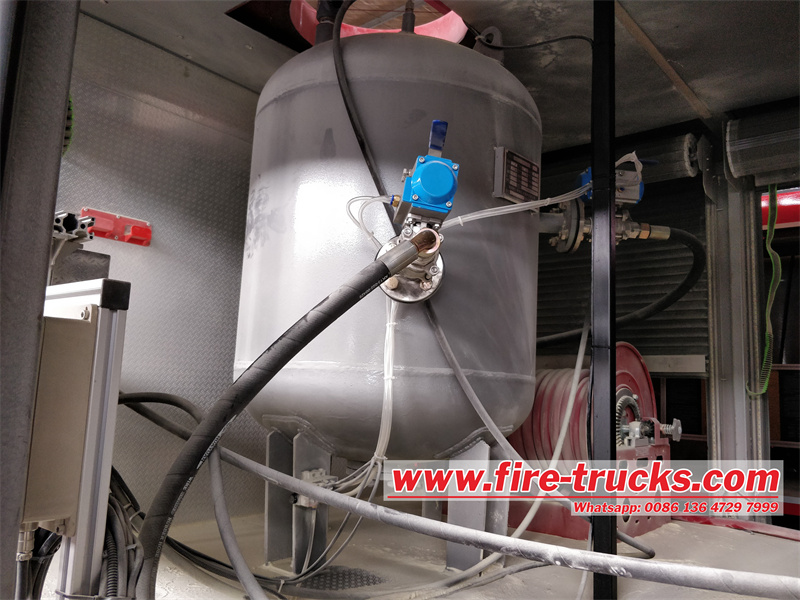

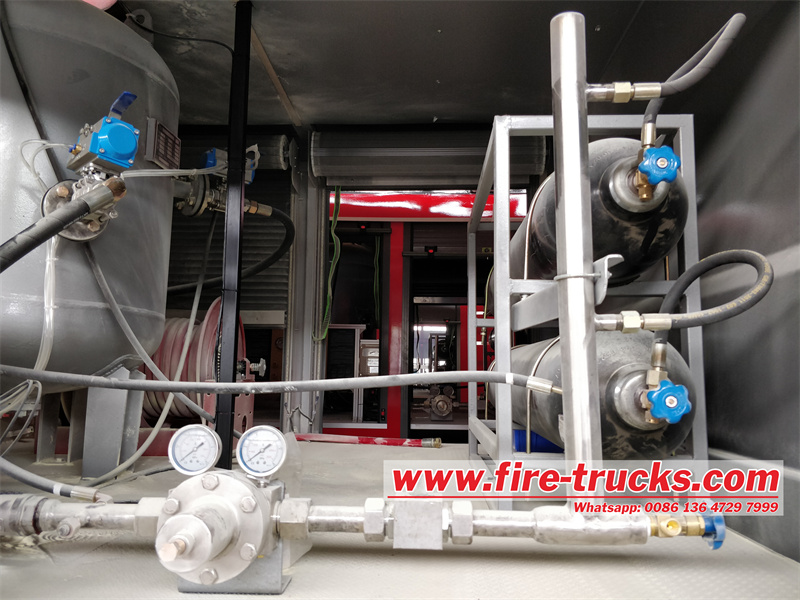

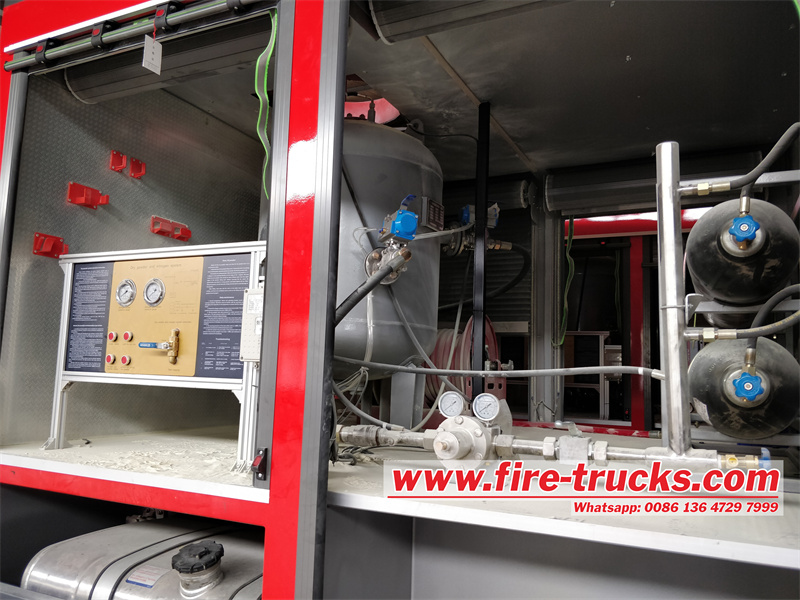

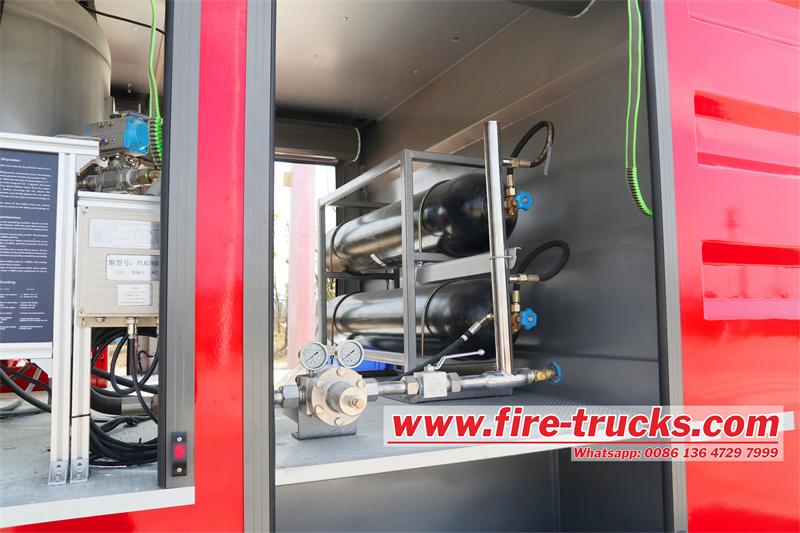

• 3,000-liter dry powder tanker: Dry powder fire extinguishing agents are mainly used for electrical fires, metal fires, and some chemical fires. They have the characteristics of fast fire extinguishing speed, non-conductivity, and leaving no traces. The 3,000-liter dry powder tank capacity uses nitrogen or compressed air as a power source to achieve rapid and uniform delivery of dry powder, effectively control the fire, and protect the safety of valuable equipment and personnel.

Efficient fire fighting equipment

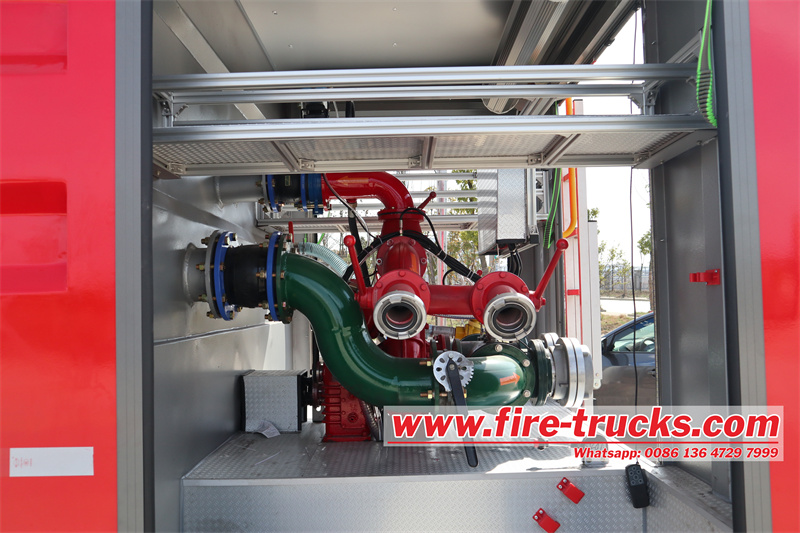

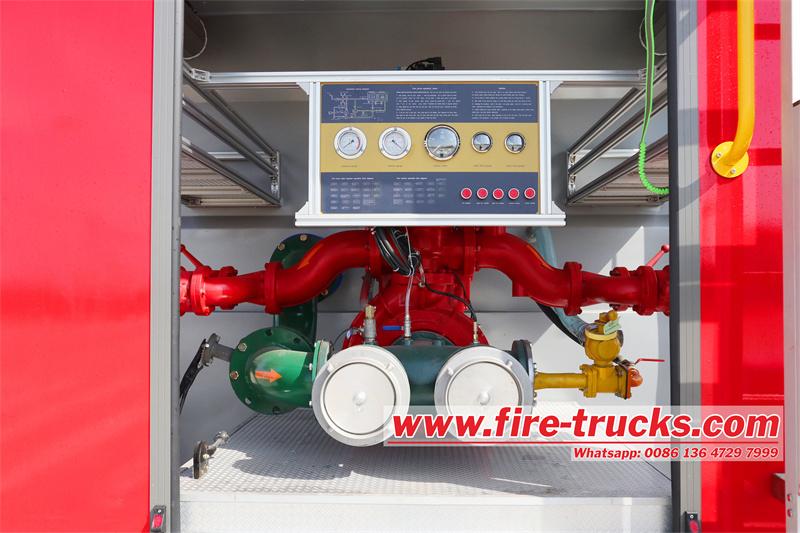

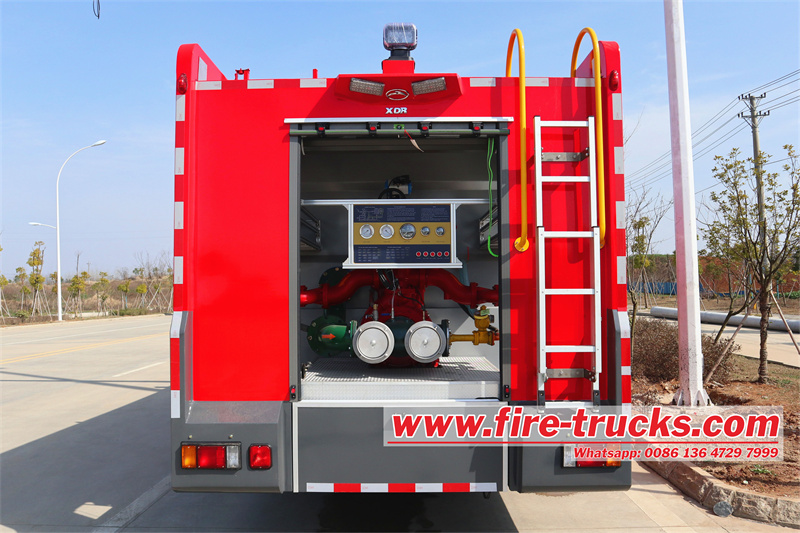

• CB10/100 fire pump: Centrifugal fire pump, 100 L/s@ 1.0 MPa flow rate, suction depth ≥7 meters. As the "heart" of the fire truck, the CB10/100 fire pump, with its high pressure and large flow rate, can quickly pressurize water or foam and deliver it to fire monitors, water hoses and other fire extinguishing equipment to ensure effective coverage of the fire extinguishing medium and rapid fire extinguishing. The pump is made of high-quality materials, which is wear-resistant and corrosion-resistant, ensuring the stability and reliability of long-term operation. Equipped with a pressure regulating valve and a flow control device, the flow and pressure can be adjusted according to the actual situation of the fire scene to achieve precise fire extinguishing.

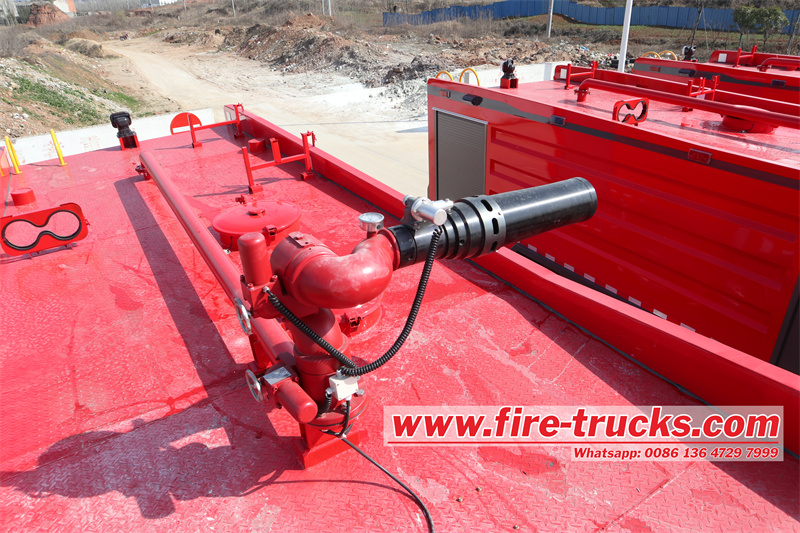

• PLKD80 fire monitor: PLKD80 fire monitor 80 L/s@ 1.0 MPa flow rate, range of water ≥85 meters, foam ≥80 meters, electric remote control, supports horizontal 360° rotation, pitch angle -30° to +70°, is an important fire extinguishing equipment on the fire truck, with 360-degree full-range rotation and large-range pitching capabilities up and down, equipped with an angle sensor to achieve precise positioning and spraying, and achieve efficient fire extinguishing.

Using advanced spraying technology, it can spray water, foam and other fire extinguishing media to the fire source in the form of high speed and high pressure to quickly reduce the fire. Its powerful spraying pressure and range ensure that the fire source can be effectively covered at different distances and heights, especially when dealing with large-area fires or high-rise building fires, showing extremely high fire extinguishing efficiency.

• QGH-5 dry powder gun: QGH-5 dry powder gun, handheld dry powder gun, 5 kg/s flow rate, range ≥16 meters, high-pressure gas drive, fast dry powder spraying speed, wide coverage, equipped with anti-recoil device to ensure safe operation, equipped with manual operating device and quick connector, convenient for firefighters to quickly connect and use in emergency. At the same time, the weight and size of the dry powder gun are reasonably designed, easy to carry and operate. It is equipped with a safety lock and emergency stop button to ensure the safety of firefighters during operation.

Fire extinguishing mechanism of dry powder system

Dry powder fire extinguishing system mainly relies on the physical and chemical properties of dry powder to achieve fire extinguishing. Dry powder is a kind of dry particles made by grinding some inorganic salt solid substances (such as baking soda, ammonium phosphate, etc.) and a small amount of additives used to improve the storage and use performance of fire extinguishing agents (such as moisture-proof agents, anti-caking agents and flow promoters, etc.). These particles can quickly react with free radicals and oxygen in the flame during the fire extinguishing process, thereby interrupting the combustion chain, reducing the flame temperature, and achieving the purpose of fire extinguishing.

1. Chemical inhibition:

 When the dry powder comes into contact with free radicals in the flame (such as OH· and H·), it can quickly capture these free radicals, thereby interrupting the chain reaction of combustion and extinguishing the flame.

2. Isolation effect:

 Dry powder particles form a covering layer on the surface of the burning object, blocking the contact between the flame and oxygen, thereby achieving the purpose of fire extinguishing. This isolation layer can also effectively prevent the occurrence of re-ignition.

3. Cooling and dilution effect:

 Some types of dry powder (such as sodium and potassium salt dry powder) will absorb some heat in the combustion zone and release water vapor and carbon dioxide gas, which will cool and dilute the combustible gas.
