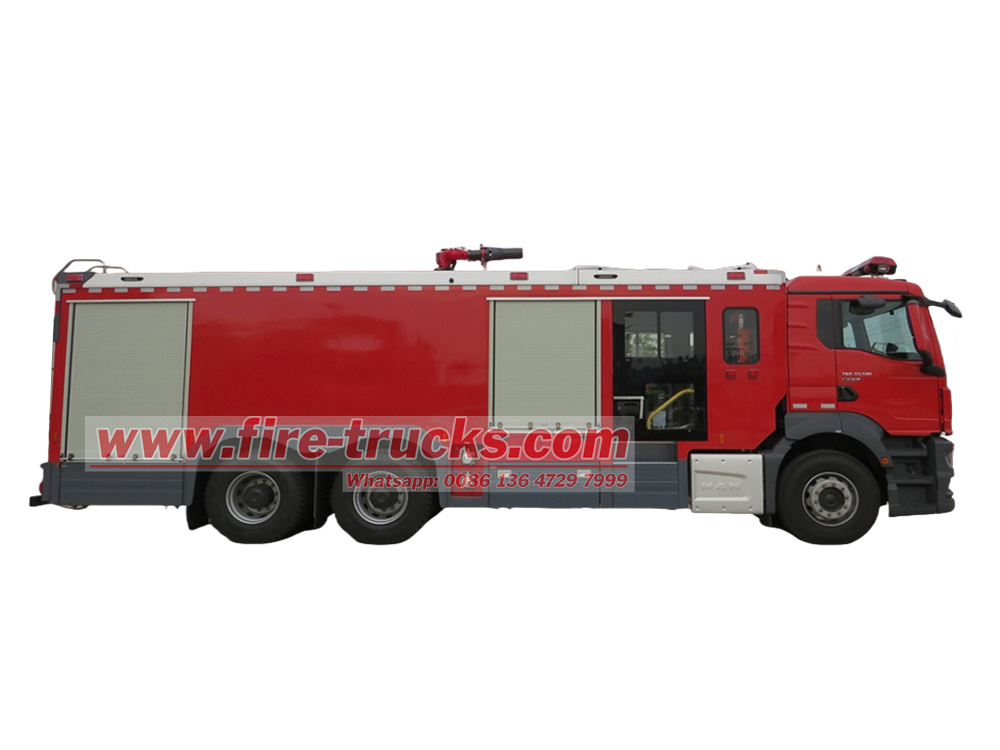

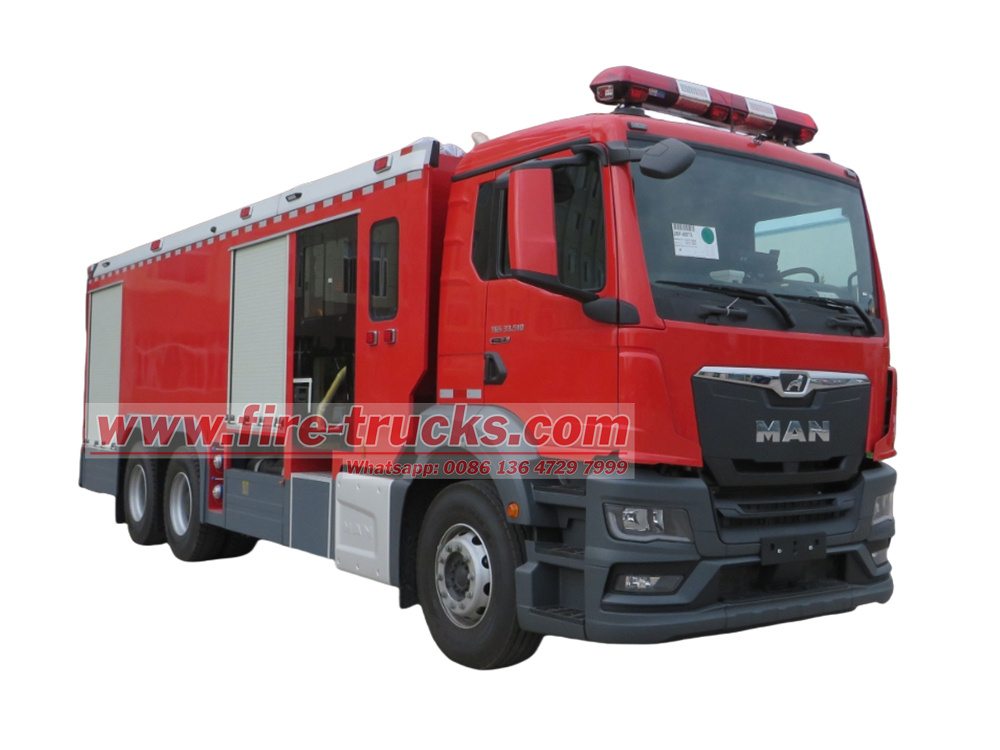

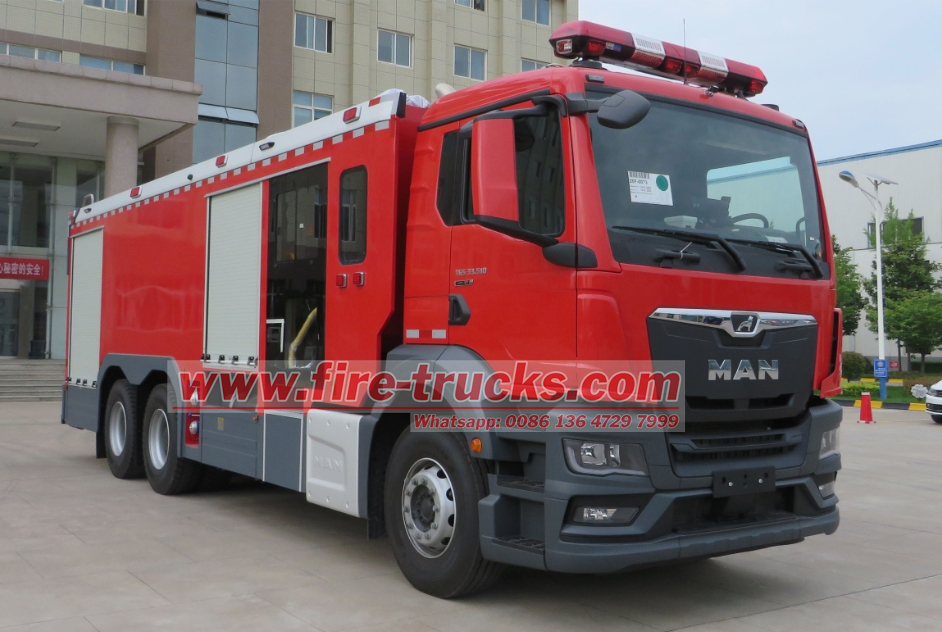

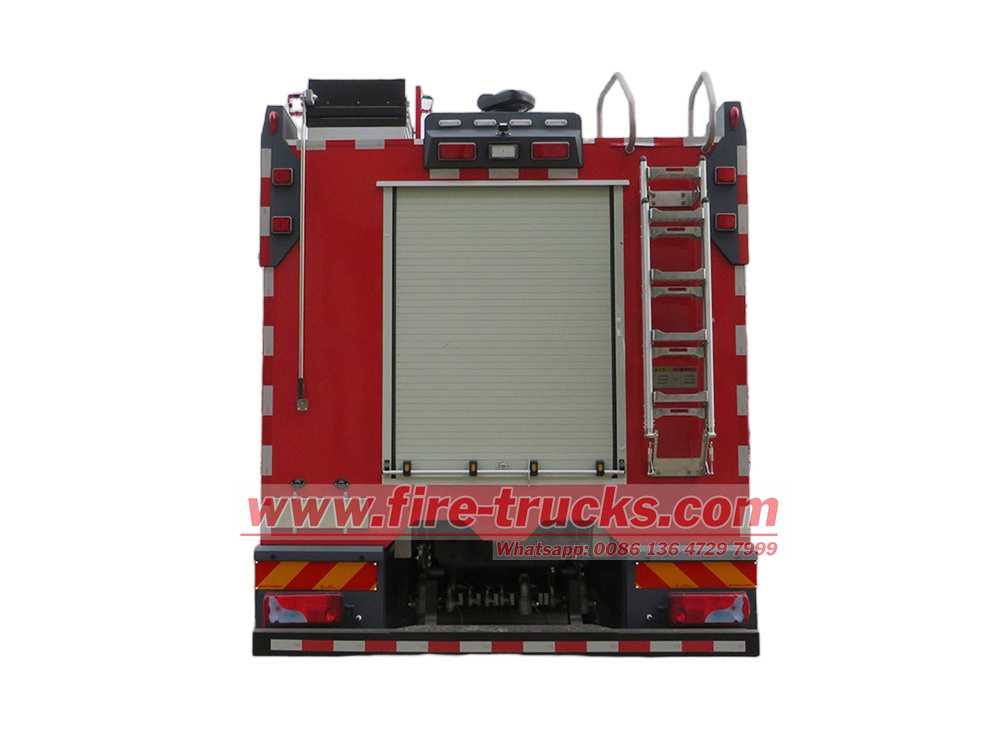

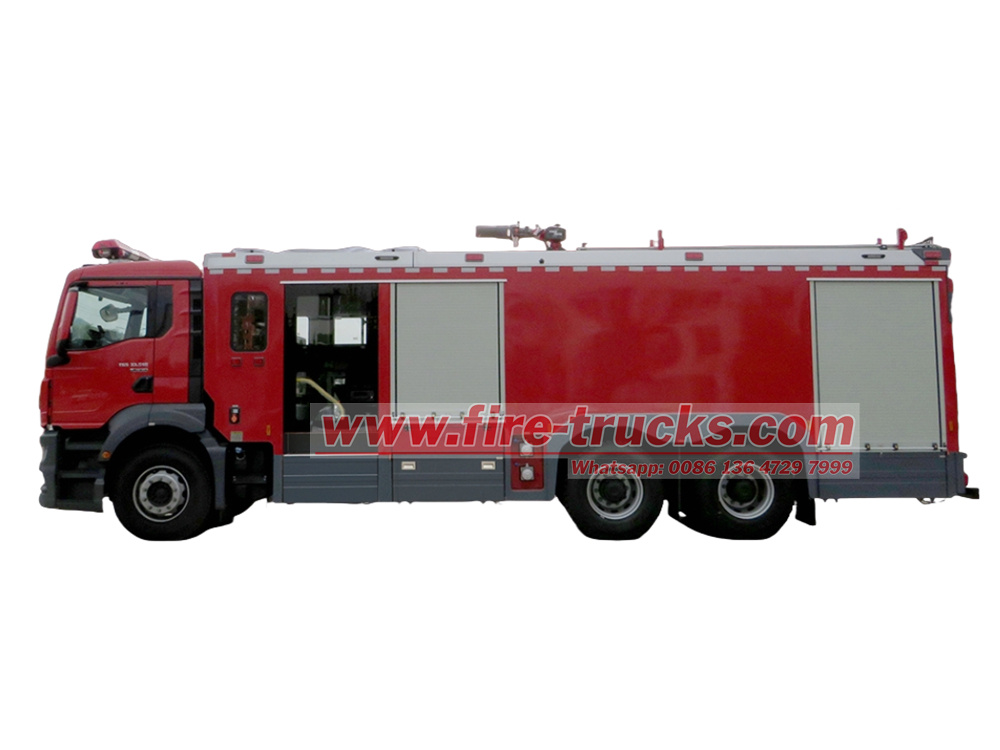

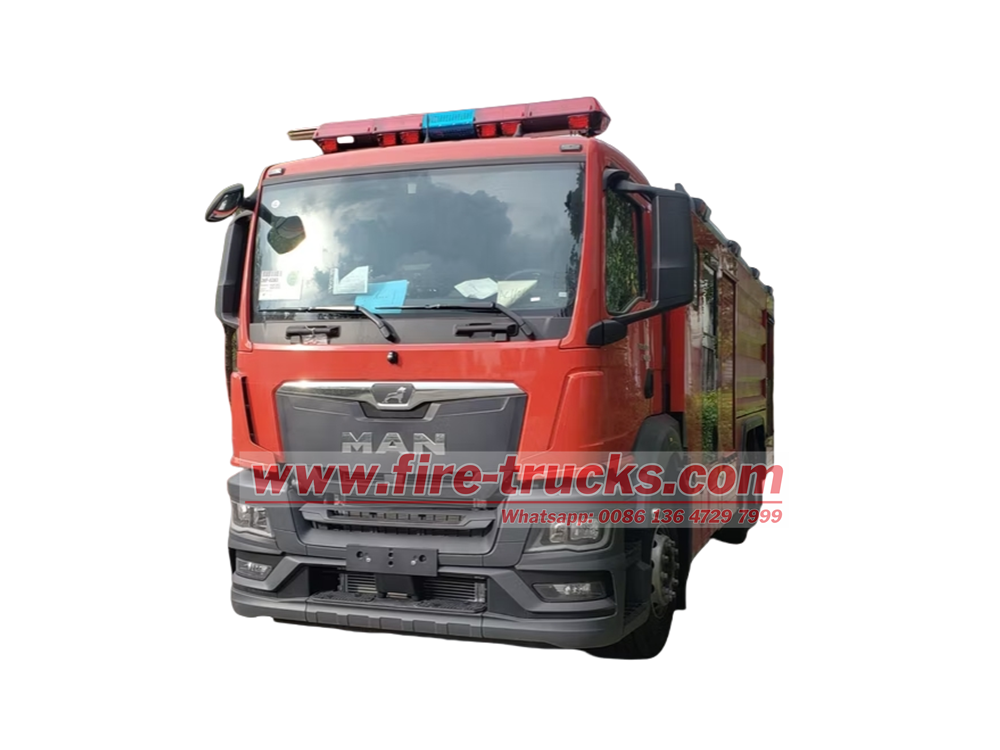

MAN 12 cbm CAFS fire rescue truck

MAN 12 cbm CAFS fire rescue truck

The MAN 6x4 12 CBM CAFS Fire Rescue Vehicle is modified based on the MAN TGS33.510 chassis, with a wheelbase of 4800+1400mm. It is equipped with a MAN 510 horsepower, 377Kw D2676LFAR diesel engine that meets Euro 6 emission standards, and a ZF 16-speed gearbox. The maximum speed of the vehicle is 100Km/h. The upper part comprises a 9-cubic-meter water tank, a 1-cubic-meter Class A foam tank, and a 2-cubic-meter Class B foam tank. The vehicle is fitted with a high-performance fire pump, fire monitor, and CAFS (Compressed Air Foam System), making it easy to operate and suitable for various firefighting situations.

  • Manufacturer Origin:

    FT530GXW
  • Work capacity :

    9000L water tank,1000L type A foam tank,2000L type B foam tank
  • Upper Body material:

    Water tank carbon steel,foam tank stainless steel
  • Wheelbase:

    4800+1400mm
  • Axle drive:

    6x4,LHD
  • Engine Power:

    510HP
  • Engine Model:

    MAN D2676LFAR
  • Fire Pump:

    CB10/120, 120L/s
  • Fire Monitor:

    PL10/100
  • Remark:

    Equipped with CAFS system
Facebook Linkedin Youtube Twitter Pinterest

The MAN 12 CBM CAFS Fire Rescue Truck is a professional fire-fighting vehicle that combines high-efficiency fire extinguishing capabilities with powerful carrying capacity. Based on the MAN TGS33.510 chassis, it is equipped with a MAN 510 horsepower D2676LFAR engine and a ZF 16-speed transmission, providing excellent power performance and handling stability. It is fitted with a 9000L water tank, a 1000L type A foam tank, and a 2000L type B foam tank, and is equipped with an advanced Compressed Air Foam System (CAFS) that can quickly generate fine and stable fire-extinguishing foam, significantly improving fire extinguishing efficiency. This vehicle is suitable for various fire scenarios, capable of responding rapidly and extinguishing fires efficiently. It is an important force for fire departments to cope with various fire challenges, safeguarding people's lives and property with its outstanding performance, comprehensive equipment, and wide range of application scenarios.

MAN 12 cbm CAFS fire rescue truck

● China best Isuzu foam water fire truck factory

● More than 30 years professional manufacturer experience.

● Be designed according to your requirements

● Build strict QC team to guarantee the quality

● Promptly delivery. any order is welcome.

● 24 months long guarantee time assurance





MAN 6x4 CAFS foam fire truck

Main specification

Truck brand

POWERSTAR

Overall dimension(L*W*H)

10210*2500*3660mm

Cabin

Man 6x4 cab, one and half row, with air conditioner, electronic windows, USB

GVW/Curb weight

30100/17500kg

Chassis

Chassis brand

MAN

Chassis type

TGS33.510

Drive model

6X4,left hand drive

Front/rear axle loading

7000/11500/11600kg

Wheel Base

4800+1400mm

Front / rear overhang

1475/2535mm

Front / rear wheel track

2048/1804mm

Tyre size & number

315/80R22.5,10+1wheel

Transmission

Manual, ZF 16-shift gearbox

Color

Red and white, standard.

Max speed

100km/h





Engine

Engine model

MAN D2676LFAR

Horse power

510HP/ 377Kw

Displacement

12419ml

Max torque

2500N.m

Emission

EURO 6

WATER TANK AND FOAM TANK SPECIFICATION

Tank

Capacity

9000L water tank,1000L type A foam tank,2000L type B foam tank

Material

Water tank carbon steel,foam tank stainless steel

Fire pump

Model

CB10/120

Pressure

1.0MPa

Flux

120L/s

Fire monitor

Range

85m

Flow

100L/s

CAFS System

Foam Type

Dry foam

Wet foam

Flux

2.3L/s

4.5L/s

Range

12m

20m

Standard  configuration

An alarm rotating light installed on the top of the cab, have ladder, have manhole



The MAN 12 CBM CAFS fire fighting truck is a professional fire-fighting vehicle that integrates advanced fire extinguishing technology with high-efficiency carrying capacity, specially designed to tackle various complex fire scenarios.



It adopts the high-performance MAN TGS33.510 chassis,equipped with an advanced Compressed Air Foam System (CAFS), and combines powerful water and foam tank capacities, making it suitable for rapid and effective rescue operations for type A (solid materials) and type B (liquid materials) fires.

 Man heavy duty 12cbm CAFS fire engine



Chassis and Powertrain

• Chassis Model: MAN TGS33.510,renowned for its excellent durability, stability, and off-road capabilities, suitable for rapid deployment in various complex terrains.



• Engine: MAN D2676LFAR 510HP, a high-performance inline six-cylinder diesel engine that provides up to 510 horsepower (377 kW) of power output, ensuring the vehicle can respond quickly in any emergency while maintaining efficient fuel economy.



• Transmission: ZF 16-speed automatic transmission, offering a smooth shifting experience and a wide range of gear ratios, allowing drivers to flexibly adjust vehicle speed and torque according to road conditions and rescue needs, optimizing driving performance and fuel efficiency.Man 6x4 12cbm CAFS fire truck

Fire-fighting Equipment

• Water Tank Capacity: 9000L, with a large-capacity design ensuring continuous water supply capability during prolonged or large-scale fire extinguishing operations.



• Class A Foam Tank: 1000L, specifically designed for extinguishing solid material fires (such as wood, paper, etc.), with foam effectively cutting off oxygen and accelerating fire control.



• Class B Foam Tank: 2000L, providing a specialized solution for liquid fires (such as gasoline, oil, etc.), with efficient foam coverage reducing liquid evaporation and quickly suppressing fire spread.



CAFS System

• Compressed Air Foam System (CAFS): This system generates lightweight, wide-coverage, and highly permeable foam by mixing high-pressure air with water and foam concentrate, greatly improving fire extinguishing efficiency and water-saving performance. It is suitable for different types of fire scenes, particularly excelling in scenarios with limited water sources or where rapid cooling and fire source isolation are required.

Man 6x4 CAFS fire fighting truck

Introduction to Compressed Air Foam Fire Extinguishing Technology

Compressed Air Foam Fire Extinguishing Technology (CAFS) refers to a technique in which compressed air and foam solution are premixed in specific proportions within pipelines or hoses, then discharged through a spraying device to generate compressed air foam for fire suppression. Compared to water-based fire extinguishing technologies, CAFS transforms a single drop of water into multiple bubbles, with each bubble’s fire-suppression efficacy equivalent to that of a single drop of water. The water film on the foam increases the surface area of the liquid water, enabling more complete vaporization, greater heat absorption capacity, and significant reduction of combustion temperatures in the fire zone. Additionally, compressed air foam markedly reduces surface tension between water molecules, granting it strong permeability to penetrate into the interior of burning materials, thereby drastically shortening fire extinguishing time.



Compared to conventional foam fire extinguishing technologies, the foam expansion ratio of CAFS is approximately 10 times that of ordinary foam. During firefighting, foam with an expansion ratio below 4 struggles to remain on fuel surfaces for extended periods, while foam with a ratio above 10 struggles to penetrate flames and reach fuel surfaces. CAFS allows precise adjustment of the flow rates of compressed air and foam solution to control the foam expansion ratio between 4 and 10, thereby enhancing the foam’s fire-suppression capability.MAN compressed air foam system fire truck

MAN compressed air foam system fire truck
