airport 4x4 ARFF fire truck

airport 4x4 ARFF fire truck

The ARFF fire truck, built on the Titan T26 chassis, has a total weight of 26 tons. It is equipped with a Scania 16-liter V8 engine, model DC16 386, delivering a maximum power output of 770 horsepower. In the field of emergency rescue, this fire truck is undoubtedly a crucial piece of equipment for firefighting and rescue teams. Its outstanding performance and powerful capabilities will play a significant role in safeguarding people's lives and property.

  • Truck Model:

    PT5260GXFKD
  • Tanker Structure:

    PP water tank and foam tank
  • Work capacity :

    6000L water +800L foam
  • Wheelbase:

    4750 mm
  • Axle drive:

    4×4
  • Engine Power:

    770 HP
  • Engine Model:

    Scania DC 16
  • Fire Pump:

    Centrifugal fire pump with large flow
  • Fire Monitor:

    Electric remote control fire monitor
  • Remark:

    Equipped with rapid fire extinguishing system
Facebook Linkedin Youtube Twitter Pinterest

The PT5260GXFKD airport fire truck is a rapid intervention firefighting vehicle (Aircraft Rescue and Firefighting Vehicle, or ARFF) specifically designed for airports, primarily used to respond to fire incidents that may occur during aircraft takeoff and landing. As a vital component of airport firefighting systems, ARFF vehicles must reach the scene within the critical time frame of an aircraft accident to perform firefighting and rescue operations. Compared to ordinary fire trucks, ARFF vehicles possess higher mobility, stronger firefighting capabilities, and more complex operating systems, enabling them to handle fuel fires, electrical fires, and ordinary fires simultaneously. With its exceptional performance and advanced design, the PT5260GXFKD arff trucks has become an indispensable asset in airport firefighting operations.





This 4×4 ARFF vehicle features a liquid tank capacity of 6,000 liters of water and 800 liters of foam, made from PP composite material, offering excellent corrosion resistance and impact resistance. The tank is designed with two manholes, two overflow devices/pressure relief devices, two liquid level indicators, one foam tank drain outlet with a valve, and one water tank drain outlet with a valve, ensuring safe and reliable operation under various conditions. Additionally, the airport fire engine vehicle is equipped with a dry powder fire extinguishing system, with a capacity of 250 kg, suitable for extinguishing electrical and oil fires, further enhancing its firefighting capabilities.



● 30 years experience in firefighting truck designing
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● Build strict QC team to guarantee the quality
● Professional sales team helps you to choose suitable truck.





Product Specifications



Vehicle basic parameters

Model

PT5260GXFKD

Overall Dimension

10200×3000×3700mm

Full Load Weight

26000 kg

Axle Load

13000 kg

Number of the Crew

5 (include driver)

Max. Speed

115 km/h

Drive Type

4×4

Wheelbase

4750 mm

Engine

Scania DC 16

Rated Power

566 kW770HP

Superstructure parameters

Standardized Sub-frame

Material

High-strength rectangular tube made of special steel

Performance

The liquid tank and the sub-frame are connected by elastic connecting seats

Compartment

Material

High-strength aluminum alloy profiles

Structure

Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear

Roller Shutter Door

Material

Aluminum alloy profiles with anodized surface

Structure

With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.

Lighting System

Warning Light and Siren

Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.

Strobe Light

Mounted on the both sides of the compartment

External Lighting

LED lights are mounted on the both sides of the compartment

Roof Lighting

LED lights are mounted on the inside of the roof

Side Indicator Light

Inline yellow warning light is mounted on the side of the compartment and pedals

Fire Extinguishing System

Fire Pump

Flow Rate

100L/s @ 10bar

Priming Method

Automatic

Suction Height

7 m

Priming time

≤80s

Location

mid-mounted

Fire Monitor

Flow Rate

80L/s @ 10bar

Range

Water ≥ 80 m; Foam ≥ 75m

Location

top of boom

Control Method

Electric remote control

Horizontal Rotation Angle

0°~330°

Pitch Rotation Angle

-15°~60°

Liquid Tank

Capacity

6000L water, 800L foam

Material

PP composite material

Structure

Two Tank Manhole; Two Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves.

Dry powder system

Dry powder volume

250 kg





Product Features



★ Powerful Engine: The ARFF vehicle is powered by a Scania DC16 engine with a rated power of 566 kW (770 horsepower), providing robust power support. This enables the fire truck to accelerate quickly and reach the fire scene in a short time.

★ Efficient Transmission System: Paired with an advanced transmission system, the vehicle maintains excellent acceleration performance even when fully loaded. It can accelerate from 0 to 80 km/h in less than 25 seconds, with a top speed of 115 km/h, ensuring rapid response in emergencies.

★ High-Flow Fire Pump: The fire pump delivers a flow rate of 100 liters per second (at 10 bar pressure), capable of rapidly discharging large amounts of fire extinguishing agent to effectively control fires.

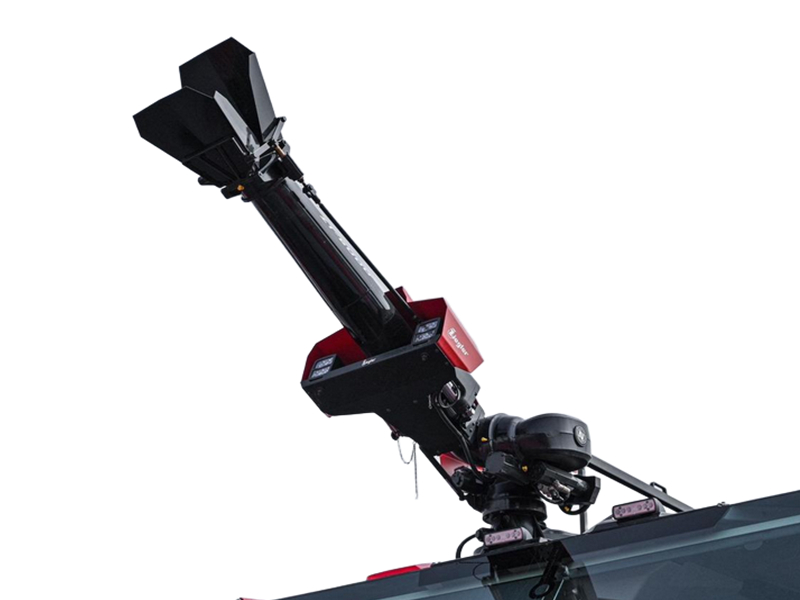

★ Electric Remote-Controlled Fire Monitor: The fire monitor, located at the top of the boom, has a flow rate of 80 liters per second (at 10 bar pressure), with a water range of no less than 80 meters and a foam range of no less than 75 meters. The fire monitor can be operated via electric remote control, with a horizontal rotation angle of 0°~330° and a vertical rotation angle of -15°~60°, allowing flexible coverage of a wide area and precise targeting of fire sources.

★ Durable Body Structure: The body is constructed from high-strength rectangular steel tubes and aluminum alloy profiles, reducing the vehicle's weight while enhancing corrosion resistance and structural strength.

★ Adaptability to Complex Environments: The ARFF truck adopts a 4×4 drive configuration, offering excellent off-road performance and enabling it to easily navigate complex terrains on airport runways and aprons.



  • #
  • #
  • #
