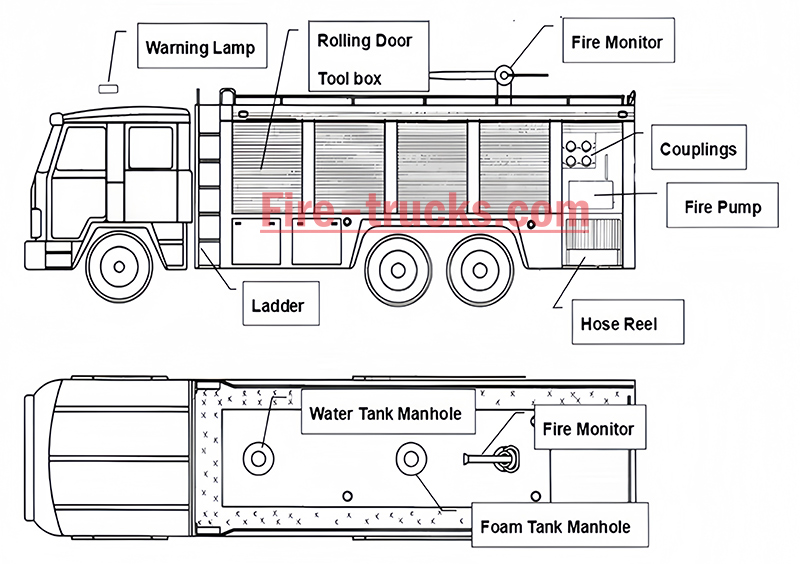

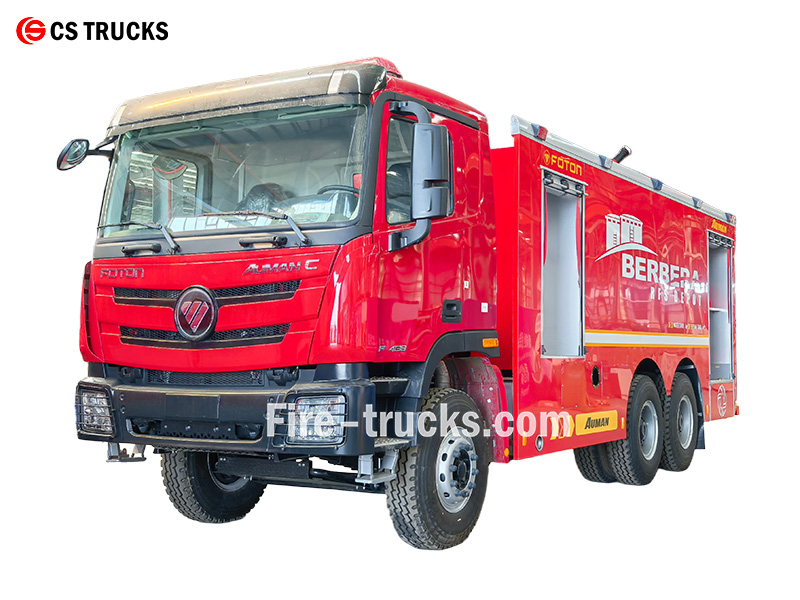

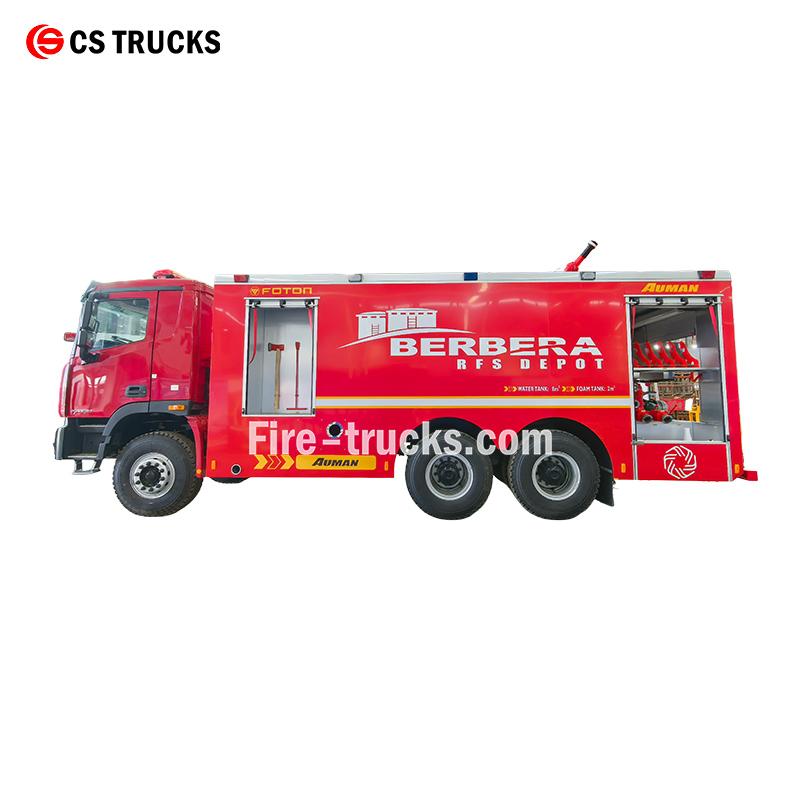

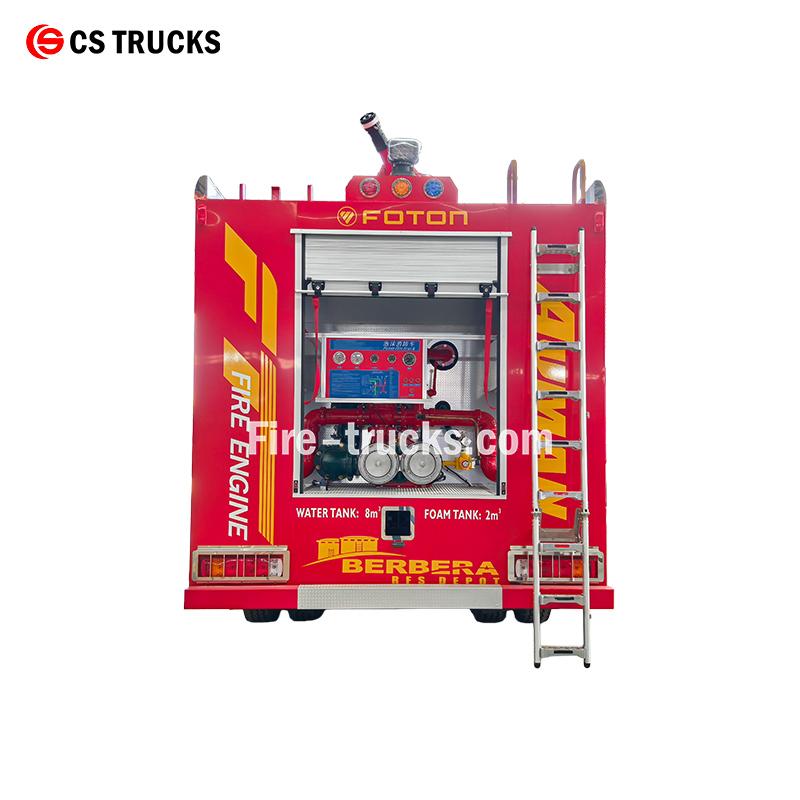

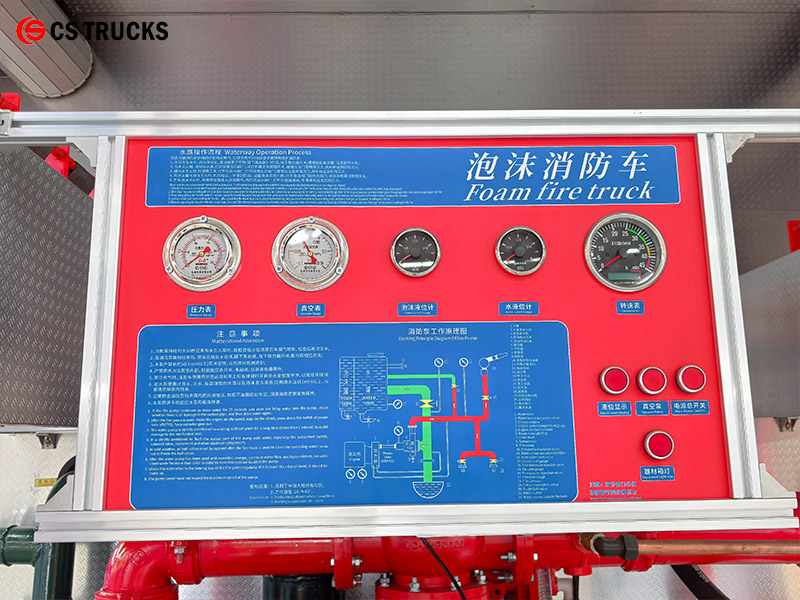

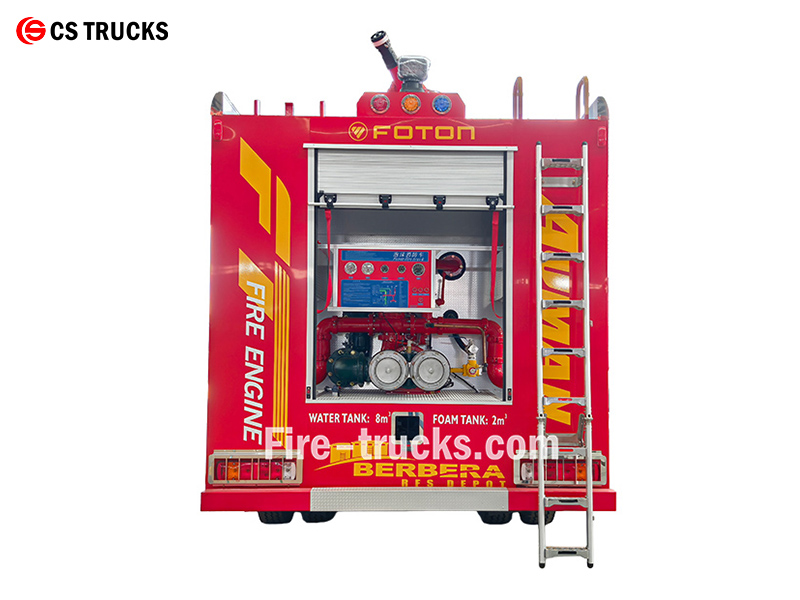

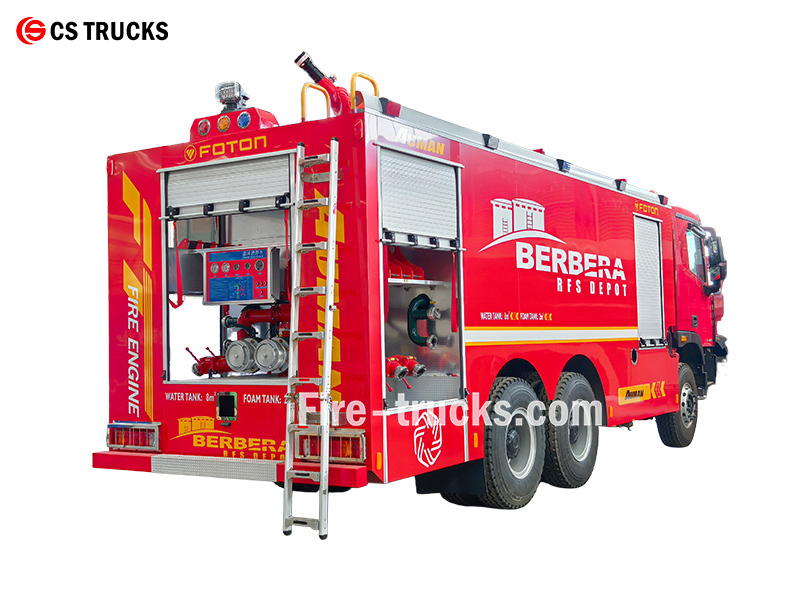

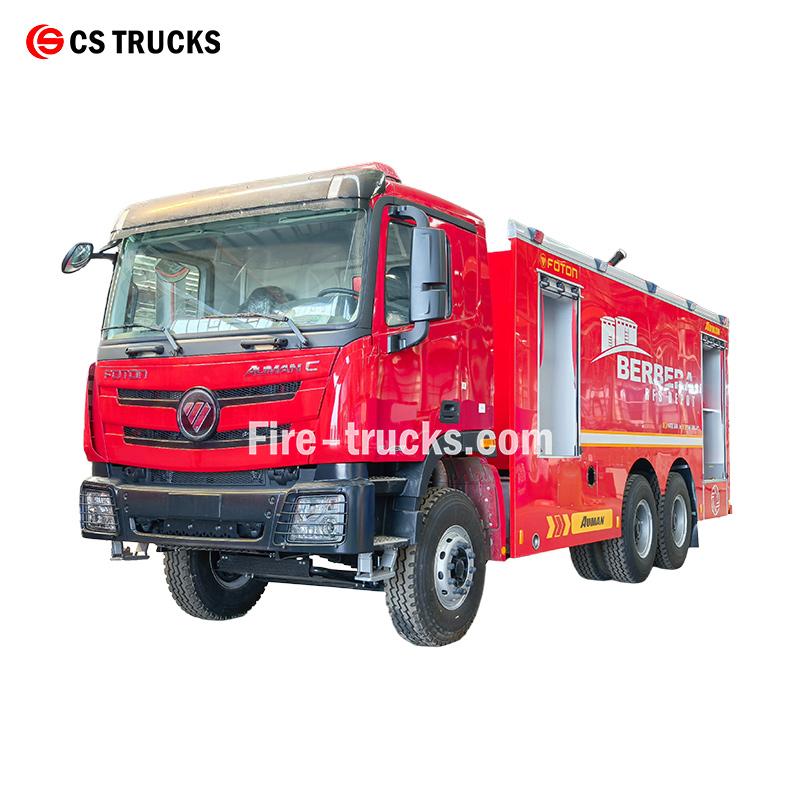

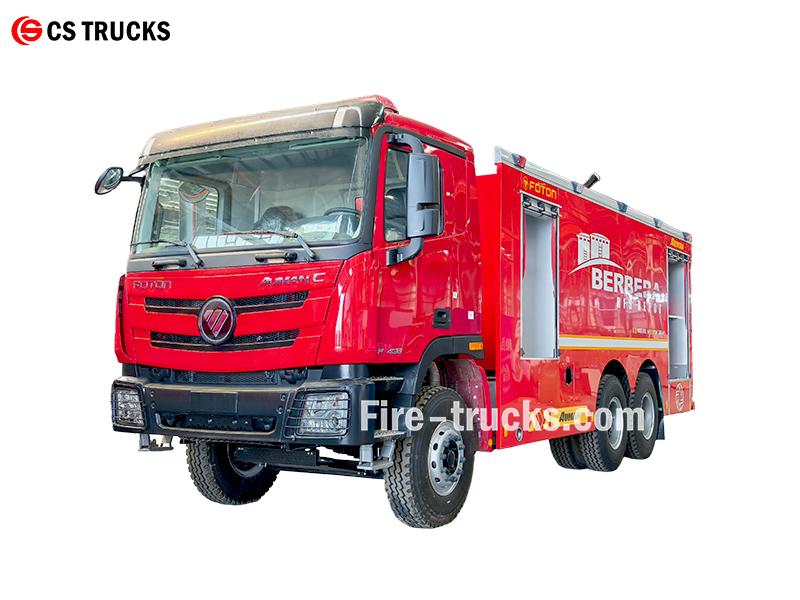

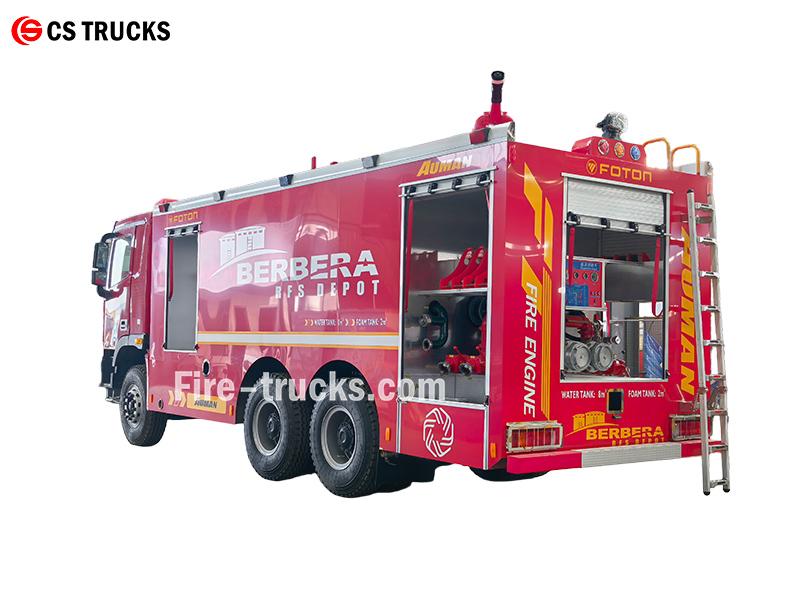

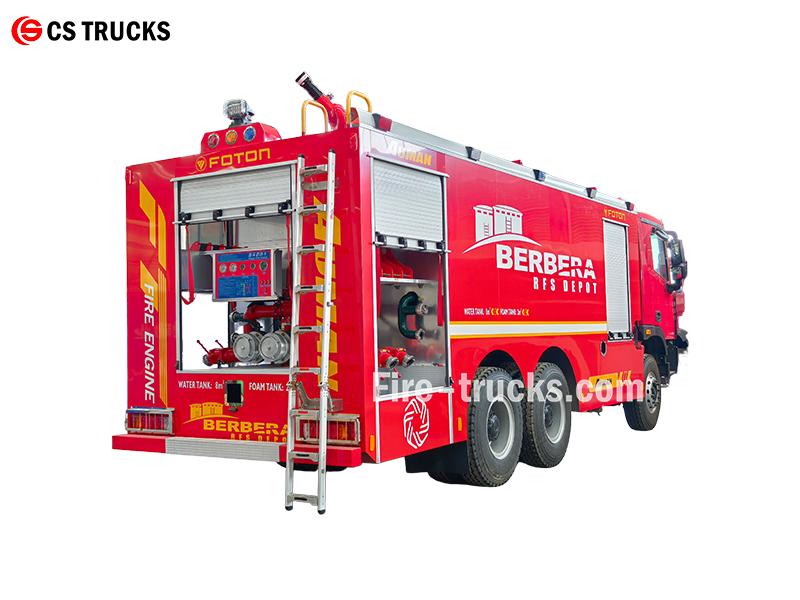

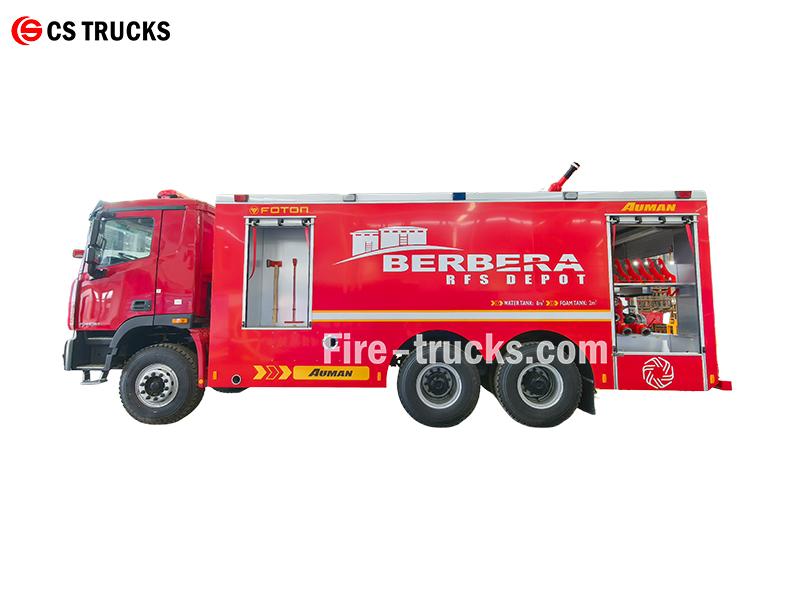

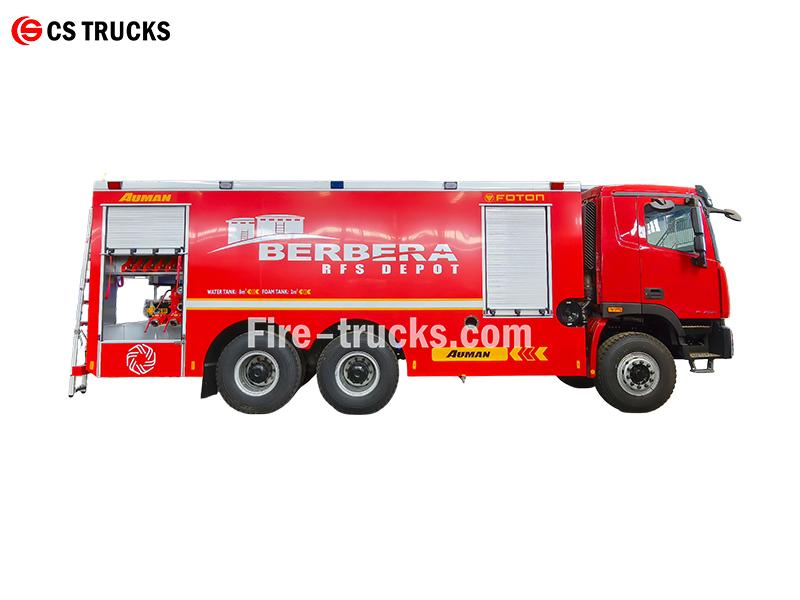

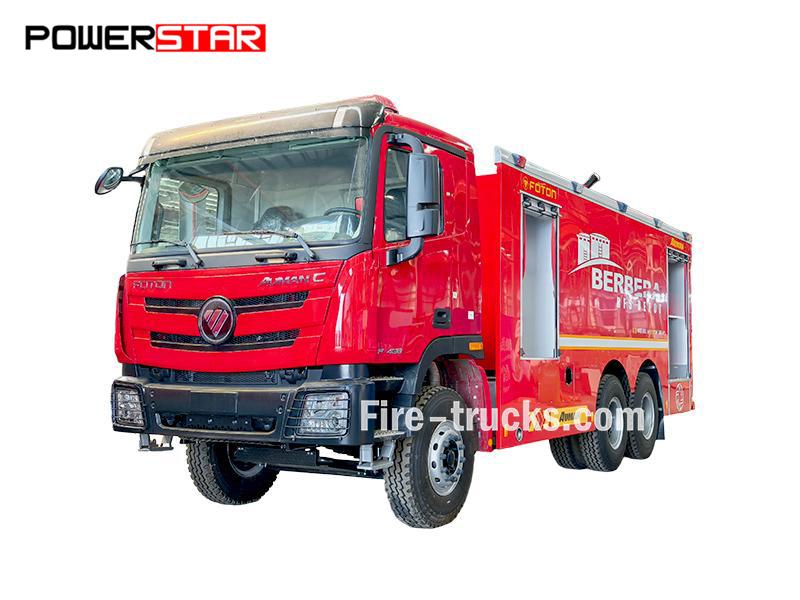

The Foton Auman 12000L fire truck is powered by a Foton ISGE3-380 engine and built on a 6×4 chassis. The front compartment features aluminum alloy anti-slip treadplate walls for storing fire hoses, suction tubes, and basic tools. The middle section carries a 10,000L carbon steel water tank and a 2,000L foam tank. The rear pump room houses the CB10/80-LC fire pump (140L/s flow, 1MPa pressure), control panel, and accessories including filters, couplings, and foam guns. A PL8/64 fire monitor is mounted on the cab roof, offering 360° rotation and water/foam range up to 75m and 70m respectively.
Truck Chassis:
Foton Auman , 6X4Tanker Capacity:
10000L water +2000L foamEngine Power:
380 HP/ Foton ISGE3-380Fire Pump:
China CB10/80-LCPump Flow:
80L/sWork Pressure:
1.0 MpaFire Monitor:
China PL8/64Monitor Flow:
64 L/sMonitor Range:

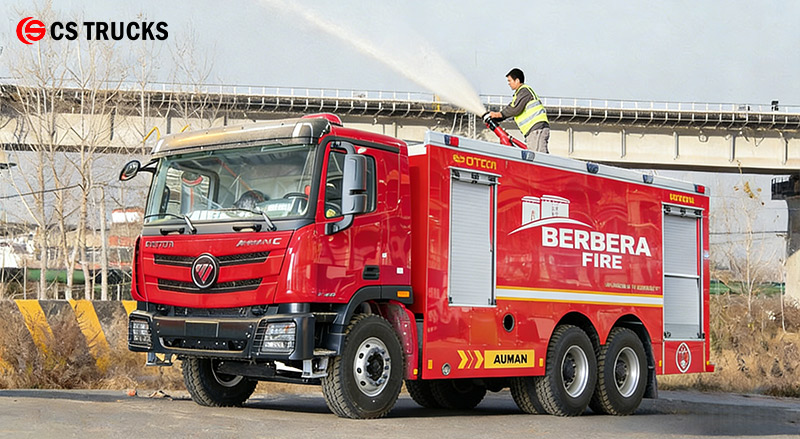

Water≥75 m,Foam≥70mThe Foton Auman 12000L fire truck (also known fire tender, fire rescue truck, or fire engine truck) is built on a 6×4 heavy-duty chassis with a 380HP ISGE3-380 engine. It integrates a 10,000L water tank, 2,000L foam tank, CB10/80-LC pump (140L/s), and PL8/64 monitor (75m water range, 70m foam range). Equipped with suction hoses, foam guns, and rescue tools, it delivers strong firefighting performance for large-scale petrochemical and industrial fires—making it a critical asset for emergency response forces.

|
Working Capacity |
Engine Model |
Wheelbase |
Superstructure |
|
10000L water+2000L foam |
380 HP/ Foton ISGE3-380 |
4800+1370mm |
★Water tank carbon steel ★Foam tank 304 stainless Steel, ★China famous CB10/80-LC fire pump ★ China famous PL8/64 Fire monitor ★ 2026 year brand new |
»Ⅰ. Main Features :
★ Foton ISGE3-380 engine, 380HP reliable power for oil field emergencies
★ Foton Auman 6×4 heavy-duty chassis, built for rugged industrial environments
★ China famous CB10/80-LC fire pump, 140L/s high flow for rapid fire suppression
| Foton Auman 12000L Fire Truck For Oil Field | |||
|
General |
Work capacity |
10000L water tank,2000L foam tank |
|
|
Truck chassis |
Foton Auman 6X4 | ||
|
Engine Power |
380 HP/ Foton ISGE3-380 |
||
|
Fire pump |
CB10/80-LC |
||
|
Chassis |
Drive Type |
6X4 |
|
|
Wheelbase |
4800+1370mm |
||
|
Tire |
385/65R22.5 / 315/80R22.5,10+1wheel |
||
|
Fire pump |
Model |
CB10/80-LC | |
|
Pressure |
1MPa |
||
|
Max working pressure |
1.480MPa |
||
|
Max allowable inlet pressure |
0.48MPa |
||
|
Flux |
140L/s |
||
|
Max suction height |
7m |
||
|
Rated speed |
2600±50r/min |
||
|
Speed ratio |
1:1.09 |
||
|
Water diversion time |
≤50s |
||
|
Foam Water Proportioning Mixer |
Model |
PH64-RS |
|
|
Mixing ratio |
6% |
||
|
Work pressure range |
0.6~1.4MPa |
||
|
Flow range |
16~64L/s |
||
|
Suitable foaming liquid categories |
Category B |
||
|
Fire monitor |
Model |
PL8/64 |
|
|
Flow |
64L/s |
||
|
Rated working pressure |
0.8MPa |
||
|
Max working pressure |
1.2MPa |
||
|
Range |
Water |
≥75m |
|
|
Foam |
≥70m |
||
|
Pitch rotation |
- 45~+70° |
||
|
Horizontal rotation |
0~360° |
||
|
Suction tube |
125*2m,4pic |
||
|
Standard configuration |

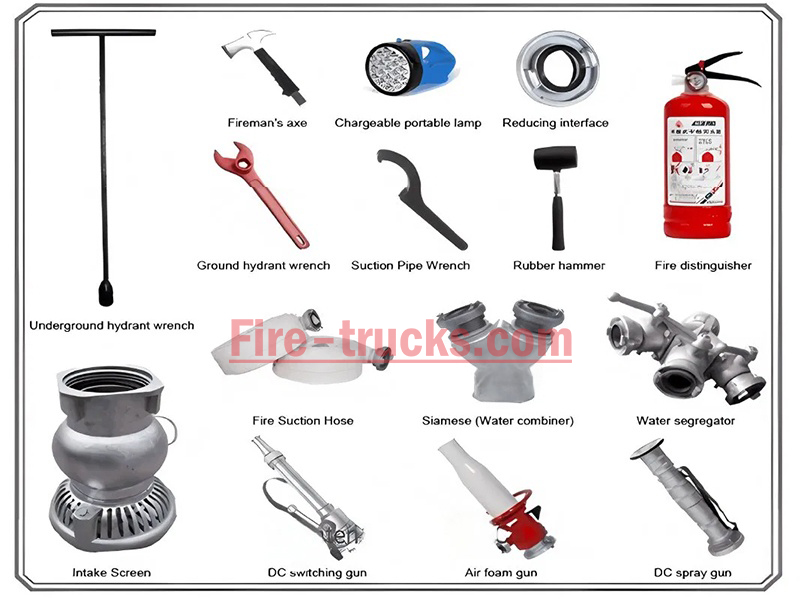

All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… |
||

» Ⅲ. Product Details :

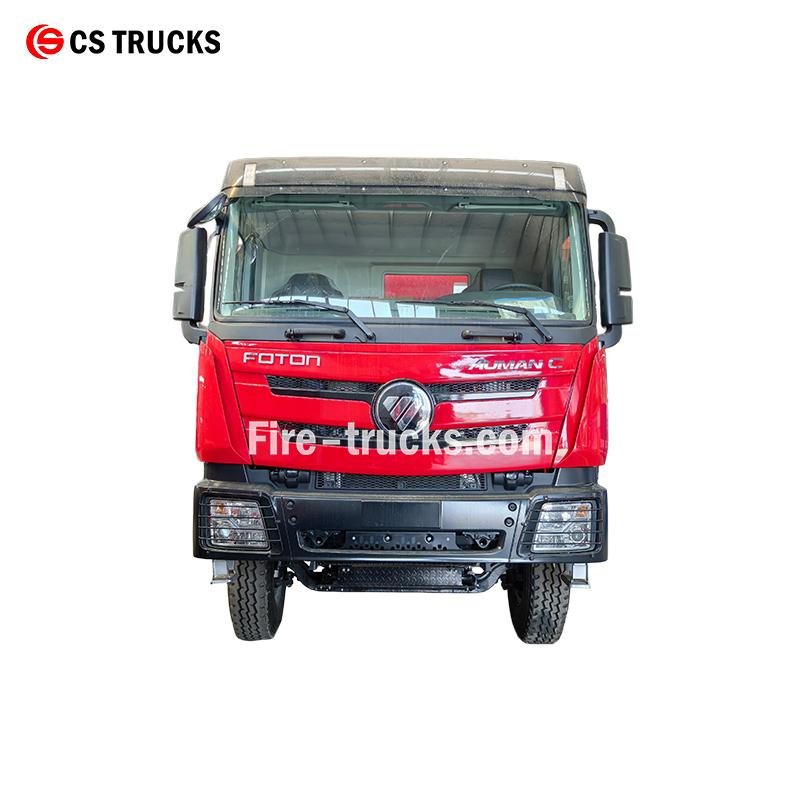

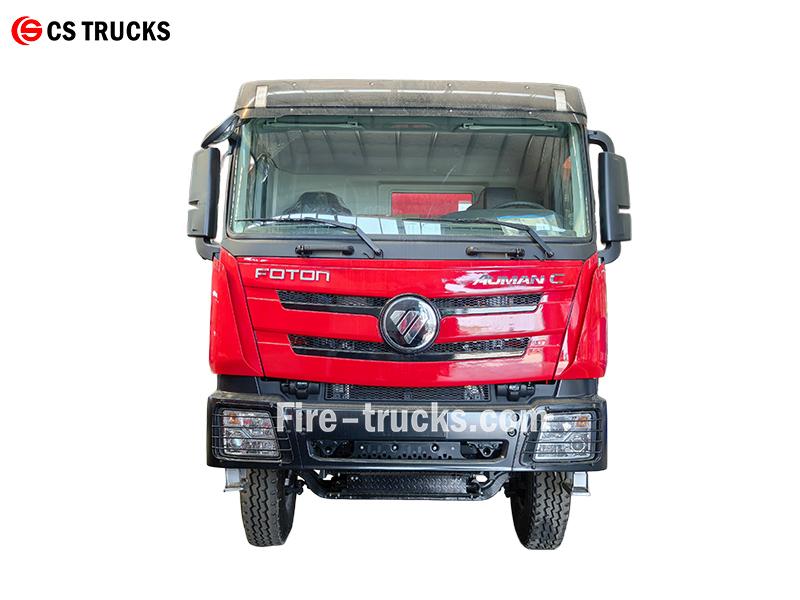

Chassis:
1. Brand and Model: Foton Auman 6×4 heavy-duty chassis, built for rugged oil field and industrial firefighting operations.
2. Gross Vehicle Weight: 25 tons, with 4800mm+1370mm wheelbase—delivers stable load capacity for 12,000L water/foam payload.
3. Engine: Equipped with Foton ISGE3-380 diesel engine, 380 hp, providing strong power for rapid response and high-pressure pumping.
4. Transmission: Fast 12-speed manual transmission offers smooth gear shifting and optimal power delivery across off-road and highway conditions.

» Ⅳ. Fire Pump system :

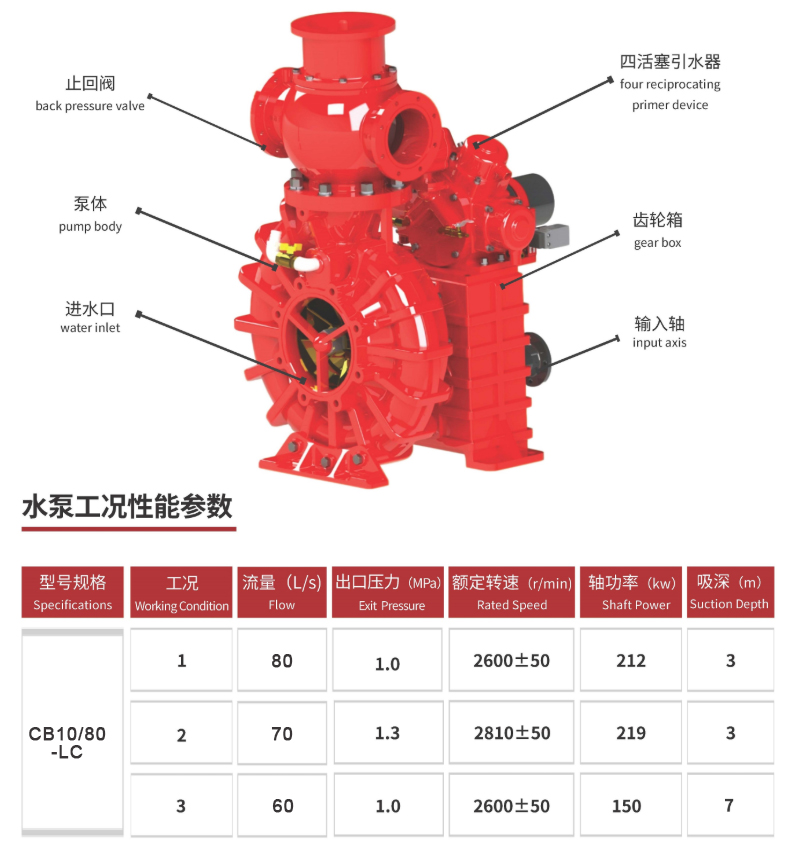

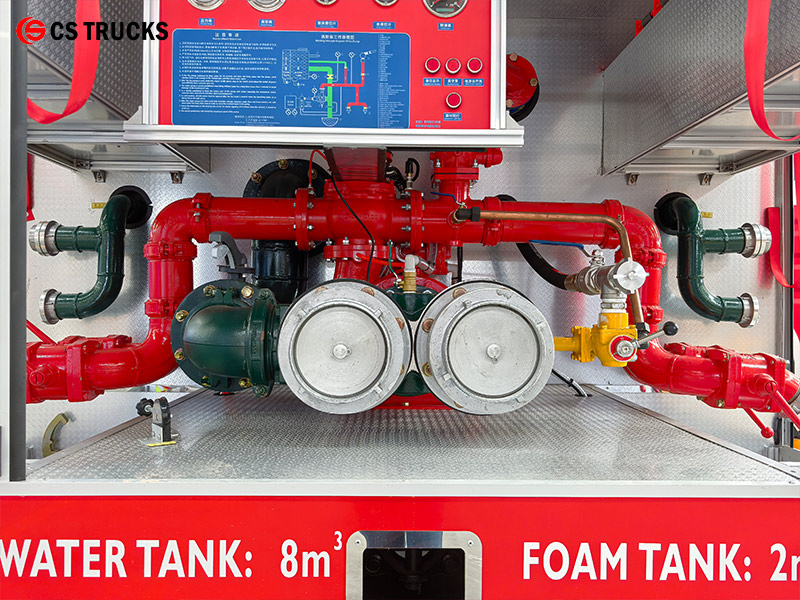

Fire Pump:
A CB10/80-LC fire pump with a rated flow of 140L/s@1MPa is installed in the rear pump room. This pump delivers strong water pressure and reliable performance, ensuring fire hoses can effectively spray water or foam at high pressure over long distances for oil field fire suppression.

|
Fire Pump Model |
Flow |
Pressure |
Max Working Pressure |
Max Allowable Inlet Pressure |
|
CB10/80-LC |
80L/s |
1.0MPa |
1.480MPa |
0.4MPa |
» Ⅴ. Fire Monitor system :

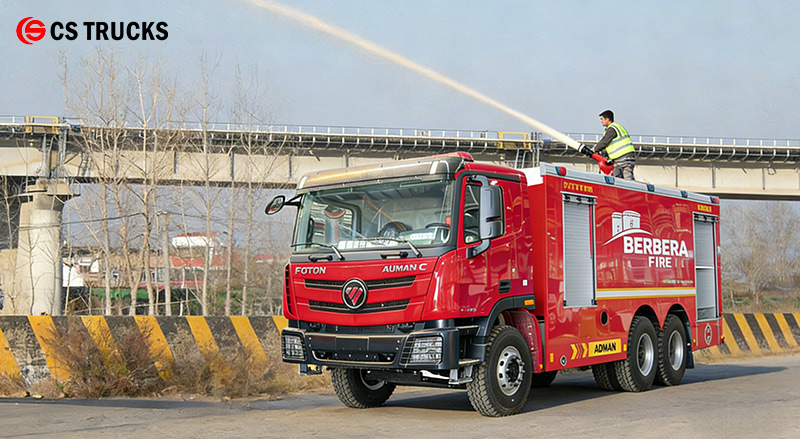

Fire Monitor:
The PL8/64 fire monitor is mounted on the cab roof. It delivers a flow rate of 64L/s with a water range of ≥75m and foam range of ≥70m. The monitor supports both direct current and spray patterns for flexible firefighting operations.

| Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation | Weight |
| PL8/64 | 64L/s |
Water ≥75m, foam ≥70m |
0.80MPa | -45°~+70° |
0~360° | 27kg |

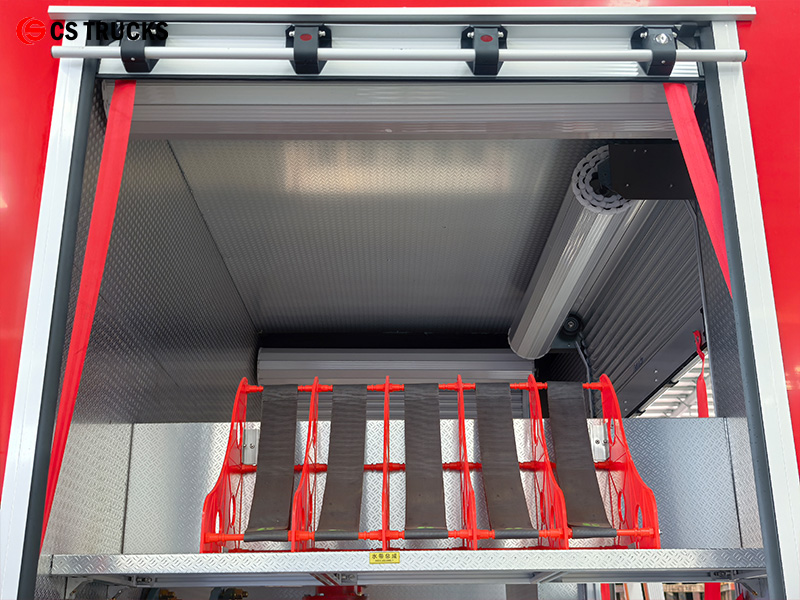

• Equipment Room: Mounted at the front of the truck, this storage compartment comes with well-organized shelving and sliding trays. The shelving keeps fire hoses, suction lines, foam nozzles, and rescue gear neatly arranged, while the sliding trays allow quick access to tools like wrenches, axes, and pry bars—cutting down response time during emergencies.

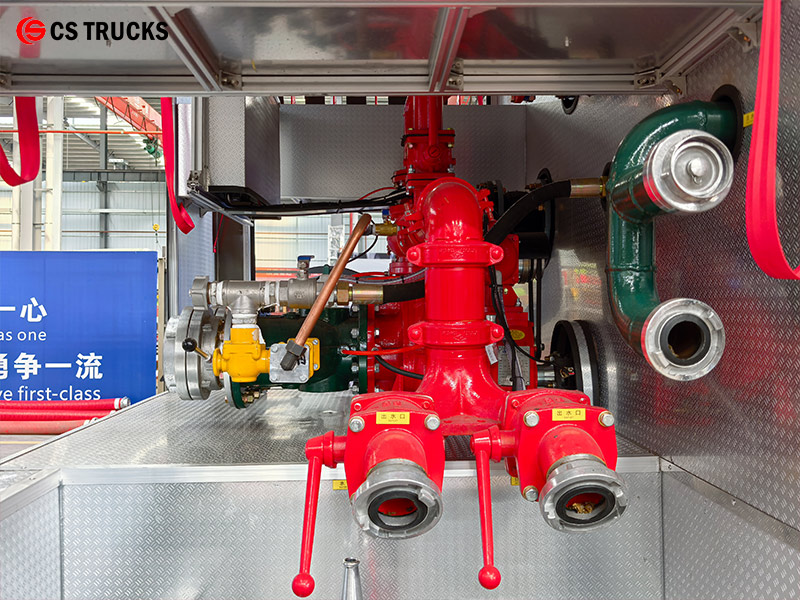

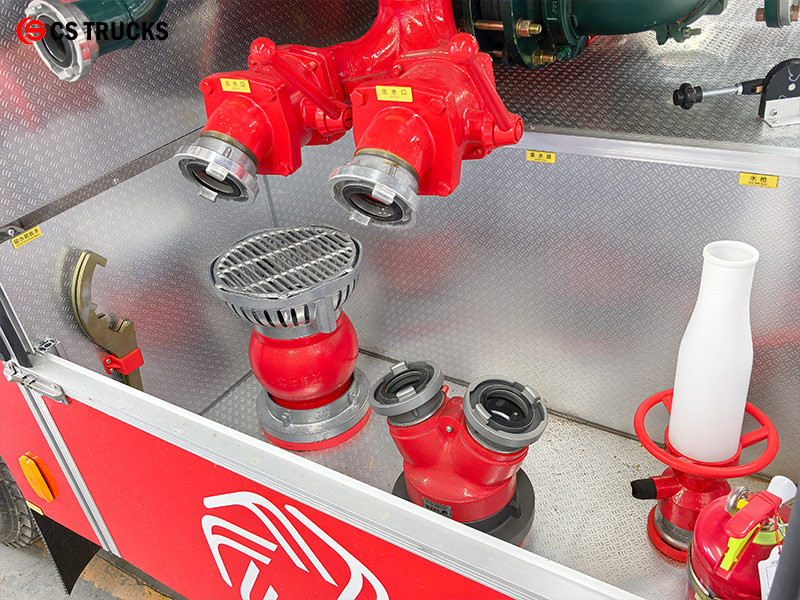

• Pump Room: Equipped with fire hoses, water collectors, filters, fire nozzles, foam guns, suction hose wrenches, reducers, etc.

» Ⅶ.Preshippment Test :

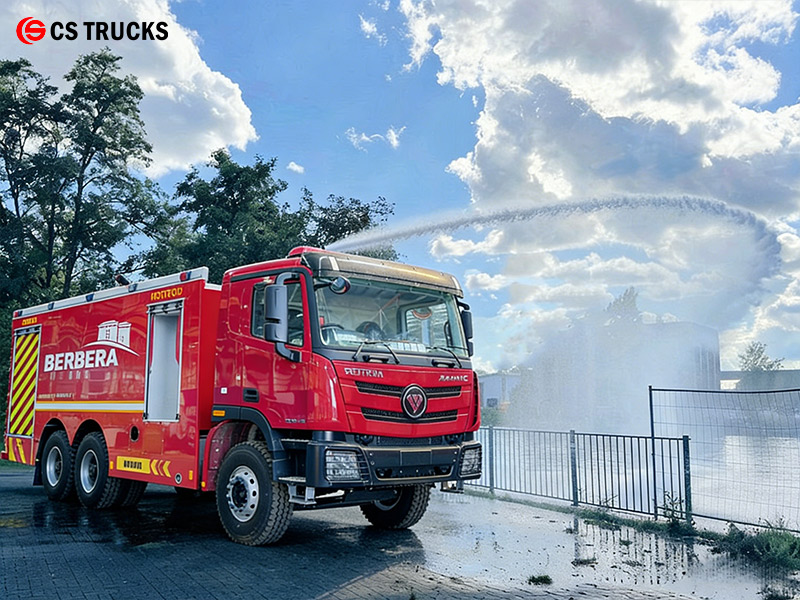

Before delivering the Foton Auman 12000L oil field fire truck from our factory, we performed a full inspection, including a water spray test for sealing, functional testing of the fire pump and monitor, and final checks on welding quality, paint finish, and all installed equipment.

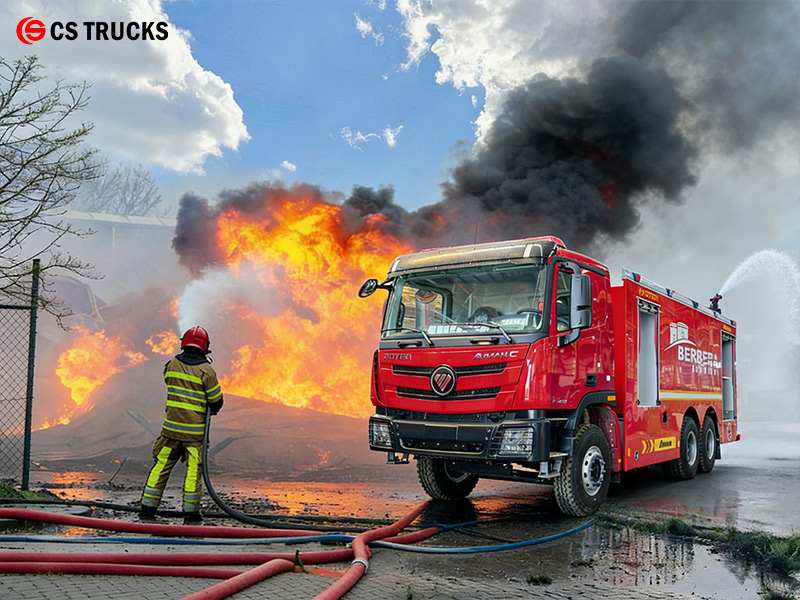

» Ⅷ. Application scenarios :
In oil field environments, the Foton Auman 12000L fire truck plays a critical role. Its 380-horsepower engine and rugged 6×4 chassis handle the extreme temperatures, rough terrain, and demanding conditions typical of oil field operations. The 12-ton water and foam capacity minimizes the need for frequent refills during extended firefighting missions. With the CB10/80-LC fire pump, PL8/64 monitor, and a complete set of firefighting equipment, it delivers powerful fire suppression for oil depots, drilling sites, and industrial facilities—providing reliable fire protection for the petroleum sector.
