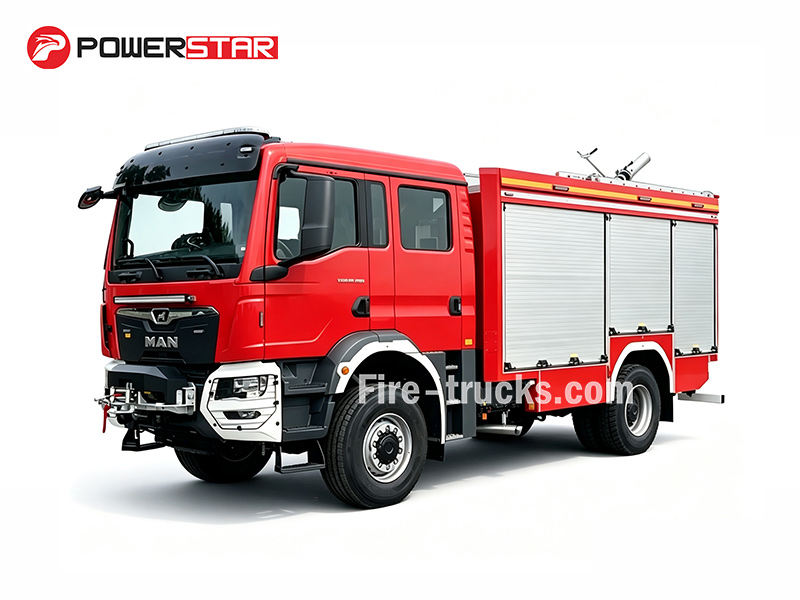

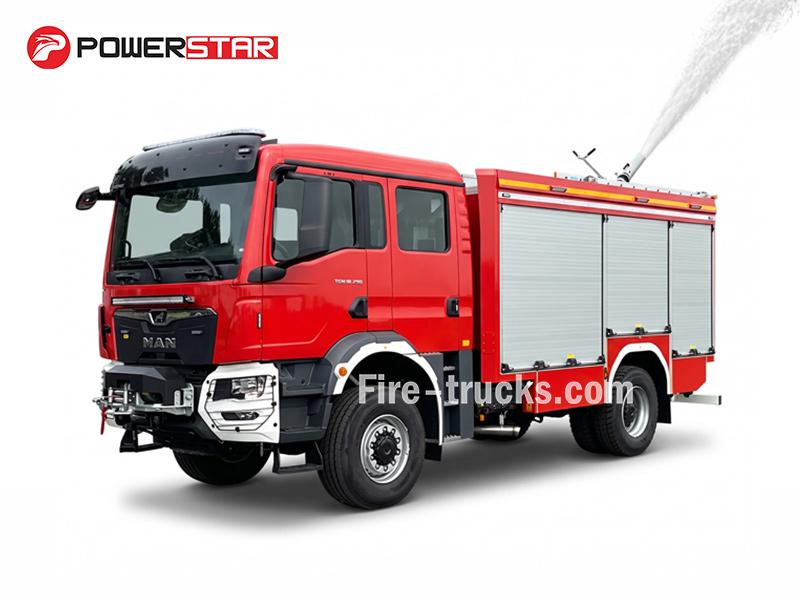

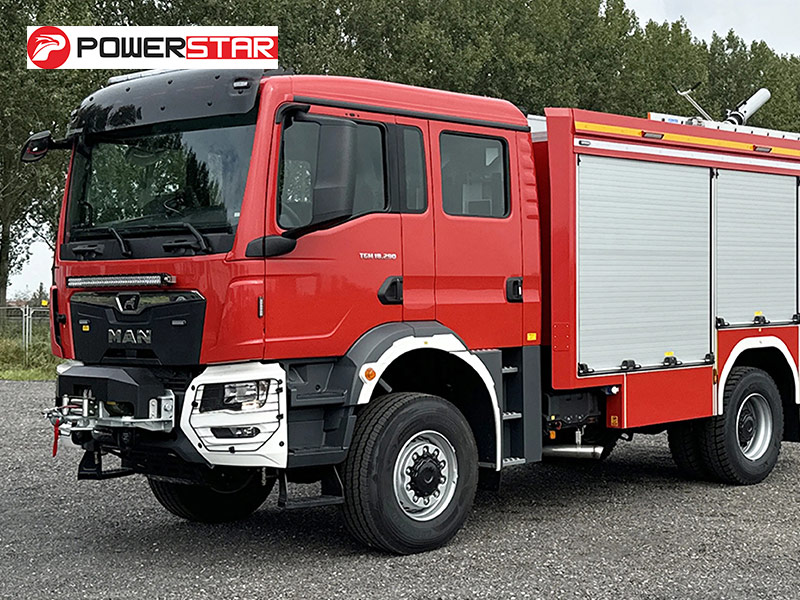

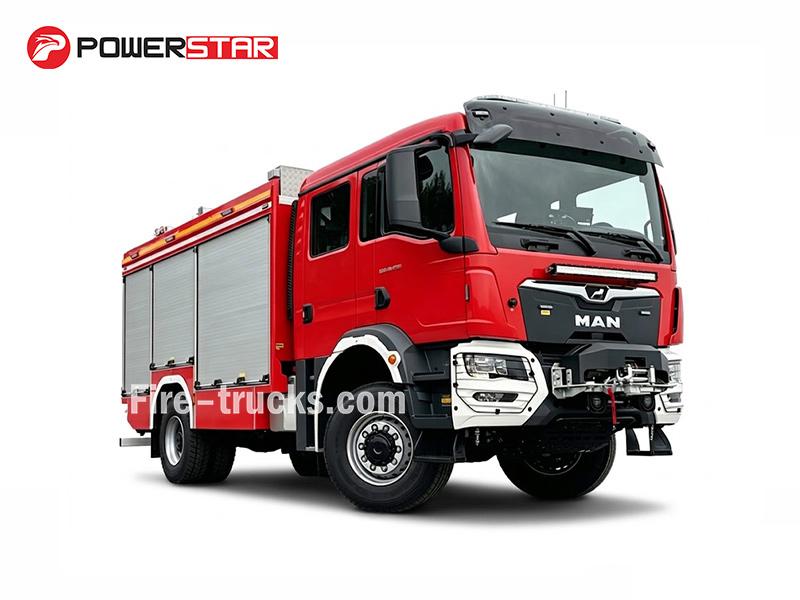

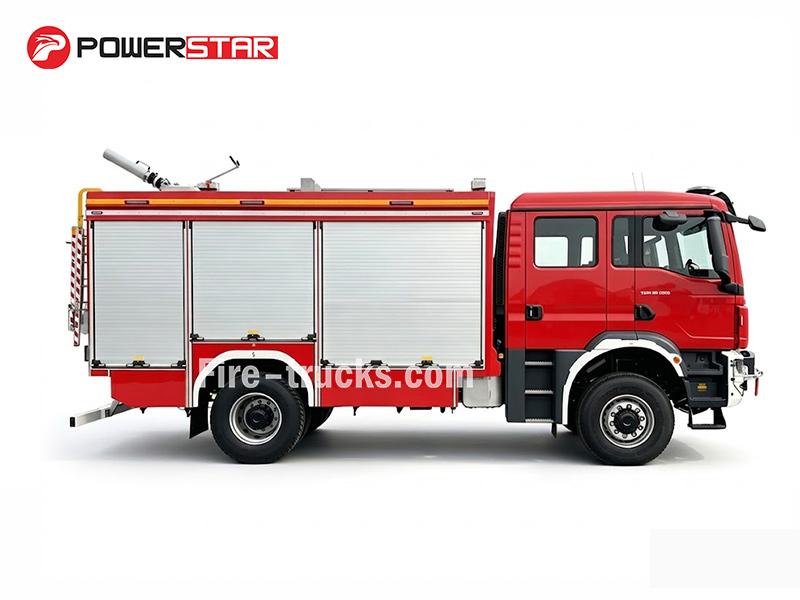

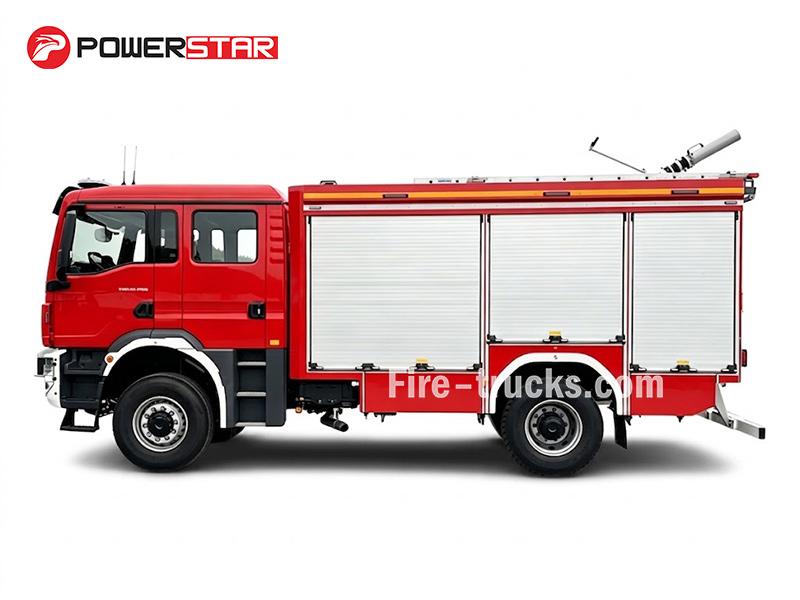

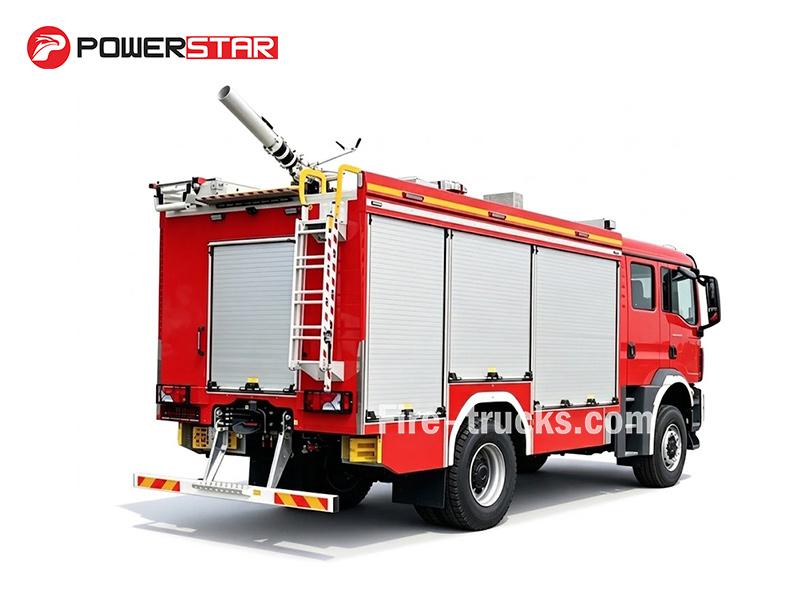

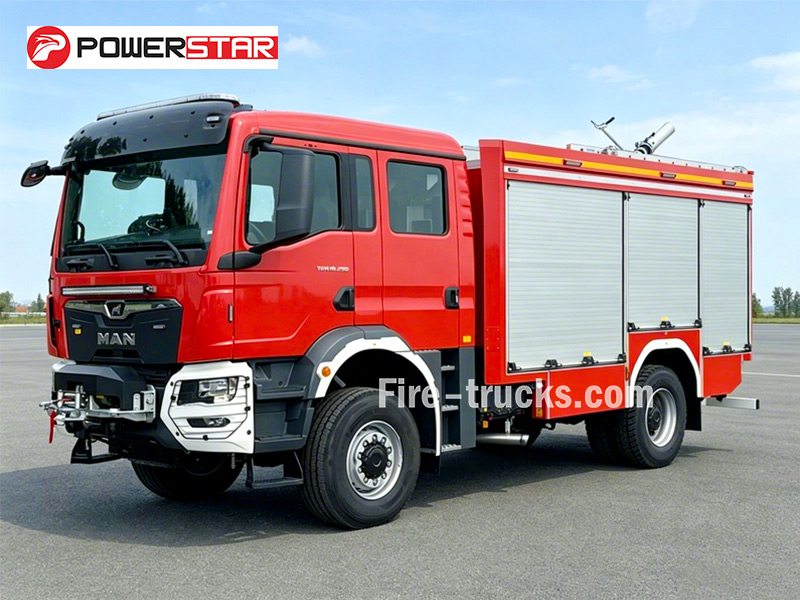

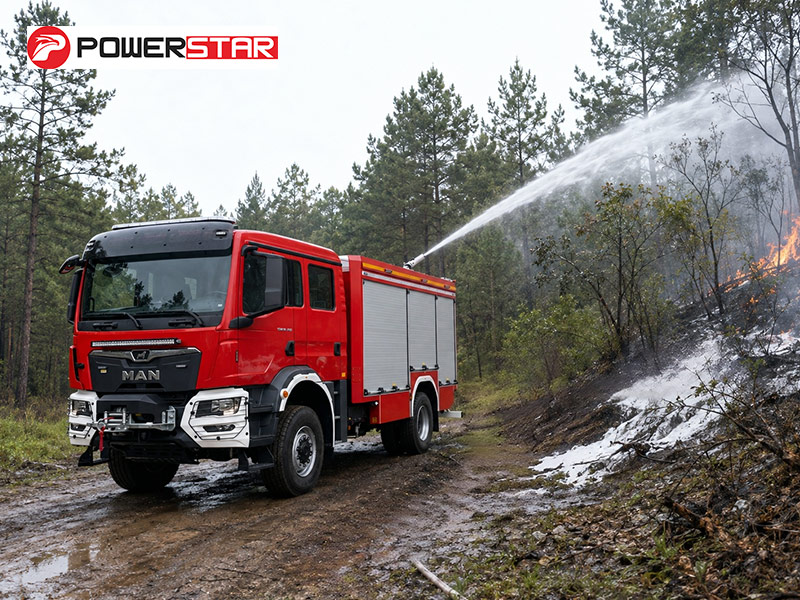

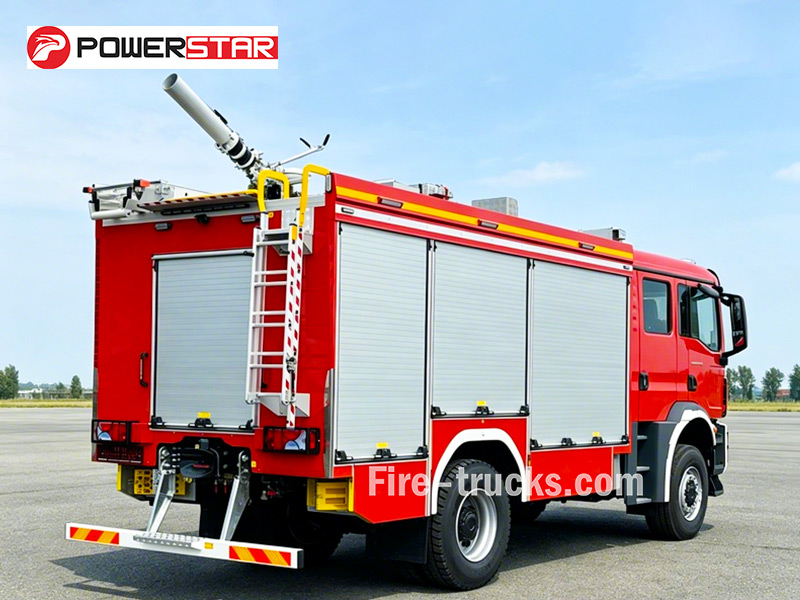

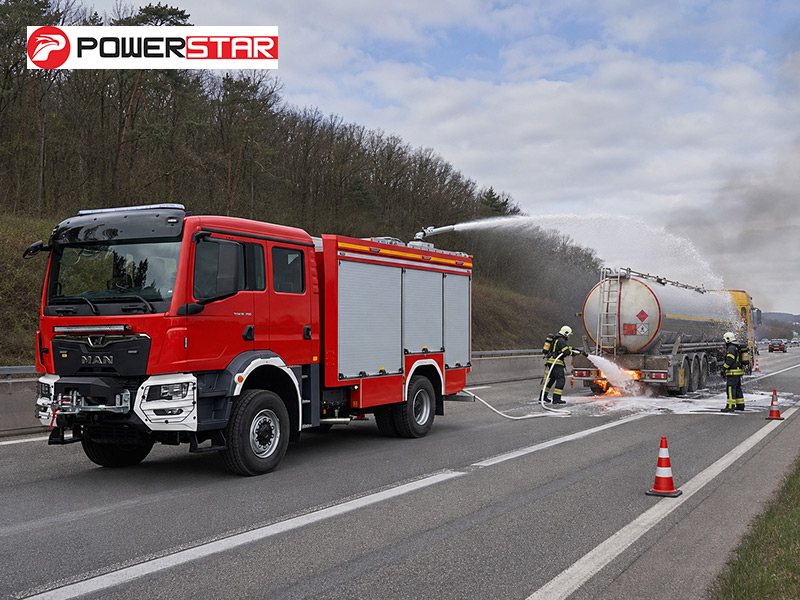

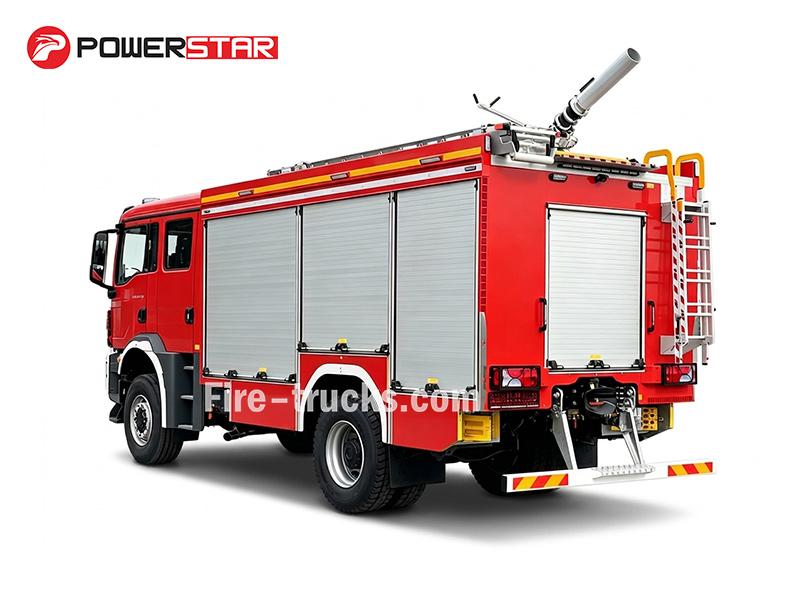

MAN 4400L 4×4 foam rescue truck is powered by a 290 HP D0836LFL90 engine and a factory-built 4×4 chassis that takes on rough terrain without hesitation. Total fluid capacity is 4,400L—4,000L water and 400L foam. The Godiva P2A 2010 pump puts out 2,400 L/min at 8 bar and 400 L/min at 40 bar, while the roof-mounted DWP16/24 monitor delivers 60m water reach and 55m foam reach. Standard delivery includes hoses, suction line, fittings, foam gun, and tool kit. A 9,979kg electric winch, 5.4m LED mast, and 6-person crew cab make it a complete package for industrial, rural, and off-road firefighting.
Truck Chassis:
IVECO ML 150E24WS 4×4Tanker Capacity:
3500L water + 350L foam (3850L total)Engine Power:
240 HP (177 kW) / IVECO TECTOR F4EE681BFire Pump:
Godiva P2 2010Pump Flow:
2000 L/minWork Pressure:
10 bar (low pressure) / 250 L/min @ 40 bar (high pressure)Fire Monitor:
Szczesniak roof monitorMonitor Flow:
1600–2400 L/minMonitor Range:
Water ≥60 m, Foam ≥55 mThis MAN 4×4 foam fire apparatus is built around a 290 HP D0836LFL90 power plant and a purpose-built 4×4 chassis that conquers industrial sites, remote job locations, and unpaved tracks without fuss. Total on-board extinguishing agent is 4,400L—4,000L of water paired with 400L of foam concentrate. The Godiva P2A 2010 pump moves 2,400 L/min at 8 bar in low-pressure mode and 400 L/min at 40 bar for high-pressure work, while the roof-mounted DWP16/24 monitor sends water 60m and foam 55m downrange. This MAN 4x4 heavy rescue pumper also includes a 9,979kg electric winch, a 5.4m LED lighting mast, and a 6-person crew cab as standard equipment. Backed by a 220L fuel tank, drum brakes with EBS/ABS, and an 8-speed automatic transmission, it's a dependable tool for industrial protection, rural firefighting, and rough-country operations where standard rigs simply can't follow.

|
Working Capacity |
Engine Model |
Wheelbase |
Superstructure |
|
3500L water + 350L foam |
240 HP / TECTOR F4EE681B |
4150 mm |
★ Tank carbon steel, 3850L capacity ★ Godiva P2 2010 fire pump, 2000 L/min flow @10 bar / 250 L/min @40 bar ★ Szczesniak roof monitor, water ≥60 m, foam ≥55 m ★ 2026 new model |
» Ⅰ.Main Features :
★ IVECO TECTOR F4EE681B engine rated at 240 HP for foam fire suppression and rough terrain response
★ IVECO ML 150E24WS 4×4 chassis with 3500L water tank and 350L foam tank for dual-agent suppression (3850L total)
★ Godiva P2 2010 fire pump (2000 L/min at 10 bar / 250 L/min at 40 bar) + Szczesniak roof monitor (water ≥60m, foam ≥55m) for fire suppression
★ Full firefighting equipment, including hoses, nozzles, foam gun, and basic tool kit for Class B fire fighting
» Ⅱ.Product Parameter :
| MAN Rescue Fire Pumper Truck 4x4 | |||
| General | Work capacity | 4000L water + 400L foam | |
| Truck chassis | MAN TGM 18.290 4×4 BB CH | ||
| Engine Power | 290 HP / MAN D0836LFL90 | ||
| Fire pump | Godiva P2A 2010 | ||
| Fire Monitor | Godiva DWP16/24 | ||
| Maximum Speed | 90 km/h | ||

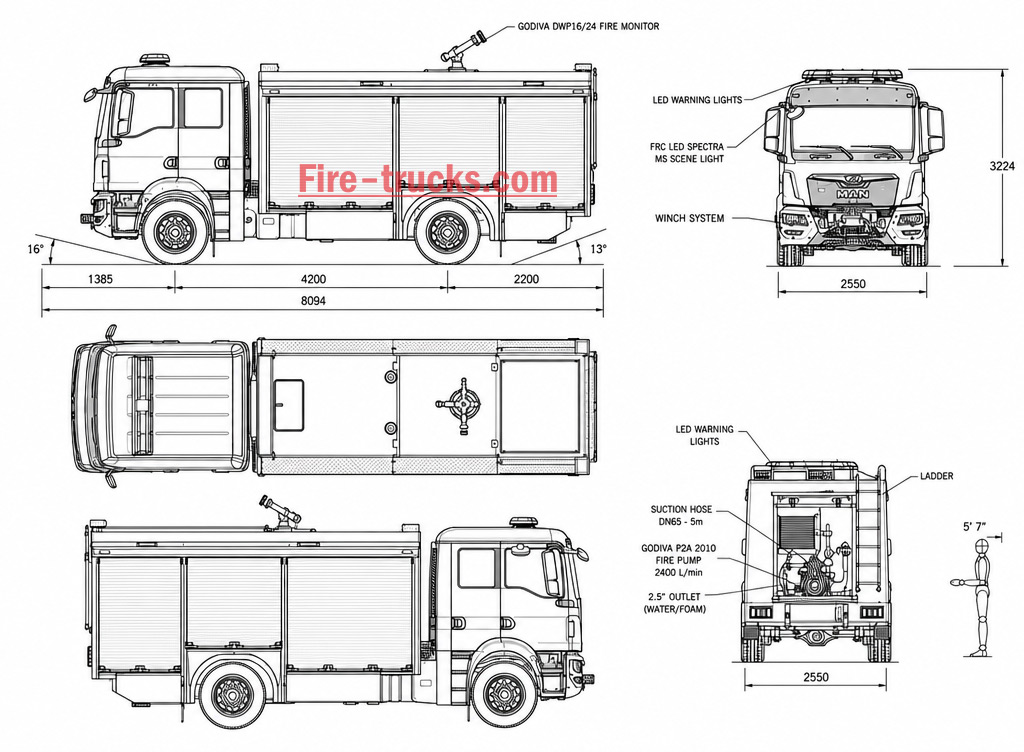

| Overall Dimensions L*W*H | 8094*2550*3224 mm | ||
| Gross Vehicle Weight | 18600 kg | ||
| Curb Weight | 6724 kg | ||
| Front Axle Weight Rating | 7500 kg | ||
| Rear Axle Weight Rating | 11500 kg | ||
| Engine | Engine Model | MAN D0836LFL90 | |
| Fuel Type | Diesel | ||
| Power | 290 HP(213KW) | ||
| Emission Standard | Euro 5 | ||
| Displacement | 6871 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Drive Type | 4x4 | |
| Wheelbase | 4200 mm | ||
| Tire | Front: 385/65R22.5, Rear: 295/80R22.5 | ||
| Tire No. | 6 tires and 1 spare tire | ||
| Fuel Tank Capacity | 220 L | ||
| Transmission | MAN PowerMatic 08.13 OD(8-speed automatic) | ||
| Transfer Box | AN G102(on-road / off-road ratio) | ||
| Brake Type | Drum brake with EBS + ABS | ||
| Suspension | Front: reinforced parabolic leaf springs / Rear: reinforced parabolic 4-leaf springs | ||

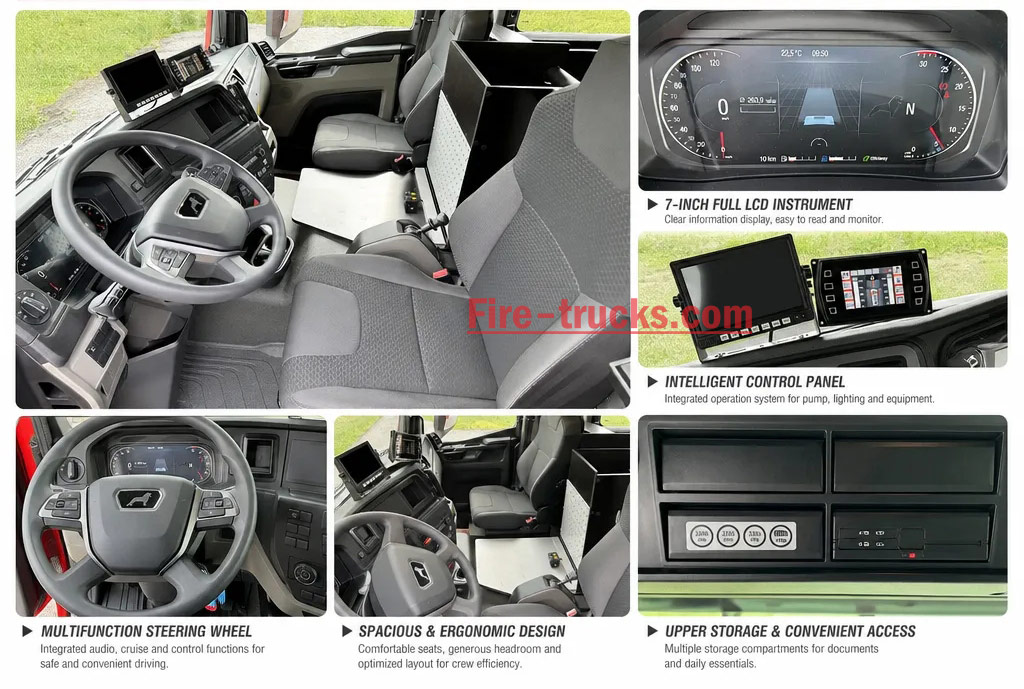

| Cab | Crew cab, 6 persons(1+1+4), LHD, A/C | ||
| Steering | Left hand drive | ||
| Fire Pump | Model | Godiva P2A 2010 | |
| Flux | 2400 L/min | ||
| High Pressure | 40 bar | ||
| Low Pressure | 8 bar | ||

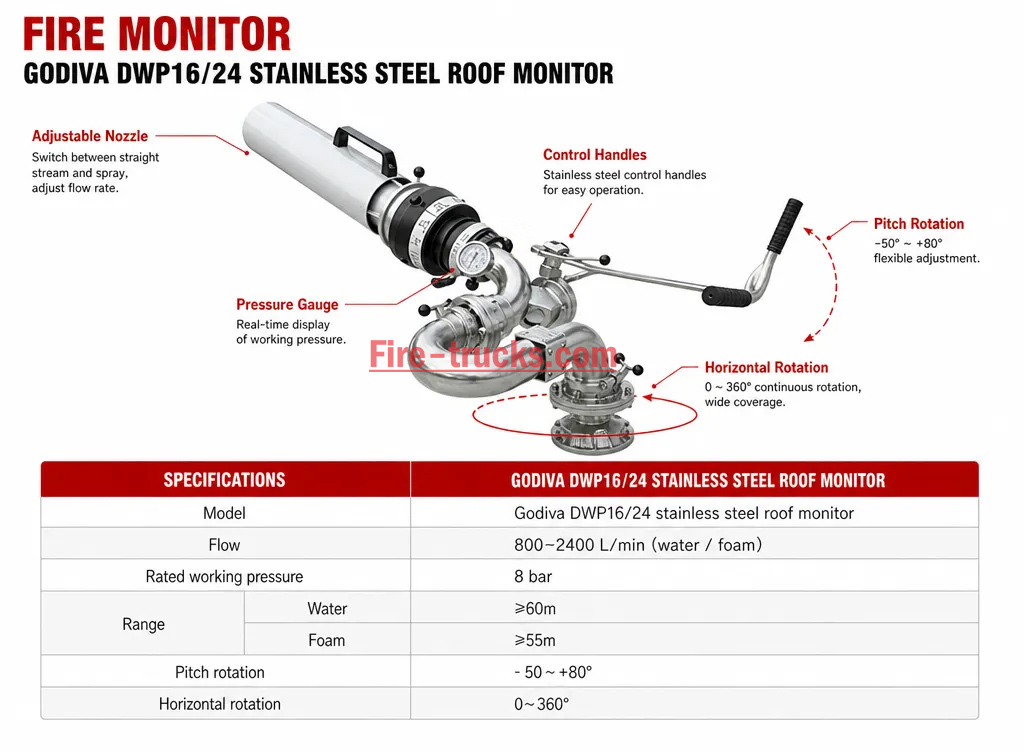

| Fire Monitor | Model | Godiva DWP16/24 stainless steel roof monitor | |
| Flow | 800–2400 L/min(water / foam) | ||
| Rated working pressure | 8 bar | ||
| Range | Water | ≥60m | |
| Foam | ≥55m | ||
| Pitch rotation | - 50~+80° | ||
| Horizontal rotation | 0~360° | ||

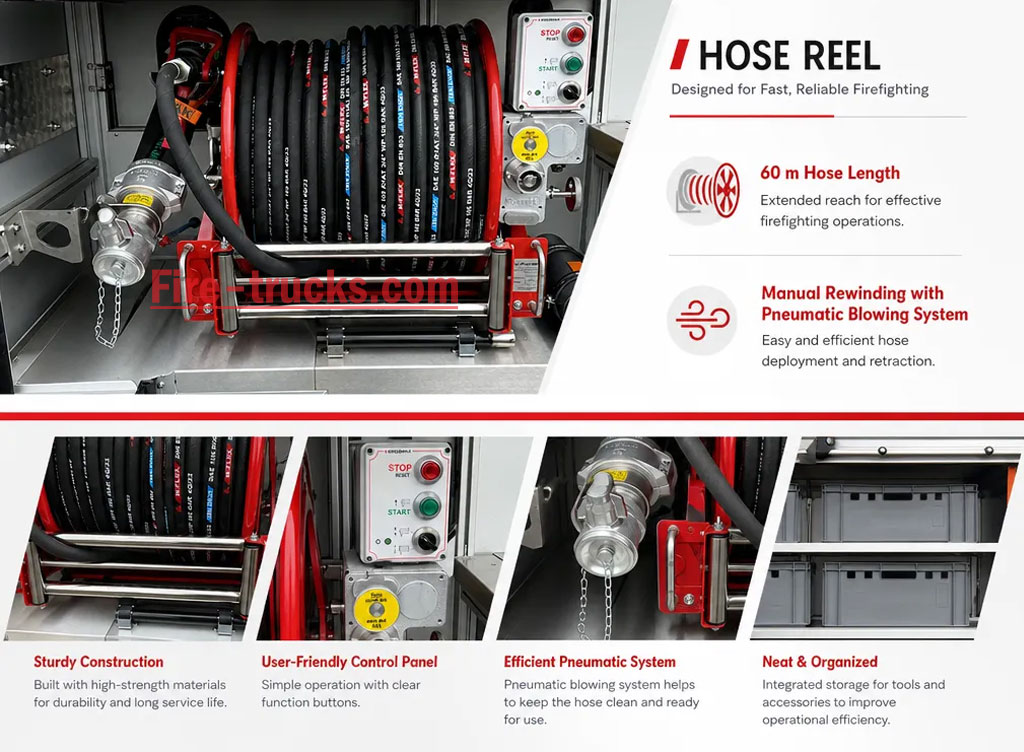

| Hose Reel | Hose Length | 60 m | |
| Rewinding | Manual, with pneumatic blowing system | ||

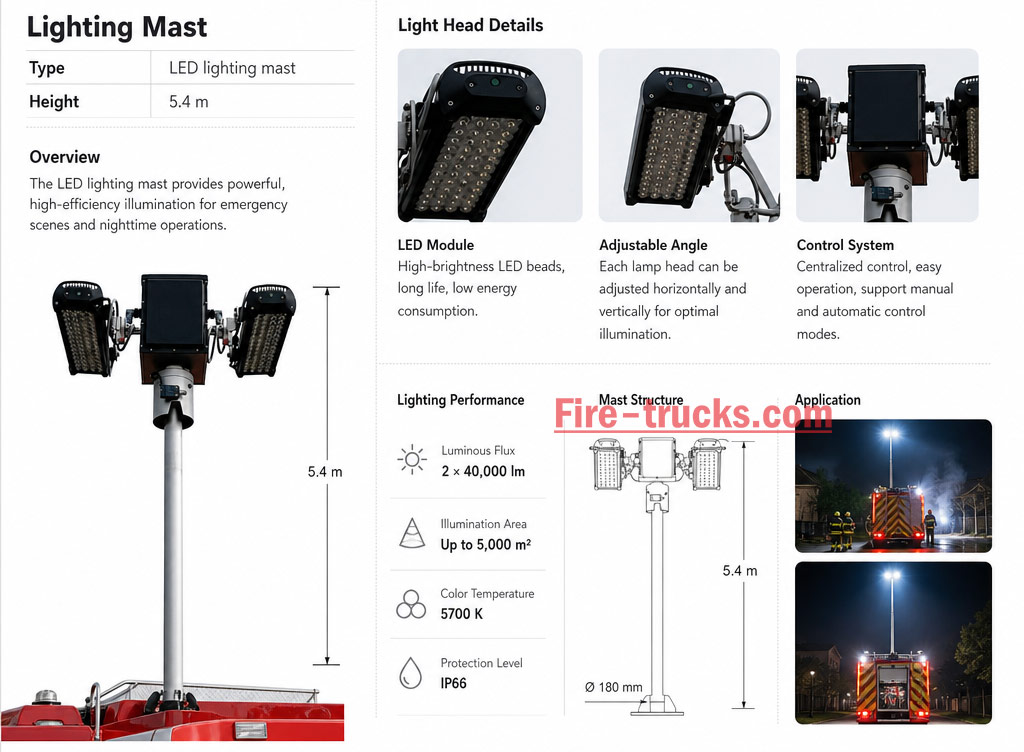

| Lighting Mast | Type | LED lighting mast | |
| Height | 5.4 m | ||

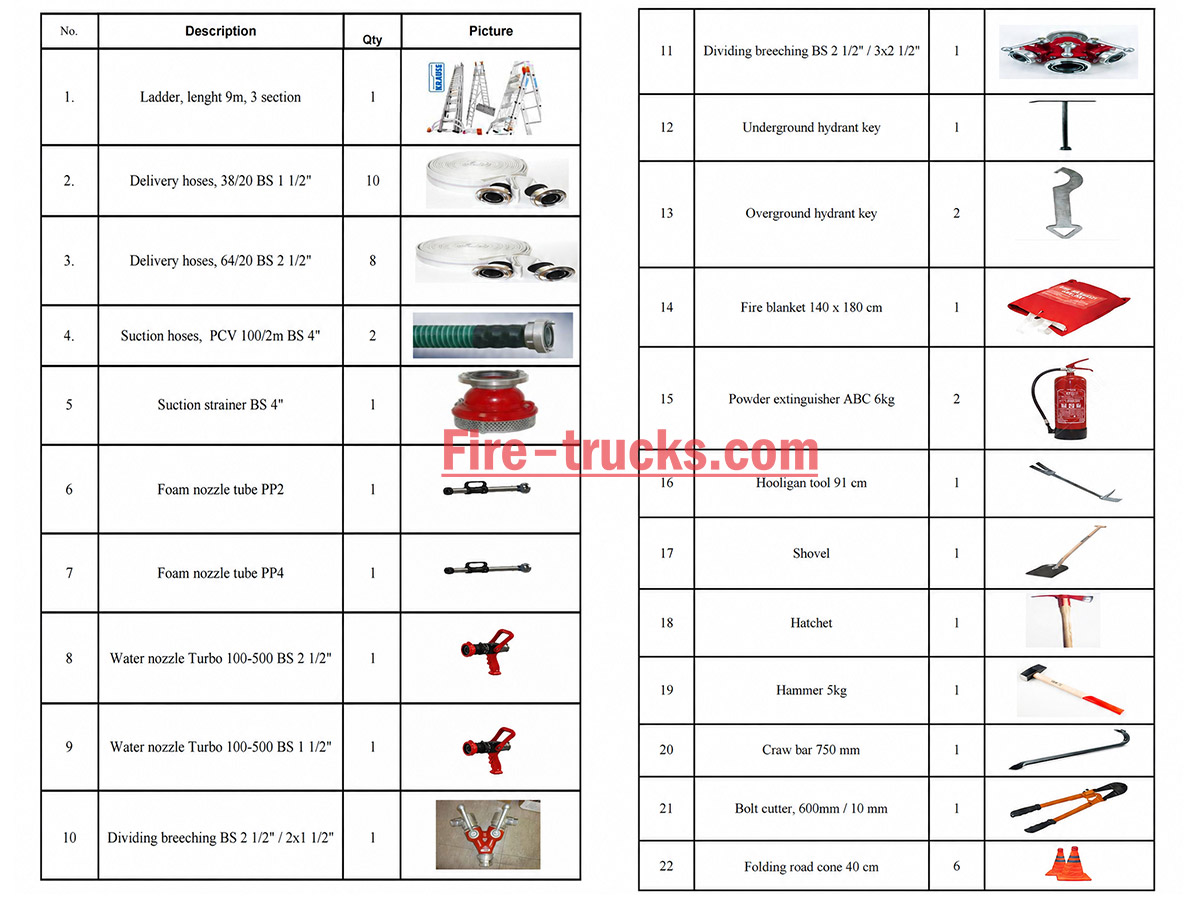

| Standard Configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||


1. Chassis & Powertrain
♦ Chassis: IVECO ML 150E24WS 4×4, 4150 mm wheelbase, engineered for off-road stability and rugged terrain mobility
♦ Engine: TECTOR F4EE681B turbo diesel, 240 HP (177 kW), strong low-end torque for rough terrain response and continuous pump drive
♦ Transmission: ZF 6ASTRONIC 800, 6-speed automatic, smooth shifting for both highway and off-road operations

2. Fire Suppression System
♦ Tank: 3500L water + 350L foam (3850L total), AISI 316L stainless steel, corrosion-resistant construction
♦ Pump: Godiva P2 2010, 2000 L/min @ 10 bar (low pressure) / 250 L/min @ 40 bar (high pressure), PTO-driven
♦ Fire Monitor: Szczesniak roof monitor, water range ≥60m, foam range ≥55m, 360° horizontal rotation, -50° to +80° vertical pitch
♦ Hose Reel: 40m x DN19 high-pressure hose with electric drive and manual override
» Ⅳ.Winch System :

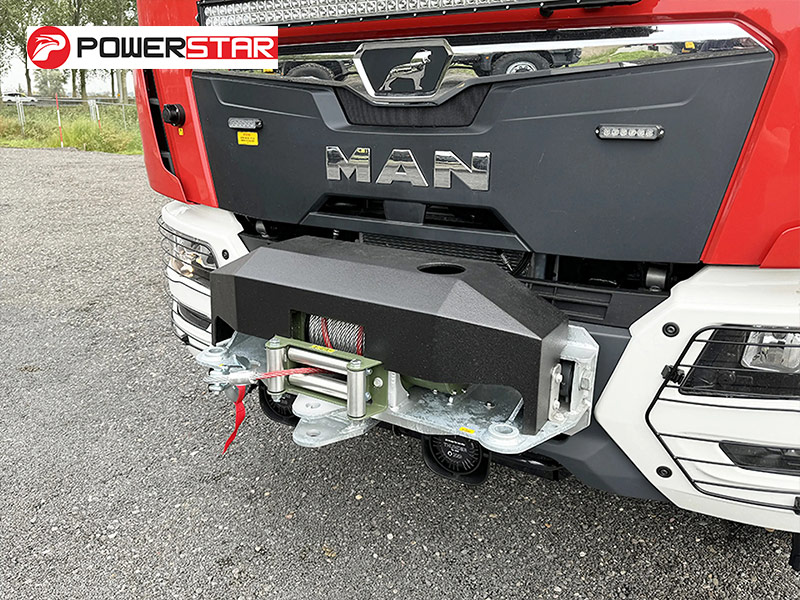

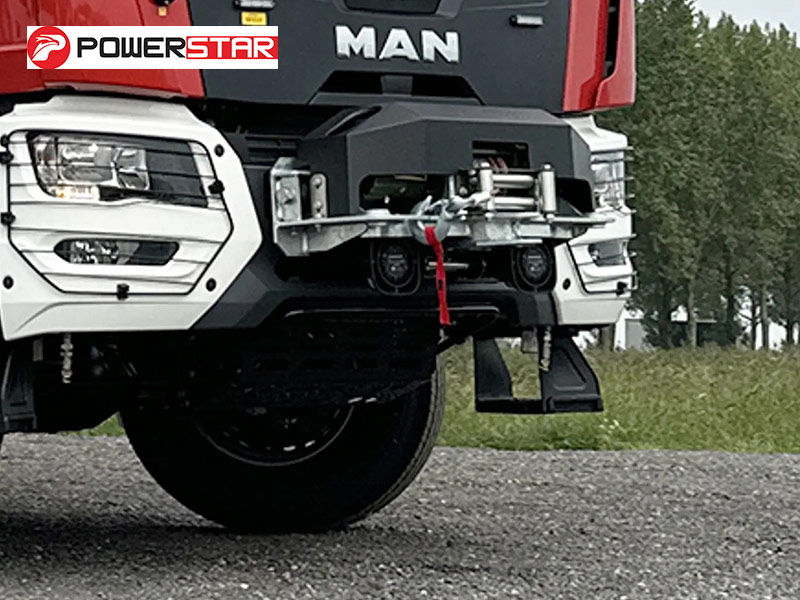

The electric winch, rated at 9,979 kg (22,000 lbs) pulling capacity with a 28m steel rope, is mounted at the front of the vehicle. Powered by a 5.4kW (12V) or 6.0kW (24V) motor with a 430:1 reduction ratio, it provides reliable self-recovery and obstacle clearing capability in rough terrain. The winch is designed for demanding rescue operations, ensuring the vehicle can extract itself or assist others when standard fire trucks cannot proceed.

| Winch System | ||
| Type | Electric winch | |
| Towing Capacity | 22000lbs (9979 kgs) | |
| Motor | 5.4kW/7.1hp(12v);6.0kW/7.9hp(24v) | |
| Reduction Ratio | 430:1 | |
| Steel Rope Size | Φ15/32"91.9'(Φ12mm28m) | |
| Roller Size | Φ3.5"*8.6"(Φ89mm*219mm) | |

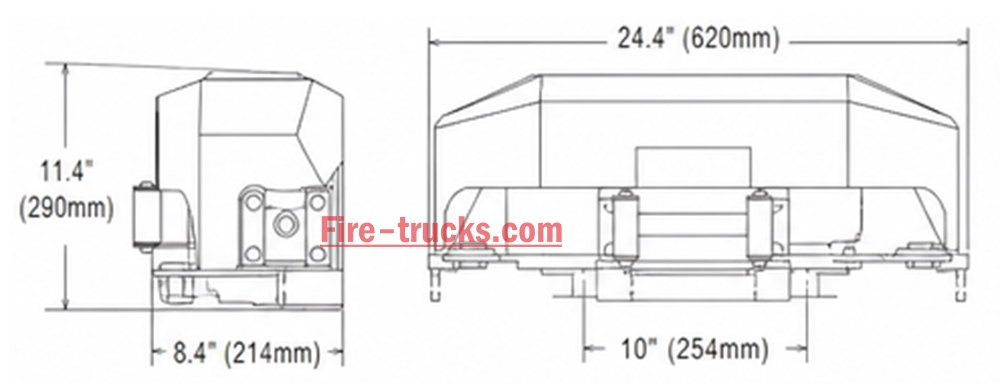

| Overall Dimension | 24.4"*8.4"*11.4"(620mm*214mm*290mm) | |
| Installation Dimension | 10"*4.5"(254mm*114.3mm) | |
| Kure Weight | 147.7Ibs(67kgs) | |
» Ⅴ.Fire Pump System :
Fire Pump:

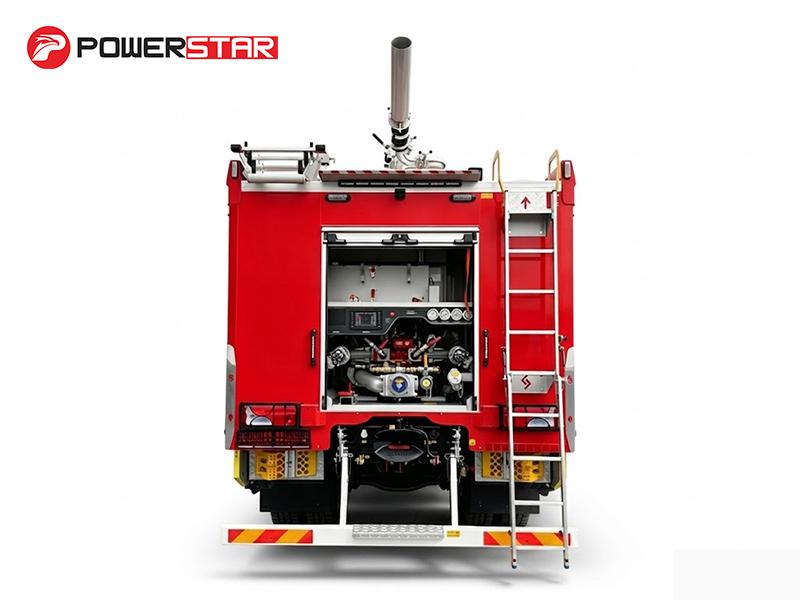

The Godiva P2 2010 fire pump, rated at 2,000 L/min with dual-pressure output at 10 bar and 40 bar, is installed in the rear pump room. Designed for reliable performance, it supports both standard hose lines and high-pressure operations, ensuring efficient water or foam delivery across long distances.

Fire Pump Performance:


» Ⅶ.Firefighting Equipment :

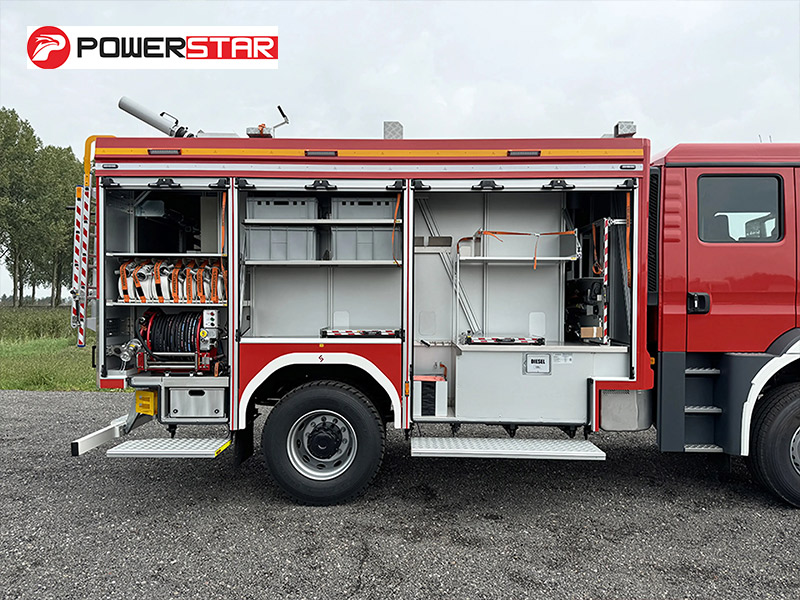

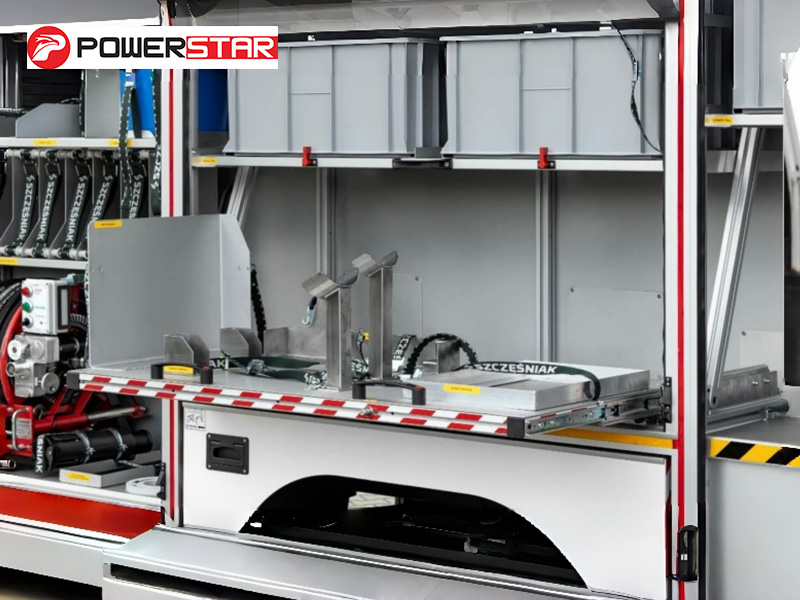

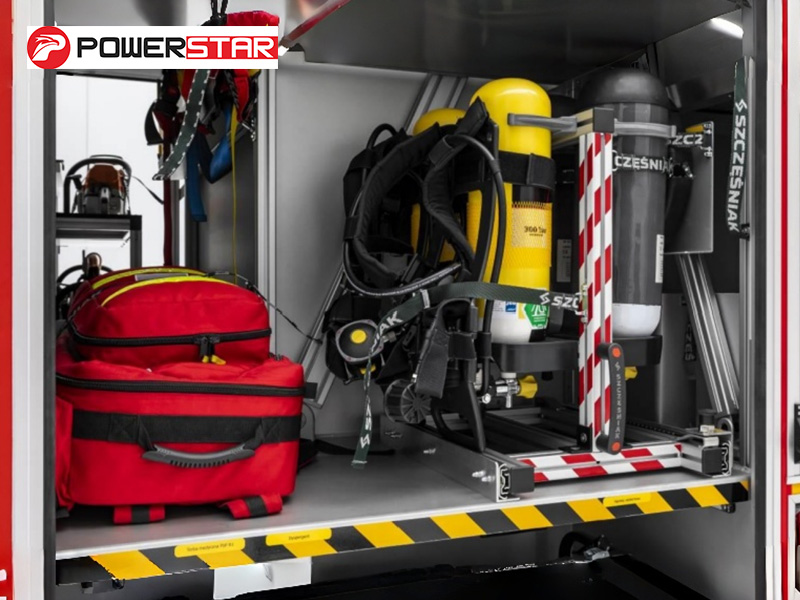

• Equipment Room

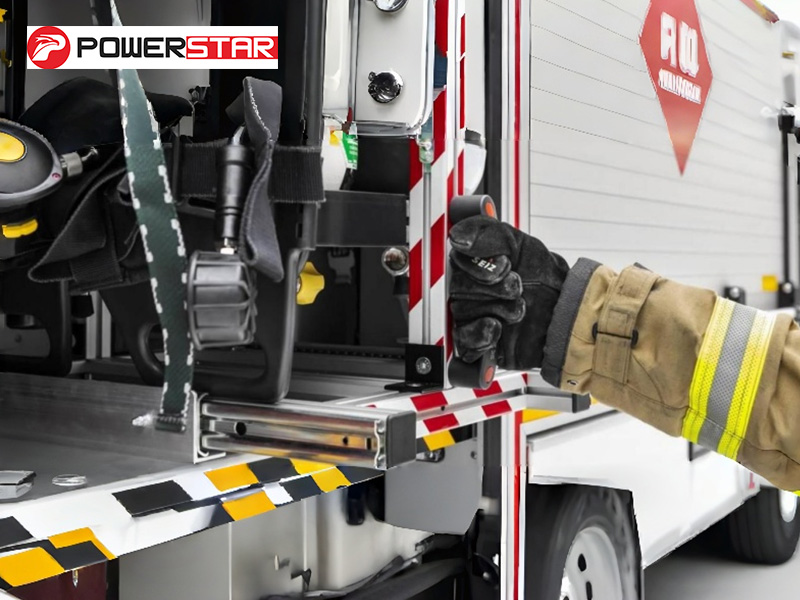

Storage lockers are arranged around the vehicle, fitted with adjustable racks and pull-out trays. Fire hoses, suction lines, and foam guns are secured on the racks, while hand tools such as wrenches, axes, and pry bars are stored in the trays for quick access—reducing setup time at emergency scenes.

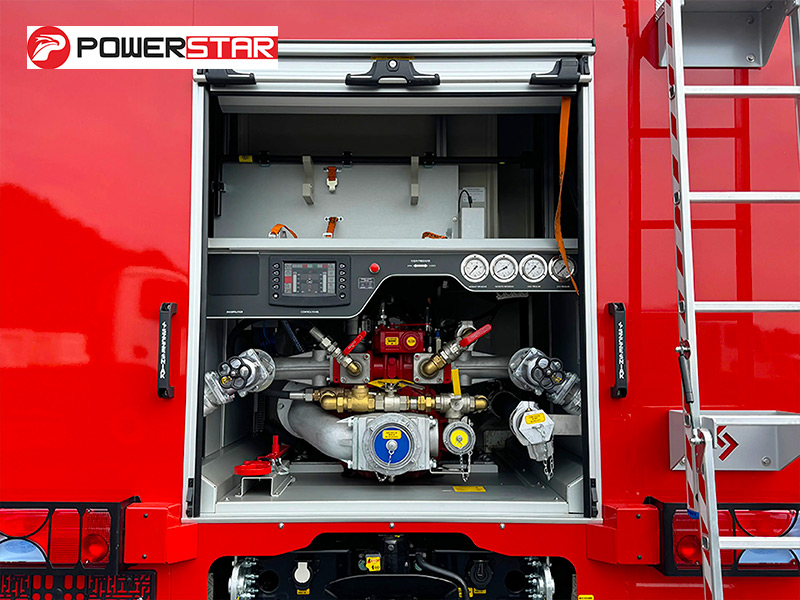

• Pump Room: Equipped with Godiva P2 2010 fire pump, control panel, pressure gauge, vacuum gauge, and compartment lighting. Accessories include fire hoses, suction lines, collectors, strainers, fire nozzles, foam guns, suction hose wrenches, and adapters.

• Equipment Room
Storage lockers are arranged around the vehicle, fitted with adjustable racks and pull-out trays. Fire hoses, suction lines, and foam guns are secured on the racks, while hand tools such as wrenches, axes, and pry bars are stored in the trays for quick access—reducing setup time at emergency scenes.

• Equipment Room
Storage lockers are arranged around the vehicle, fitted with adjustable racks and pull-out trays. Fire hoses, suction lines, and foam guns are secured on the racks, while hand tools such as wrenches, axes, and pry bars are stored in the trays for quick access—reducing setup time at emergency scenes.

• Equipment Room
Storage lockers are arranged around the vehicle, fitted with adjustable racks and pull-out trays. Fire hoses, suction lines, and foam guns are secured on the racks, while hand tools such as wrenches, axes, and pry bars are stored in the trays for quick access—reducing setup time at emergency scenes.

The IVECO ML 150E24WS 4×4 foam fire truck comes with a rear-mounted Godiva P2 2010 pump and a roof-mounted Szczesniak monitor. Total fluid capacity is 3,850 liters—3,500L water and 350L foam. The vehicle sits on a rugged 4×4 chassis and is powered by a 240 HP IVECO TECTOR F4EE681B diesel engine with a 6-speed automatic transmission. Standard delivery includes hoses, suction line, fittings, foam gun, and a basic tool kit. Full specs are listed below:
