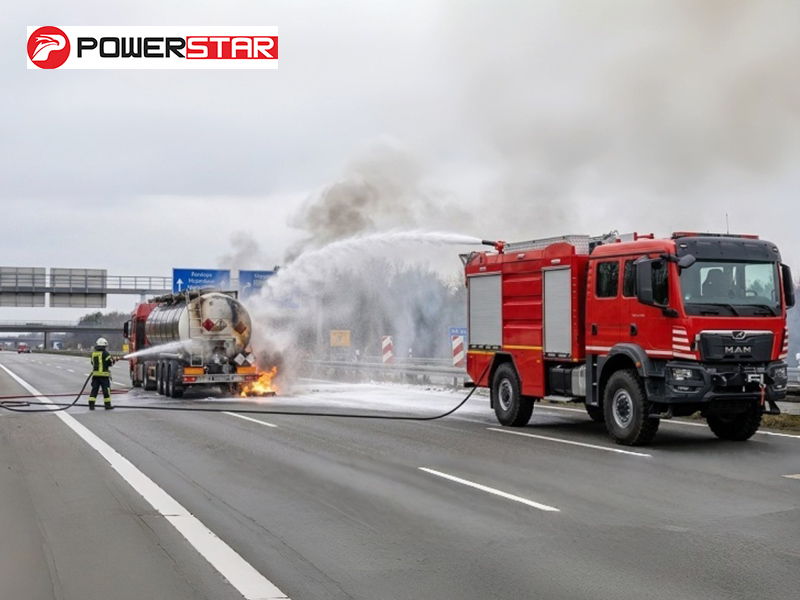

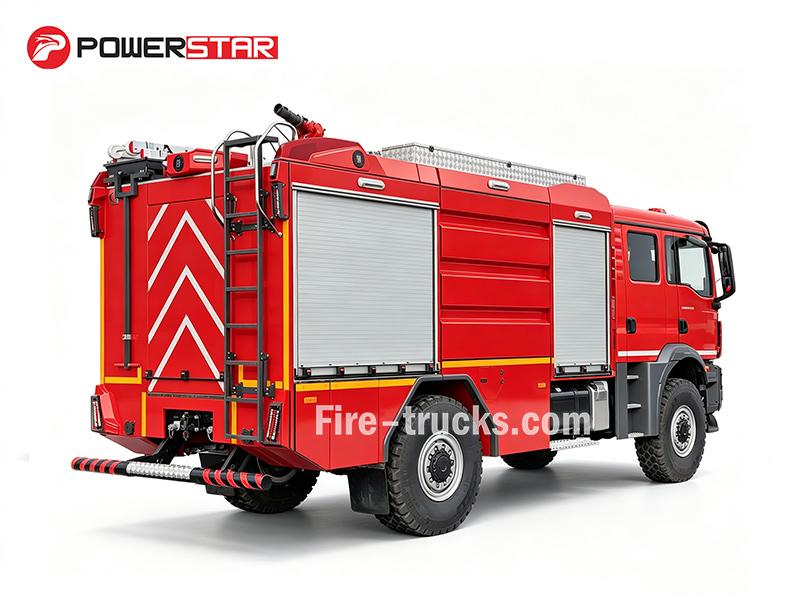

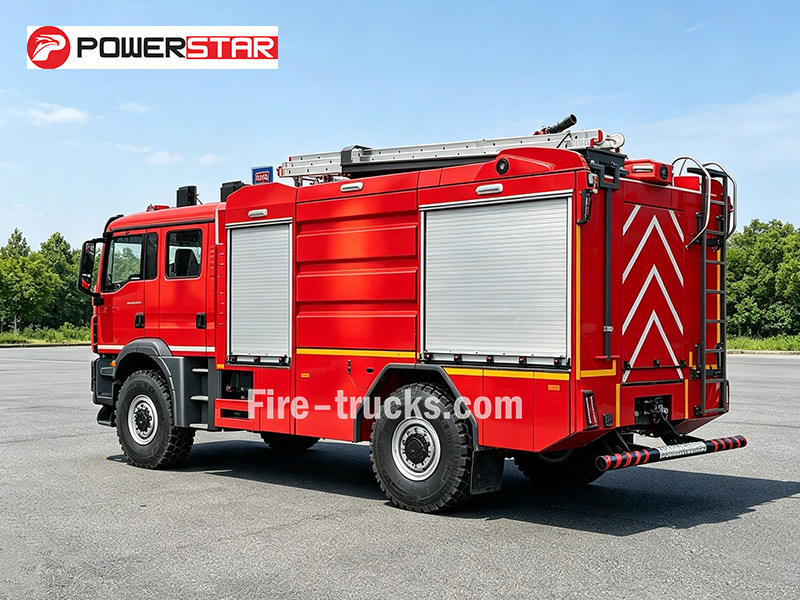

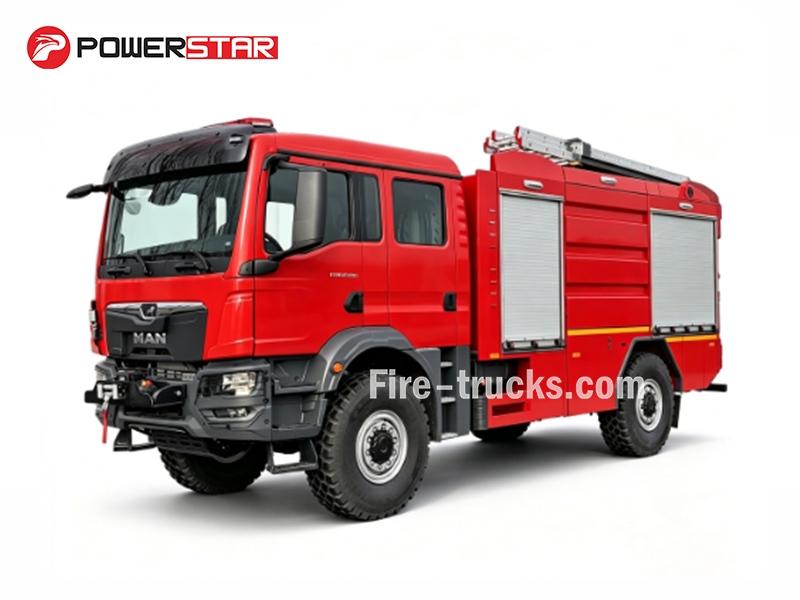

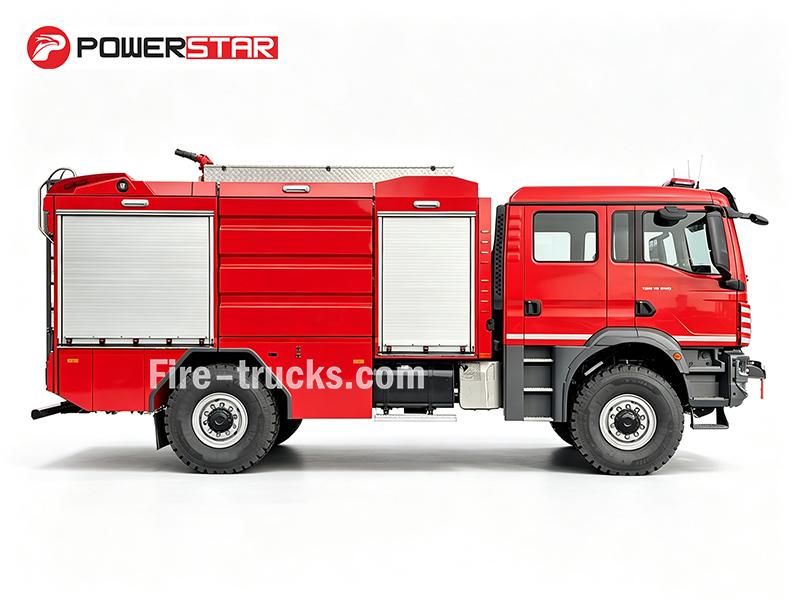

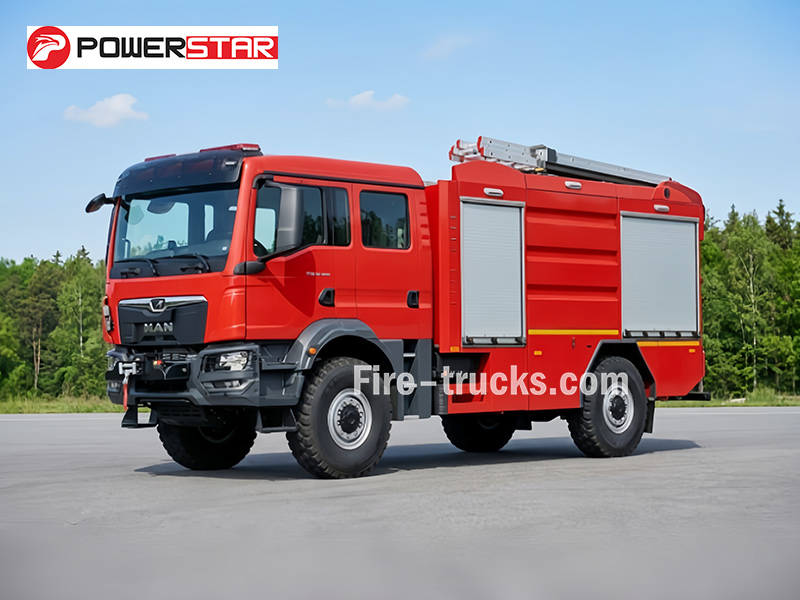

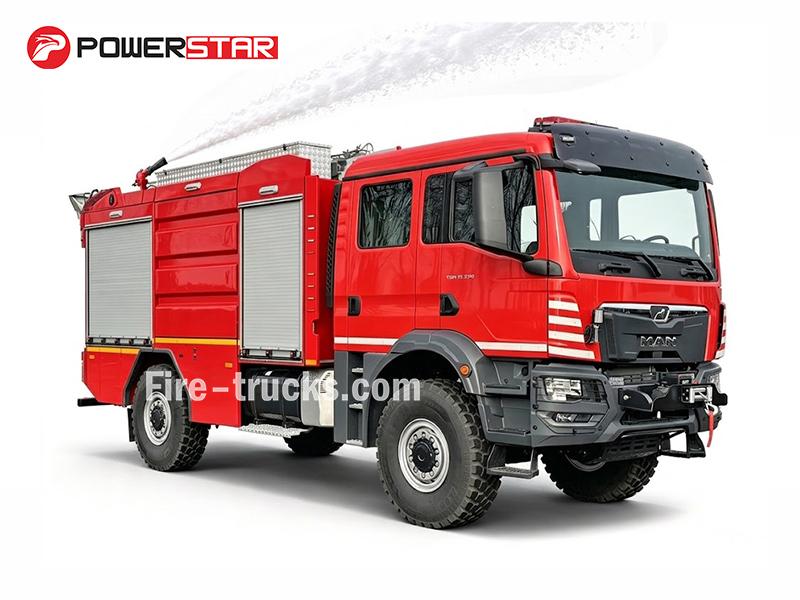

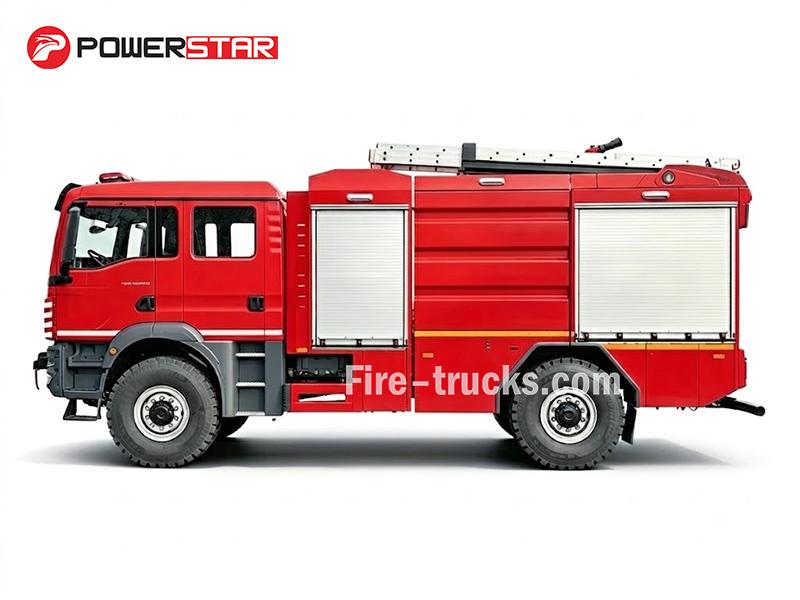

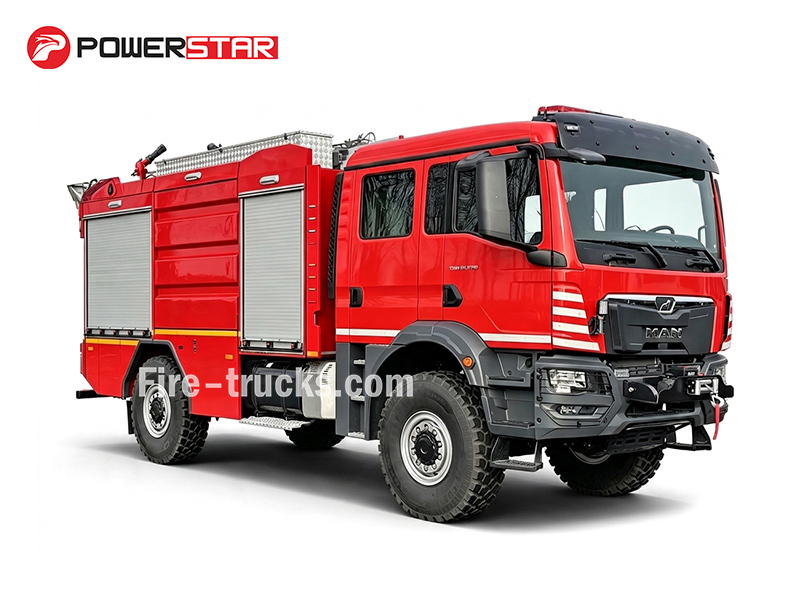

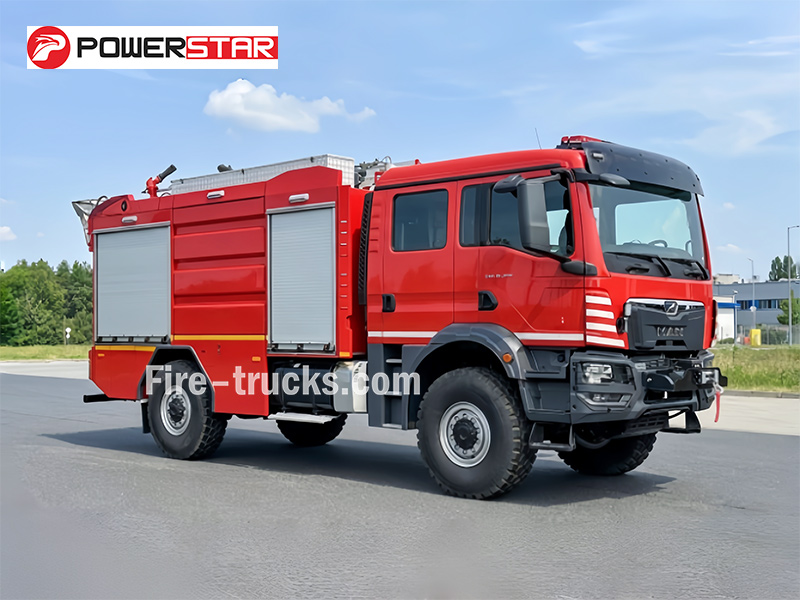

MAN 5,500L 4×4 foam fire truck is powered by a 290 HP D0836 LFL90 engine with a 4×4 chassis that handles rough terrain with confidence. Total capacity is 5,500L—5,000L water and 500L foam. The JOHSTADT TO 3001 pump delivers 3,000 L/min at both 10 bar and 40 bar, while the CINAR 2400 LPM front monitor reaches 65m with water and 55m with foam. Comes standard with hoses, suction line, fittings, foam gun, and tool kit. Built for industrial sites, rural roads, and demanding fireground operations.
Truck Chassis:
MAN TGM 18.290 4×4 BB CHTanker Capacity:
5000L water + 500L foam (5500L total)Engine Power:
290 HP (213 kW) / D0836 LFL90Fire Pump:
JOHSTADT TO 3001Pump Flow:
3000 L/min @ 10 bar / 40 barWork Pressure:
10 bar (normal) / 40 bar (high pressure)Fire Monitor:
CINAR 2400 LPMMonitor Flow:
2400 L/minMonitor Range:
Water ≥65 m, Foam ≥55 mThis MAN 4×4 foam fire truck is built around a 290 HP D0836 LFL90 engine and a rugged 4×4 chassis that handles rough terrain and remote job sites with ease. This MAN 5500L foam water fire rescue vehicle carries 5,500L total—5,000L water and 500L foam. A JOHSTADT TO 3001 pump delivers 3,000 L/min at 10 bar and 40 bar, and the front-mounted CINAR 2400 LPM monitor throws water up to 65m and foam up to 55m. This MAN 4x4 heavy duty foam fire truck comes with standard gear: hoses, suction line, couplings, foam gun, and tool kit. Powerful engine, dual-pressure pump, and robust 4×4 capability make it a solid choice for industrial fire response, rural operations, and demanding fireground conditions.

|
Working Capacity |
Engine Model |
Wheelbase |
Superstructure |
|
5000L water + 500L foam |
290 HP / D0836 LFL90 |
4500 mm |
★ Tank carbon steel, 5500L capacity ★ JOHSTADT TO 3001 fire pump, 3000 L/min flow @ 10 bar / 40 bar ★ CINAR 2400 LPM front monitor, water ≥65 m, foam ≥55 m ★ 2026 new model |
» Ⅰ.Main Features :
★ MAN D0836 LFL90 engine rated at 290 HP for foam fire suppression and rugged terrain response
★ MAN TGM 18.290 4×4 chassis with front winch (7938 kg / 16800 lbs), 5000L water tank, and 500L foam tank for dual-agent suppression
★ JOHSTADT TO 3001 fire pump (3000 L/min at 10 bar / 40 bar) + CINAR 2400 LPM monitor (water ≥65m, foam ≥55m) for fire suppression
★ 8-speed automatic transmission with MAN PowerMatic 08.13 OD for smooth operation on and off road
★ Full firefighting equipment, including hoses, nozzles, foam gun, and basic tool kit for Class B fire fighting
» Ⅱ.Product Parameter :
| MAN TGM 18.290 BB CH Fire Fighter Truck | |||
| General | Work capacity | 5000L water + 500L foam | |
| Truck chassis | MAN TGM 18.290 4x4 BB CH | ||
| Engine Power | 290 HP/ MAN D0836 LFL90 | ||
| Fire Pump | JOHSTADT TO 3001 | ||
| Fire Monitor | CINAR 2400 LPM | ||
| Front Axle | 7500 kg | ||
| Rear Axle | 10000 kg | ||
| Maximum Speed | 80 km/h | ||
| Overall Dimensions L*W*H | 7990*2550*3640 mm | ||
| Gross Vehicle Weight | 17500 kg | ||
| Curb Weight | 10430 kg | ||
| Engine | Engine Model | MAN D0836 LFL90 | |
| Fuel Type | Diesel | ||
| Power | 290 HP(213KW) | ||
| Emission Standard | Euro 5 | ||
| Fuel Tank Capacity | 300 L | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Drive Type | 4x4 | |
| Wheelbase | 4500 mm | ||
| Transmission | MAN PowerMatic 08.13 OD(8-speed Automatic) | ||
| Tire | 14.00R20 | ||
| Tire No. | 6 tires and 1 spare tire | ||
| Fire Pump | Model | JOHSTADT TO 3001 | |
| Flux | 3000 L/min | ||
| Type | Centrifugal pump, EN 1028 | ||
| Normal Pressure | 10 bar | ||
| High Pressure | 40 bar | ||

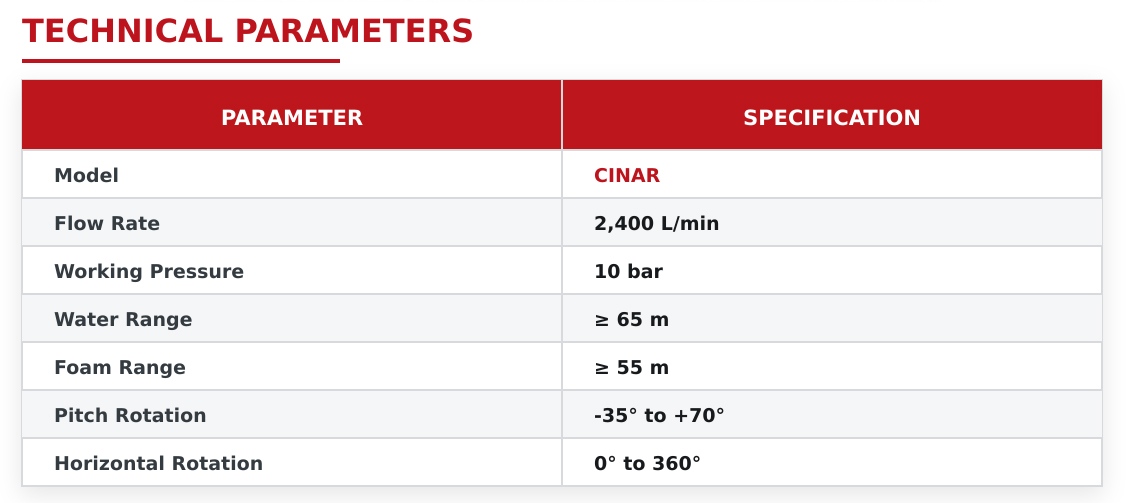

| Fire Monitor | Model | CINAR 2400 LPM | |
| Flow | 10 bar | ||
| Range | Water | ≥65 m | |
| Foam | ≥55 m | ||
| Pitch rotation | - 35~+70° | ||
| Horizontal rotation | 0~360° | ||
| Standard Configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||


1. Chassis & Powertrain
♦ Chassis: MAN TGM 18.290 4×4 BB CH, 4500 mm wheelbase, engineered for off-road stability and rugged terrain mobility
♦ Engine: D0836 LFL90 turbo diesel, 290 HP (213 kW), strong low-end torque for rough terrain response and continuous pump drive
♦ Transmission: MAN PowerMatic 08.13 OD, 8-speed automatic, smooth shifting for both highway and off-road operations

2. Fire Suppression System
♦ Tank: 5000L water + 500L foam (5500L total), AISI 316L stainless steel, epoxy-coated interior for corrosion resistance
♦ Pump: JOHSTADT TO 3001, 3000 L/min @ 10 bar / 40 bar, PTO-driven, EN 1028 compliant

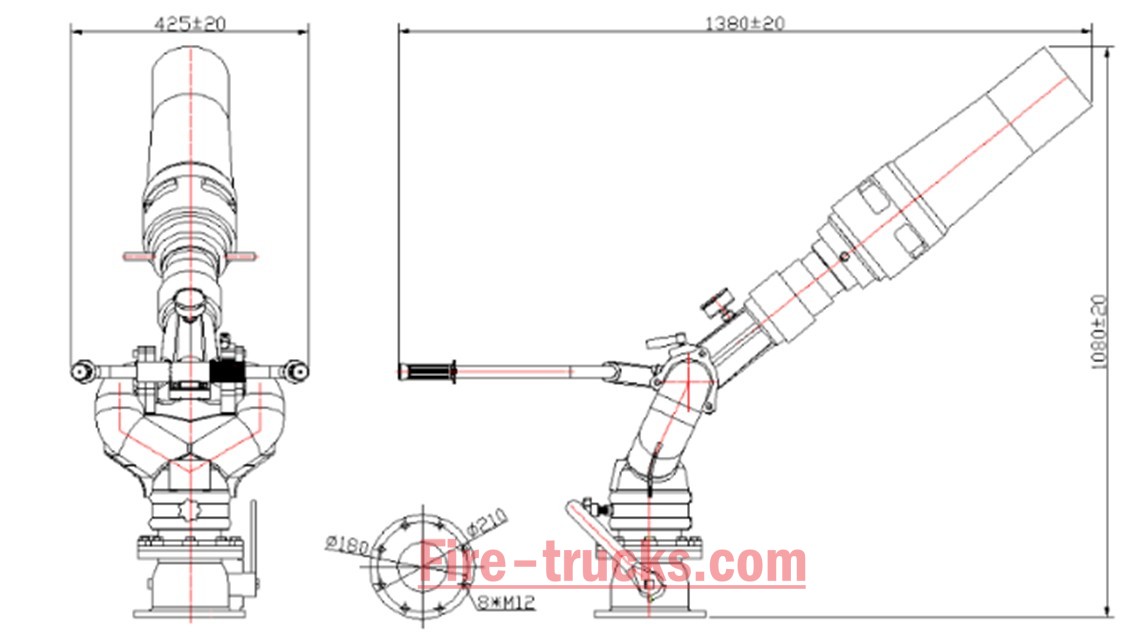

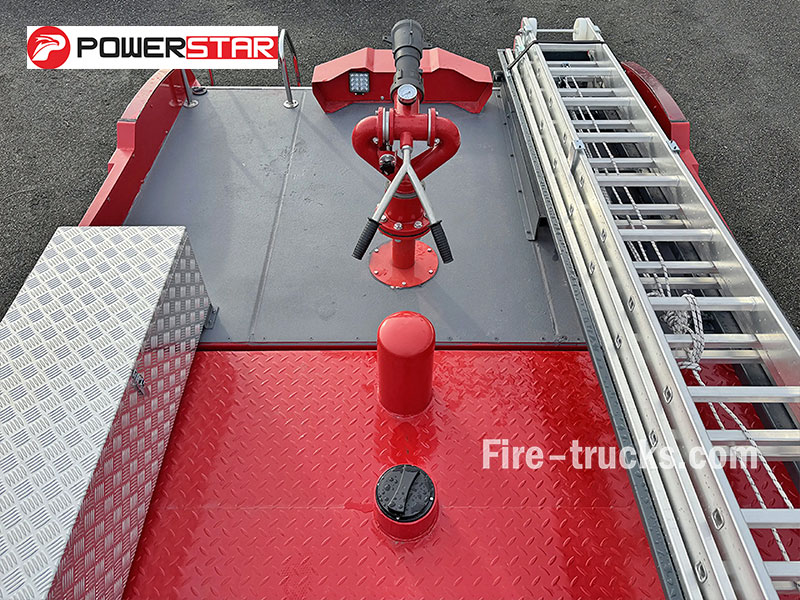

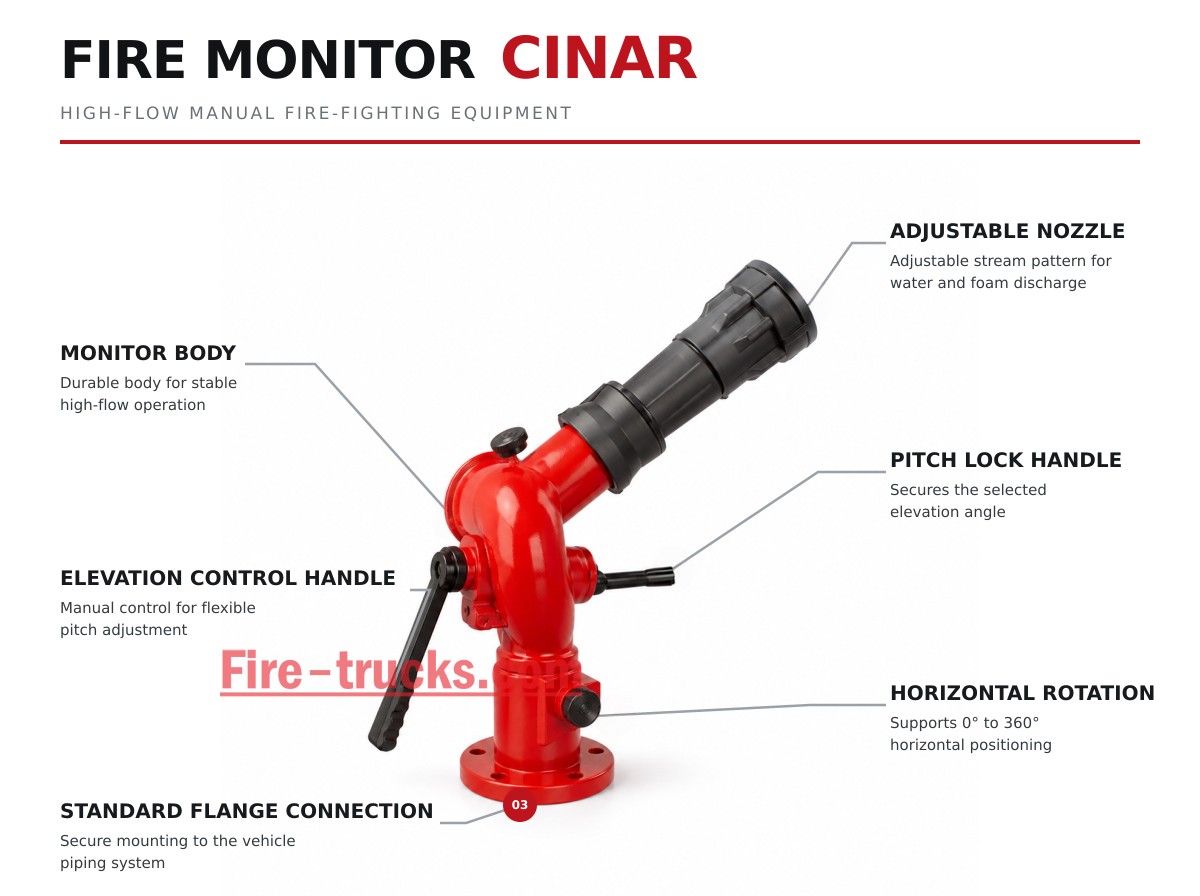

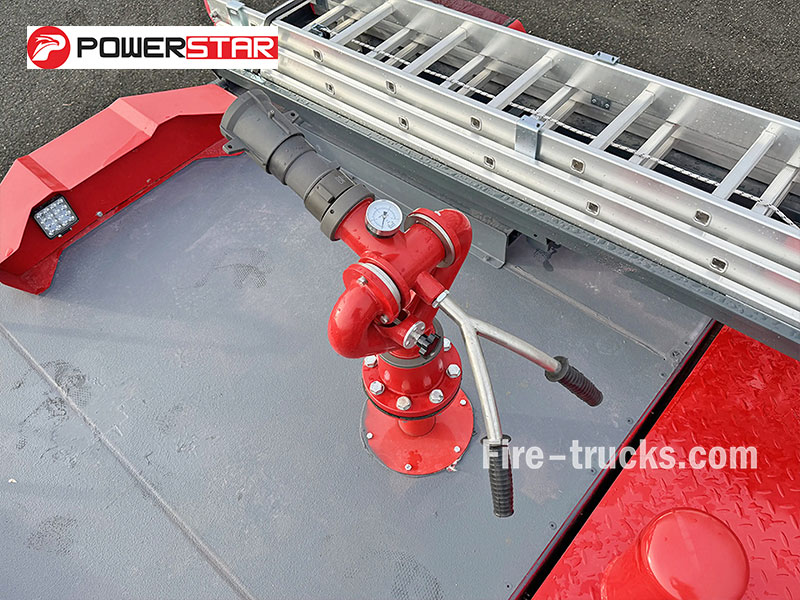

♦ Fire Monitor: CINAR 2400 LPM front monitor, water range ≥65m, foam range ≥55m, 360° horizontal rotation, -35° to +70° vertical pitch

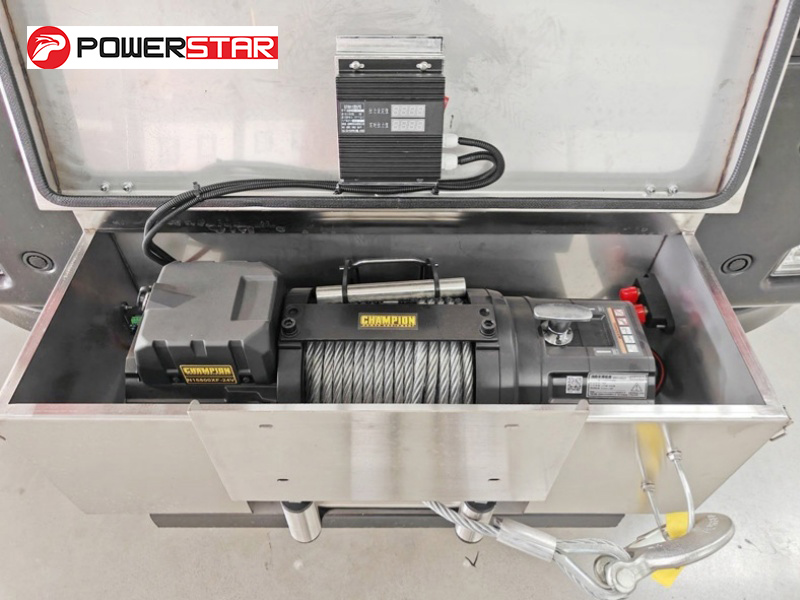

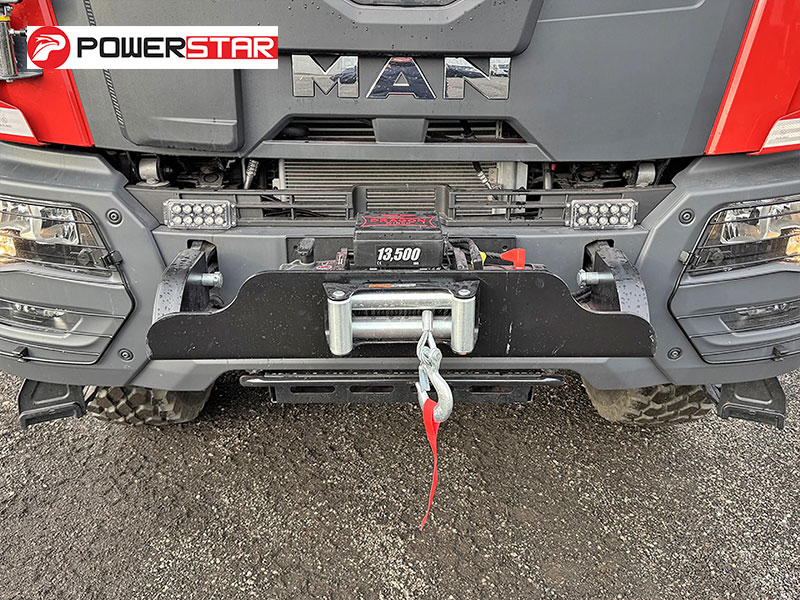

» Ⅳ.Front Towing Winch System :

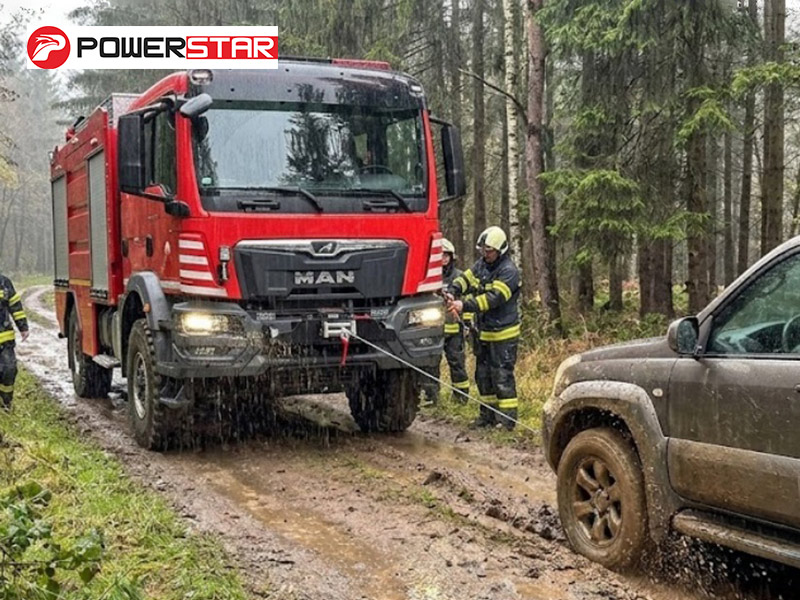

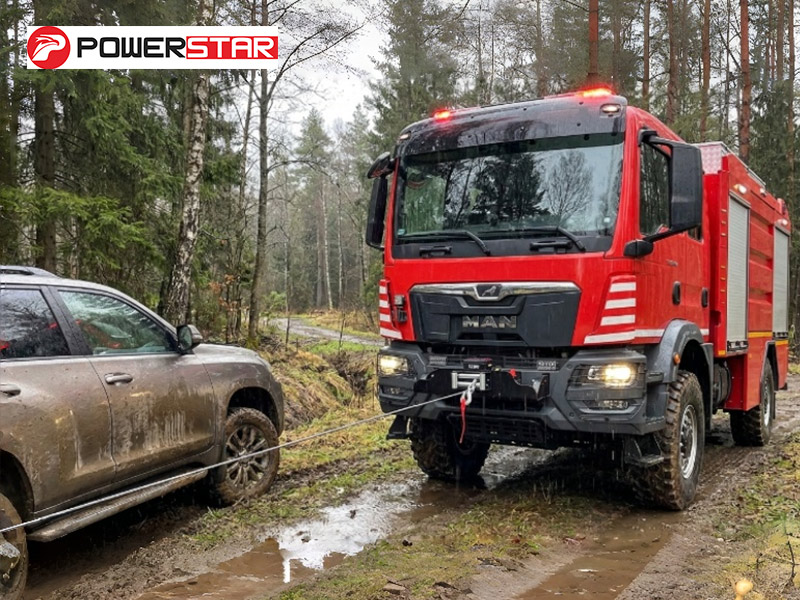

★ Front-mounted towing winch with 75 kN max pull, 38m × φ13mm wire rope, 8° vertical angle and 5° horizontal angle for complex terrain
★ 12V/24V DC power, 430:1 dual-stage planetary gear reduction (spur gear + planetary), high-strength powder metallurgy gears for heavy-duty reliability
★ Series-wound motor drive with reliable braking system and manual rope release via clutch—easy operation and safe control

| Towing Capacity: | 16800lbs (7938 kgs) |
| Motor: | 5.4kW/7.1hp(12v);6.0kW/7.9hp(24v) |
| Reduction Ratio: | 430:1 |
| Steel Rope Size: | Φ15/32"*87'(Φ12mm*26.5m) |
| Roller Size: | Φ3.5"*8.6"(Φ89mm*219mm) |
| Overall Dimension: | 24.4"*8.4"*11.4"(620mm*214mm*290mm) |
| Installation Dimension: | 10"*4.5"(254mm*114.3mm) |
| Kure Weight: | 147.7Ibs(67kgs) |
» Ⅴ.Fire Pump System :
Fire Pump:

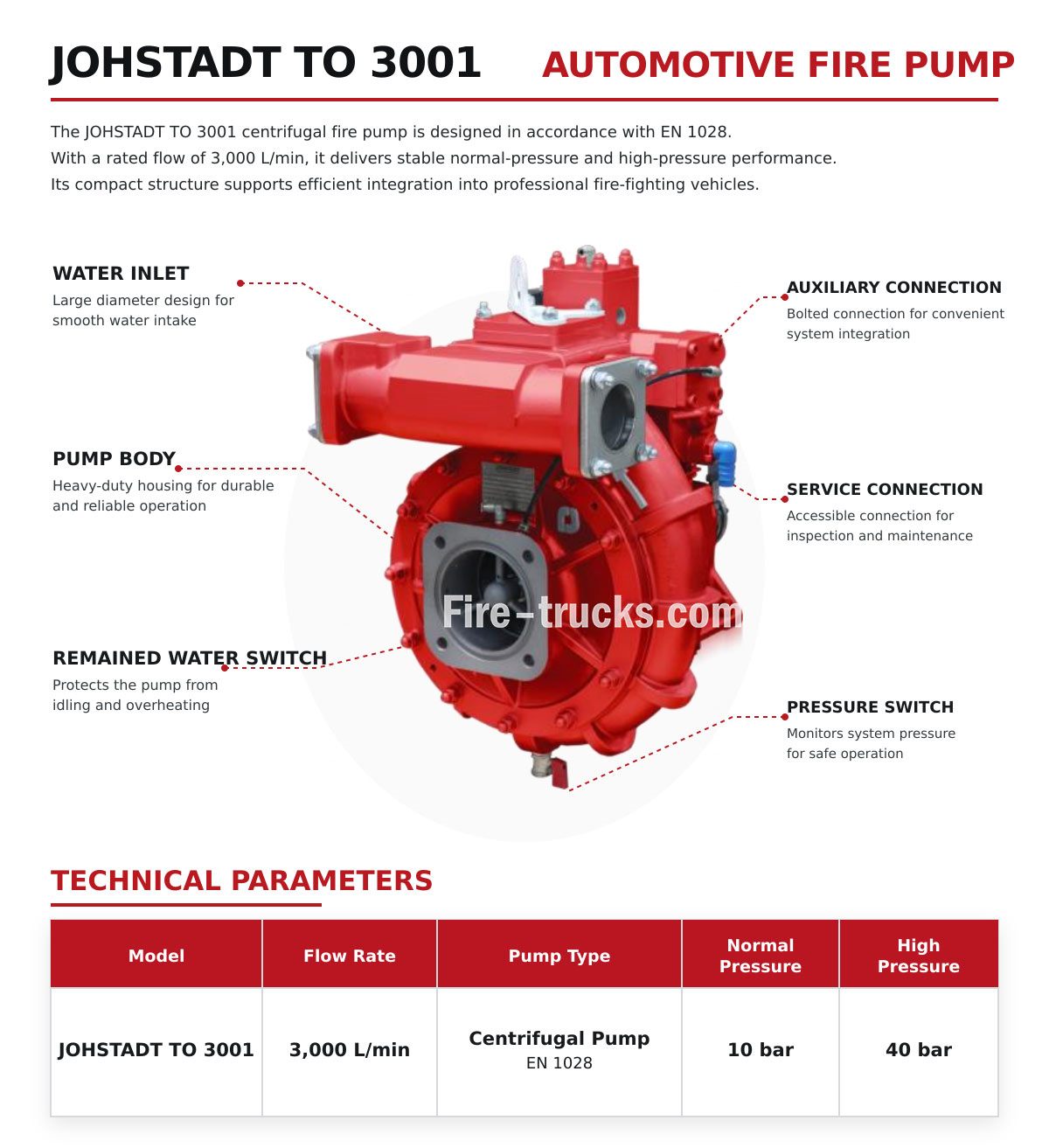

The JOHSTADT TO 3001 fire pump, rated at 3,000 L/min with dual-pressure output at 10 bar and 40 bar, is installed in the rear pump room. Designed for reliable performance, it supports both standard hose lines and high-pressure operations, ensuring efficient water or foam delivery across long distances.

» Ⅶ.Firefighting Equipment :

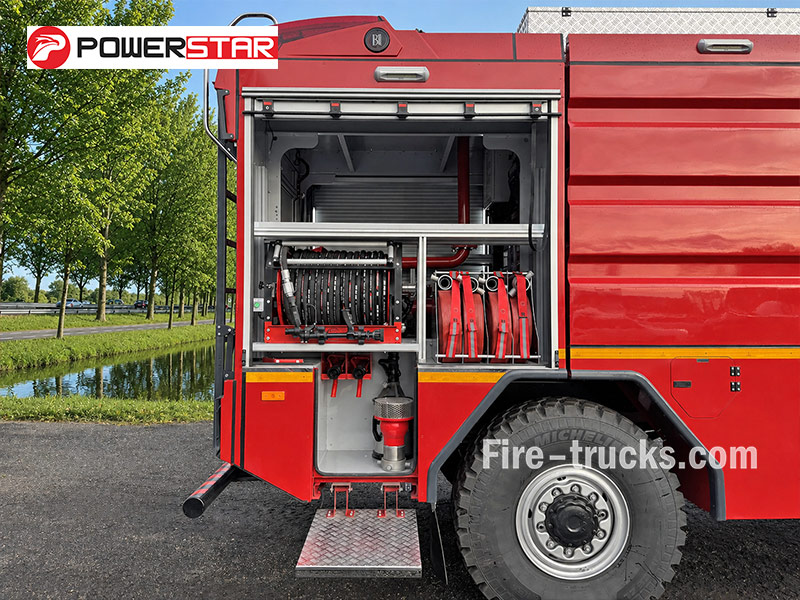

• Equipment Room
Storage lockers are arranged around the vehicle, fitted with adjustable racks and pull-out trays. Fire hoses, suction lines, and foam guns are secured on the racks, while hand tools such as wrenches, axes, and pry bars are stored in the trays for quick access—reducing setup time at emergency scenes.

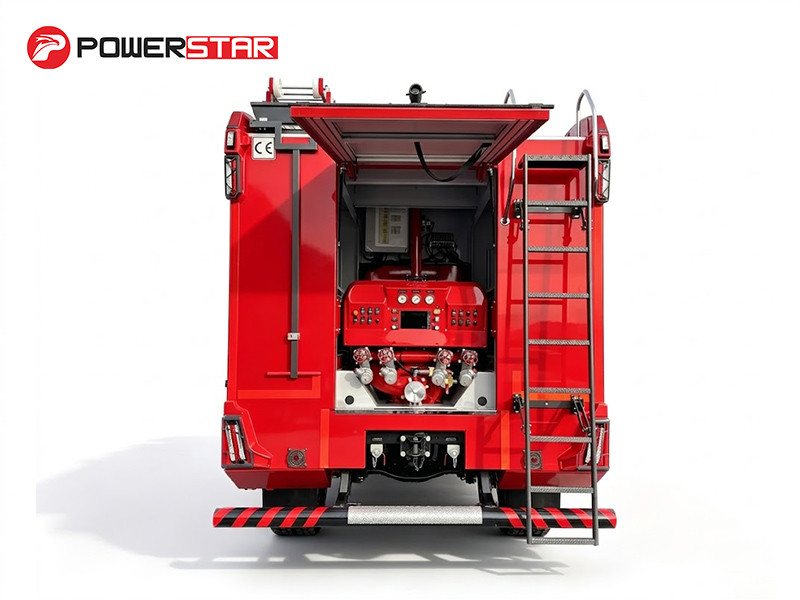

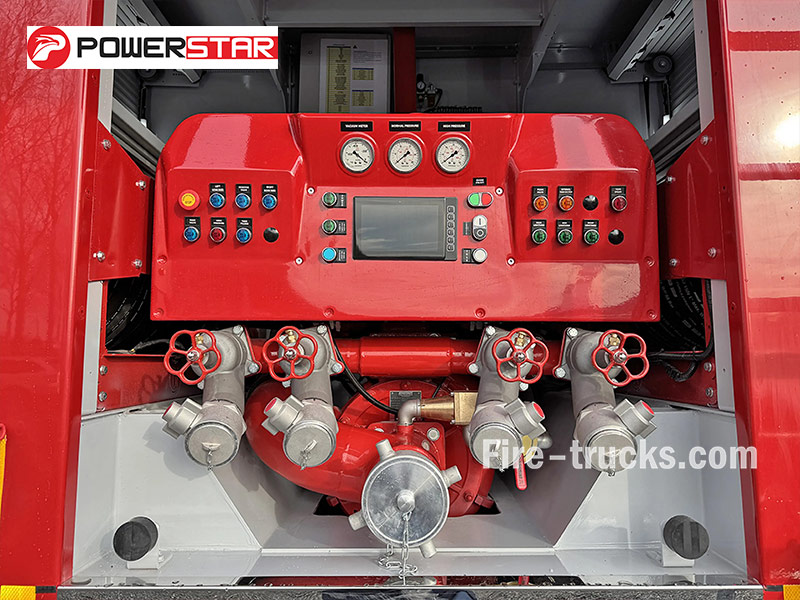

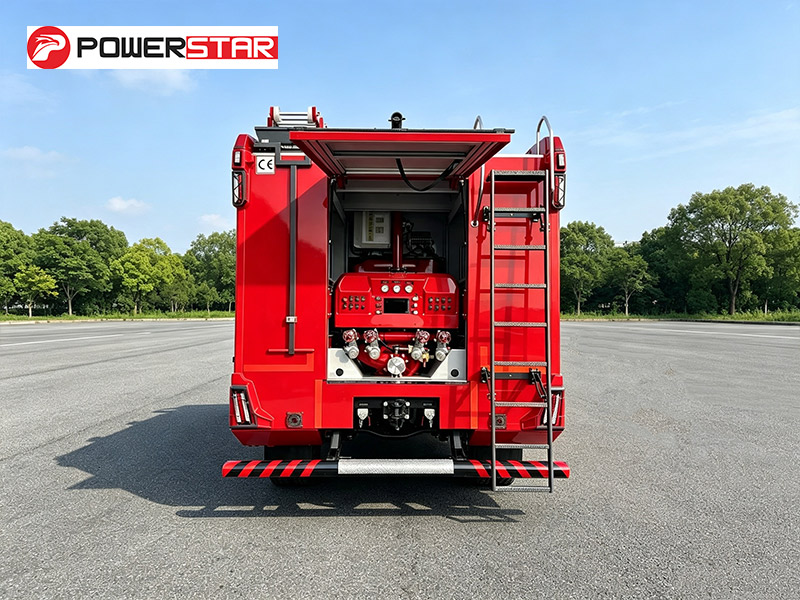

• Pump Room: Equipped with JOHSTADT TO 3001 fire pump, control panel, pressure gauge, vacuum gauge, and compartment lighting. Accessories include fire hoses, suction lines, collectors, strainers, fire nozzles, foam guns, suction hose wrenches, and adapters.

The MAN TGM 18.290 4×4 foam fire truck comes with a rear-mounted JOHSTADT TO 3001 pump and a front-mounted CINAR 2400 LPM monitor. Total fluid capacity is 5,500 liters—5,000L water and 500L foam. The vehicle sits on a rugged 4×4 chassis and is powered by a 290 HP MAN D0836 LFL90 diesel engine with an 8-speed automatic transmission. Standard delivery includes hoses, suction line, fittings, foam gun, and a basic tool kit. Full specs are listed below:
