Foam Fire Truck Common Faults and Solutions

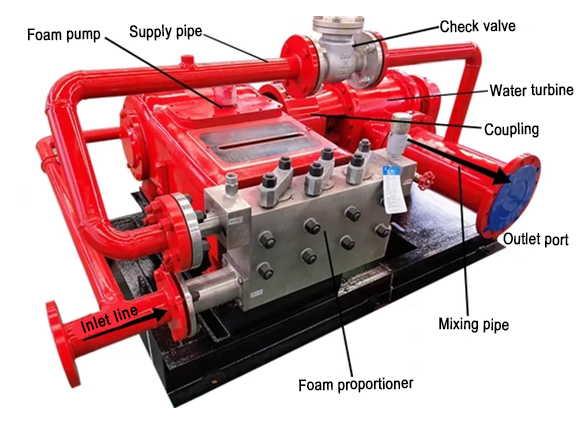

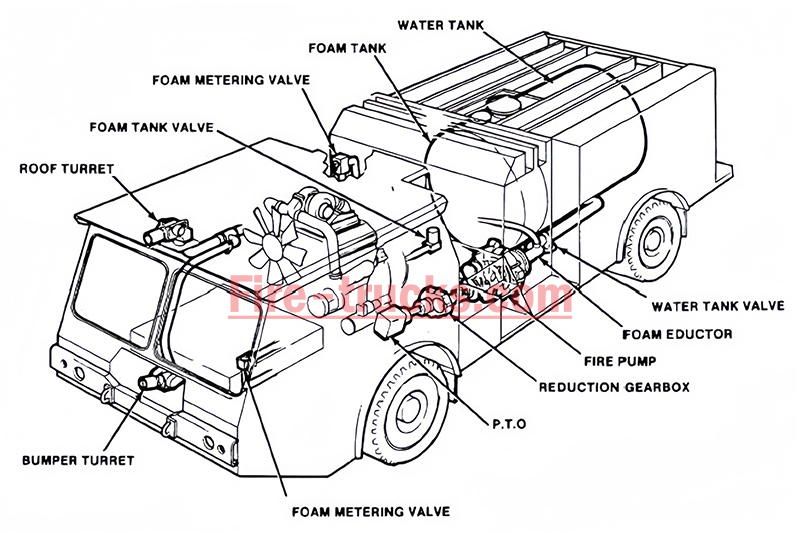

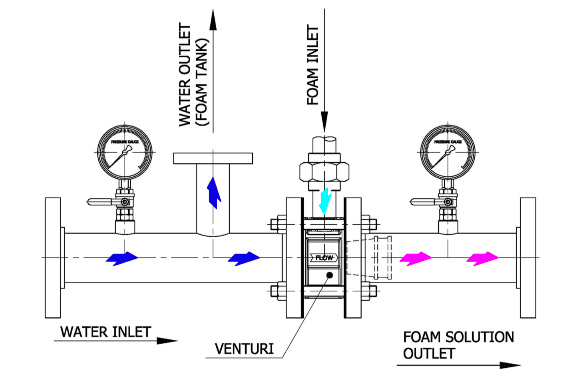

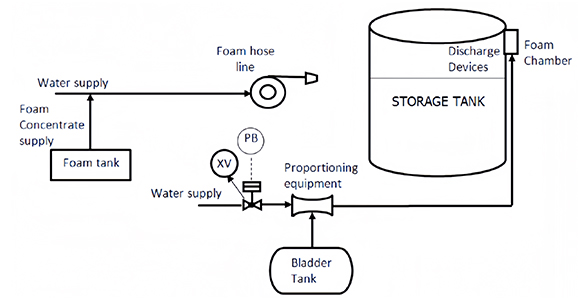

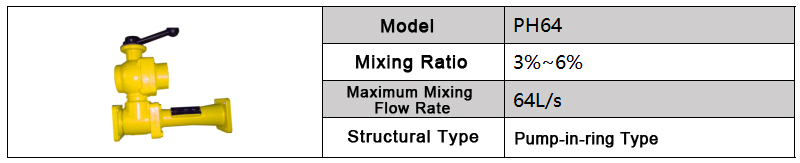

Foam fire trucks are essential for fighting flammable liquid fires at airports, oil refineries, chemical plants, and fuel storage facilities. Like all specialized equipment, foam fire trucks require regular maintenance to stay ready for emergencies. This article covers common faults and practical solutions. I. Types of Firefighting Foam Before discussing faults, understanding foam types is essential. There are three main categories:     Foam Type Application Class A Foam Ordinary combustibles (wood, paper, cloth) Class B Foam Flammable liquids (gasoline, oil, diesel) AFFF (Aqueous Film Forming Foam) Forms a barrier between fuel and air, prevents re-ignition II. Common Faults and Solutions 1. Pressure System Faults Problem: Insufficient foam discharge or unstable pressure Possible causes: Damaged pressure pump Pump drive system failure Blocked pipelines Solutions: Regularly inspect the pump and drive system Clean and maintain pipelines Repair or replace damaged components 2. Foam Liquid Supply Issues Problem: Insufficient foam liquid or system not working properly Possible causes: Foam liquid pump failure Foam tank problems Blocked foam liquid pipelines Solutions: Check pump, tank, and pipelines Ensure all passages are clear Clean and replace damaged components 3. Control System Faults Problem: Unable to accurately control foam discharge and water flow Possible causes: Circuit failure Damaged control panel Sensor failure Solutions: Check circuit connections Replace damaged control panel or sensors Perform system recalibration 4. Foam Concentration Control Issues Problem: Foam concentration too high or too low, affecting extinguishing performance Possible causes: Concentration control system failure Damaged proportioner Incorrect proportioner settings Solutions: Calibrate the concentration control system Inspect and clean the proportioner Ensure foam concentration is within the correct range 5. Vehicle Power System Faults Problem: Vehicle power system failure affects driving and operation Possible causes: Engine failure Transmission problems Electrical system failure Solutions: Regularly inspect engine, transmission, and electrical system Ensure normal operation Repair or replace faulty components in a timely manner 6. Foam Generator Cannot Produce Foam Problem: Foam generator fails to produce foam or produces poor quality foam Possible causes: Air inlet blocked by foreign objects Foam mixture does not meet requirements (expired foam concentrate, incorrect proportioning ratio) Solutions: Inspect and remove blockages from the air inlet Test and maintain the proportioner Replace expired foam concentrate 7. Proportioner Corrosion or Seizure Problem: The proportioner is rusted or stuck Possible causes: Not rinsed with clean water after use Long-term corrosion from foam concentrate Solutions: Regularly remove and maintain the proportioner Rinse thoroughly with clean water after each test or use 8. Pump Perfor...

A dry powder fire truck is a specialized firefighting vehicle designed to extinguish fires using dry chemical powder instead of water or foam. It is particularly effective for Class B (flammable liquids) and Class C (energized electrical equipment) fires, where water or foam may be ineffective or dangerous. Dry powder works by interrupting the chemical chain reaction of the fire, creating a cloud of fine particles that separates the fuel from oxygen. A dry powder fire truck carries a tank filled with dry chemical powder, typically based on monoammonium phosphate or sodium bicarbonate. It uses a compressed gas system — usually nitrogen or compressed air — to propel the powder through hoses and nozzles onto the fire. Unlike water or foam trucks, dry powder trucks do not require mixing or proportioning systems. The powder is stored ready for immediate discharge. I. Key Components of a Industrial Dry Powder Fire Truck 1. Powder tank: Stores the dry chemical powder, typically made of carbon steel or stainless steel with anti-corrosion coating Tank Design Features:› Bottom: Equipped with an air inlet pipe› Top: Includes pressure gauge connector, outlet connector, and safety valve› Inlet structure: One-way valve prevents backflow› Material: Carbon steel with anti-corrosion treatment 2. Nitrogen Propellant gas cylinders: Store compressed nitrogen or air at high pressure (typically 15-20 MPa) to propel the powder 3. Pressure regulator: Reduces gas pressure from cylinders to a safe operating level 4. Powder discharge valve: Controls the flow of powder from the tank into the discharge line 5. Hoses and nozzles: Deliver the powder to the fire; dry powder nozzles are designed to prevent clogging 6. Control panel: Allows the operator to pressurize the tank, open valves, and control discharge 7. Piping system: Connects the powder tank, gas cylinders, and discharge points II. How Does a Chemical Dry Powder Fire Truck Work? The working principle of a dry powder fire truck can be broken down into several key steps. Step 1: Powder Loading Dry powder is loaded into the tank through the powder fill port. Note that no caked powder should be poured into the tank to avoid pipe blockage. The powder must be kept clean and free-flowing. Step 2: Nitrogen Charging The nitrogen system must be used together with the dry powder system. Appropriate nitrogen cylinders are selected based on the dry powder truck's capacity. Before operation, close the nitrogen inlet valve, open one or both cylinder valves and the nitrogen outlet valve. Check that the high pressure gauge reads 13 MPa and the low pressure gauge reads 1.4 MPa. Step 3: Tank Pressurization When the low pressure gauge shows a stable reading of 1.4 MPa, open the tank feed valve button. Check the tank pressure gauge. When the pressure stabilizes at 1.4 MPa, the dry powder is ready for discharge. At this point, the ...

Water fire trucks fight ordinary fires involving wood, paper, and cloth. Foam fire trucks fight flammable liquid fires like gasoline and oil. Which one is right depends on the hazards present. A water fire truck carries a large tank of water and relies on a high-pressure pump to deliver water through hoses or a deck gun. It is the most common type of fire truck used by municipal fire departments and industrial sites worldwide. A foam fire truck, on the other hand, is specially designed to carry and deliver firefighting foam. When water alone cannot effectively extinguish a fire — such as with flammable liquids, chemicals, or fuel fires — foam is the better choice. Foam works by creating a blanket over the fire, cutting off oxygen and preventing re-ignition. I. What Is a Water Fire Truck? A water fire truck is exactly what it sounds like — a vehicle equipped with a large water tank, a powerful pump, and hoses or monitors to deliver water onto fires. The water tank typically holds between 500 and 3,000 gallons (approximately 2,000 to 12,000 liters). The pump draws water from the tank or from an external source such as a fire hydrant, lake, or pond, then pushes it through hoses under high pressure. Where water fire trucks work best: Water fire trucks are ideal for Class A fires, which involve ordinary combustibles: Wood and lumber Paper and cardboard Cloth and fabric Rubber and plastics Grass, brush, and forest materials If the fire involves materials that burn in a house, warehouse, or field, water will usually put it out.     Limitations of water: Water has one major weakness. When sprayed on burning liquids like gasoline, oil, or chemicals, water sinks because it is heavier than these fuels. The fuel floats on top and continues burning. In some cases, water can even spread the fire to a wider area. That is why water alone is not effective for flammable liquid fires. Water fire truck fire pump specifications: Water fire truck fire monitor specifications: II. What Is a Foam Fire Truck? A foam fire truck is a specialized vehicle designed to transport and deliver firefighting foam. It carries two separate tanks — one for water and one for foam concentrate. A foam proportioning system mixes the two at a specific ratio, typically 1%, 3%, or 6% foam concentrate to water. This mixture then passes through a foam nozzle where air is added, creating an expanded, stable foam blanket. How foam works: The foam forms a layer over the burning liquid or material. This blanket: Cuts off the oxygen supply to the fire Cools the fuel surface Prevents flammable vapors from escaping Stops the fire from re-igniting Where foam fire trucks work best: Foam fire trucks are essential for Class B fires, which involve flammable and combustible liquids: Gasoline and diesel Jet fuel and kerosene Oil and grease Alcohol and ethanol Industrial chemicals Foam is also effective for certain Class A fires where water alone stru...

Fire trucks operate through the coordinated function of multiple systems to achieve water supply, pressure generation, and fire suppression. Understanding these principles helps fire crews operate effectively in emergency situations.   »Ⅰ. How Fire Trucks Work :    ▪         A. Pump System: The Heart of Fire Suppression:   The heart of any fire truck is its pump. This high-powered unit draws water from the onboard tank or an external source—such as a fire hydrant, lake, or pond and delivers it through hoses under high pressure. The most commonly used pump is the centrifugal pump, which relies on a rotating impeller to pressurize and move water.   Firefighters control the water flow using a series of levers and gauges on the pump panel. They can adjust pressure as needed and direct water to multiple hose lines simultaneously.   Pump Type Characteristics Best Application Single-stage centrifugal pump High flow, moderate pressure General municipal firefighting Two-stage centrifugal pump Switchable between volume and pressure High-rise buildings, long hoses lay Multi-stage pump Very high pressure Industrial facilities, foam systems   ▪         Key Pump Parameters:          › Flow rate: 1,200 - 6,000 liters per minute (depending on model)          › Maximum pressure: 1.0 - 2.5 MPa (10-25 bar)          › Priming time: ≤30 seconds    ▪         B. Water Tank and Storage System：          › Tank capacity: 500 - 1,500 gallons (approximately 2,000 to 6,000 liters), depending on vehicle size and type          › Tank material: Corrosion-resistant stainless steel or coated carbon steel          › Internal baffles: Multiple compartments with anti-surge design to control water movement during emergency response          › Filling time: ≤3 minutes via fire hydrant or drafting          › Water level indicator: Visual gauge on tank side; optional cab display   The tank is constructed from corrosion-resistant materials, typically stainless steel or coated carbon steel, with internal baffle plates that control water surge during emergency response driving.          ▪         C. Hose and Nozzle Systems Fire trucks carry various hoses with different functions:          › Attack hose: 1.5 - 2.5 inches diameter — delivers water directly to the fire source          › Supply hose: 4 - 5 inches in diameter — transports water from hydrants or other pumpers          › Booster hose: smal...

As the most professional Isuzu Fire truck factory, the core design of the Isuzu NPR water foam fire truck is to integrate a foam fire extinguishing system into a water tanker fire truck, forming a composite fire extinguishing equipment that can spray both water and foam. It can independently extinguish fires; deliver water or foam mixture to other equipment; and is suitable for operations in arid and water-scarce areas.         ★ Techncial Specification    All fire trucks from CS trucks, 100% based on customer requirements   Capacity  Engine model         Water    Foam      Fire Pump   Fire Monitor 2,500L ISUZU 4HK1 / 190HP 2,500L 500L CB10/40 Fire Pump PL8/32     2026 offical ISUZU Fire truck cab chassis truck   2026 original fire truck chassis drawing   Item Design Details of Isuzu Fire trucks Design Core   Integrates a foam extinguishing system into a water tanker fire truck, forming a dual-capability fire-fighting vehicle capable of discharging both water and foam. Features include:• Independent fire suppression• Water or foam mixture supply to other equipment• Suitable for arid or water-scarce areas, enabling multi-functional use   Overall Design Concept   Designed to meet fire-fighting needs in workshops and surrounding areas, with enhanced capabilities for oil, electrical, and solid material fires; the vehicle consists of a chassis and specialized body equipment, emphasizing reliability, multi-functionality, and ease of operation   Chassis Selection   • Uses proven medium or heavy-duty type-II chassis• All-wheel drive recommended to improve mobility and traction in complex terrain     2026 NEW DESIGN OF ISUZU 700P Water Fire Trucks   Core System Components & Design Key Points 1. Water Tank & Foam Liquid Tank   • Material: Stainless steel, corrosion-resistant• Recommended capacity: Water tank 3000–5000L, foam liquid tank 300–600L• Structural optimization: Internal baffles separate water and foam chambers, switchable via connecting ports to single water tank mode, enabling multi-purpose use   2. Foam Proportioning System   • Uses balanced pressure proportioner (core component) to precisely mix water and foam concentrate at 3% or 6% ratios• Stable output unaffected by flow or pressure fluctuations, suitable for non-specialist operators• Equipped with external foam suction inlet for on-site replenishment   3. Discharge System   • Fire pump: High-efficiency, energy-saving multi-stage centrifugal pump, flow rate ≥40L/S• Fire monitor: Remote-controlled water/foam dual-purpose monitor, range ≥50 meters, adjustable angle• Supports connection to fire hoses and foam nozzles for flexible operations       2026 NEW DESIGN OF ISUZU NPR Foa...

The PF5-15 fixed dry powder monitor uses dry powder as the medium and relies on a fixed base for stable spraying. It is suitable for chemical and warehouse areas, and can quickly cover the burning surface in the early stages of a fire, improving extinguishing efficiency. The PF5-15 fixed dry powder monitor has a robust structure, is easy to operate, and can be linked with an automatic control system for remote activation and precise spraying. » Ⅰ. PF5-15 fixed dry powder monitor structure:   Features of the PF5-15 fixed dry powder monitor: ● Fully functional; ● Simple and novel structure; ● Stable performance and easy maintenance; ● Low inlet pressure; ● Equipped with an automatic drain valve with horizontal and vertical locking functions; ● Material: Precision cast aluminum alloy; ● Cannon head: Aluminum alloy. » Ⅱ. Foam Cannon PL24 specifications:     Model Flow（kg/s） Range（m） Rated working pressure（Mpa） Pitch rotation（°） Horizontal rotation（°） L×W×H（mm） Weight（Kg） PF5-15/40 40 ≥42 0.80 -45～+70 0～360 980x340x550 28.5       » Ⅲ.Product Applications:     Fire truck with PF5-15 fixed dry powder monitor PF5-15 fixed dry powder monitor testing   The PF5-15 fixed dry powder monitor has a long spray distance and wide coverage, and can quickly form a dry powder fire extinguishing barrier. It is suitable for fixed locations such as chemical plants, oil depots, and storage areas, providing continuous and stable fire extinguishing capabilities for large areas.

Isuzu 6HK1-TC fire trucks, also named Isuzu rescue fire vehicle, Engine Error Code Diagnosis and Solutions.The Isuzu 6HK1-TC engine utilizes the advanced TICS fuel injection pump electronic control system, and the ECU (Engine Control Unit) features self-diagnosis. When the system detects a fault, the "CHECK ENGINE" warning light illuminates and the corresponding fault code is stored. Understanding the interpretation and solutions for these error codes can effectively improve engine maintenance efficiency.   Common Error Codes and Solutions P-Series Trouble Codes P0101 (Mass Air Flow Sensor Circuit Low) Check the engine coolant temperature sensor and its wiring. Verify the sensor power supply voltage and ground connection. Replace the ECU or sensor if necessary.   P0102 (Mass Air Flow Sensor Circuit High) Check fuel quality and filter condition. Clean the fuel system. Check the fuel pressure regulator, fuel pump, and injector circuits.   P0103 (Mass Air Flow Sensor A Circuit High) Check the sensor signal circuit for a short circuit. Test the sensor's operating status. Replace the sensor or ECU if necessary. Digital Trouble Codes   10 (Rack Sensor Error) Check the rack sensor and its wiring. Verify normal signal transmission.   11 (Speed ​​Governor Servo System Error) Check the speed governor servo system's operating status. Test related circuit connections.   14 (Auxiliary Speed ​​Sensor Error) Check the auxiliary speed sensor's installation position. Test the sensor's signal output.   15 (N-TDC Sensor Error) Check N-TDC sensor connection Verify signal accuracy System maintenance and preventive measures     SN Diagnostic items Decision time Backup control data Electronic governor Before you travel 10 Rack sensor error 160ms 　 Off oil or constant speed Normal control 11 Governor servo system error 1s 　 Off oil or constant speed Normal control 14 Secondary speed sensor error 10s 　 Normal control Normal control 15 N-TDC sensor error  — 　 Normal control Normal control 14/15 N-TDC sensor and secondary speed sensor error 2.5s 　 Broken oil Control off 211 Fuel temperature sensor error 3s 20℃ 　 Control off 22 Atmospheric temperature sensor error 1s 25℃ 　 　 23 Engine coolant temperature sensor error 3s 55℃ Normal control 　         Connector Terminal No. Signal Wire cotor/diameter(Injection pump harness) SWP 8-terminals Black 1 Governor actuator drive voltage - 1 RM 2 2 Governor circuit GND-1 W/1.2 3 Target rack position - 1 U1 2 4 Rack position voltage G/1.2 5 Governor circuit 5V-1 Y/1.2 6 Backup N sensor (GND) BR/1.2 7 Backup N sensor (SIG) 0/1.2 8 Pull-down B/1.2 SWP6- terminals Black g Governor actuator drive voltage - 2 R/1.2 10 Target rack position - 2 L/1.2 11 Governor circuit GND-2 W/1.2 12 Governor circuit SIG-GND BR/1.2 13 Governor circuit 5V-2 Y/1.2 SWP 3-terminalsBlack 14 Limp home W1.2 15 Sub-coil (Not used) BY/1.2 Regular maintenance Change engine oil on schedule (base...

Isuzu 6HK1 Fire Rescue Vehicles, also named Isuzu fire service truck, If a Isuzu rescue fire truck engine overheats, the following areas should be checked first:1. Cooling system: Problems such as a damaged fan, clogged radiator, damaged thermostat, or insufficient coolant can all contribute to engine overheating.2. Oil quality and quantity: Poor oil quality or insufficient oil can also cause engine overheating.3. Mechanical failures such as cylinder blowout, cylinder liner cracks, or cylinder liner cracks can also cause this phenomenon.   As a heavy-duty diesel powertrain, the Isuzu 6HK1 engine requires strict adherence to technical specifications for maintenance. Key points are as follows:           1. Structural Understanding and Disassembly and Assembly Specifications Crankshaft-Connecting Rod Mechanism The cylinder liner features a loose-fit design, requiring special tools to prevent it from falling out during disassembly and assembly. The standard clearance is 0.122–0.156mm. The piston outer diameter has a tight tolerance (114.894–114.909mm). During installation, pay attention to the piston ring opening direction and the "three clearances" (end clearance, side clearance, and back clearance) adjustment. The lower crankcase is a one-piece structure and must be hoisted during maintenance to prevent deformation. Timing System Alignment During gearbox assembly, align the crankshaft gear and idler gear marks. The camshaft B mark must be flush with the cylinder head surface. The engine should be at compression top dead center on the first cylinder. When installing the fuel injection pump, align the timing pointer with the S point on the connector, and align the injection advancer mark with the pump body pointer.       •The linear DC motor pushes the coil up and down under the control unit output signal. •The connecting rod installed on the coil assembly transmits the up and down motion of the coil to the connecting block, and the connecting block is installed at the end of the rack. Under the push of the connecting block, the rack moves left and right to change the amount of fuel injected. When the coil assembly moves up, the link pushes the rack to increase the direction of the oil; conversely, when the coil assembly goes down, the rack moves in the direction of reducing the oil, and the function of the column is to convert the vertical motion to the height of the rack. movement.   •The copper block is mounted on the upper part of the connecting block to form a rack sensor. The rack sensor detects the rack stroke and feeds this value back to the control unit so that the actual rack stroke and the target rack stroke can be continuously compared until the difference between the two approaches zero. This process is very important to control accuracy and response.   2. Key System Maintenance Points Lubrication and Cooling System Oil change interval: Mineral oil: ev...
