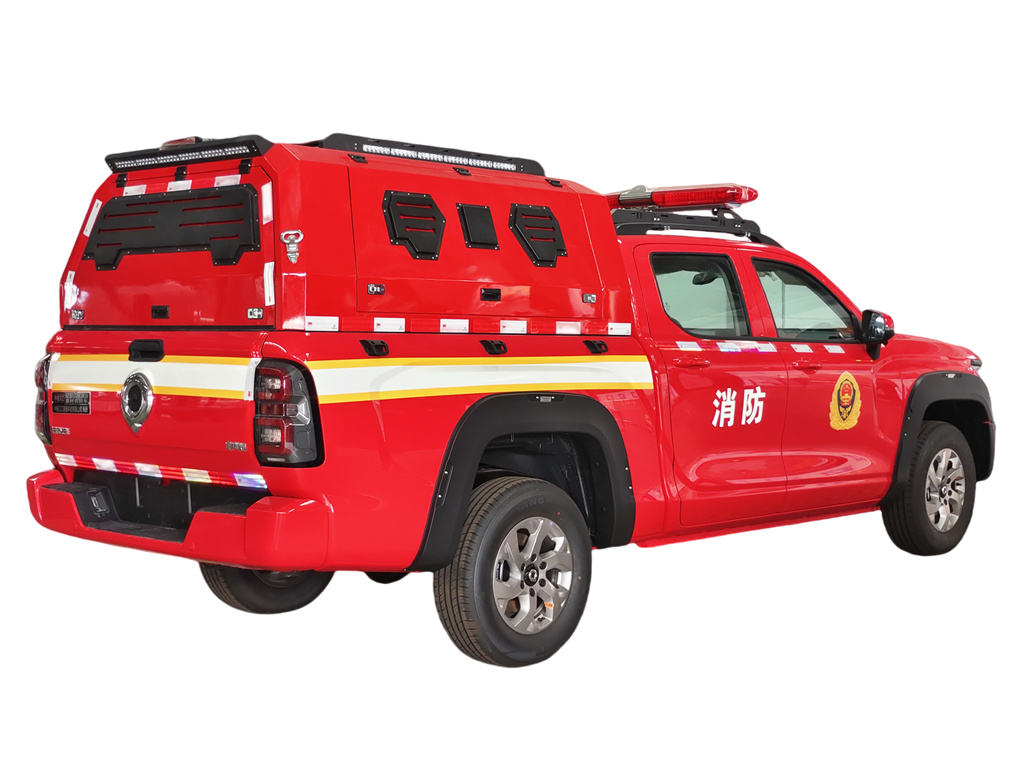

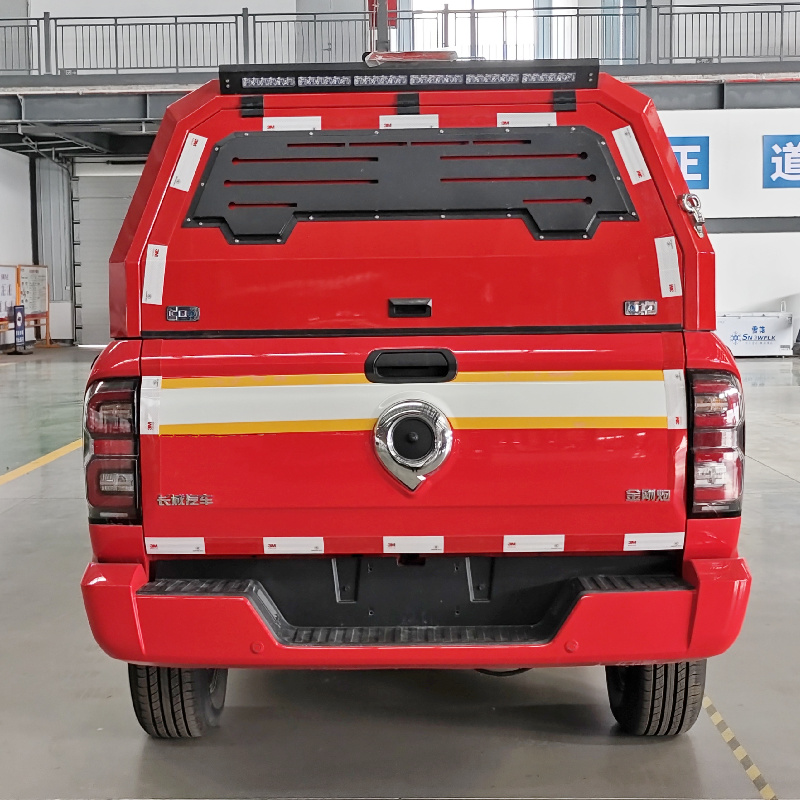

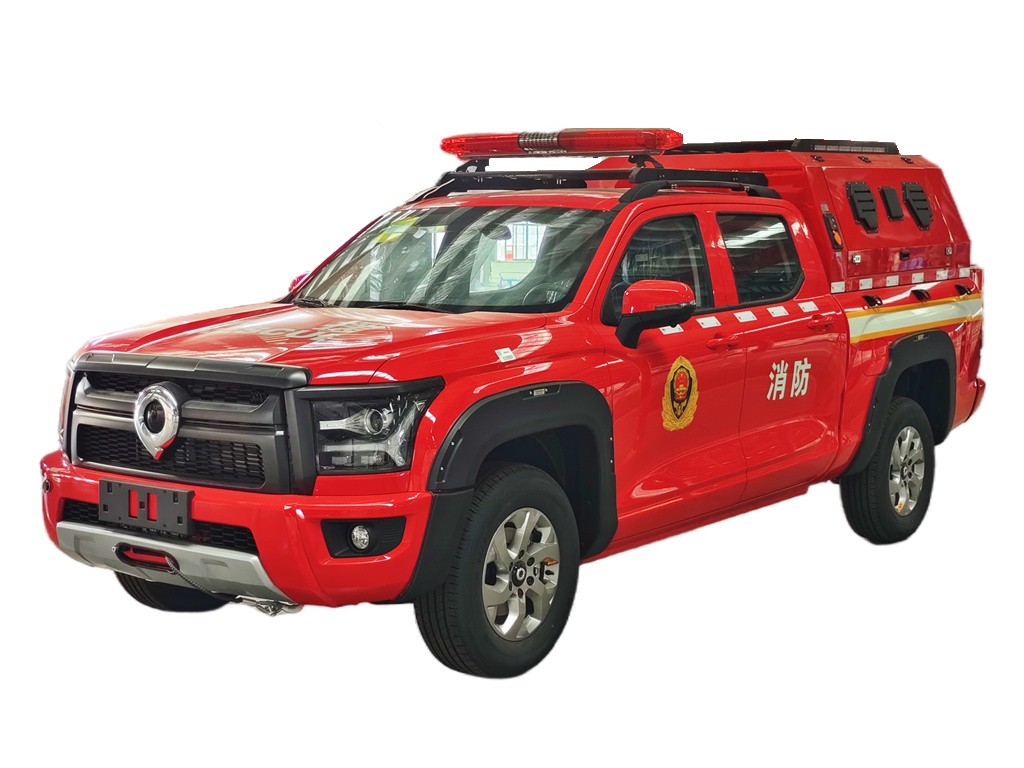

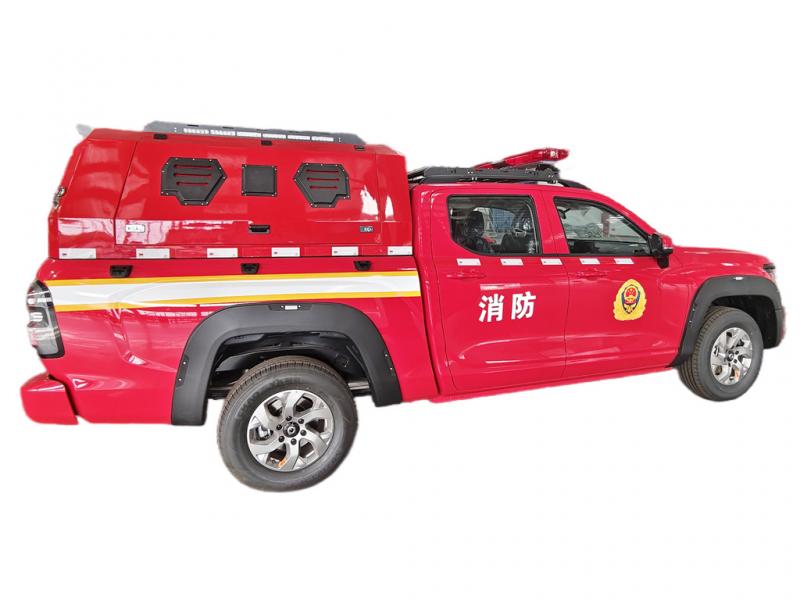

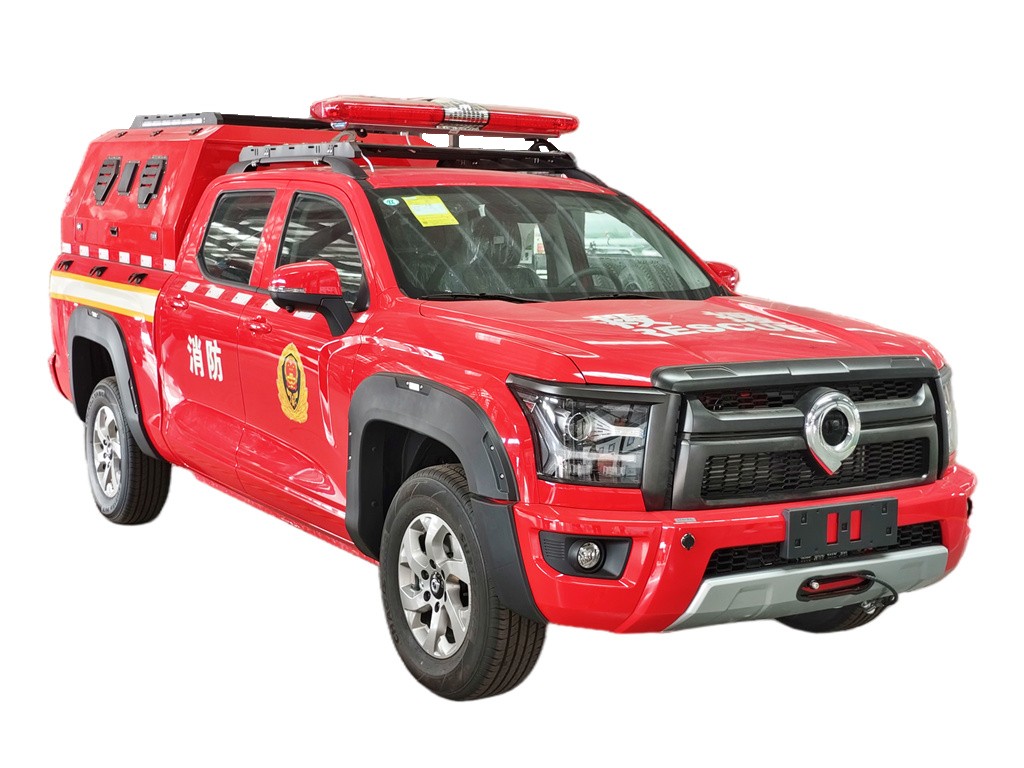

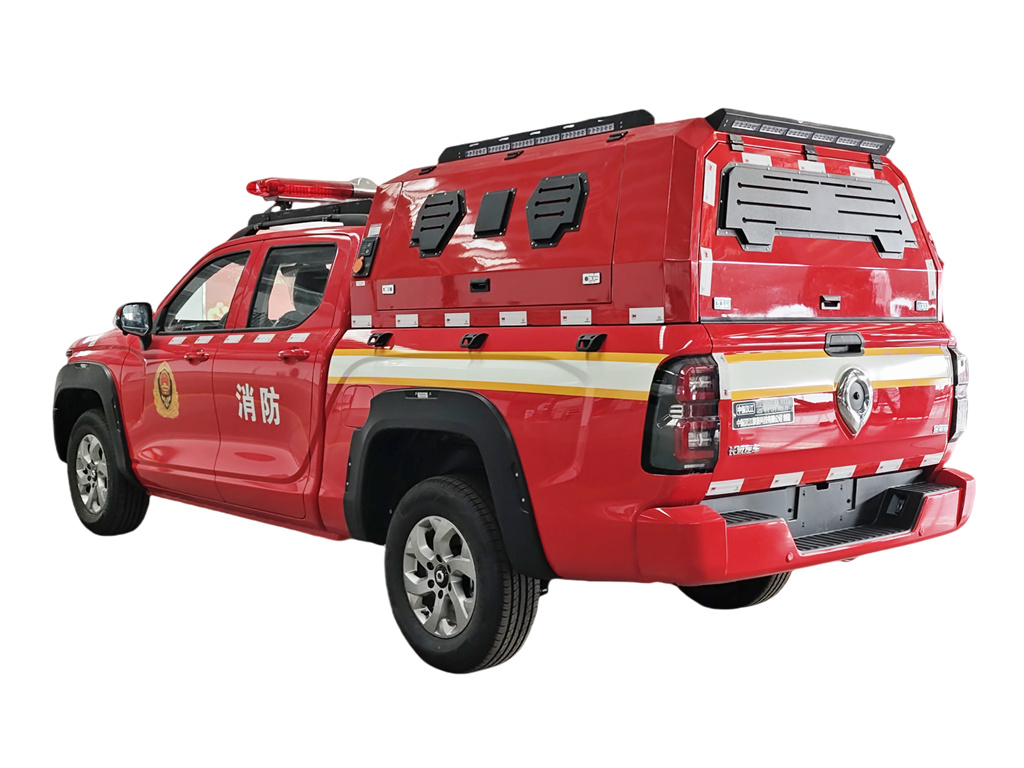

The Grate Wall 4x4 offroad pickup model fire command vehicle is a truck used as a senior officer or fire department to respond to firefighting incident. Which is modified as a professional fire emergency rescue vehicle based on the GWM brand pickup truck, equipped with all necessary equipments and designed to enhance the rapid response and complex environment combat capabilities of the fire brigade.
Manufacturer Origin:
PST5031TXFWork capacity :
600 kgUpper Body material:
Aluminum Alloy materialWheelbase:
3410 mmAxle drive:
4x4Engine Power:
145KW / 197HPEngine Model:
GW4C20BFire Pump:
NULLFire Monitor:
NULLRemark:
Customized to be equipped with independ generator
Newly designed international Great Wall 4x4 offroad fire command vehicle is a highly customized extension of the Great Wall pickup in the field of firefighting. It integrates all terrain 4x4 off road function, multi-functional modification potential and professional rescue configuration, and has become the core equipment for firefighting teams to deal with all-disaster, large-scale emergency tasks. CHANGCHENG Grate Wall 4x4 fire command vehicle is a light fire command and emergency communication vehicle modified based on the GWM pickup truck chassis. It is mainly used for fire scene command and dispatch, information transmission, equipment transportation and small fire fighting and rescue tasks. Grate Wall 4x4 fire command vehicle is a low cost, highly mobile fire command platform suitable for rapid response and flexible deployment of firefighting tasks, especially for early fire handling in narrow roads or remote areas.
Grate Wall fire command vehicle also know as the Grate Wall 4x4 Rapid Intervention Vehicle, which is based on GWM 4x4 offroad pickup trucks with four-wheel drive (4WD) model, adaptable to complex terrain road condition, GW4C20B gasoline model turbocharged engine with 145KW / 197HP and emission can be 1967cc, strong power and low fuel consumption. Truck chassis wheelbase can be 3410mm, long enough for large equipment storage and carriage, mounted with 245/70R17 tubeless tires with 4+1 spare tire. System Main equipment Command system On-board computer, 4G/5G image transmission, intercom relay station, loudspeaker, also flashing warning lights and LED lights on four sides. GWM pickup fire command vehicle with fire fighting equipment including fire extinguisher, water hose, fire axe, gas mask, air apparatus. Emergency tools including hydraulic demolition tool set, first aid kit, emergency power supply. Also equipped with power system the dual batteries, main battery and auxiliary battery, inverter for 220V or 360V output.
| SPECIFICATION for Grate Wall Pick Up Fire Command Vehicle | |||
| Vehicle model | Equipment Fire Command Vehicle | ||
| Model brand | Dongfeng | ||
| Chassis code | Grate Wall | ||
| Traction system | 4*4 offroad | ||
| GVW (kg) | 2745 | ||
| Curb weight(kg) | 2370 | ||
| Rated Load(kg) | 600 | ||
| Overall dimensions (mm) | 5635*1950*2050 | ||
| Wheel base (mm) | 3410 | ||
| Allowable passengers in cab | 5 | ||
| Steering wheel | LHD | ||
| ROW | Double rows | ||
| Max speed(km/h) | 150 | ||
| Electric system | 12Volts | ||
| ENGINE | |||
| Engine MODEL | GW4C20B gasoline engine | ||
| Engine Power(HP) | 145KW / 197HP | ||
| Emission standard | Euro 6 | ||
| Displacement (ml) | 1967 | ||
| Engine type | 4Cylinder,water cooling,direct Injection turbo supercharging inter cooled | ||
| Gearbox Model | Auto gearbox 8AT | ||
| TRANSMISSIION MODEL | 8-speed front gears and 1 reverse gears, synchronized | ||
| Air conditioner (Y/N) | Yes | ||
| TIRES | 245/70R17 4tires + 1spare | ||
● TOP Chinese brand Grate Wall 4x4 pick-up fire command vehicle factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
GWM 4x4 offroad gasoline fire command vehicle is just as important to a successful fire ground operation as the fire truck itself. POWERSTAR specializes in custom solutions for any vehicle type, and every design is fully customized to meet your department’s command workflow. Moreover, we can provide all necessary fire rescue equipment as request.
| Superstructure | |
| 1 | Structure: The carriage adopts high-strength PP-C composite material welding structure, which is modified on the basis of the original car body. Also can be option Aluminium alloy material. |
| 2 |
Equipment door: (1) There are 2 aluminum alloy rolling shutter doors on the left and right sides of the equipment box. The door frame is made of light high-quality aluminum alloy, which is flexible to open and close, good in sealing, low noise, beautiful in appearance, light and reliable. All rolling doors can be opened with one key . (2) The rear equipment box door adopts gas spring up and down door |
| 3 | Equipment layout: The left and right sides and the rear of the carriage can be equipped with hydraulic demolition, hydraulic support, detection, personal protection, and alert equipment. |
| 4 |
Equipment Layout Principle: ★ Design equipment integration according to battle organization and battle deployment; ★ Design various equipment brackets according to ergonomic principles; ★ Place the equipment according to the logical relationship and frequency of use; ★ Stand on the ground or pedals, take and place fire fighting equipment in 2 actions. |
| Rescue Winch | |
| 1 |
Brand: Champion Model: K8000XF Rated tension: 3629Kg |
| 2 | Traction wire: ∮8X29M |
| Complete Electrical System | |
| 1 |

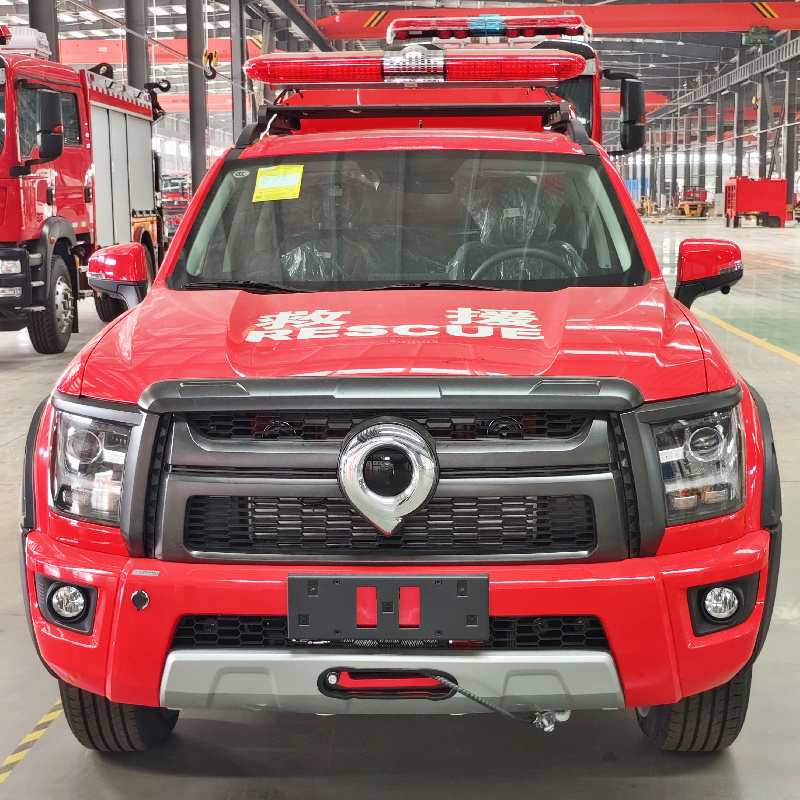

Install 6 off-road lights on the front of the vehicle |

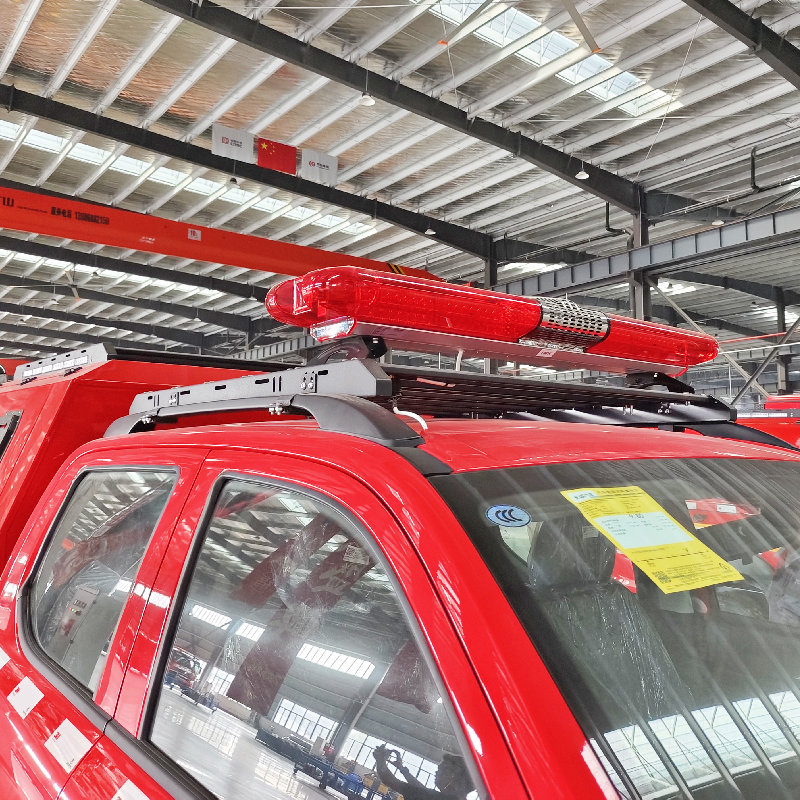

| 2 | The power of the alarm is 100W; the alarm and warning light circuits are independent additional circuits, and the control device is installed in the cab. |
| 3 | Two flashing lights are provided on the upper part of each side of the carriage. |
| 4 | There are two lights at the back of the equipment box. |
| Equipment along with Vehicle | |
| 1 | 5 sets of special warning tapes |
| 2 | On-board tool box 1 set |
| Documents along with Vehicle | |
| 1 | Vehicle Operation and Maintenance Manual |
| 2 | Vehicle Certificate |
Brand newly designed Grate Wall pickup fire command vehicles play an important role in the fire emergency system. which have advantage of mobility, cost-effectiveness, versatility and adaptability to special scenarios, also suitable for complex road conditions.
Flexible access: Compared with large fire trucks, GWM pickup trucks are smaller in size with only 5 meters in length and 2 meters in width and can easily enter narrow streets, old communities, and rural roads, avoiding delays in rescue due to road congestion.
4WD off-road capability: Grate Wall pickup truck with 4x4 offroad drive model, and other models have strong off-road performance, suitable for complex terrains such as mountains, forests, and muddy roads, and are suitable for forest firefighting, earthquake rescue and other scenes.
Quick response: In the early stage of a fire, the GWM pickup fire command vehicle can arrive at the scene before the large fire truck to conduct fire detection, personnel evacuation and initial fire extinguishing, and strive for golden rescue time.
