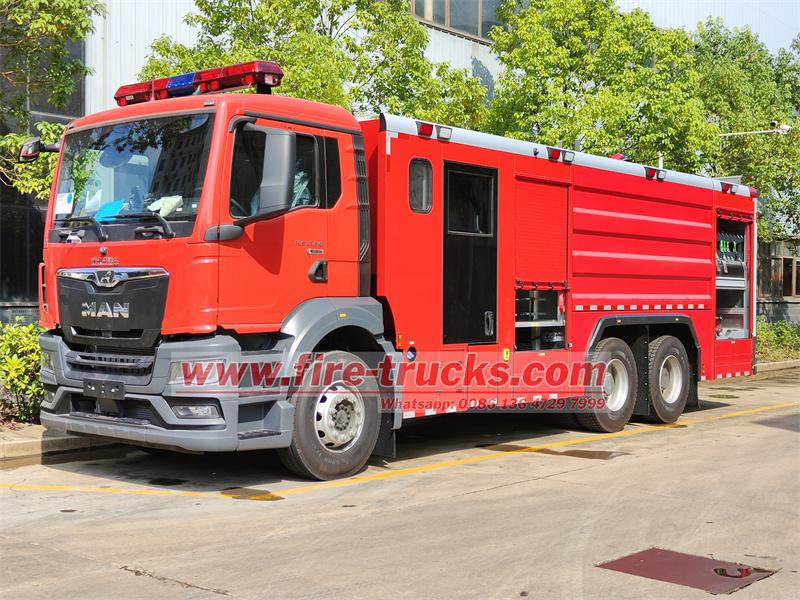

Germany MAN apparatus fire truck

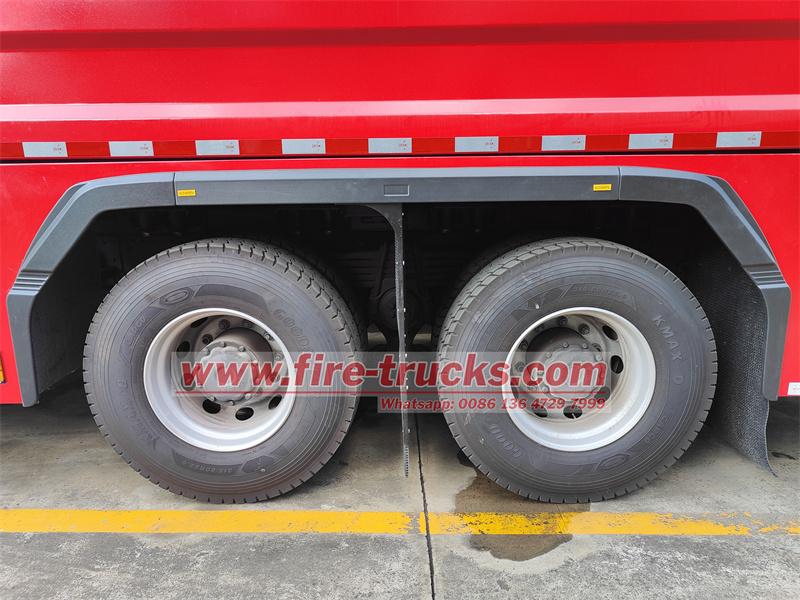

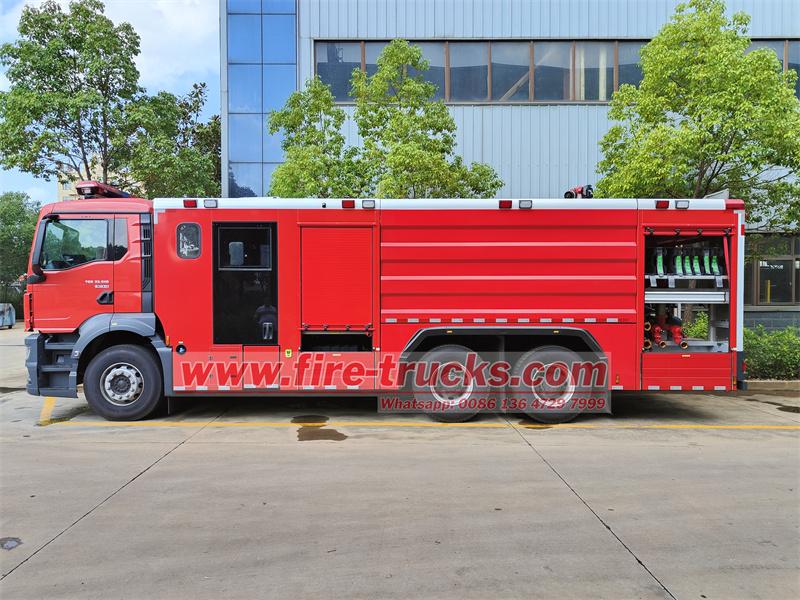

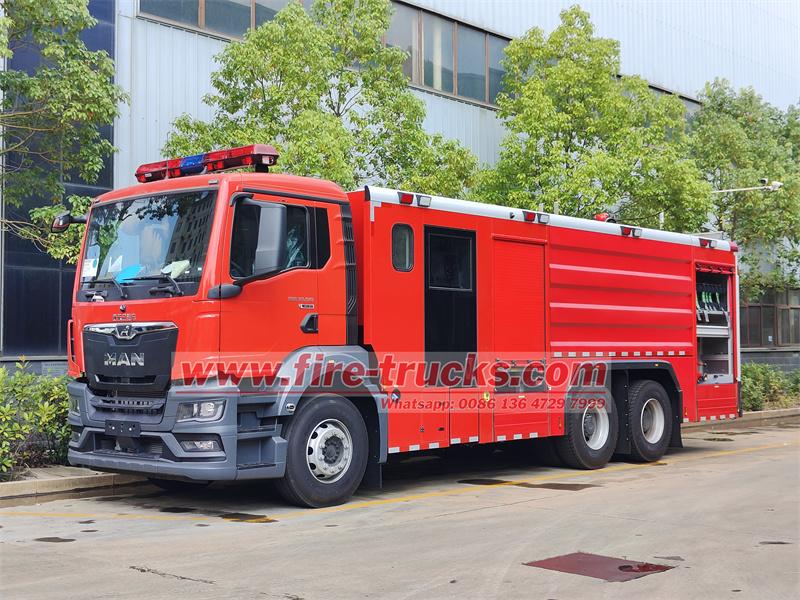

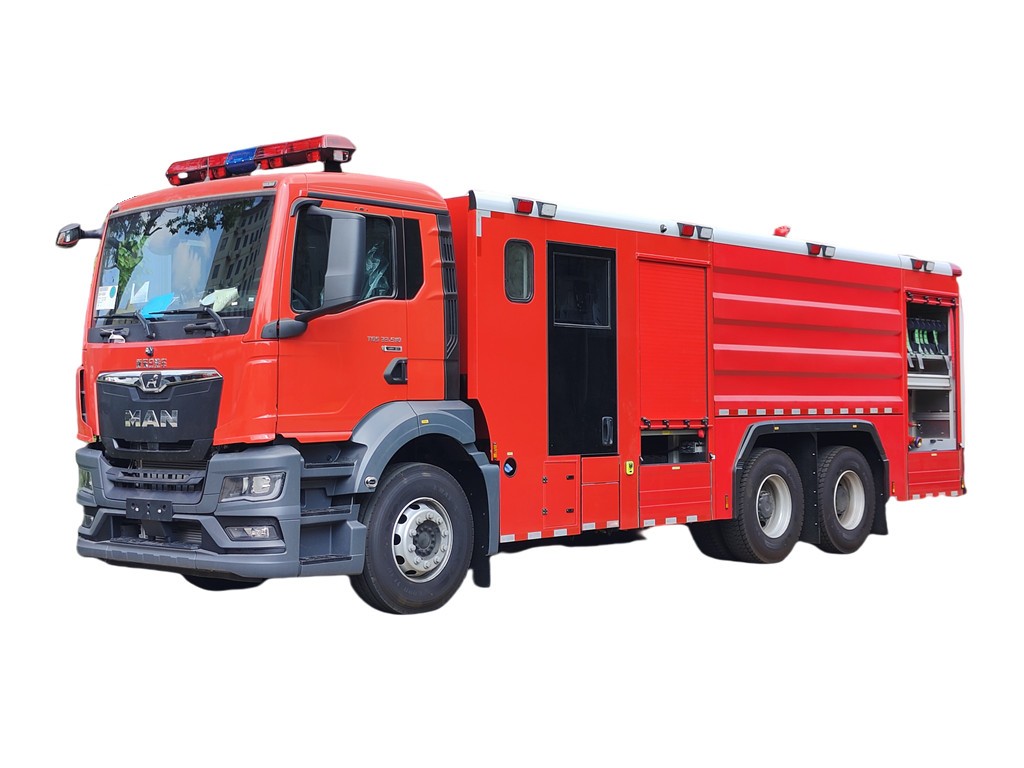

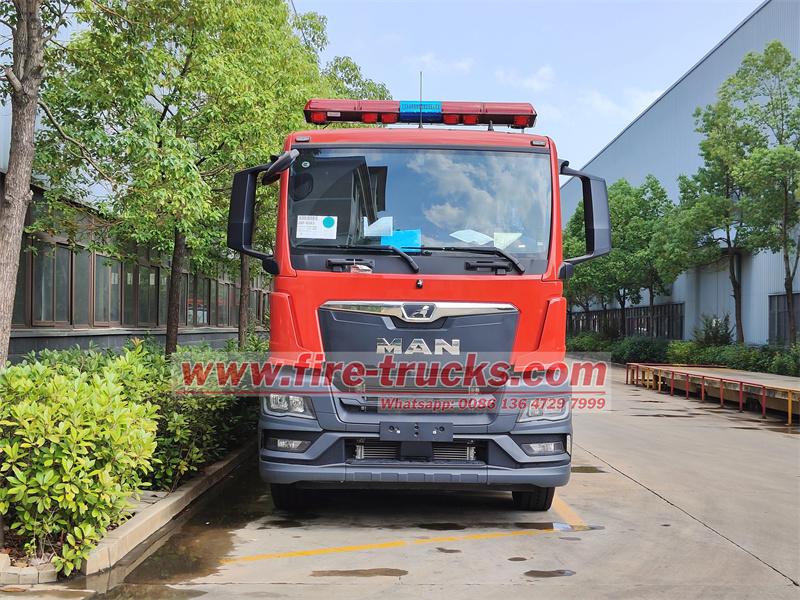

MAN TGS 3351 fire truck, also can be called MAN fire tender, MAN fire engine, which is a heavy-duty fire rescue vehicle produced by POWERSTAR. The MAN TGS 33.510 series apparatus fire truck uses the original Germany MAN truck chassis as the basis and undergoes specialized firefighting modifications, which mounted with MAN D2676LFAR diesel engine and 375KW/510HP power, emission can be 12400cc, wheelbase is 4500+1400mm and axle capacity for front axle is 6500kg, for rear axle is double 13000kg+13000kg, tubeless tires 315/80R22.5 with 10+1 sets, including one spare tire. The MAN fire pumper is a powerful and reliable heavy-duty fire rescue vehicle.

Germany MAN rescue fire service truck has a powerful engine and power system, a large-capacity stainless steel 304 material water and foam tank.

1. Mounted with American brand HALE CB10/100-RSD fire pump system, which is rear mounted ESP electric sliding van vacuum pump model, with flow rate 100L/s @1.0Mpa, maximum suction height 7m, and priming time less than 80 seconds.

2. Mounted with American brand AKRON PSKD10/80WB water foam fire monitor, with flow rate 80L/s and maximum jetting distance over 85m, rated pressure 1.0Mpa, the fire monitor is remote control model with horizontal 360° degree and vertical -30° to 90° degree.

Man fire fighting truck equipped with a variety of fire-extinguishing equipment and reliable tools, and modern communication and navigation systems, full sets breathe apparatus for safety guarantee, also additional fire cabin with apparatus SCBA seat, totally 2+4 unit. These features make the MAN TGS 33.510 fire truck an effective tool capable of quickly responding to fires, performing firefighting and rescue missions, and protecting the safety of firefighters.

Technical Parameters for Germany MAN 6x4 fire truck:

Germany MAN 6x4 TGS 33.510 Left Hand Drive chassis, water tanker body capacity could up to 12,000Liters, all with stainless material, truck equipped with American HALE CB10/100-RSD fire pump and AKRON PSKD10/80B-5177 fire monitor, reliable quality and very convenient for daily use. Mainly used for firefighting project in any areas of need. The vehicle designed to fully rely on the advantages of the original of MAN brand chassis, fully consider the product's convenience and reliability, also the chassis Germany MAN technology features. The body material is international standard stainless-steel material, which can effective to avoid rusting and service for long life. The Germany MAN 6x4 Fire Fighting Truck equipped with full power Sandwich PTO NMV221, fire pump, fire monitor, crew room, hose box, pump room, English versionontrol box, inlet and outlet pipeline, rear climbing ladder, top pillow lamp, and all necessary firefighting equipment. Single cabin with customized cabin with 4 seats for firemen with nice driving feeling. Therefore, the vehicle is an ideal Fire Truck mainly for firefighting project.

Component of the MAN TGS 33.510 rescue service fire engine:

German MAN 6x4 water tank fire truck is composed of MAN TGS truck chassis, SS304 water tank, HALE fire pump, pipeline, ARKON fire monitor, instrument circuit system and other components, the truck assembly after aluminum alloy ladder (removable), pump room in the rear of the vehicle, the tank is welded steel plate, liquid load 12.0 square, water tank material for high-quality stainless steel plate, equipment box for all aluminum alloy frame welding structure. The vehicle is equipped with Hill CB10/100-RSD fire pump and Amilon PSKD10/80WB fire cannon.

MAN TGS 33.510 cabin structure: Flat head, double-door single-row cab.

Seat setting: 2 people in the front row (including the driver)

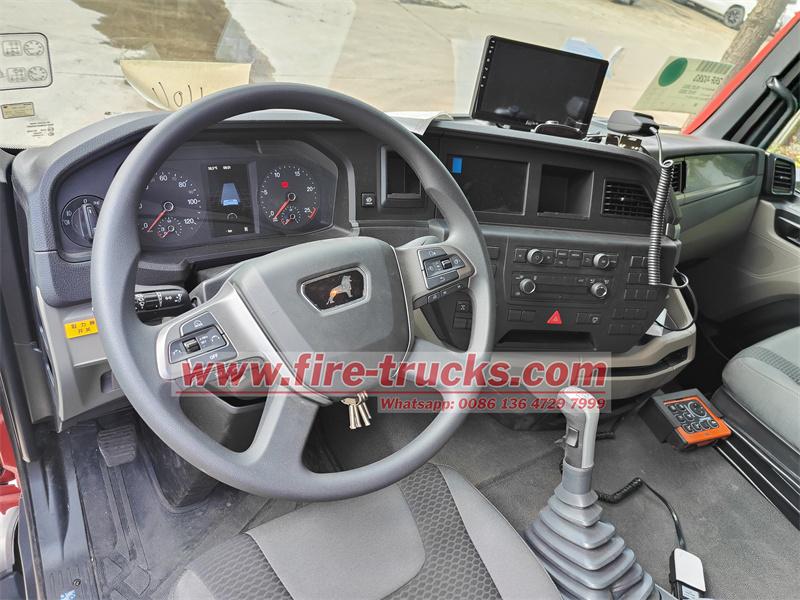

Equipment: Hydraulic flip device of the cab, electrically adjustable heated rearview mirror, heated wide-angle rearview mirror on both sides, in addition to the original equipment, it is equipped with a 100W alarm, power take-off control switch and warning light control box.

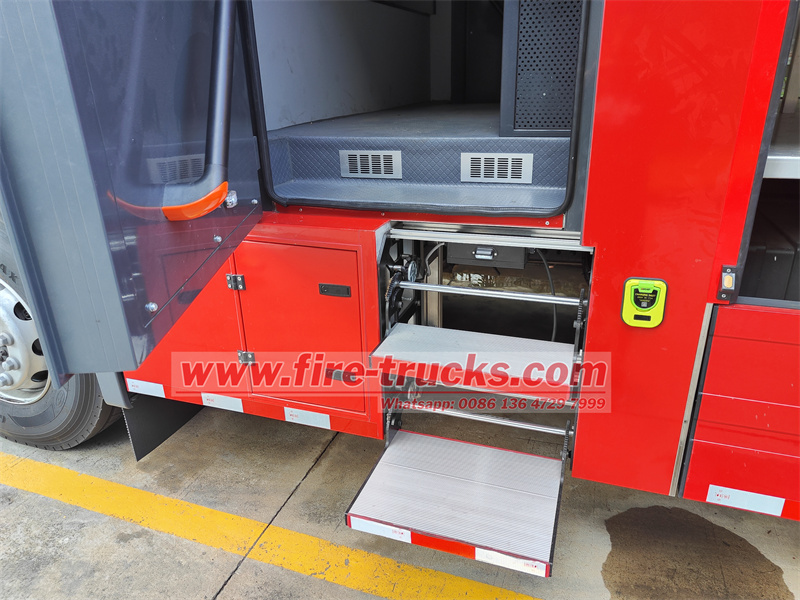

Germany MAN fire fighting truck with independent passenger compartment: It adopts aluminum alloy profile structure, high strength, corrosion resistance, light weight, easy maintenance, and ergonomic interior space design; the overall frame is connected to the subframe through elastic support, with 1 door on each side, equipped with automatic pedals for opening with the door; 6 sets of 6.8-liter adjustable carbon fiber single-bottle air respirator brackets can be embedded in the passenger compartment; the passenger compartment has good sound insulation, heat insulation, and shock absorption functions, and the floor is anti-slip treated; the passenger compartment is equipped with handrails, and the space can ensure that personnel can enter and exit freely when wearing air respirators; equipped with independent vehicle air conditioning; equipped with an intercom system connected to the cab

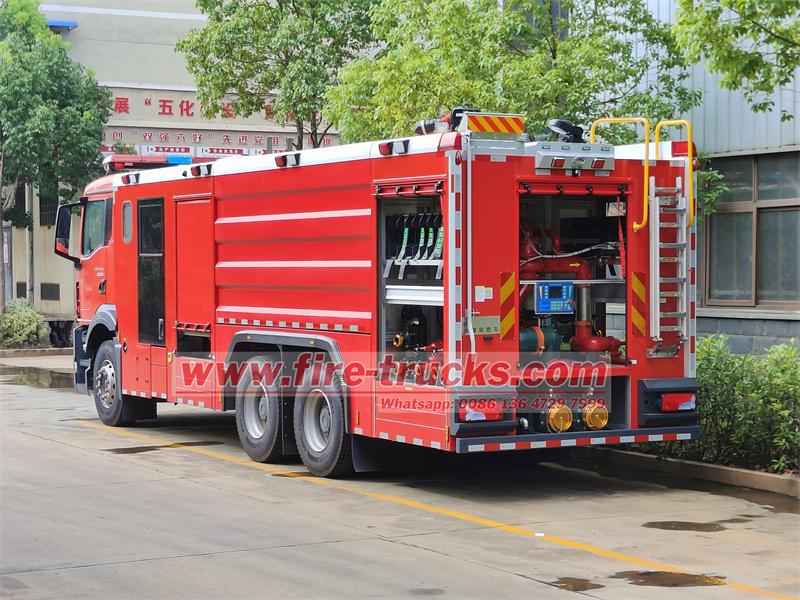

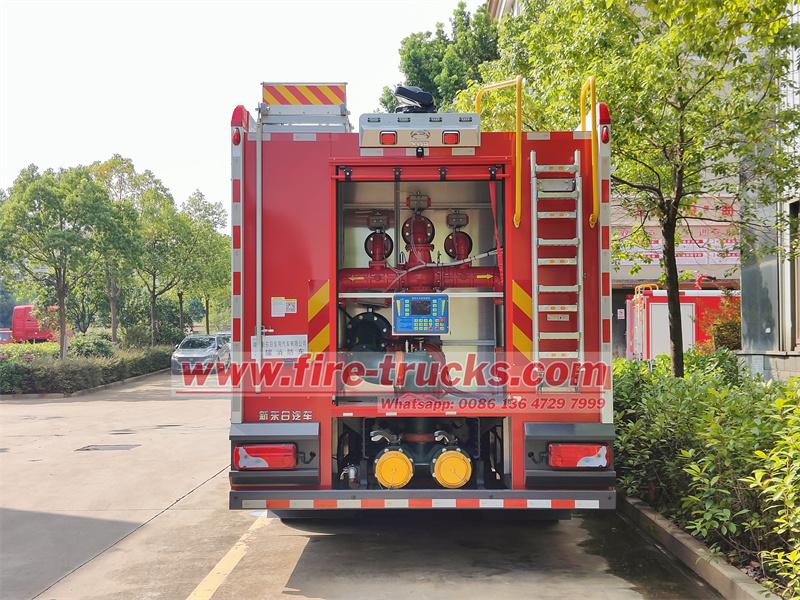

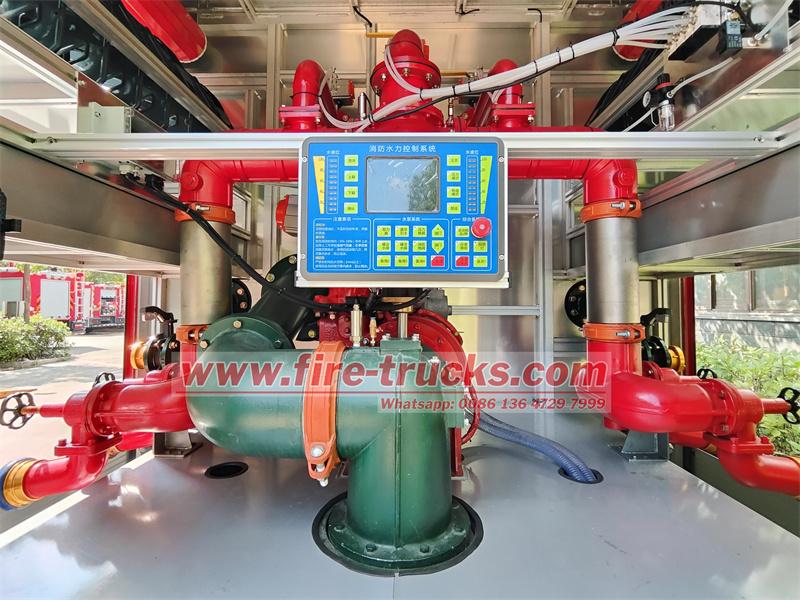

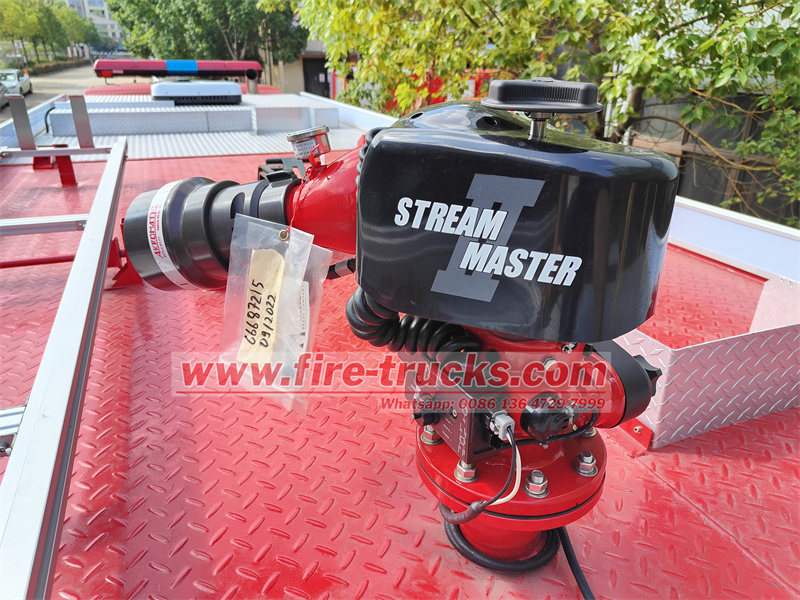

MAN fire fighting truck mounted with AKRON fire monitor	MAN fire engine rear mounted fire pump and control system

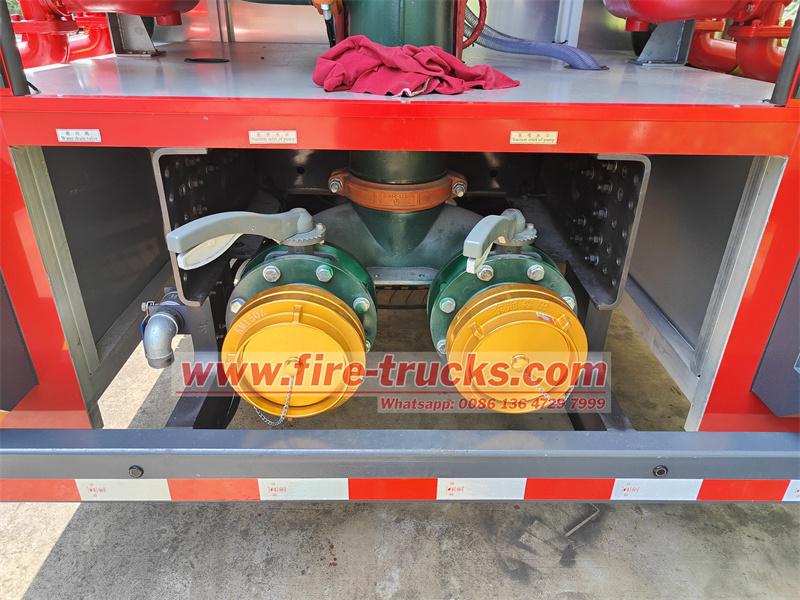

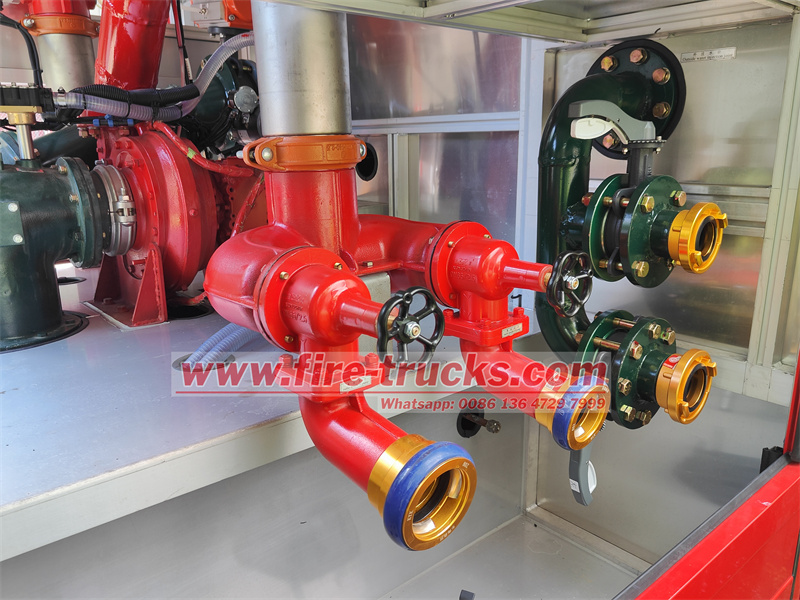

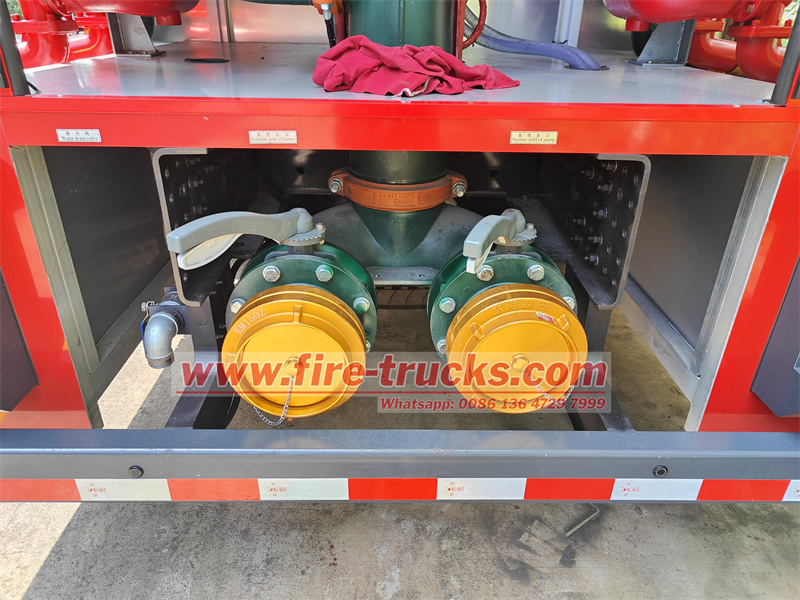

EURO type pipeline connector and valve for MAN fire engine	MAN fire fighing truck with two sets DN150 pump inlet valve

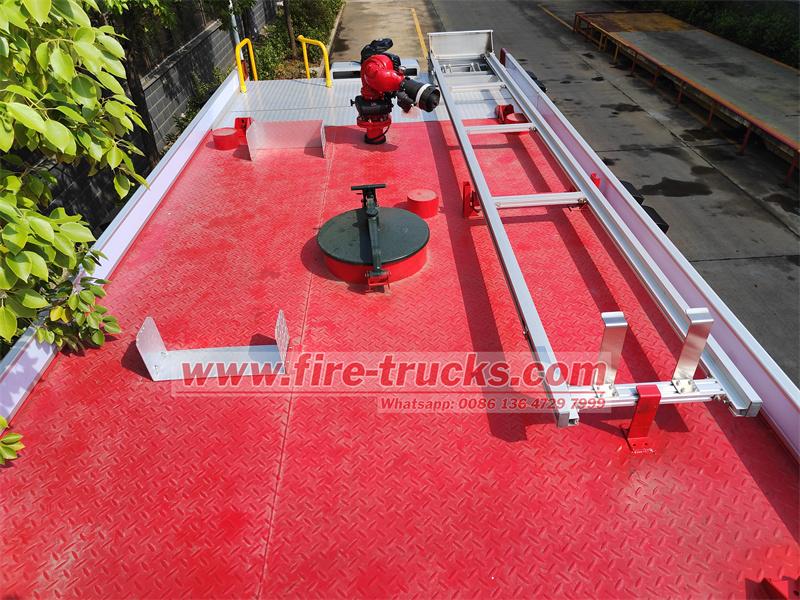

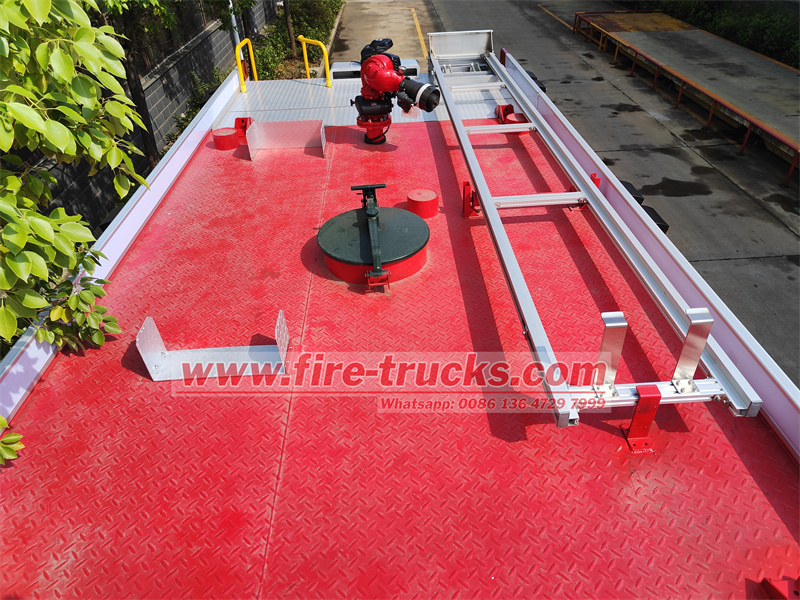

TOP view of the MAN rescue fire apparatus	Germany MAN fire engine with guard fence



Electric System of the MAN 6x4 fire apparatus:

1. The top of the MAN cab is equipped with a 1.8-meter-long row of luxurious red LED warning lights.
2. A 50W LED fire searchlight is installed on the top of the rear of the vehicle, which can be rotated 360 degrees by remote control.
3. A foldable ladder is installed at the rear of the vehicle.
4. There are 4 red and blue flashing lights and 4 side lights on each side of the vehicle, and safety sign lights and side reflectors (combined) are installed below. It is equipped with front and rear clearance lights, a turn signal on each side, and lighting in the equipment box and pump room, which complies with GB4785 regulations.
5. The power of the alarm is 100W; the alarm, warning light, and flashing light circuits are independent additional circuits, and the control devices are installed in the cab.
6. The vehicle control system adopts an advanced electrical control system, and an operation control panel is set in the pump room. The buttons and switches are humanized and easy to operate.
7. The control panel in the pump room has the following control switches and displays: main power switch, engine speed adjustment, emergency stop, starting or shutting down the vehicle engine, engine speed display, turning on and off the surrounding vehicle lighting, hanging and removing the water pump power take-off, water tank water suction operation, vehicle water discharge operation, water tank capacity display, low tank liquid level prompt, fire monitor operation, etc.

Standard fire fighting rescue equipment of the MAN 12000L water tanker fire fighting truck:
