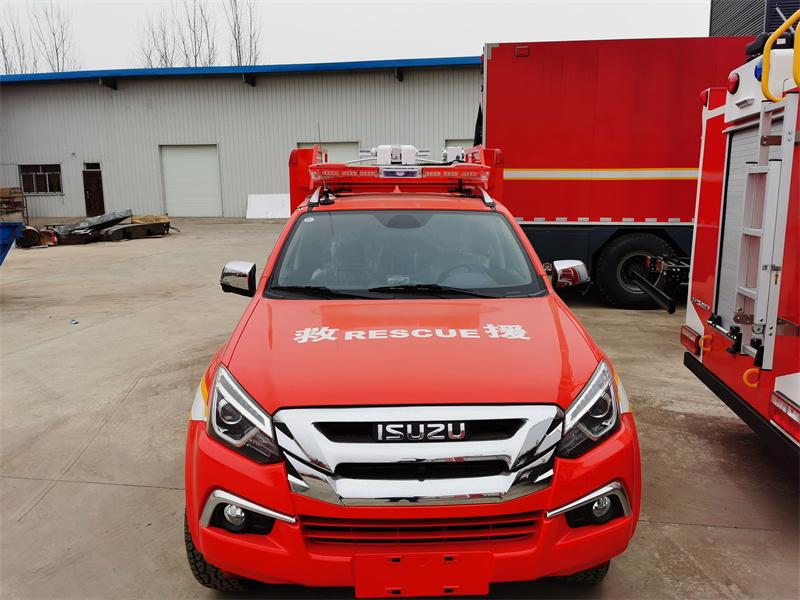

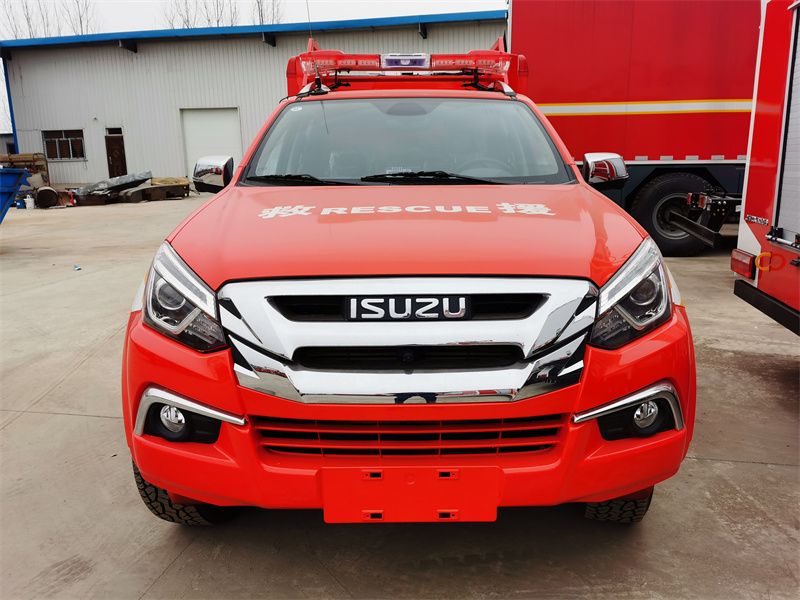

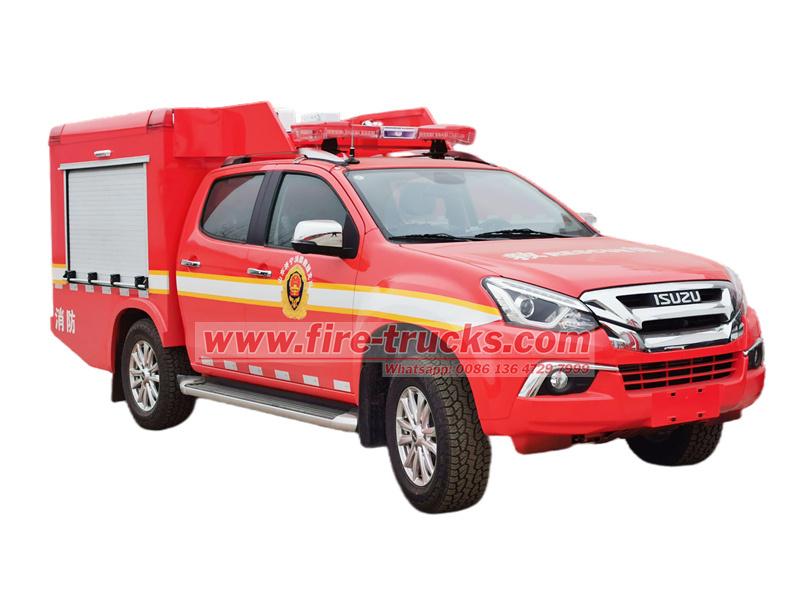

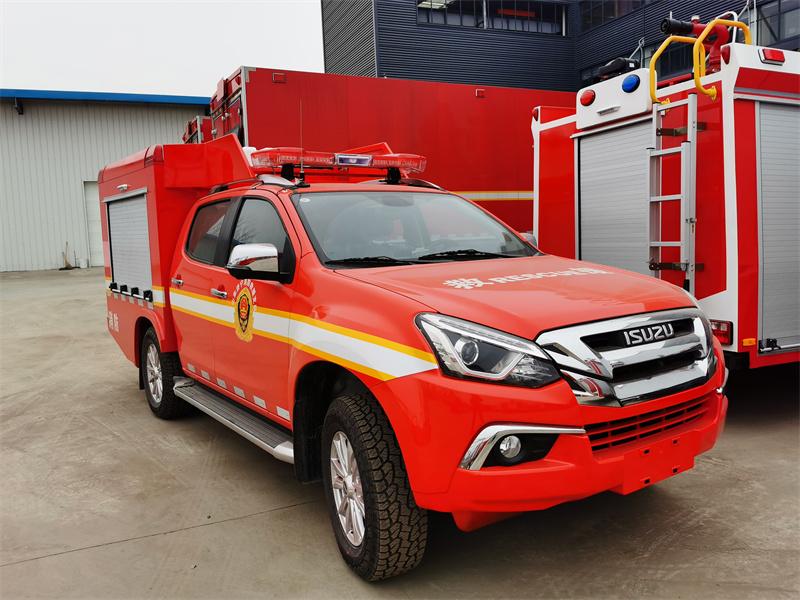

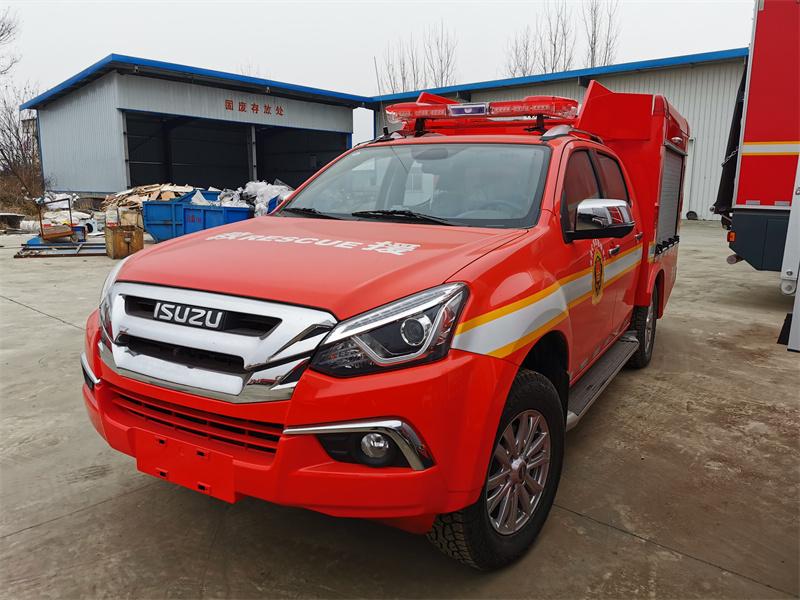

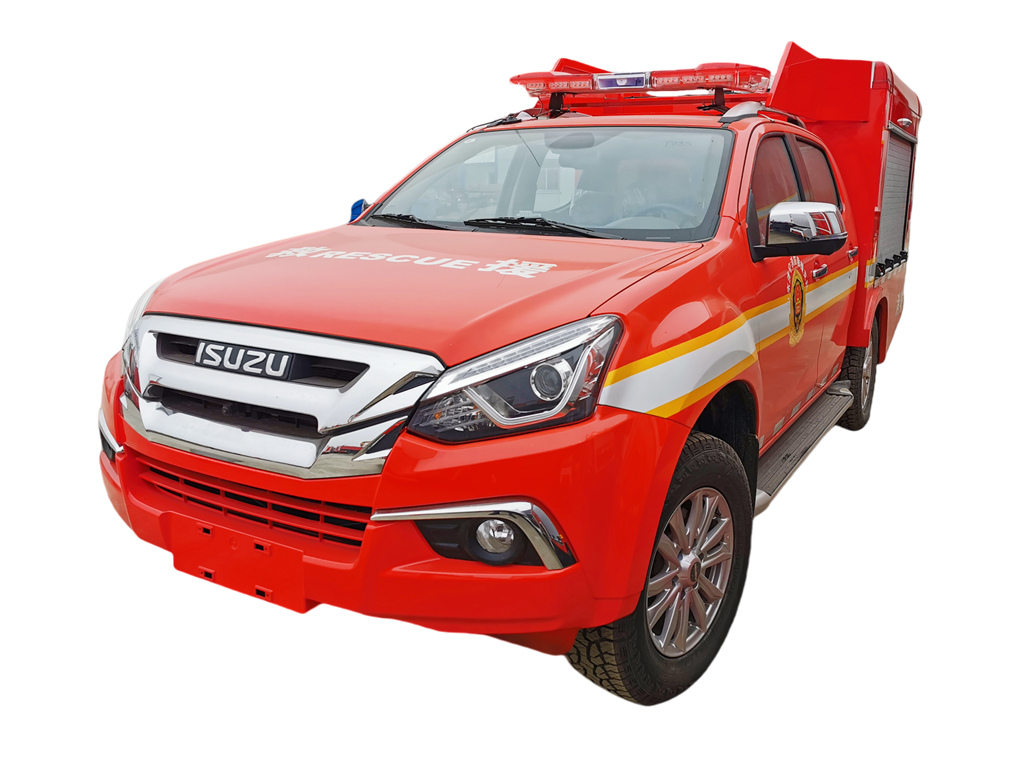

Isuzu 4x4 pickup fire command vehicle

Isuzu 4x4 pickup fire command vehicle

ISUZU 4x4 offroad pickup fire command vehicle is a truck used nby a senior officer of a fire department to respond to firefighting incident. It is not only a fire extinguishing machine, but also a synonym for "fast, accurate and stable" in the modern emergency response system. Isuzu fire command vehicles with the advancement of technology and the upgrading of demand, this model will continue to evolve and become a versatile guard for safety.

  • Truck Model:

    PST5035GXF
  • Tanker Structure:

    Aluminum Alloy material
  • Work capacity :

    1000 kg
  • Wheelbase:

    3406 mm
  • Axle drive:

    4x4
  • Engine Power:

    143 HP
  • Engine Model:

    Isuzu 4KH1CT6H1
  • Fire Pump:

    Independent fire pump
  • Fire Monitor:

    PS20
  • Remark:

    Customized equipment for fire rescue
Facebook Linkedin Youtube Twitter Pinterest

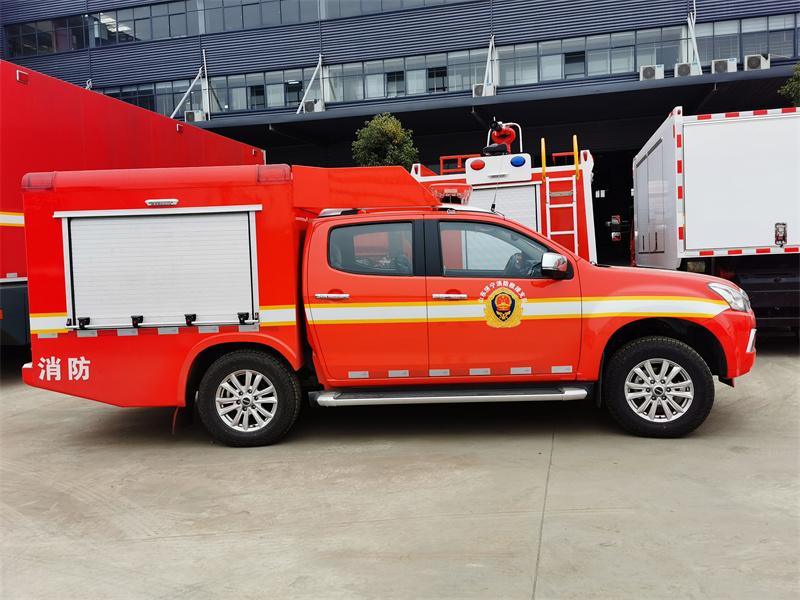

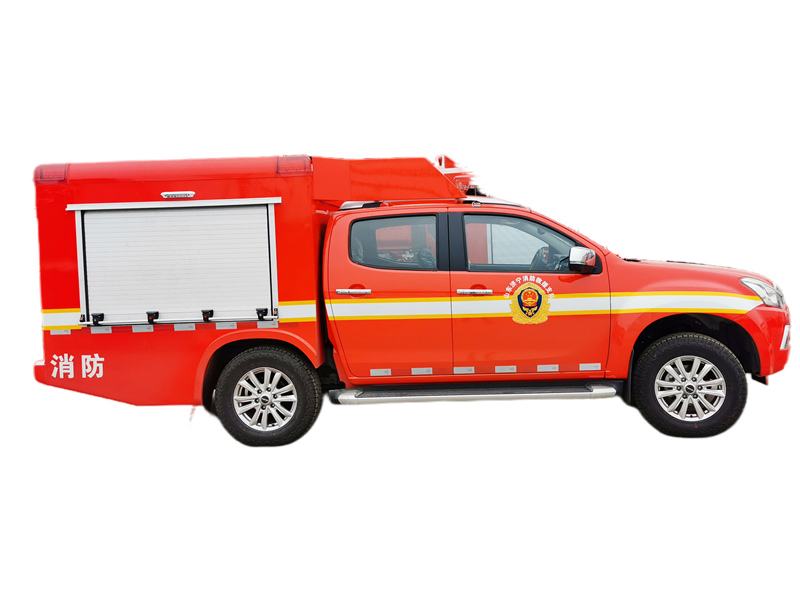

Isuzu pickup fire command vehicle is a light fire command and emergency communication vehicle modified based on Isuzu pickup truck chassis. It is mainly used for fire scene command and dispatch, information transmission, equipment transportation and small fire fighting and rescue tasks. Isuzu pickup fire command vehicle is a low cost, highly mobile fire command platform suitable for rapid response and flexible deployment of firefighting tasks, especially for early fire handling in narrow roads or remote areas.

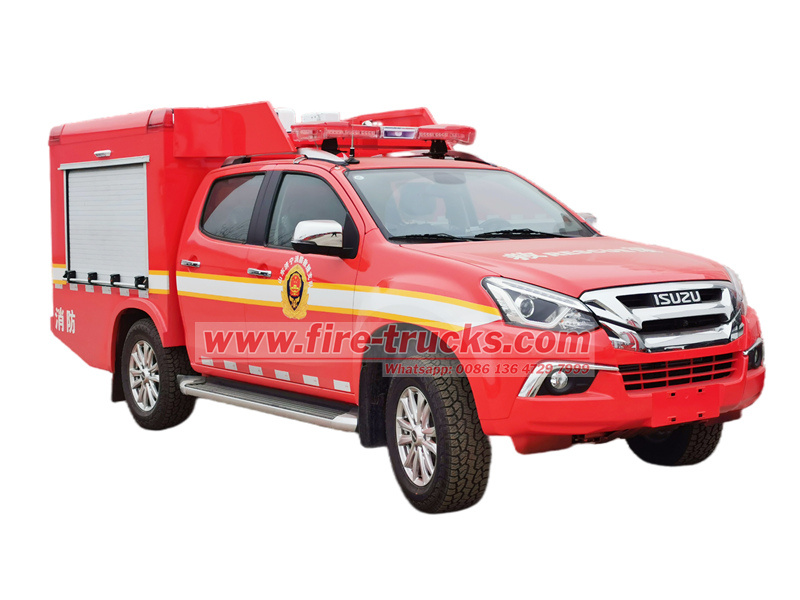

Isuzu off road 4x4 pick up fire command vehicle



● Japanese ISUZU 4x4 pick-up fire command vehicle factory

● More than 500 workers, large and advanced production

● Be designed according to your requirements

● Promptly delivery. any order is welcome

● 24 month quality guarantee term

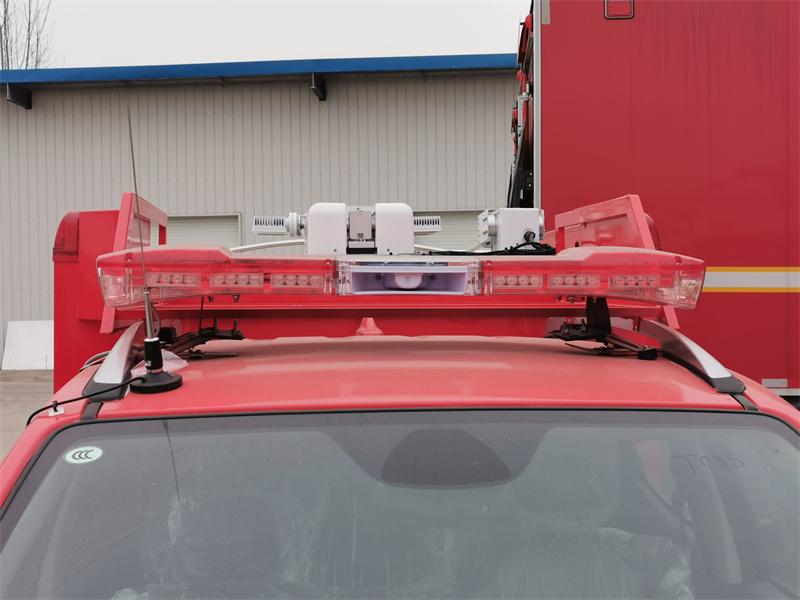

Isuzu fire command vehicle is based on Isuzu 4x4 offroad pickup trucks with four-wheel drive (4WD) model, adaptable to complex terrain Power, 4KH1CT6H1 model turbocharged diesel engine 143HP and emission can be 2999cc, strong power and low fuel consumption. System Main equipment Command system On-board computer, 4G/5G image transmission, intercom relay station, loudspeaker. Lighting system including Roof lift LED lighting which ≥5000 lumens and can be lifting up with height 7m, also flashing warning lights. Fire fighting equipment including fire extinguisher, water hose, fire axe, gas mask, air apparatus. Emergency tools including hydraulic demolition tool set, first aid kit, emergency power supply. Also equipped with power system the dual batteries, main battery and auxiliary battery, inverter for 220V or 360V output.

Isuzu pickup 4x4 offroad fire command vehicle mainly used as below area:

Fire command: On-site commanders ride to deploy firefighting tactics

Emergency communications: Equipped with radio, 4G/5G image transmission, drones and other equipment

Light firefighting: Optional on-board fire extinguishers, fire pumps or fine water mist systems

Material transportation: Transporting demolition tools, medical kits, respirators, etc.



Isuzu off road 4x4 pick up fire truck



Isuzu off road 4x4 pick up fire truck



Today the fire command vehicle is just as important to a successful fire ground operation as the fire truck itself. POWERSTAR specializes in custom solutions for any vehicle type, whether it be a traditional SUV or a more versatile pick-up.  Every design is fully customized to meet your department’s command workflow.  We POWERSTAR offers traditional command boards as well as computer-based touchscreen command solutions.  Every customized vehicle can be customized to be self-monitoring and automated, allowing you to focus on your job and not on the vehicle.



Superstructure
1 Structure: The carriage adopts high-strength PP-C composite material welding structure, which is modified on the basis of the original car body. Also can be option Aluminium alloy material.
2

Equipment door:

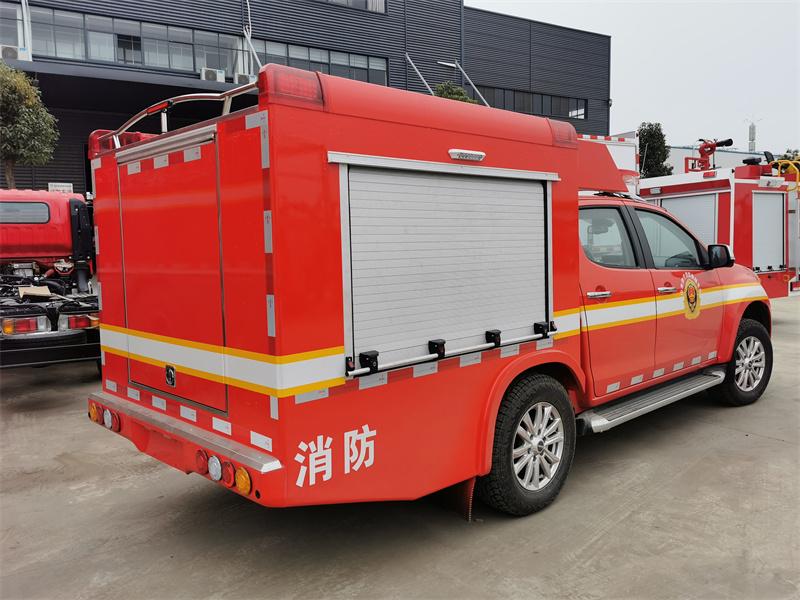

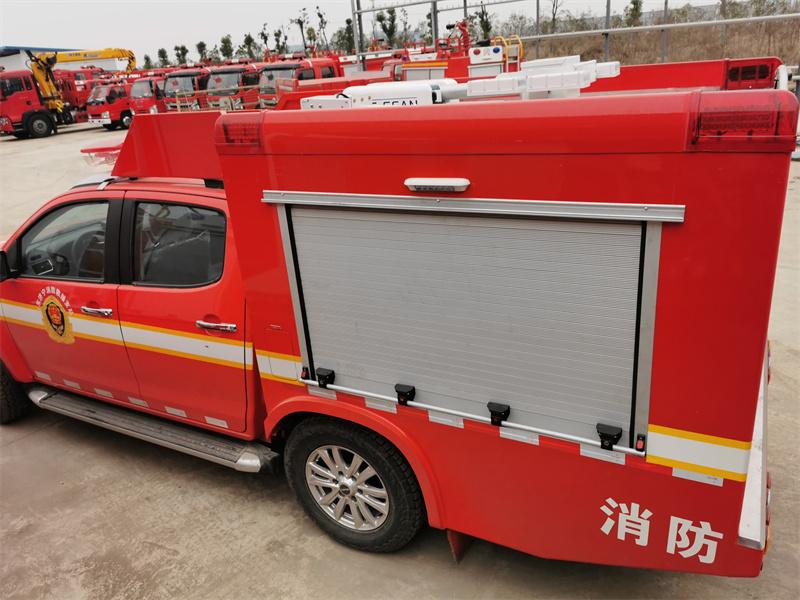

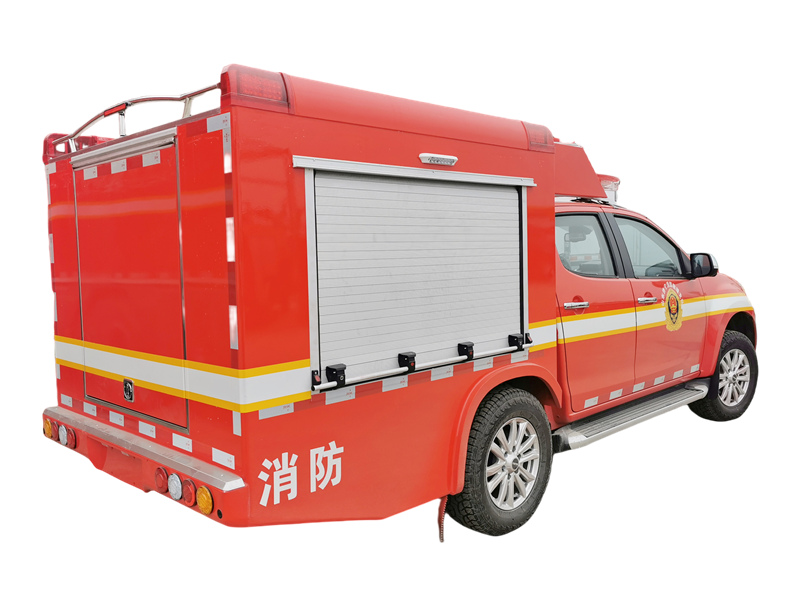

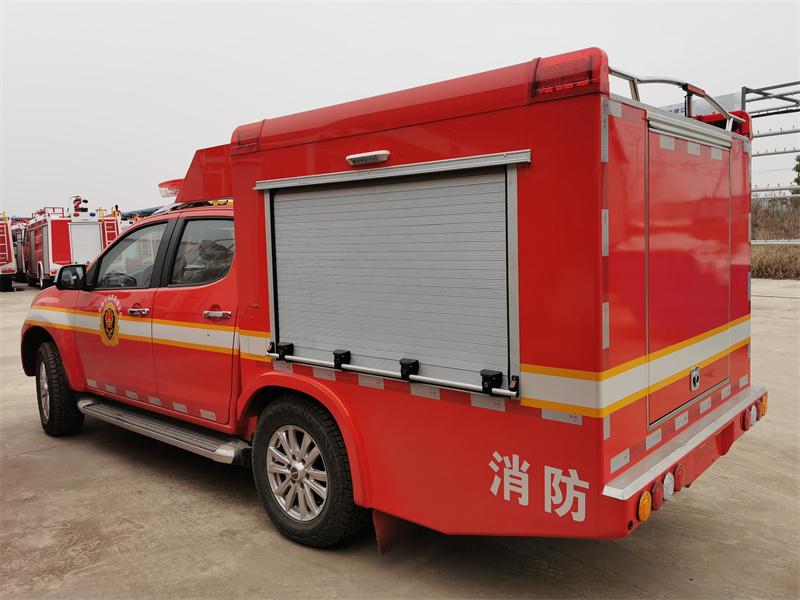

(1) There are 2 aluminum alloy rolling shutter doors on the left and right sides of the equipment box. The door frame is made of light high-quality aluminum alloy, which is flexible to open and close, good in sealing, low noise, beautiful in appearance, light and reliable. All rolling doors can be opened with one key .

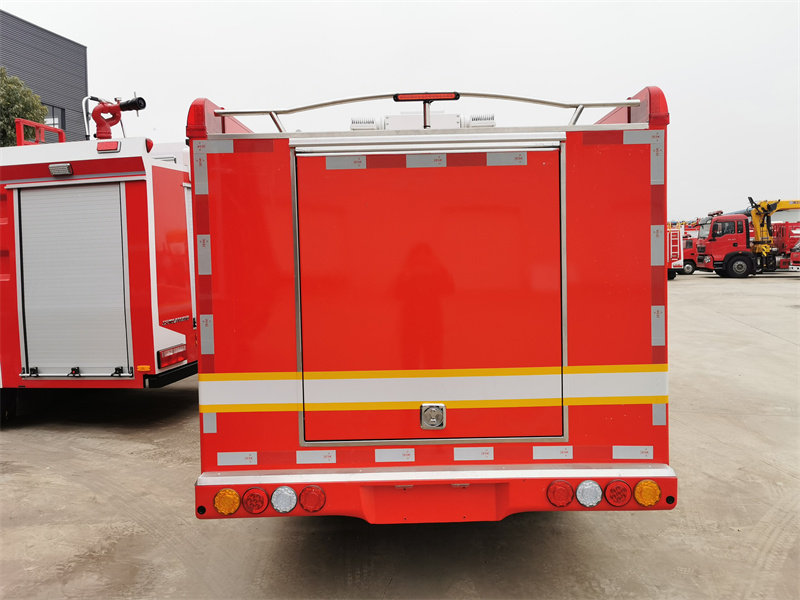

(2) The rear equipment box door adopts gas spring up and down door

3 Equipment layout: The left and right sides and the rear of the carriage can be equipped with hydraulic demolition, hydraulic support, detection, personal protection, and alert equipment.
4

Equipment Layout Principle:

★ Design equipment integration according to battle organization and battle deployment;

★ Design various equipment brackets according to ergonomic principles;

★ Place the equipment according to the logical relationship and frequency of use;

★ Stand on the ground or pedals, take and place fire fighting equipment in 2 actions.

Rescue Winch
1

Brand: Champion

Model: K8000XF

Rated tension: 3629Kg

2 Traction wire: ∮8X29M
Complete Electrical System
1

Install 6 off-road lights on the front of the vehicle

2 The power of the alarm is 100W; the alarm and warning light circuits are independent additional circuits, and the control device is installed in the cab.
3 Two flashing lights are provided on the upper part of each side of the carriage.
4 There are two lights at the back of the equipment box.
Equipment along with Vehicle
1 5 sets of special warning tapes
2 On-board tool box 1 set
Documents along with Vehicle
1 Vehicle Operation and Maintenance Manual
2 Vehicle Certificate









Isuzu pickup fire command vehicles play an important role in the fire emergency system. which have advantage of mobility, cost-effectiveness, versatility and adaptability to special scenarios, also suitable for complex road conditions.

Flexible access: Compared with large fire trucks, Isuzu pickup trucks are smaller in size with only 5 meters in length and 2 meters in width and can easily enter narrow streets, old communities, and rural roads, avoiding delays in rescue due to road congestion.

4WD off-road capability: Isuzu pickup truck with 4x4 offroad drive model, and other models have strong off-road performance, suitable for complex terrains such as mountains, forests, and muddy roads, and are suitable for forest firefighting, earthquake rescue and other scenes.

Quick response: In the early stage of a fire, the ISUZU pickup fire command vehicle can arrive at the scene before the large fire truck to conduct fire detection, personnel evacuation and initial fire extinguishing, and strive for golden rescue time.
