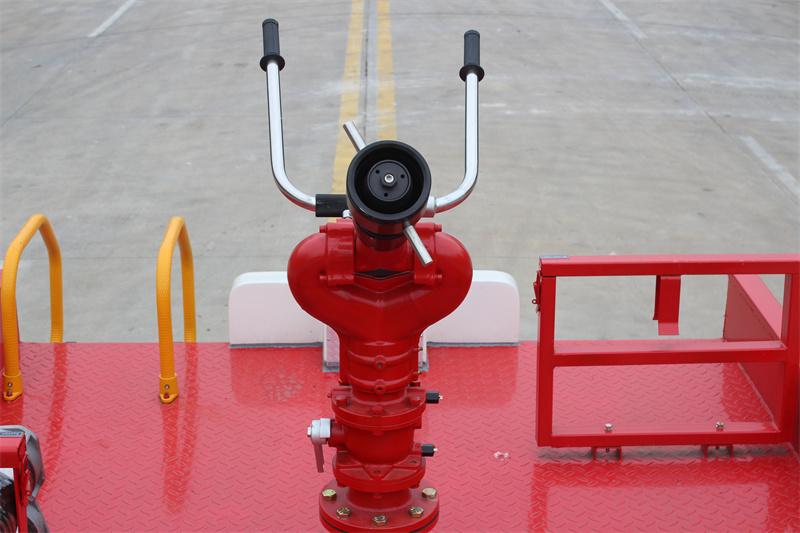

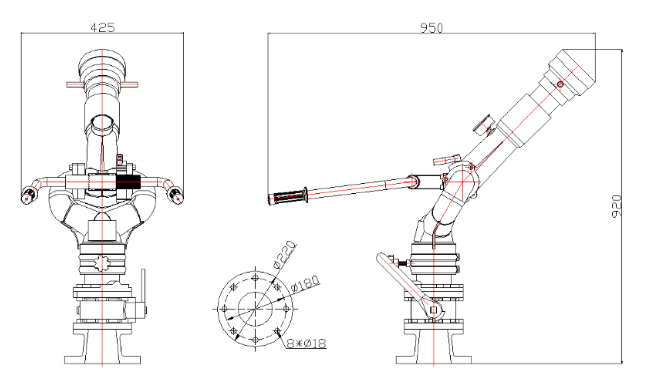

This Isuzu pickup fire truck is based on the Isuzu TAGA QL1030CZHW2 Luxury Edition 3.0T diesel 143hp four-wheel drive double-cab pickup chassis, It is equipped with an Isuzu 4HK1CT6H1 engine and an MLB 5-speed transmission. The front of the superstructure features a 500L carbon steel water tank and a 100L stainless steel foam tank. The rear houses the pump room, equipped with a JBQ4.5/9 hand pump, a 50m electric hose reel, and a PH64 foam-water mixing proportioner. The roof features a PS8/20W fire monitor, ladder, manhole, and fire alarm lights.

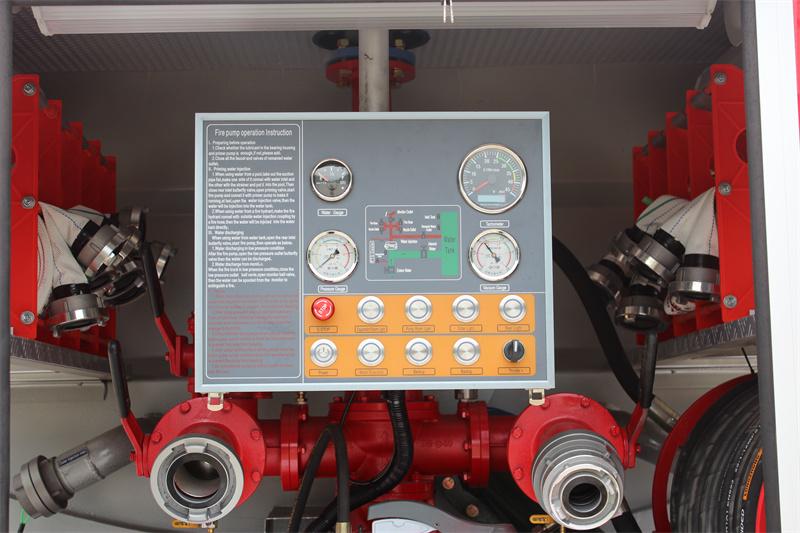

The Isuzu FVZ GIGA 6 cubic meter foam fire truck is based on the Isuzu FVZ GIGA chassis, with a 4500mm wheelbase. It is equipped with an Isuzu 6HK1-TCG60 engine and a Fast 9-speed transmission. The front of the superstructure houses the equipment compartment, the middle section contains a 5000L carbon steel water tank and a 1000L stainless steel foam tank, and the rear is the pump room, equipped with a CB10/40-XZ fire pump, control panel, fire hoses, firefighting equipment, etc. A PL8/32 fire monitor is located on the roof.

The SITRAK HOWO wildland fire truck is built on a 4×2 chassis with a 4700 mm wheelbase and a 350 HP WP8.350E61 engine. It carries a 6000L water tank and a 2000L foam tank. A CB10/100 pump (100 L/s at 1.0 MPa) and a roof mounted PLKD10/80 monitor (80 L/s, water ≥85 m, foam ≥80 m) handle fire suppression. A lifting lighting system with wireless remote control and 360° rotation supports night operations. Standard gear includes hoses, suction tubes, couplings, foam gun, and basic tool kit.

The SITRAK HOWO 18m aerial ladder fire truck is powered by an MC07H.35-60 engine rated at 350 HP, built on a 4×2 chassis. At the front, a winch with 75 kN pulling capacity handles light vehicle recovery or debris clearing. The rear section carries an 18m telescopic ladder system with a 60 L/s CB10/60 fire pump and a roof-mounted PS60 monitor. The equipment body features roll-up aluminum shutters on both sides, LED lighting, and fold-down steps for easy access. The ladder system reaches 18m working height, powered by the truck’s own hydraulic system for firefighting and rescue operations.

The Isuzu GIGA 6X4 10 cubic meter foam fire truck is based on the Isuzu GIGA 6X4 chassis, with a gross vehicle weight of 35 tons and a wheelbase of 4800+1370mm. It is equipped with an Isuzu 6WG1-TCG62 520hp engine and a Fast 12-speed transmission. The front of the superstructure houses the equipment compartment, the middle section contains an 8000L carbon steel water tank and a 2000L stainless steel foam tank, and the rear is the pump room, equipped with a CB10/140-XZ fire pump, control panel, fire hoses, firefighting equipment, etc. A PL8/64 fire monitor is located on the roof.

SUZU NPR 190HP water pumper rescue truck is built around a 4×2 ISUZU chassis and powered by a 4HK1-TCG61 diesel engine making 190 HP. Behind the cab sits a 4,000 liter water tank. The rear pump room contains a CB10/40 fire pump rated at 40 L/s at 1.0 MPa. On the roof, a PS8/40 monitor shoots water up to 60 meters, turns a full 360°, and tilts from -35° up to 70°. Side compartments hold fire hoses, suction lines, couplings, wrenches, a foam gun, and a basic tool kit—everything needed for initial attack.

Built on the premium HOWO C5H chassis, the 4x2 CAFS heavy fire truck delivers robust power alongside eco-friendly emission performance, ensuring reliable operation across diverse harsh and complex terrains.Equipped with an integrated water pump, foam proportioning system and air compression system, this vehicle adopts compressed air foam spraying technology for efficient and rapid fire suppression. It also comes with a standalone power generation system and full-range emergency lighting system, offering multi-angle omnidirectional illumination to clear up rescue passages swiftly in fire scenarios.

The HOWO 6000L water bowser pumper fire truck is built on a HOWO TX 350 4×2 chassis with a 4700 mm wheelbase. It is powered by a MC07H.35-60 engine rated at 350 HP and paired with a manual transmission. The vehicle carries a 6000L water tank. A CB10/60-RS fire pump (60 L/s at 1.0 MPa) and a roof mounted PS60 monitor (60 L/s, ≥60 m range) handle fire suppression. Standard equipment includes fire hoses, suction tubes, couplings, water/foam gun, and basic tool kit.
