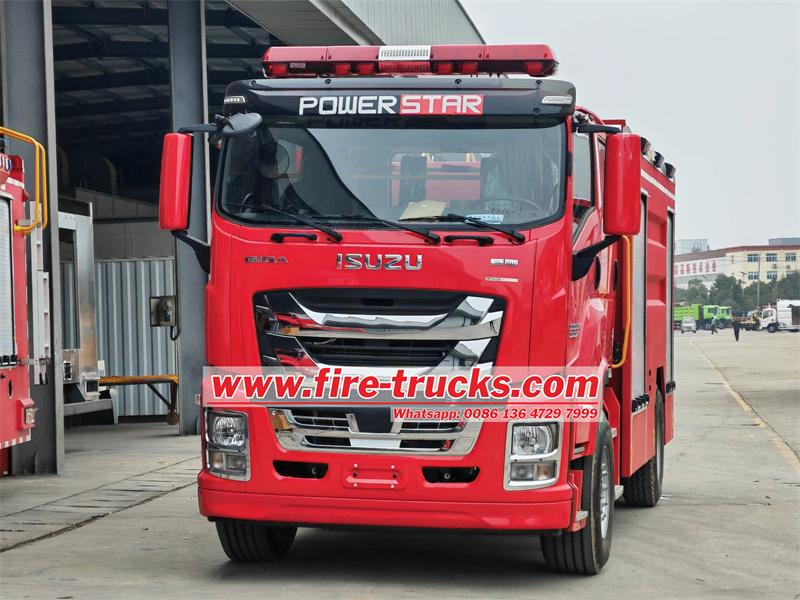

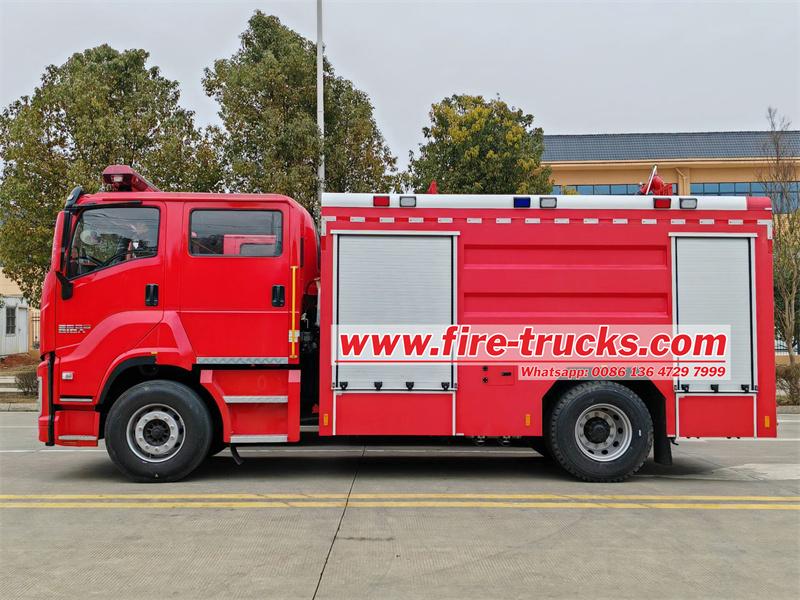

Philippine Isuzu GIGA police department fire truck

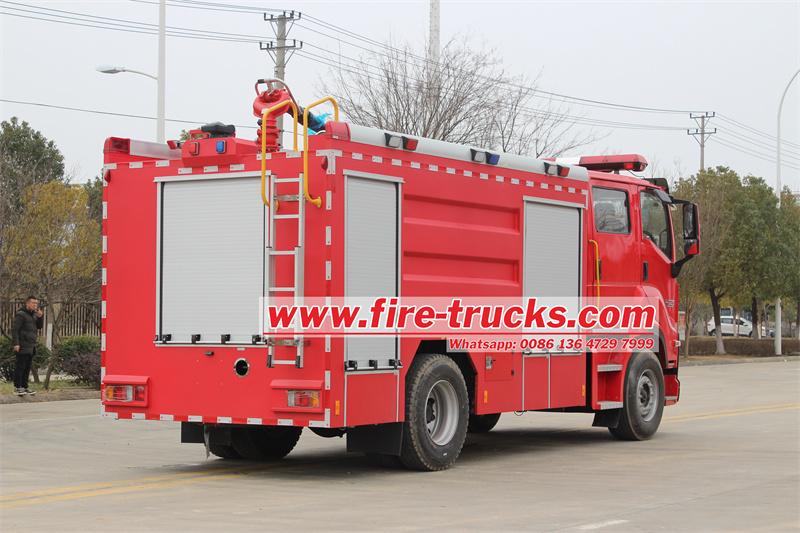

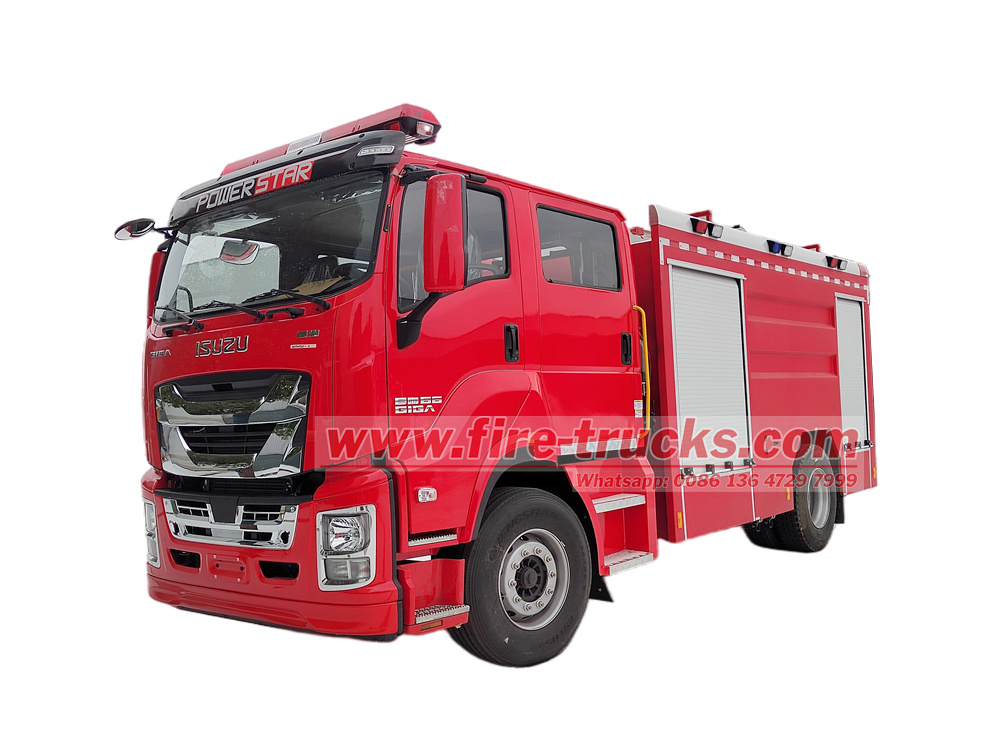

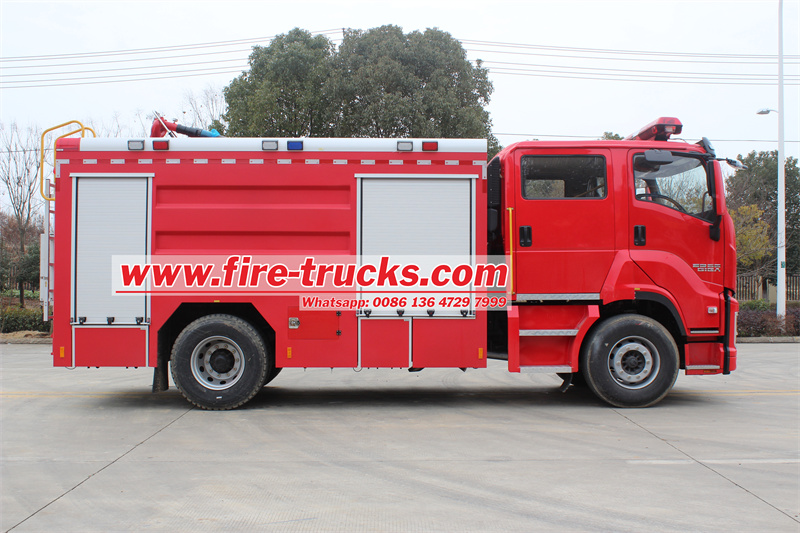

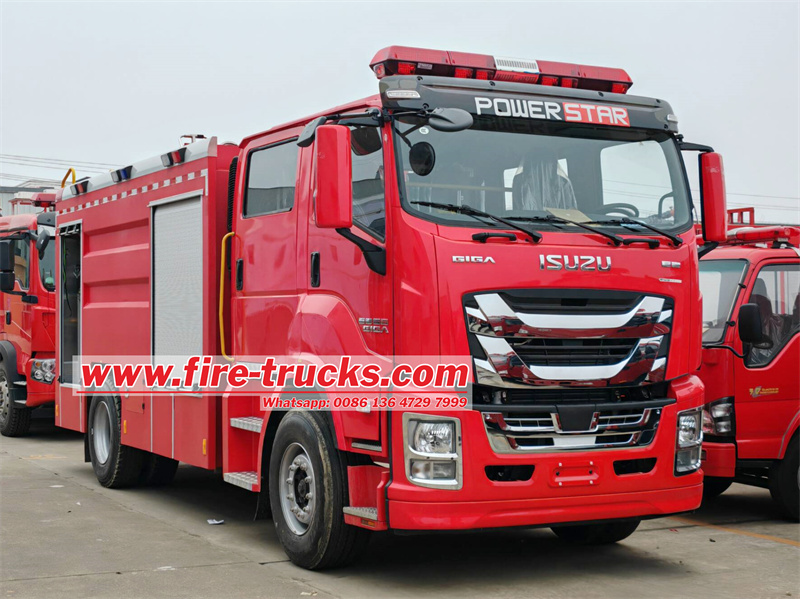

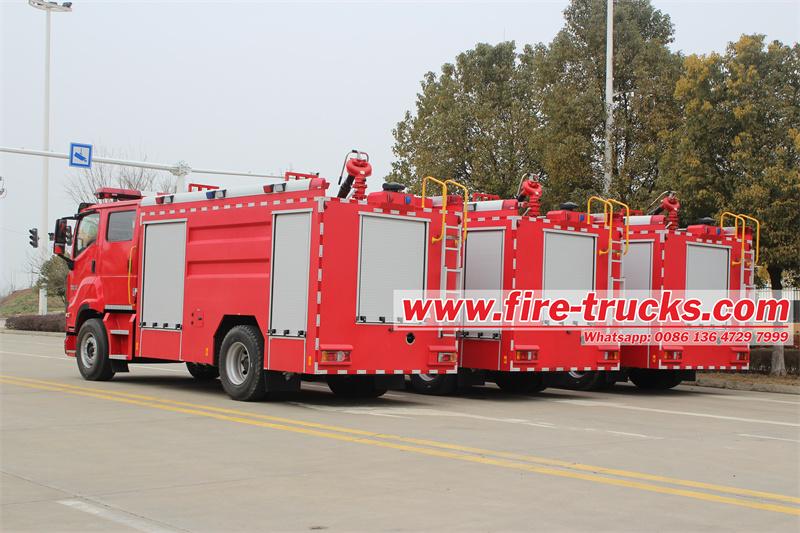

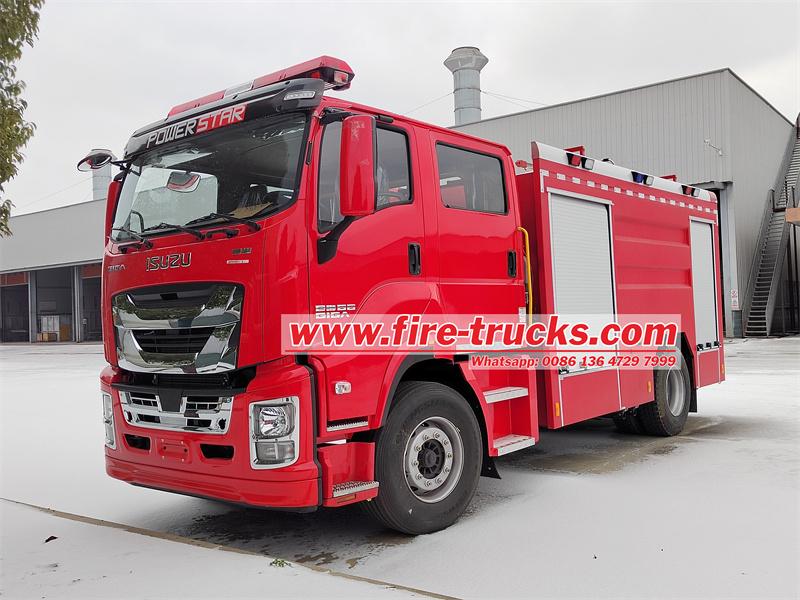

Philippine Isuzu GIGA police department fire truck is a high-performance fire truck modified based on Isuzu GIGA 4X2 chassis. It is equipped with a 380-horsepower diesel engine and a 12-speed gearbox, with strong power and strong adaptability. The vehicle is equipped with a 6cbm carbon steel water tank and a 2cbm stainless steel foam tank, a large-flow CB10/60 fire pump foam mixing system and a precisely adjusted PL8/48 fire cannon, which can effectively extinguish ordinary fires and oil and chemical fires. The pump room is equipped with a control panel with integrated vacuum gauge, pressure gauge, tachometer and liquid level display for easy operation. The vehicle is also equipped with a variety of firefighting equipment, such as fire hoses, foam guns, demolition tools, etc., to meet a variety of rescue needs.

● More than 30 years professional Foam Fire truck manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Prompt delivery, any order is welcome.
● 24 month quality guarantee term
● Build strict QC team to guarantee the quality

This impressive fire truck is powered by an Isuzu 6UZ1-TCG61 diesel engine that delivers an impressive 380 horsepower. This powerful engine, combined with the Fast 12-speed gearbox, provides seamless acceleration and smooth gear shifting, allowing the vehicle to reach the emergency scene quickly and efficiently.

Tank:

• Water Tank: The vehicle is equipped with a 6 cbm large-capacity carbon steel water tank, which is made of corrosion-resistant materials to ensure long-term storage of clean water and provide sufficient fire-fighting water for the fire scene.

• Foam Tank: There are also 2 cbm stainless steel foam tanks, which are sturdy and not easy to rust. The built-in efficient foam mixing system can quickly prepare a large amount of foam fire extinguishing agent, which is suitable for a variety of fire situations and improves firefighting efficiency and effectiveness.

Fire Pump and Fire monitor:

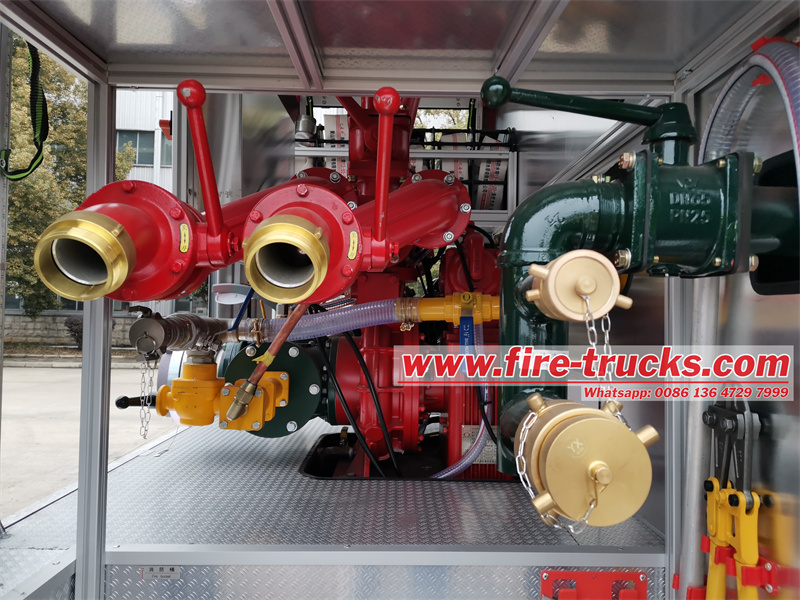

• Fire Pump: Equipped with a CB10/60 high-performance fire pump, it has the characteristics of large flow and high pressure, and can quickly pressurize and deliver water to the fire scene to meet various complex firefighting needs.

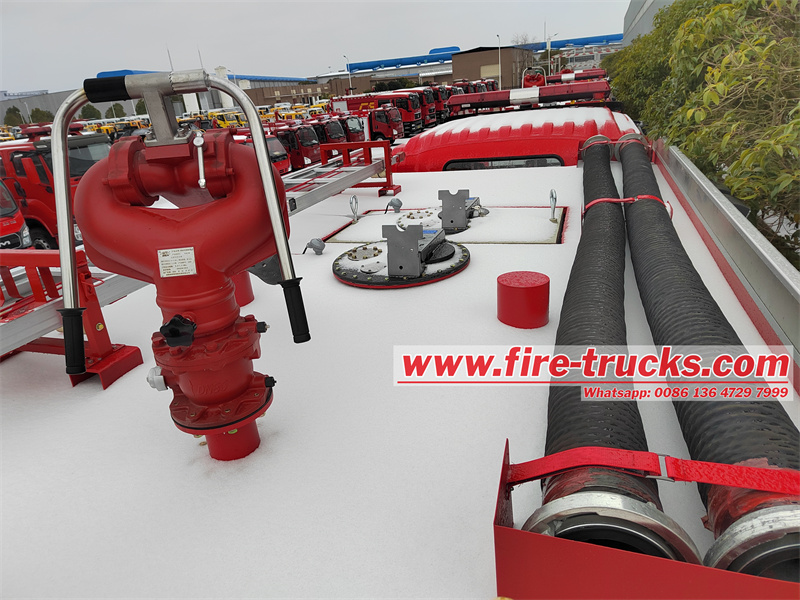

• Fire monitor: equipped with PL8/48 powerful fire monitor, with long range and flexible angle adjustment, it can accurately spray water or foam, effectively control the spread of fire, and provide strong support for fire fighting and rescue.

Fire equipment :

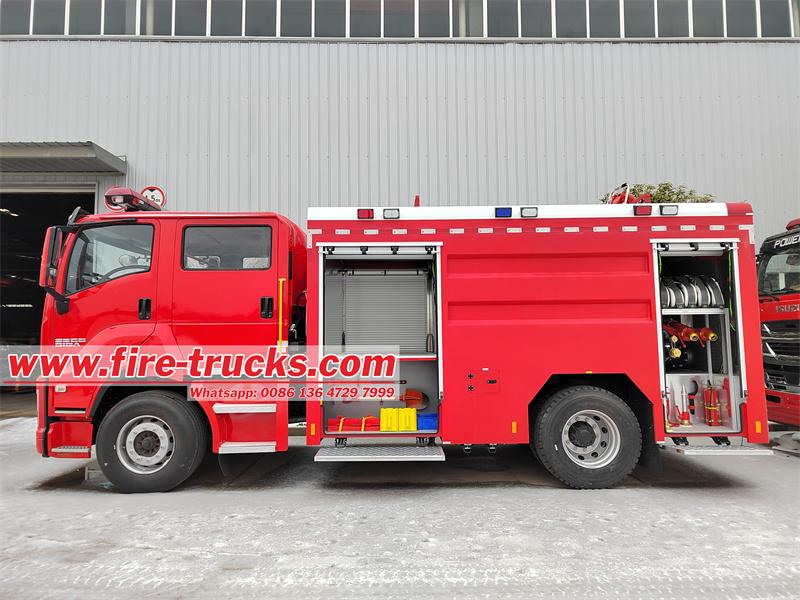

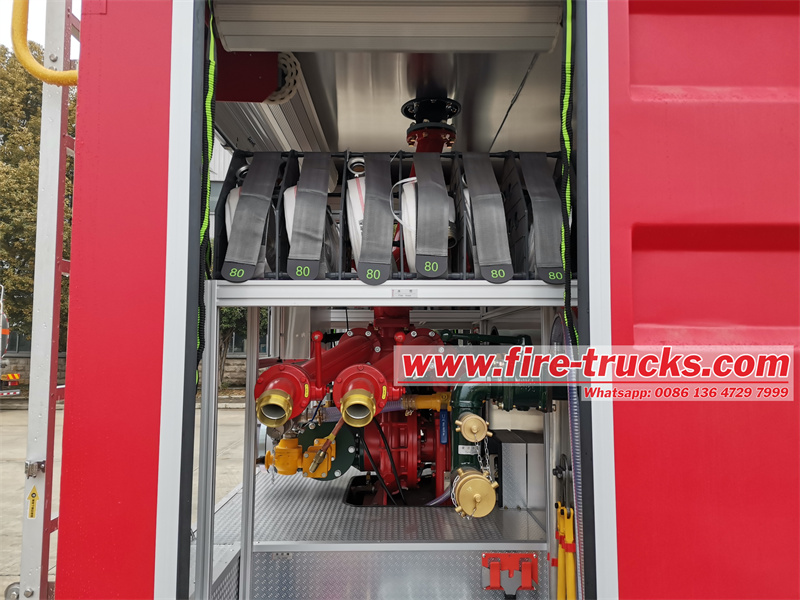

The vehicle tool room and pump room are equipped with comprehensive fire fighting equipment, including but not limited to:

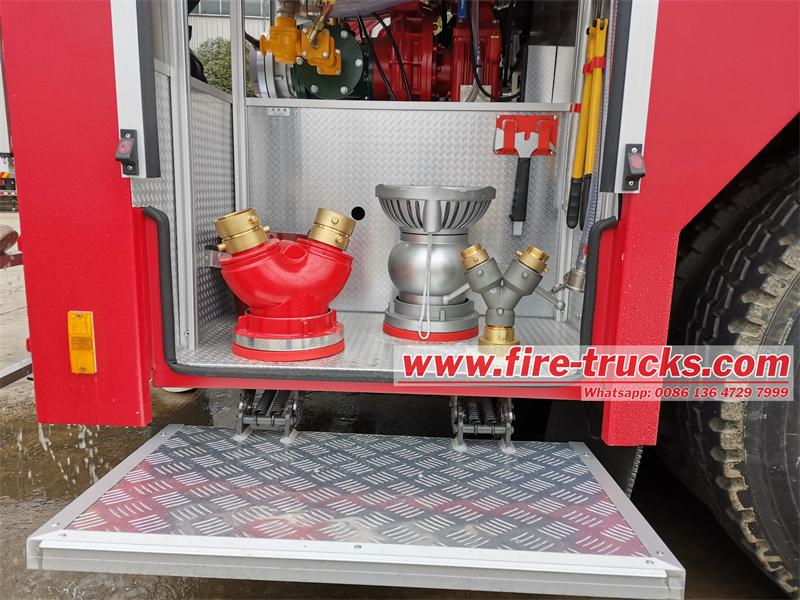

• Water collector, water filter, water distributor: ensure the effective collection, filtration and distribution of water sources.

• Fire hose, bridge guard: extend the fire fighting range, cross obstacles, and ensure the continuity of fire fighting operations.

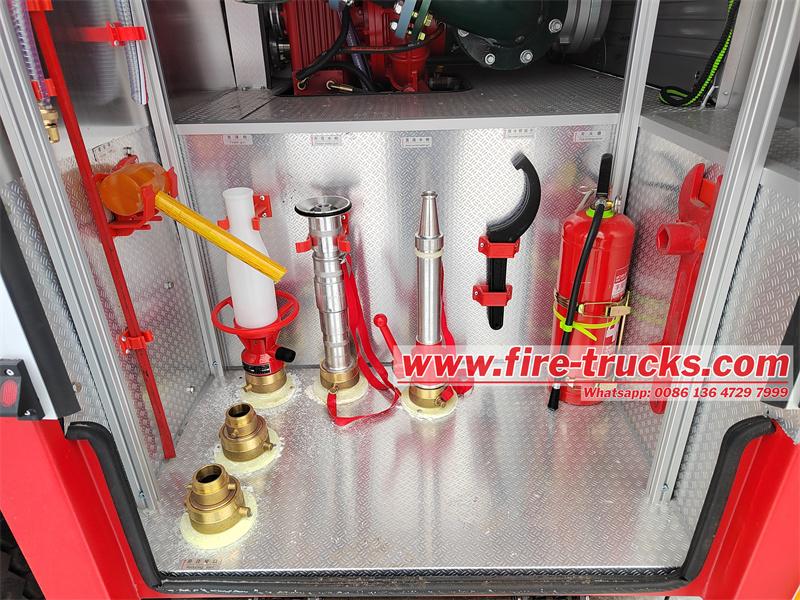

• Water gun, foam gun: multiple spray modes to meet the needs of fire fighting for different fire sources.

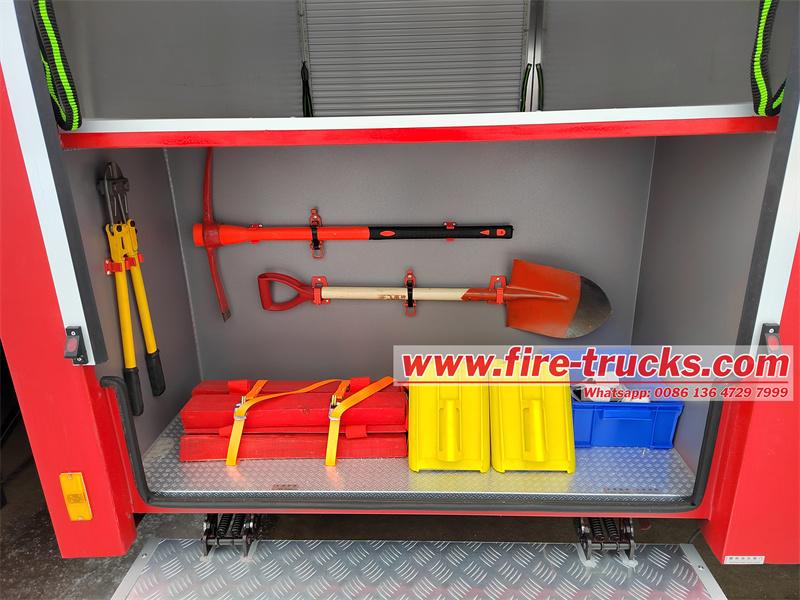

• Fire shears, axes, picks, shovels, hammers, fire wrenches: professional demolition tools for quickly clearing obstacles in the fire scene.

• Fire extinguisher: can be used for the initial fire fighting of fire fighting.

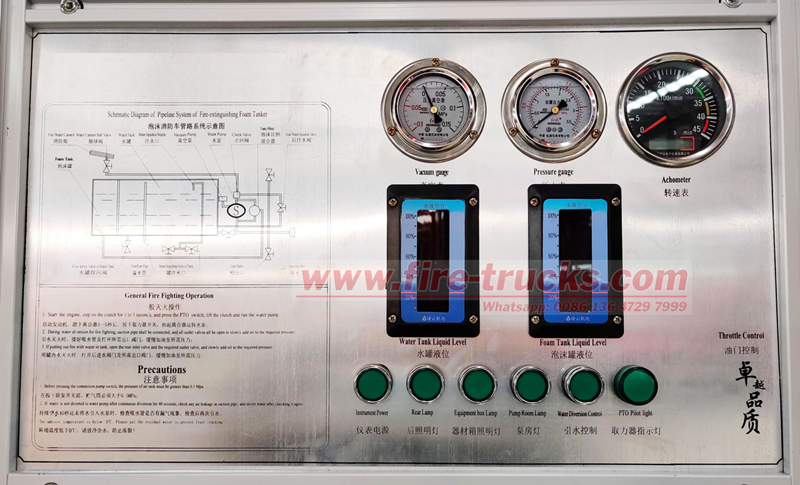

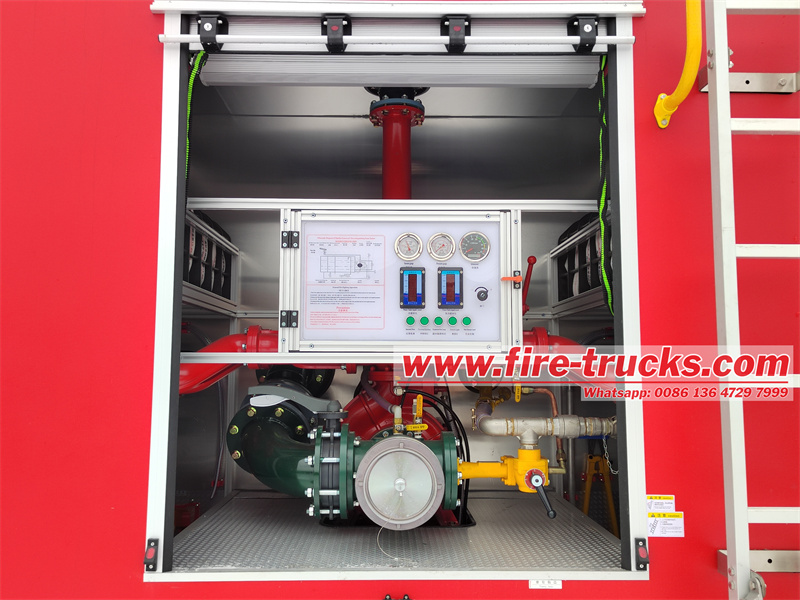

Pump room control panel function introduction

The pump room control panel of Isuzu Juka 8 square foam water fire truck integrates multiple control and display functions, which is an important operation interface for firefighters during fire fighting. The control panel mainly includes the following elements:

• Pipeline system diagram: clearly shows the pipeline layout of the water supply, foam mixing and injection system of the fire truck, helping firefighters to quickly understand the equipment structure and working principle.

• General fire extinguishing operation steps: provides the main steps of the fire extinguishing operation process to guide firefighters to perform fire extinguishing tasks correctly and efficiently.

• Precautions: lists the safety matters and operating points that need to be paid attention to during the fire extinguishing process to ensure that firefighters can operate the fire truck safely and in a standardized manner.

• Vacuum gauge: displays the vacuum degree in the water suction pipe of the fire pump to help firefighters judge the water suction effect.

• Pressure gauge: displays the pressure value of the fire pump outlet and injection system, reflecting the delivery pressure and injection force of the fire extinguishing medium.

• Tachometer: displays the working speed of the fire pump and is used to monitor the operating status of the pump.

• Water tank level: displays the water level in the water tank in real time to help firefighters understand the remaining water volume and arrange fire extinguishing strategies reasonably.

• Foam tank level: displays the foam level in the foam tank in real time to ensure that the foam liquid can be replenished in time when needed.

• Instrument power: Press to turn on the main power switch.

• Rear lighting, equipment box lighting, pump room lighting: control the lighting of the rear of the vehicle, the lighting of the equipment box and the lighting of the pump room respectively, ensuring normal operation at night or in low-light environments.

• Water diversion control: control the switch for drinking other water sources on the vehicle.

• Power take-off indicator: displays the working status of the power take-off to help firefighters determine whether the fire pump has been correctly connected to the power source.

Vehicle performance characteristics

1. Efficient fire extinguishing ability:

The combination of water tanks and foam tanks enables the vehicle to deal with ordinary fires and oil fires at the same time, with high fire extinguishing efficiency and a wide range of applications.

Equipped with a large-flow fire pump, foam mixing system and flexible fire cannon to meet diverse fire extinguishing needs;

2. Quick response:

The 380-horsepower engine and 12-speed gearbox ensure that the vehicle can quickly reach the fire scene and buy precious time for fire extinguishing.

3. Flexible operation:

The vehicle has a moderate wheelbase and a small turning radius, which is suitable for driving on urban roads and narrow areas and is flexible to operate.

4. Fully equipped:

The vehicle is equipped with a variety of firefighting tools and equipment, which can cope with various complex fire and rescue scenarios and improve the efficiency of firefighters.

5. Strong durability:

Both the chassis and the upper body are made of high-quality materials, which are corrosion-resistant and high-pressure-resistant, and are suitable for long-term and high-intensity operations.
