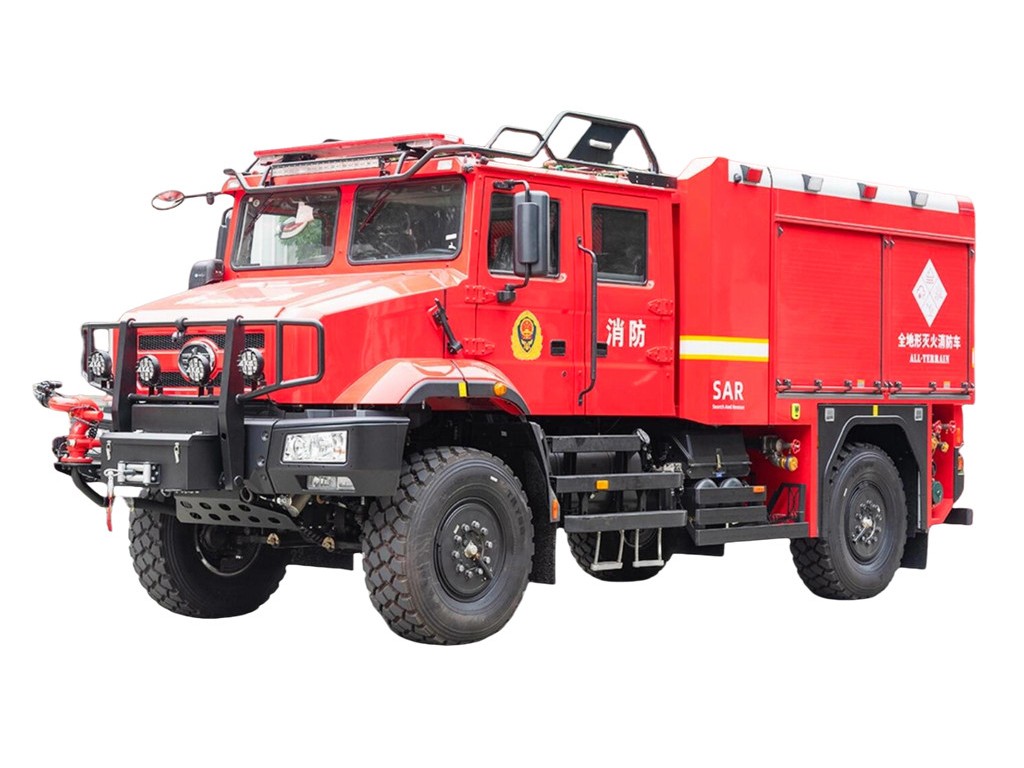

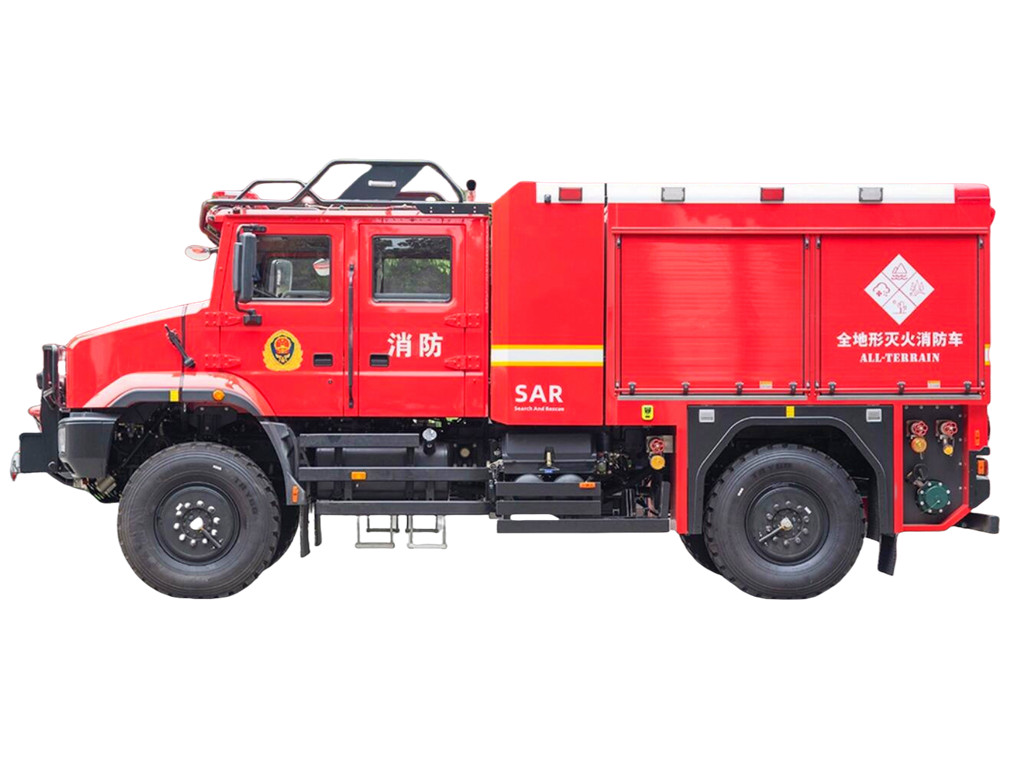

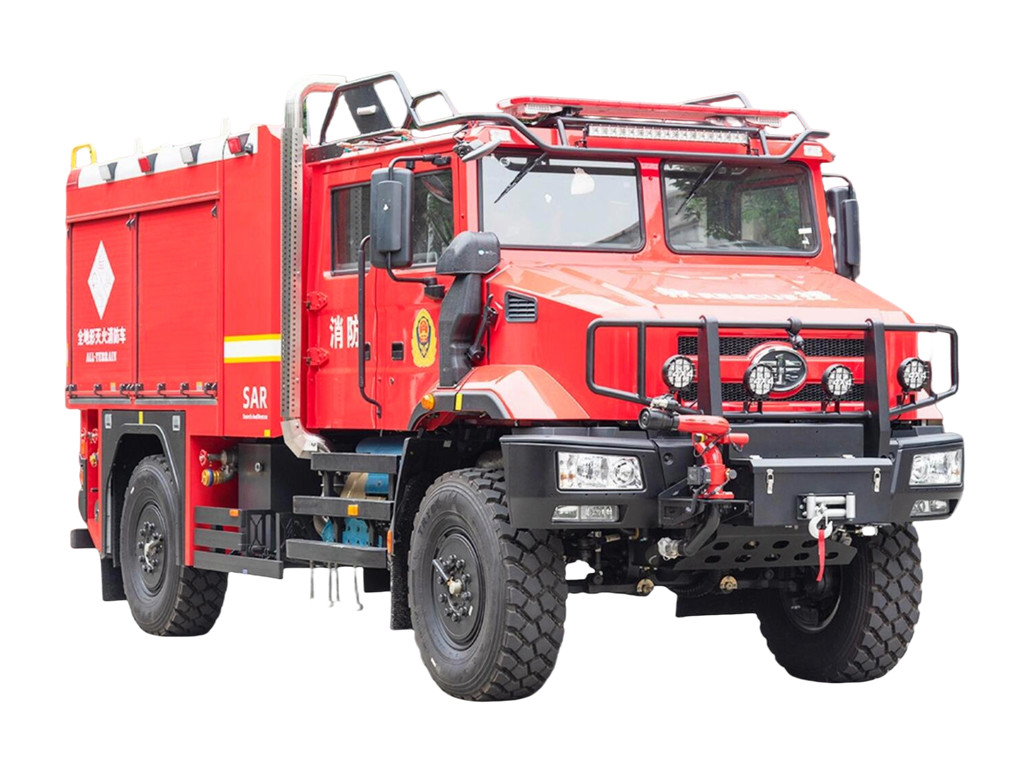

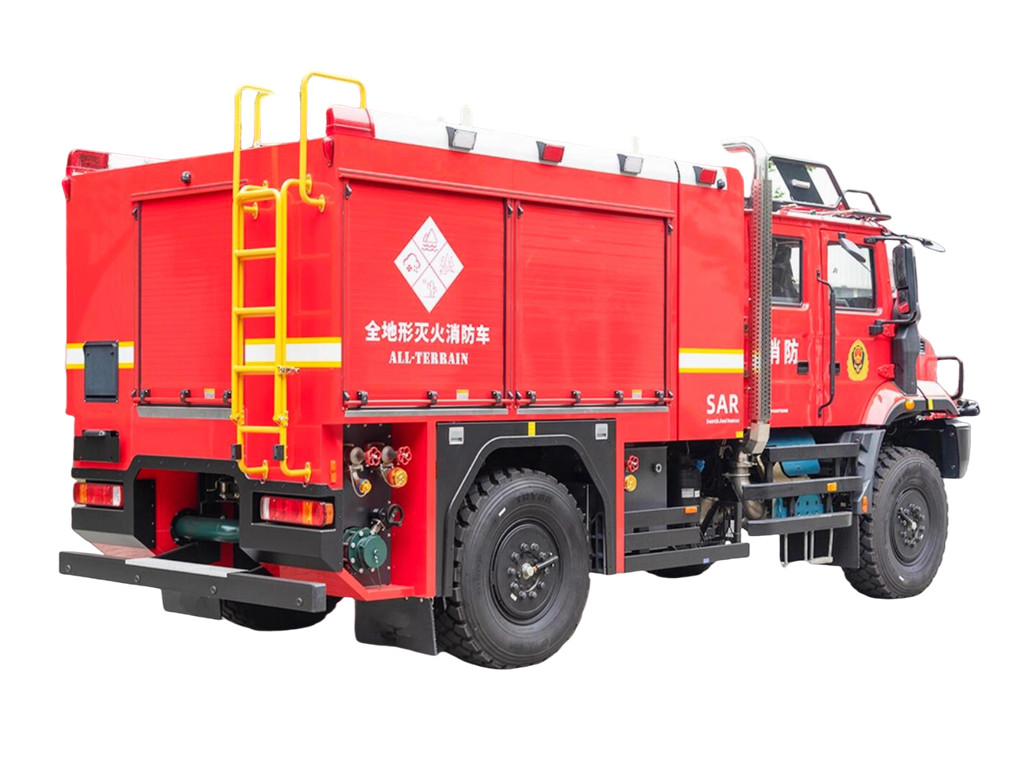

FAW 4x4 all terrain fire truck is a high performance special vehicle developed by China FAW brand for special firefighting and rescue needs. It is designed for firefighting and rescue tasks in complex terrain environments. Engine Jiefang CA6DL6-35E68 moodel with 350 horsepower, Drive type 4×4 full time four wheel drive with three differential locks Liquid capacity 2 tons of water + 1 ton of foam. Normal pressure fire pump with dual system water cannon range over 80m for waterand 70m for foam. Maximum speed 90km/h (road) / 40km/h (off-road). Very suitable for all terrain fire fighting rescue work.
Truck Model:
PT5130GXFTanker Structure:
Aluminum Alloy StructureWork capacity :
2000Liters Water and 1000Liters FoamWheelbase:
4300 mmAxle drive:
4×4 All TerrainEngine Power:
350 HPEngine Model:
CA6DL6-35E68Fire Pump:
CB10/40Fire Monitor:
PL32Remark:
Offroad 4x4 driving type for All Terrain Fire Extinguishing
FAW all terrain fire truck is often referred to as a wildland fire truck or a brush fire truck. Typically modify based on 4x4 or 6x6 offroad type wildland urban trucks chassis and used in rural or wildland settings, a FAW 4x4 offroad fire truck includes several unique design and configuration details to match the terrain it services. FAW 4WD Wildland fire trucks are designed to be sleek and maneuverable with the ability to manage offroad and variable terrain. FAW fire fighting trucks are often responding to wildfires and must be able to get as close to the fire as possible while maintaining both stability and vehicle control.
FAW All Terrain Fire Apparatus have a minimum of a 2000Liters water tank and 1000Liters foam tanker, also matched with CB10/40 fire pump with water flow rate 40L per second, the top mounted with PL32 fire monitor. FAW 4WD all terrain fire engines also feature an auxiliary pump in addition to the main water pump configured on a truck. The auxiliary pump can be powered by a separate diesel engine or generator that is connected to the fire pump, or a hydraulic auxiliary pump can be powered by an additional PTO hydraulic circuit with its own pressure governor. This pump-and-roll technique means that a truck operator can drive the truck while crew members man the pump and hoses walking beside the moving vehicle. This is critically important to allow firefighters to follow along as forest fires and brush fires move with the weather, and to create fire lines, wetting down areas ahead of an advancing wildfire.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
POWERSTAR all-terrain wildland fire truck is a special rescue vehicle specially developed for tough road conditions, narrow space, and difficulty in reaching ordinary fire fighting vehicles in time. Wildland fire apparatus adopts independent suspension wheel type all wheel drive system 4x4 or 6x6, which has superior wading ability, strong obstacle crossing ability, strong power, compact shape and good maneuverability. The Faw fire engine bodywork including 2000L water and 1000L foam, which features a compact compressed air foam system CAFS with minimal water consumption, hinge and lighting functions, suitable for all-weather all-terrain rescue and fire suppression operations.
Due to its excellent off-road ability and excellent fire fighting and rescue function, customized newly designed FAW All Terrain Fire Apparatus is very suitable for forest and grassland fire fighting, material transportation and rescue, and can also be rescued in poor road conditions such as urban roadways, waterlogged roads, and urban-rural junctions.
| No. | Main Items | Technical Parameters |
| 2.1 | Manufacturer | POWERSTAR TRUCKS |
| 2.2 | Model | CA2130J2K2L2T5E6Z |
| 2.3 | Drive type | 4*4 |
| 2.4 | Wheelbase | 4300mm |
| 2.5 | Engine model | CA6DL6-35E68 |
| 2.6 | Engine type | In-line 6-cylinder, water-cooled, supercharged and intercooled |
| 2.7 | Rated power | 261(kW) |
| 2.8 | Gearbox form | Manual / Automatic gearbox |
| 2.9 | Fuel tank capacity | 180L |
| No. | Main Items | Technical Parameters |
| 4.1 | Fire Pump | |
| 4.1.1 | Brand | Chinese brand XIONGZHEN / RONGSHEN |
| 4.1.2 | Model | CB10/40 |
| 4.1.3 | Rated Flow Rate | 40L/s @ 10bar |
| 4.1.4 | Suction Height | 7m |
| 4.1.5 | Priming Time | ≤60s |
| 4.1.6 | Location | Rear-mounted |
| 4.2 | Fire Monitor | |
| 4.2.1 | Brand | Chinese brand WEST |
| 4.2.2 | Model | PL8/32 |
| 4.2.2 | Flow Rate | 32L/s @ 10bar |
| 4.2.3 | Shoot Range | Water ≥ 45m |
| 4.2.4 | Location |
Top Mounted part of vehicle Front Mounted part of vehicle |
| 4.2.5 | Control Manner | Manual control |
| 4.2.6 | Horizontal Rotation | 0°~350° |
| 4.2.7 | Pitch Rotation | -15°~45° |
| 4.3 | Liquid Tank | |
| 4.3.1 | Capacity | 2000L Water / 1000L Foam |
| 4.3.2 | Material | PP composite material and Never Rust |
| 4.3.3 | Structure | 1 manhole; 1 overflow/pressure relief device; 1 liquid level sensor; 1 water tank discharge port. |
| 4.4 | Fire Fighting Control System | |
| 4.4.1 | Structure | The fire control system of this vehicle adopts advanced CAN 2.0 bus control technology and is equipped with a pump room operation control panel, which can discharge residual water with one click. |
| 4.4.2 | One-click discharge of residual water | Install air-controlled drainage pipelines at the location where the water pump system needs to discharge residual water. One-click control. |
Advanced features structures for FAW all-terrain wildland fire engine:
Cabin: Double row four-door cabinet, double row seats, seats 1+1+4, with rear mounted SCBA seats for air apparatus.
Standardized Sub-frame: High-strength rectangular tube made of special steel material. The liquid tank and the sub-frame are connected by elastic connecting seats.
Compartment and Structure: High-strength aluminum alloy profiles can never rust, Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear
Roller Shutter Door: Aluminum alloy profiles with anodized surface
Top Structure: With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.
Superstructure Electric Appliance: Warning light and siren are mounted above cabin, the controller is installed in the driver's cabin. Strobe Light is mounted on the both sides of the compartment
FAW all terrain wildland fire trucks are suitable for forest fire fighting. Can independently carry out water and foam fire fighting, and can also provide water support for other fire trucks. Equipped with all wheel drive system, with differential lock to ensure traction in mud, gravel and other road conditions. Ground clearance usually more than 300mm, some models adopt portal axle design to further enhance passability. The Special all-terrain tires equipped and tire pressure can be adjusted to adapt to snow/desert and other scenes. Truck equipped with CA6DL series diesel engine, power covers 300-400 horsepower, meeting the National VI emission standards, and suitable for all kinds of road condition. Optional remote-controlled water cannon, Class A foam system, some models integrate CAFS compressed air foam system, all make the wildland fire engine an ideal truck for all project.
