Morocco HOWO 6000 liters compressed air foam fire truck

Morocco HOWO 6000 liters compressed air foam fire truck

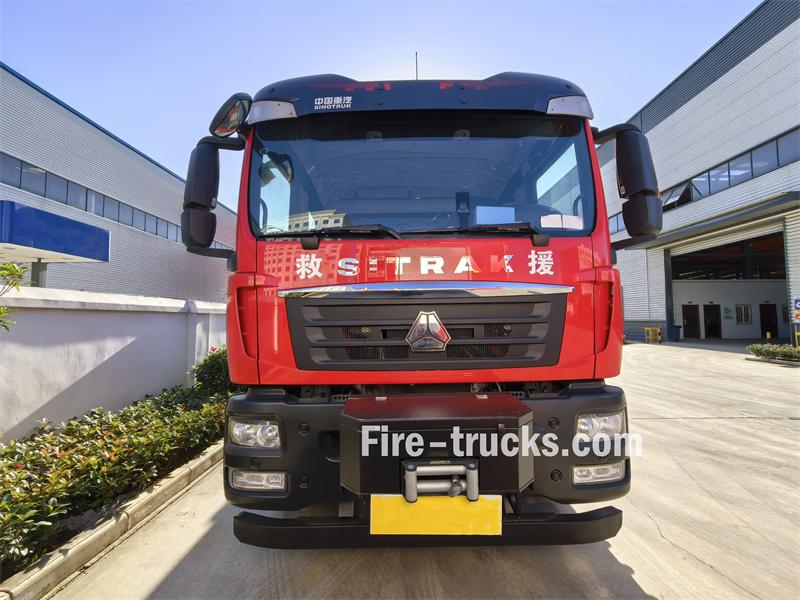

The Sinotruk 6 CBM CAFS fire rescue truck is modified from the Sinotruk C5H chassis, with a 4700mm wheelbase. It is equipped with a Sinotruk MC07H.35-60 engine, a Fast 8-speed gearbox, and features a 5 cubic meter water tank, a 350KG type A foam tank, and a 550KG type B foam tank. The vehicle is equipped with a high-performance fire pump, fire monitor, and CAFS system, and is easy to operate. This vehicle can be used for comprehensive emergency rescue functions such as fire fighting, reconnaissance, demolition, rescue, lighting, and protection.

  • Truck Chassis:

    Sitrak C5H , 4x2
  • Tanker Capacity:

    5000L water +350kg type A +350kg type B foam
  • Engine Power:

    MC07H.35-60, 350 HP
  • Fire Pump:

    China CB10/80-XZ
  • Pump Flow Rate:

    80L/s
  • Work Pressure:

    1.0 Mpa
  • Fire Monitor:

    China PL8/64
  • Flow Rate:

    64 L/s
  • Monitor Range:

    Water≥75 m,Foam≥70m
  • Air compressor System:

    Sinotruk MC07H.35-60
  • Remark:

    15 meters fire ladder
Facebook Linkedin Youtube Twitter Pinterest

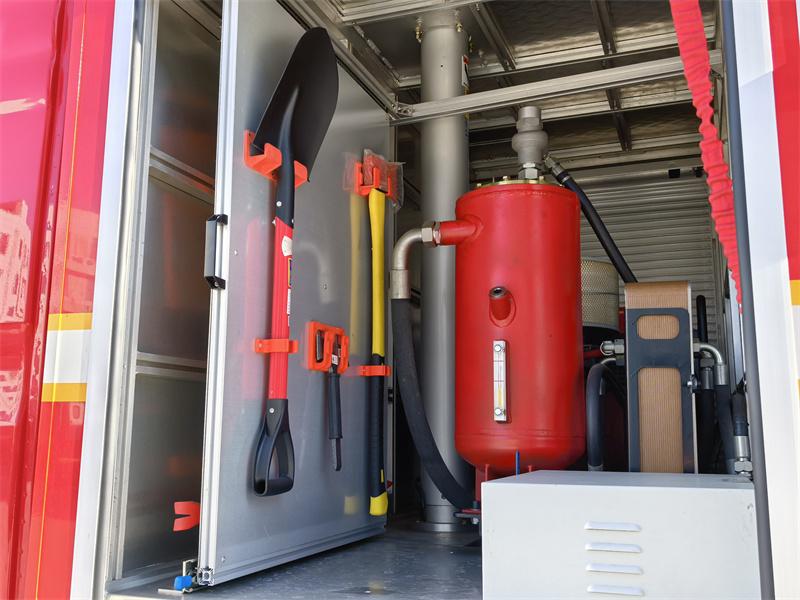

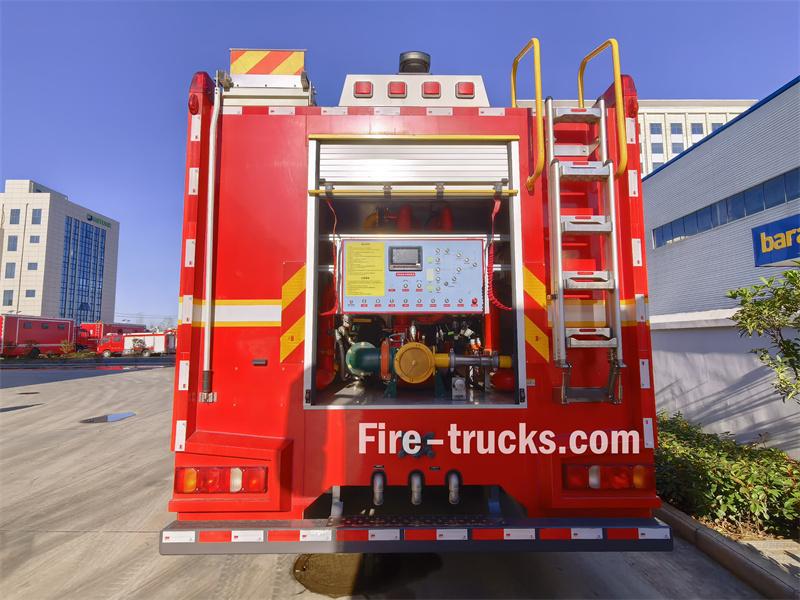

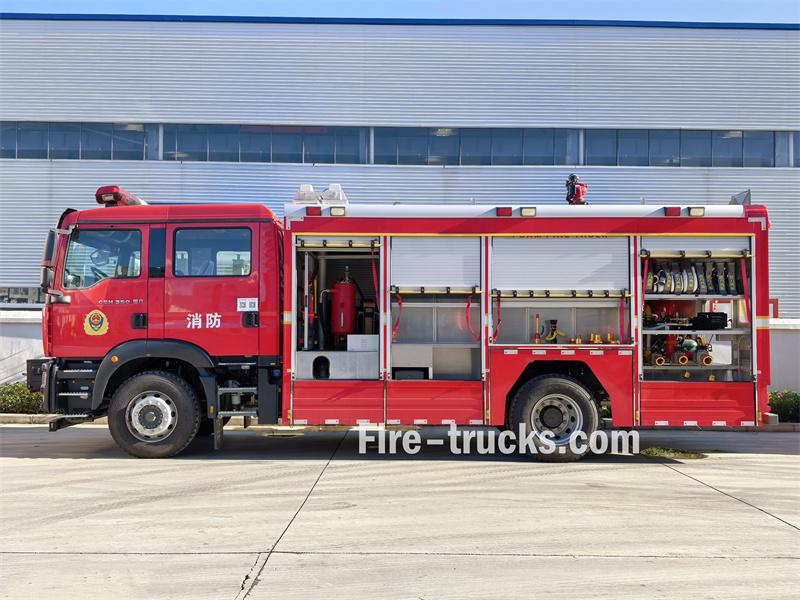

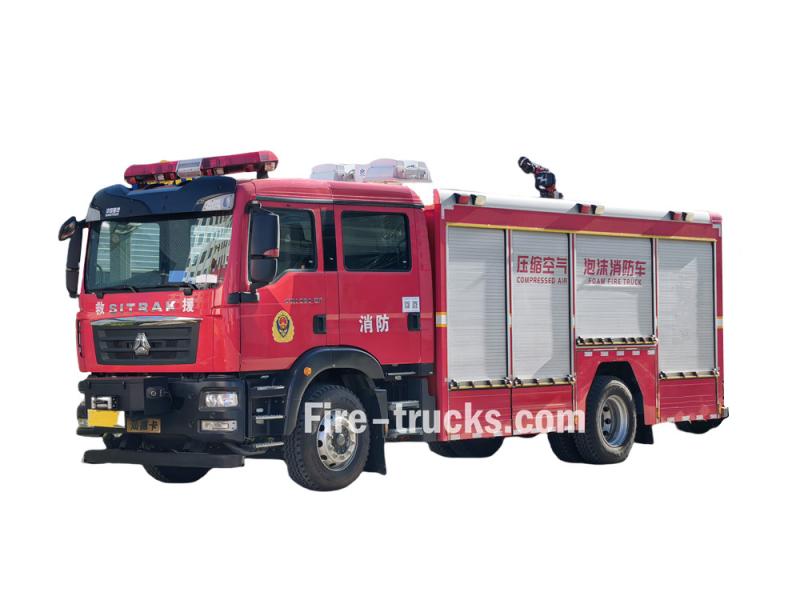

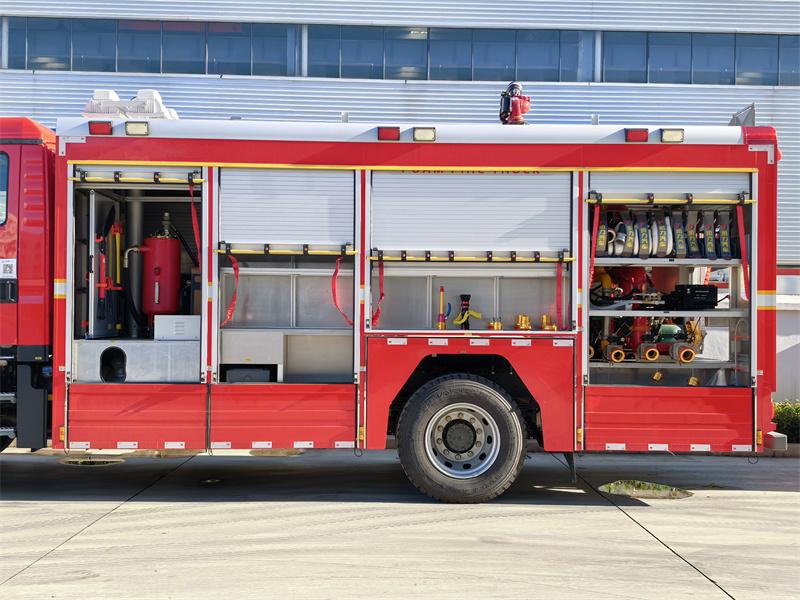

The Morocco Sinotruk 6000-liter compressed air foam fire truck is an advanced rescue vehicle specifically designed for Morocco's firefighting needs. This vehicle features an internal tank structure, with equipment compartments at the front, a water tank in the middle, equipment compartments on either side of the water tank, and a pump room at the rear. The liquid tank is made of 304 stainless steel and is flexibly connected to the chassis. It carries 5000 kg of water and 900 kg of foam concentrate (350 kg of type A foam + 550 kg of type B foam).



The compressed air foam system uses the DC-CAFS60/45M type A automatic compressed air foam fire extinguishing system, used in conjunction with a foam proportioning system, a CB10/80-XZ fire pump, a B-FOAM-07 foam pump, a PL8/64 fire monitor, and a lifting lighting system.



» Sinotruk 6 cbm CAFS fire rescue truck «

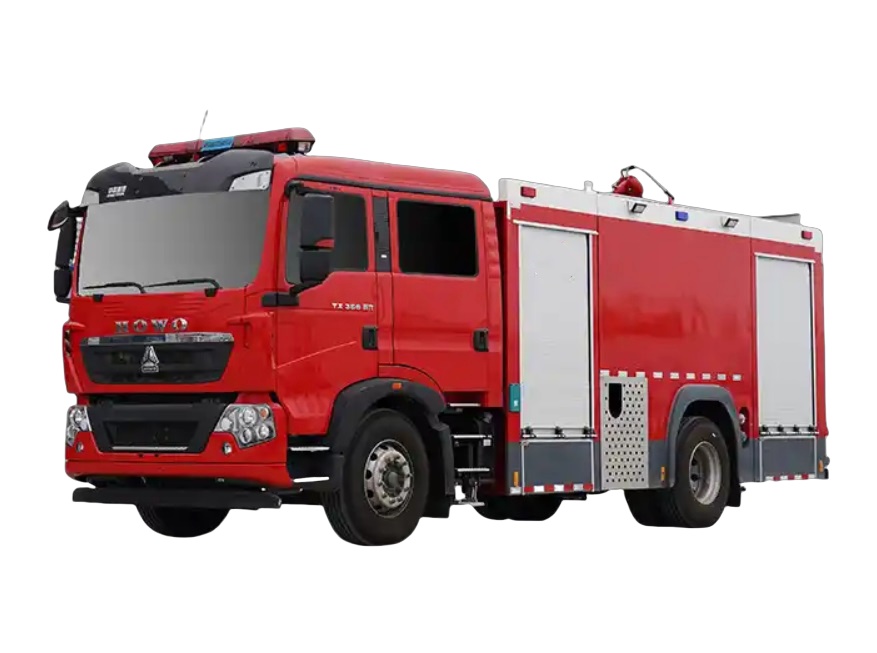

 Morocco Sinotruk 6000-liter compressed air foam fire truck

»Ⅰ. Main Features

1.High-end and reliable chassis:
Utilizes the Sinotruk C5H chassis, equipped with a Sinotruk MC07 engine and a Fast 8-speed transmission, providing strong power and reliable operation.

2.Large-capacity liquid loading:
Capacity to carry up to 5600kg of liquid, including 4700kg of water and 900kg of foam concentrate (350kg for type A + 550kg for type B), offering strong endurance.

3.High-efficiency CAFS fire suppression system:
The core equipment is the DC-CAFS60/45M compressed air foam system, enabling one-button operation to generate high-quality foam with high fire suppression efficiency.

4.Complete fire protection core system:
Equipped with a CB10/80-XZ fire pump, a B-FOAM-07 foam pump, and a PL8/64 fire monitor, the system is fully integrated and performs stably.
  • Sinotruk 6 cbm CAFS fire rescue truck
  • Sinotruk Sitrak compressed air foam system fire truck
  • Sitrak 4x2 6 cbm CAFS fire truck

 » Ⅱ.Product Parameter :

Sinotruk 6 cbm CAFS fire rescue truck

General

Work capacity

5000L water tank,350kg type A foam tank,550kg type B foam tank

Truck chassis

Sinotruk Sitrak C5H

Engine Power

SINOTRUK MC07H.35-60350 HP/ 257kW

Fire water pump

CB10/80-XZ

Fire monitor

PL8/64

Foam pump

B-FOAM-07

CAFS System

DC-CAFS60/45M

Chassis

Drive Type

4X2

Wheelbase

4700mm

Transmission

FAST 8-speed, manual

Tire

315/80R22.5,6+1wheel





Fire pump

Model

CB10/80-XZ

Pressure

1.0MPa

Flux

80L/s

Max suction depth

7m

Water diversion time

50s

Fire monitor

Model

PL8/64

Pressure

0.80MPa

Flux

64L/s

Range

Water75m,foam≥70m

Pitch Rotation

-45+70°

Horizontal rotation

0360°

CAFS system

Model

DC-CAFS60/45M

Maximum injection pressure

1.4Mpa

Air compressor model

EV06-NK

Rated flow rate

5.5m³/min@0.85MPa

Max work pressure

1.5MPa

Foam pump model

B-FOAM-07,22L/min

Foam Type

Wet foam

Strong wet foam

Dry foam

Flux

180 L/min

A: 280 L/min;B 100 L/min

A: 100 L/min; B:240 L/min

Range

24 m

A: 26 m;B:12 m

A: 12 m; B:24 m

Lifting Lighting System

Generator

Honda Power

Performance

10.5KW,50HZ,220V

main lighting

4×1000W

Portable lights

500W/ 2pic

Pneumatic lifting pole

Max ground clearance 8m,45kg lift weight

Gimbal

330° pitch angle, 360° full rotation, 220V

winch

Max tensile strength: 7000kg, electric



-----Tanker materialCarbon steel, stainless steel, aluminum alloy, PP material
-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand
-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)

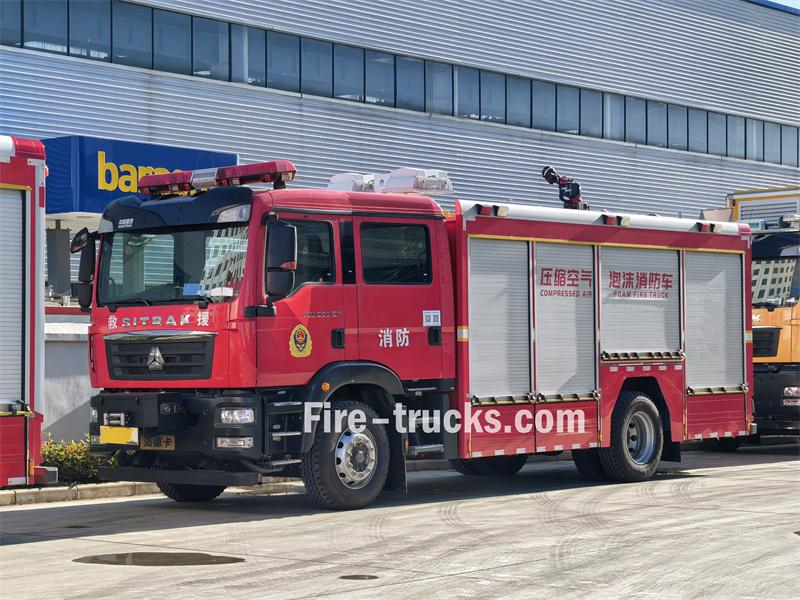

Sitrak 6cbm compressed air foam fire truck



Tank System: 5 cubic meter carbon steel water tank, totaling 900 kg of stainless steel foam liquid (350 kg of type A foam and 550 kg of type B foam), meeting the needs of long-term high-intensity fire extinguishing.



» Ⅲ. Fire Pump system :

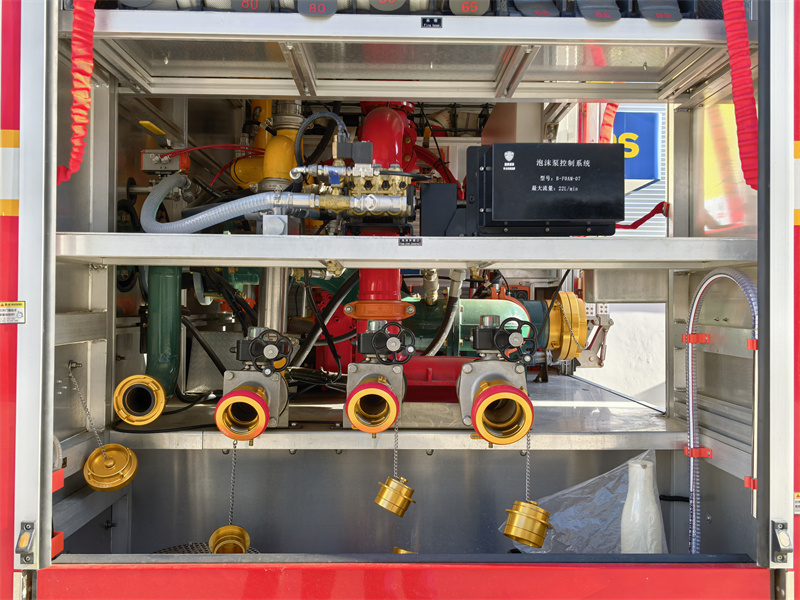

CB10/80-XZ fire pump

Fire pump Model

Pressure

Flux

Maximum vacuum

Rated speed

Water diversion time

CB10/80-XZ

1.0MPa

80L/s

≥85KPa

2575±50r/min

45s
  • Sitrak 4x2 CAFS fire fighting truck

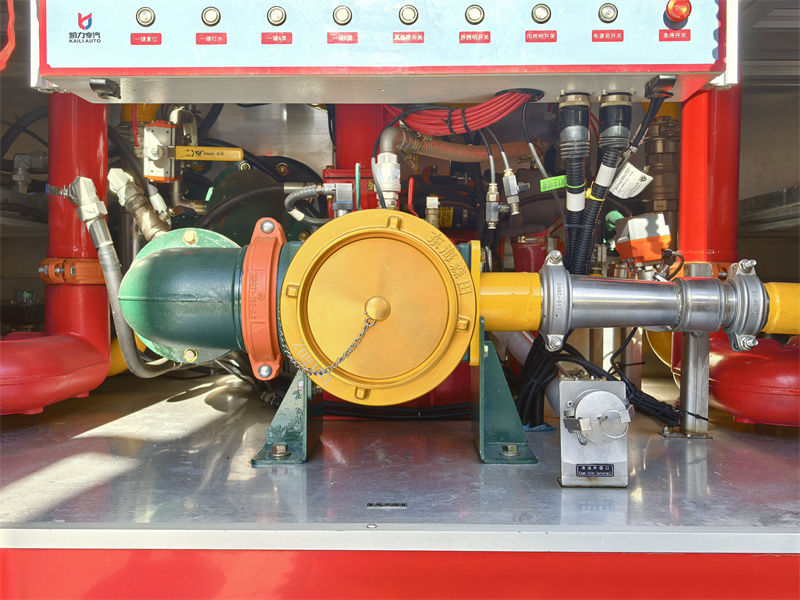

  • CB10/80 fire pump
  • CB10/80 fire pump



» Ⅲ. Fire Monitor system :

PL8/48 fire monitor

Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation Weight
PL8/64 64L/s

water ≥75m,

foam ≥70m

0.80MPa -45°~+70°
0~360° 27kg

PL8/48 FIRE MONITOR

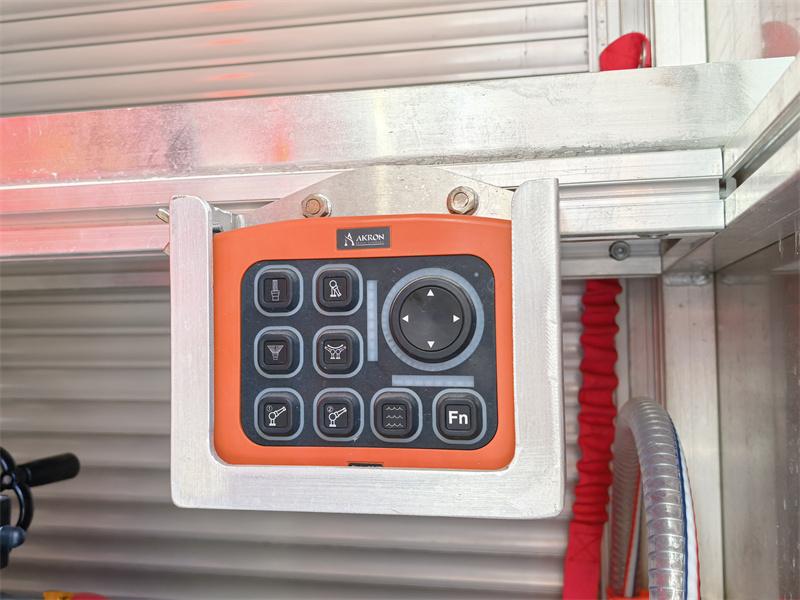

» .Control panel:

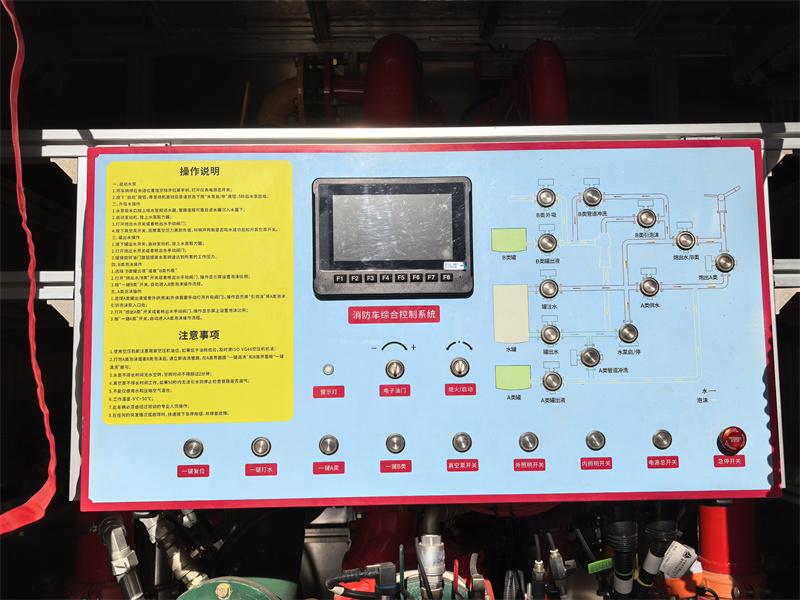

Control panel



Control panel: The system includes integrated operating instructions, precautions, structural diagrams of type A and type B tanks and water tanks, a comprehensive fire truck control system, warning lights, electronic throttle, engine stop/start, one-button reset, one-button water filling, one-button type A control, one-button type B control, lighting switches, main power switch, emergency stop switch, and other buttons.



» Ⅴ.Lifting lighting system:

Lifting lighting system: Equipped with Honda-powered generator, main lights, mobile lights, lifting mast, pan/tilt head, cable reel, etc.



Lifting lighting system

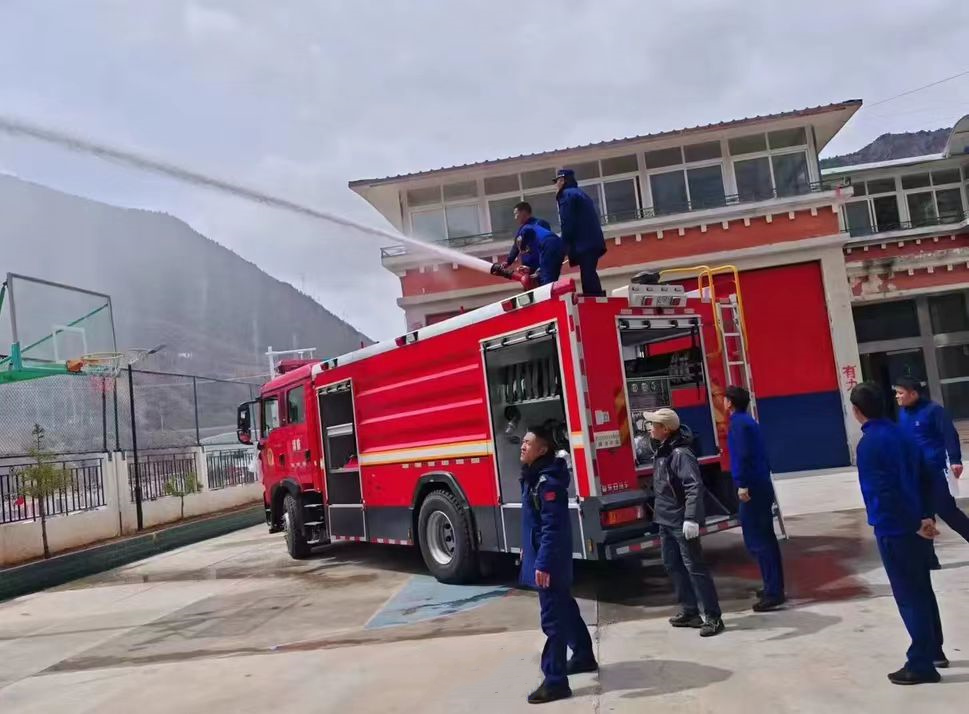

» .Preshippment Test:

Before deliver Sinotruk 6 cbm CAFS fire rescue truck from our fire truck factory, we will strictly make 30 different kinds of inspection on the fire fighting trucks, range from fire pump, fire monitor, fire gun, fire pipe. All the main components will taken at least 50 working hours.
