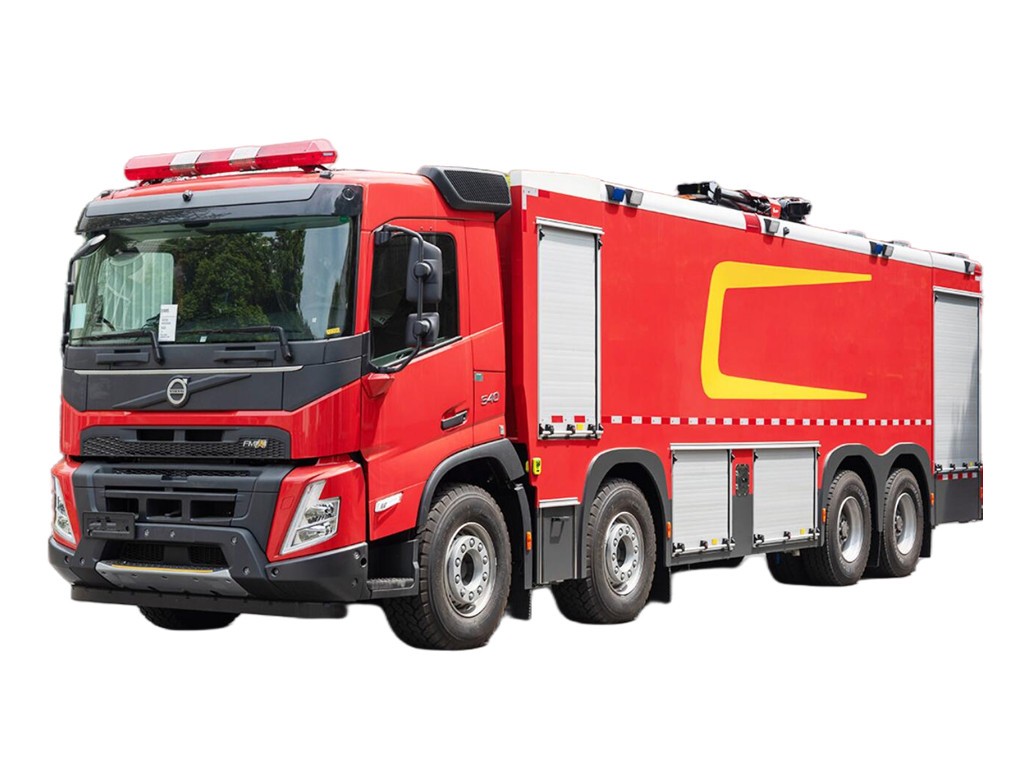

Volvo 25Tons water foam fire truck

Volvo 25Tons water foam fire truck

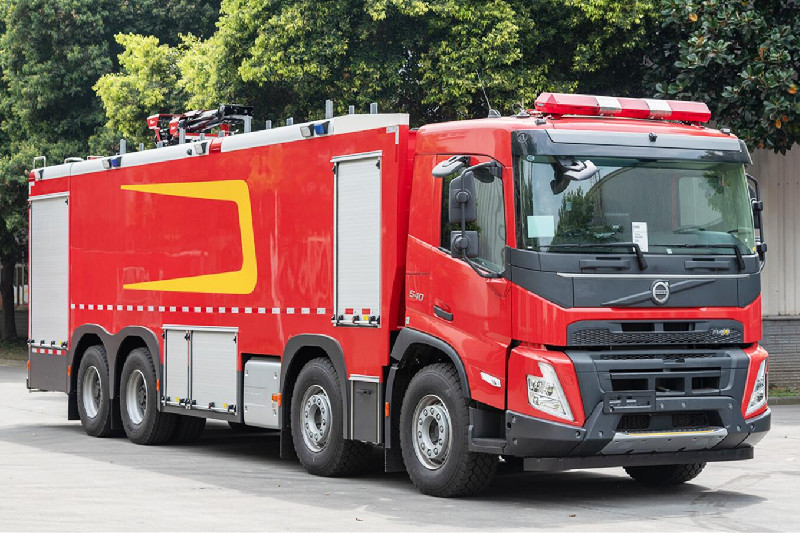

Volvo Heavy Duty Fire Truck is specially designed and manufactured by Fire Master, a leading fire truck manufacturer in the world. The Heavy Duty Volvo Water Foam Fire Truck is primarily used for firefighting purposes in industrial areas, airports, and large commercial buildings. It is also suitable for municipal fire departments and emergency response teams. The vehicle features a 15,000-liter water tank and a 10,000-liter foam tank, along with a Germany Ziegler CB10/170-Z fire pump and a PLKD12/150-Z fire monitor, offering flow rates of 160 L/s and 150 L/s. The body is constructed with high-quality steel and aluminum, featuring a double-row cabin and a multifunctional equipment compartment.

  • Manufacturer Origin:

    PT5430GXFPM
  • Work capacity :

    Flow rate 150L/s
  • Upper Body material:

    Stainless steel 15CBM Foam & 10CBM Water
  • Wheelbase:

    1995+5205+1370 mm
  • Axle drive:

    8×4
  • Engine Power:

    540 HP
  • Engine Model:

    DK13 540 EU6
  • Fire Pump:

    German Ziegler CB10/170-Z fire pump
  • Fire Monitor:

    German Ziegler PLKD12/150-Z
  • Remark:

    Aluminum material avaiable
Facebook Linkedin Youtube Twitter Pinterest

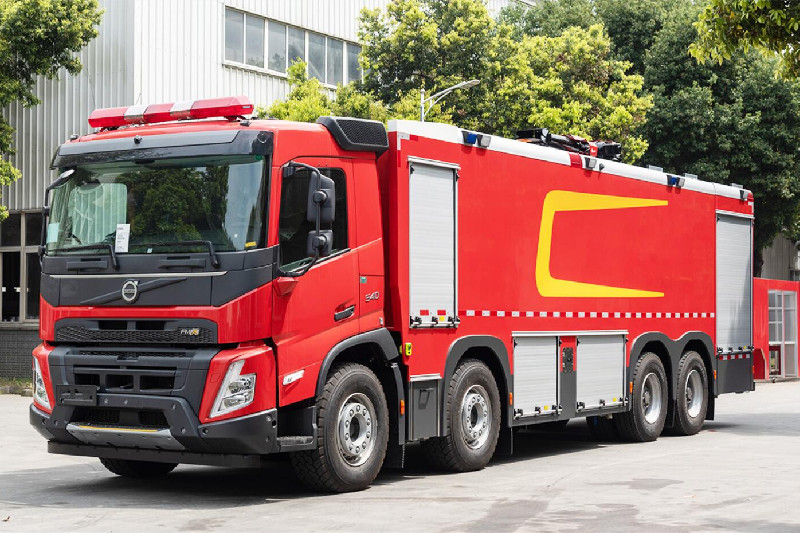

The newly famous Volvo Heavy Duty Fire Truck is the ultimate solution for fire emergencies that require a powerful and reliable vehicle. With its top-notch features and state-of-the-art technology, this truck is designed to handle even the most intense fire situations with ease. The Fire Master PT5430GXFPM model Volvo foam fire fighting truck is equipped with the latest Euro 6 technology VOLVO 12 wheeler FMX truck chassis, ensuring maximum efficiency and reduced emissions. It is also fitted with advanced fire suppression systems and safety features to provide optimal performance in emergency situations.

Material:

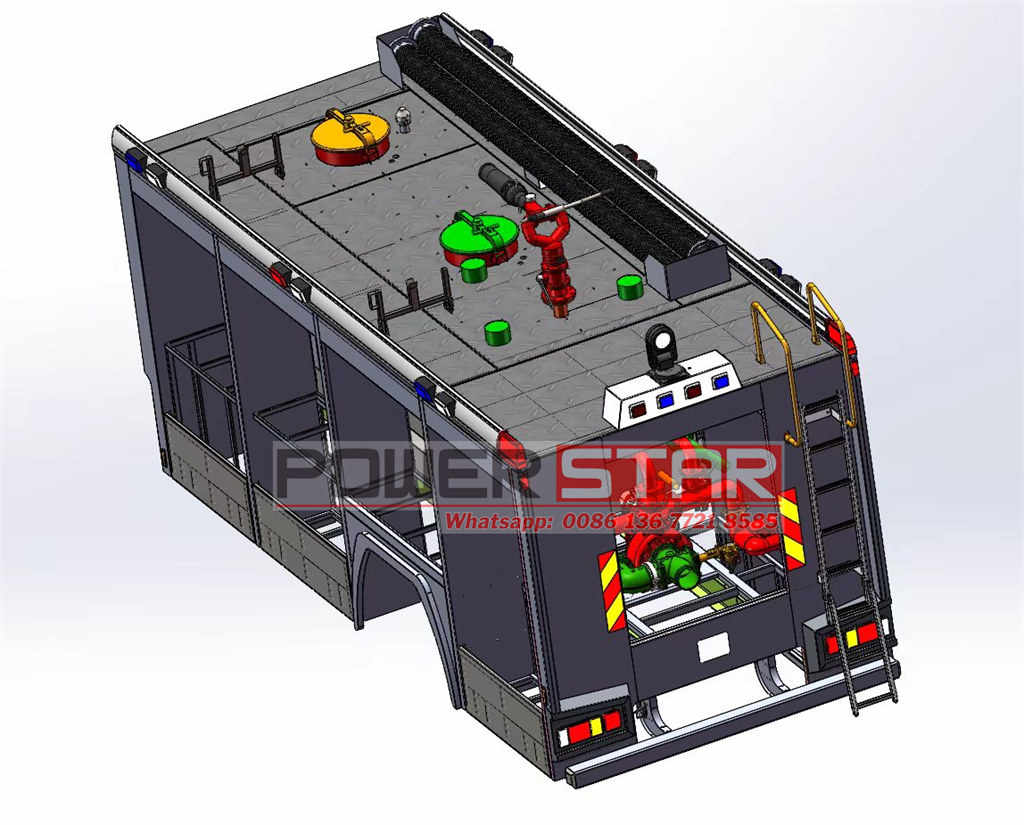

The fire tanker body of the Heavy Duty Fire Truck is made of high-strength stainless steel SS304, with thickness for side 4mm and floor 5mm, providing superior durability and resistance to extreme conditions. The water and foam tanks are all constructed with SS304 materials to ensure long-lasting performance.

Function:

The main function of the Volvo 25tons foam fire truck is to quickly respond to and extinguish fires in large and complex environments. It is equipped with powerful firefighting equipment, including a German Ziegler CB10/170-Z fire pump with flow rate 160L/s and a German Ziegler PLKD12/150-Z fire monitor with flow rate 150L/s, to effectively combat fires.

Capacity:

The import brand Volvo Fire Pumpers Truck has a tank capacity of 10000L for water and 15000L for foam. This enables it to carry a large amount of firefighting agents, making it suitable for tackling fires of varying sizes and intensities. Specially for remote distance fire fighting work.

Power:

The emergency Volvo fire fighting truck is powered by a robust and efficient engine DK13 540 model with 540HP, providing the necessary power to operate the fire pump and other firefighting equipment. Also equipped with VOLVO self developed I-Shift manual gearbox with 12 speed. This allows Volvo fire pumpers suitable for quick response and effective suppression of fires.

The POWERSTAR Heavy Duty Fire Truck is designed to be used in a variety of fire emergencies, including below position:
Industrial fires: With its powerful fire monitor and pump, the volvo fire truck is perfect for extinguishing large-scale fires in factories, warehouses, and other industrial settings.
Wildfires: The 2025 year designed Volvo Fire Truck's ability to navigate rough terrain and its high-speed capabilities make it an ideal choice for fighting wildfires.
High-rise buildings: The truck's long-range fire monitor and high pressure pump make it a valuable asset in tackling fires in high-rise buildings.
Chemical fires: The Volvo Fire Pumpers advanced technology and specialized equipment make it suitable for handling chemical fires, providing a safer and more efficient response.




Imagine a raging fire in a factory, with smoke and flames engulfing the building. The POWERSTAR Fire Truck arrives on the scene, its red and white exterior standing out against the dark smoke. The crew quickly springs into action, using the installed truck's fire monitor to douse the flames and its pump to supply water to the fire hoses. The truck's powerful engine allows it to maneuver through the factory's parking lot, reaching even the most difficult spots. With its advanced technology and efficient design, the fire is soon under control and the factory is saved from destruction. The fire pump installed at rear pump room and fire monitor installed on the top of the volvo fire truck, all make the truck an ideal fire rescue emergency water foam truck for fire extinghisher.

Fire pump
Brand German Ziegler
Model CB10/170-Z
Rated pressure 1.0MPa
Rated flow 160L/s
Startup time ≤100s
Installation form Rear mounted



Fire monitor
Brand German Ziegler
Model PLKD12/150-Z
Rated flow 150L/s
Range Water ≥ 100m, foam ≥ 95m
Installation location Top of vehicle
Control method Electric remote control
Horizontal rotation angle 0°~350°
Pitch and rotation angle -15°~70°




The Global Fire Trucks produced by POWERSTAR TRUCKS, including Mercedes Benz fire truck, Germany MAN fire truck, VOLVO fire truck, which is a must-have for any fire department or emergency response team. Its reliability, speed, and advanced features make it an invaluable asset in any fire emergency. With its roots in China, these trucks has earned its reputation as a top-performing and trusted fire truck around the world. Don't wait, calling the POWERSTAR today and be prepared for any fire emergency that comes your way.





VOLVO 25tons Foam Fire Truck Basic Parameter

Product Name

VOLVO 8X4 Firefighting truck PT5430GXFPM

Overall Dimensions

11500*2550*3850 mm

GVW

43000 kg

Curb Weight

18000 kg

Chassis Parameter

Chassis Brand

VOLVO

Chassis model

PMX

Drive mode

8×4

Cabin

Double row, 2+4 seats

Wheelbase

1995+5205+1370 mm

Tire

385/65R22.5, 12+1 pcs

Speed

85 km/h

Engine

Model

DK13 540

Number of cylinders

6

Displacement

12777 ml

Max. power

406kW(540HP)

Rated speed

1800 rpm

Max. torque

2650 N.m

Gearbox

VOLVO I-AMT 12-speed

Superstructure Parameter

Tank Material

Water Tanker

High quality stainless steel plate 4mm

Foam tank

High quality stainless steel plate 4mm

Tank Capacity

Total

25000L

Water Tank

15000L

Foam tank

10000L

Fire Pump

Type

Germany Ziegler Fire pump

Model

CB10/160

Flow

160L/S @1.0Mpa

Pressure

1.0Mpa

Fire Monitor

Type

Germany Ziegler Fire Monitor for water and foam

Model

PLKD12/150-Z

Flux

150L/S

Pressure

1.0Mpa

Range

Water100m; Foam95m

PTO

Use sandwich PTO, splashing type lubricate, can put out fire when driving.

Carriage

Carriage is made of high-quality steel and Aluminum embossed sheet

Pump room

On the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and
operate-switch.

Equipment room

Located behind the cabin, with aluminum alloy roller shutters on both sides. It is equipped with interior lighting, and storage boxes are provided inside the equipment room as needed.

Rolling shutter door

Light and high-quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise.











Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit

Related Products

Custom VOLVO Fire Rescue Vehicles

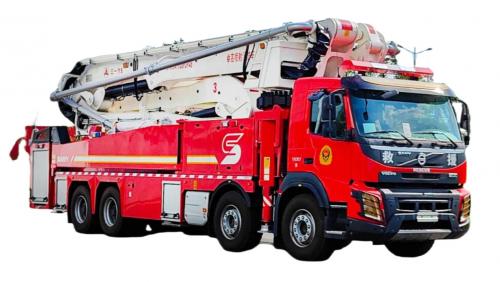

Volvo 65m Rescue Water Tower Fire Truck
