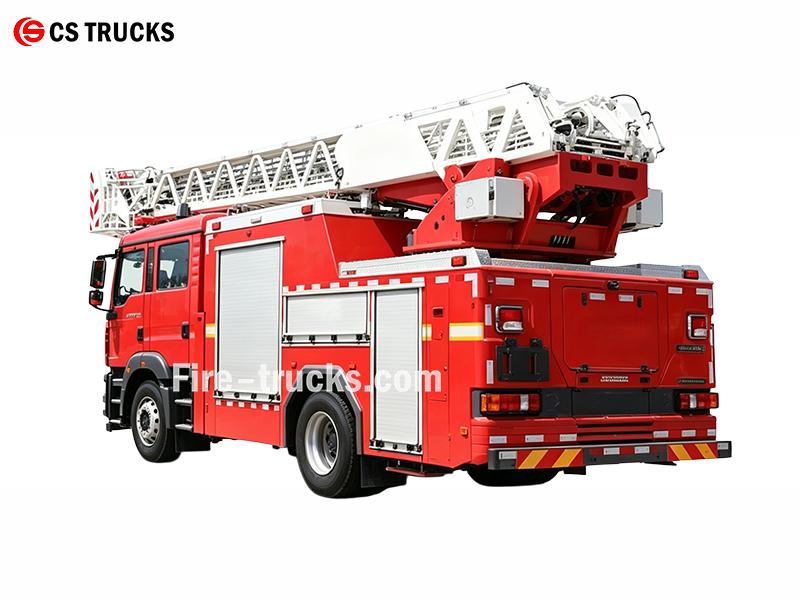

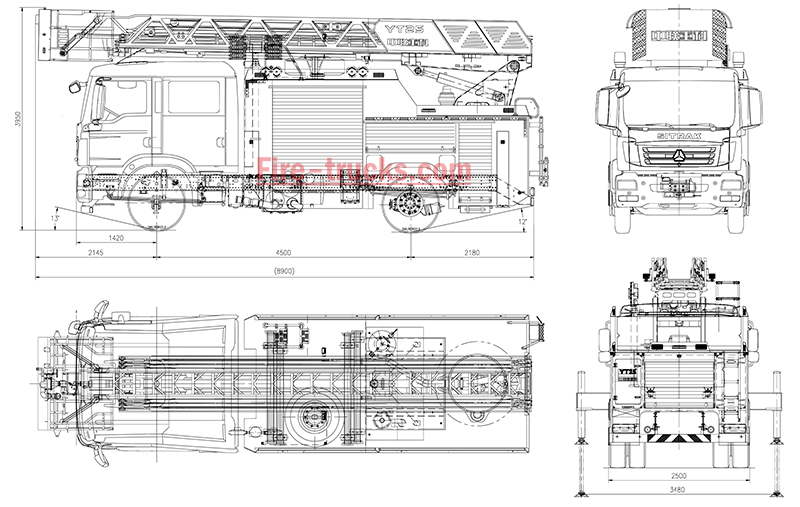

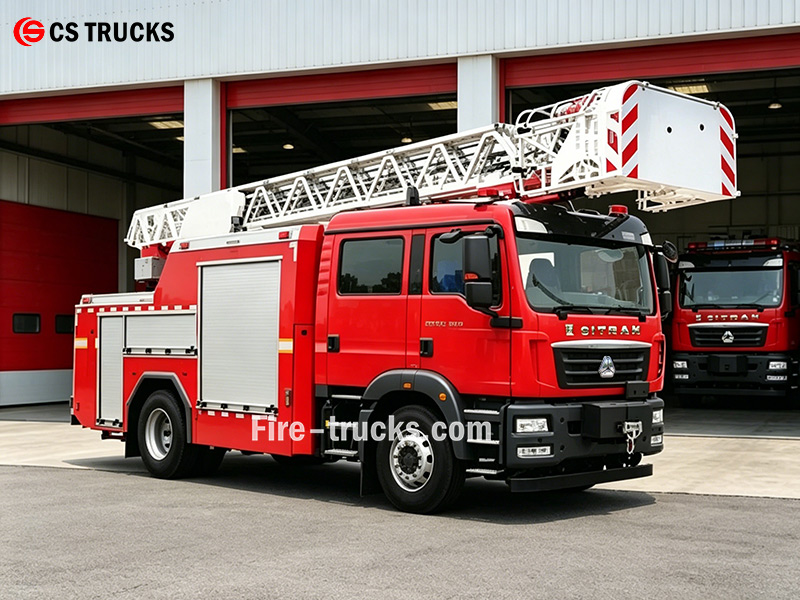

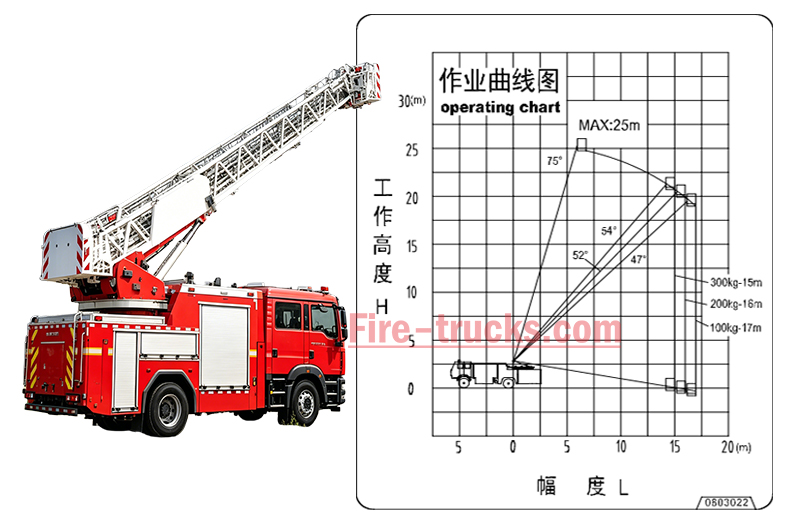

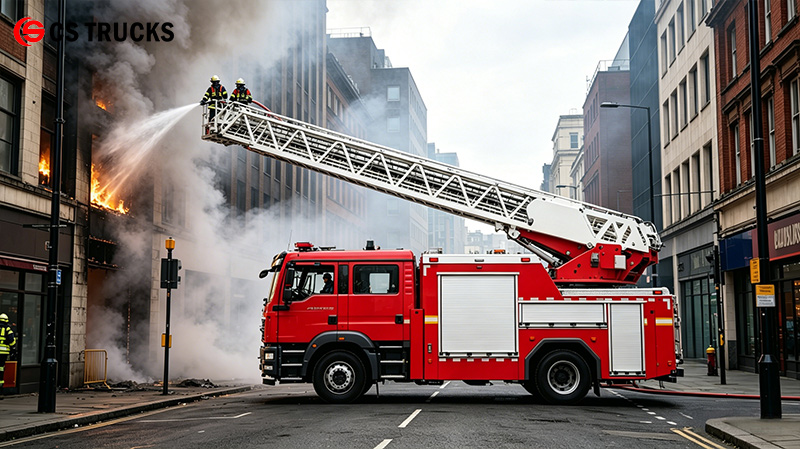

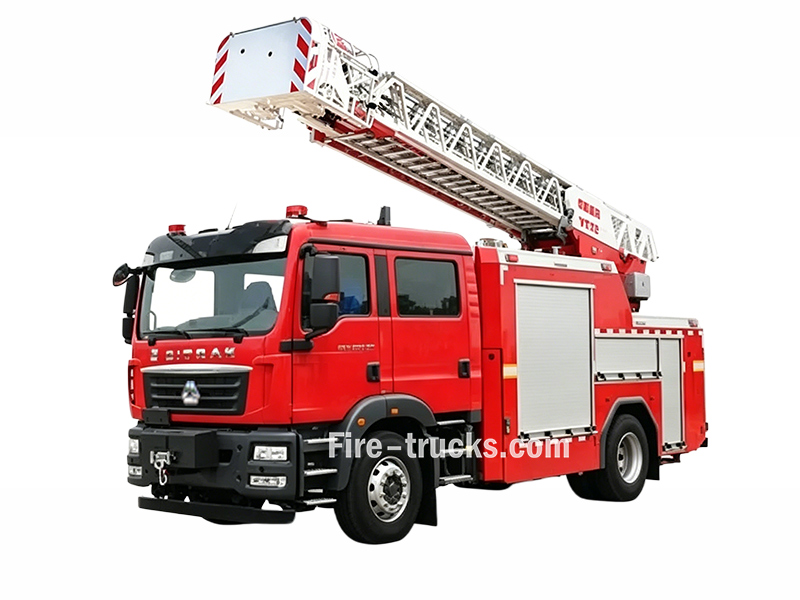

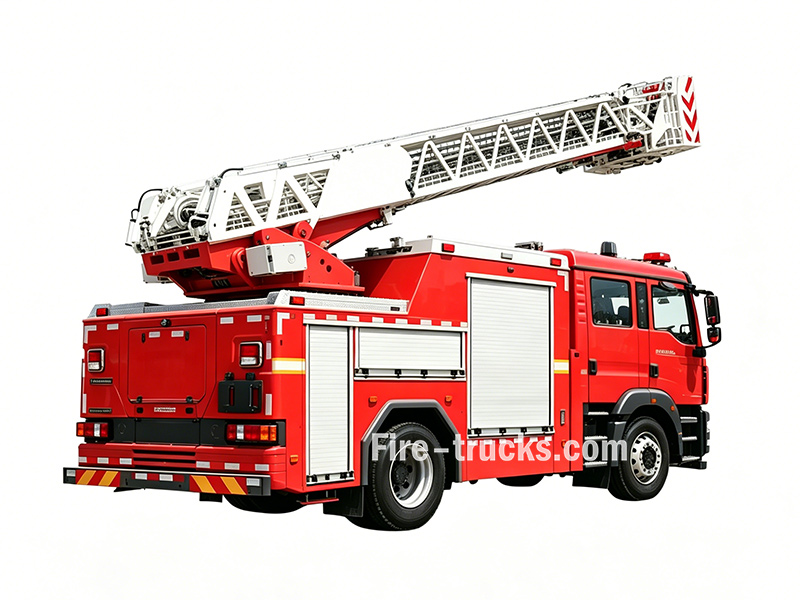

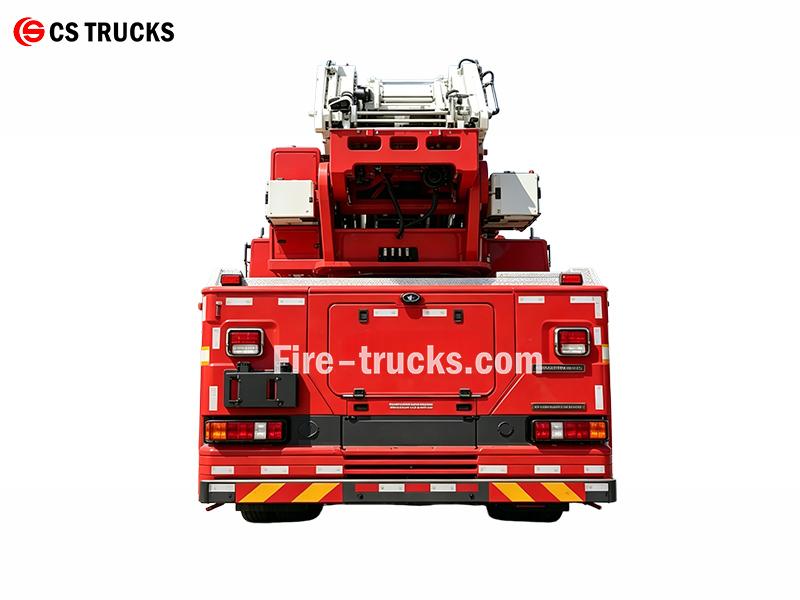

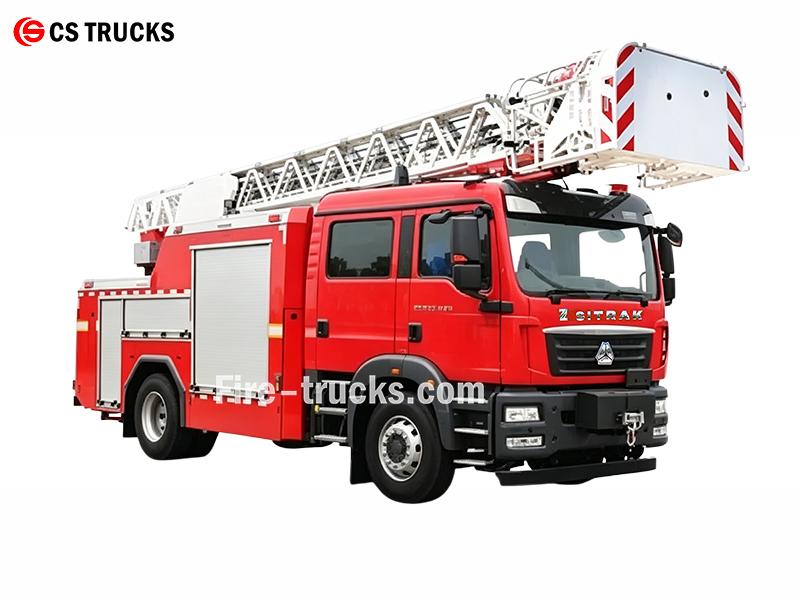

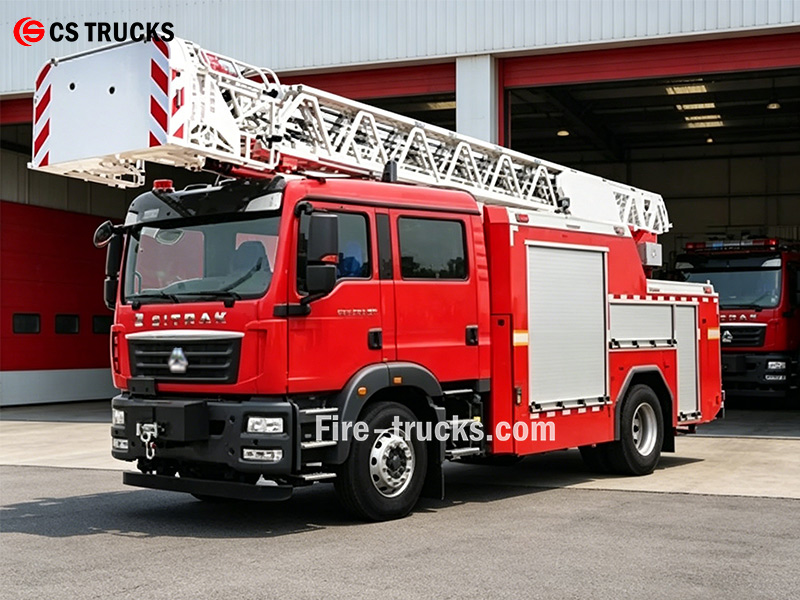

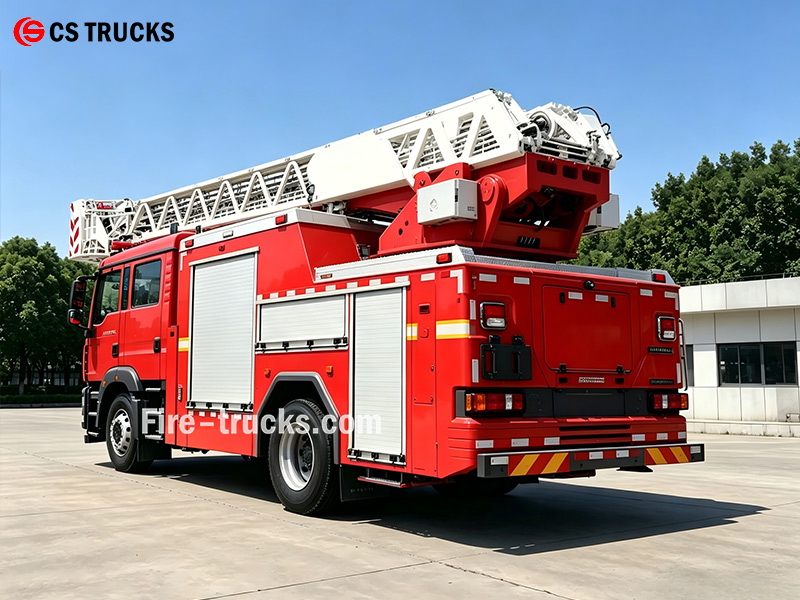

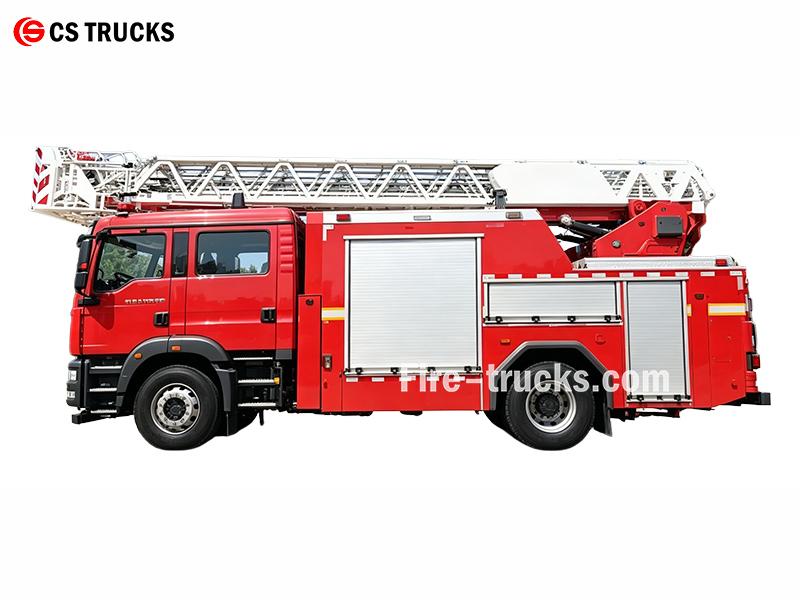

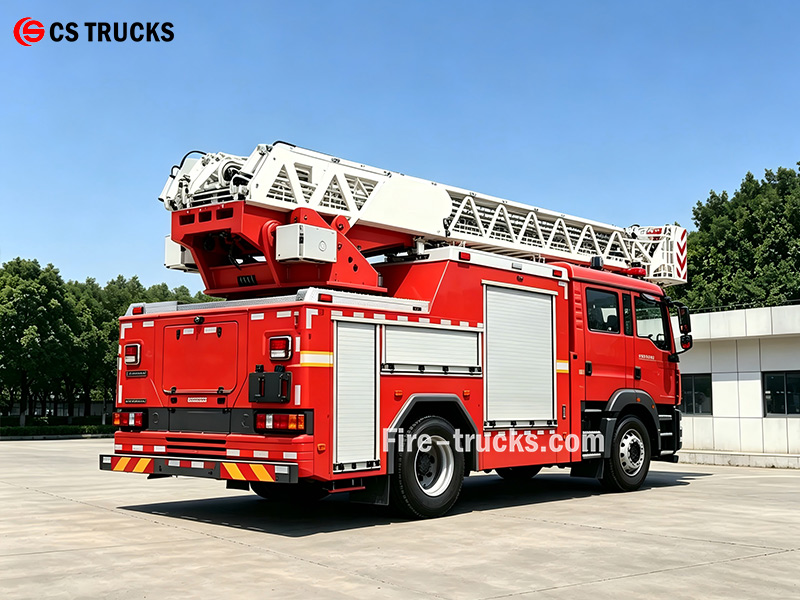

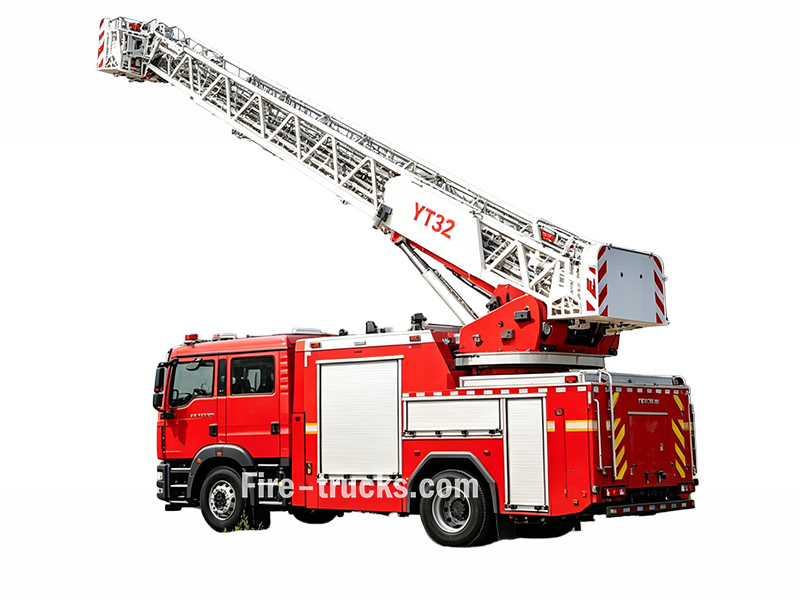

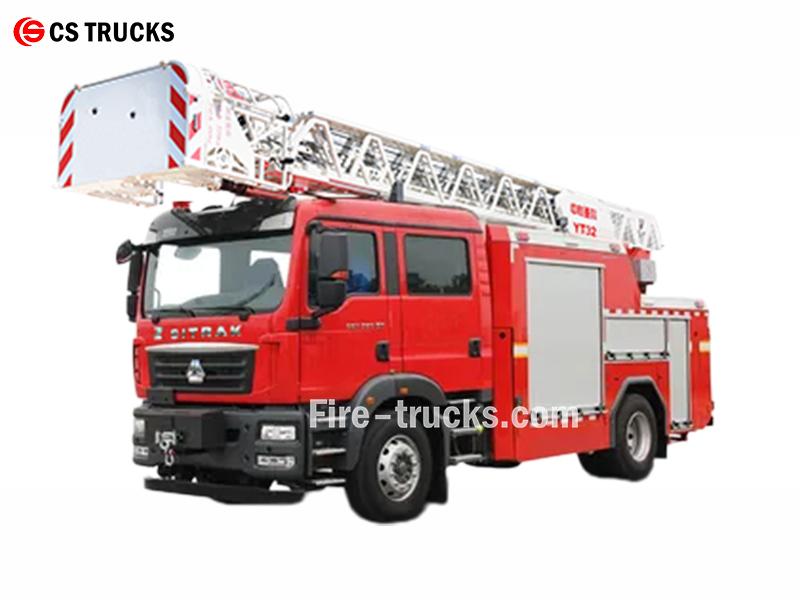

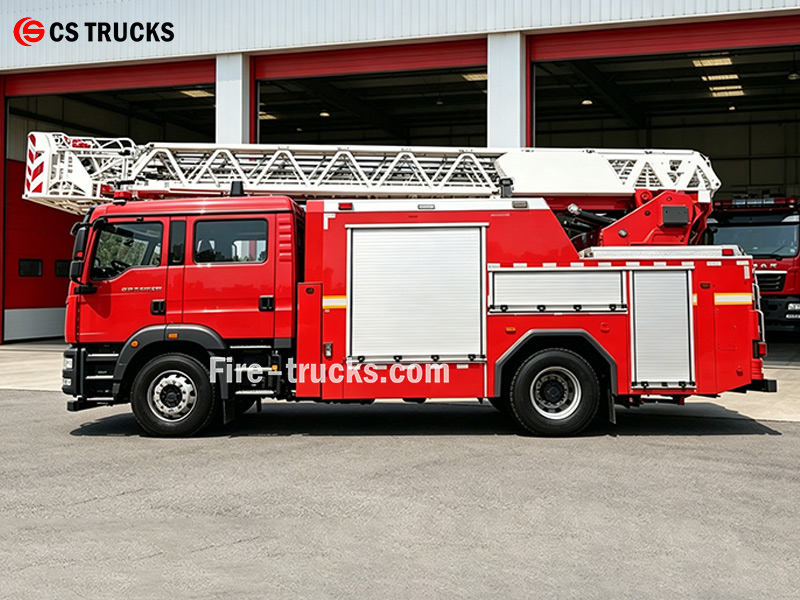

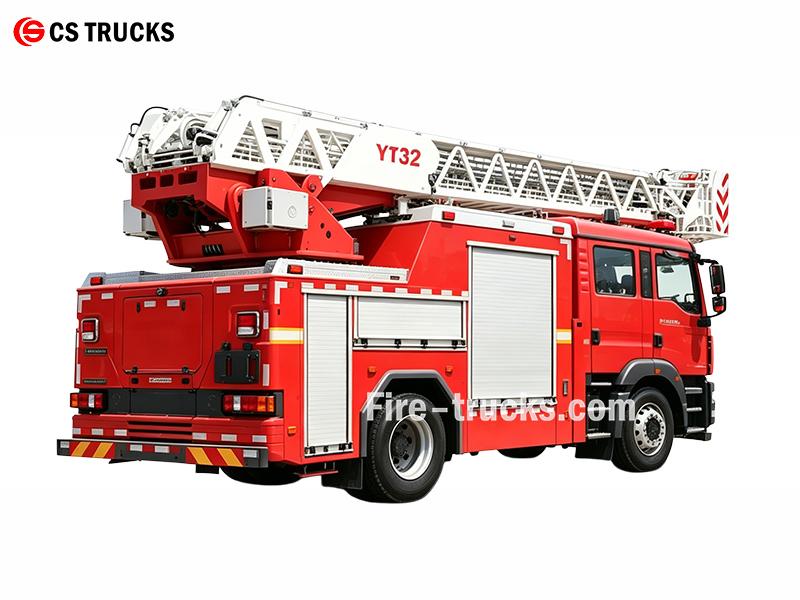

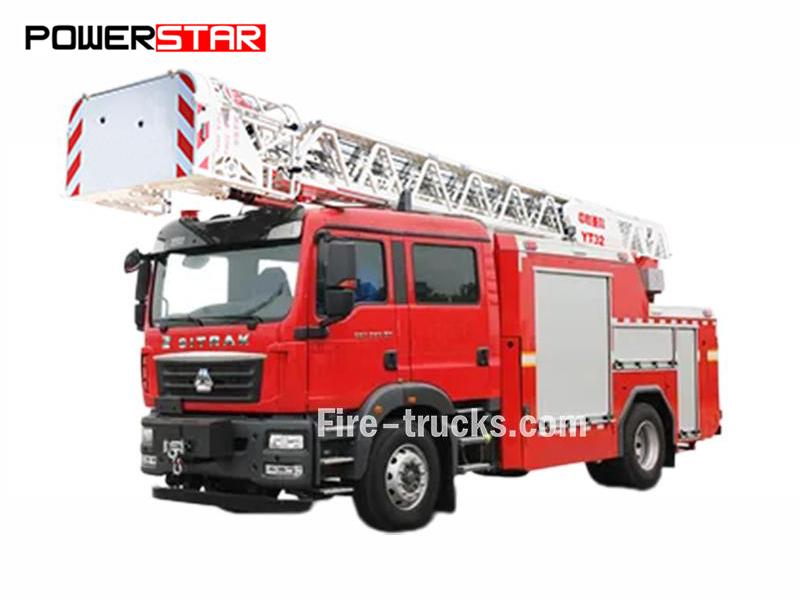

HOWO 25 Meter Aerial Platform Fire Fighting Vehicle

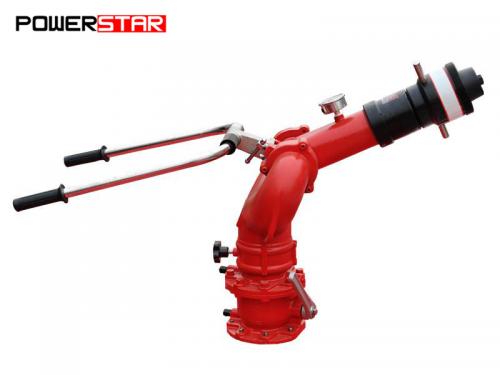

The Fire Truck Foam Cannon PL48 is a manual fire monitor that can spray both foam and water. It has a rated flow rate of 48 L/s, a rated pressure of 0.8 MPa, a water spray range of ≥70 m, and a foam spray range of ≥60 m. The monitor can rotate 360° horizontally and has an elevation angle of -30° to 70°, offering flexible operation.

The Fire Truck Foam Cannon PL24 is a high-efficiency firefighting device for medium- and long-range fire suppression, featuring high flow rate, long range, and stable spray. PL24 fire monitor can switch between direct current and spray modes, improving fire suppression efficiency while maintaining a safe distance, meeting various firefighting needs.

The ISUZU 4000L water fire truck runs on a 4HK1-TC engine rated at 175 HP, built on a 4×2 ISUZU chassis. A 4,000L water tank sits behind the cab, with a CB10/30-RS fire pump (30L/s at 1.0MPa) mounted in the rear pump room. A PS8/30W roof monitor delivers a water range of ≥60m, covering a full 360° horizontally and -35° to 70° vertically. The equipment compartments on both sides provide storage for fire hoses, suction tubes, and rescue tools, with all standard accessories included.

The HOWO 8×4 industrial fire tender runs on an MC11.46-61 engine rated at 463 HP, paired with a heavy-duty 8×4 chassis. Up front, the equipment compartment has aluminum treadplate walls and houses fire hoses, suction tubes, and basic rescue tools. The main body carries a 20,000L water tank and a 5,000L foam tank, both made of carbon steel. At the rear, the pump room holds a CB10/100 fire pump (100L/s at 1.0MPa), control panel, and accessories like filters, couplings, and foam nozzles. A PL8/80 roof-mounted monitor provides 360° rotation and a range of ≥45m.

The CB10/60 low-pressure vehicle fire pump is characterized by excellent performance, high efficiency, compact structure, aesthetic design, simple operation, and convenient maintenance. It is suitable for medium and heavy-duty water tank fire trucks, foam fire trucks, and water tower fire trucks, etc.

The Howo TX 4x2 7.5 cubic meter foam fire truck uses the Howo TX chassis with a 4700mm wheelbase. It is equipped with a Weichai WP4.6NQ240E62 engine and a Sinotruk HW95508STCL gearbox. The front of the superstructure is an equipment box for storing auxiliary firefighting equipment. The middle section contains a 5.5 cubic meter carbon steel water tank and a 2 cubic meter stainless steel foam tank. The rear pump room is equipped with a CB10/40-LC(BS) fire pump, control panel, firefighting equipment, PL8/32 fire monitor on the tank top, and two European standard manholes.

The Isuzu GIGA 6X4 10 cubic meter foam fire truck is based on the Isuzu GIGA 6X4 chassis, with a wheelbase of 4600mm+1370mm. It is equipped with an Isuzu 6UZ1-TCG61 engine and a Fast 12-speed transmission. The front of the superstructure houses the equipment compartment, the middle section contains an 8500L carbon steel water tank and a 1500L stainless steel foam tank, and the rear is the pump room, equipped with a CB10/60-XZ fire pump, control panel, fire hoses, firefighting equipment, etc. A PL8/48 fire monitor is located on the roof.

The Isuzu GIGA 6X4 10 cubic meter foam fire truck is based on the Isuzu GIGA 6X4 chassis, with a gross vehicle weight of 35 tons and a wheelbase of 4800+1370mm. It is equipped with an Isuzu 6WG1-TCG62 520hp engine and a Fast 12-speed transmission. The front of the superstructure houses the equipment compartment, the middle section contains an 8000L carbon steel water tank and a 2000L stainless steel foam tank, and the rear is the pump room, equipped with a CB10/140-XZ fire pump, control panel, fire hoses, firefighting equipment, etc. A PL8/64 fire monitor is located on the roof.
