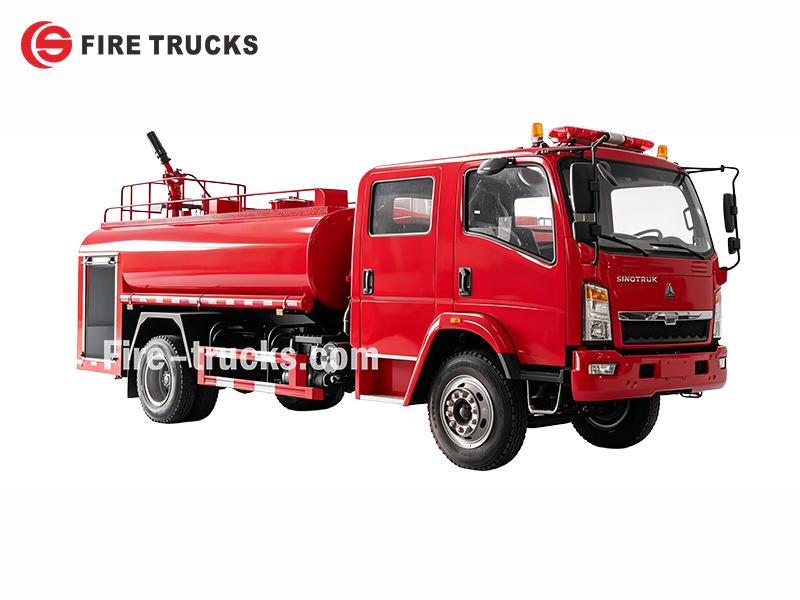

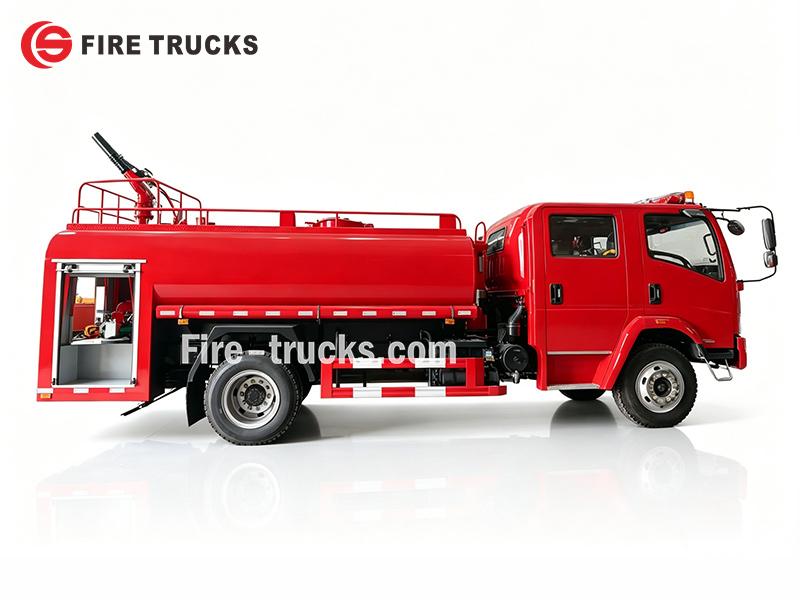

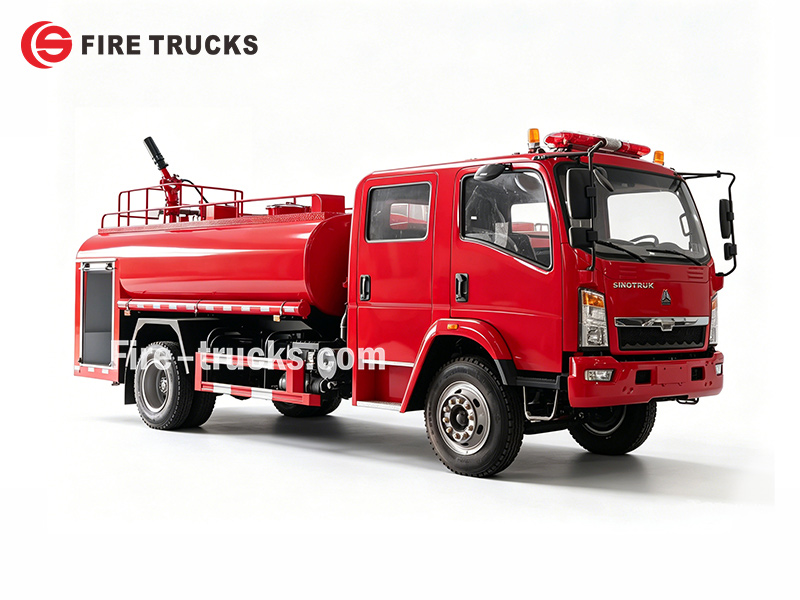

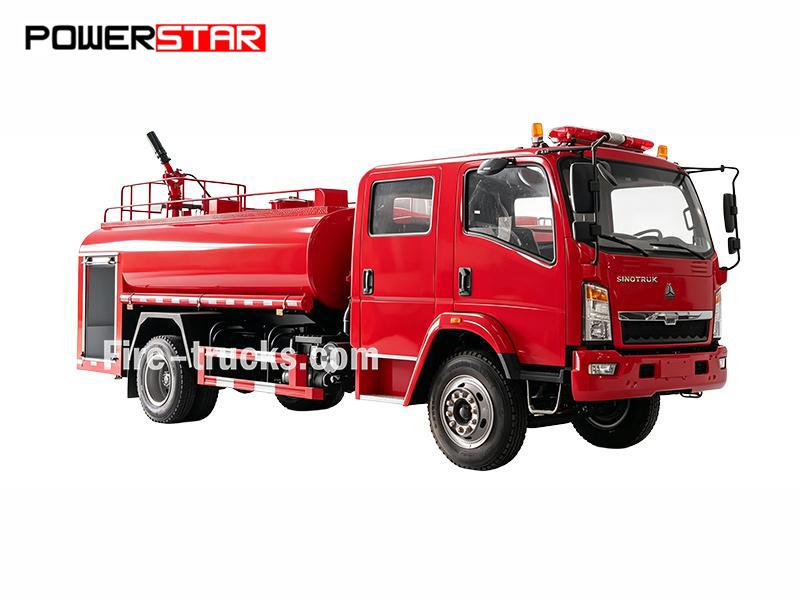

The HOWO 4x2 emergency water fire rescue truck is built on a SINOTRUK HOWO 4×2 chassis with a 3800 mm wheelbase. It runs on a YC4E140-33 engine rated at 140 HP with a manual transmission. The truck carries a 4000L water tank and a 2000L foam tank. A CB10/30 pump (30 L/s at 1.0 MPa) and a roof mounted PS30 monitor (30 L/s, water ≥55 m, foam ≥42 m) handle fire suppression. A PH32 foam proportioner (3%-6% mixing ratio, 8-32 L/s flow range) automatically mixes foam concentrate with water. Standard gear includes hoses, suction tubes, couplings, foam gun, and basic tool kit.
Truck Chassis:
SINOTRUK HOWO 4×2Tanker Capacity:
4000L water + 2000L foam (6000L total)Engine Power:
140 HP (103 kW) / YC4E140-33Fire Pump:
CB10/30Pump Flow:
30 L/sWork Pressure:
1.0 MpaFire Monitor:
PS30Monitor Flow:
30 L/s (1800 L/min)Monitor Range:
Water ≥55 m, Foam ≥42 mThe HOWO emergency water fire rescue truck is built for firefighting and emergency response. This HOWO 140HP 4x2 foam water truck features a 4000L water tank, a 2000L foam tank, a CB10/30 fire pump (30 L/s at 1.0 MPa), a PH32 foam proportioner (3%-6% mixing ratio, 8-32 L/s), and a roof mounted PS30 fire monitor with 55m water range and 42m foam range.

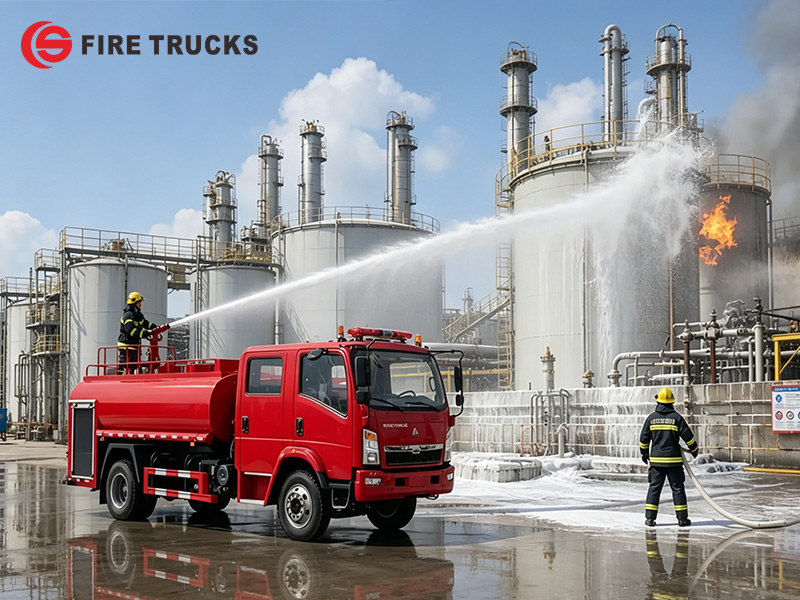

This fire truck carries a full set of standard firefighting equipment including hoses, suction tubes, couplings, and a foam gun. This HOWO foam water truck works well for Class B fires involving oil, gasoline, and chemicals. It suits firefighting tasks at oil depots, chemical plants, airports, and industrial facilities across Cambodia.

|
Working Capacity |
Engine Model |
Wheelbase |
Superstructure |
|
4000L water + 2000L foam |
140 HP / YC4E140-33 |
3800 mm |
★ Tank carbon steel, 6000L capacity ★ CB10/30 fire pump, 30 L/s flow at 1.0 MPa ★ PS30 roof monitor, 30 L/s flow with water ≥55 m, foam ≥42 m ★ PH32 foam proportioner, mixing ratio 3%-6%, flow range 8-32 L/s |
» Ⅰ. Main Features :
★ YC4E140-33 engine rated at 140 HP for foam fire suppression and emergency response
★ HOWO 4×2 chassis with 4000L water tank, 2000L foam tank, and CB10/30 fire pump (30 L/s at 1.0 MPa)
★ Roof mounted PS30 monitor with 30 L/s flow, water range ≥55 m, and foam range ≥42 m for long distance fire attack
★ PH32 foam proportioner with 3%-6% mixing ratio and 8-32 L/s flow range for automatic foam mixing
★ Complete standard equipment including fire hoses, suction tubes, couplings, and foam gun for Class B fire fighting
» Ⅱ.Product Parameter :
| Cambodia HOWO Emergency Foam Fire Rescue Truck | |||
| General | Work Capacity | 4000L water+2000L foam | |
| Truck Chassis | SINOTRUK HOWO 4x2 | ||
| Engine Power | 140 HP/ YC4E140-33 | ||
| Fire Pump | CB10/30 | ||
| Fire Monitor | PS30 | ||
| Maximum Speed | 95 km/h | ||
| Overall Dimensions L*W*H | 7680*2400*2870 mm | ||
| Front Axle | 2.7 ton | ||
| Rear Axle | 7.2 ton | ||
| Gross Vehicle Weight | 18000 kg | ||
| Curb Weight | 6800 kg | ||
| Engine | Engine Model | YC4E140-33 | |
| Fuel Type | Diesel | ||
| Power | 140 HP(103KW) | ||
| Emission Standard | Euro 3 | ||
| Displacement | 4257 ml | ||
| Engine Type | 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Drive Type | 4x2 | |
| Wheelbase | 3800 mm | ||
| Tire | 235/75R17.5 16PR | ||
| Cabin | Double row cab, typically allowing for a crew of 2+4 or 2+3 firefighters | ||
| Tire No. | 6 tires and 1 spare tire | ||
| Model | CB10/30 | ||
| Flux | 30L/s | ||
| Pressure | 1MPa | ||
| Fire Pump | Max Working Pressure | 1.251MPa | |
| Max Allowable Inlet Pressure | 0.4MPa | ||
| Max Suction Height | 3m | ||
| Rated Speed | 3916±50r/min | ||
| Speed Ratio | 1:1.4 | ||
| Water Diversion Time | ≤50s | ||
| Fire Monitor | Model | PS30 | |
| Flow | 30L/s | ||
| Flow | 1800 liter / min | ||
| Rated Working Pressure | 1.0MPa | ||
| Max Working Pressure | 1.2MPa | ||
| Range | Water | ≥55m | |
| Foam | ≥42m | ||
| Pitch Rotation | - 35~+70° | ||
| Horizontal Rotation | 0~360° | ||
| Foam Proportioner | Model | PH32 | |
| Mixing Ratio | 3%~6% | ||
| Mixing Flow Rate | 8~32L/s | ||
| Structural Type | Pump-in-ring Type | ||
| Standard Configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||


1. Chassis & Powertrain

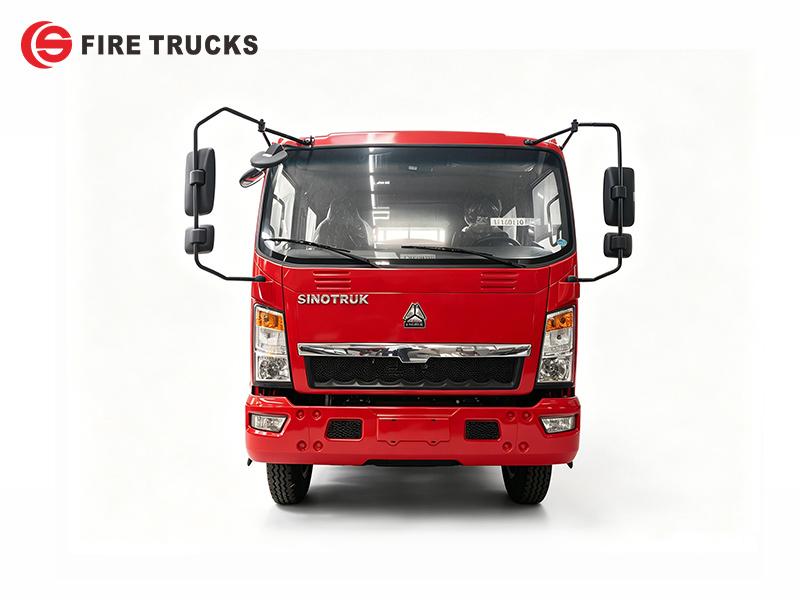

♦ SINOTRUK HOWO 4×2 chassis with 3800 mm wheelbase, designed for stable operation on urban roads and rural routes.
♦ YC4E140-33 diesel engine, rated at 140 HP, delivering reliable torque for quick response, continuous pump operation, and long-duration foam fire suppression.
♦ Manual transmission for straightforward operation and easy maintenance in remote areas.

2. Fire Suppression System
♦ 4000L water tank and 2000L foam tank, carbon steel construction (304 stainless steel optional) with internal baffles to reduce liquid surge.
♦ CB10/30 fire pump, 30 L/s flow at 1.0 MPa, PTO driven, 3m suction height, ≤50s priming time.
♦ PS30 roof monitor, 30 L/s flow, water range ≥55 m, foam range ≥42 m, horizontal 360° rotation, pitch -35° to +70°.
» Ⅳ.Fire Pump System :
Fire Pump:

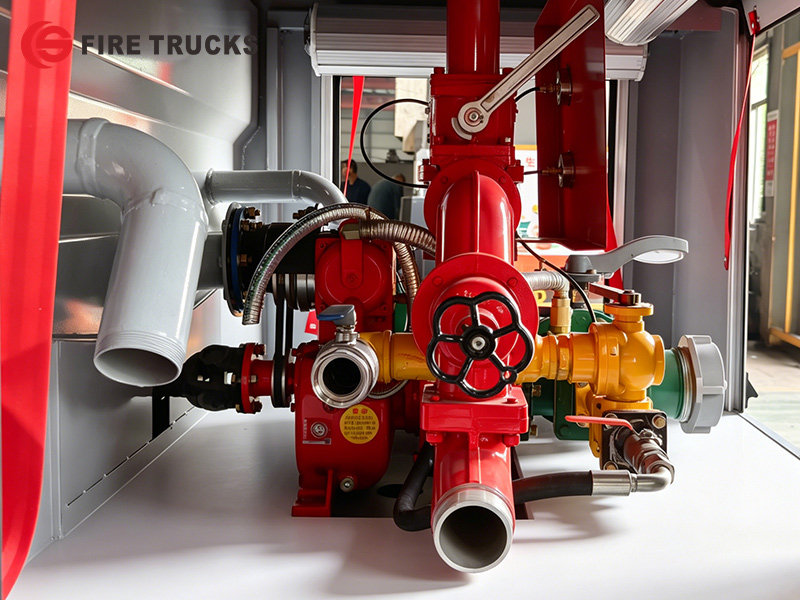

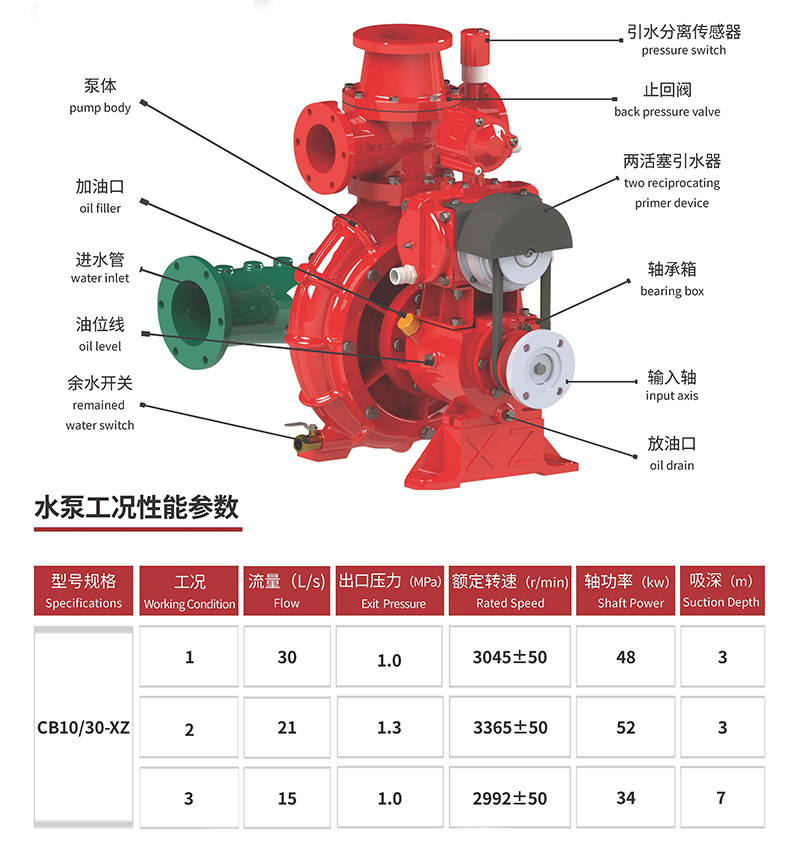

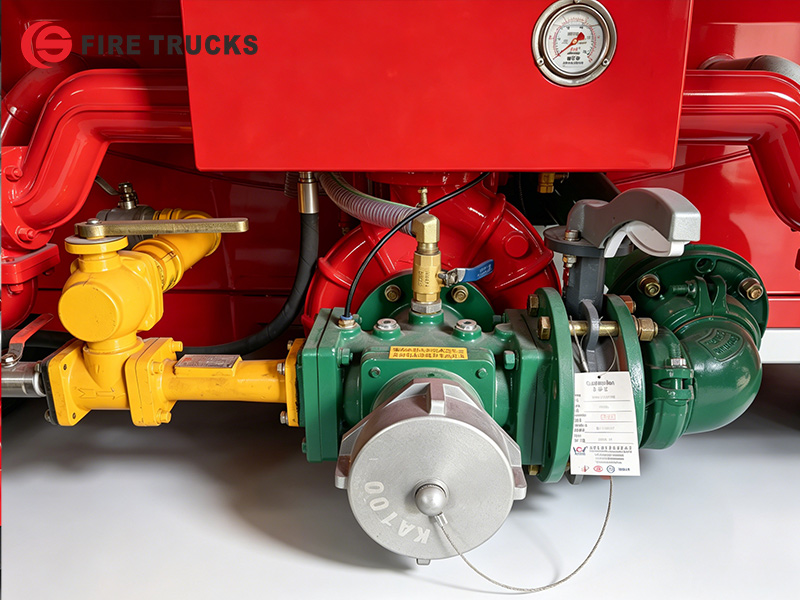

A CB10/30 fire pump with a rated flow of 30 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses and monitors can deliver water or foam effectively over long distances for fire suppression.

|
Fire Pump Model |
Flow |
Pressure |
Max Working Pressure |
Max Allowable Inlet Pressure |
|
CB10/30 |
30L/s |
1.0MPa |
1.251 MPa |
0.4MPa |

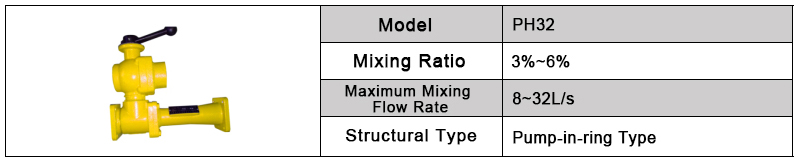

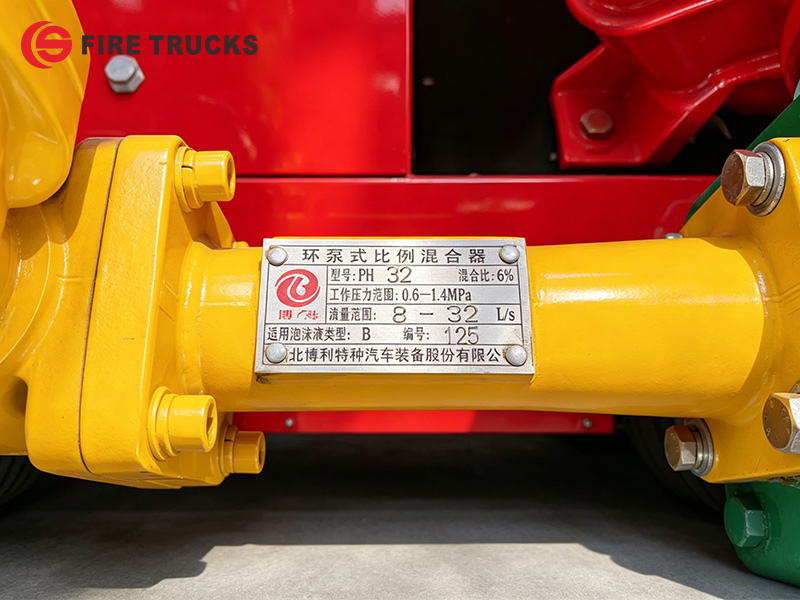

PH32 pump-in-ring type foam proportioner, mixing ratio adjustable from 3% to 6%, flow range 8-32 L/s. Automatically mixes foam concentrate with water for efficient Class B fire suppression. Simple operation with no external power required.

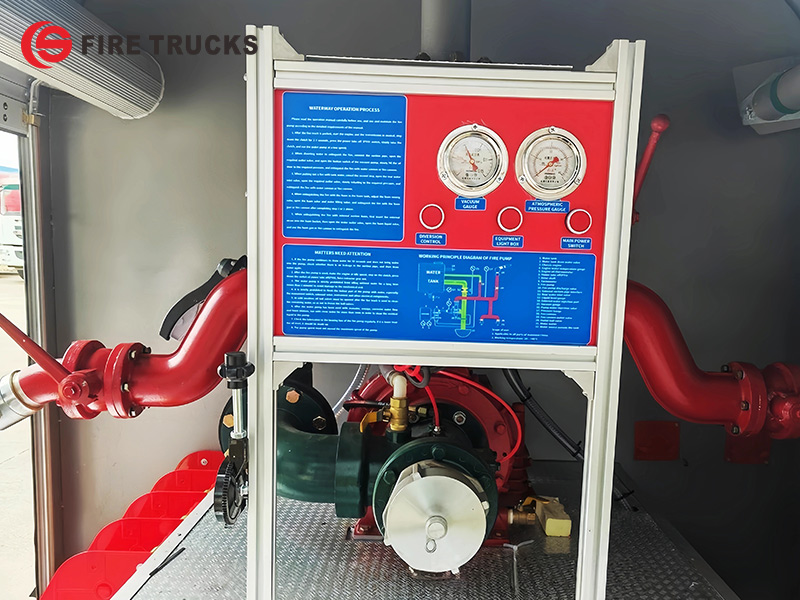

Includes operating instructions, tank piping diagram, pressure gauge, water level gauge, foam level gauge, emergency stop, PTO control, main power switch, pump controls, and compartment lighting. All controls are clearly marked for straightforward operation.

» Ⅴ.Fire Monitor System :

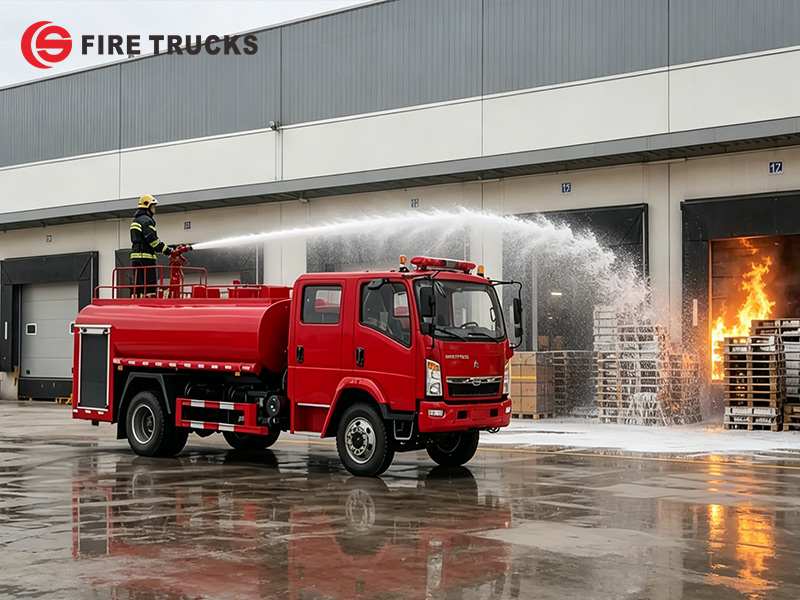

The PS30 fire monitor is mounted on the cab roof. It delivers a flow rate of 30 L/s with a water range of ≥55 m and a foam range of ≥42 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.

| Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
| PS30 | 30L/s | Water≥55m Foam ≥42m | 1.0MPa | -35°~+70° |
0~360° |
» Ⅵ.Firefighting Equipment :

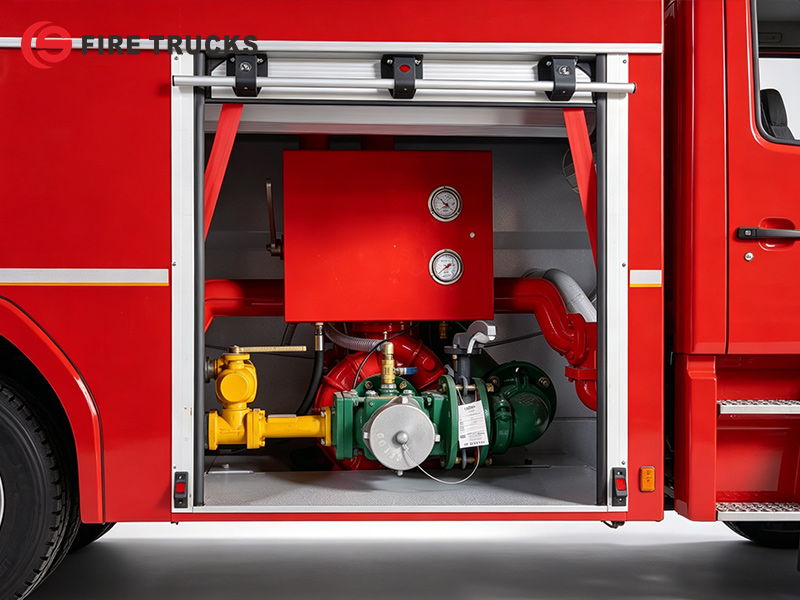

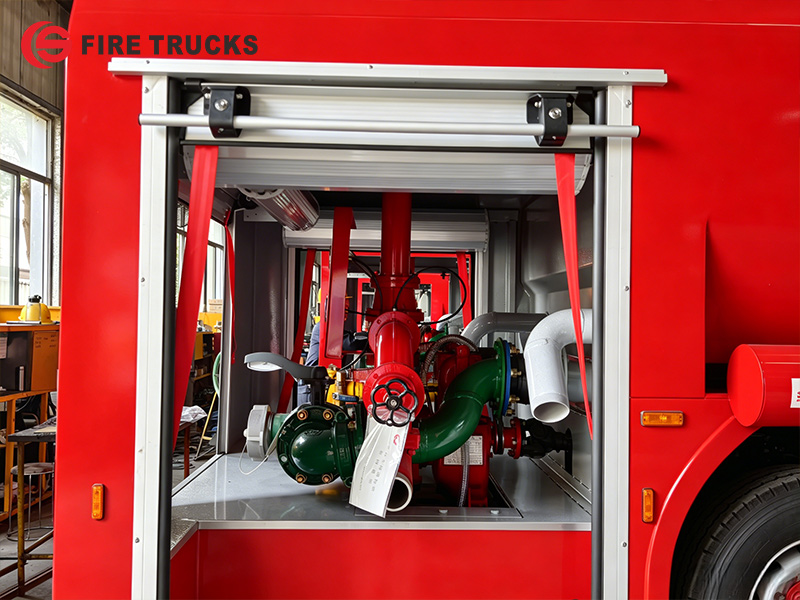

• Pump Room: Equipped with CB10/30 fire pump, control panel, pressure gauge, vacuum gauge, and lighting system. Accessories include fire hoses, suction hoses, collectors, strainers, fire nozzles, foam guns, suction hose wrenches, and reducers.

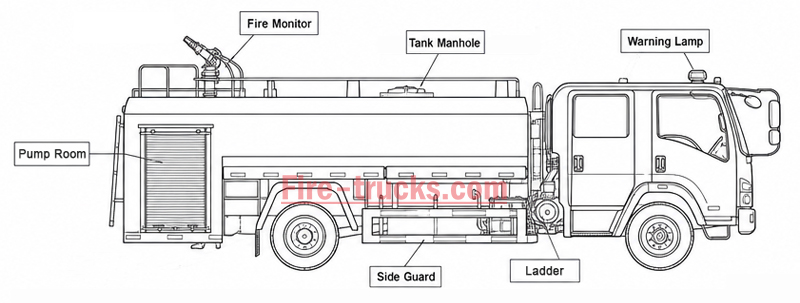

The HOWO emergency foam fire rescue truck comes with a rear-mounted CB10/30 fire pump and a cab top PS30 monitor. The water tank holds 4,000 liters, and the foam tank holds 2,000 liters, sitting on a sturdy HOWO 4×2 chassis powered by a 140 HP YC4E140-33 engine. Standard gear includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit. A PH32 foam proportioner (3%-6% mixing ratio, 8-32 L/s flow range) is also equipped for automatic foam mixing. Full specifications are listed below:


» Ⅶ.Application scenarios :
