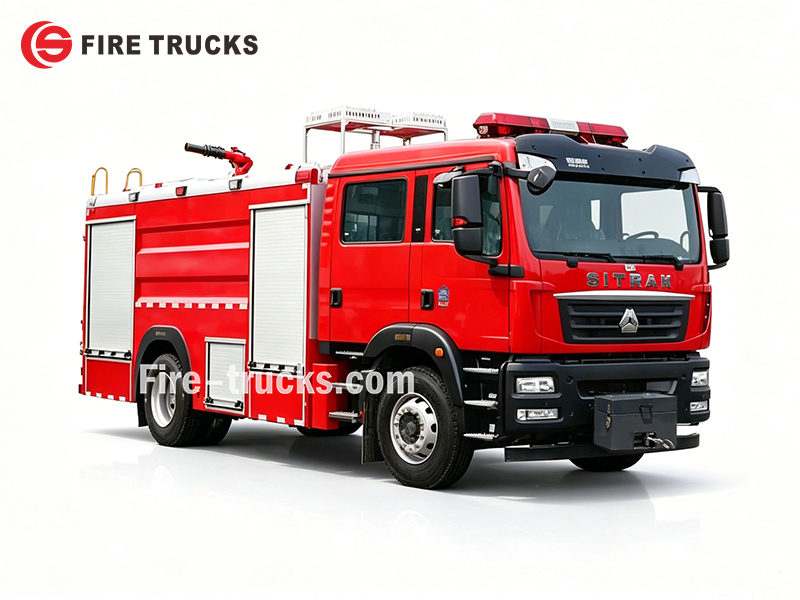

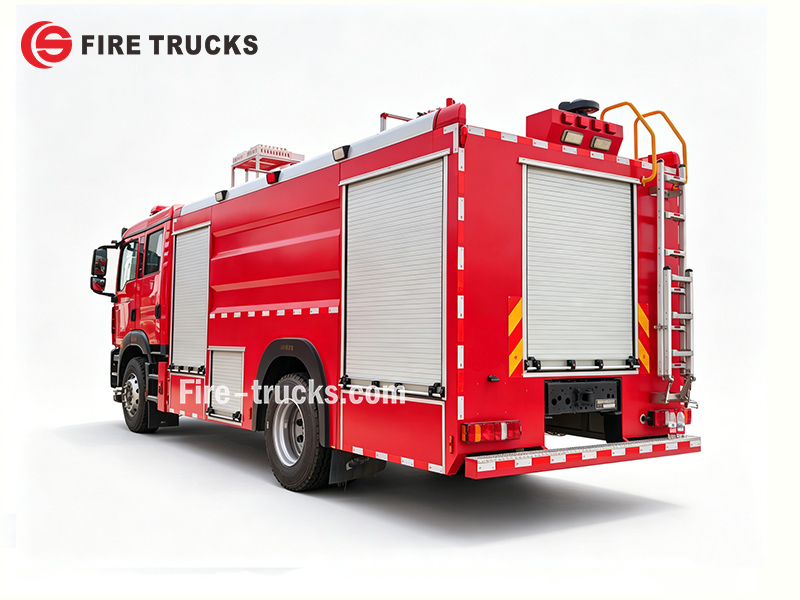

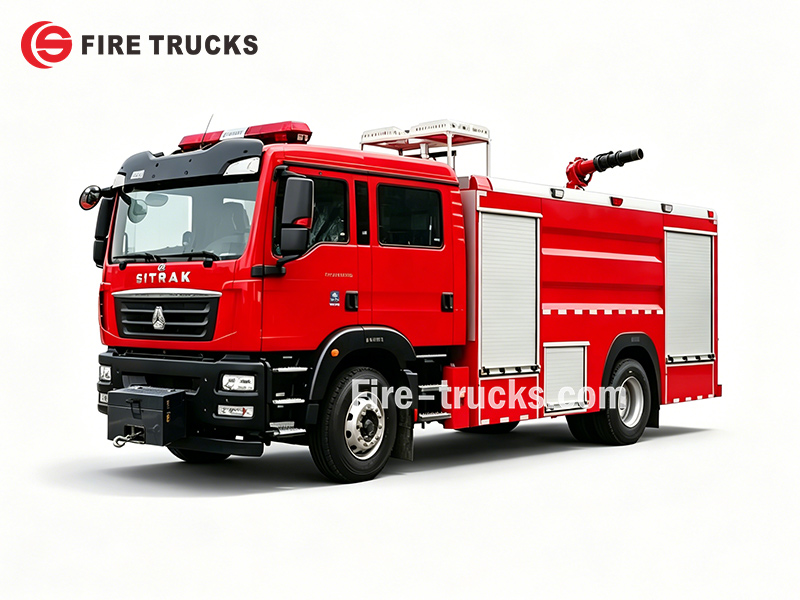

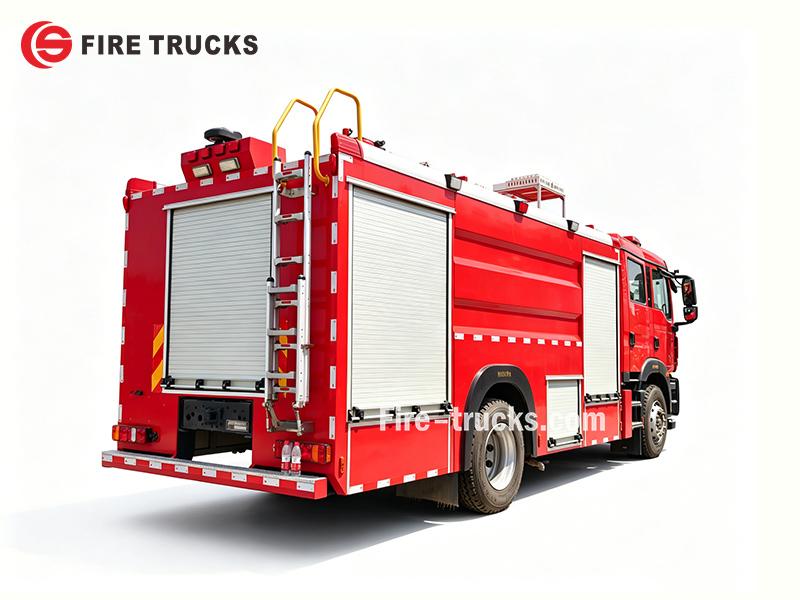

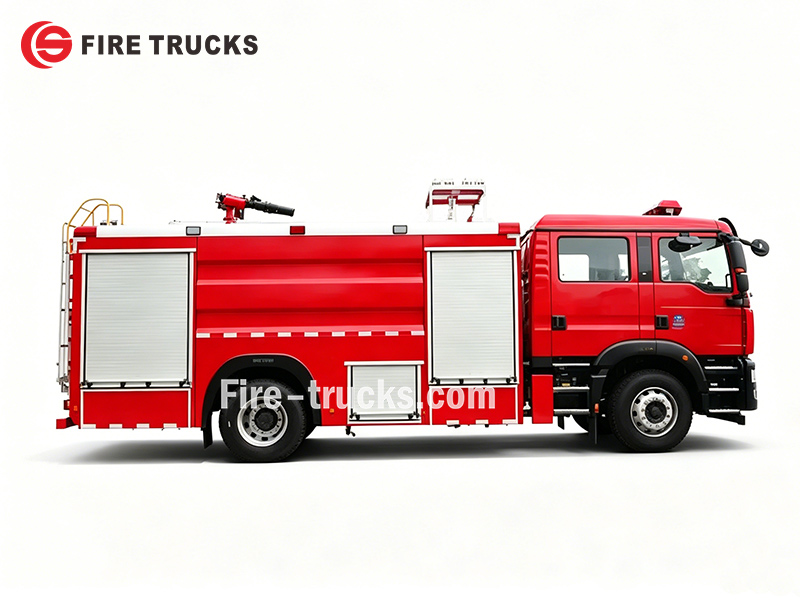

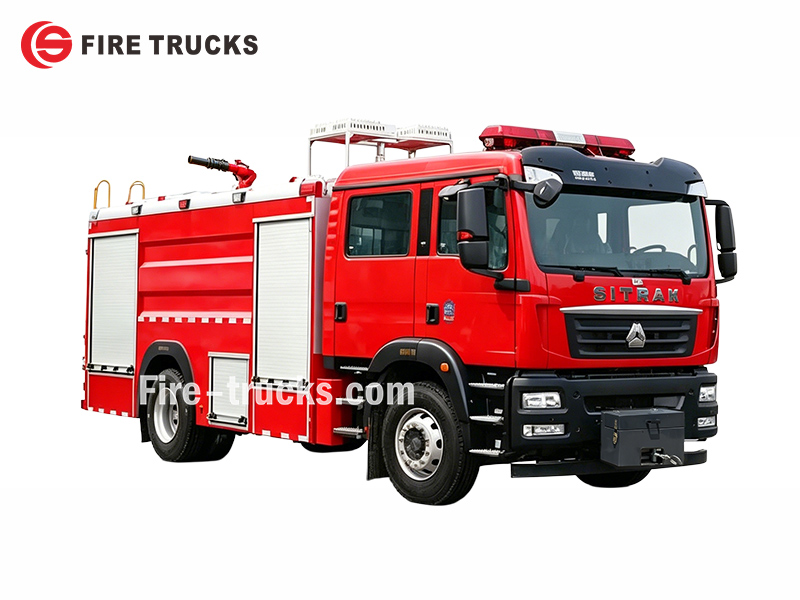

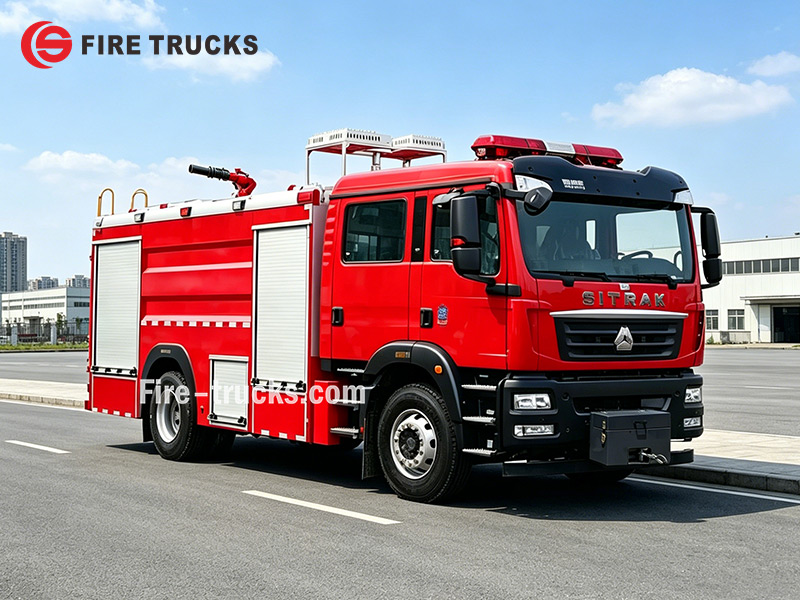

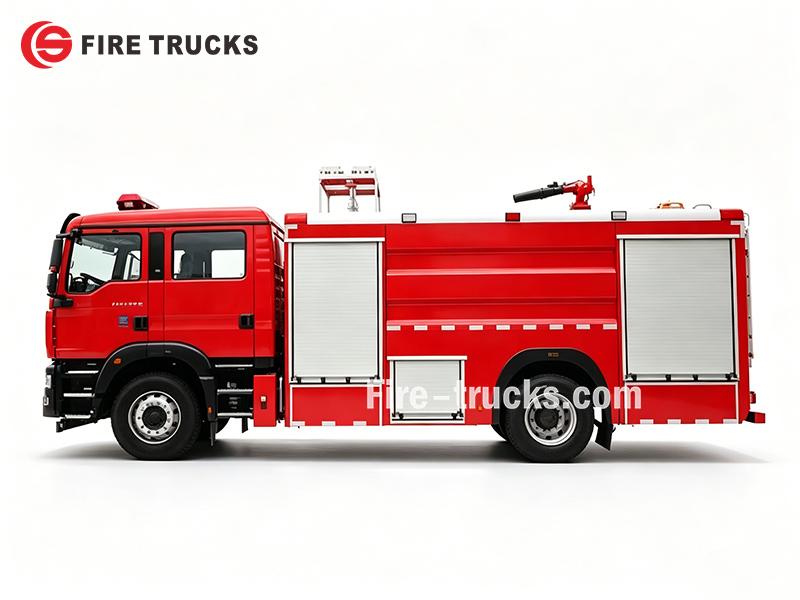

The SITRAK HOWO wildland fire truck is built on a 4×2 chassis with a 4700 mm wheelbase and a 350 HP WP8.350E61 engine. It carries a 6000L water tank and a 2000L foam tank. A CB10/100 pump (100 L/s at 1.0 MPa) and a roof mounted PLKD10/80 monitor (80 L/s, water ≥85 m, foam ≥80 m) handle fire suppression. A lifting lighting system with wireless remote control and 360° rotation supports night operations. Standard gear includes hoses, suction tubes, couplings, foam gun, and basic tool kit.
Truck Chassis:
SINOTRUK HOWO 4×2Tanker Capacity:
6000L water + 2000L foam (8000L total)Engine Power:
350 HP (257 kW) / WP8.350E61Fire Pump:
CB10/100Pump Flow:
100 L/sWork Pressure:
1.0 MpaFire Monitor:
PLKD10/80Monitor Flow:
80 L/sMonitor Range:
Water ≥85 m, Foam ≥80 mThe SITRAK HOWO wildland fire truck is built for firefighting and emergency response. This HOWO 350HP 4x2 foam fire truck features a 6000L water tank, a 2000L foam tank, a CB10/100 fire pump (100 L/s at 1.0 MPa), and a roof mounted PLKD10/80 fire monitor with 85m water range and 80m foam range.
This fire truck carries a full set of standard firefighting equipment including hoses, suction tubes, couplings, and a foam gun. It works well for Class B fires involving oil, gasoline, and chemicals. It suits firefighting tasks at oil depots, chemical plants, airports, and industrial facilities.

|
Working Capacity |
Engine Model |
Wheelbase |
Superstructure |
|
6000L water + 2000L foam |
350 HP / WP8.350E61 |
4700 mm |
★ Foam tank carbon steel, 8000L capacity ★ CB10/100 fire pump, 100 L/s flow at 1.0 MPa ★ PLKD10/80 roof monitor, water ≥85 m, foam ≥80 m ★ Lifting lighting system with wireless remote and 360° rotation |
» Ⅰ. Main Features :
★ WP8.350E61 engine rated at 350 HP for wildland foam fire suppression and emergency response
★ HOWO 4×2 chassis with 6000L water tank, 2000L foam tank, and CB10/100 fire pump (100 L/s at 1.0 MPa)
★ Roof mounted PLKD10/80 monitor with 80 L/s flow, water range ≥85 m, and foam range ≥80 m for long distance fire attack
★ Complete standard equipment including fire hoses, suction tubes, couplings, and foam gun for Class B fire fightin
» Ⅱ.Product Parameter :
| SITRAK HOWO Wildland Fire Truck Mongolia | |||
| General | Work Capacity | 6000L water tank+2000L foam tank | |
| Truck Chassis | SITRAK HOWO 4x2 | ||
| Engine Power | 350 HP/ WP8.350E61 | ||
| Fire Pump | CB10/100 | ||
| Fire Monitor | PLKD10/80 | ||
| Maximum Speed | 95 km/h | ||

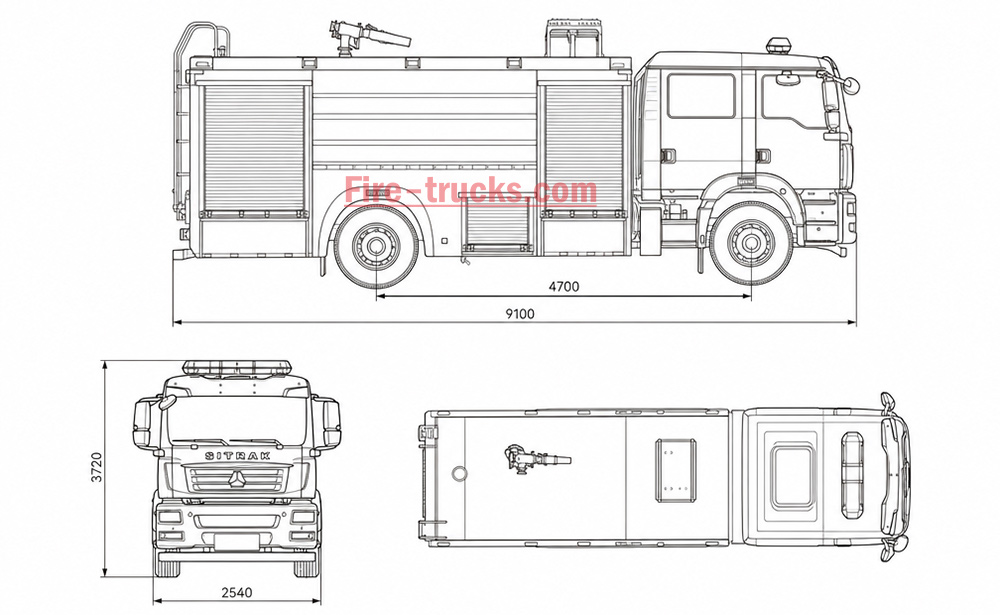

| Overall Dimensions L*W*H | 9100*2540*3720 mm | ||
| Gross Vehicle Weight | 19500 kg | ||
| Curb Weight | 11000 kg | ||
| Engine | Engine Model | WP8.350E61 | |
| Fuel Type | Diesel | ||
| Power | 350 HP(257KW) | ||
| Emission Standard | Euro 6 | ||
| Displacement | 7800 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Drive Type | 4x2 | |
| Wheelbase | 4700 mm | ||
| Tire | 235/75R17.5 16PR | ||
| Tire No. | 6 tires and 1 spare tire | ||
| Fire Pump | Model | CB10/100 | |
| Flux | 100L/s | ||
| Pressure | 1MPa | ||
| Max Working pressure | 1.251MPa | ||
| Max Allowable Inlet Pressure | 0.4MPa | ||
| Max Suction Height | 3m | ||
| Rated Speed | 3916±50r/min | ||
| Speed Ratio | 1:1.4 | ||
| Water Diversion Time | ≤50s | ||
| Fire Monitor | Model | PLKD10/80 | |
| Flow | 80L/s | ||
| Rated Working Pressure | 1MPa | ||
| Max Working Pressure | 1.2MPa | ||
| Range | Water | ≥85m | |
| Foam | ≥80m | ||
| Pitch Rotation | - 35~+70° | ||
| Horizontal Rotation | 0~360° | ||
| Standard Configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||


1. Chassis & Powertrain
♦ SINOTRUK HOWO 4×2 chassis with 4700 mm wheelbase, designed for stable operation on Mongolia's rugged wildland terrain and rural routes.
♦ WP8.350E61 diesel engine, rated at 350 HP, delivering reliable torque for quick response, continuous pump operation, and long-duration foam fire suppression.
♦ Manual transmission for straightforward operation and easy maintenance in remote areas.

2. Fire Suppression & Lighting System
♦ 6000L water tank and 2000L foam tank, carbon steel construction with internal baffles to reduce liquid surge on rough terrain.
♦ CB10/100 fire pump, 100 L/s flow at 1.0 MPa, PTO driven, 3m suction height, ≤50s priming time.
♦ Multi-stage segmented telescopic mast with wireless remote control and 360° horizontal rotation for night time fire ground illumination. One-key lift and lower function for quick deployment.
» Ⅳ.Front Towing Winch System :

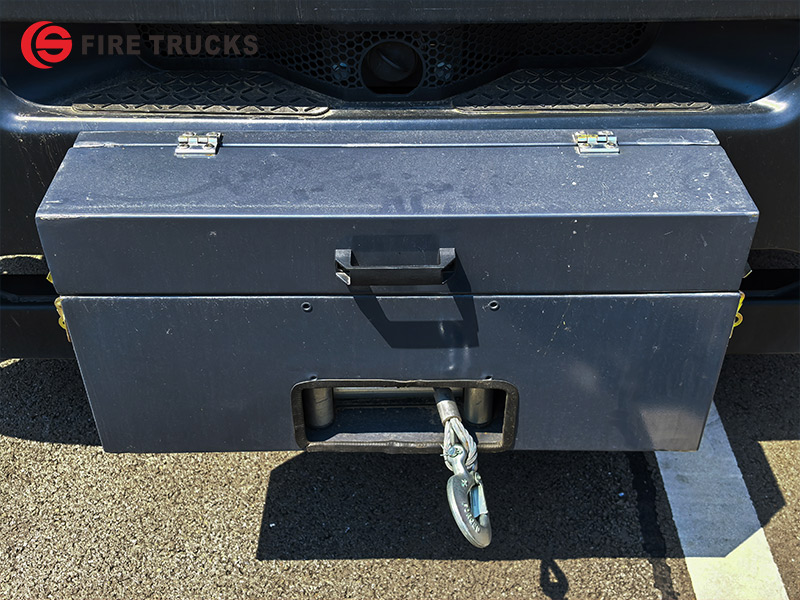

★ Front-mounted towing winch with 75 kN max pull, 38m × φ13mm wire rope, 8° vertical angle and 5° horizontal angle for complex terrain
★ 12V/24V DC power, 430:1 dual-stage planetary gear reduction (spur gear + planetary), high-strength powder metallurgy gears for heavy-duty reliability
★ Series-wound motor drive with reliable braking system and manual rope release via clutch—easy operation and safe control

| Towing Capacity: | 16800lbs (7938 kgs) |
| Motor: | 5.4kW/7.1hp(12v);6.0kW/7.9hp(24v) |
| Reduction Ratio: | 430:1 |
| Steel Rope Size: | Φ15/32"*87'(Φ12mm*26.5m) |
| Roller Size: | Φ3.5"*8.6"(Φ89mm*219mm) |
| Overall Dimension: | 24.4"*8.4"*11.4"(620mm*214mm*290mm) |
| Installation Dimension: | 10"*4.5"(254mm*114.3mm) |
| Kure Weight: | 147.7Ibs(67kgs) |

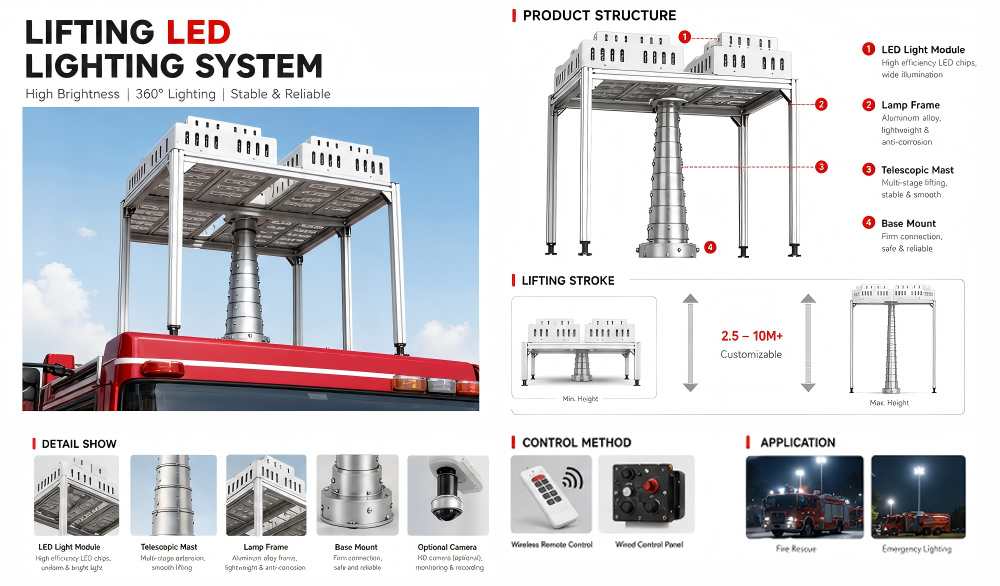

» Ⅴ.Lifting Mast System :

| Mast Type: | Multi-stage segmented telescopic design |
| Working Height: | Several meters to over ten meters |
| Control Method: | Wireless remote control / wired control |
| Mast Rotation: | 360° horizontal rotation |
| One‑key Operation: | One‑key lift/lower function |
| Optional Feature: | Integrated camera for simultaneous lighting and on‑site monitoring |
» Ⅵ.Fire Pump System :

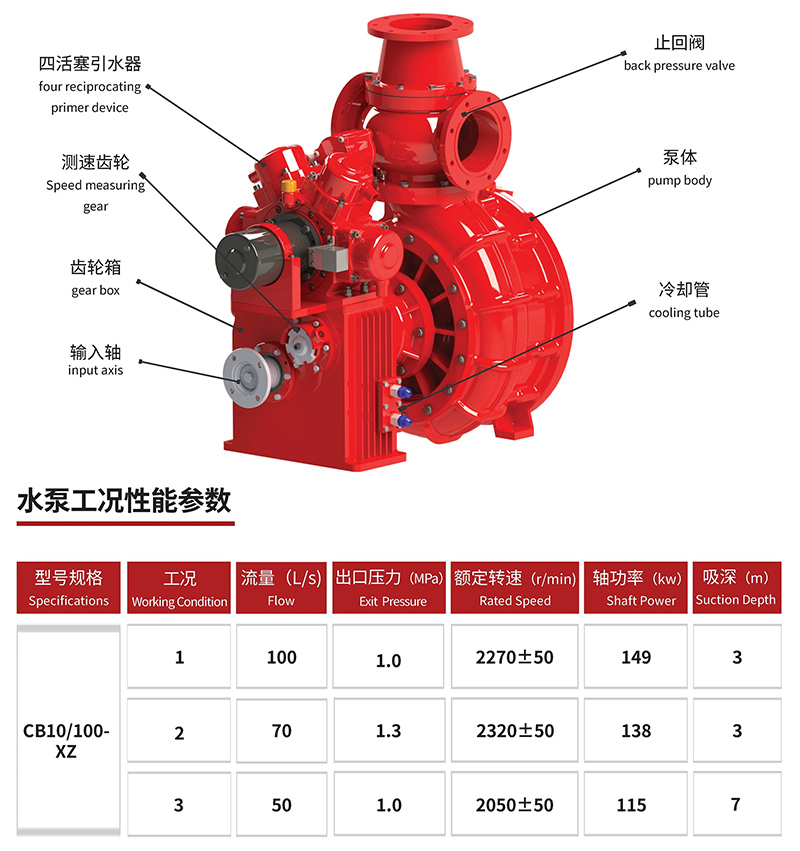

Fire Pump:

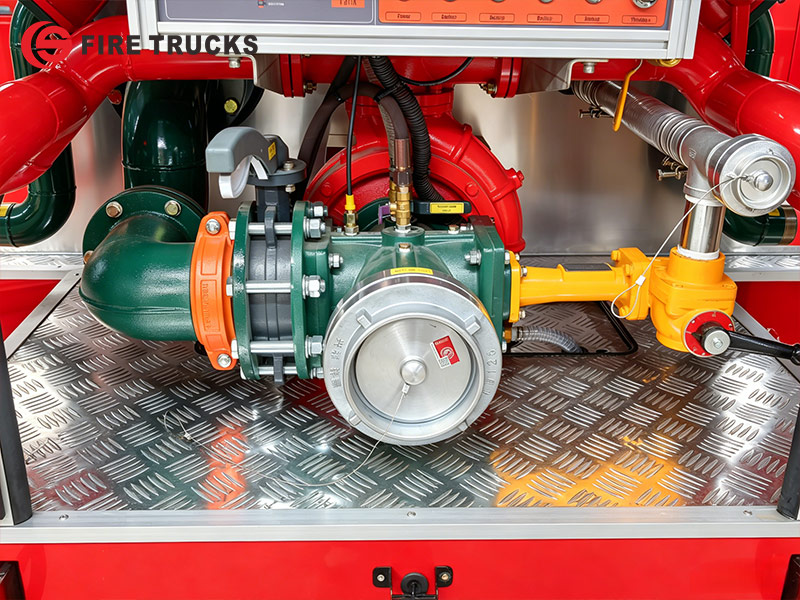

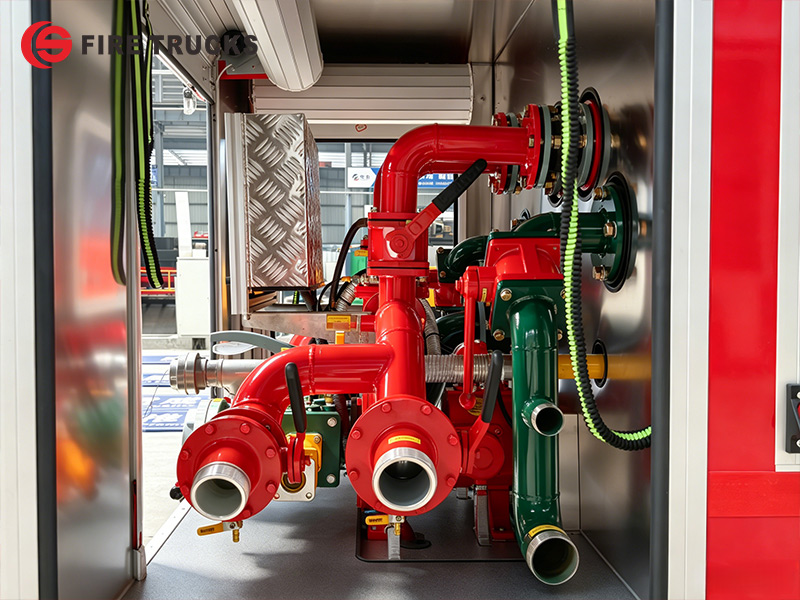

A CB10/100 fire pump with a rated flow of 100 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses and monitors can deliver water or foam effectively over long distances for fire suppression.

|
Fire Pump Model |
Flow |
Pressure |
Max Working Pressure |
Max Allowable Inlet Pressure |
|
CB10/100 |
100 L/s |
1.0MPa |
1.251 MPa |
0.4MPa |
PH32 pump-in-ring type foam proportioner, mixing ratio adjustable from 3% to 6%, flow range 8-32 L/s. Automatically mixes foam concentrate with water for efficient Class B fire suppression. Simple operation with no external power required.

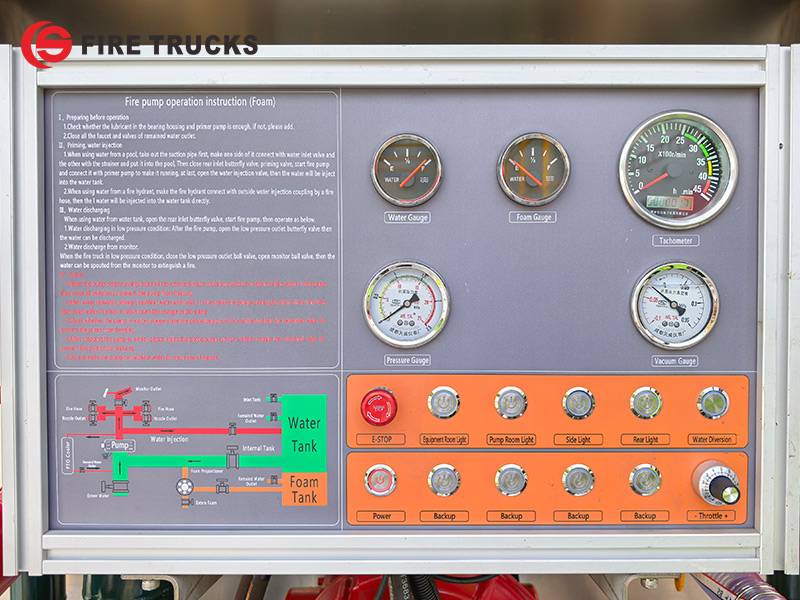

Includes operating instructions, tank piping diagram, pressure gauge, water level gauge, foam level gauge, emergency stop, PTO control, main power switch, pump controls, and compartment lighting. All controls are clearly marked for straightforward operation.

» Ⅶ.Fire Monitor System :
The PLKD10/80 fire monitor is mounted on the cab roof. It delivers a flow rate of 80 L/s with a water range of ≥85 m and a foam range of ≥80 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.

| Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
| PLKD10/80 | 80 L/s | Water≥85m Foam ≥80m | 1.0MPa | -35°~+70° |
0~360° |
» Ⅷ.Firefighting Equipment :

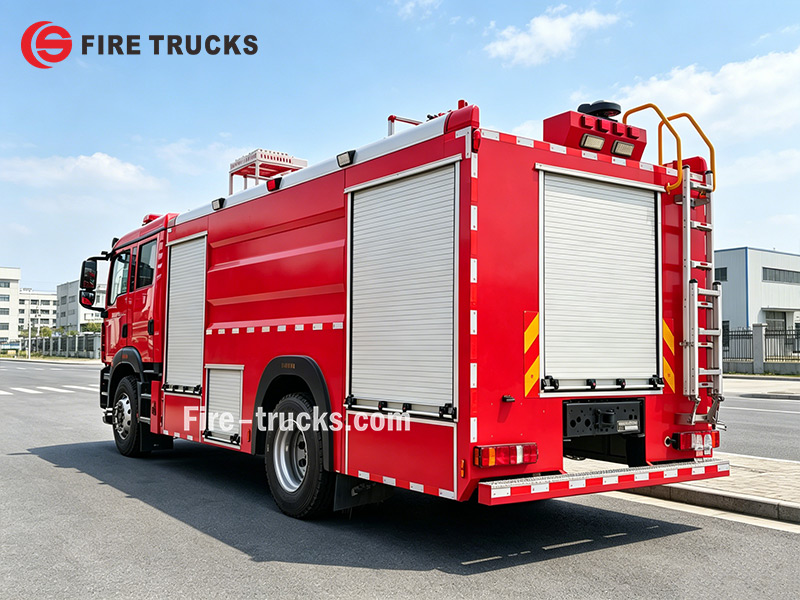

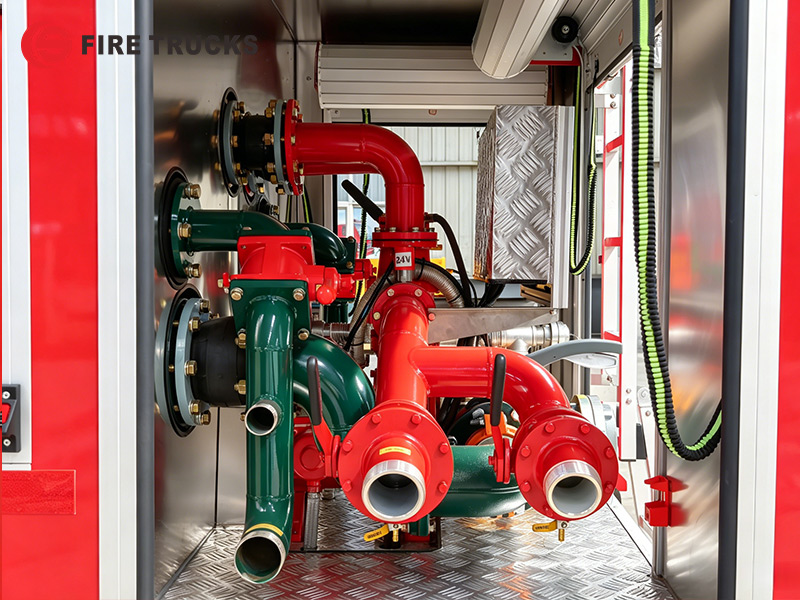

• Pump Room: Equipped with CB10/100 fire pump, control panel, pressure gauge, vacuum gauge, and lighting system. Accessories include fire hoses, suction hoses, collectors, strainers, fire nozzles, foam guns, suction hose wrenches, and reducers.

The SITRAK HOWO wildland fire truck comes with a rear-mounted CB10/100 fire pump and a cab top PLKD10/80 monitor. The water tank holds 6,000 liters, and the foam tank holds 2,000 liters, sitting on a sturdy HOWO 4×2 chassis powered by a 350 HP WP8.350E61 engine. Standard gear includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit. A lifting lighting system with wireless remote control and 360° rotation supports night operations. Full specifications are listed below:
