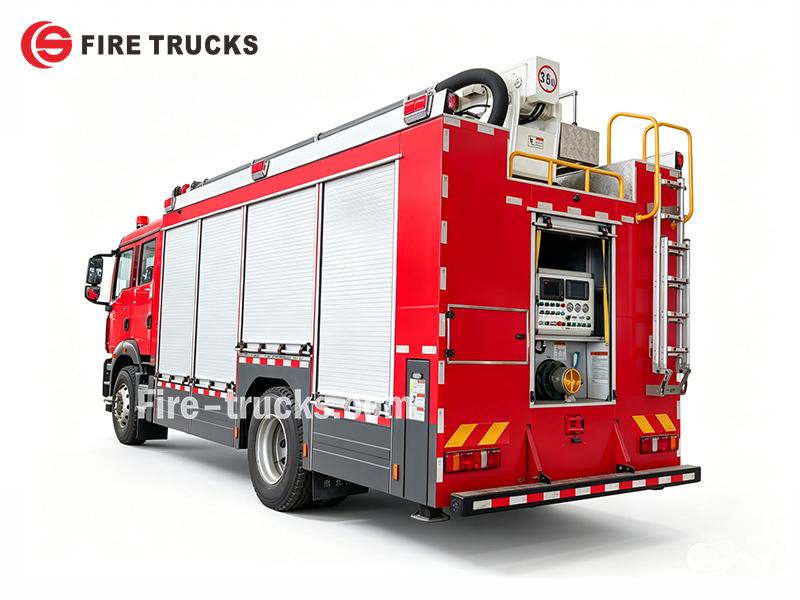

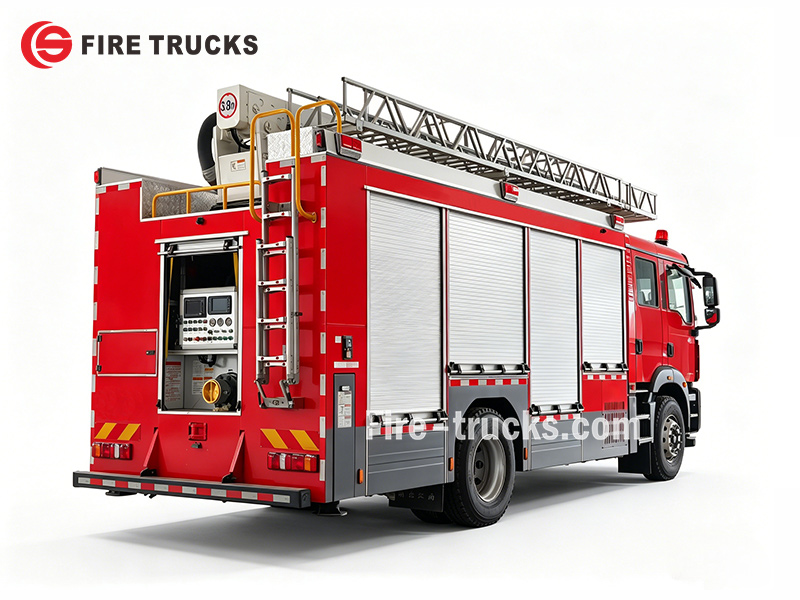

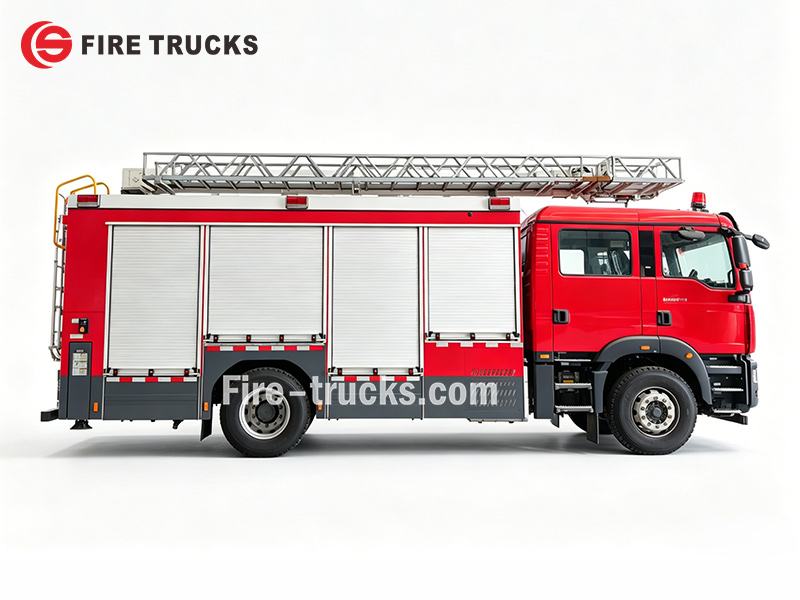

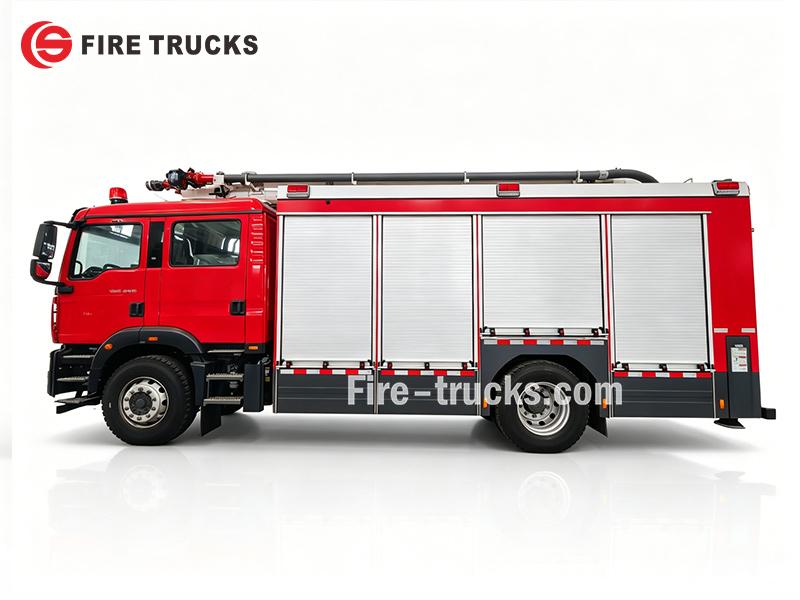

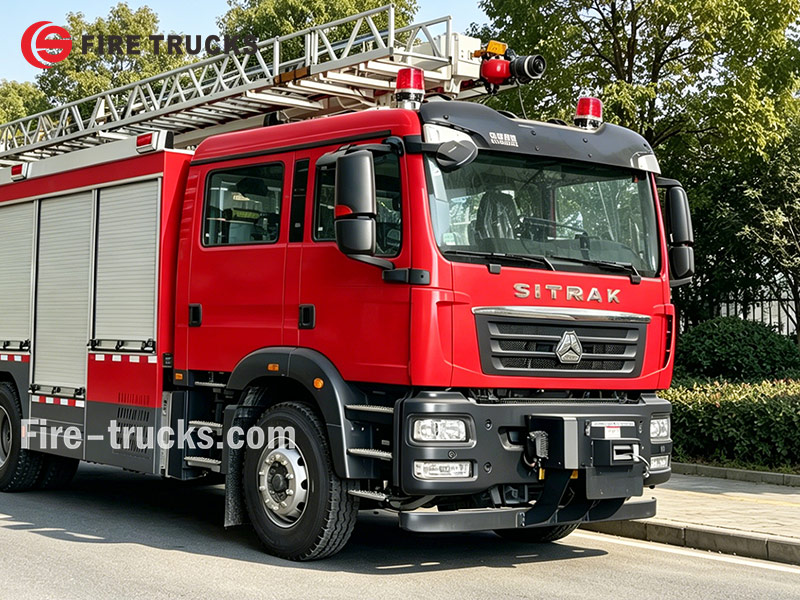

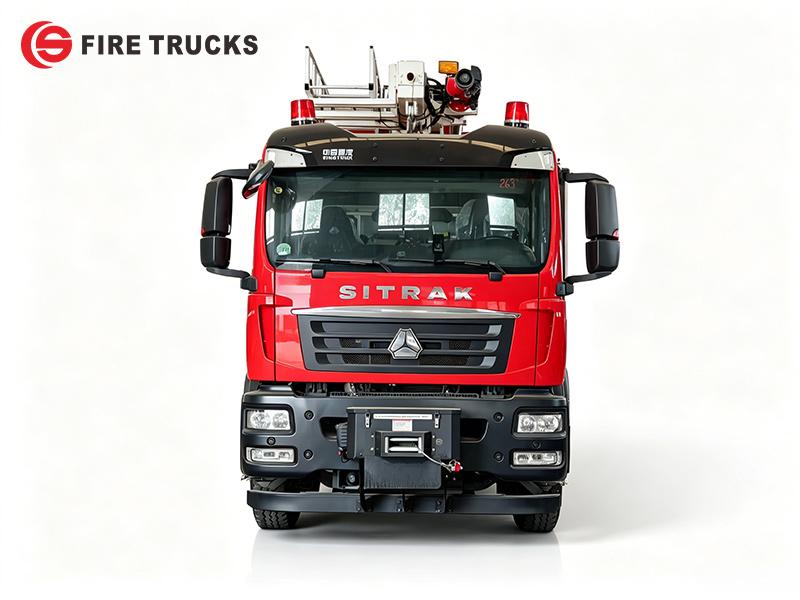

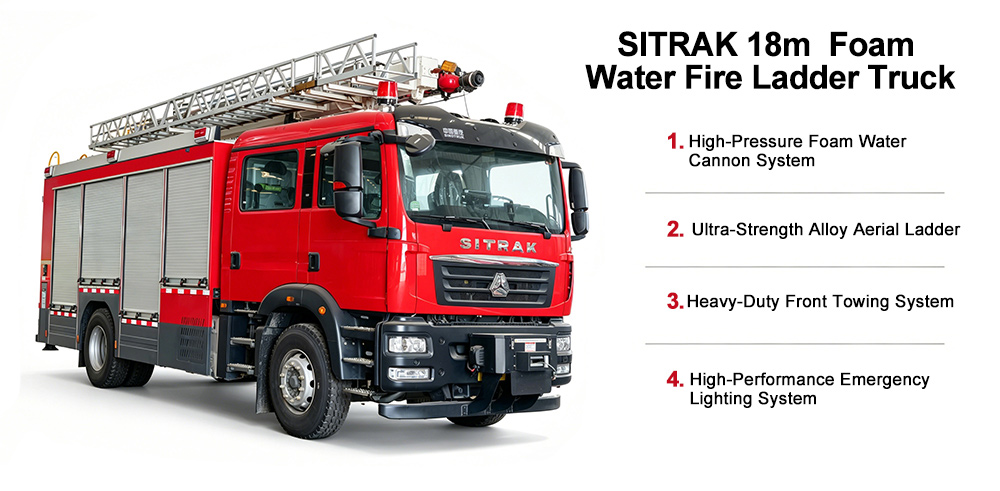

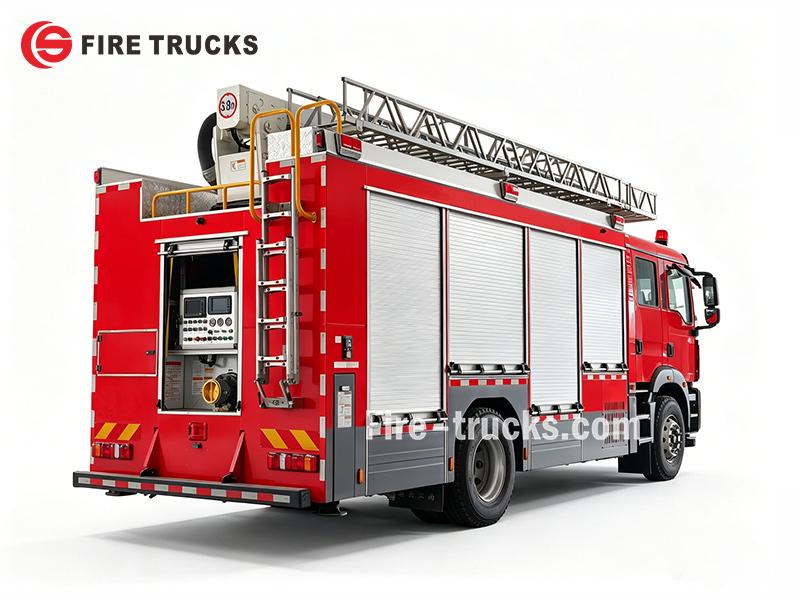

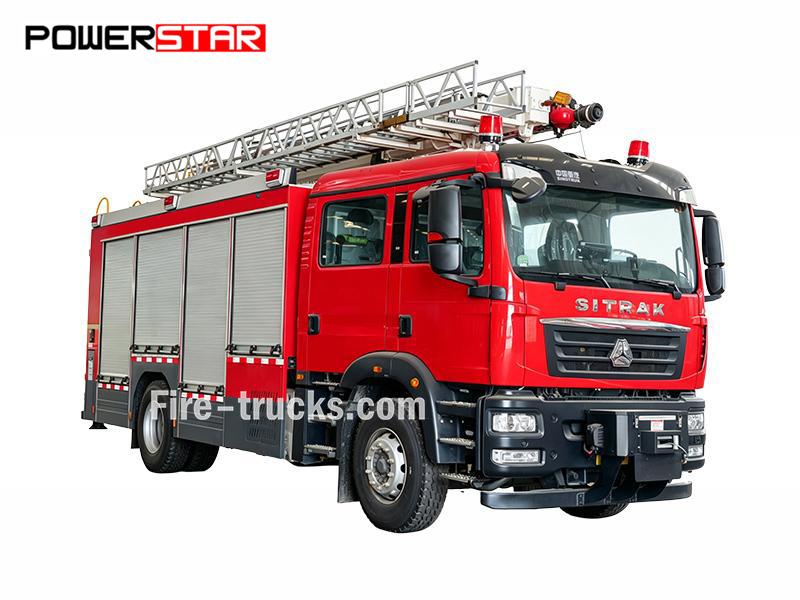

The SITRAK HOWO 18m aerial ladder fire truck is powered by an MC07H.35-60 engine rated at 350 HP, built on a 4×2 chassis. At the front, a winch with 75 kN pulling capacity handles light vehicle recovery or debris clearing. The rear section carries an 18m telescopic ladder system with a 60 L/s CB10/60 fire pump and a roof-mounted PS60 monitor. The equipment body features roll-up aluminum shutters on both sides, LED lighting, and fold-down steps for easy access. The ladder system reaches 18m working height, powered by the truck’s own hydraulic system for firefighting and rescue operations.
Truck Chassis:
SINOTRUK HOWO 4x2Tanker Capacity:
5600L water + 2000L foam (7600L total)Engine Power:
350 HP (257 kW) / MC07H.35-60Fire Pump:
CB10/60Pump Flow:
60 L/sWork Pressure:
1.0 MPaFire Monitor:
PS60Monitor Flow:
60 L/sMonitor Range:
Water ≥60 m , Foam ≥55 mMax. working height:
18 mThe SITRAK HOWO 18m aerial ladder foam fire truck is built on a 4×2 chassis with a 350HP MC07H.35-60 engine. This foam fire fighting ladder truck features a front winch and an 18m telescopic ladder. A CB10/60 pump (60 L/s) and a roof-mounted PS60 monitor (60 L/s, water ≥60m, foam ≥55m) handle fire suppression. Standard gear includes roll-up aluminum doors, LED lights, fold-down steps, and full firefighting hoses and nozzles—a solid choice for mid-rise building fires and aerial rescue.

| Main Items |
Technical Parameters for SITRAK HOWO 18m ladder truck |
|
Winch System |
|
|
Drive Type |
Electric control |
|
Max Tension |
≥7000 kg |
|
Wire Rope Dia. |
≥11.5 mm |
|
Wire Rope Length |
≥36 m |
|
Installation |
Front of vehicle, with 4 pads |
|
Equipment box |
|
|
Material |
Oxidized aluminum frame & cover; baffle & profile structure |
|
Roller Shutter |
3 per side, lockable, with linked LED strips |
|
Roof Guard |
Integrated aluminum extrusion; exterior flashing lights, interior LED strips |
|
Fold-down Step |
Aluminum extrusion, anti-slip, load ≥150kg, double locking |
|
Rear Ladder |
Aluminum ladder on the right side for roof access |
|
Mast Lighting System |
|
|
Generator |
≥15 kVA, 50Hz, 220V/380V, electric start, gasoline, V-twin |
|
Mast |
Aluminum alloy, max height ≥8 m |
|
Lighting |
4×500W LED |
|
Rotation |
Horizontal ≥420°, tilt ≥420° |
|
Control |
Panel + wired (5m) + wireless (≥50m), one-key auto-reset |
| Position | Front of the equipment box |
| Decontamination System | |
| Main Equipment | Mobile high-pressure cleaner, hot water decontamination unit, flow rate ≥10 L/min |
| System Components | Each includes one set of: public decontamination tent, manual diaphragm suction pump, electric inflator/air pump, decontamination sewage pump, mobile high-pressure cleaner, high-pressure hot water cleaner, warm air generator (with temperature control), decontamination solution mixing tank, water storage bag, contamination collection bag, oil protective cover, absorbent pad, toxic substance sealing barrel |
»Ⅰ. Main Features :
★ MC07H.35-60 engine, 350 HP for aerial firefighting and mid-rise rescue operations

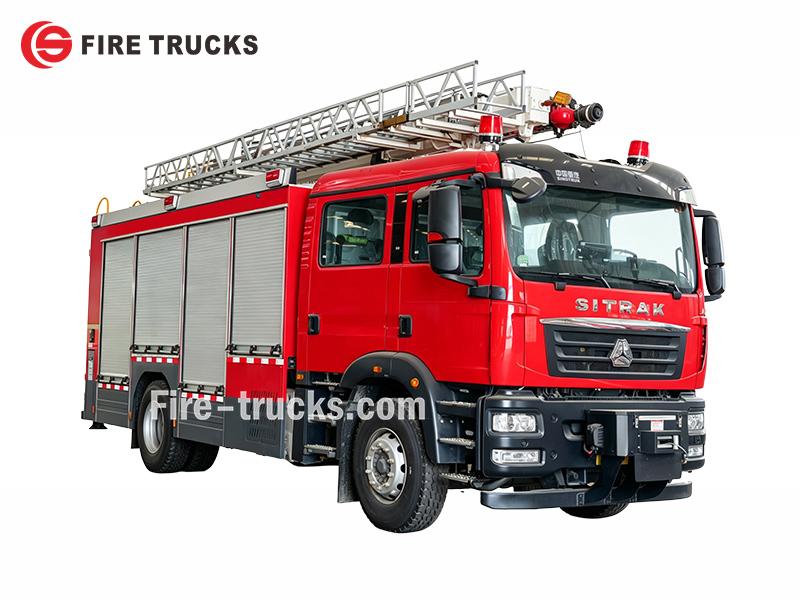

★ SITRAK 4×2 chassis with front winch (75 kN) and 18m telescopic ladder system for elevated access
★ CB10/60 fire pump (60 L/s) + PS60 roof monitor (60 L/s, water ≥60m, foam ≥55m) for fire suppression
★ Full firefighting equipment, including hoses, nozzles, foam gun, and basic tool kit for Class B fire fighting
» Ⅱ.Product Parameter :
| SITRAK HOWO 18M Fire Engine Ladder Truck | |||
| General | Work capacity | 5600L water + 2000L foam | |
| Truck chassis | SITRAK HOWO 4x2 | ||
| Engine Power | 350 HP(257 kW) / MC07H.35-60 | ||
| Fire pump | CB10/60 | ||
| Fire Monitor | PS60 | ||
| Maximum Speed | 110 km/h | ||
| Overall Dimensions L*W*H | 9190*2540*3770 mm | ||
| Gross Vehicle Weight | 18800 kg | ||
| Curb Weight | 14750 kg | ||
| Engine | Engine Model | MC07H.35-60 | |
| Fuel Type | Diesel | ||
| Power | 350 HP(257KW) | ||
| Emission Standard | Euro 6 | ||
| Displacement | 7360 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Drive Type | 4x2 | |
| Wheelbase | 4700 mm | ||
| Tire | 315/80R22.5 | ||
| Tire No. | 6 tires and 1 spare tire | ||
| Fire Pump | Model | CB10/60 | |
| Flux | 60L/s | ||
| Pressure | 1MPa | ||
| Max working pressure | 1.251MPa | ||
| Max allowable inlet pressure | 0.4MPa | ||
| Max suction height | 3m | ||
| Rated speed | 3916±50r/min | ||
| Speed ratio | 1:1.4 | ||
| Water diversion time | ≤50s | ||
| Fire Monitor | Model | PS60 | |
| Flow | 60L/s | ||
| Rated working pressure | 0.8MPa | ||
| Max working pressure | 1.2MPa | ||
| Range | Water | ≥60m | |
| Foam | ≥55m | ||
| Pitch rotation | - 35~+70° | ||
| Horizontal rotation | 0~360° | ||
| Ladder System | Max Working Height | 18 m | |
| Structure | Double row integrated cab with telescopic ladder | ||
| Application | Mid-rise building fire fighting, aerial rescue operations | ||
| Standard Configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||

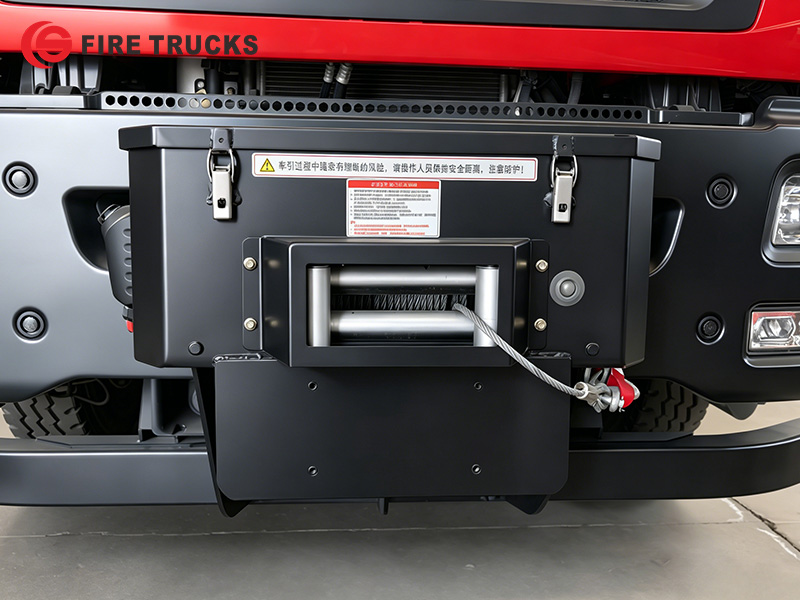

» Ⅲ.Front Towing Winch System :

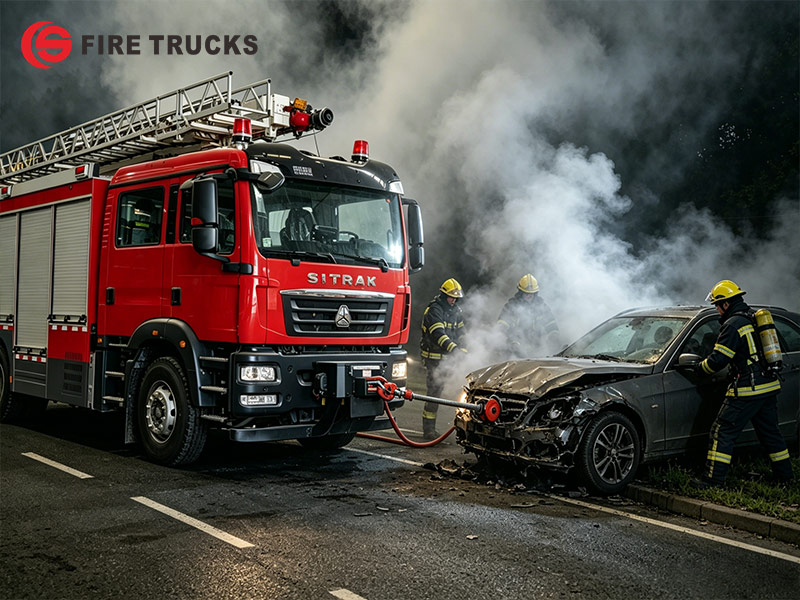

★ Front-mounted towing winch with 75 kN max pull, 38m × φ13mm wire rope, 8° vertical angle and 5° horizontal angle for complex terrain
★ 12V/24V DC power, 430:1 dual-stage planetary gear reduction (spur gear + planetary), high-strength powder metallurgy gears for heavy-duty reliability
★ Series-wound motor drive with reliable braking system and manual rope release via clutch—easy operation and safe control

| Towing Capacity: | 16800lbs (7938 kgs) |
| Motor: | 5.4kW/7.1hp(12v);6.0kW/7.9hp(24v) |
| Reduction Ratio: | 430:1 |
| Steel Rope Size: | Φ15/32"*87'(Φ12mm*26.5m) |
| Roller Size: | Φ3.5"*8.6"(Φ89mm*219mm) |
| Overall Dimension: | 24.4"*8.4"*11.4"(620mm*214mm*290mm) |
| Installation Dimension: | 10"*4.5"(254mm*114.3mm) |
| Kure Weight: | 147.7Ibs(67kgs) |

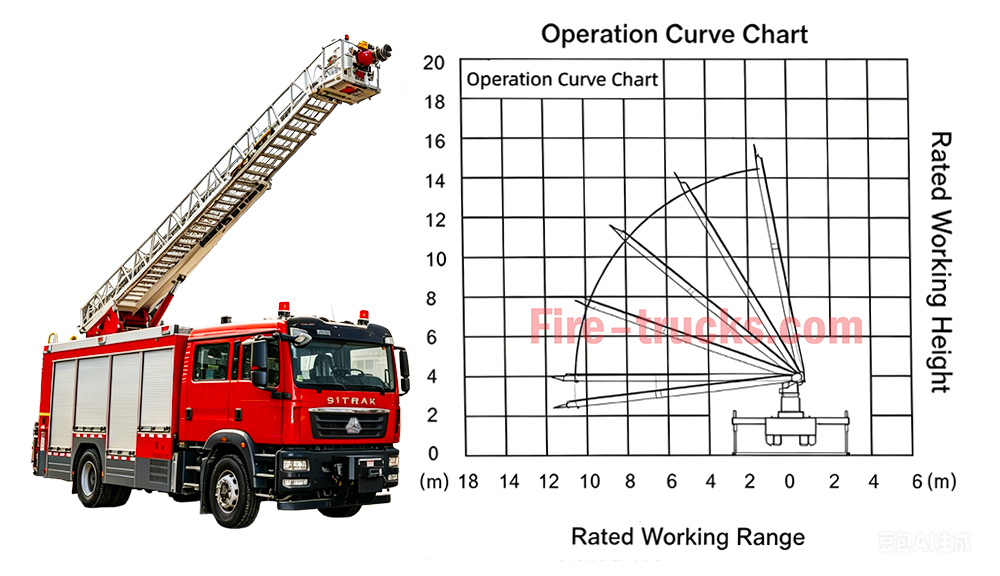

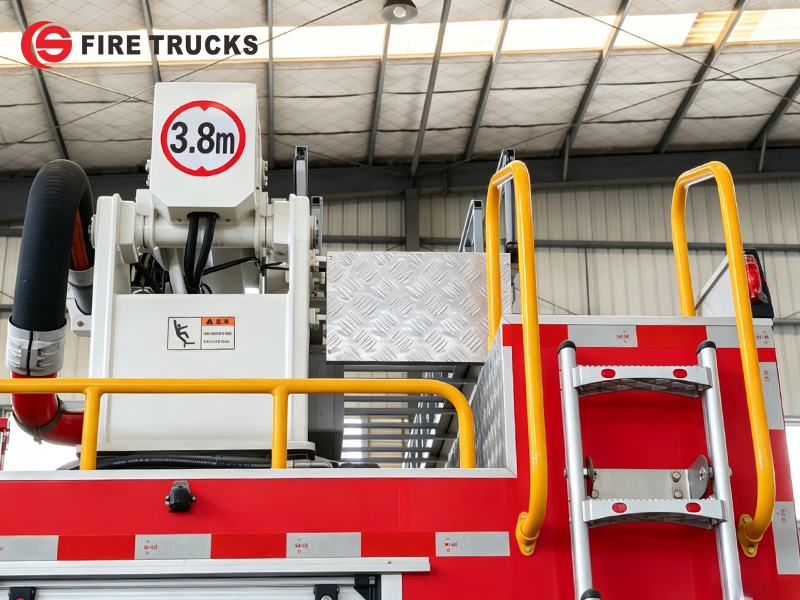

» Ⅳ.Aerial Ladder System :
★ 18m telescopic ladder system with maximum working height of 18 meters, built from high-strength steel for superior rigidity and safe aerial access.
★ Ladder tip equipped with PS60 monitor delivering 60 L/s flow, water range ≥60m and foam range ≥55m for elevated fire attack.
★ Continuous 360° turntable rotation allows flexible positioning; ladder can be raised, lowered, and extended smoothly with hydraulic control.
★ Ladder movement time responsive to hydraulic input; equipped with manual override options for emergency use.
★ Integrated safety protections: overload warning, tilt cutoff, collision avoidance, and outrigger interlock for stable operation at height.

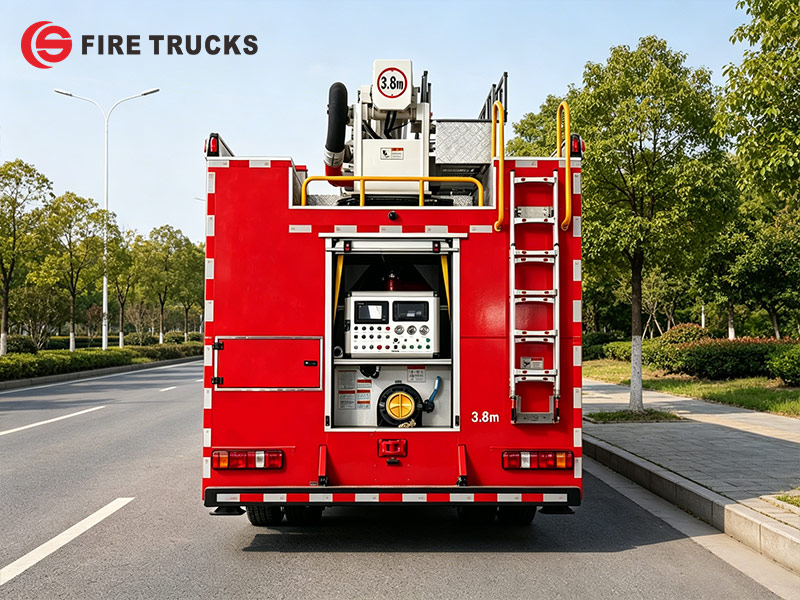

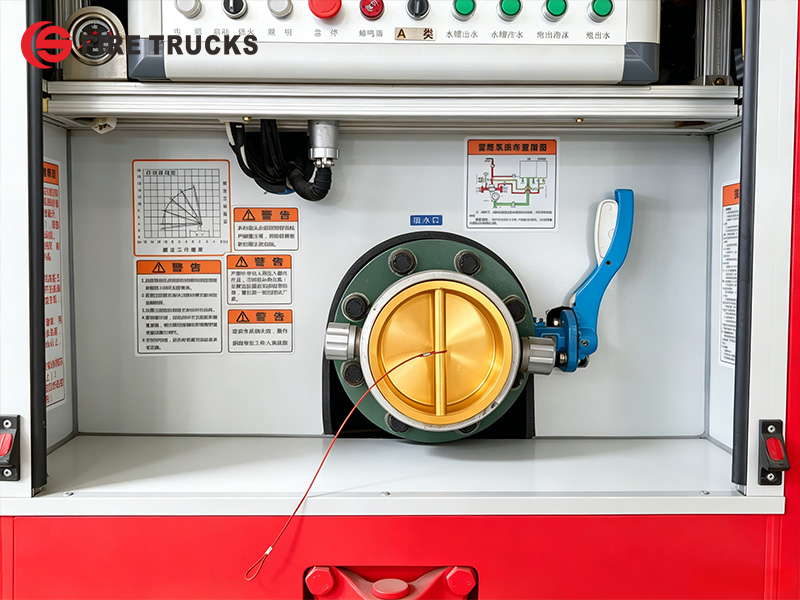

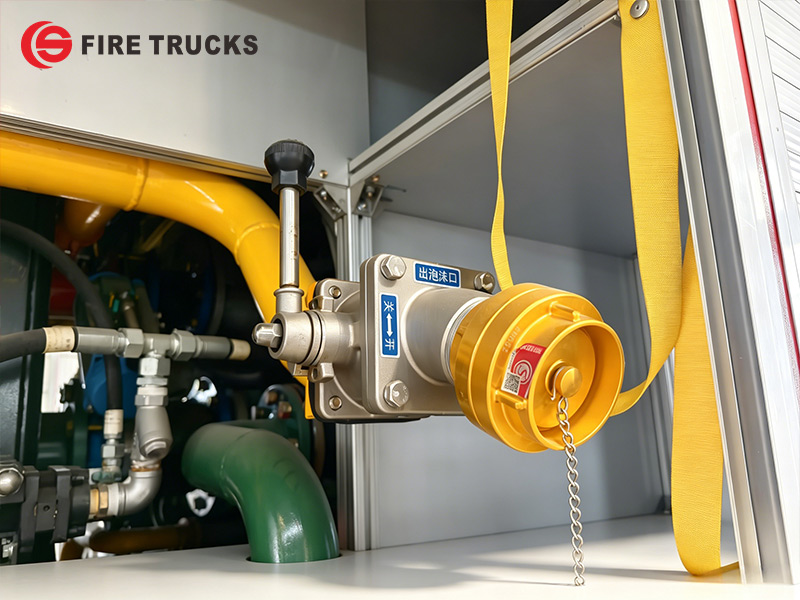

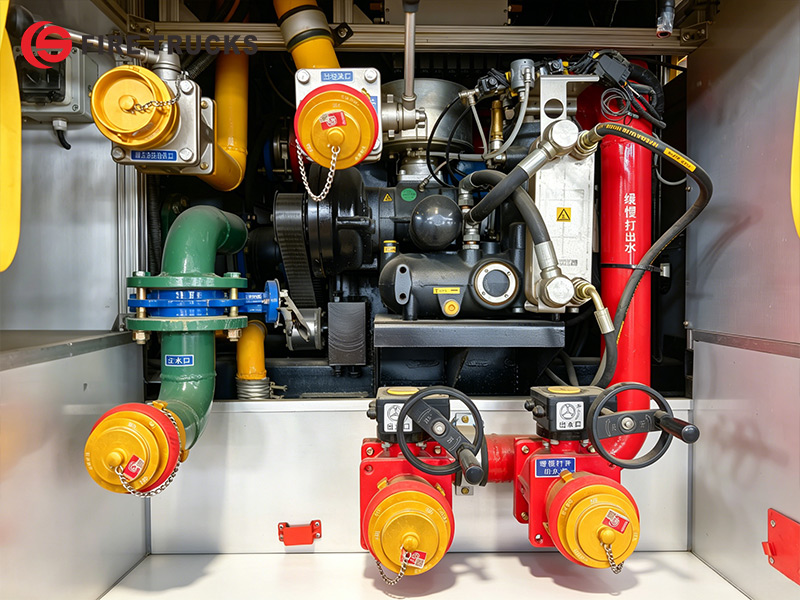

» Ⅴ.Fire Pump System :
Fire Pump:

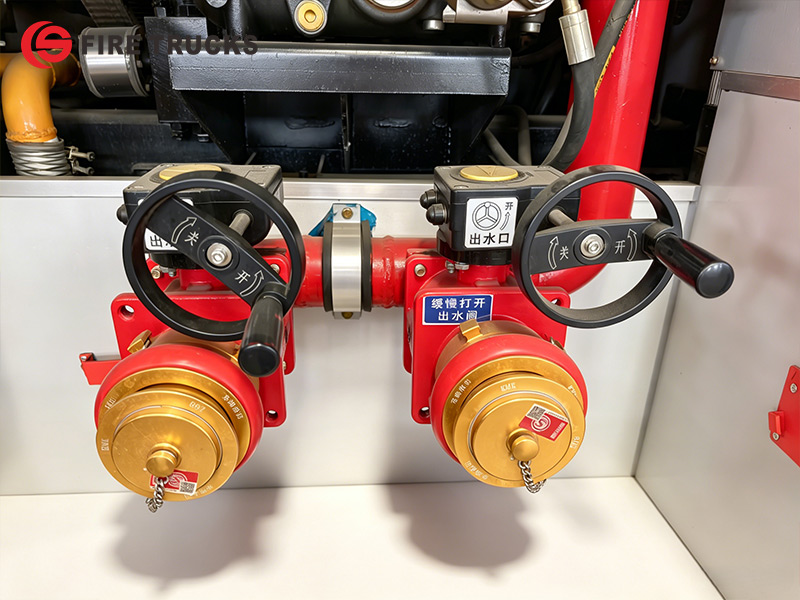

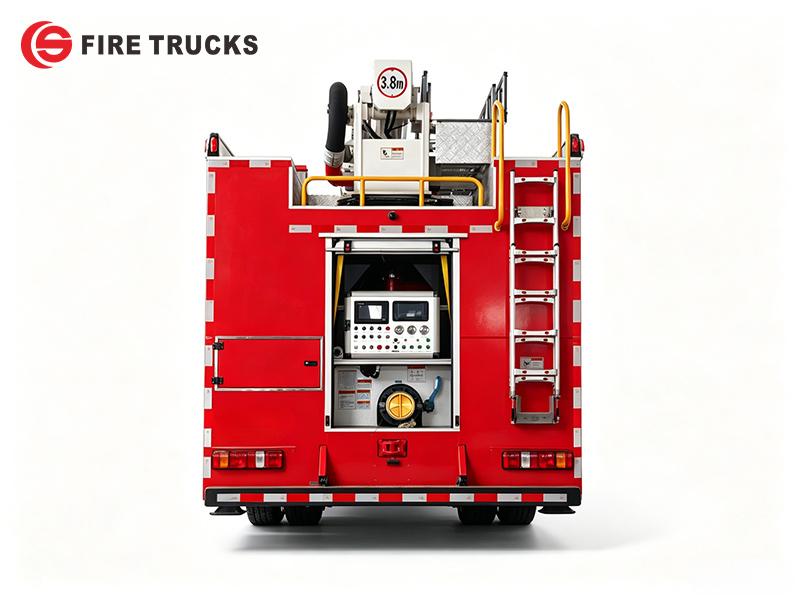

A CB10/60 fire pump with a rated flow of 60 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses and monitors can deliver water or foam effectively over long distances for fire suppression.

|
Fire Pump Model |
Flow |
Pressure |
Max Working Pressure |
Max Allowable Inlet Pressure |
|
CB10/60 |
60L/s |
1.0MPa |
1.251 MPa |
0.4MPa |

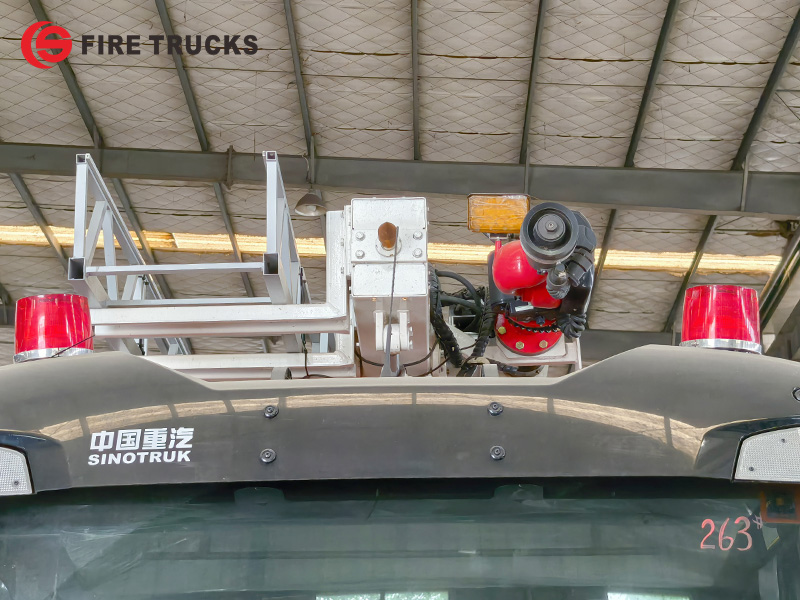

» Ⅵ.Fire Monitor System :
The PS60 fire monitor is mounted on the ladder tip. It delivers a flow rate of 60 L/s with a water range of ≥60 m and a foam range of ≥55 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations at height.

| Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
| PS60 | 60L/s | Water≥60m Foam ≥55 m | 1.0MPa | -35°~+70° |
0~360° |
» Ⅶ.Firefighting Equipment :

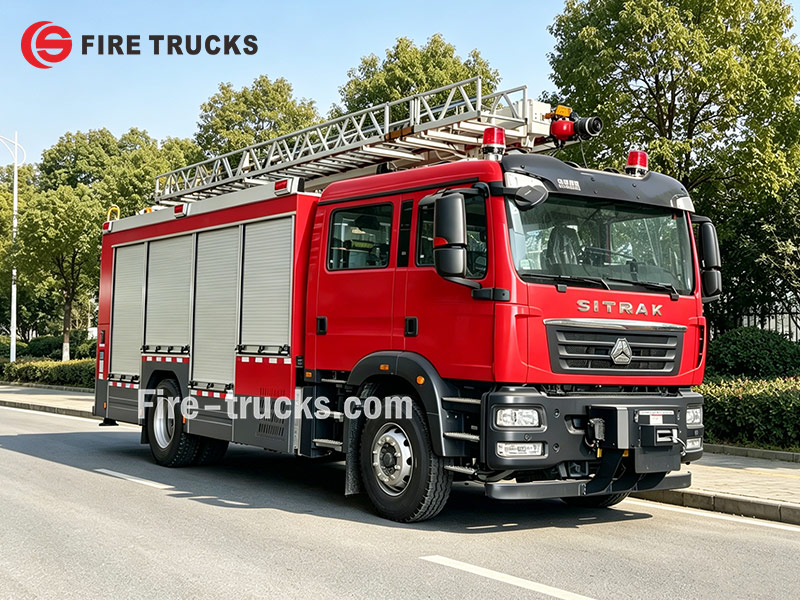

• Equipment Room
Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.

• Pump Room: Equipped with fire hoses, water collectors, filters, fire nozzles, foam guns, suction hose wrenches, reducers, etc.

The SITRAK HOWO 18m aerial ladder fire truck comes with a rear-mounted CB10/60 fire pump and a ladder tip mounted PS60 monitor. The water tank holds 5,600 liters, and the foam tank holds 2,000 liters, sitting on a sturdy SITRAK 4×2 chassis powered by a 350 HP MC07H.35-60 engine. Standard gear includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit. Full specifications are listed below:

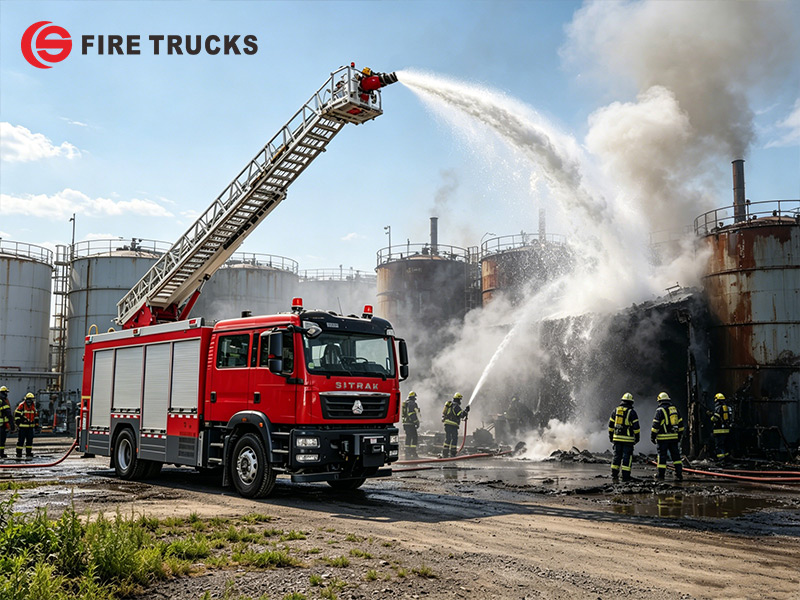

» Ⅷ.Application scenarios :
