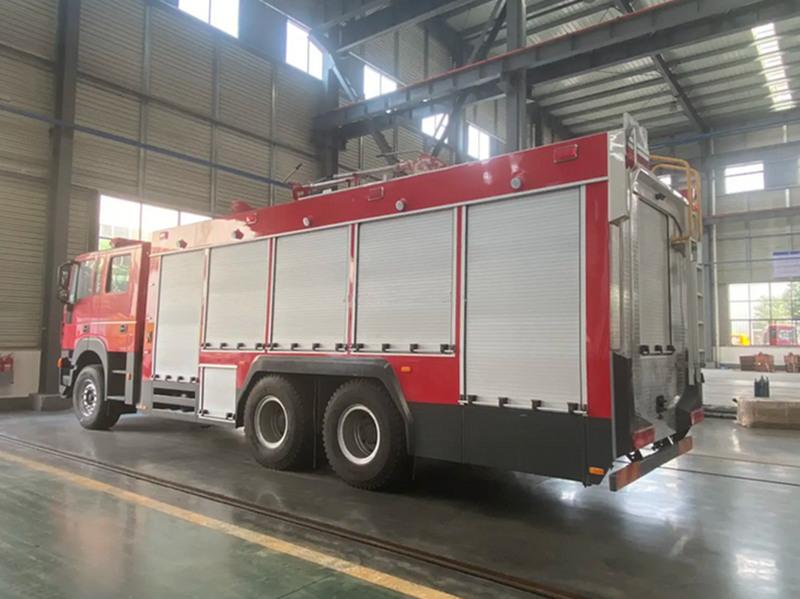

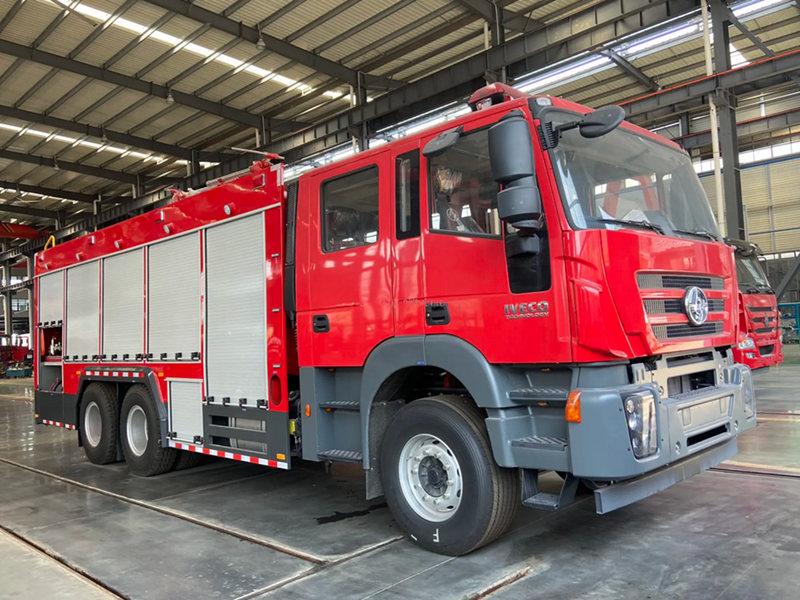

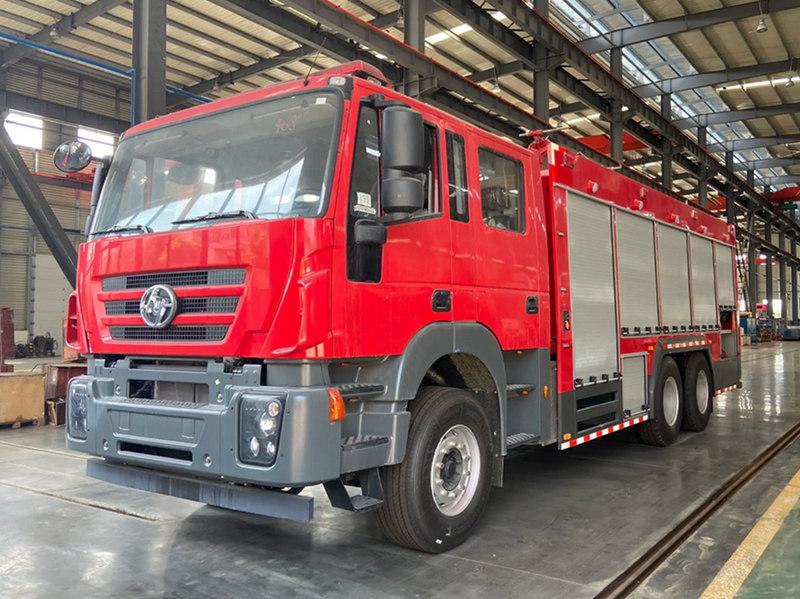

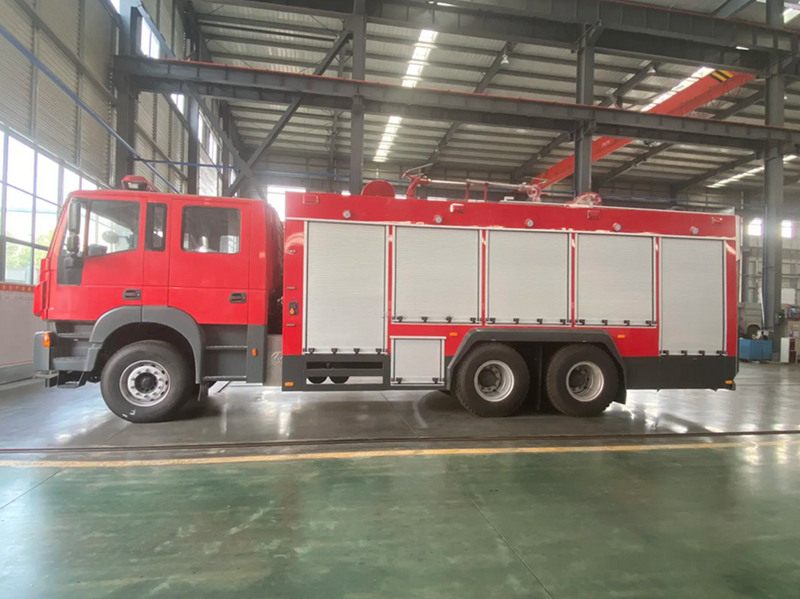

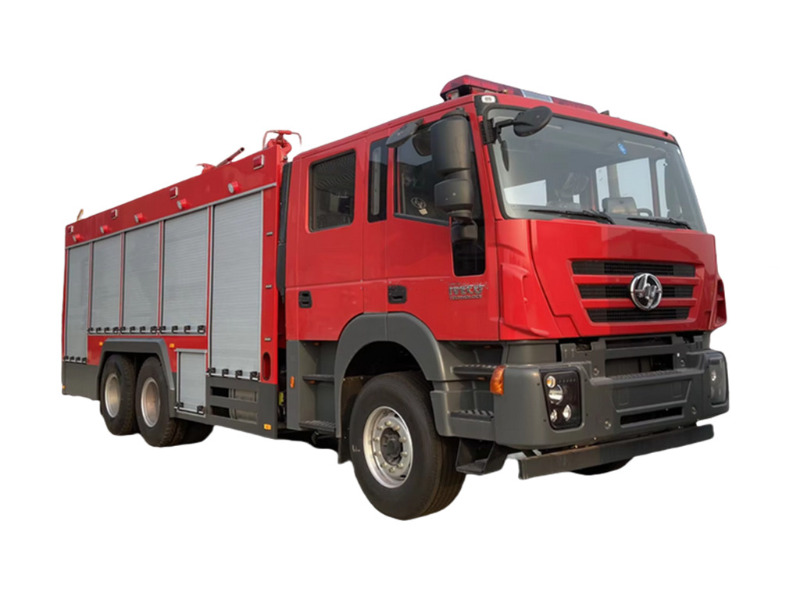

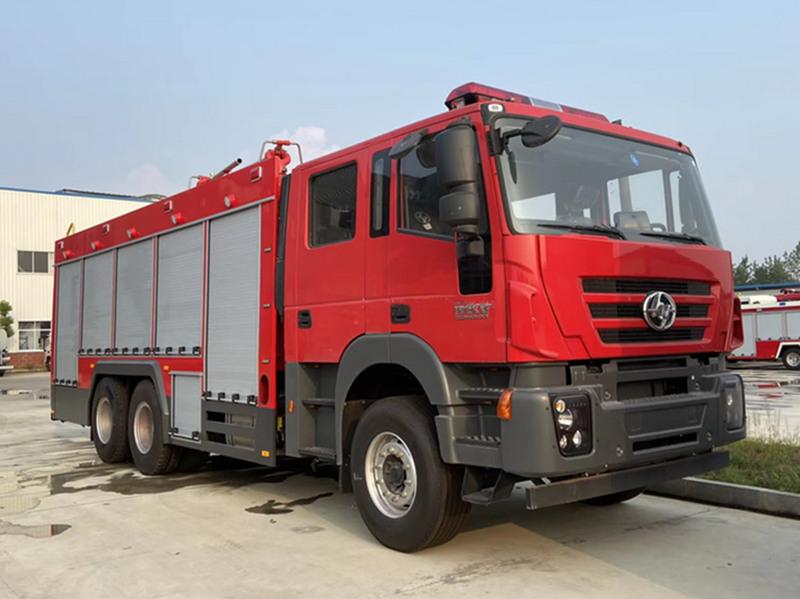

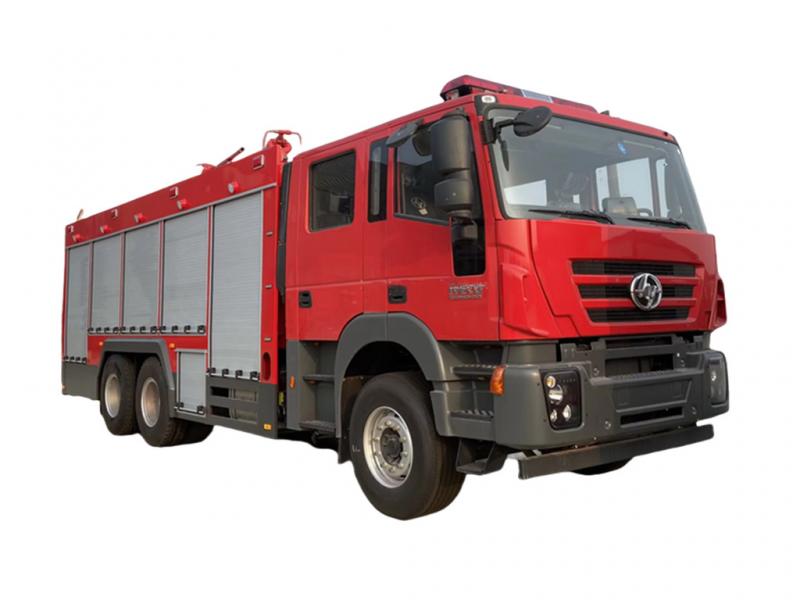

IVECO 6×4 water foam fire engine truck

IVECO 6×4 water foam fire engine truck

The IVECO 6×4 water tank foam fire truck, with its powerful firefighting capabilities and versatile design, is an ideal choice for fire departments. Its 13,000-liter water tank and 3,000-liter foam tank, combined with the high-efficiency performance of the CB10/60 fire pump and PL48 fire monitor, ensure outstanding performance in various fire scenarios. Whether it is chemical fires, oil depot fires, airport fires, urban firefighting, forest fires, or industrial fires, the IVECO 6×4 water tank foam fire truck can provide reliable protection.

  • Truck Model:

    PT5332GXFPM
  • Tanker Structure:

    Carbon steel and stainless steel
  • Work capacity :

    60 meters
  • Wheelbase:

    4600+1400 mm
  • Axle drive:

    6×4
  • Engine Power:

    380 HP
  • Engine Model:

    WP10.380E32
  • Fire Pump:

    CB10/60
  • Fire Monitor:

    PL48, Flow Rate 48L/S
  • Remark:

    13000L water tank and 3000L foam tank
Facebook Linkedin Youtube Twitter Pinterest

The IVECO 6×4 tanker fire truck is a high-performance firefighting vehicle specifically designed to tackle large-scale fires and complex rescue missions. Built on the IVECO 6×4 heavy-duty chassis, it is equipped with a powerful powertrain system and advanced firefighting equipment, enabling it to respond quickly and efficiently complete firefighting tasks in various complex environments. The iveco fire engine vehicle's overall dimensions are 10,350 × 2,550 × 3,565 mm, with a gross vehicle weight of 32,200 kg and a rated load capacity of 16,550 kg, offering excellent load-bearing capacity and stability. The vehicle's water tank capacity of 13,000 liters and foam tank capacity of 3,000 liters make it highly effective in large-scale fires, particularly suitable for high-risk locations such as chemical industrial parks, oil depots, and airports.





The core firefighting equipment of the IVECO 6×4 foam fire truck includes a large-capacity water tank, foam tank, high-efficiency fire pump, and multifunctional fire monitor. The water tank has a capacity of 13,000 liters and is made of Q235 carbon steel, offering high strength and corrosion resistance, enabling long-term storage of a large water supply to ensure sufficient water availability at fire scenes. The foam tank has a capacity of 3,000 liters and is made of stainless steel, providing excellent chemical corrosion resistance, making it suitable for storing various types of foam firefighting agents.

The IVECO fire truck is equipped with a CB10/60 fire pump, which has a rated flow of 60 liters per second and a rated pressure of 1.0 MPa, capable of delivering a large volume of water in a short time to meet the demands of large-scale fires. The fire pump has a maximum suction depth of 7 meters, allowing it to draw water from deep sources and adapt to various complex environments. The fire monitor, model PL48, has a rated flow of 48 liters per second, with a water jet range of over 60 meters and a foam jet range of over 55 meters, ensuring precise targeting even during long-distance firefighting operations.



● 30 years experience in fire truck designing
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best firefighting truck factory
● Build strict QC team to guarantee the quality





Product Specifications



IVECO 6×4 firefighting truck specifications

Product name

IVECO 6x4 fire truck

Overall dimension (L x W x H)

10350×2550×3565 mm

GVW(Kg)

32200 (Kg)

Curb weight

15200 (Kg)

Rated load weight

16550 (Kg)

Chassis Specification

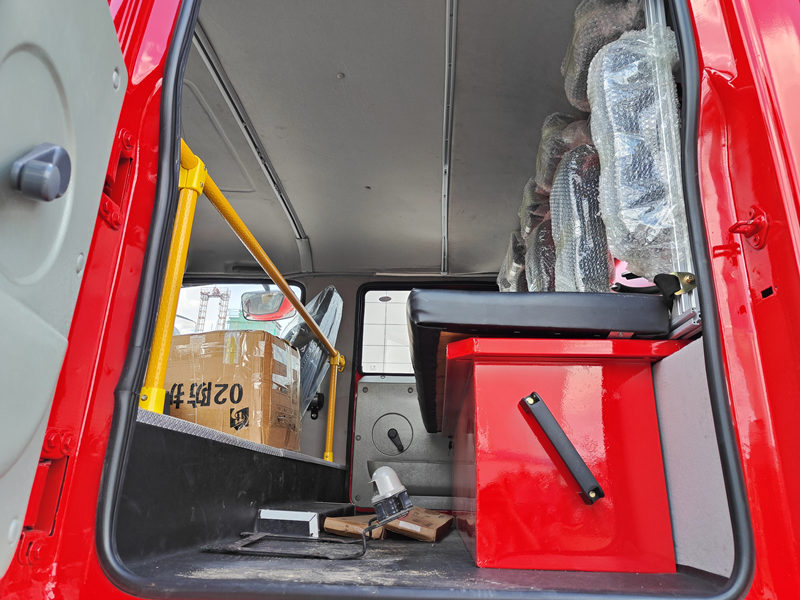

Cabin

Crew cab, 2+4 seats, air conditioner

Drive type

4x2

Wheelbase

4600+1400 mm

Engine

Model

WP10.380E32

Maximum horse power

380 hp

Displacement

9726 cc

Type

Diesel, 6 cylinders in-line, turbocharged inter-cooled

Gear box

Manual, 12 forwards and 2 reverse

Tyres

12.00R20, 10+1 pieces

Upper body specification

Tank

Water Tank Capacity

13000 liter

Foam Tank Capacity

3000 liter

Water Tank Material

Q235 carbon steel

Foam Tank Material

Stainless steel

Fire pump

Model

CB10/60

Rated flow

60L/s



Rated pressure

1.0 Mpa

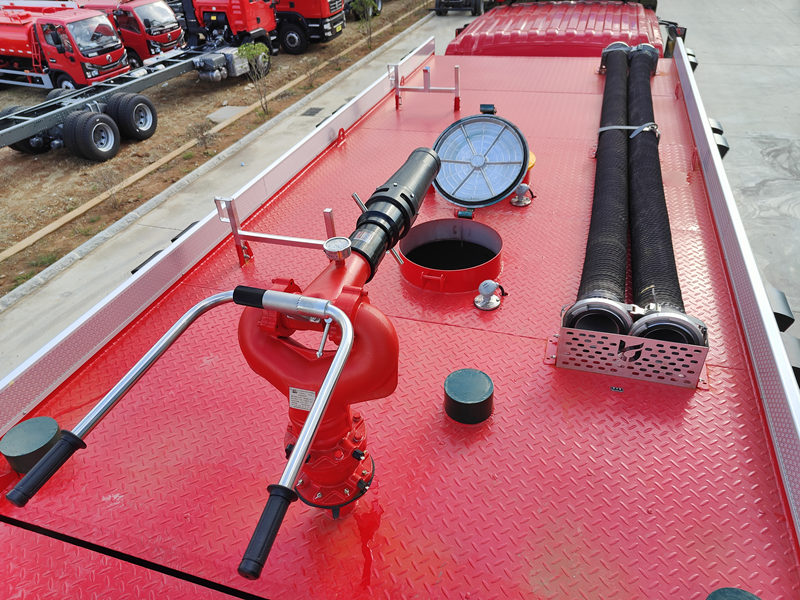

Fire monitor

Model

PL48

Flow

48L/s

Range

Water range: ≥60m, foam range: ≥55m

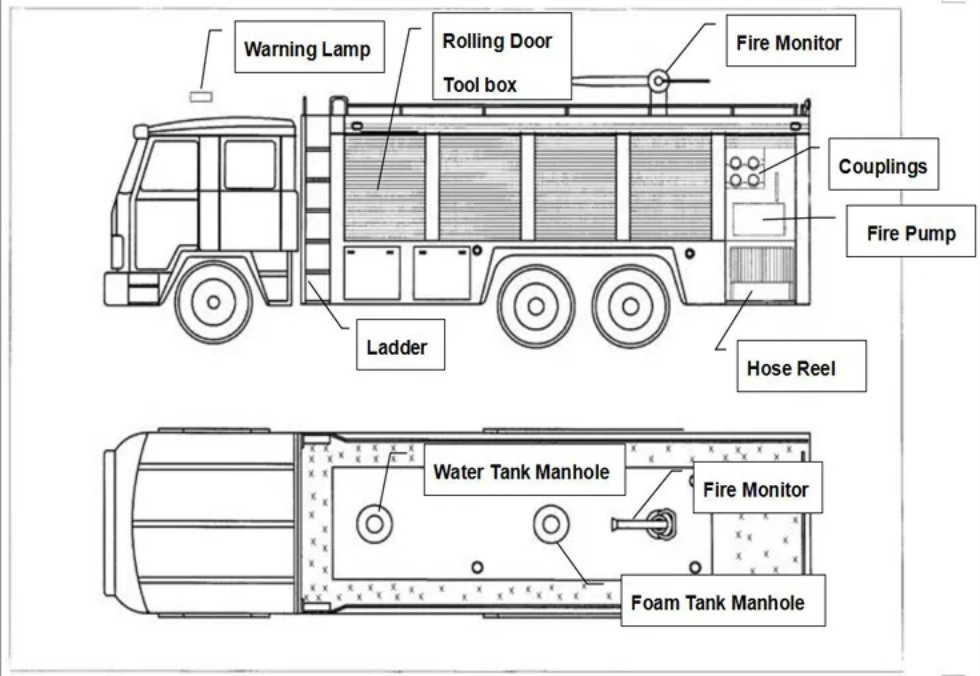

Upper body structure of IVECO foam fire truck



Main frame

The main frame is constructed using high-quality square tubes welded together, with exterior decorative panels made of welded carbon steel plates. The roof is anti-slip and walkable, with flip steps on both sides designed for anti-slip use.

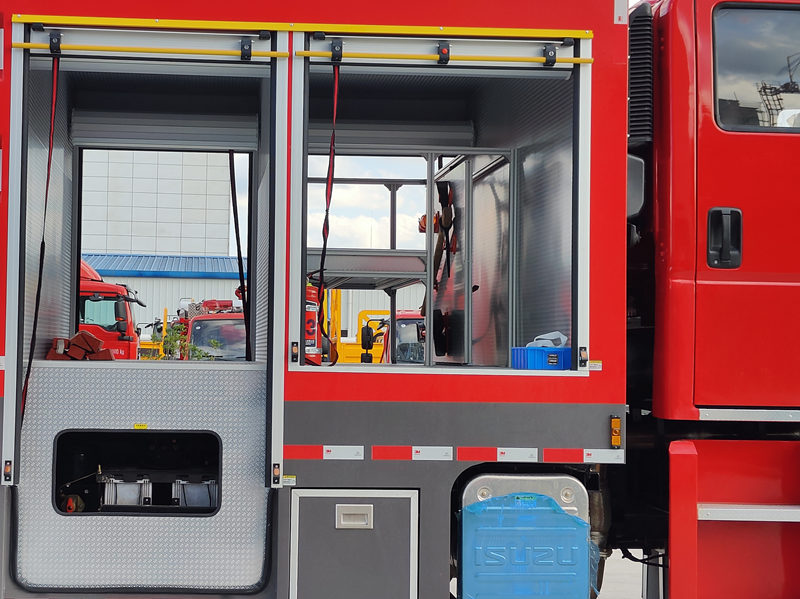

Equipment Compartment

Located at the rear of the crew cabin, the equipment compartment features aluminum alloy roll-up doors on both sides, with interior lighting. Storage boxes are installed inside the compartment as needed. The lower side skirts are equipped with toolboxes and roll-up doors for storing small tools.

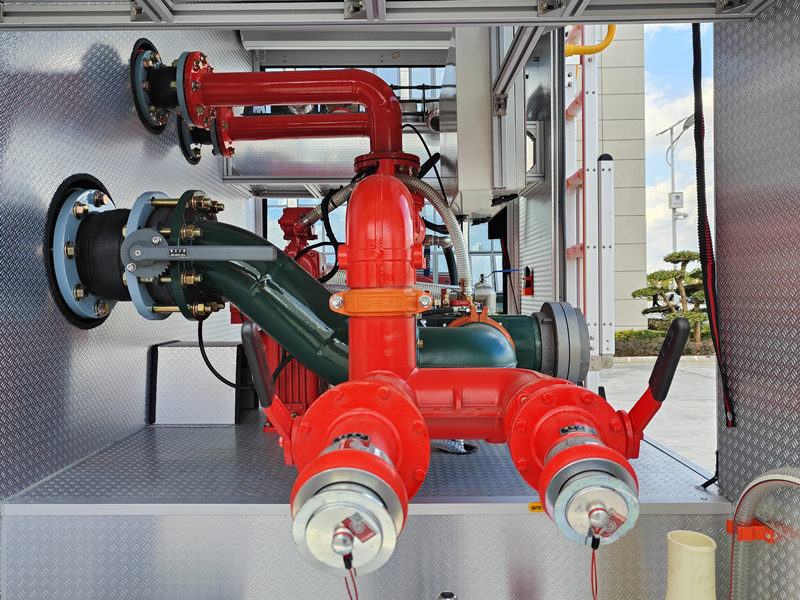

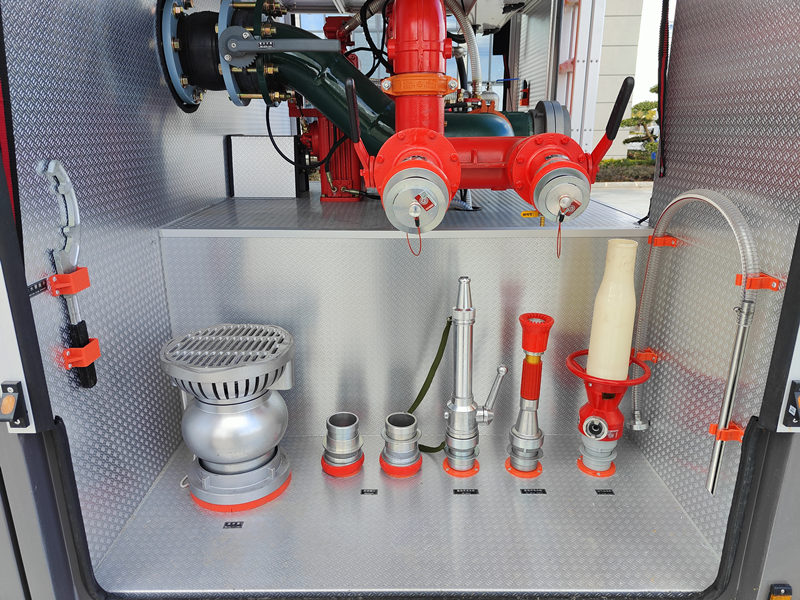

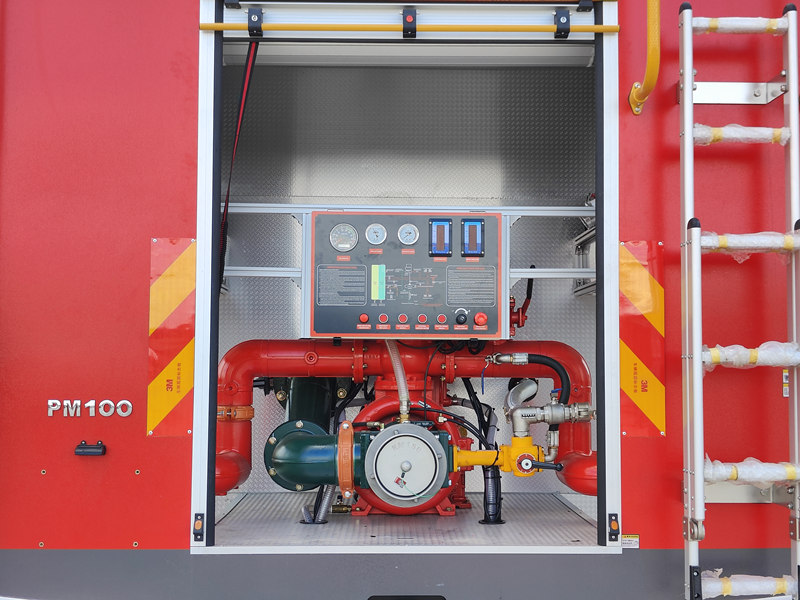

Pump Room

Situated at the rear of the vehicle, the pump room is equipped with aluminum alloy roll-up doors on both sides and the rear, along with interior lighting. Commonly used equipment can be stored on both sides of the pump room.

Ladder and Handles

The rear ladder is a two-section flip ladder made of aluminum alloy, with a maximum ground clearance of 350mm when in use. The handrails are made of anti-slip grooved round steel pipes with a powder-coated surface.

Water Tank

Manhole: 1 × DN470 manhole with a quick-lock/release mechanism.

Overflow Port: 1 × DN65 overflow port.

Drain Port: 1 × DN40 drain port with a ball valve.

Water Inlet: 1 × DN65 water inlet on each side of the water tank.

Inlet/Outlet Ports: 1 × DN150 inlet pipe from the water tank to the pump, with a valve that can be controlled pneumatically or manually; 1 × DN65 filling pipe from the pump to the water tank, with a valve that can be controlled pneumatically or manually.

Foam Tank

Manhole: 1 × DN460 manhole with a quick-lock/release mechanism and an automatic pressure relief device.

Overflow Port: 1 × DN40 overflow port.

Drain Port: 1 × DN40 drain port for the foam tank.

Foam Outlet: 1 × DN40 outlet pipe from the foam tank to the pump.
